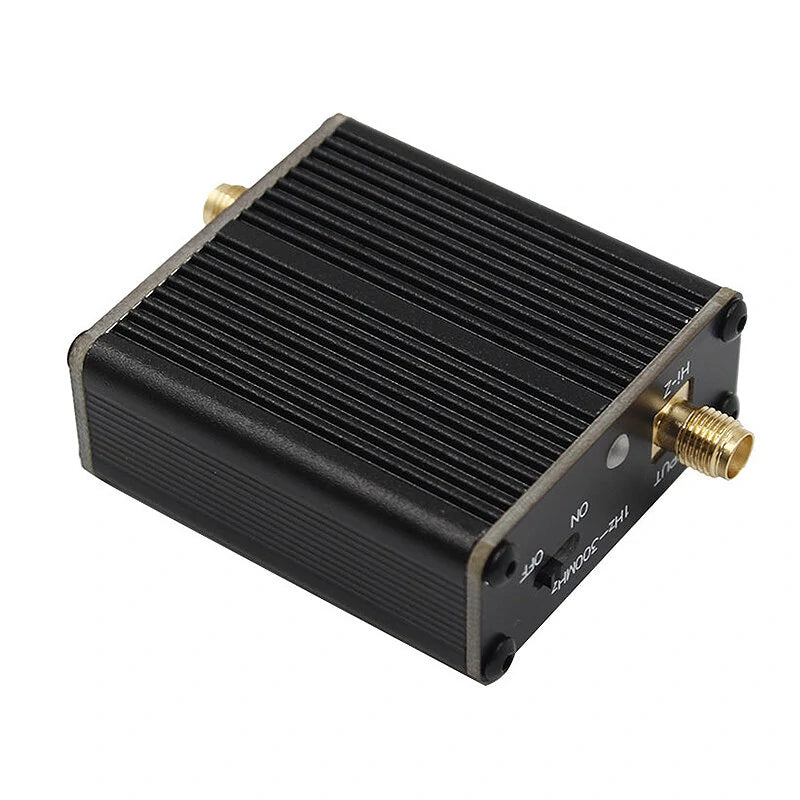

High Impedance Amplifier for SDR Walkie Talkie with Small Loop & Donut Antennas - Compatible with HackRF One
High Impedance Amplifier for SDR Walkie Talkie with Small Loop & Donut Antennas - Compatible with HackRF One
Regular price
$14.59 USD
Regular price
$0.00 USD
Sale price
$14.59 USD
Shipping calculated at checkout.
Estimated Delivery: -
Quantity
Couldn't load pickup availability
Guaranteed secure & safe checkout.
Specification:

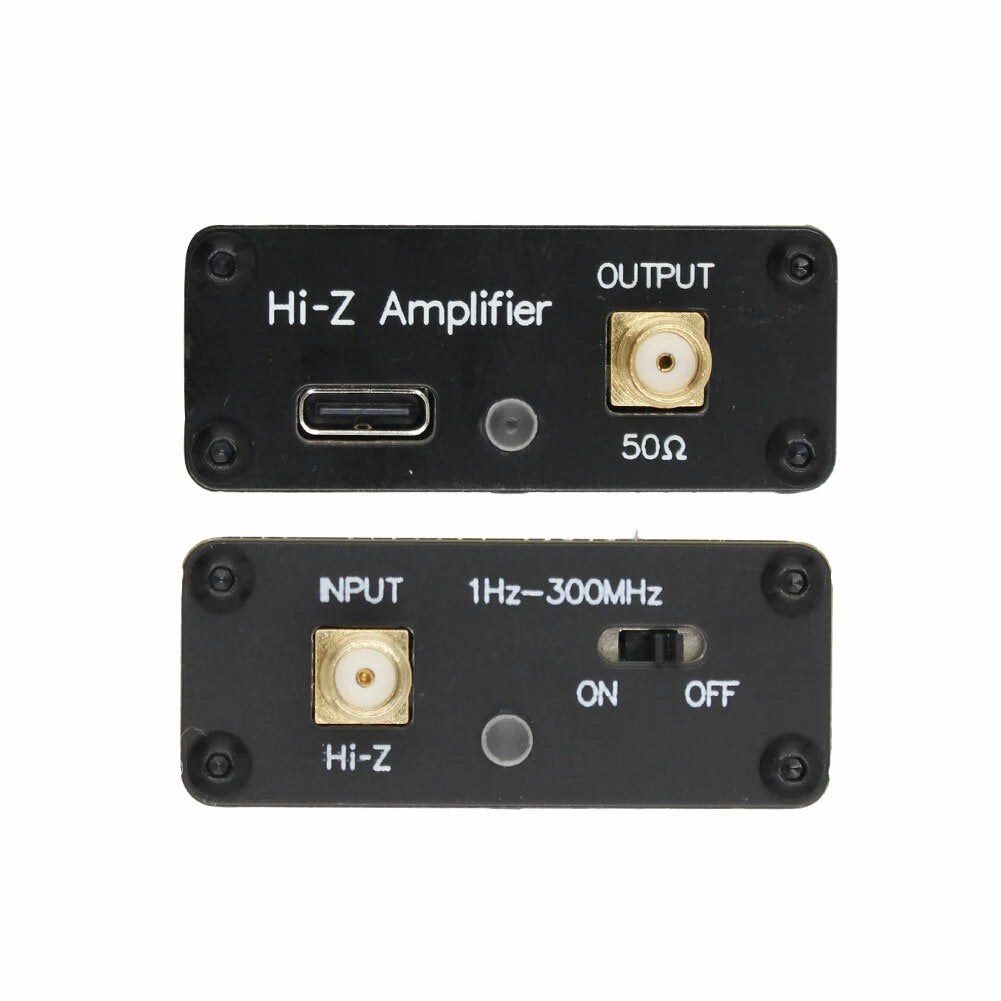

Input Impedance: 1 Megaohm (1MΩ)
Output Impedance: 50 Ohms (50Ω)
Gain: 0 dB
Bandwidth: 300 MHz
Power Supply: 5V
Built-in Battery Capacity: 800mAh
Charging Current: 600mA
Operating Time: Over 24 hours
Dimensions: 50 x 45 x 18mm
Features:
Input Impedance: 1 Megaohm (1MΩ)
Output Impedance: 50 Ohms (50Ω)
Gain: 0 dB
Bandwidth: 300 MHz
Power Supply: 5V
Built-in Battery Capacity: 800mAh
Charging Current: 600mA
Operating Time: Over 24 hours
Dimensions: 50 x 45 x 18mm
Features:
- High Impedance Matching: This amplifier transforms high input impedance to a standard 50-ohm output impedance, ideal for impedance matching and isolation in various passive antenna reception setups, such as loop, whip, and magnetic rod antennas.

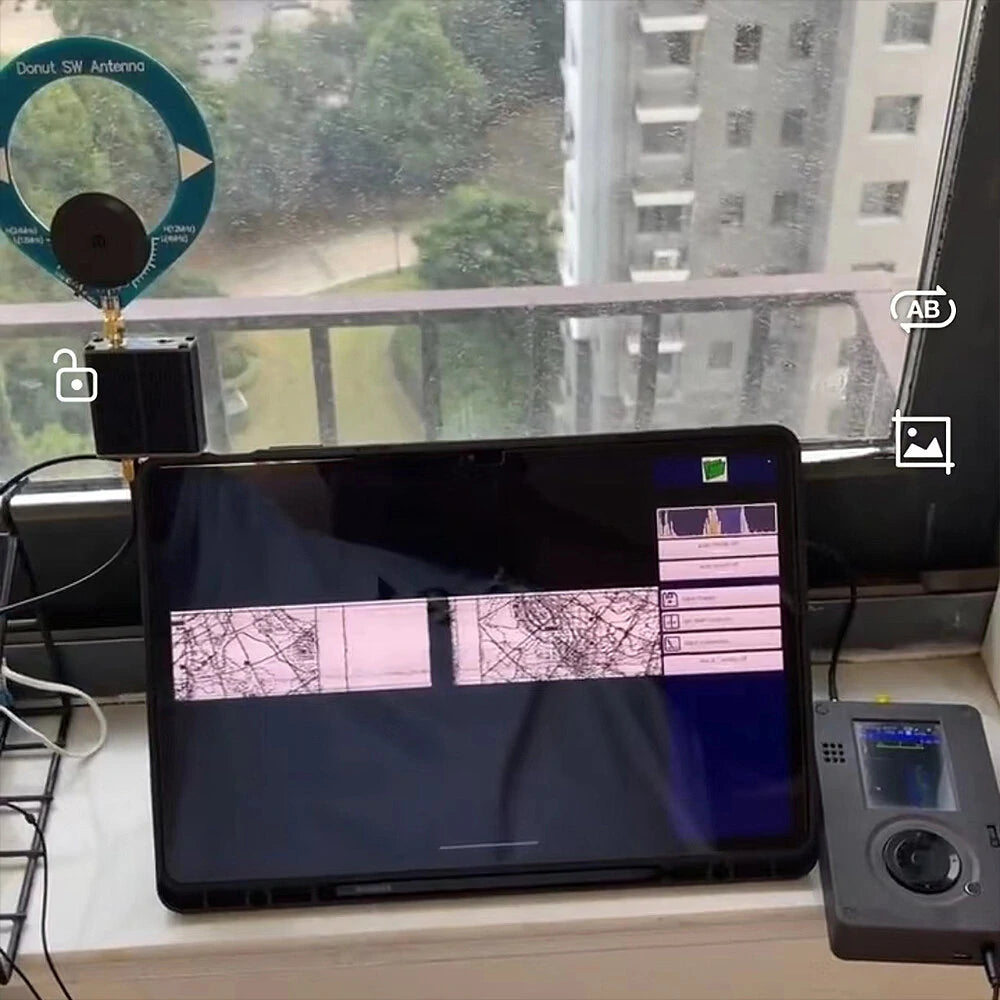

- Versatile Compatibility: Suitable for a wide range of radio receivers and devices, including SDRs, walkie-talkies, and HackRF One. Compatible with multiple antenna types, such as Donut antennas, Mini Loops, and tuned loop antennas.
- Enhanced Reception Performance: The high input impedance maximizes energy extraction from the input antenna, minimizing signal loss due to unstable input antenna impedances, thereby significantly improving reception performance.
- Wide Bandwidth: With a 300 MHz bandwidth, this amplifier can handle signals across a broad frequency range, making it versatile for various applications.
- Long-lasting Operation: The 800mAh built-in battery provides extended operating time, exceeding 24 hours on a single charge, ensuring uninterrupted use during prolonged field operations.
- 1x High Impedance Amplifier
