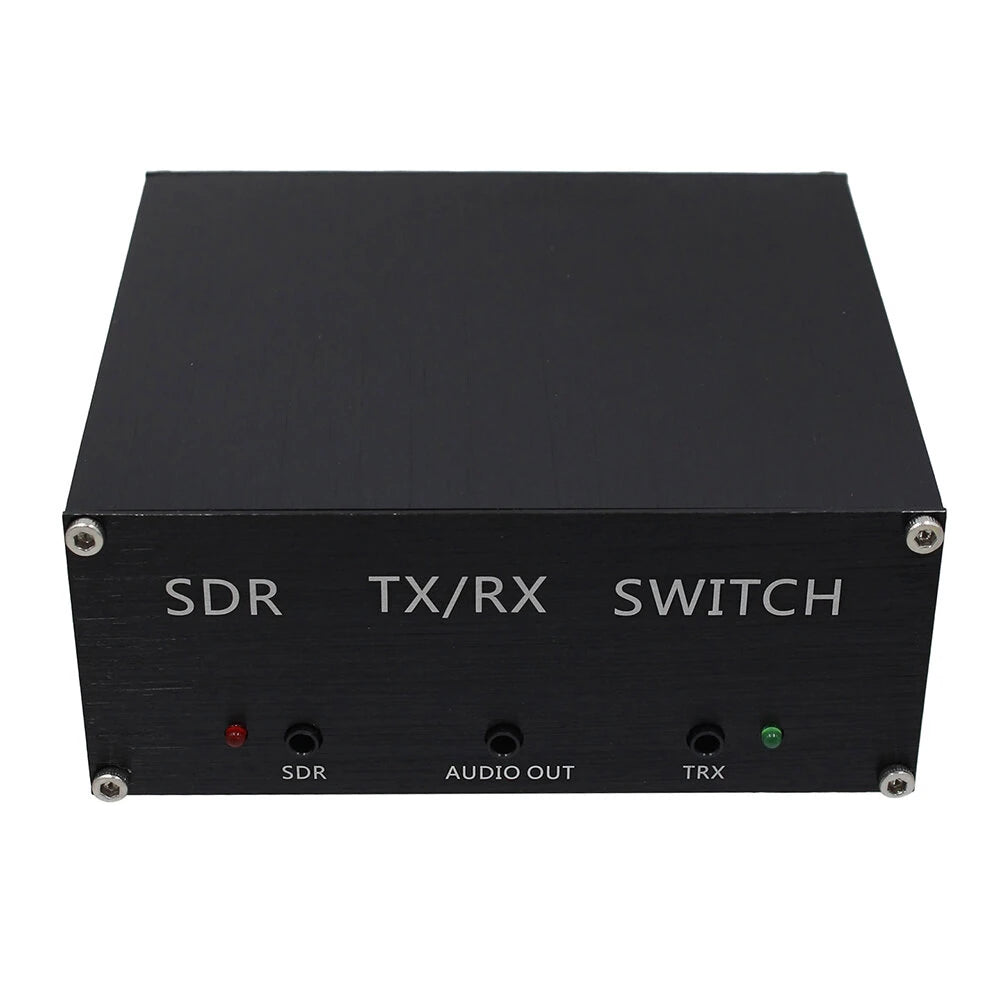

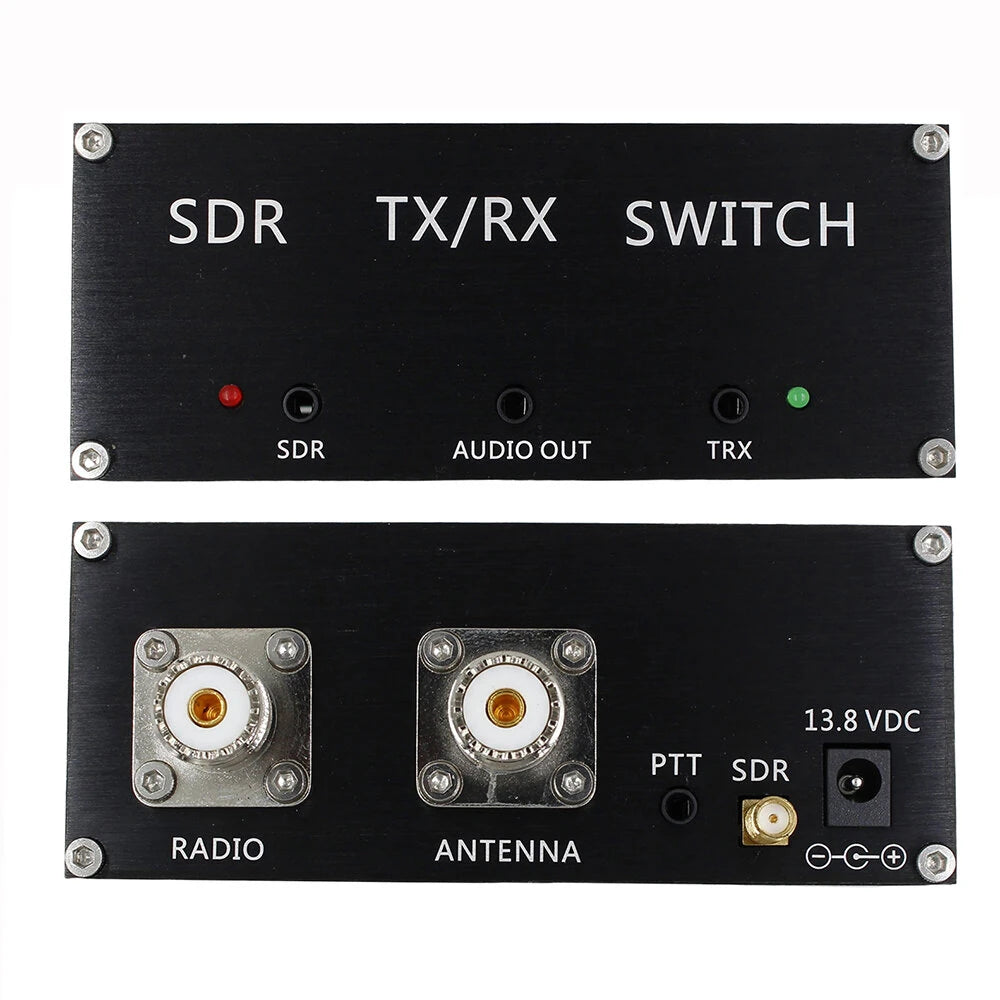

High Power 100W SDR Transceiver Switch Box, DC-160MHz, Low Insertion Loss, Quick Response, RF Isolation, Aluminum Alloy

High Power 100W SDR Transceiver Switch Box, DC-160MHz, Low Insertion Loss, Quick Response, RF Isolation, Aluminum Alloy

Regular price $49.99 USD
Regular price $0.00 USD Sale price $49.99 USD
Sale Sold out
Shipping calculated at checkout.
Plug

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos

Features:

  • Wide Frequency Range: Operates within a broad frequency range of DC to 160MHz, accommodating a variety of broadcasting needs.
  • High Power Handling: Capable of handling up to 100W maximum transmission power, ensuring robust signal performance.
  • Quick Response Time: Offers impressive ON time of less than 20ms and release time under 190ms, perfect for rapid signal switching.
  • Optimal RF Isolation: Provides greater than 38dB RX isolation at 144MHz, ensuring minimal interference and clear signal reception.
  • Solid Construction: Constructed from high-quality aluminum alloy, providing excellent heat dissipation and long-lasting operational stability.

Specifications:

  • Impedance: 50Ω
  • Frequency Range: DC – 160MHz
  • Maximum TX Power: 100W
  • RF Sense Threshold: Details not provided
  • ON Time: Less than 20ms
  • Release Time: Under 190ms
  • Insertion Loss: Details not provided
  • RX Isolation: > 38dB @ 144MHz (40dB typical)
  • Gas Discharge Protection: Yes
  • Power Supply: 13.8V DC 200mA
  • Material: Aluminum Alloy
  • Dimensions: 125mm x 112mm x 51mm
  • Optional Plug Type: EU Plug / US Plug

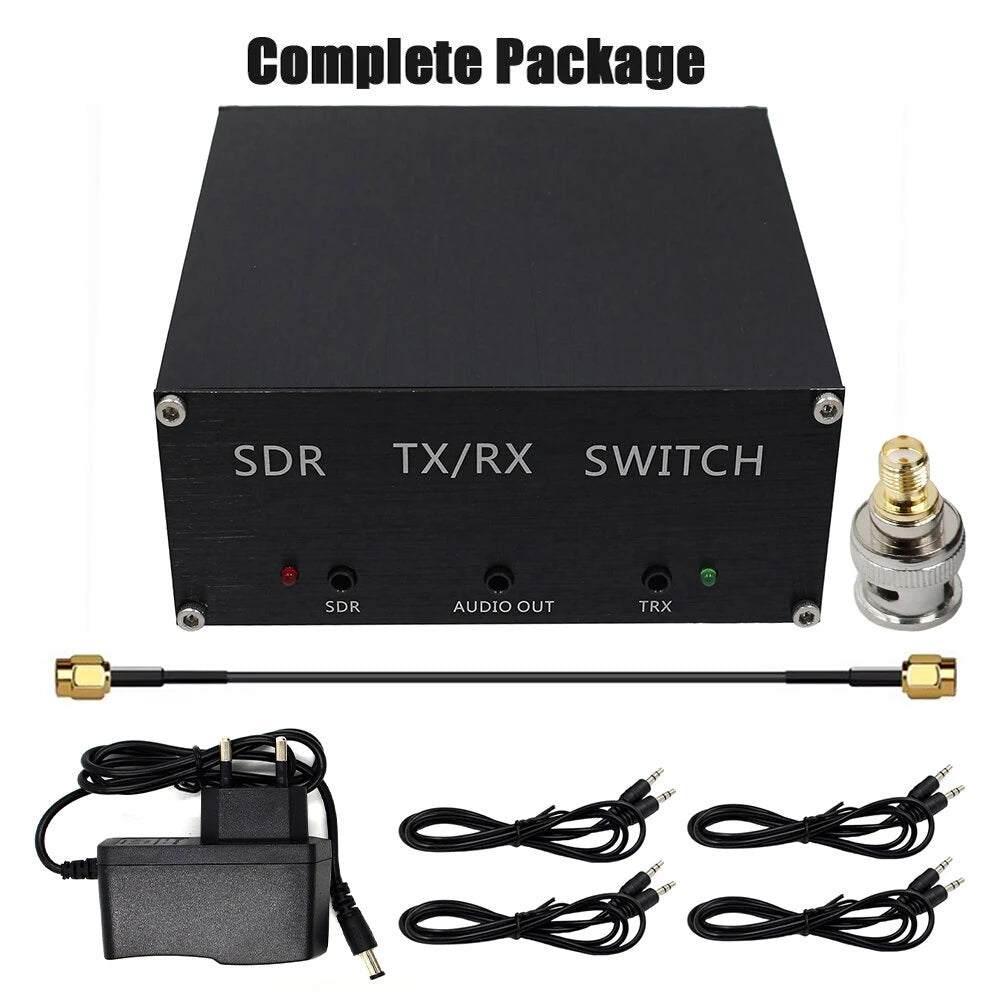

Package Included:

  • 1 x SDR Transceiver Switch Box
  • 1 x Power Cable (Plug Type As Your Choice)
  • 1 x User Manual
