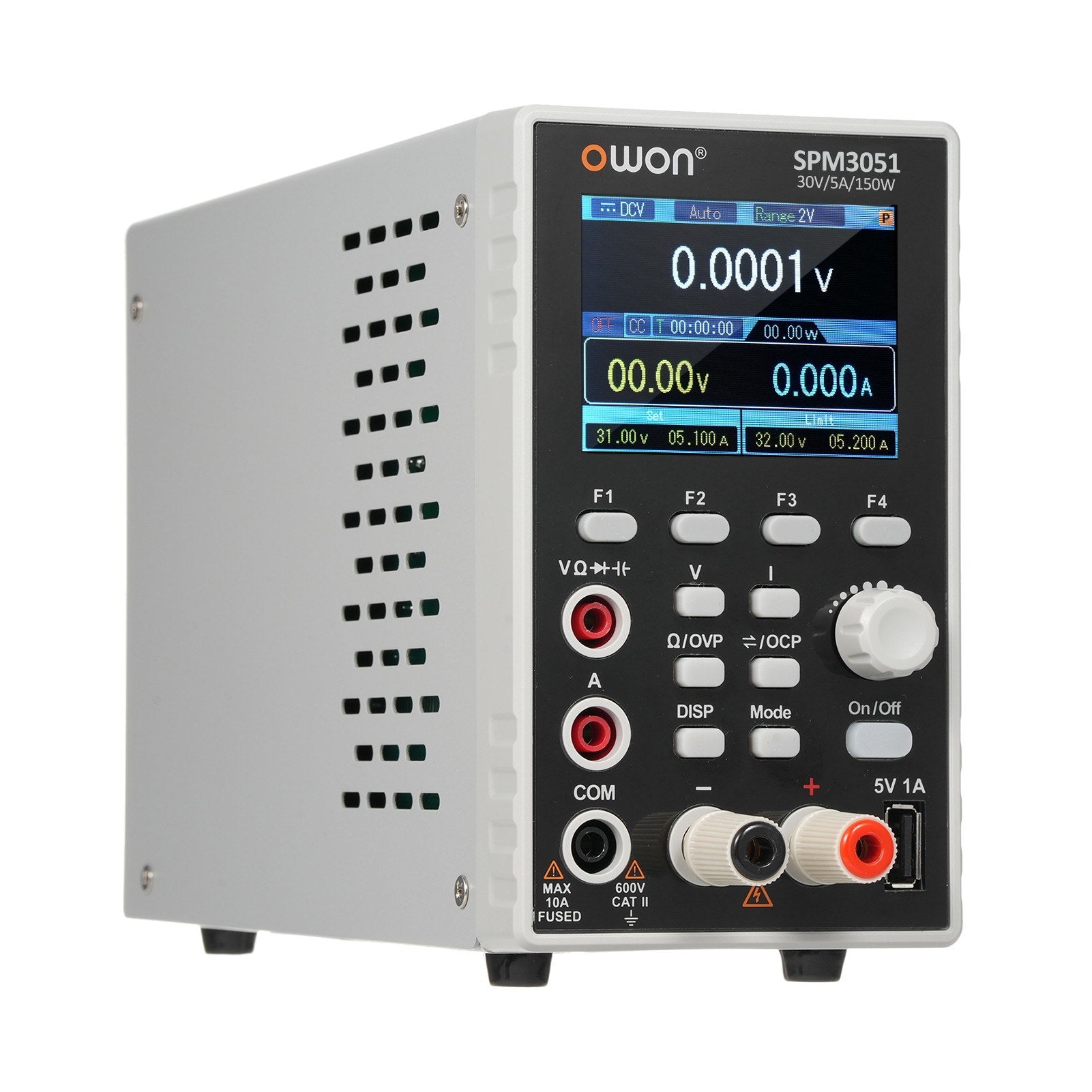

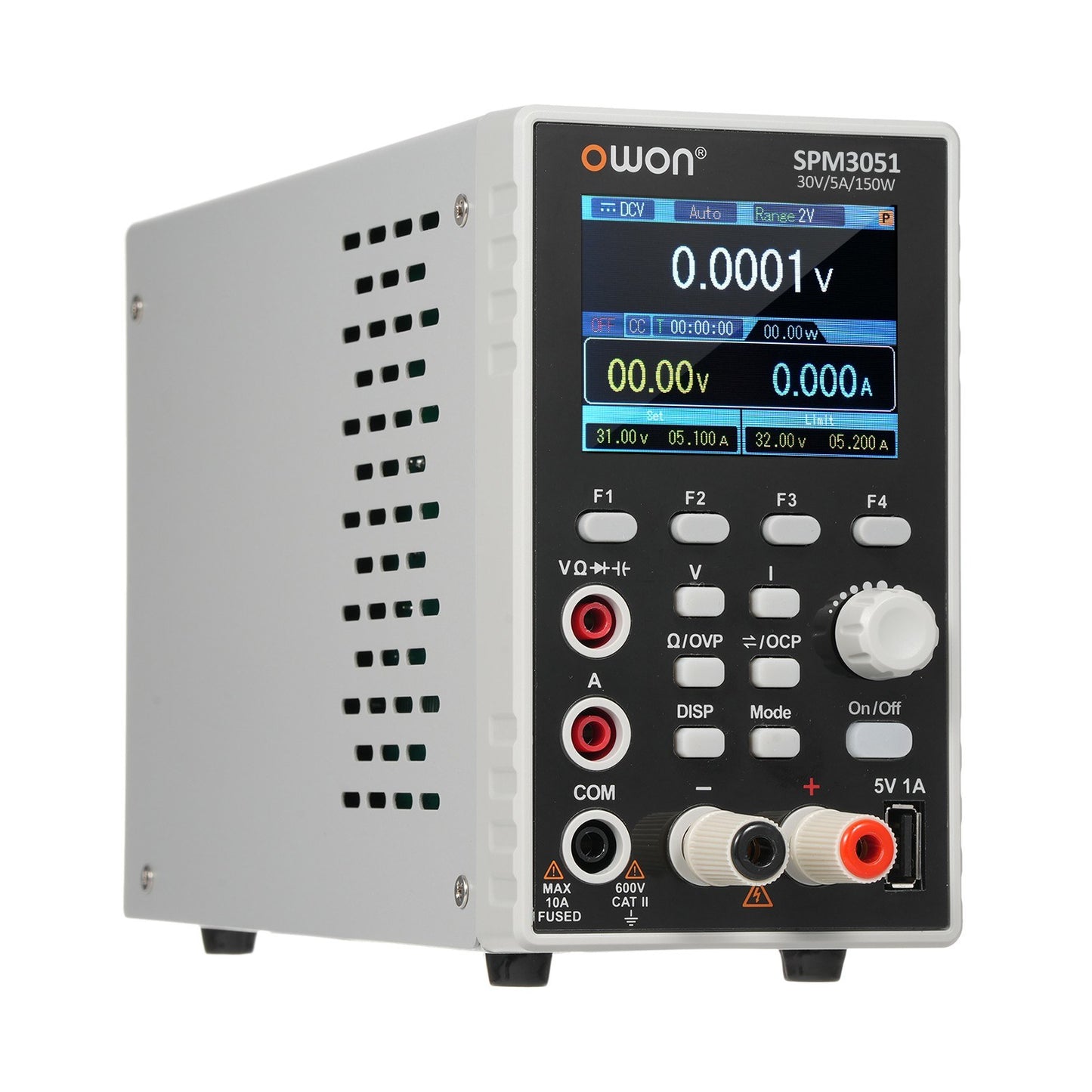

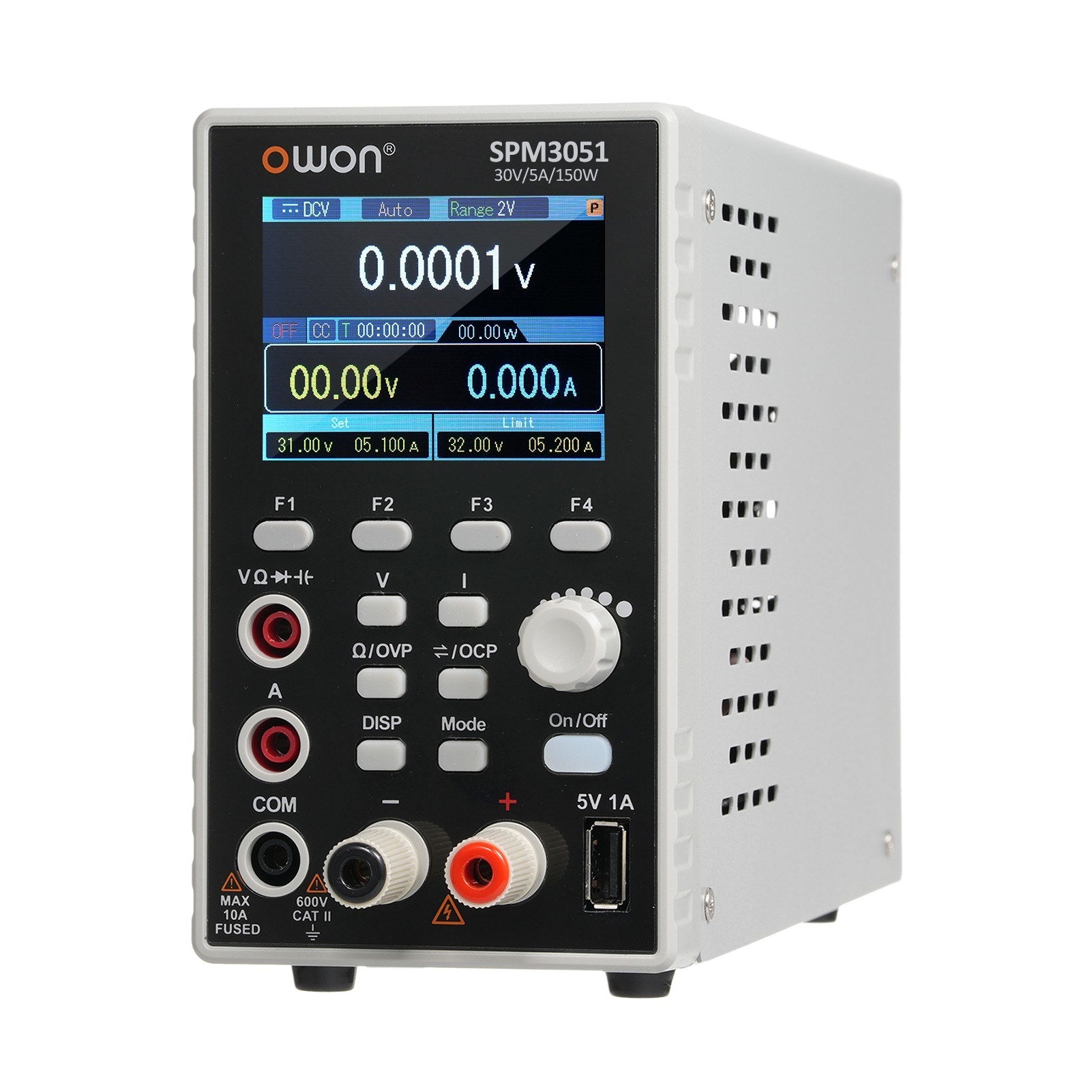

OWON SPM3103 300W Programmable Lab DC Power Supply (0-30V, 0-10A) with Multimeter, 2.8 LCD, Output Control, Single Channel
OWON SPM3103 300W Programmable Lab DC Power Supply (0-30V, 0-10A) with Multimeter, 2.8 LCD, Output Control, Single Channel
Regular price
$128.99 USD
Regular price
$0.00 USD
Sale price
$128.99 USD
Shipping calculated at checkout.
Estimated Delivery: -
Quantity
Couldn't load pickup availability
Guaranteed secure & safe checkout.
Product Features

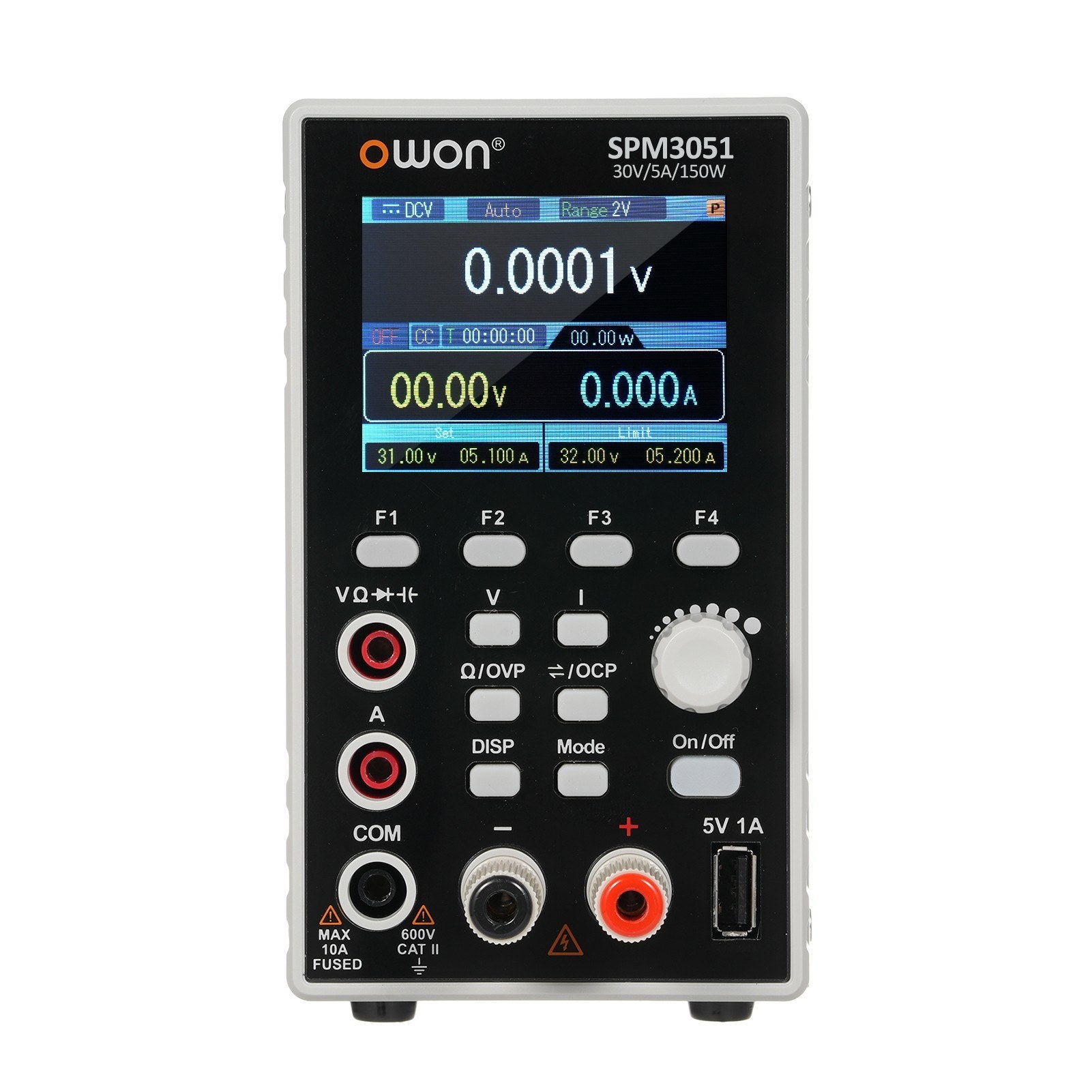

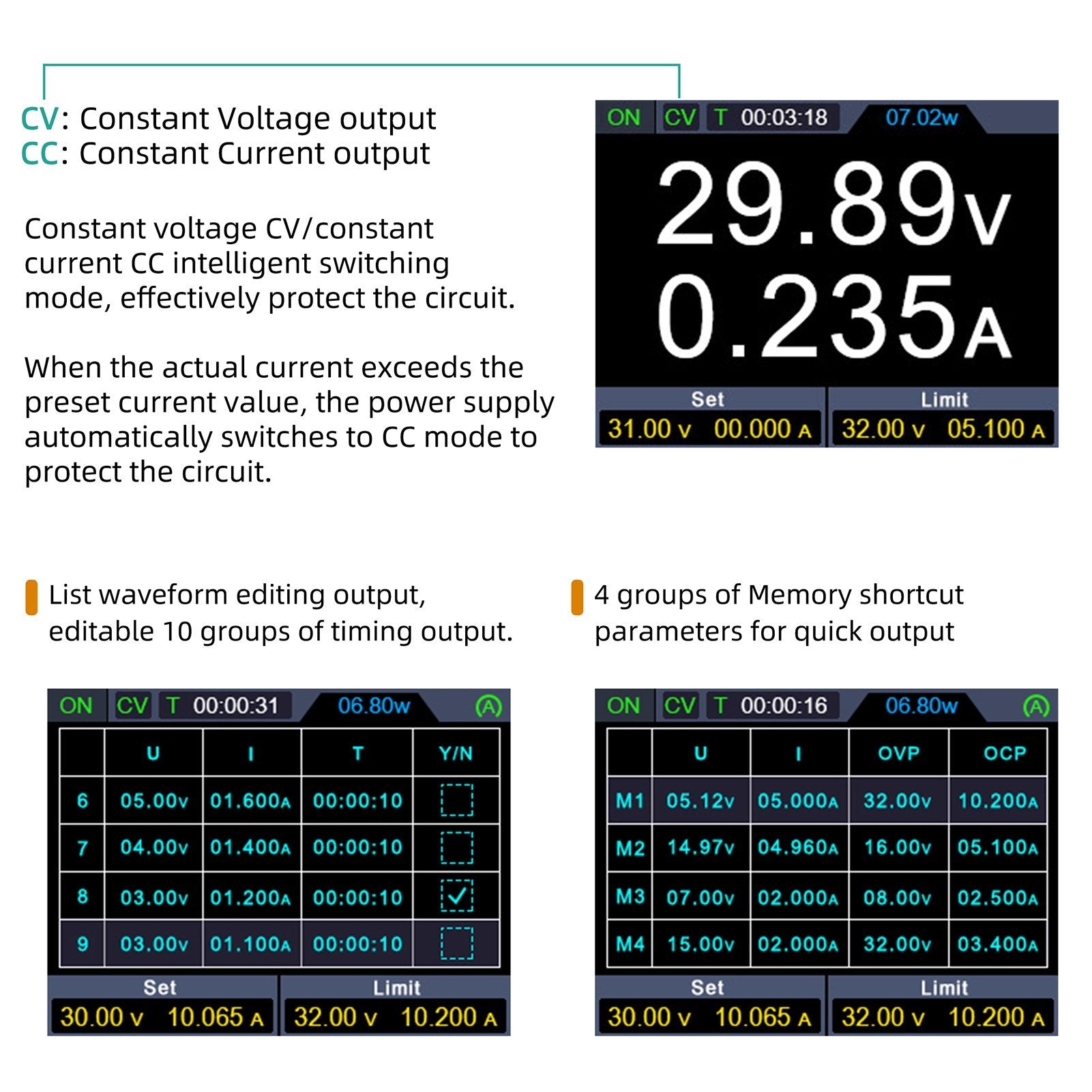

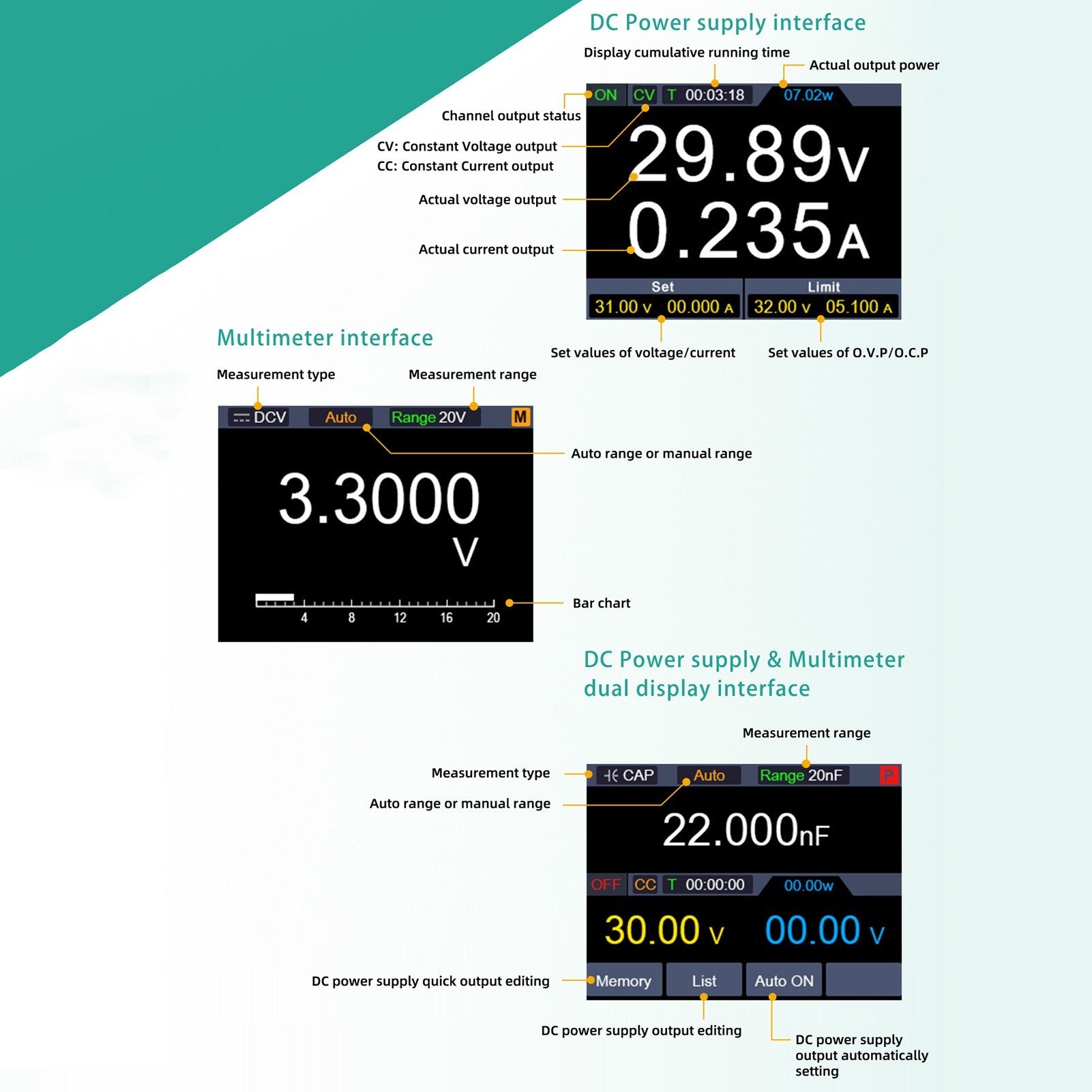

- Multi-Information Display: 2.8-inch TFT LCD shows multiple data points like output voltage, output current, and power simultaneously. It features automatic CC mode for circuit protection when current exceeds preset value.

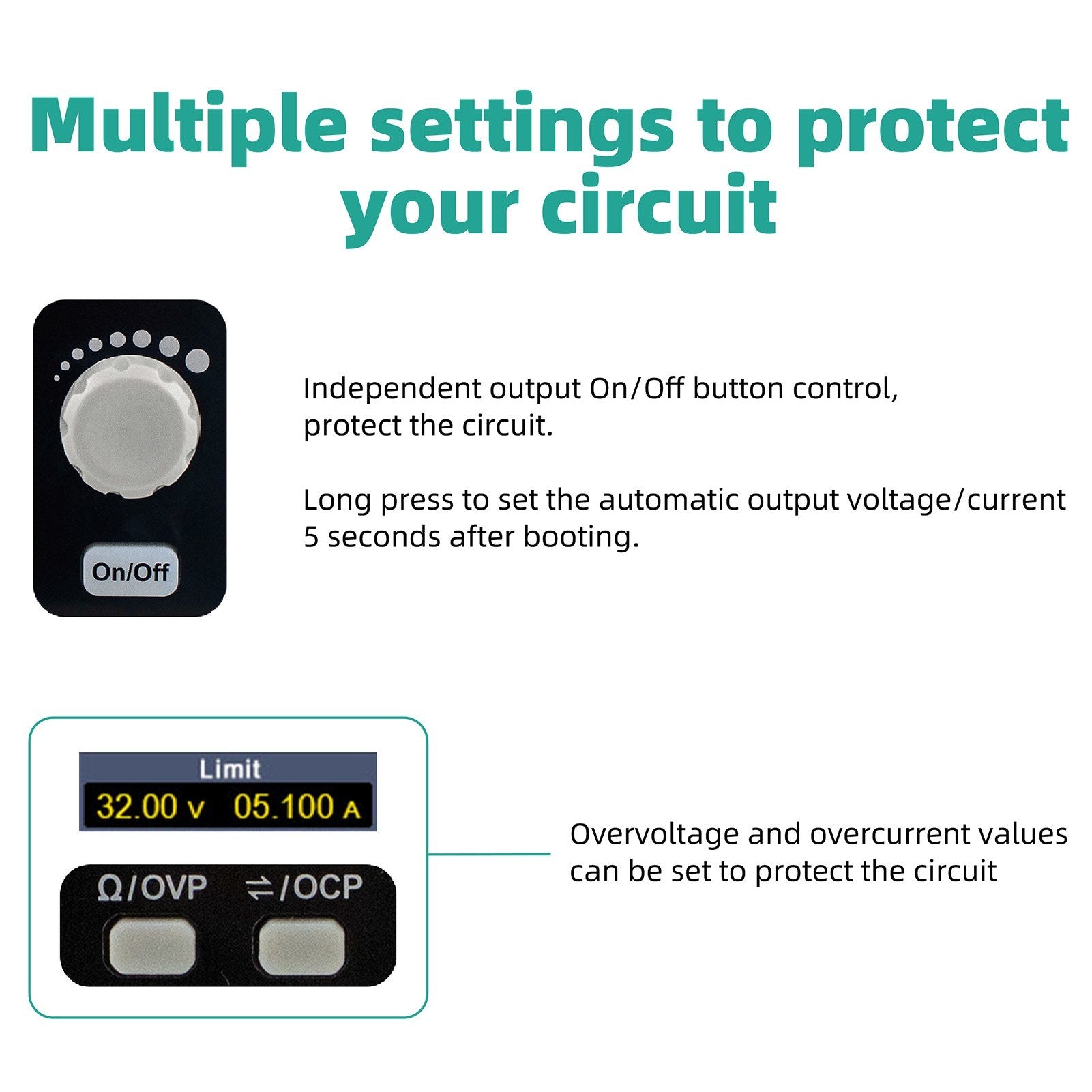

- Multiple Safety Functions: Equipped with various protections including current limiting, thermal, voltage overload, short circuit, and over power to enhance efficiency and durability.
- Convenient USB Port Design: Offers a 5V/1A USB output for mobile charging and a USB communication port for firmware updates and PC software controls.

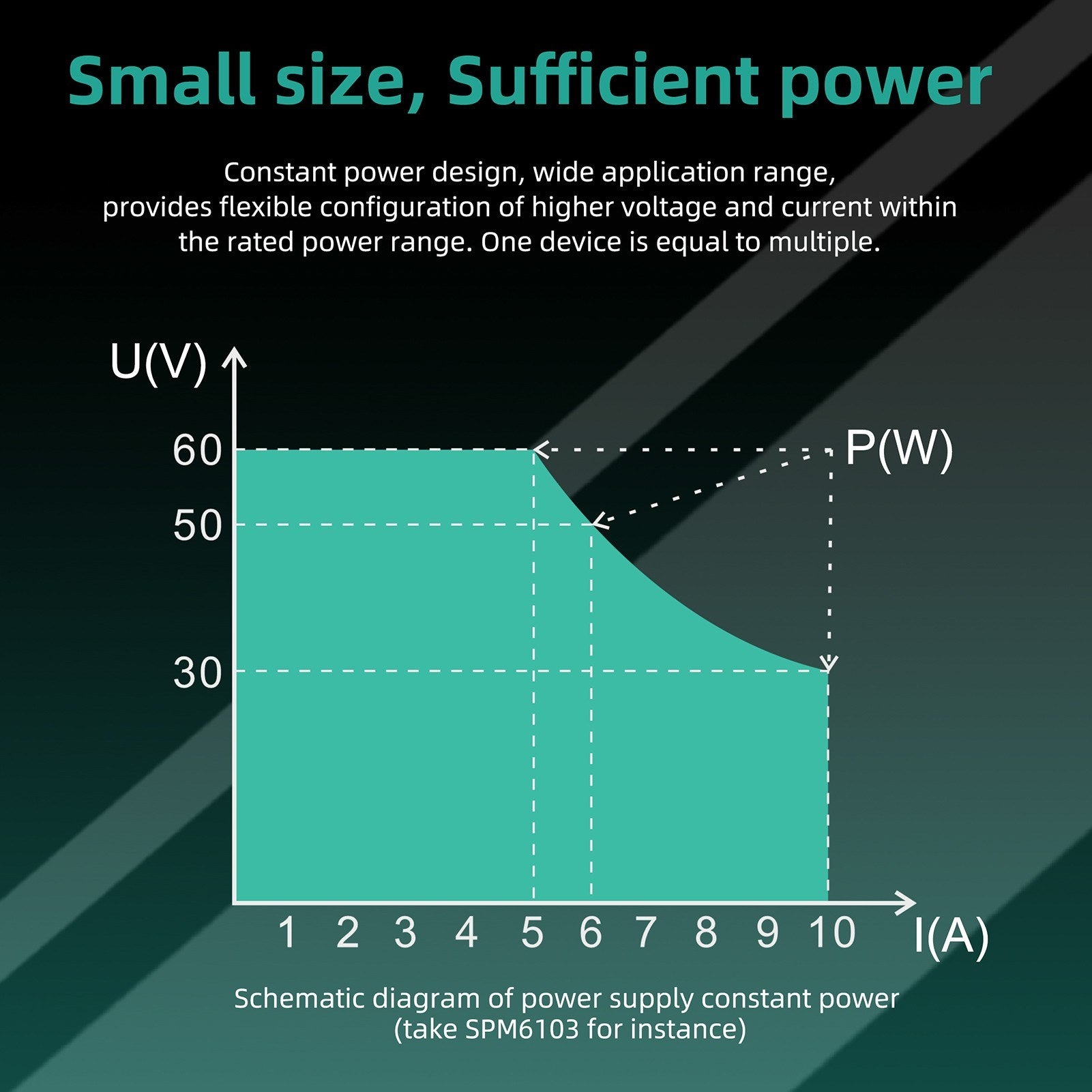

- Adjustable Power Supply: Features constant power design with programmable options and multiple shortcut parameters. Supports waveform editing and customizable timing output.

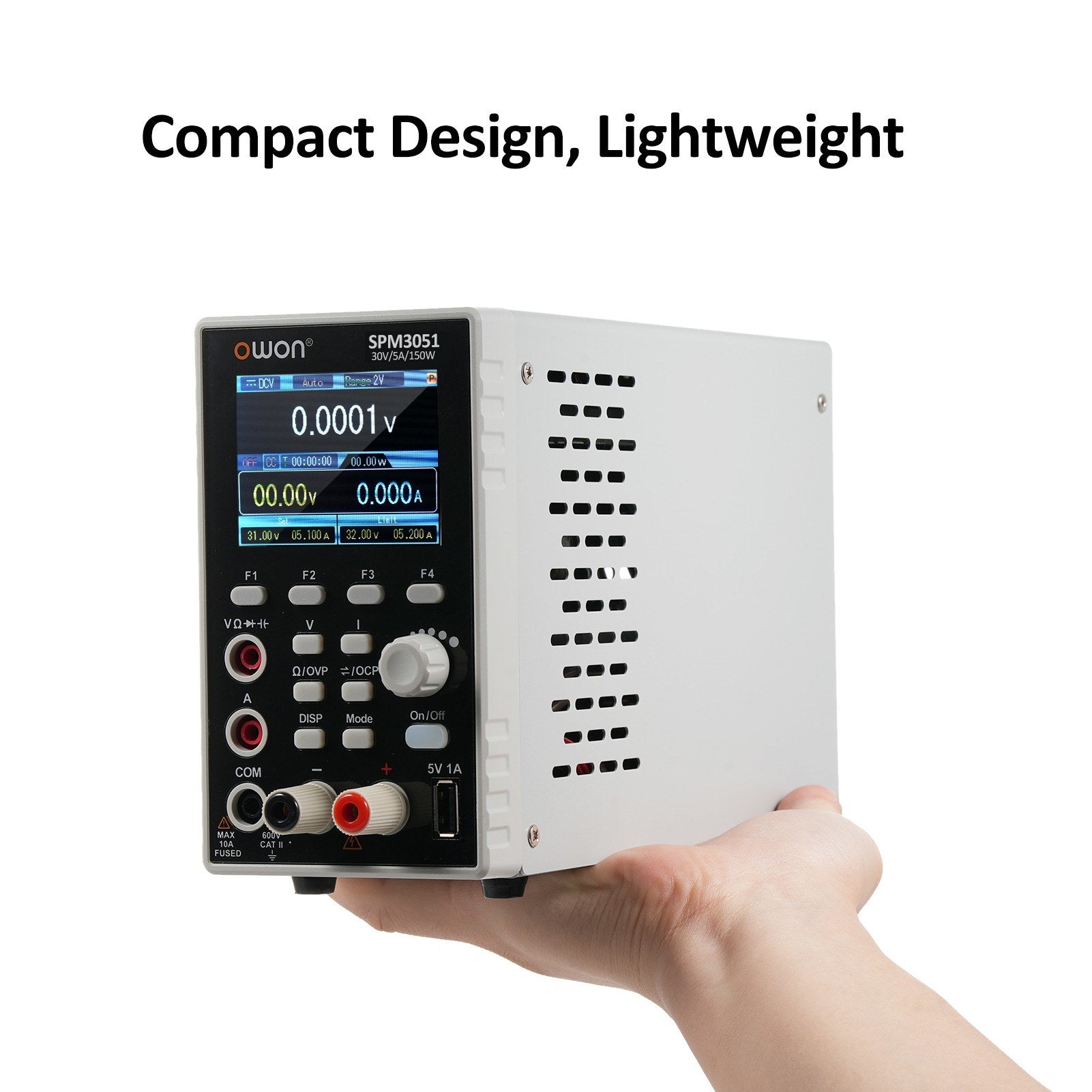

- Compact and Lightweight: This lab power supply is space-saving measuring 3.2×8.9×5.6 inches and weighing just 3.5 pounds, making it portable.
Caution

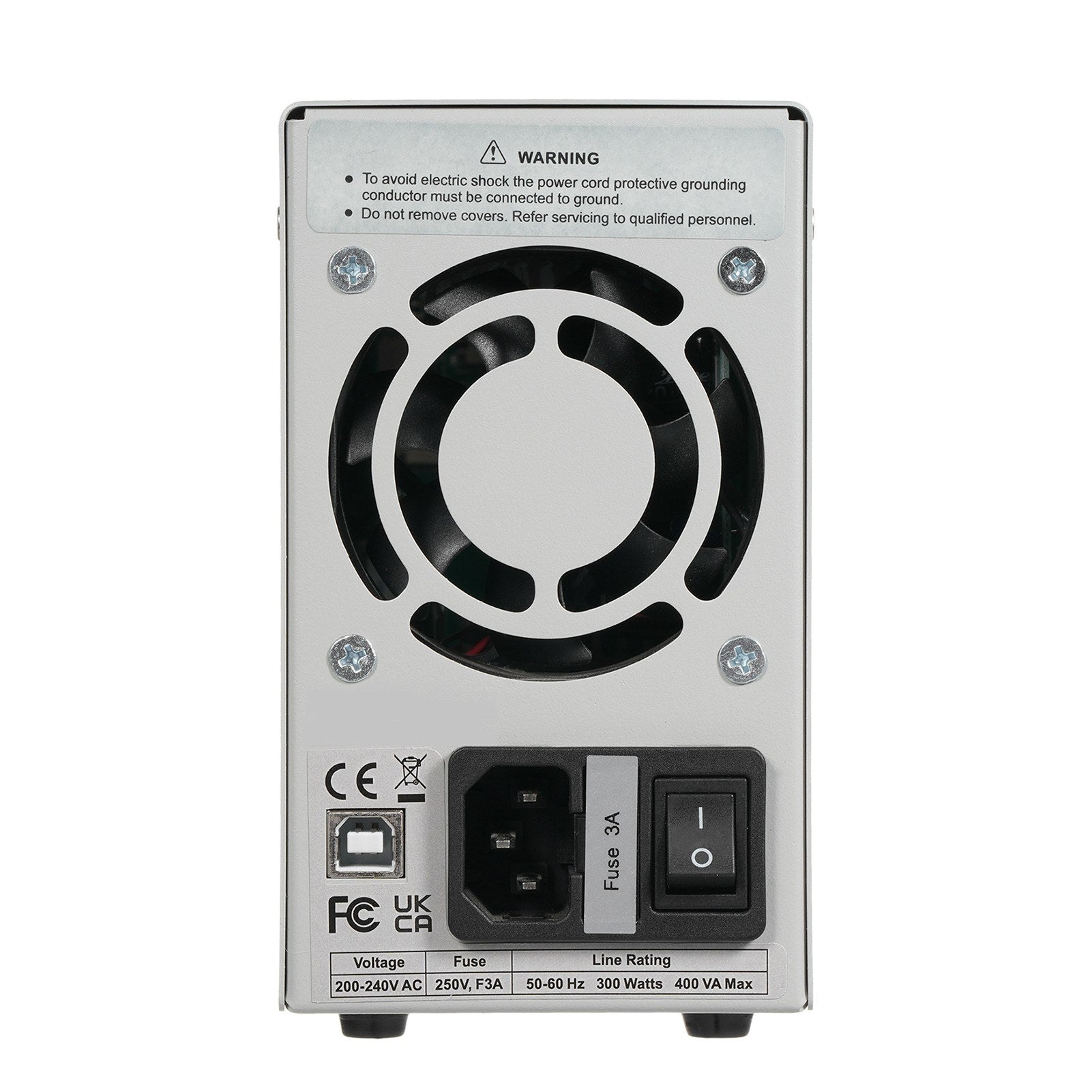

US Plug Input Voltage: 100-120V
EU/UK Plug Input Voltage: 200-240V

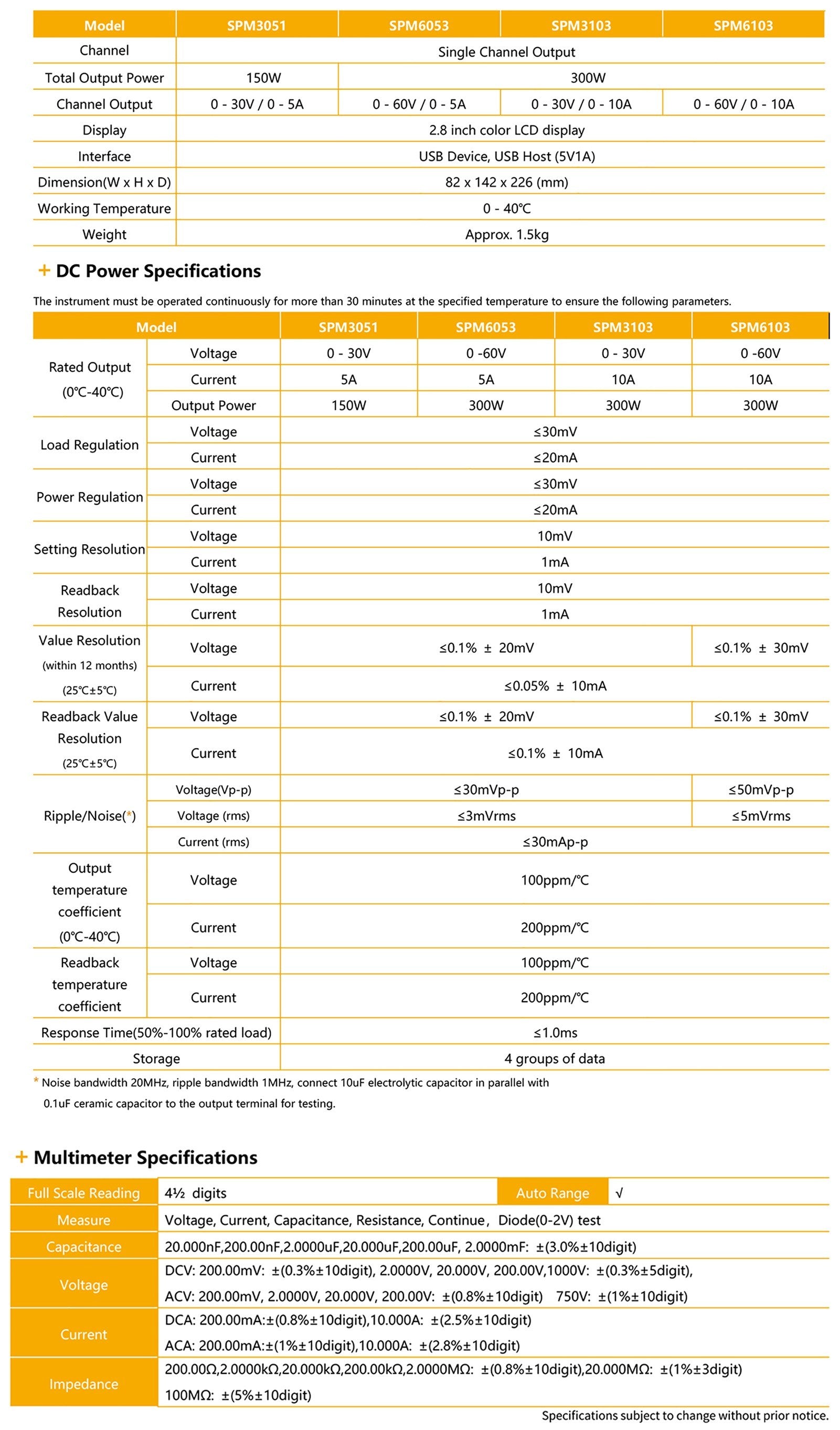

Specifications

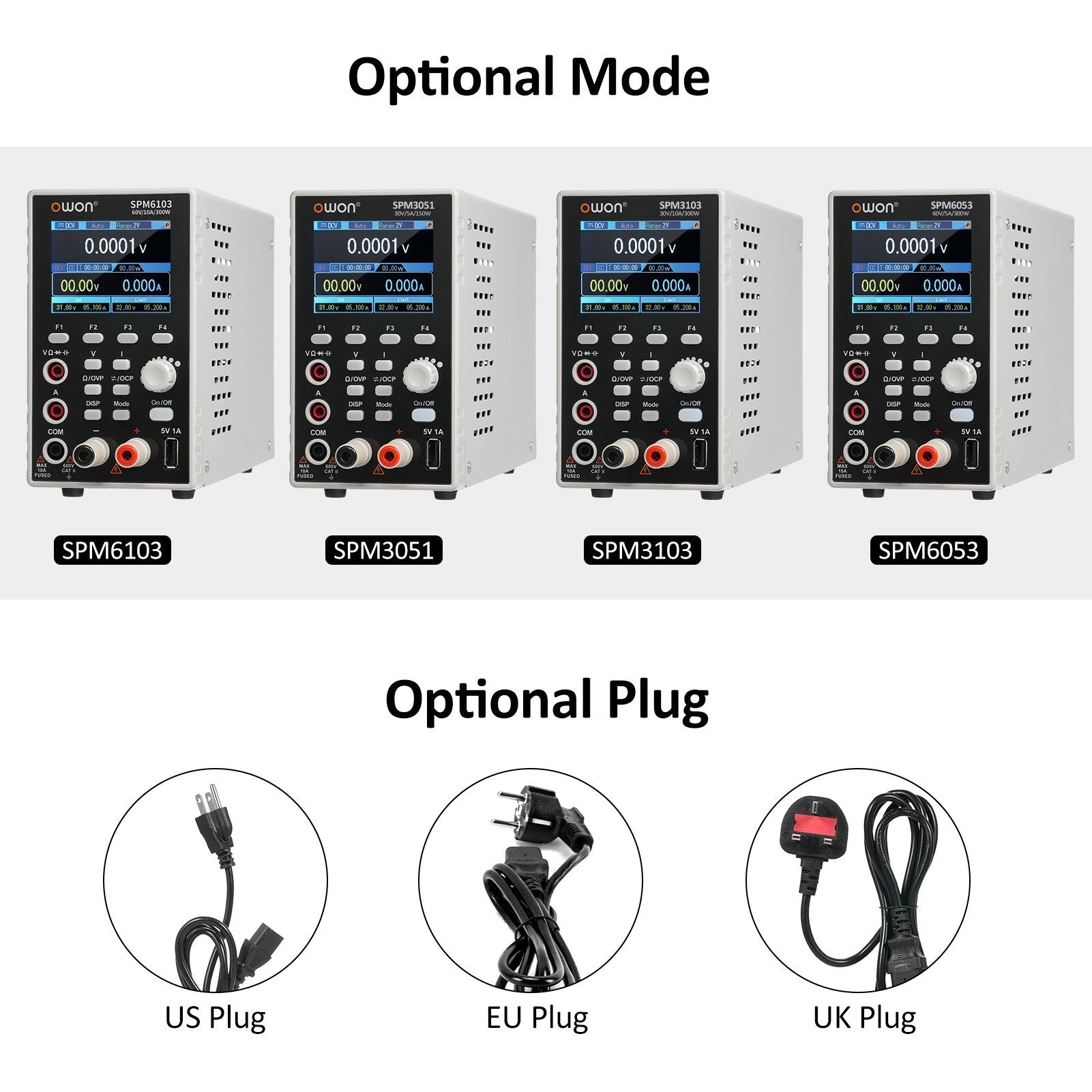

| Model | SPM3051, SPM6053, SPM3103, SPM6103 (Optional) |
|---|---|
| Plug | EU / US / UK / AU (Optional) |
| Material | Aluminum alloy |
| Display | 2.8 inch color LCD, 240 x 320 pixels, 65536 color, TFT |
| Output Voltage / Current | 0~30V / 0~5A, 0~60V / 0~10A |
| Output Power | 150W, 300W |
| Voltage Regulation | Load: ≤30mV, Power: ≤30mV |
| Current Regulation | Load: ≤20mA, Power: ≤20mA |
| Resolution | Voltage: 10mV, Current: 1mA |
| Temperature Coefficient | Voltage: 100ppm/℃, Current: 200ppm/℃ |
| Response Time | ≤1.0m/s |

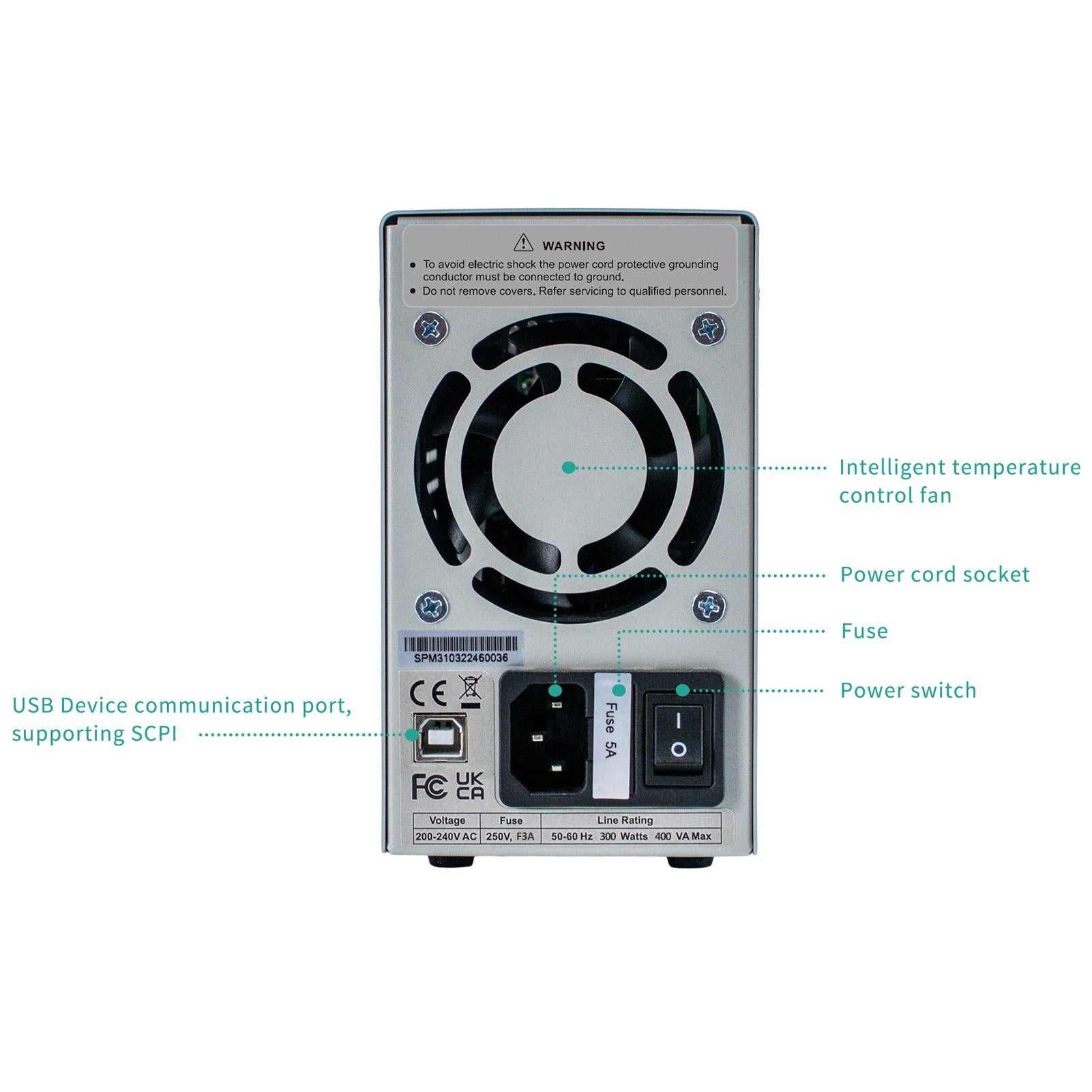

| Cooling | Fan cooling, intelligent speed control |
| Communication Port | USB, SCPI protocol |
| USB Charging Port | 5V/1A |
| Working Temperature | 0℃~40℃ |
| Storage Temperature | -20℃~60℃ |
| Relative Humidity | ≤90%RH; no condensation |
| Height | 2000 meters |

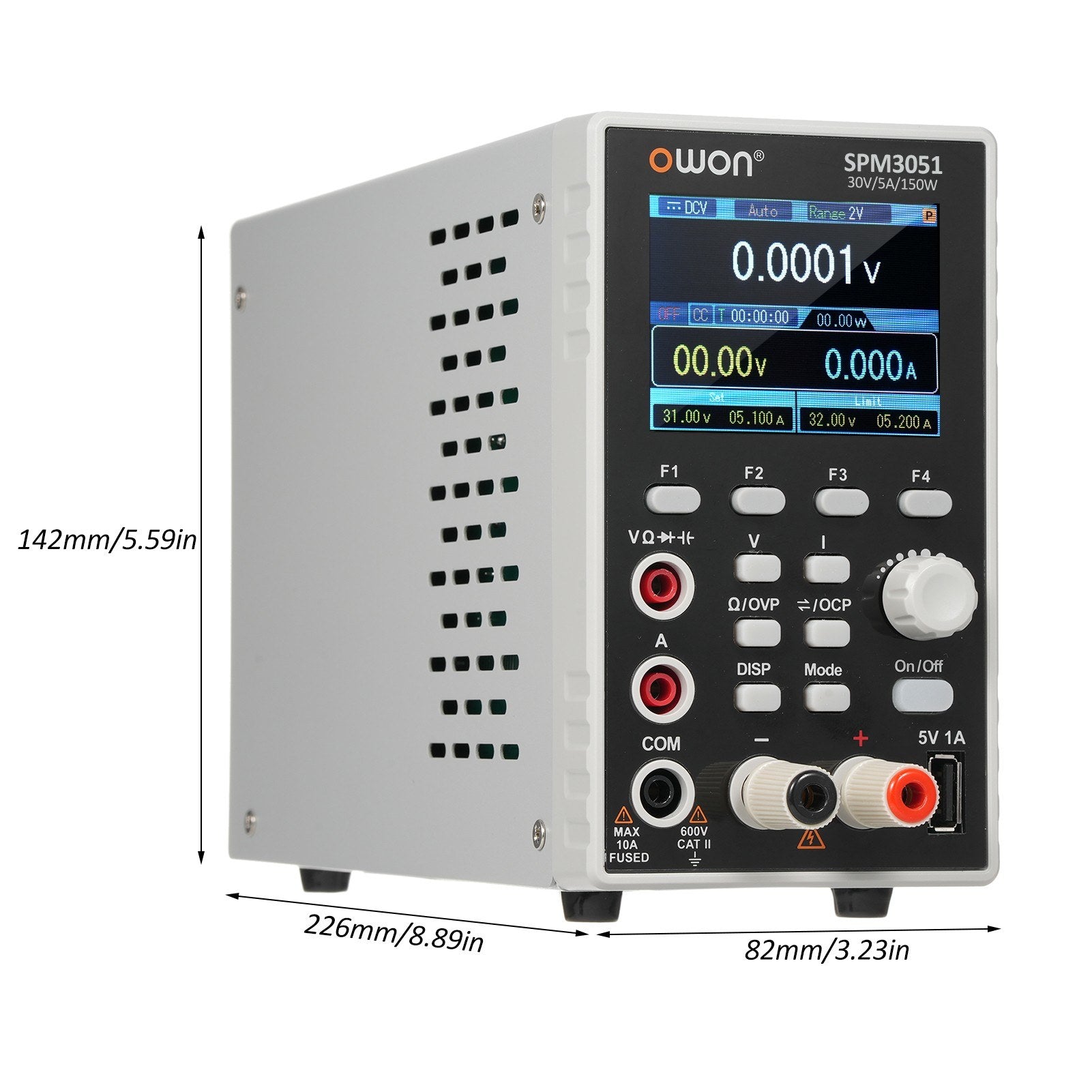

| Item Size | 226×82×142mm / 8.89×3.23×5.59in |
| Item Weight | 1476g / 3.25lb |
| Package Weight | 2000g / 4.41lb |
| Package Size | 34×13×19.5cm / 13.39×5.12×7.68in |

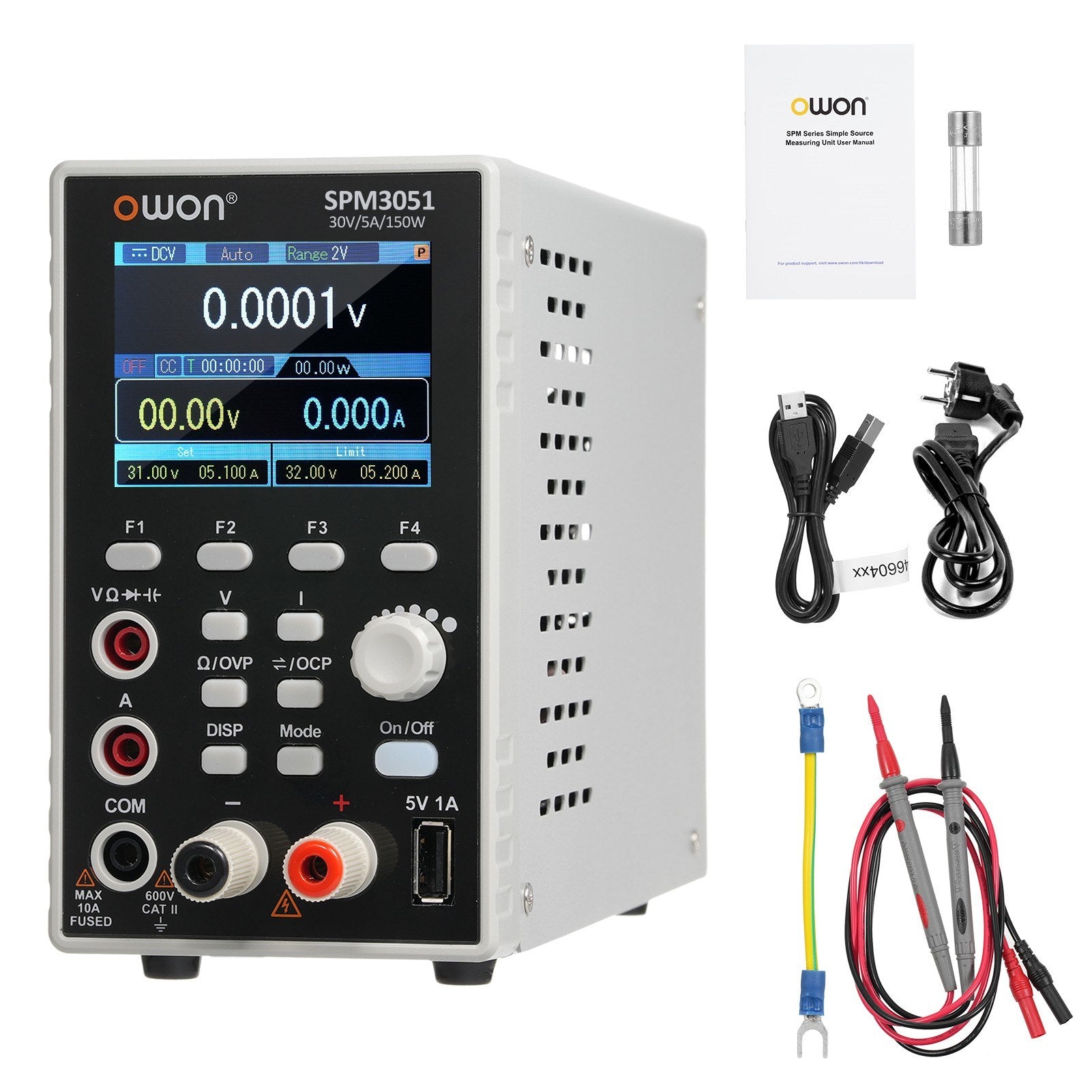

Package List
- Programmable DC Power Supply
- Power Cord
- USB Cable
- Multimeter Lead
- Ground Wire
- Fuse
- User Manual (English)
