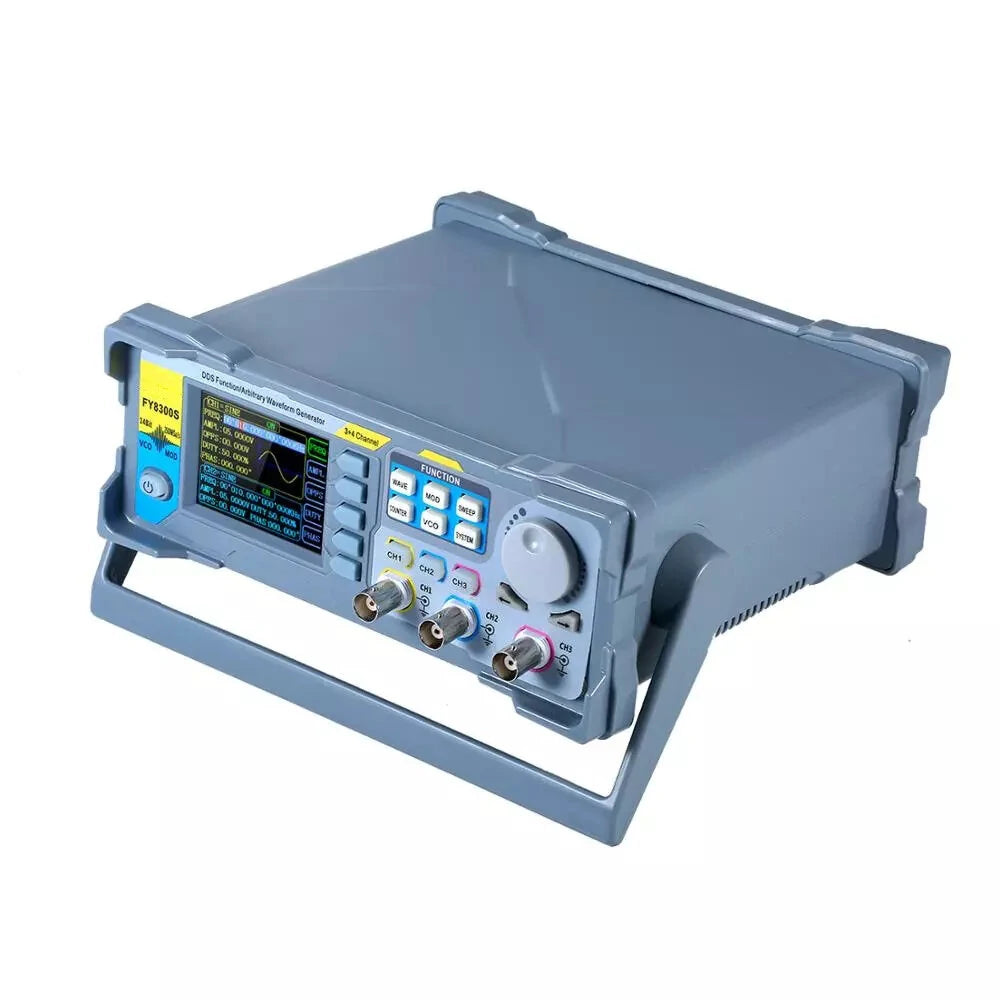

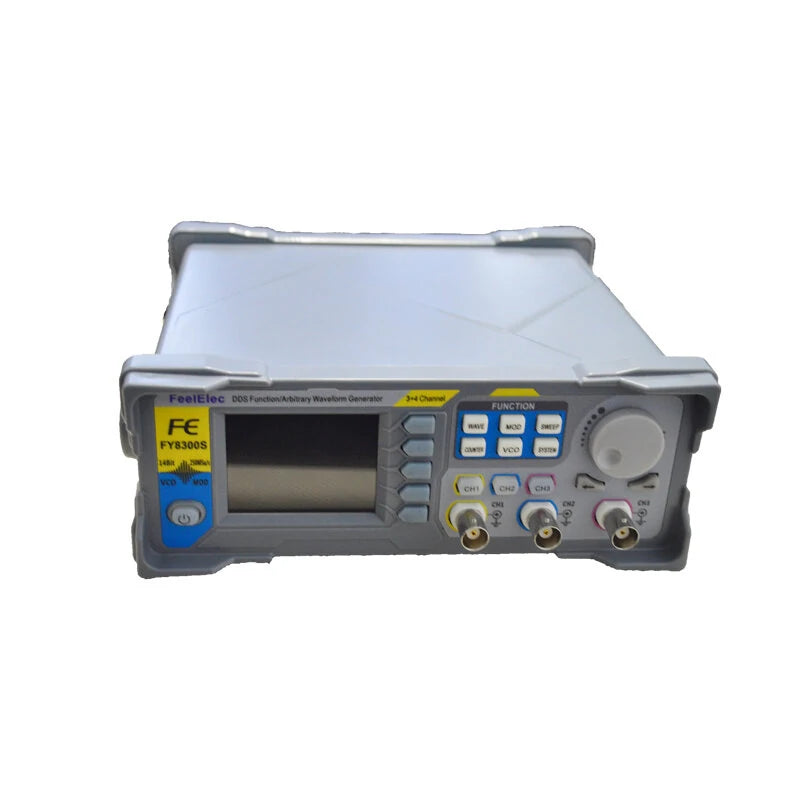

FY8300S Series Function/Arbitrary Waveform Signal Generator

Features

This manual applies to each model of the FY8300S series Function/Arbitrary Waveform Signal Generator. The last three characters of the model indicate the maximum output of the Sine Wave in MHz. For example, the “60M” in Model Number “FY8300-60M” indicates the Sine wave's maximum output frequency is up to 60MHz.

The FY8300S series is a three-channel function/arbitrary waveform generator featuring a high-performance, cost-effective, multifunction signal generator. It integrates a Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Analog/Digital modulator, Sweep, Counters, and Frequency Meter. With abundant shortcut keys and a graphical user interface, operations are simplified, providing ease of use without in-depth learning. Ideal for education, research and development, production, testing, and maintenance, this generator presents a new choice.

Utilizing Direct Digital Synthesizer (DDS) technology, the generator offers stable, precise, pure, and low-distortion signals. Surface mounting technology enhances interference immunity and extends operational life span. Capable of outputting up to 97 groups of functions/arbitrary waveforms, including 33 preset waveforms and 64 user-defined waveforms.

Specifications

Frequency

Model	FY8300S-20M	FY8300S-40M	FY8300S-60M
Sine	0~20MHz	0~40MHz	0~60MHz
Square	0~20MHz	0~20MHz	0~25MHz
Ramp, Triangle	0~10MHz	0~10MHz	0~10MHz
Pulse	0~10MHz	0~10MHz	0~10MHz
TTL/CMOS	0~10MHz	0~10MHz	0~10MHz
Arbitrary Waveform	0~10MHz	0~10MHz	0~10MHz

Minimum pulse width: 20ns (All models of pulse wave minimum width can reach 20ns)

Min. Resolution on all frequency ranges: 1μHz (Ensures adjusting accuracy under high frequency)

Waveform Characteristics

Waveforms: Sine, Square, Rectangle (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, and more, including 64 custom-defined waveforms.

Non-Volatile Storage: Can store 64 user-defined arbitrary waveforms, with waveform length 8192 points * 14bits and a sampling rate of 250MSa/s.

Output Characteristics

Amplitude (VPP) varies with frequency. It ranges from 1mVpp~24Vpp (Frequency ≤5MHz) to 1mVpp~5Vpp (Frequency >20MHz). Provides excellent amplitude stability of ±0.5%/5 Hours and impedance of 50Ω±10% (Typical).

DC offsets available up to ±12V (Frequency ≤20MHz) or ±2.5V (Frequency >20MHz).

Modulation

Supports AM, FM, PM, ASK, FSK, PSK modulation types. Carrier waveforms include Sine, Square, Triangle, Ramp, Arbitrary (except DC).

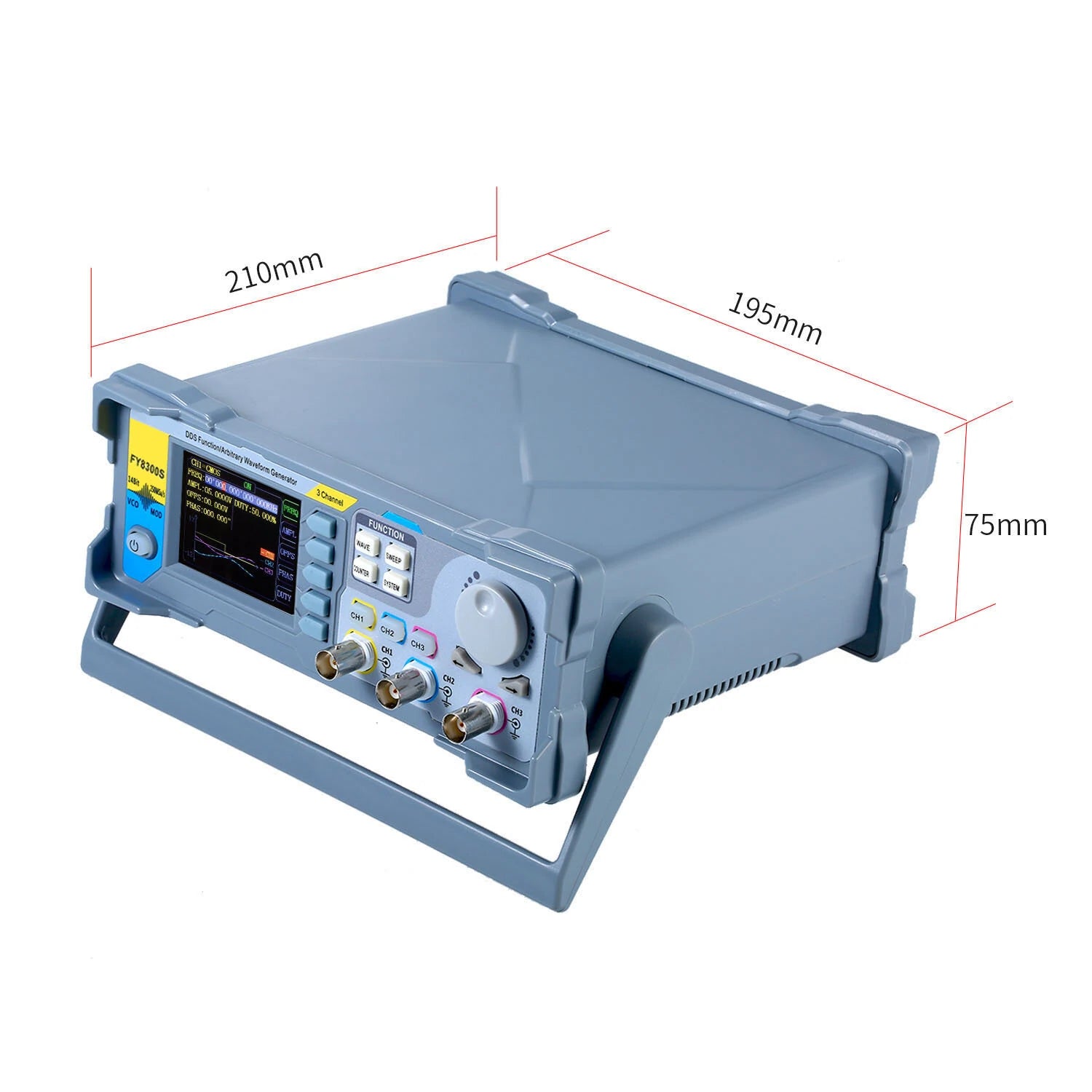

General Specifications

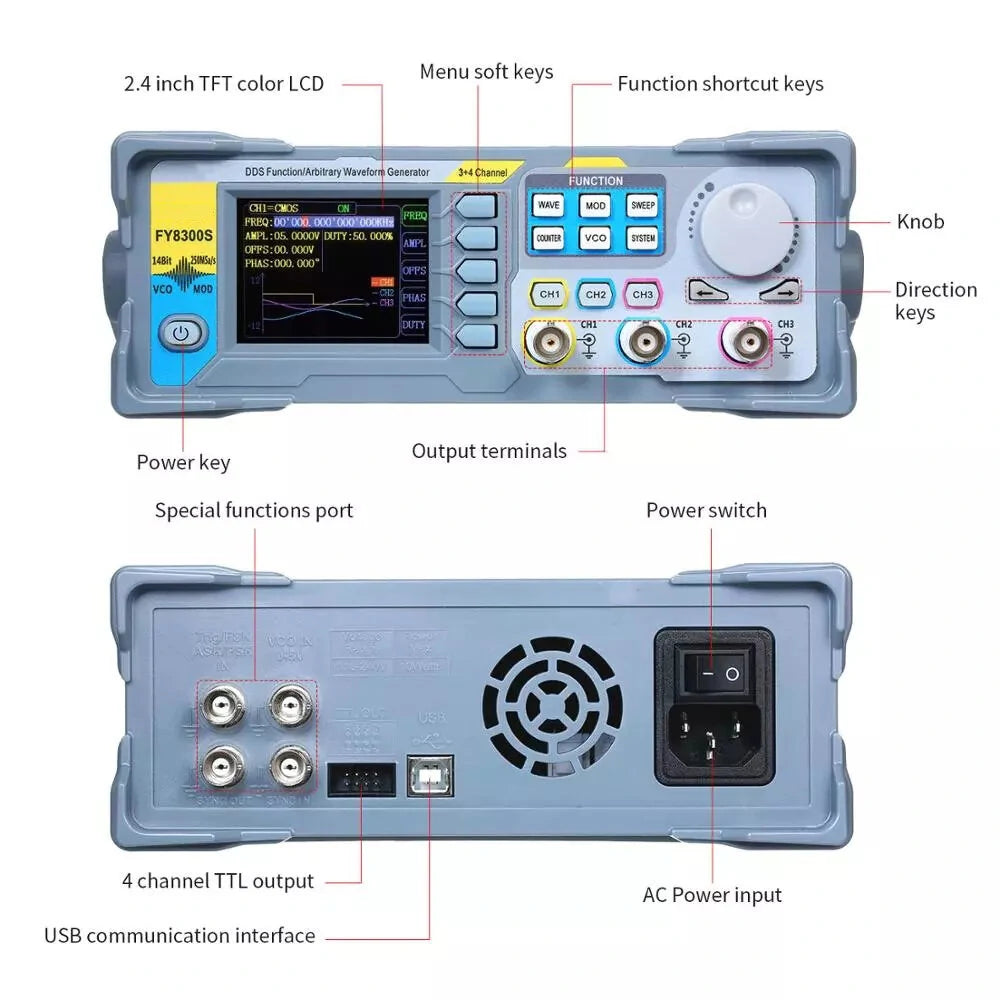

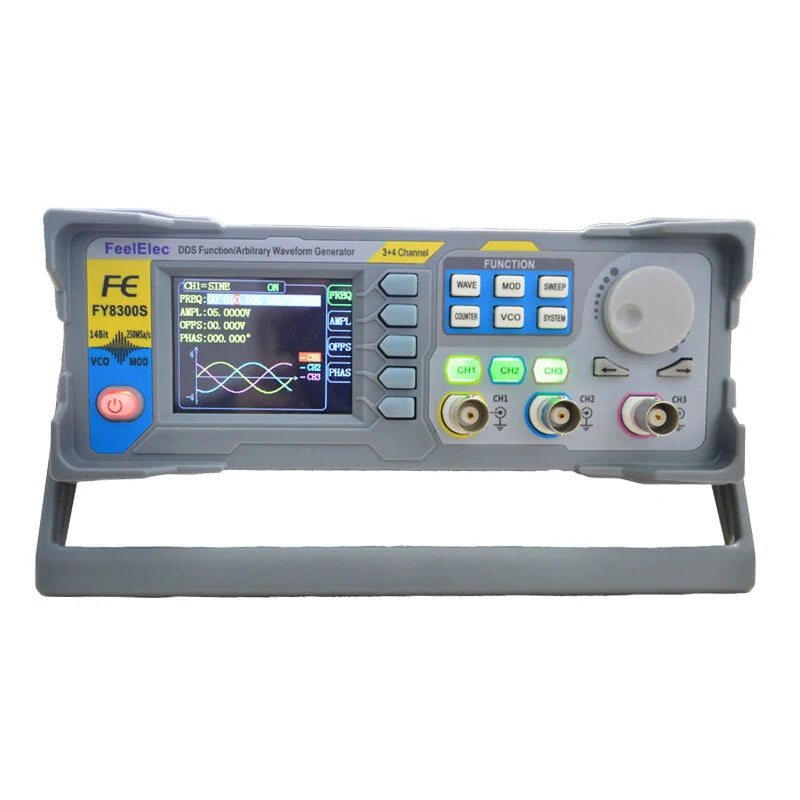

2.4 inch, TFT Color Display. USB to Serial interface with industrial standard communicating speed of 115200bps. Operates with AC100V~240V power supply.

Package includes: 1 X FY8300S Signal Generator (20MHz/40MHz/60MHz)

Download the English User Manual
