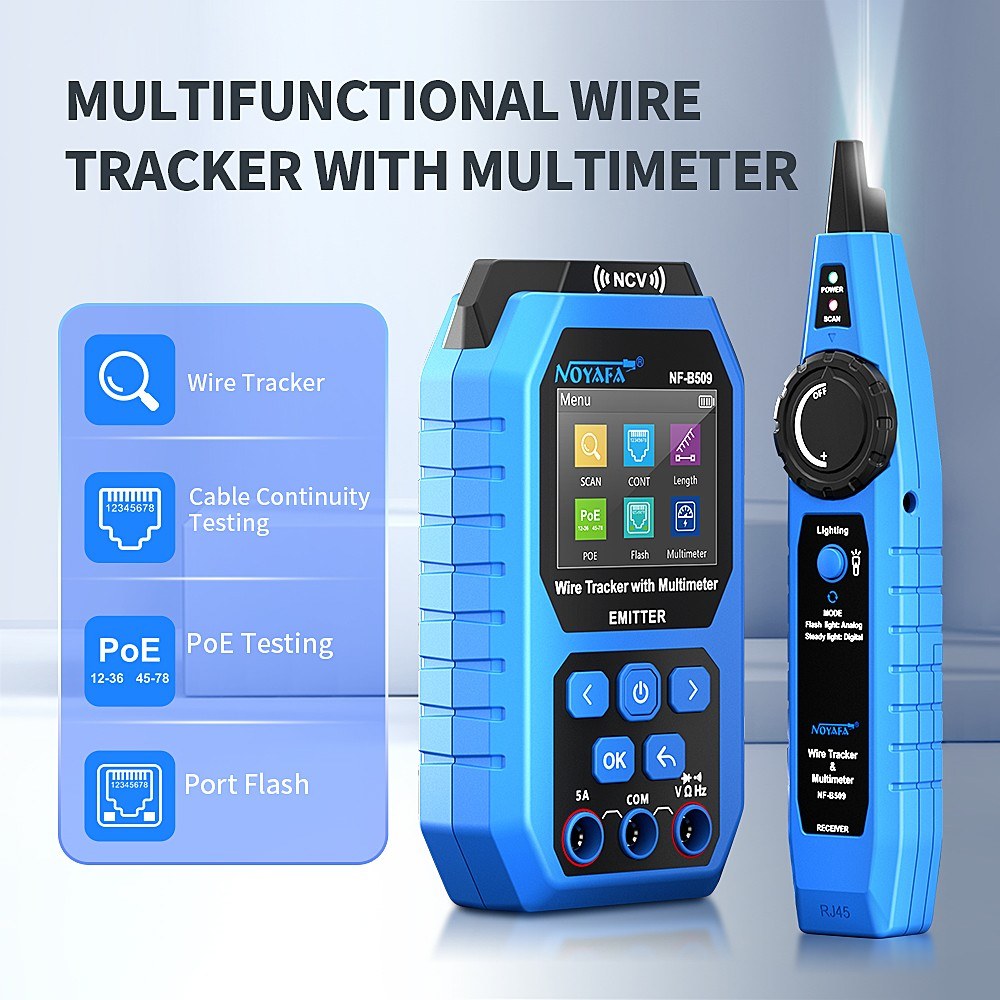

Multifunction Meter for Comprehensive Cable Management

This advanced meter integrates cable tracing and cable length measuring functions, offering exceptional advantages such as long tracing distance, clear sound signals, and rapid, precise cable length measurement. It's an indispensable tool for laboratories, factories, radio enthusiasts, network installers, and technicians.

Key Features:

• Multimeter and Capacitance Meter: Capable of measuring AC/DC voltage, current, resistance, capacitance, frequency, NCV, and temperature.

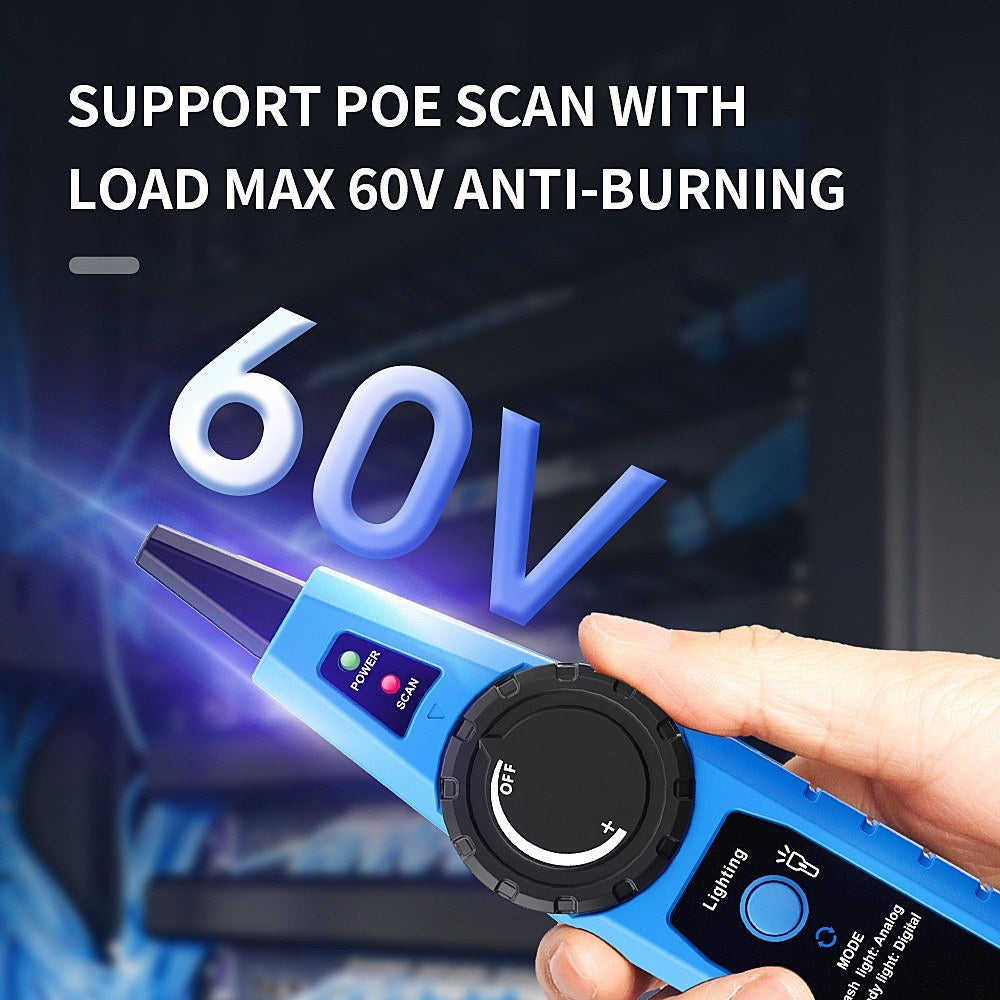

• PoE Scan Support: Protects against anti-burning with Load Max 60V and allows cable scanning with any switch or router in operation.
• Cable Length Measurement: Instant cable length detection with a range of 5m-200m.
• Intelligent Anti-burnt Design: Supports diverse current range measurement, enabling quick and accurate self-identification.

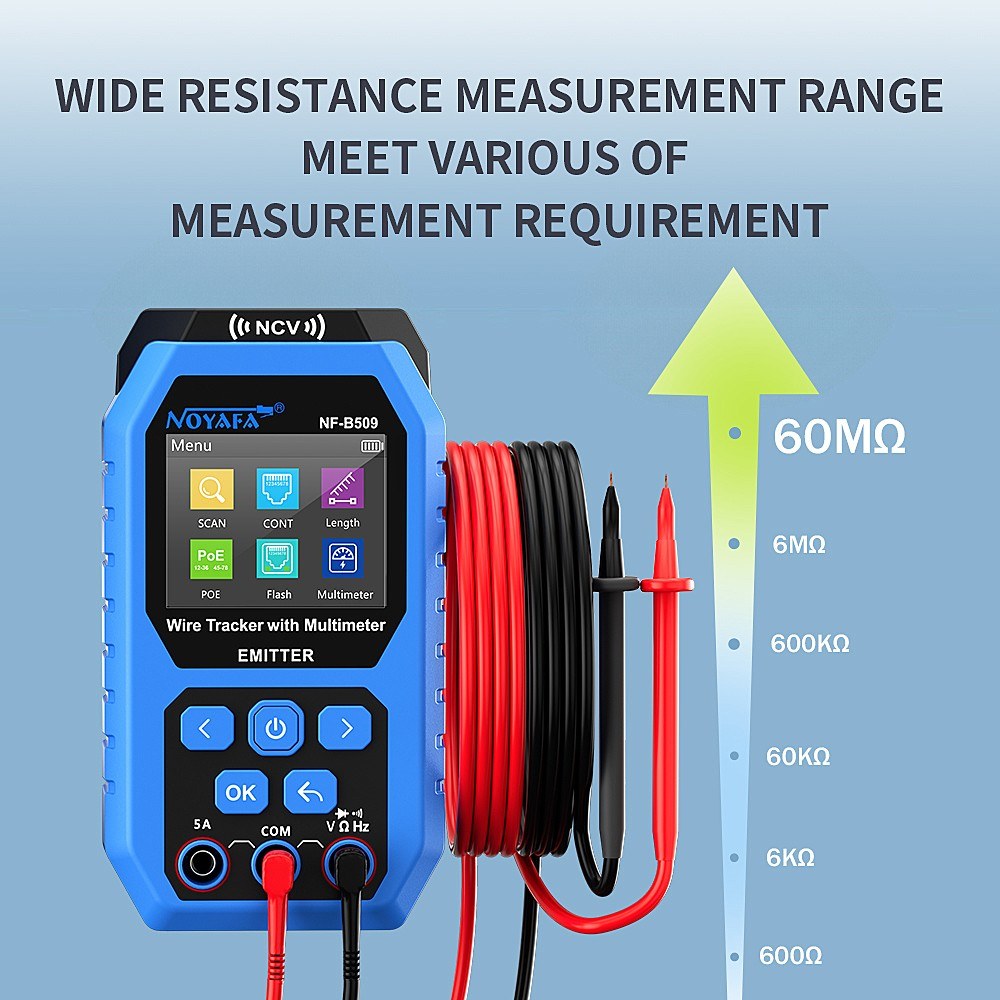

• Wide Resistance Measurement: Upgraded to a maximum of 60MΩ resistance, supports self-range identification for testing.

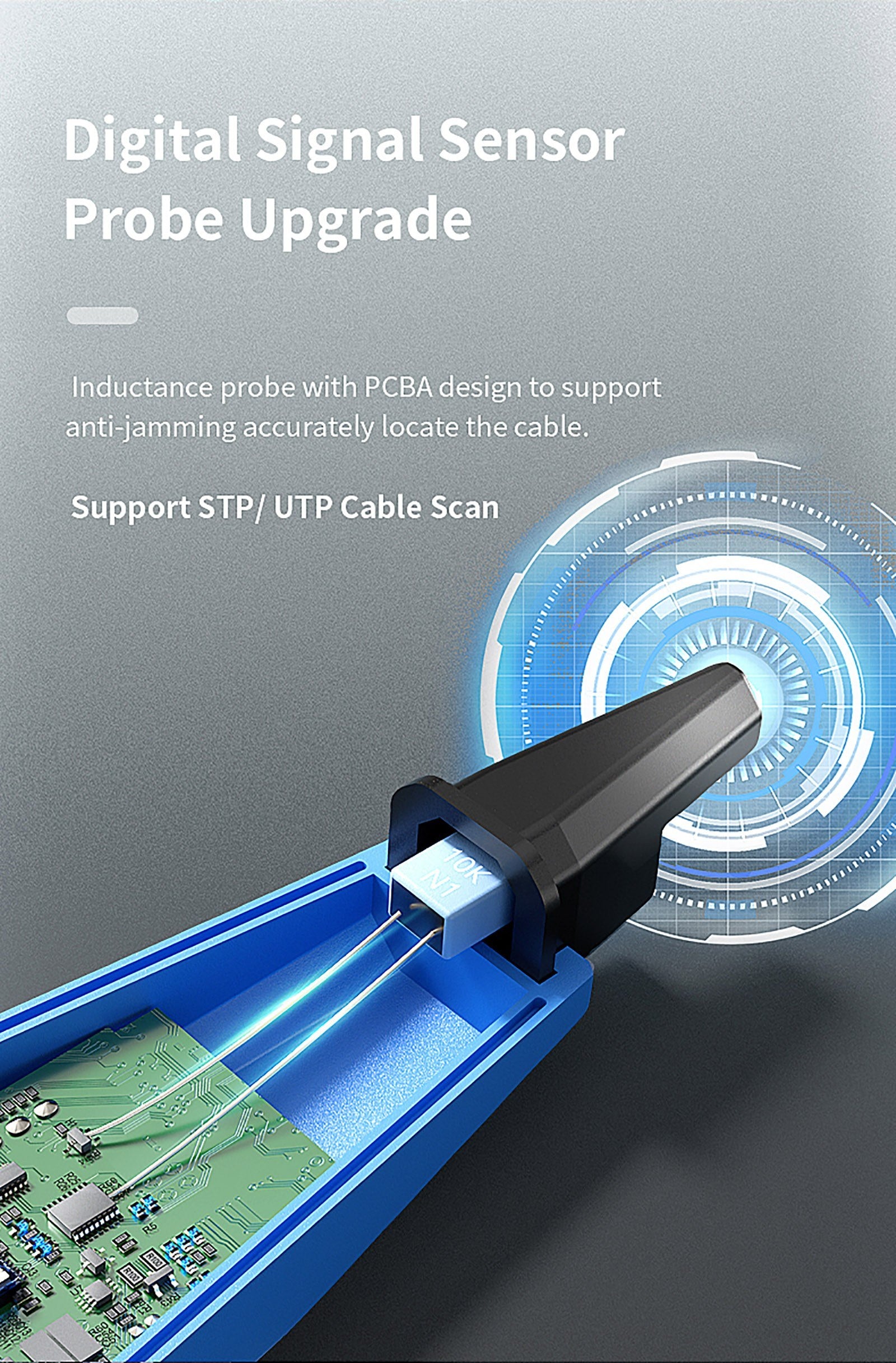

• Digital Signal Sensor Probe: Enhanced with a PCBA inductance probe for anti-jamming and precise cable location, compatible with STP/UTP cable scans.

Specifications:

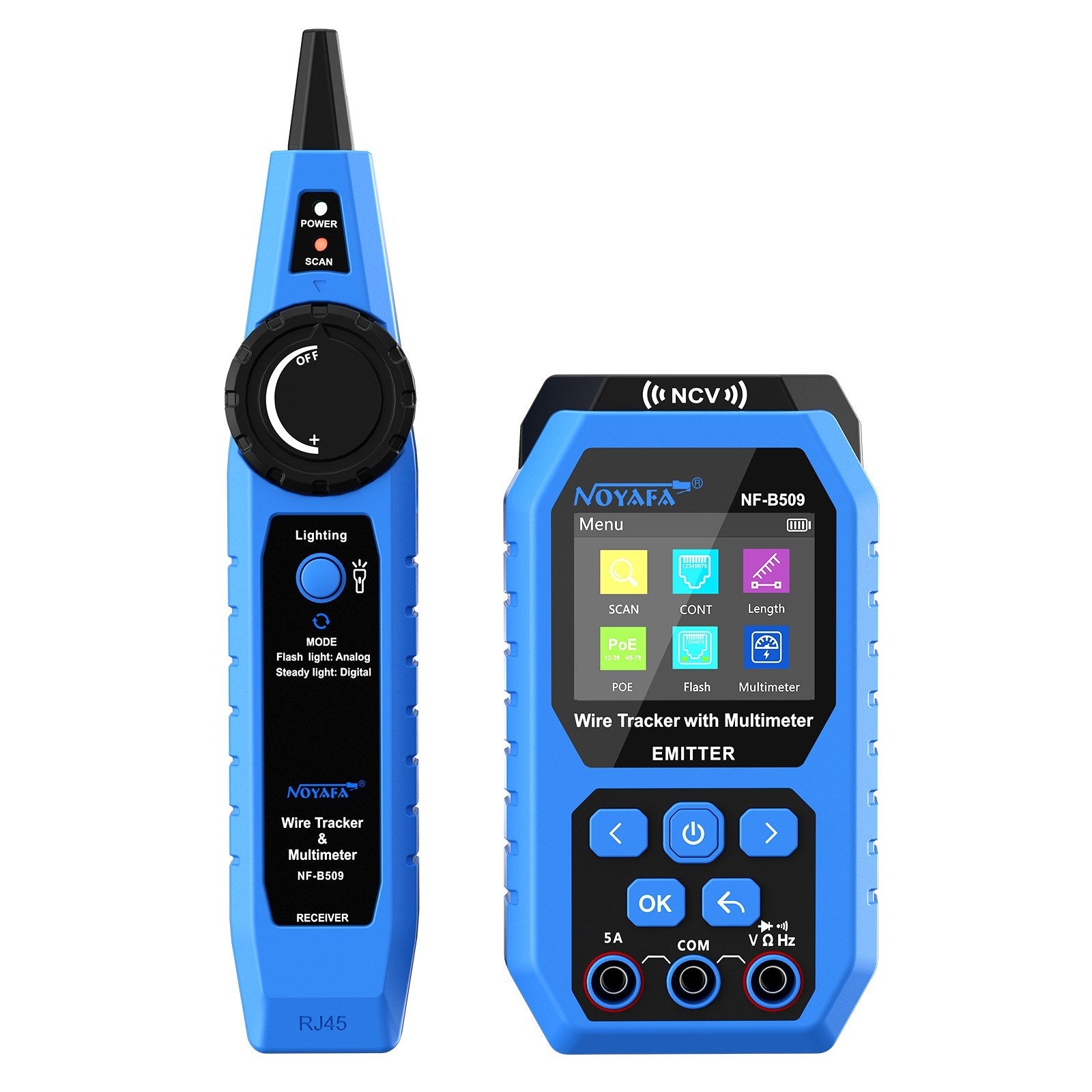

• Model: NF-B509
• Material: ABS
• Scan Modes: Analog Mode/Digital Mode
• Auto Off: Yes
• Transmitter
• Continuity Testing: Max Range 2000m
• Cable Length Measurement: 5-200m (±3m)
• Port Flash: 10M/100M/1000M
• PoE Testing: 4 pins/8 pins power testing, voltage testing
• NCV Function: Level 0~4
• Temperature Measurement: Yes
• Resistor Measurement: 600Ω-60MΩ (accuracy: ±1.0%+5)
• AC/DC Voltage Measurement: 600mV-610V (DC accuracy: ±0.5%+3; AC accuracy: ±0.5%+3)

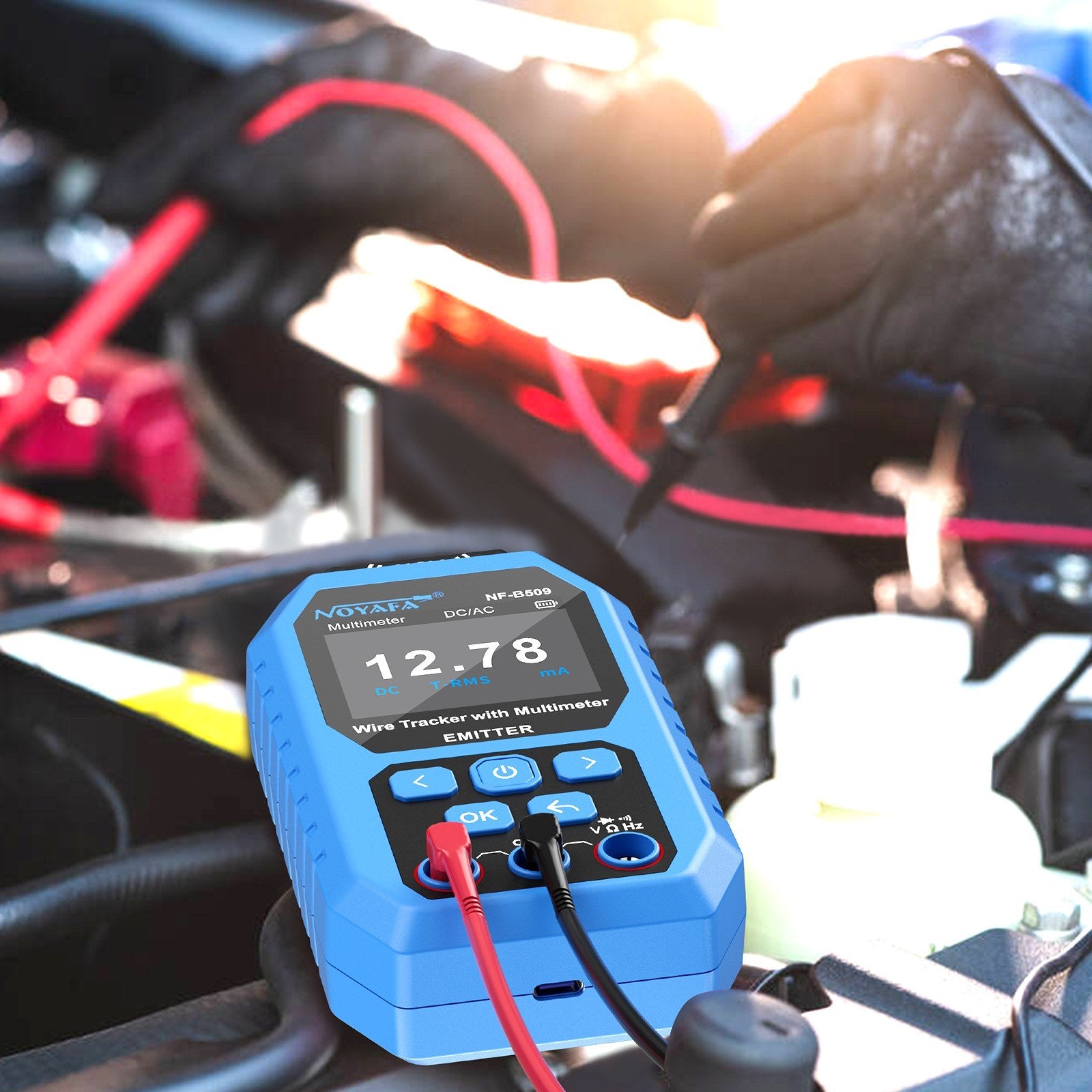

• AC/DC Current Measurement: 1mA-3A (DC accuracy: ±0.8%+3)

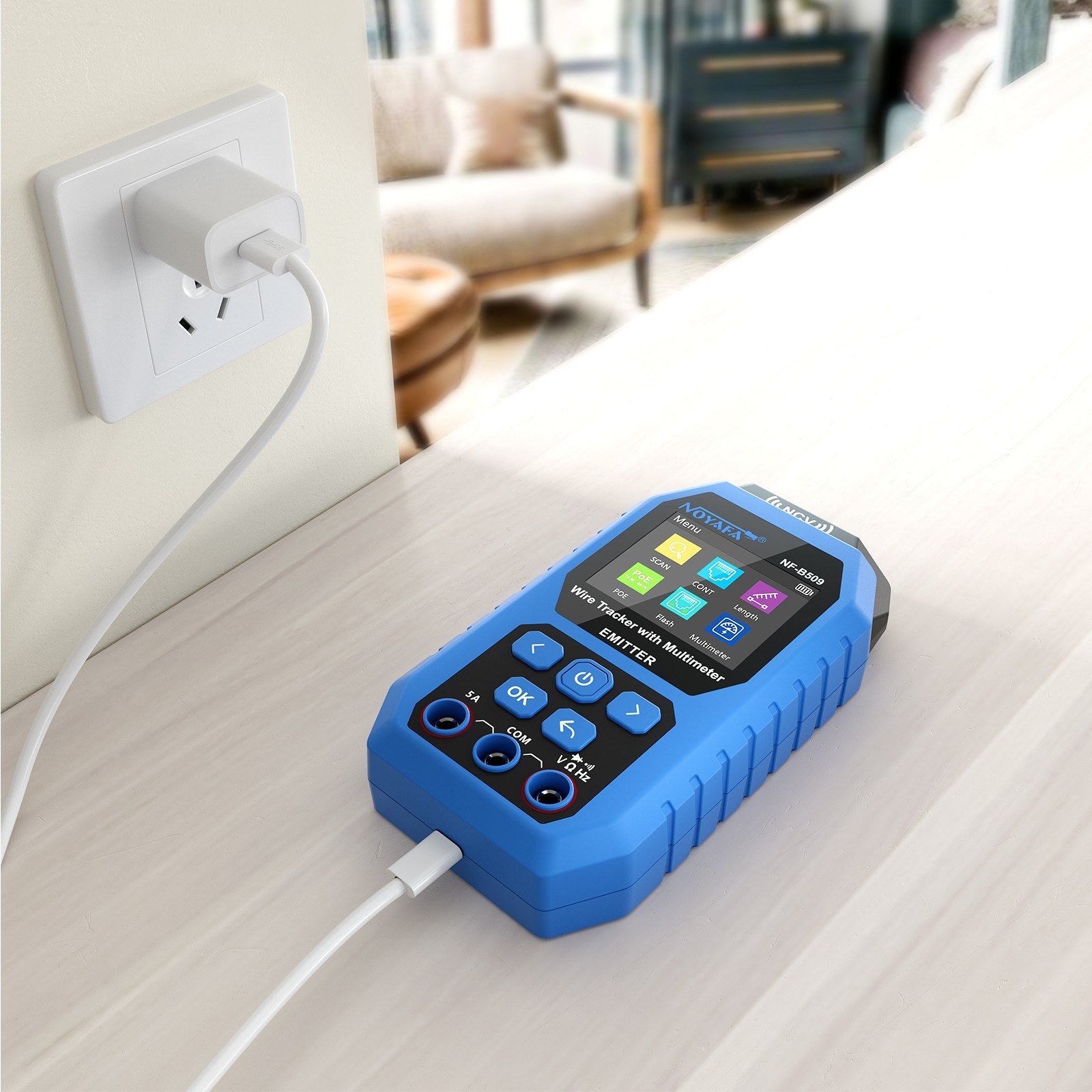

• Power: 3.7V, 1500mAh lithium battery
• Receiver
• LED Light: Yes
• Earphone: Yes
• Max Working Current: ≤150mA
• Power: DC9V (exclusive)

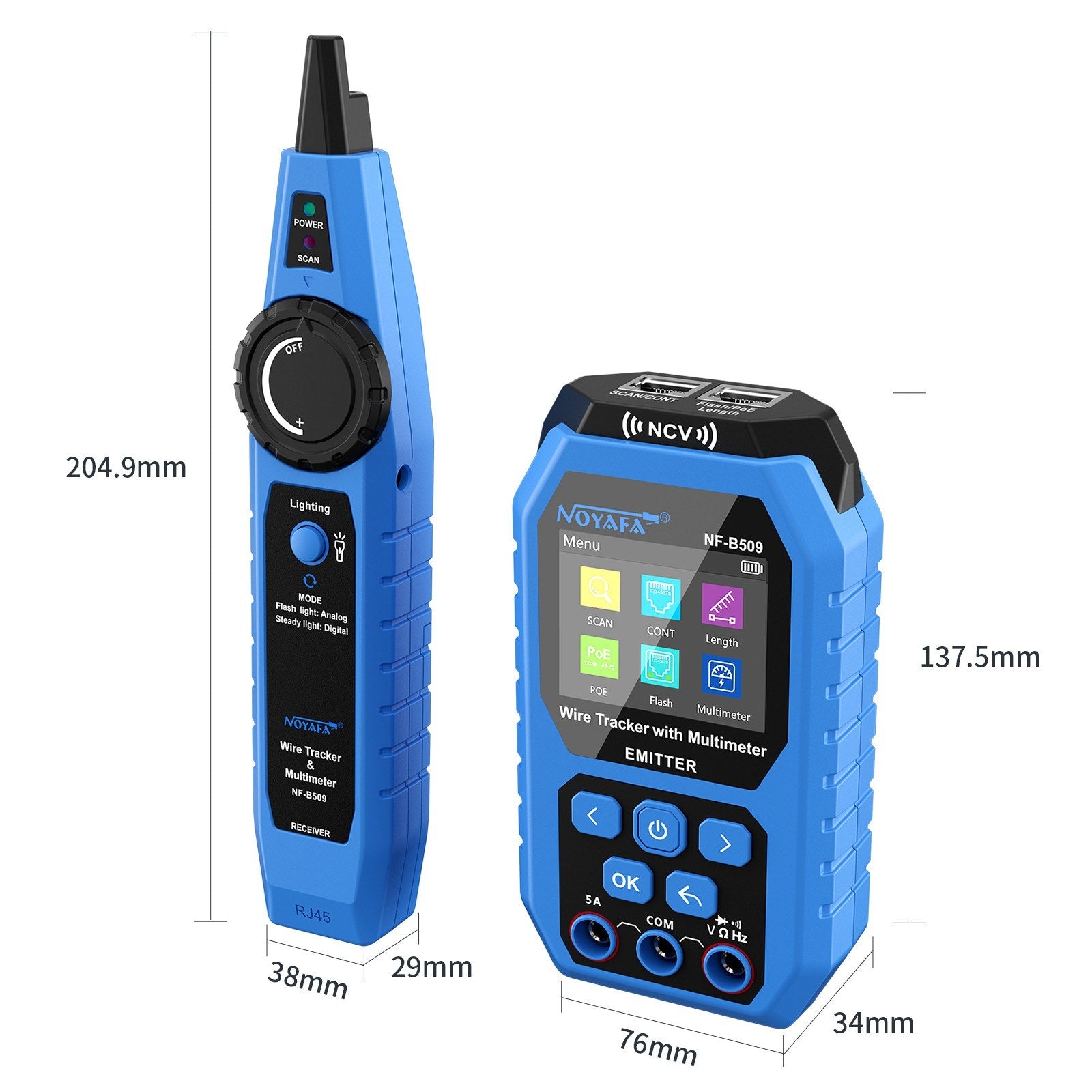

• Receiver Size: 204.9 x 38 x 29mm / 1 x 1 x 1in
• Transmitter Size: 137.5 x 76 x 34mm / 5.41 x 2.99 x 1.34in

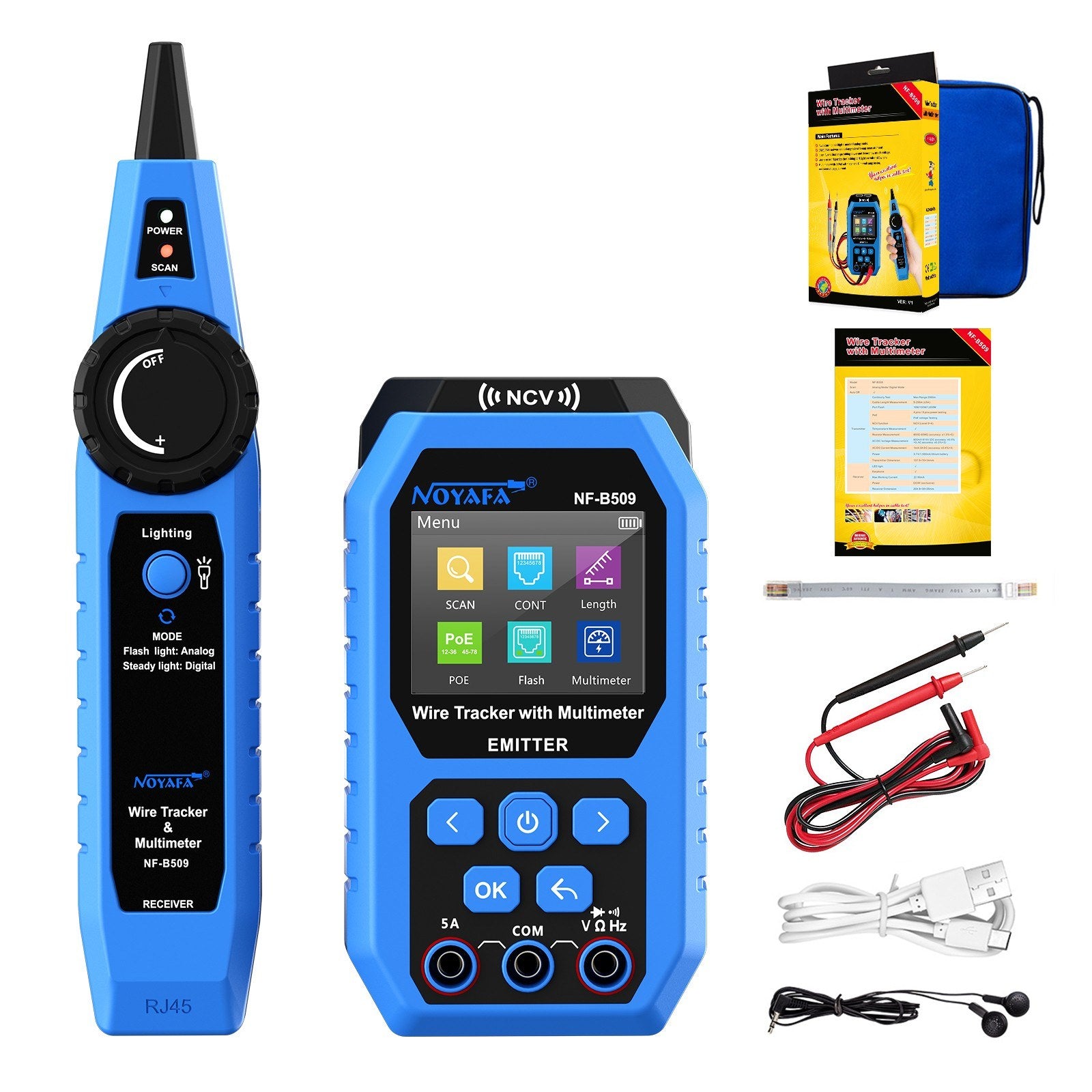

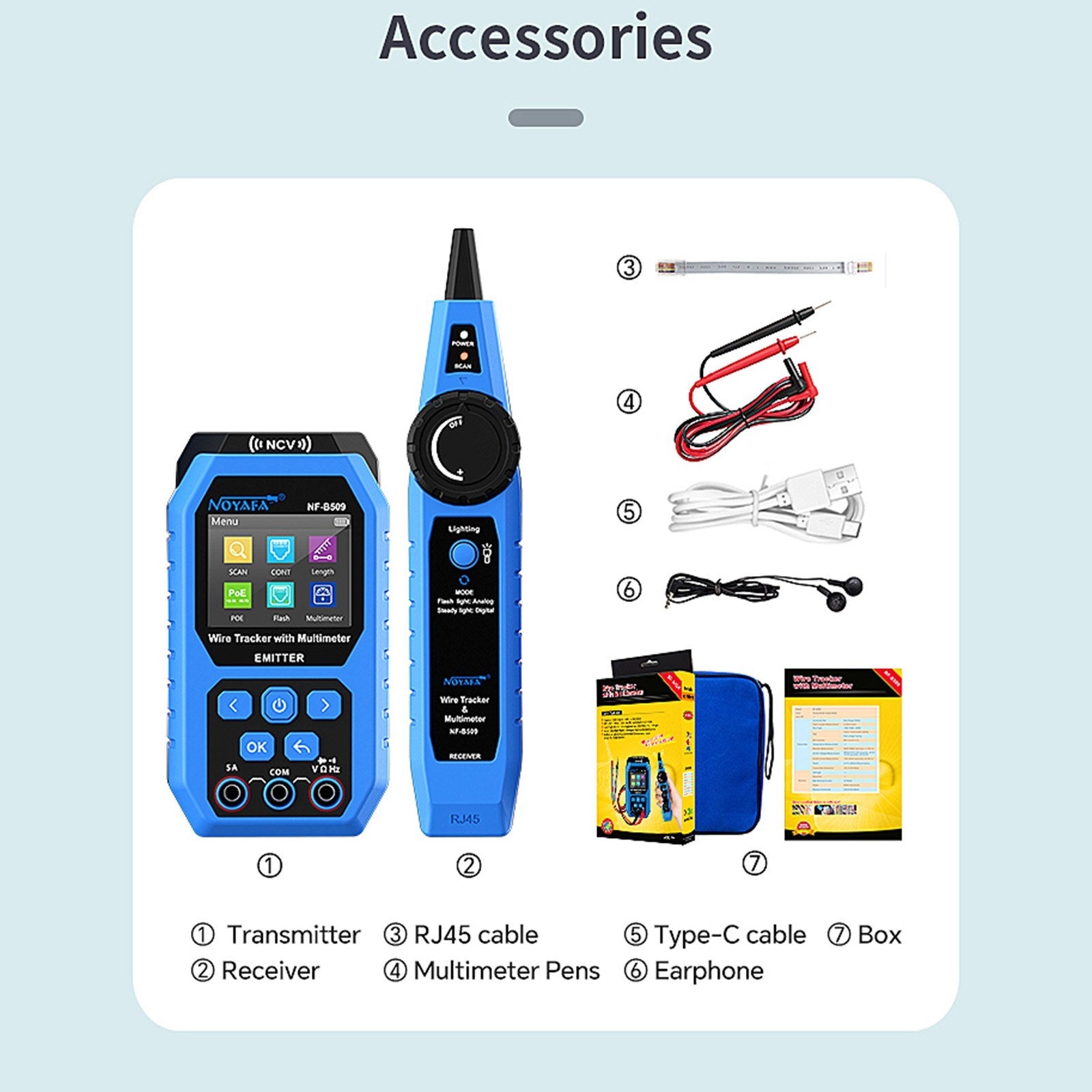

Package Includes:

• 1 x Transmitter
• 1 x Receiver
• 1 x RJ45 Cable
• 1 x Type-C Cable
• 1 x Multimeter Pens
• 1 x Earphone
• 1 x User Manual (English)
