ANENG M469C Network Cable Finder & LAN Wire Tracker RJ45 RJ11 Analyzer

Product Features

• Versatile Functionality: This multifunction network cable finder offers comprehensive network line searching, telephone line searching, power line inspection, and open/short circuit testing. It also includes DC voltage testing and a low voltage warning for enhanced safety and reliability.
• Accurate LAN Cable Testing: Equipped with adjustable volume and headphone listening capabilities, the LAN cable tester ensures precise testing of network cables with RJ11/RJ45 interfaces, essential for optimal network performance.
• Efficient Trace and Measure: Featuring a built-in flashlight, this network repair analyzer allows for easy operation in low-light environments. Its durable ABS plastic construction ensures long-lasting use.
• Comprehensive Network Testing: Powered by a 6F22 9V battery (not included), its multifunctional design supports thorough testing and troubleshooting of network lines for efficient maintenance and repair.
• Reliable Network Line Finding: Ideal for professionals, this tool offers accurate and efficient network line finding capabilities with user-friendly design and robust features.

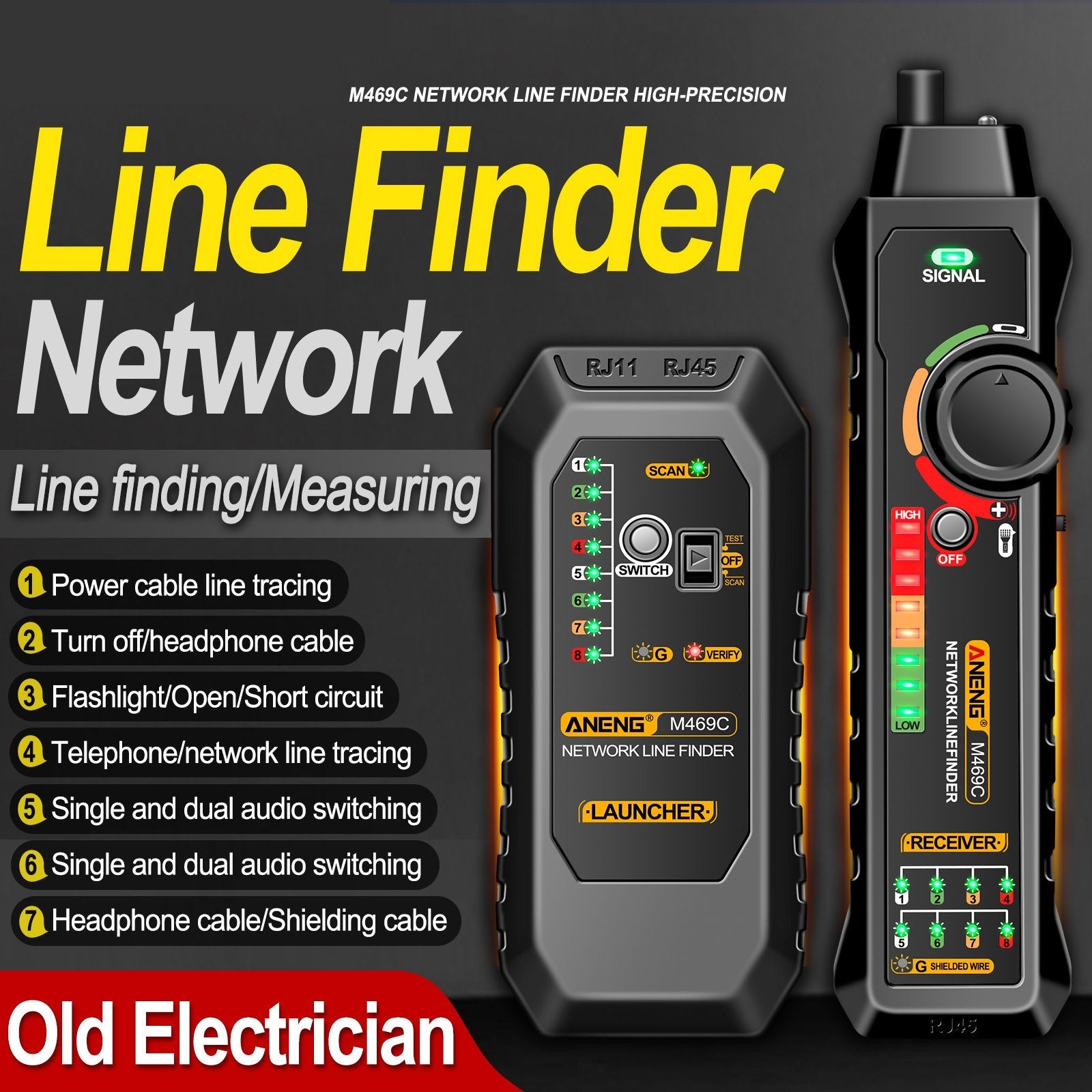

Functionality

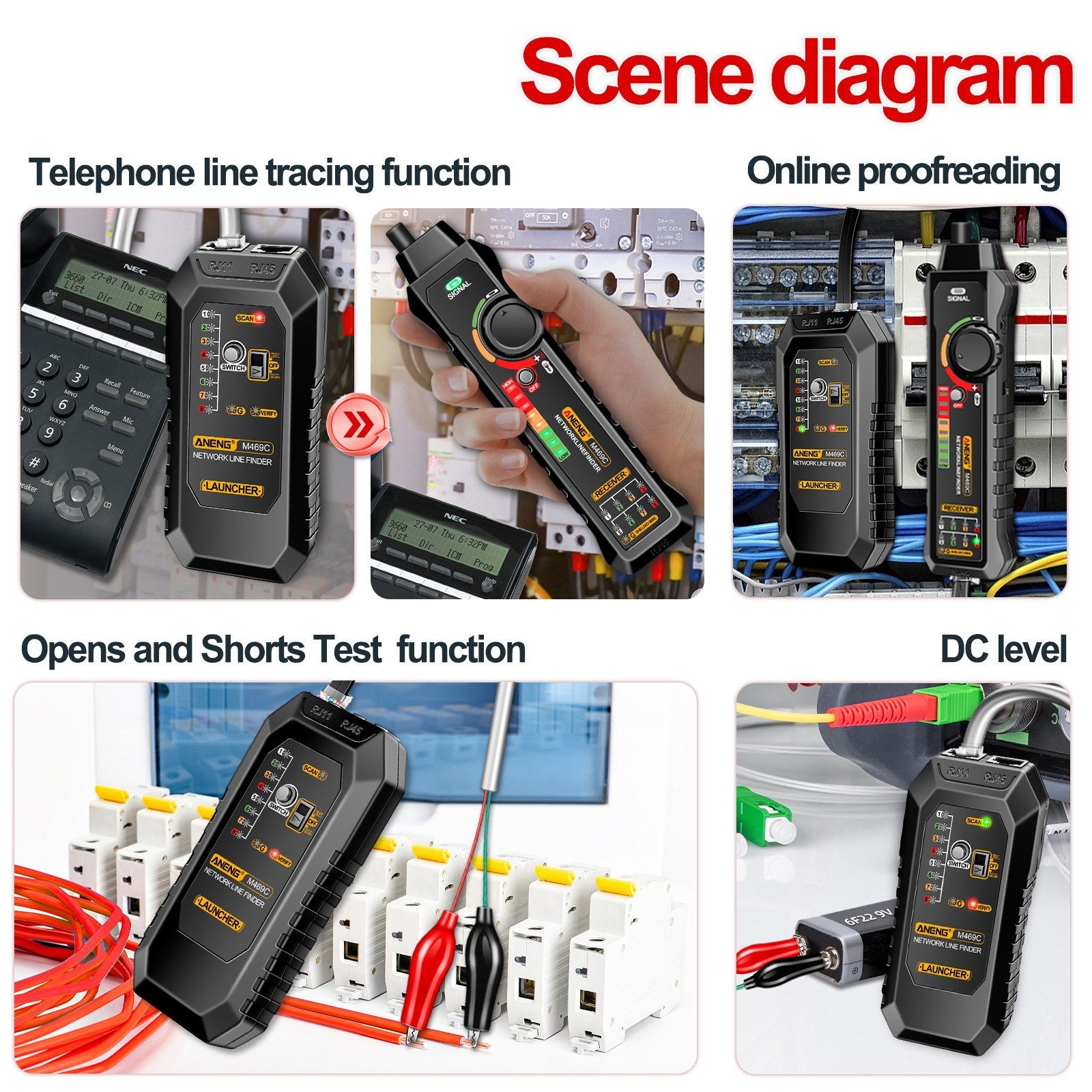

1. Telephone Line Tracing: Connect the phone line to the transmitter socket RJ11, switch to "seek line", and use the receiver probe to trace the target cable.
2. Network Line Tracing: Connect the network line to the transmitter socket RJ45, switch to "seek line", and use the receiver probe to trace the target cable.
3. Power Cable Line Tracing: Connect using a crocodile clip, switch to "seek line", and identify the target line via signal strength and light.

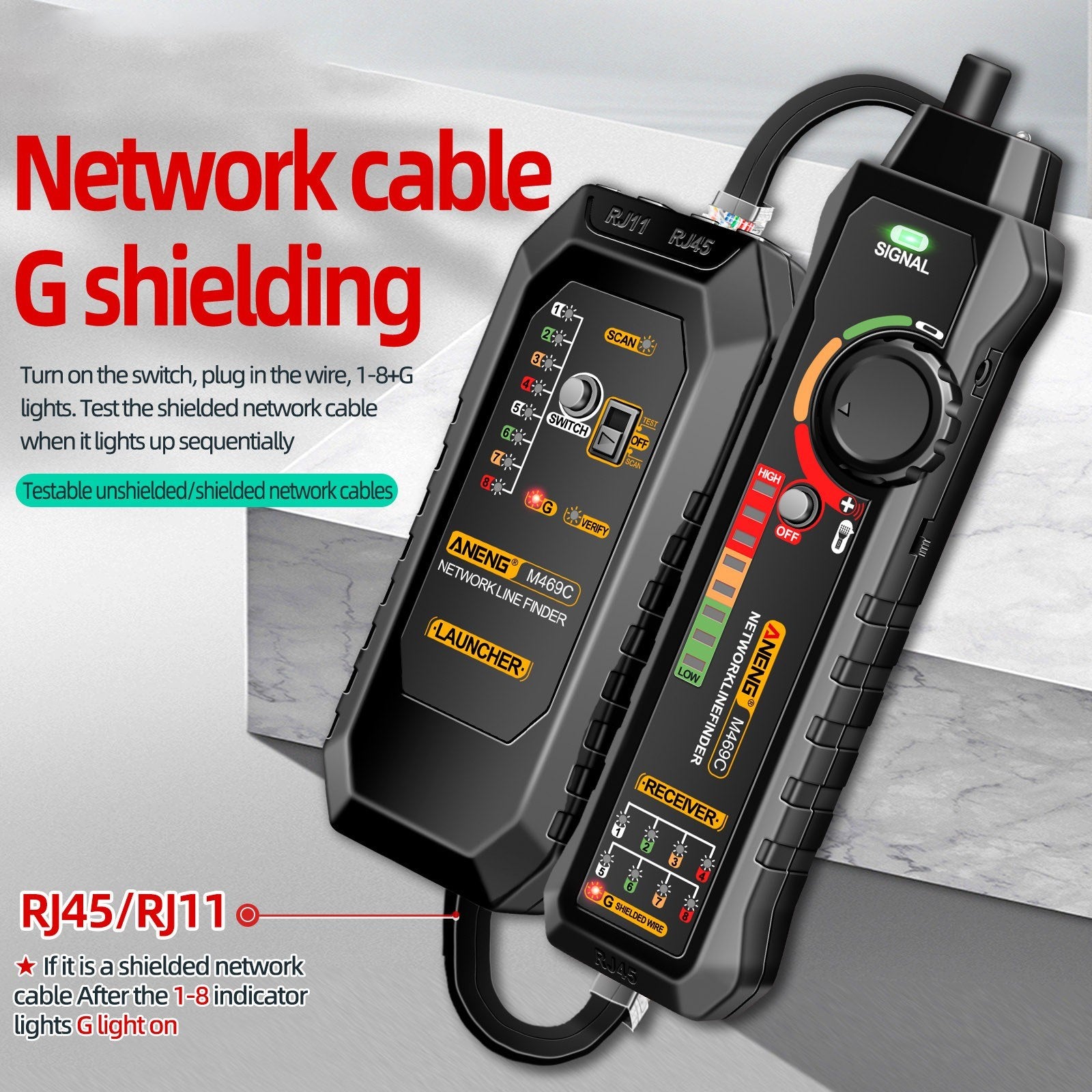

4. Network Cable Campus Team: Test both ends of the network cable, examine 18 line sequence lights for circuit issues, and use auto scanning for rapid results.
5. Open/Short Circuit Testing: Use RJ11 socket and crocodile clip to identify short circuits and measure impedance via light brightness.
6. DC Level Testing: Use the transmitter to check the power supply and determine polarity and voltage level by light brightness.
7. Low Voltage Prompt: Alerts users when battery voltage drops below 6V via flashing lights.
8. Earphone Function: Insert headphones in noisy environments for uninterrupted operation.

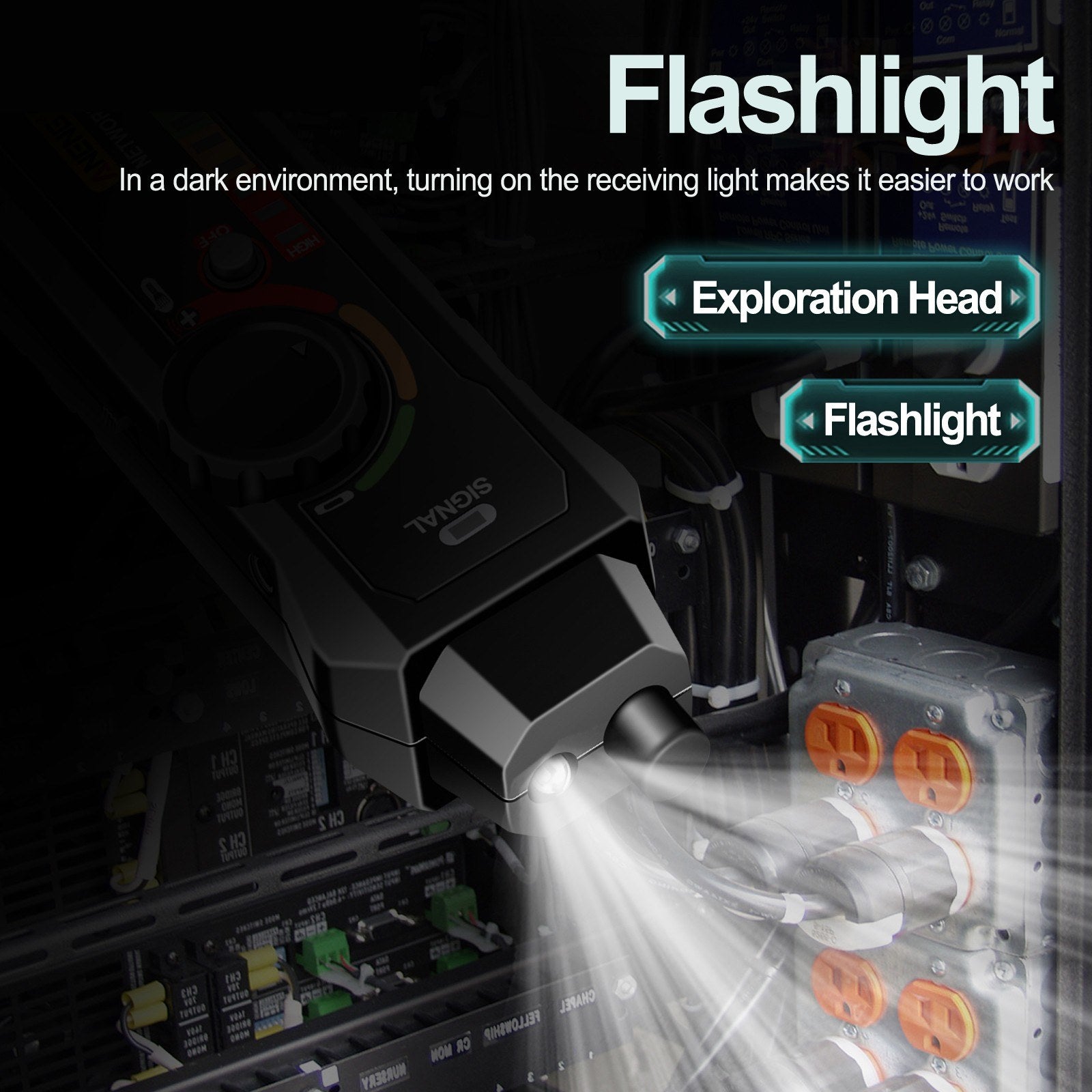

9. Lighting Function: Toggle the light switch for convenient work in dark settings.

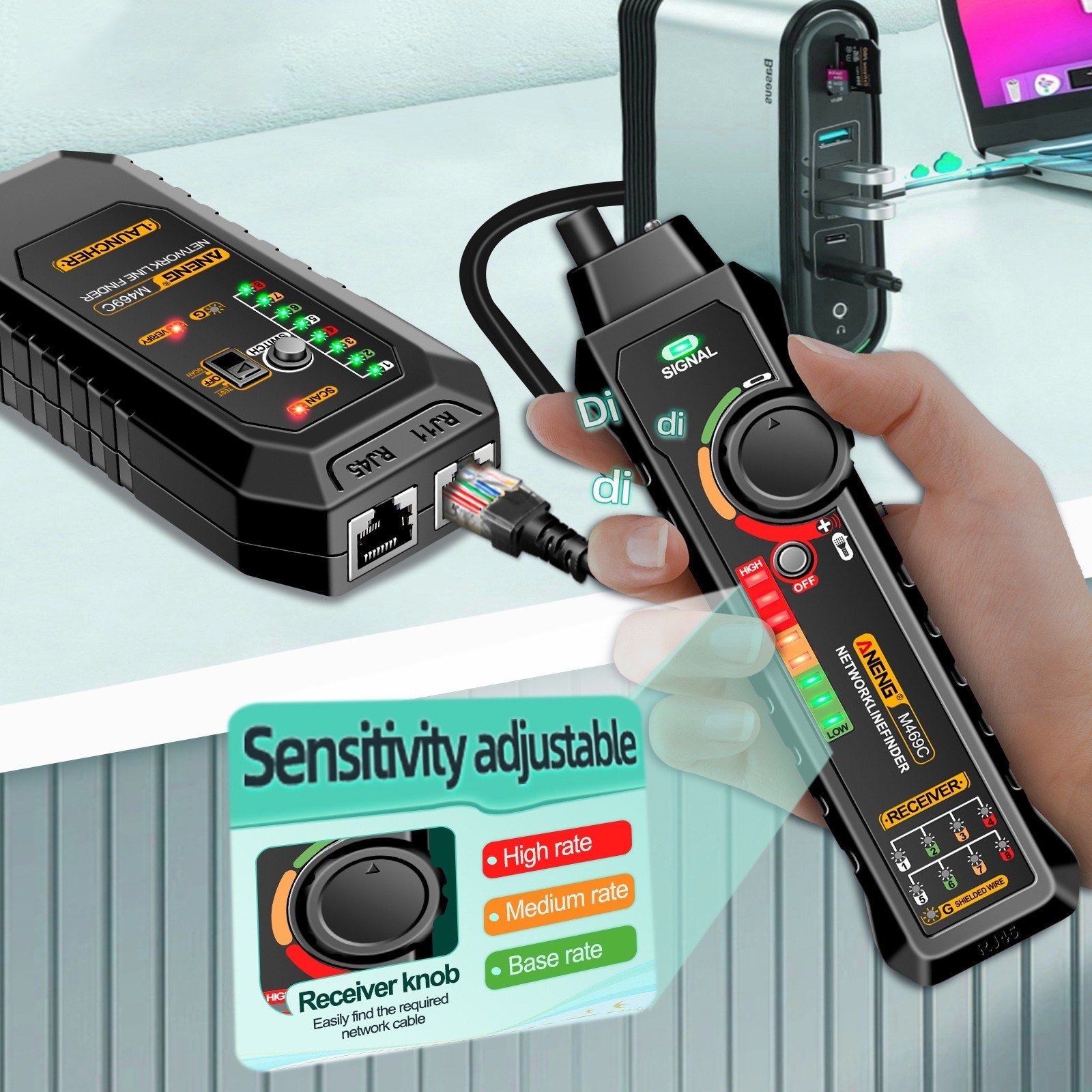

10. Sensitivity Adjustable: Adjust the receiver's sensitivity using the knob for precise line searching.
11. Energy Saving: Automatically powers off after 1 hour of inactivity.

Usage Precautions

• Avoid direct contact with probes to prevent electric shock.
• Inspect probes for damage before use.
• Do not interchange current and voltage ranges to protect the device.
• Remove batteries if unused for prolonged periods to prevent corrosion.
• Start with the highest range if voltage or current magnitude is unknown.

Specifications

• Color: Black / Red (Optional)
• Model: M469C
• Material: ABS Plastic
• Battery: 6F22 9V (Not included)
• Interface End: RJ11 / RJ45
• Flashlight: Yes
• Functions: Network, Telephone, Power Cable Tracing, Among Others
• Auto Shutdown: After 1 Hour
• Transmitter Size: 127 x 56.5 x 28 mm
• Receiver Size: 185 x 46 x 31.5 mm
• Transmitter Weight: 62g
• Receiver Weight: 77g
• Package Weight: 288g
• Package Size: 22.5 x 12.5 x 5.5 cm

Package Content

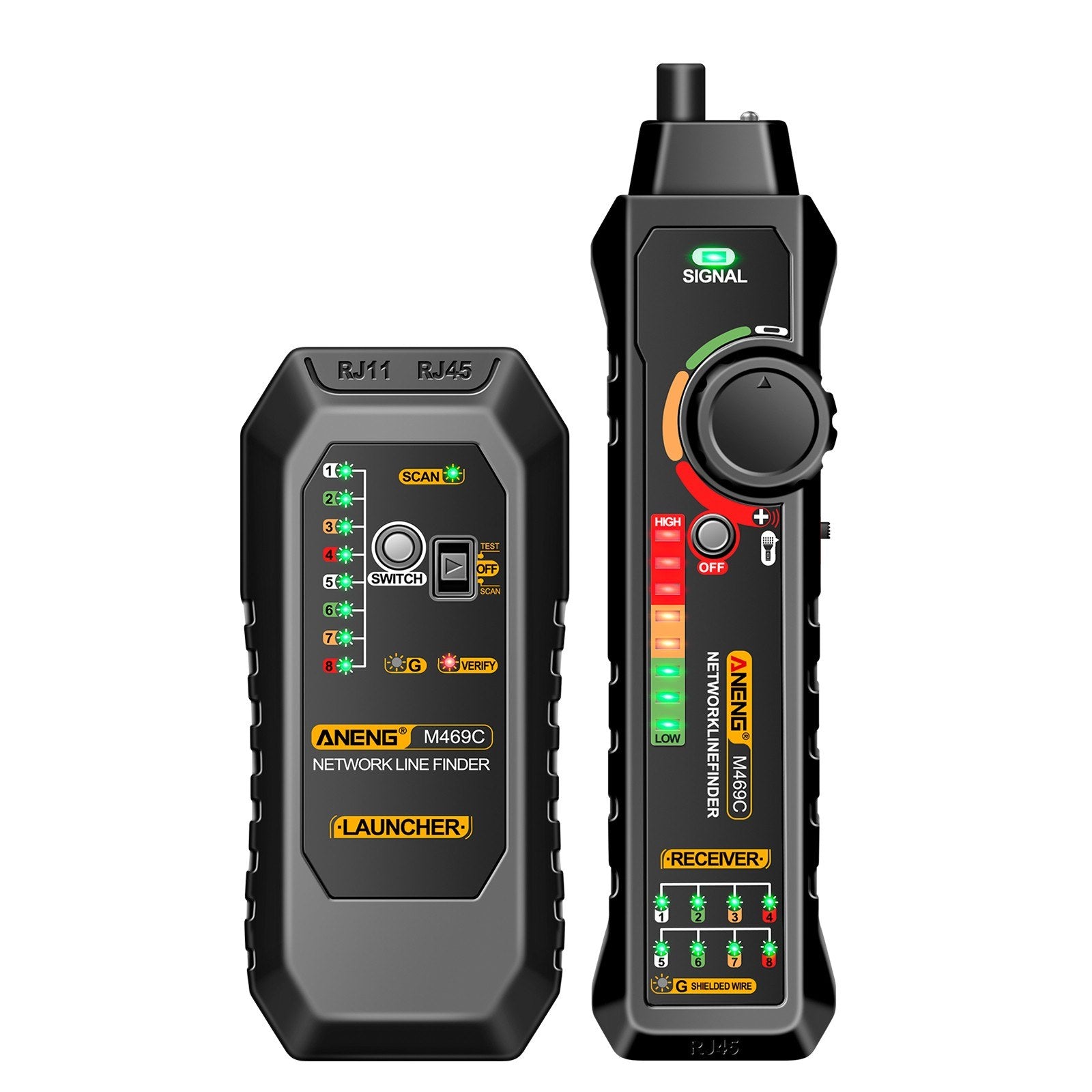

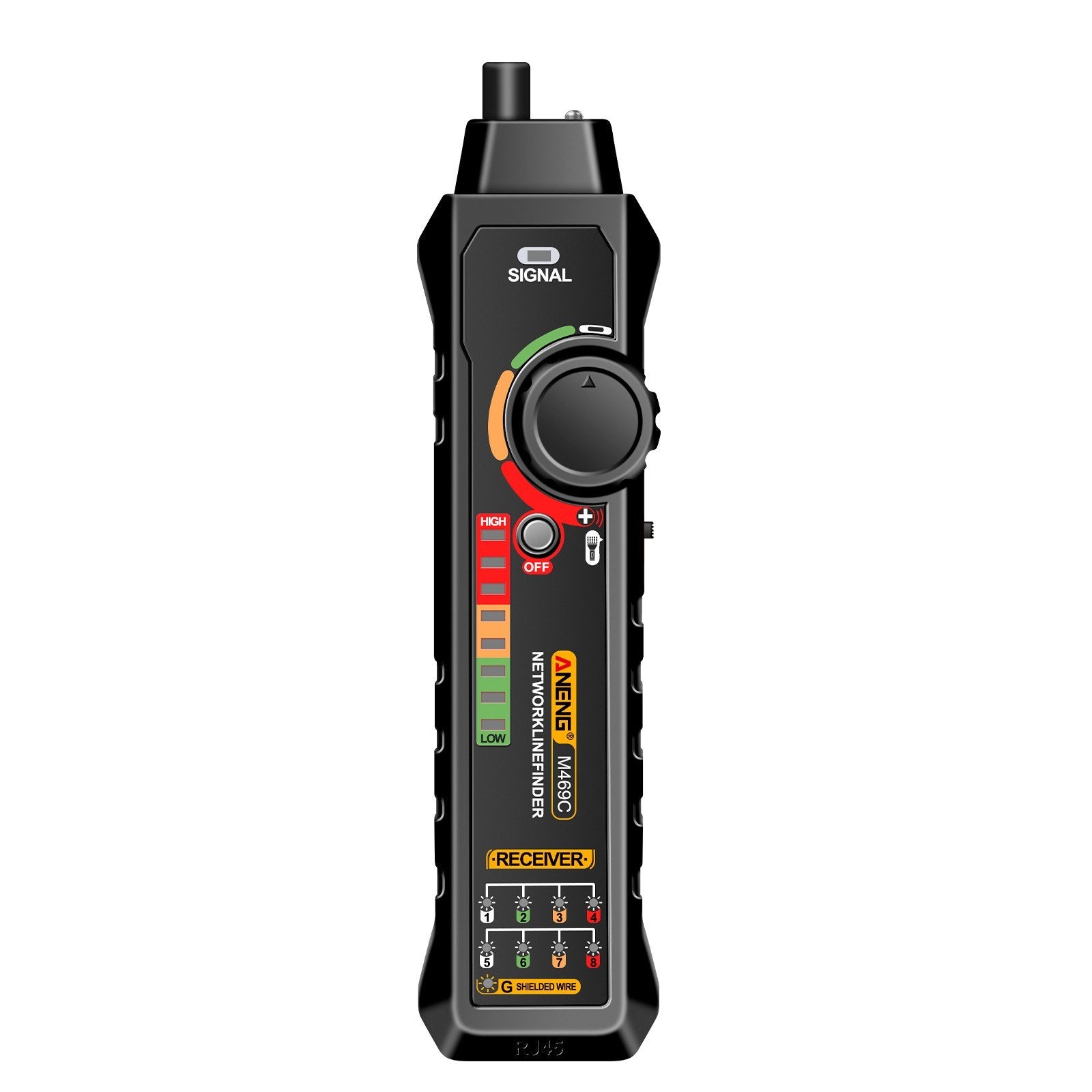

• 1 x Receiver

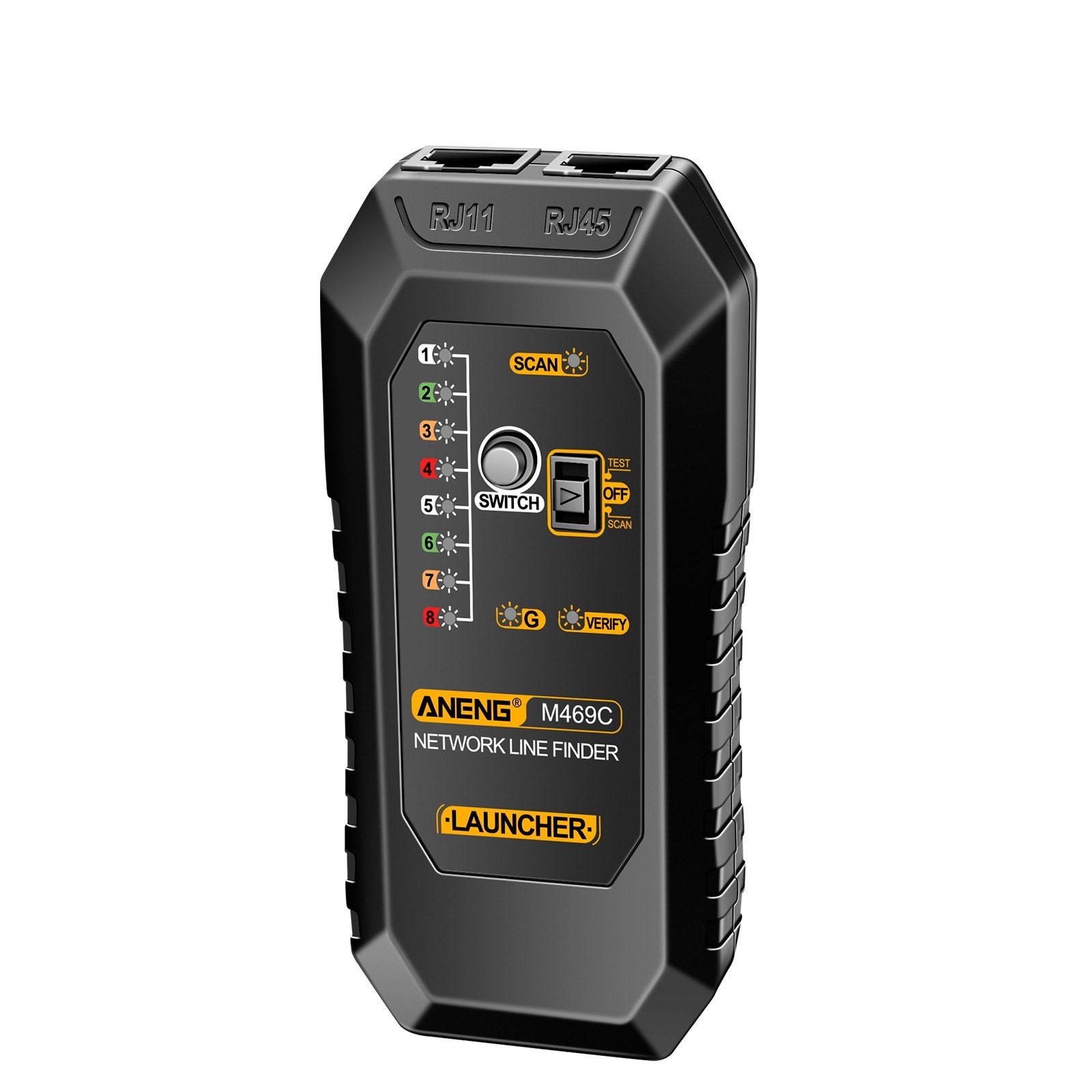

• 1 x Transmitter
• 1 x Crocodile Clip
• 1 x Headphones
• 1 x RJ11 Adapter
• 1 x RJ45 Adapter
• 1 x Storage Bag
• 1 x User Manual (English)
