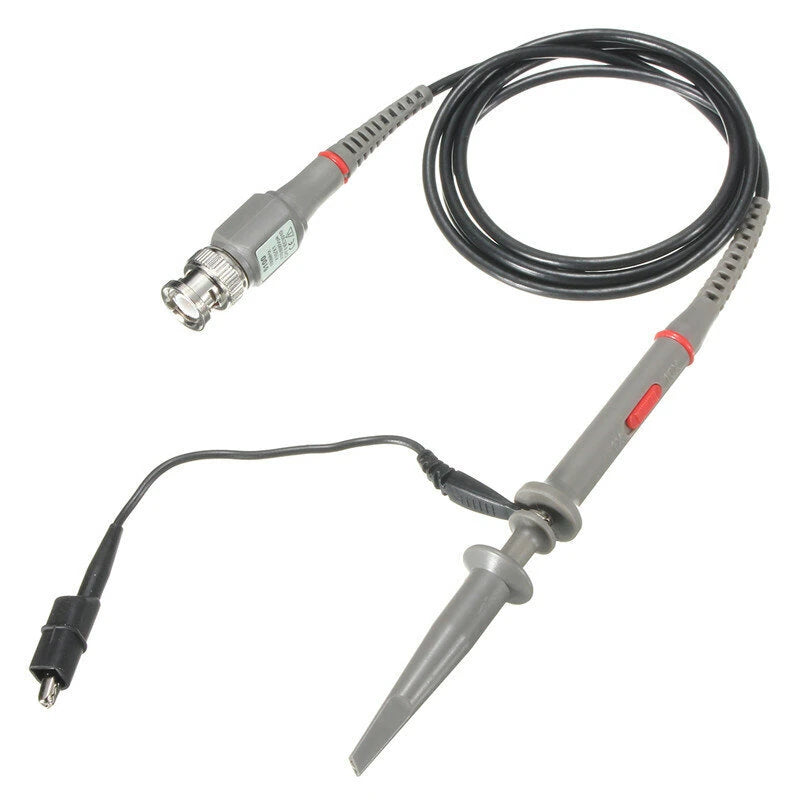

Oscilloscope Probe P6060

Specifications

• Product Name: Oscilloscope Probe
• Model: P6060
• Bandwidth: 60 MHz
• Rise Time: 5.8 ns
• Attenuation Ratio: 1x & 10x
• Input Resistance: 1x: 1MΩ/-2%, 10x: 10MΩ/-2%
• Input Capacitance: 1x: 70 pF ~ 120 pF, 10x: 14 pF ~ 18 pF
• Max Input Voltage: 1x: 200V (Vpp), 10x: 600V (Vpp)
• Compensation Range: 15 ~ 45 pF
• Operating Environment: 0°C ~ 50°C, 0 ~ 80% RH
• Storage Environment: -20°C ~ 60°C, 0 ~ 90% RH
• Length: 120 ± 2 cm
• Weight: Approx. 55 g

Features

• High Bandwidth: Supports up to 60 MHz bandwidth with a 5.8 ns rise time, ideal for various electronic measurement and testing applications.
• Adjustable Attenuation: Equipped with both 1x and 10x attenuation settings to provide flexibility for different signal measurements, ensuring precise and accurate readings.
• Wide Input Range: Capable of handling a maximum input voltage of 200V (Vpp) in 1x mode and 600V (Vpp) in 10x mode, perfect for multi-range testing requirements.
• Optimal Compatibility: Offers compatibility with a wide range of oscilloscopes, featuring an adjustable compensation range of 15 ~ 45 pF for accurate calibration and signal integrity.
• Lightweight and Compact: Weighs only 55 g with a cable length of 120 cm, ensuring ease of use and maneuverability during measurements.

Package Included

• 1 x Oscilloscope Probe (P6060)
• 1 x User Manual
