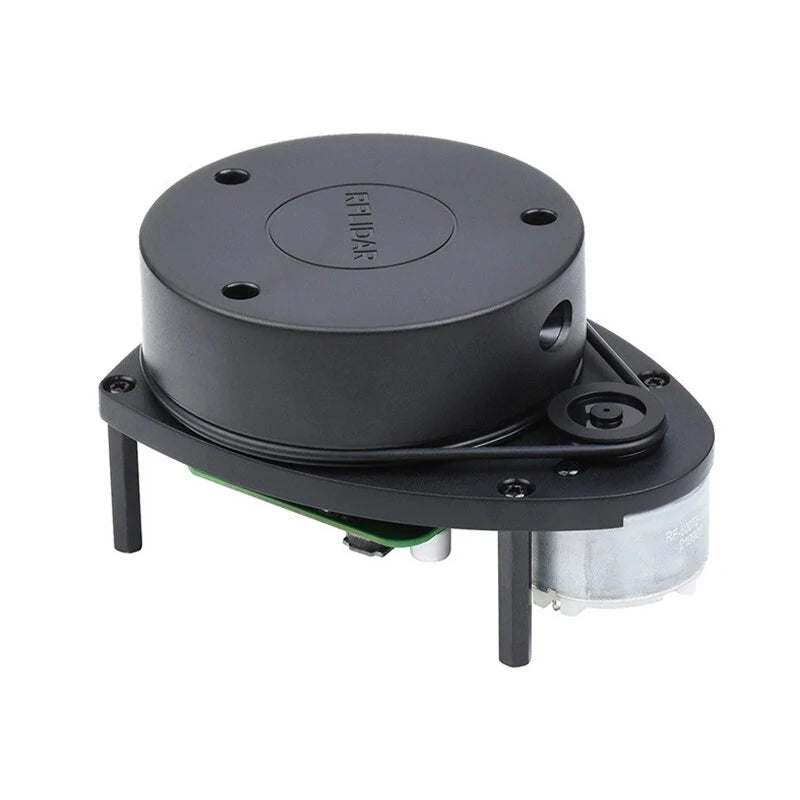

RPLIDAR A1 360° 2D Lidar Sensor 12m Range for Obstacle Avoidance & Robot Navigation

Specification:

• Measuring Radius: 0.15 ~ 12.00 m
• Distance Accuracy:
  • Within 1% of actual distance (≤3 m)
  • Within 2% of actual distance (3 ~ 5 m)
  • Within 2.5% of actual distance (5 ~ 12 m)
• Scanning Frequency: 5.5 Hz
• Scanning Angle: 360°
• Distance Measurement Frequency: 8000 Hz
• Measurement Resolution:
  • Within 1% of actual distance (distances ≤12 m)
  • Within 2% of actual distance (distances 12 ~ 16 m)
• Laser Wavelength: 785 nm
• Communication Interface: UART
• Power Supply Voltage: 5V
• Power Consumption: 0.5 W
• Operating Current: 100 mA
• Weight: 248 grams
• Operating Temperature: 0°C ~ 40°C
• Dimensions: 96.8 x 70.3 x 55.0 mm (L x W x H)

Features:

• High Sampling Rate: Measures distance data over 8000 times per second, providing detailed and accurate readings for precise mapping and navigation.
• 360 Degree Scanning: Omnidirectional laser range scanning with a configurable scan rate from 2 Hz to 10 Hz, ideal for comprehensive environmental monitoring and robot navigation.
• OptMAG Original Design: Innovative OPTMAG design ensures stable performance over time, significantly extending the lifespan of the scanner.
• Versatility and Reliability: Functions optimally in various indoor environments and outdoor settings without direct sunlight, making it versatile for different applications.
• Easy Integration: Plug-and-play design allows for straightforward integration into existing systems, enhancing ease of use and efficiency in deployment.

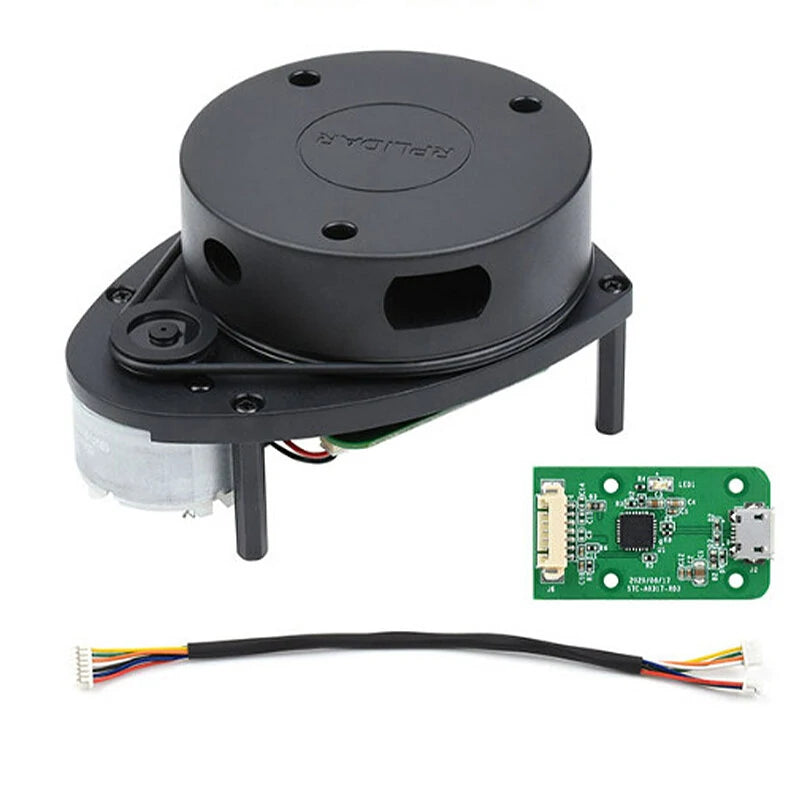

Package Includes:

• 1 x RPLIDAR A1 2D 360° Lidar Sensor
• 1 x USB Adapter Board
• 1 x Communication Cable
