UNI-T UTi690A Infrared Thermal Imager 120x90 -20~400℃ Handheld USB Camera with PC Software Analysis

Name: UNI-T UTi690A Infrared Thermal Imager 120x90 -20~400℃ Handheld USB Camera with PC Software Analysis
Brand: Evalm
SKU: 7841898637748
Price: 167.99 USD
Availability: InStock

$167.99 USD

~~$0.00 USD~~ $167.99 USD

Sale Sold out

Shipping calculated at checkout.

Shipping Icon Estimated Delivery: -

Quantity

Product Features

Infrared Resolution: 120x90
Temperature Range: -20°C to 400°C
Measurement Modes: Center Point, High and Low Temperature Tracking
Photo Storage: 16GB TF Card
High and Low Temperature Alarm: Image, Buzzer, LED Flashing
Laser Indicator and LED Lighting
Three Protection Design: IP54 Rating, 2 Meters Anti-Fall Resistance

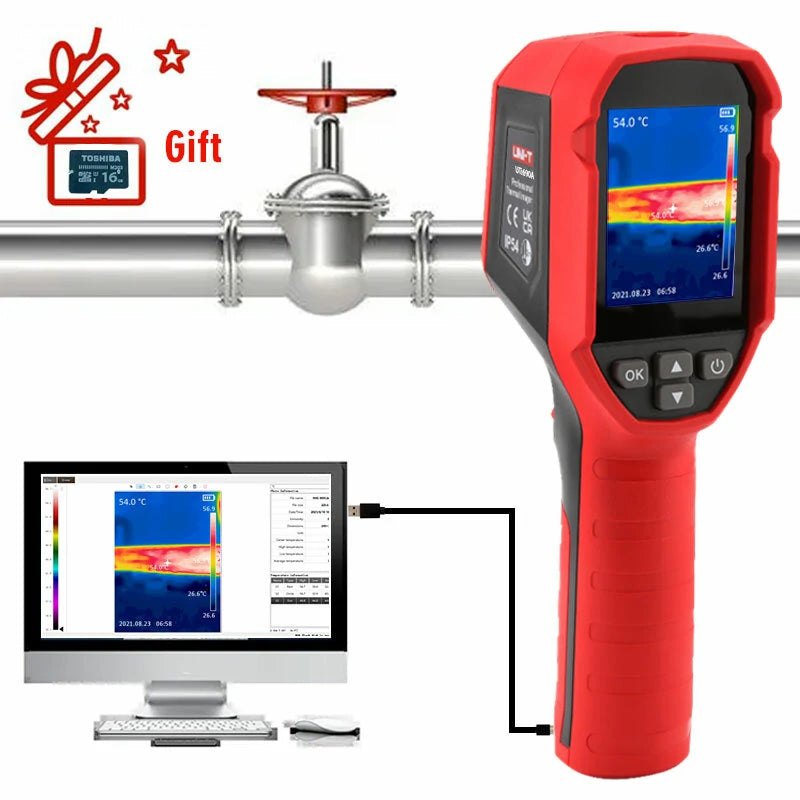

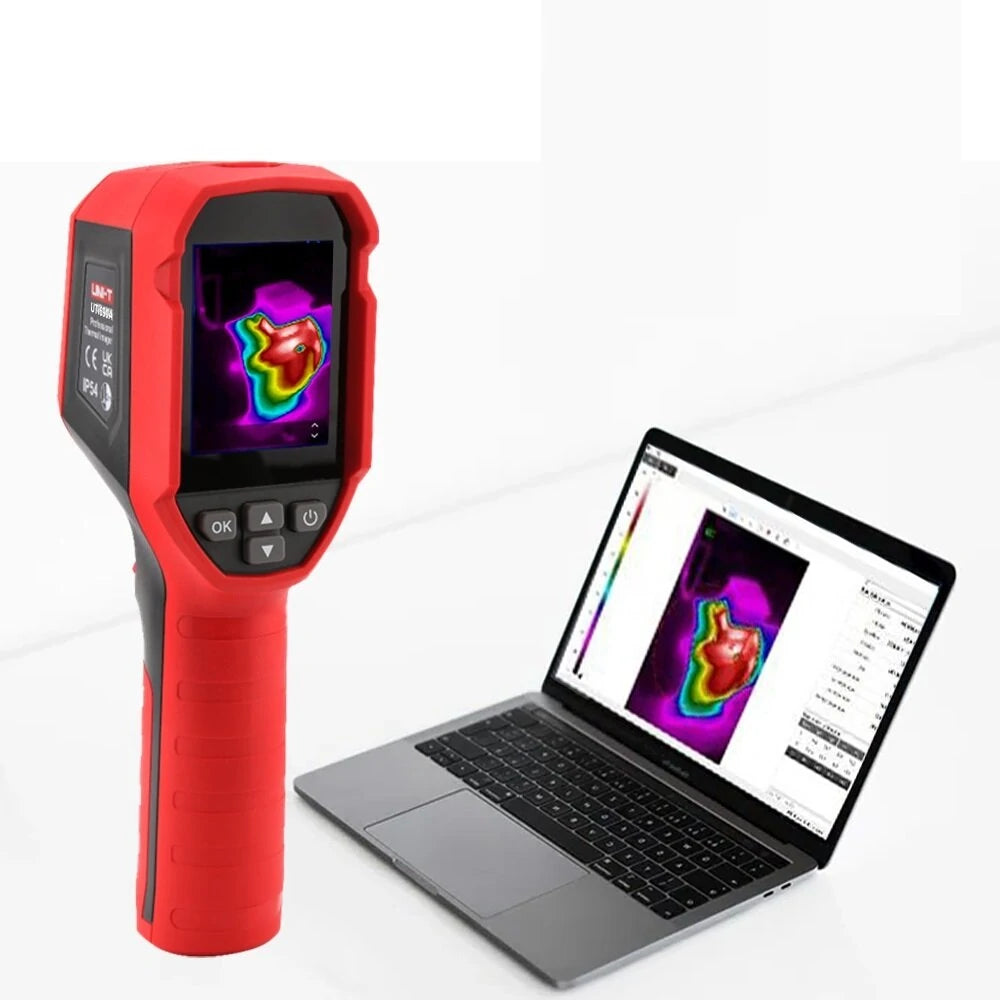

PC Analysis Software Included
Six Available Color Palettes
Adjustable Emissivity Setting
Use Time: Not Less Than 9 Hours
3.7V/2600mAh Rechargeable Lithium Battery

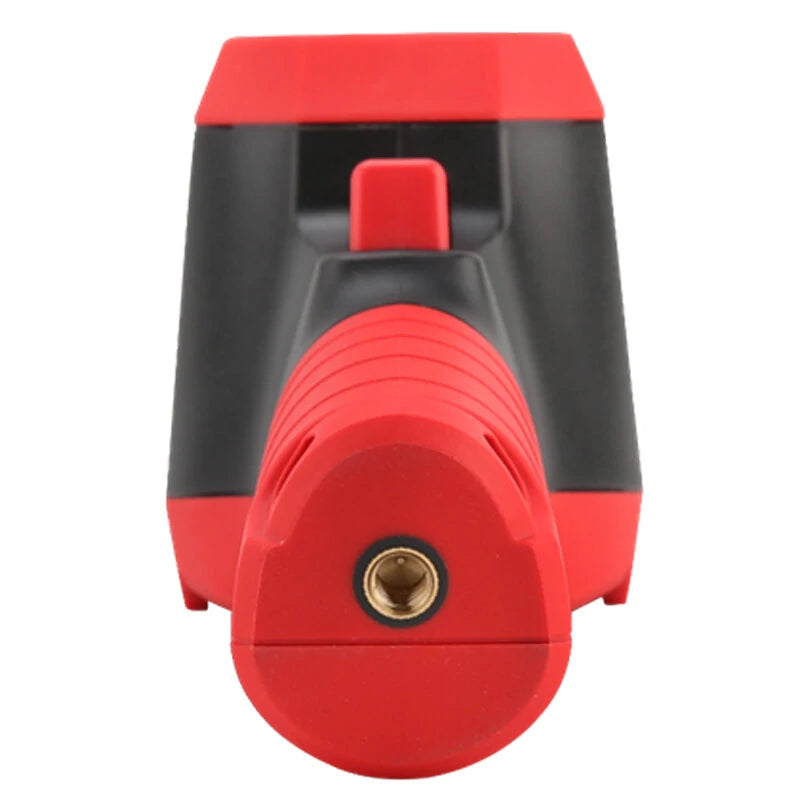

Compatible with Tripods (Bottom ¼ Screw Hole)
Temperature Compensation Function (Updated 2022.1.13)

Specifications

Model	UTi690A
Temperature Range	-20℃~400℃
Sensor	Uncooled Infrared Focal Plane
Screen	2.4 Inch TFT LCD
Display Resolution	320x240
Infrared Pixels	120x90 (10800)
Pixel Size	17µm
Field of View	50°(H) x 38°(V)
Best Test Distance	50cm
Resolution	0.1℃
Unit	°C, °F
Emissivity	0.95 (Default), Adjustable (0.01~0.99)
Precision	±2℃ or 2%
Data Communication	Type-C USB
Certifications	CE, UKCA, EOHS
Operating Temperature	0℃ to 50℃ (32℉ to 122℉)
Storage Temperature	-20℃ to 60℃ (-4℉ to 140℉)
IP Class	IP54
Drop Test	2m
Tripod Mounting	Supports 1/4 Adapter
Alarm Notifications	LCD Screen, LED Flashing, Buzzer Alarm
Automatic Shutdown	Optional: 5min, 10min, 30min, Off (Default: 30min)
Usage Time	More Than 9 Hours Continuous Use
Charging Time	Less Than 2.5 Hours
Size	197x72x60 mm
