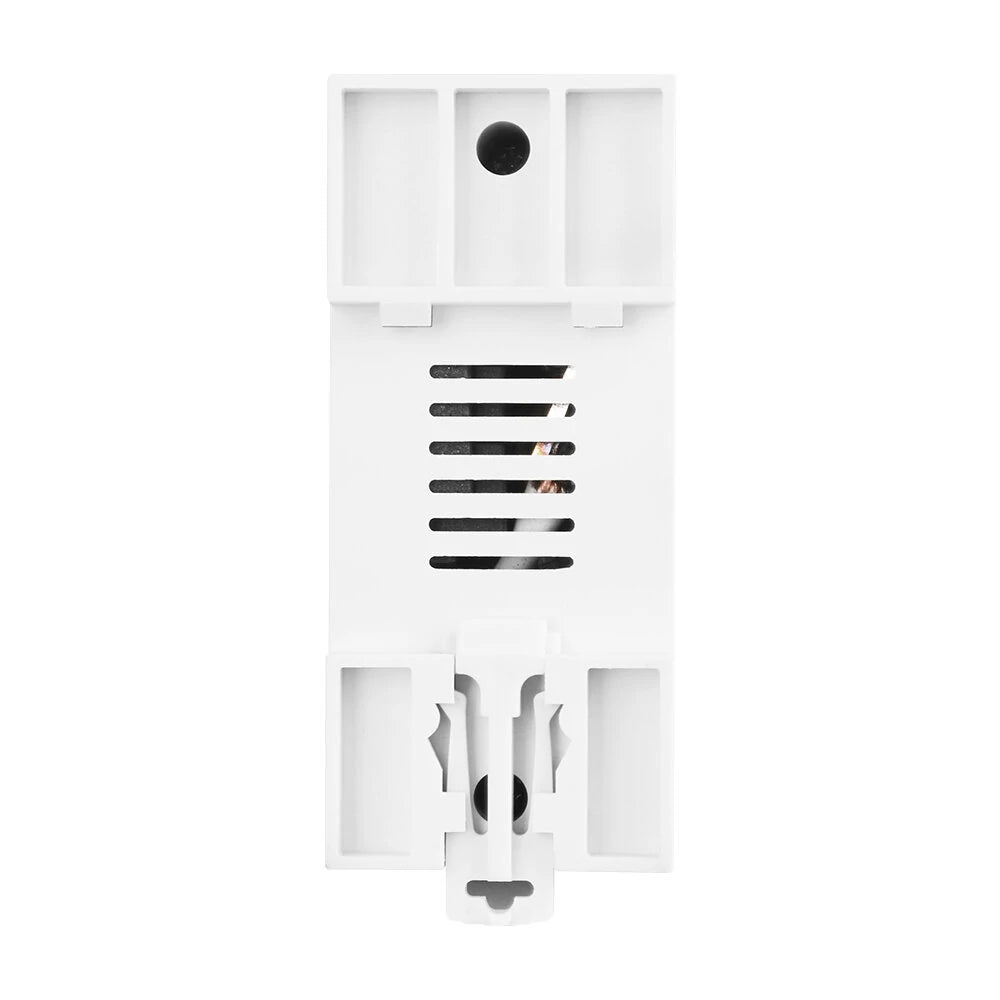

SINOTIMER SVP688 WiFi Energy Meter with Remote Control & Real-Time Monitoring for Voltage, Current, and Leakage Protection - Adjustable Parameters & Three Timing Modes for Efficient Energy Management

Explore our range of Electricity Energy Meters by clicking on ID:1996940, 1996941.

Features:

• Remote Control and Monitoring: Control the ON/OFF function of the SVP688 WiFi Energy Meter remotely via your smartphone, enabling device management from anywhere.
• Real-Time Monitoring: Access real-time data for current, voltage, leakage current, and total kWh consumption directly on your phone, enhancing your energy management and efficiency.
• Adjustable Protection Parameters: Set over-voltage, under-voltage, over-current, and leakage current protection using either the app or the device's settings.
• Voltage Protection Range: Customize under-voltage protection from 145V to 210V (default: 175V) and over-voltage protection from 240V to 300V (default: 275V).
• Current Protection Range: Adjust over-current protection settings from 1A to 63A (default: 63A), ensuring reliability for diverse electrical loads.
• Electric Leakage Protection: Safeguard with adjustable leakage protection ranging from 10mA to 99mA (default: 50mA). This feature is optional.
• Reconnect Time and Protection Timings: Configure reconnect time between 10s to 99s (default: 30s) and adjust protection timings from 1 to 30 (default: 5). These settings can also be disabled if necessary.
• Over Temperature Protection: Manage over-temperature protection ranging from 10°C to 85°C via the app.
• Three Timing Modes: Select from timing mode, countdown mode, or cycle timing to optimize your device operations.

Specifications:

• Brand: SINOTIMER
• Model: SVP688
• Rated Voltage: 230VAC
• Rated Current: 63A
• WiFi Compatibility: Smartlife/TUYA
• Leakage Protection Range: 10mA - 99mA (adjustable, default: 50mA)
• Reconnect Time (Delay On Time): 10s - 99s (adjustable, default: 30s)
• Over Current and Leakage Protect Times: 1 - 30 (adjustable, default: 5)
• Over Temperature Protection: 10°C - 85°C (app adjustable only)
• Timing Modes: Timing Mode, Countdown Mode, Cycle Timing

Optional Types:

• Type A: No Wifi with Light
• Type B: Wifi with Light
• Type C: Wifi without Light

Package Included:

• 1 x Energy Metering Switch Timer (Type as per your choice)
