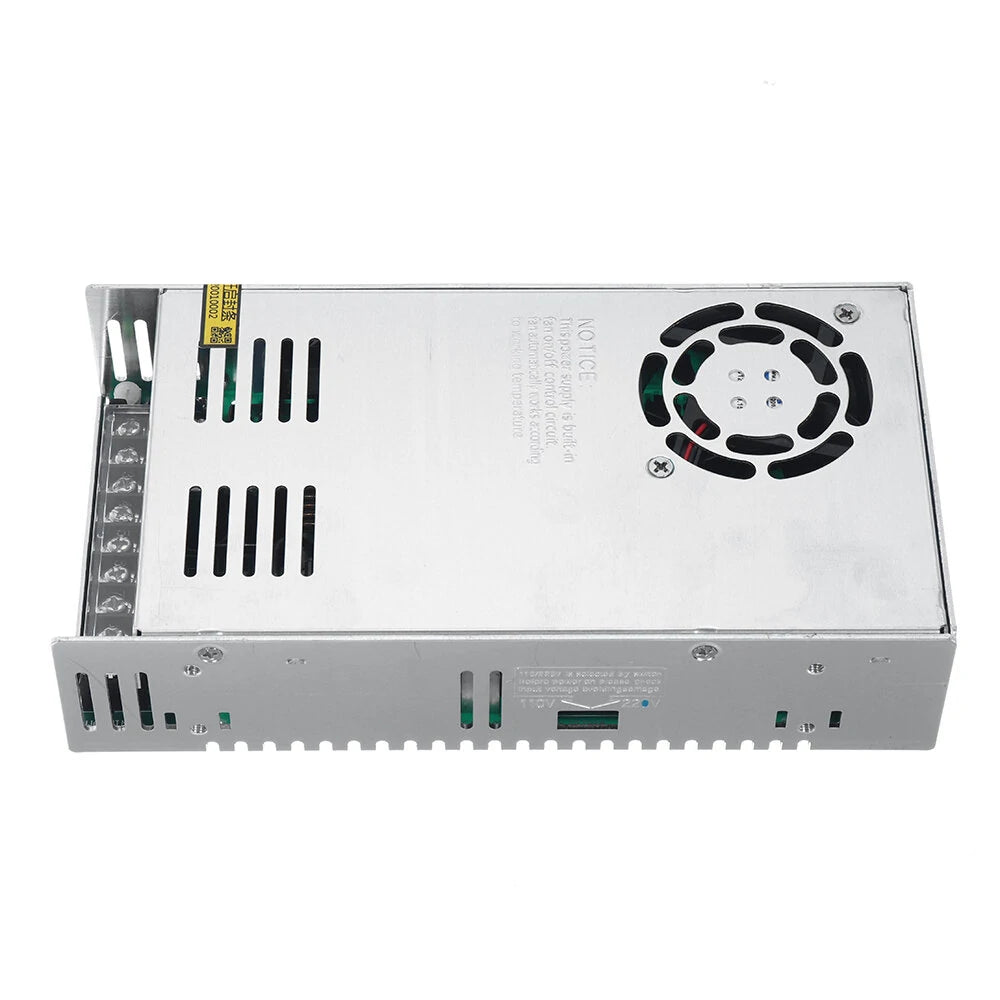

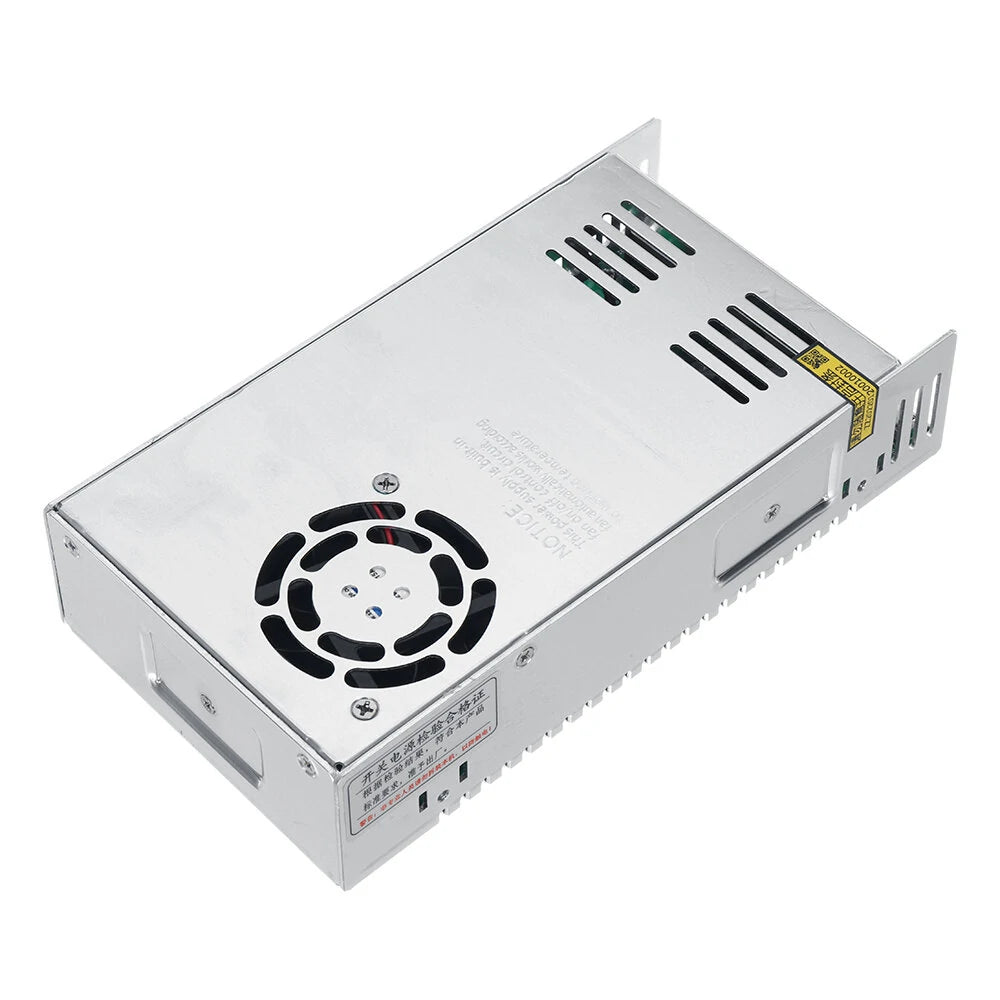

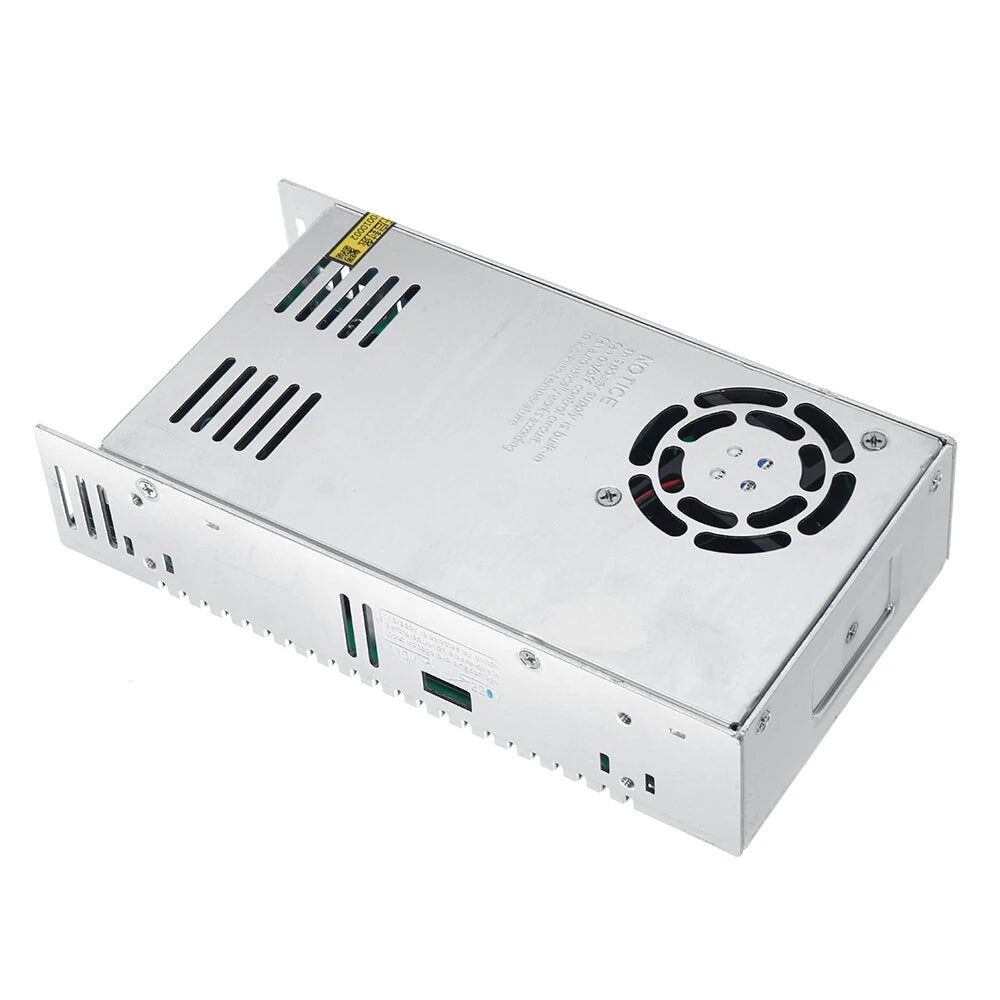

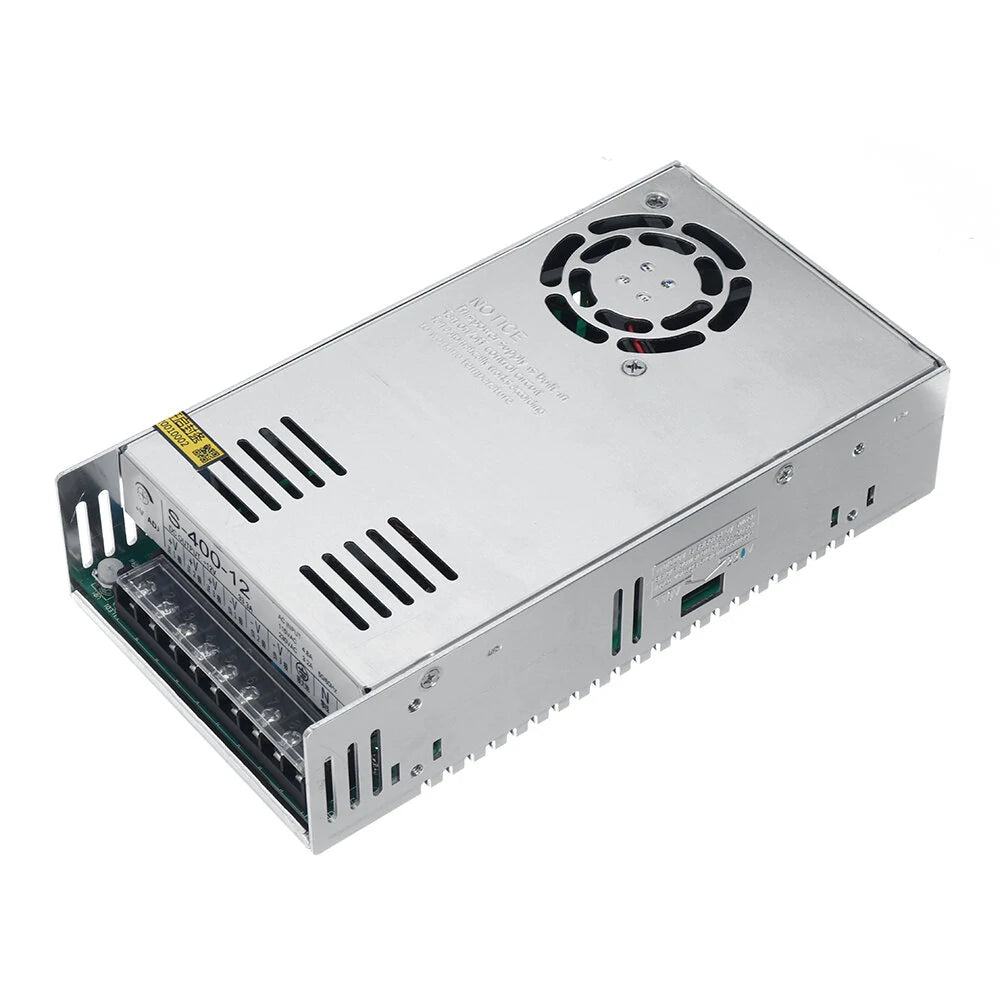

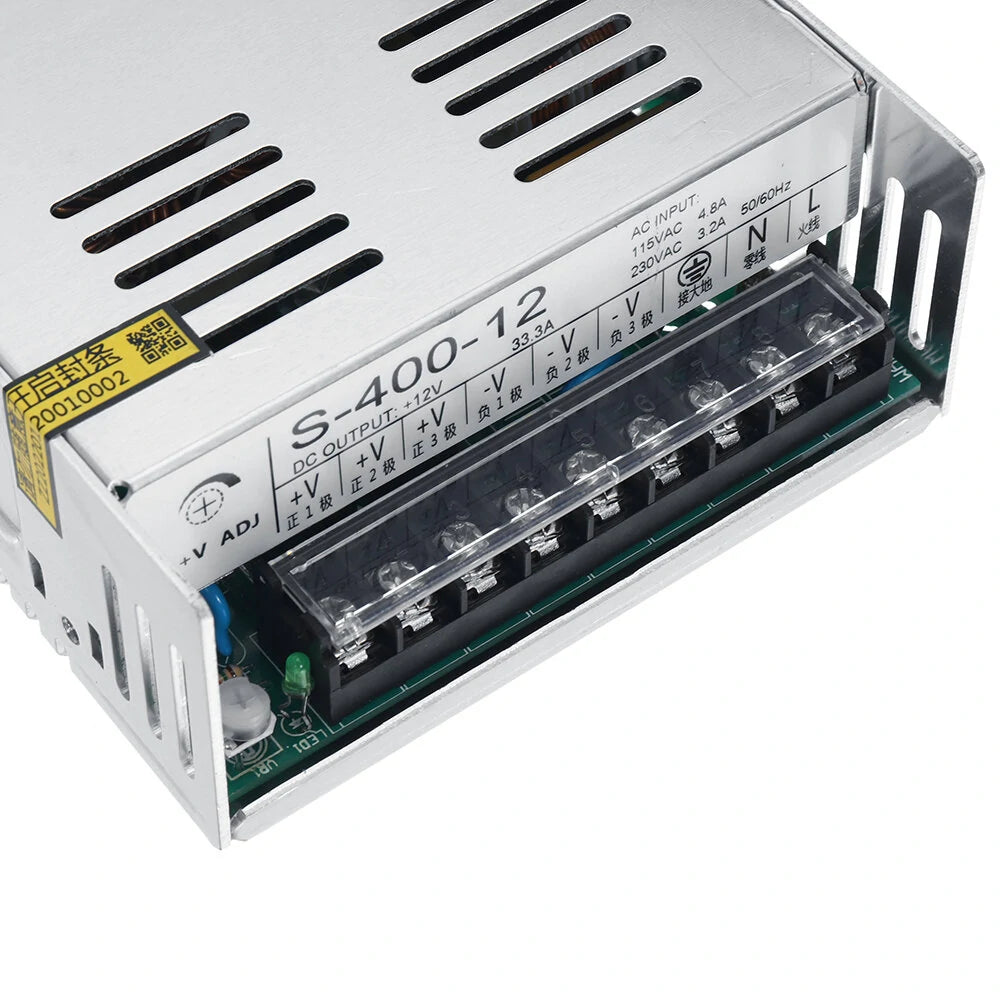

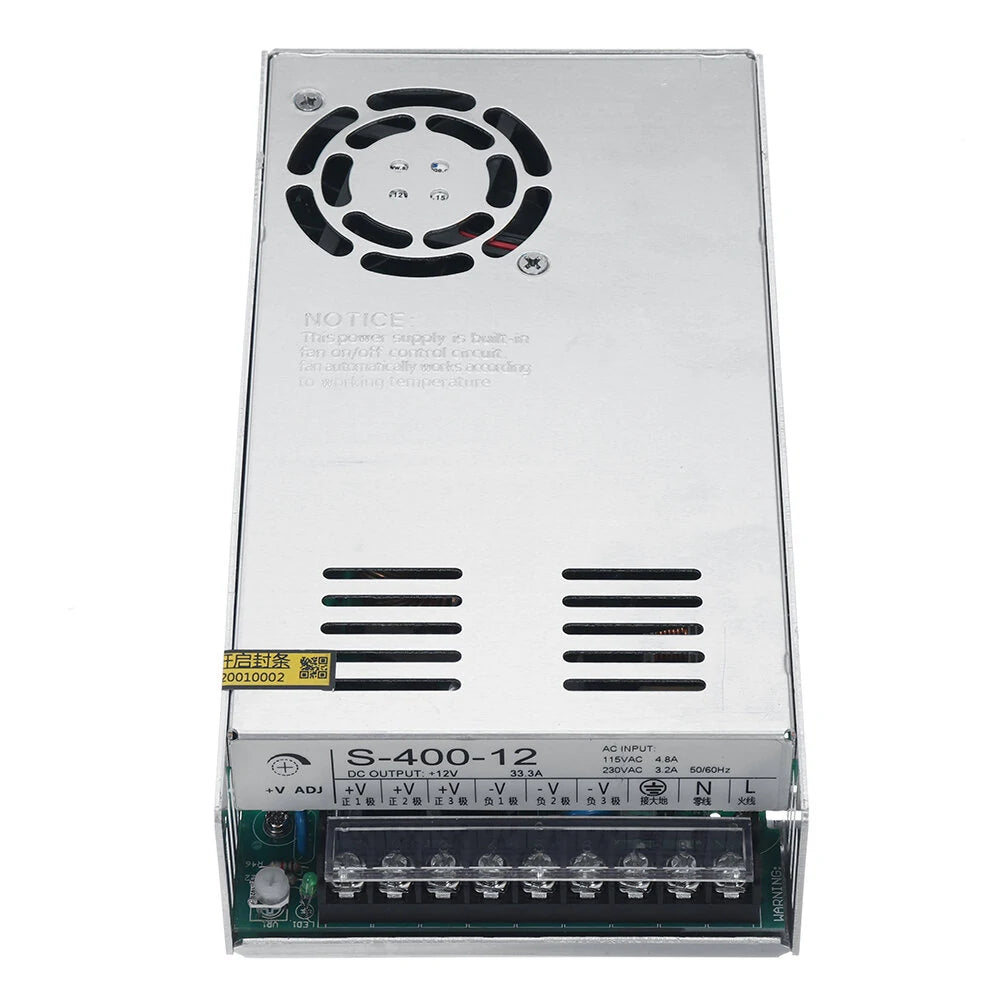

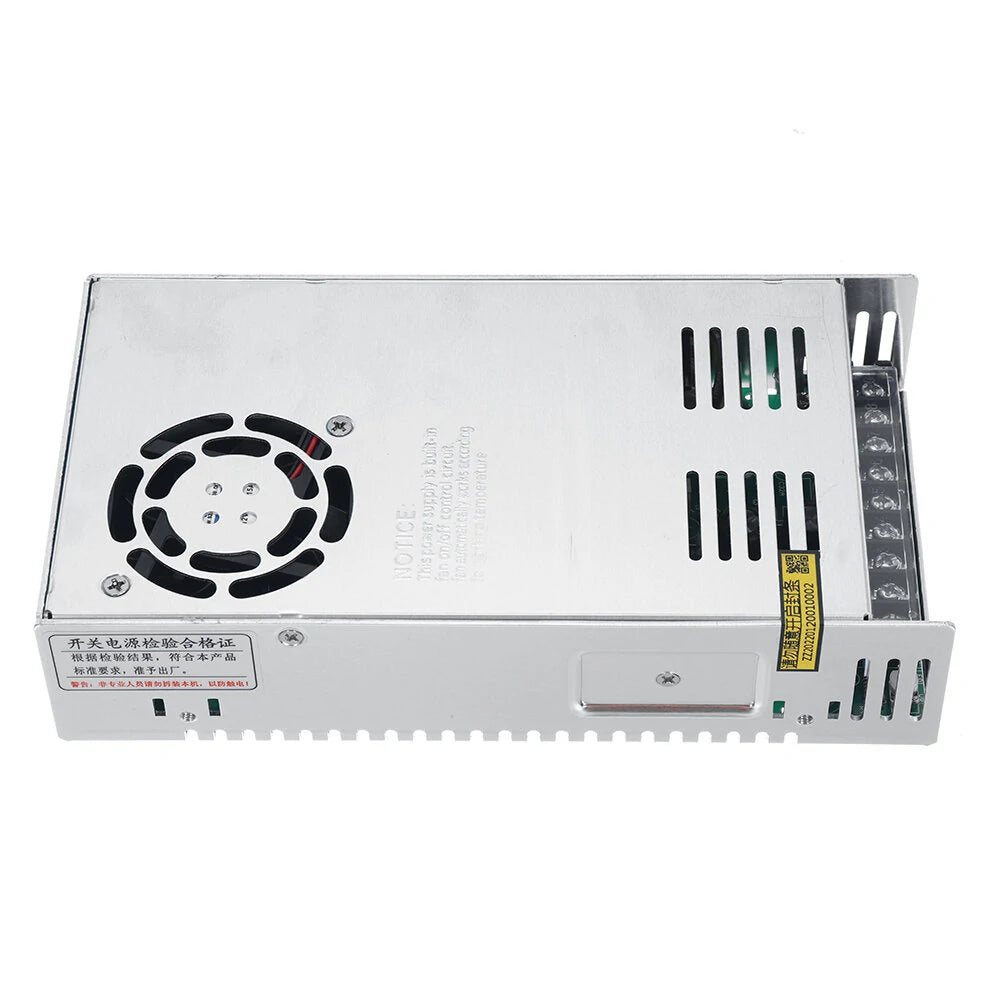

RD6006/RD6006-W LED Switching Power Supply 400W 12V-60V 8.3A-33.3A with Monitoring for Transformer Lighting
RD6006/RD6006-W LED Switching Power Supply 400W 12V-60V 8.3A-33.3A with Monitoring for Transformer Lighting
Regular price
$29.99 USD
Regular price
$0.00 USD
Sale price
$29.99 USD
Unit price
per
Shipping calculated at checkout.
Estimated Delivery: -
Couldn't load pickup availability
Guaranteed secure & safe checkout.
Precise Details
Product Features
This power supply can be used with Product ID: 1587151 (RD6006/RD6006-W) and S06A Case Product ID 1587330. (If using with RD6006/RD6006-W, select 60V)
- Model: S-400-xx
- Output power: 400W
- Output voltage options: DC12/24/36/48/60V
- Input voltage: 110V/220V AC
- Ambient temperature range: -10°C to +50°C
- Adjustable voltage: ±10%
- Product dimensions: 215 x 115 x 50mm
Technical Specifications
| Output DC Voltage | Rated Current | Rated Power | Efficiency (Typical) |
|---|---|---|---|
| 12V | 33.3A | 399.6W | >82% |
| 24V | 16.6A | 398.4W | >84% |
| 36V | 11.1A | 399.6W | >86% |
| 48V | 8.3A | 398.4W | >86% |
| 60V | 6.6A | 396W | >86% |
Voltage accuracy: ±1%
Voltage adjustment range: ±10%
Input voltage range: 90-132VAC/180-264VAC; Frequency: 47Hz~63Hz; 254VDC~370VDC
Electric shock current: 110VAC: 25A, 220VAC: 50A
Protection & Environment
- Overload protection: 105%-135%, constant current output with cut-off and reset
- Overvoltage protection: Cuts off when >= 115%-145%
- Undervoltage protection and short circuit protection

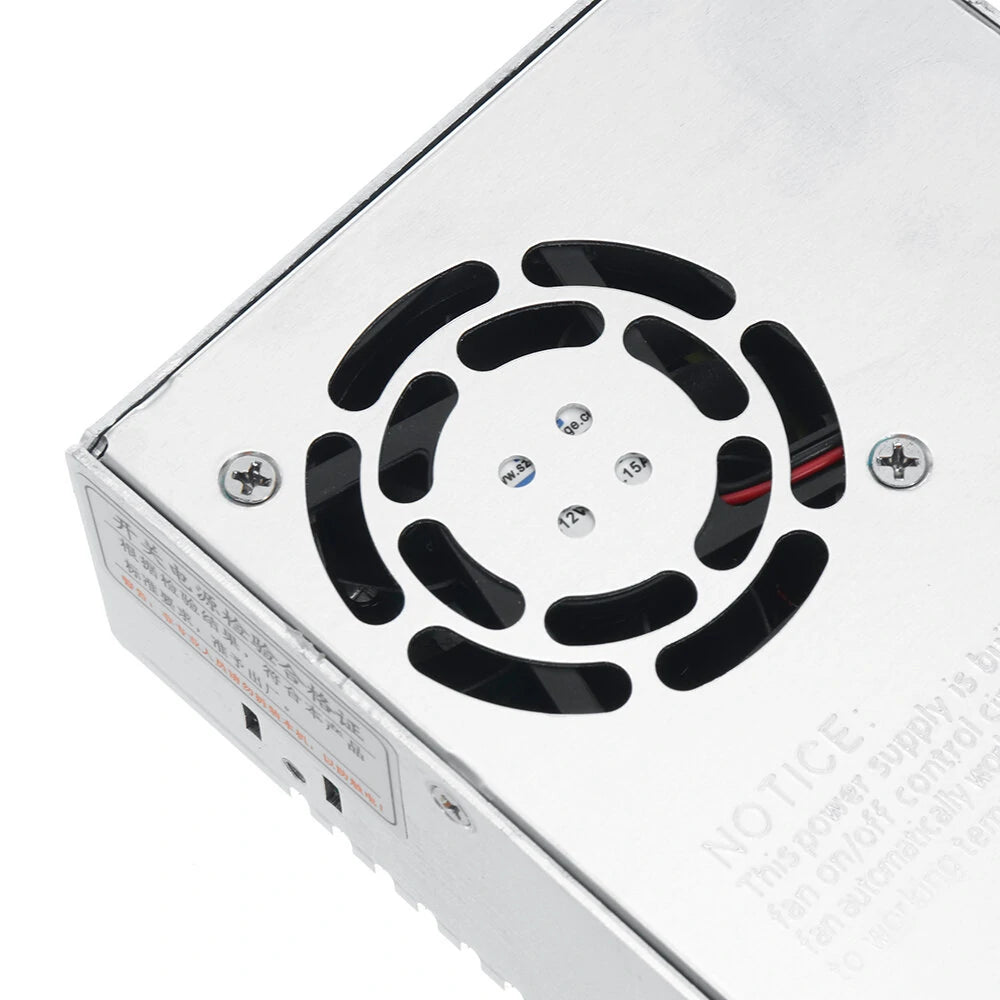

- Over temperature protection with fan operation guidelines
- Operating temperature: -10°C to +50°C, Humidity: 20%~90% RH
- Storage temperature: -20°C to +85°C, Humidity: 10%~95% RH
- Safety tests (withstand voltage, insulation resistance, leakage current)
Package Includes
1 x Power Supply
Note: Due to logistics, minor adjustments may be required upon receipt. If this is a concern, please reconsider purchasing.
