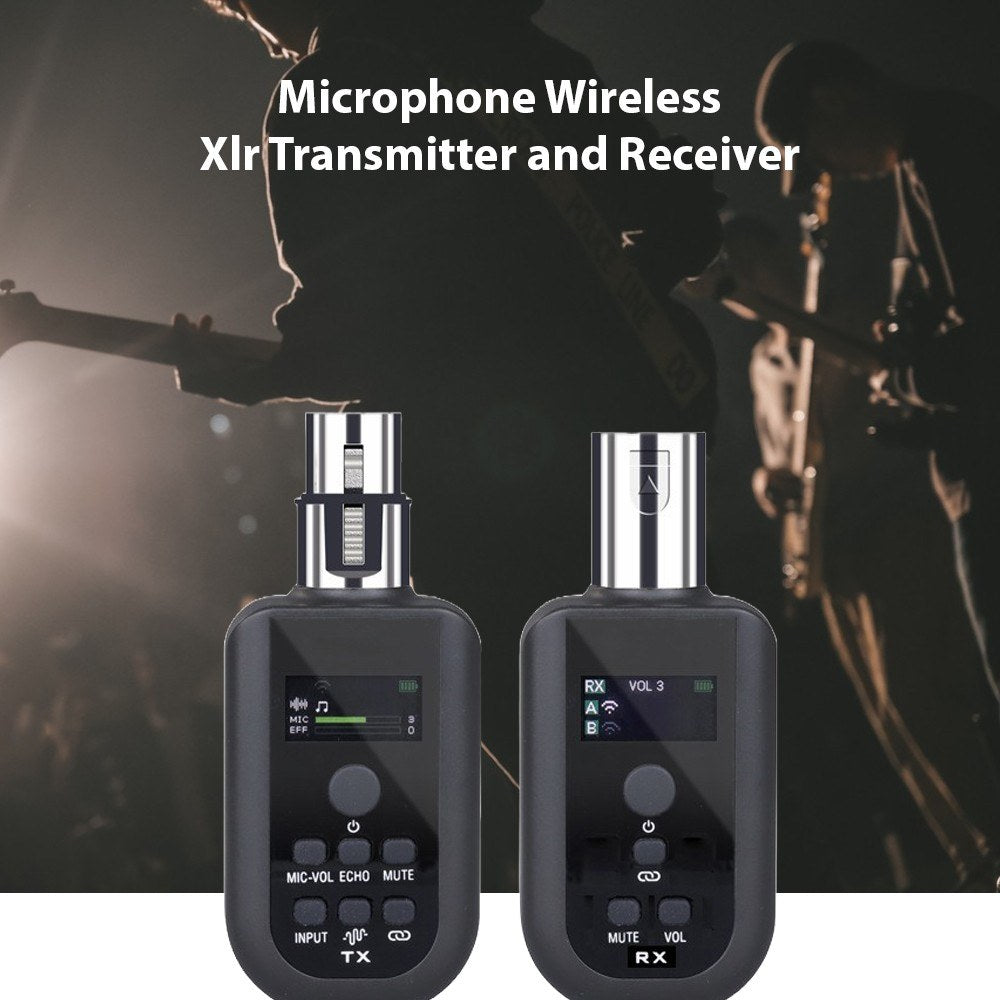

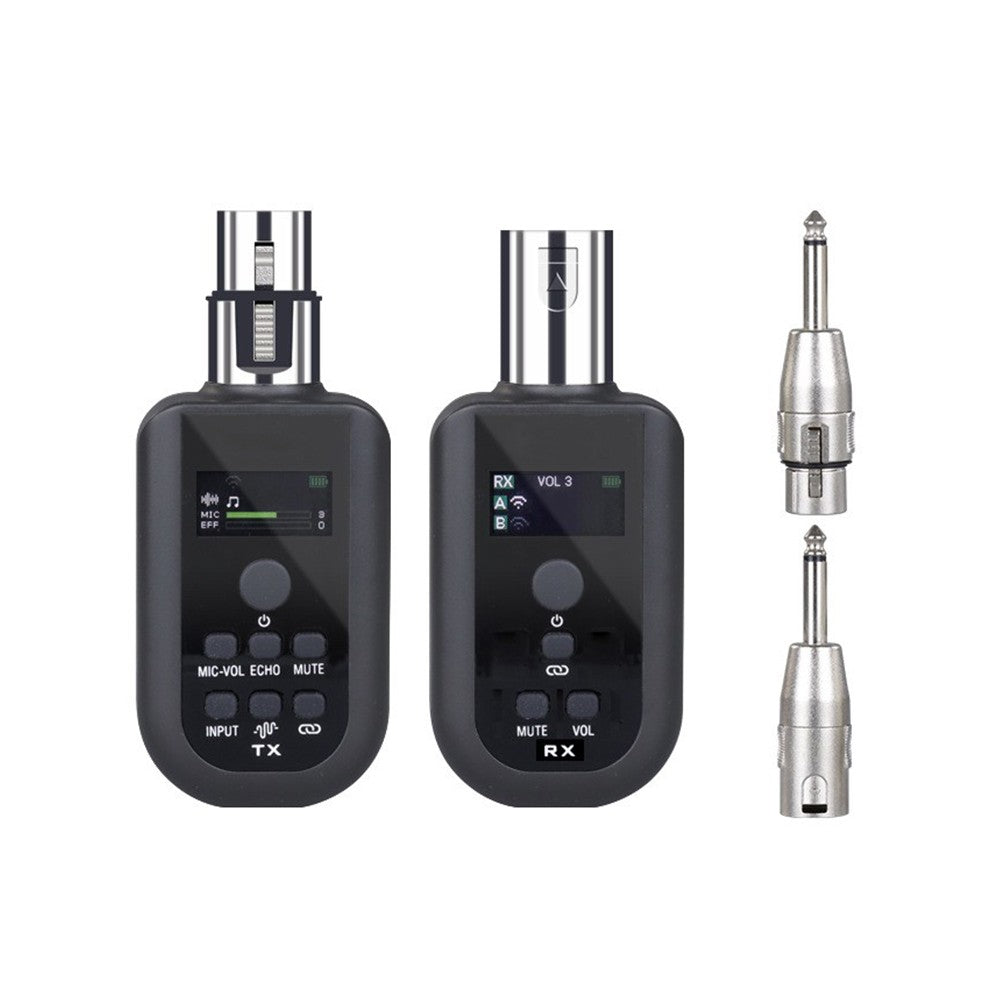

SL-100 UHF Wireless Microphone XLR Transmitter and Receiver System

Product Features

• High-Quality Sound: Experience exceptional audio clarity with a frequency response range of 20Hz - 20KHz and a signal-to-noise ratio over 100dB(A). The dynamic range captures rich sound details, making your audio genuinely immersive.
• Stable Wireless Transmission: The system operates on a 2.4G carrier frequency with a transmission frequency stability of less than 30PPm. Enjoy stable audio transmission over a working distance of up to 50 meters in open areas.
• Multiple Channels: Switch easily between up to 20 channels. With a 24-bit / 48kbps audio sampling rate, you can expect high-quality sound performance even in multi-user setups.
• Long Battery Life: Equipped with a built-in lithium battery, this system offers a working voltage of 3.7V, a working current of 30mA, and approximately 5 hours of battery life. The TYPE-C charging port ensures quick and easy recharging.

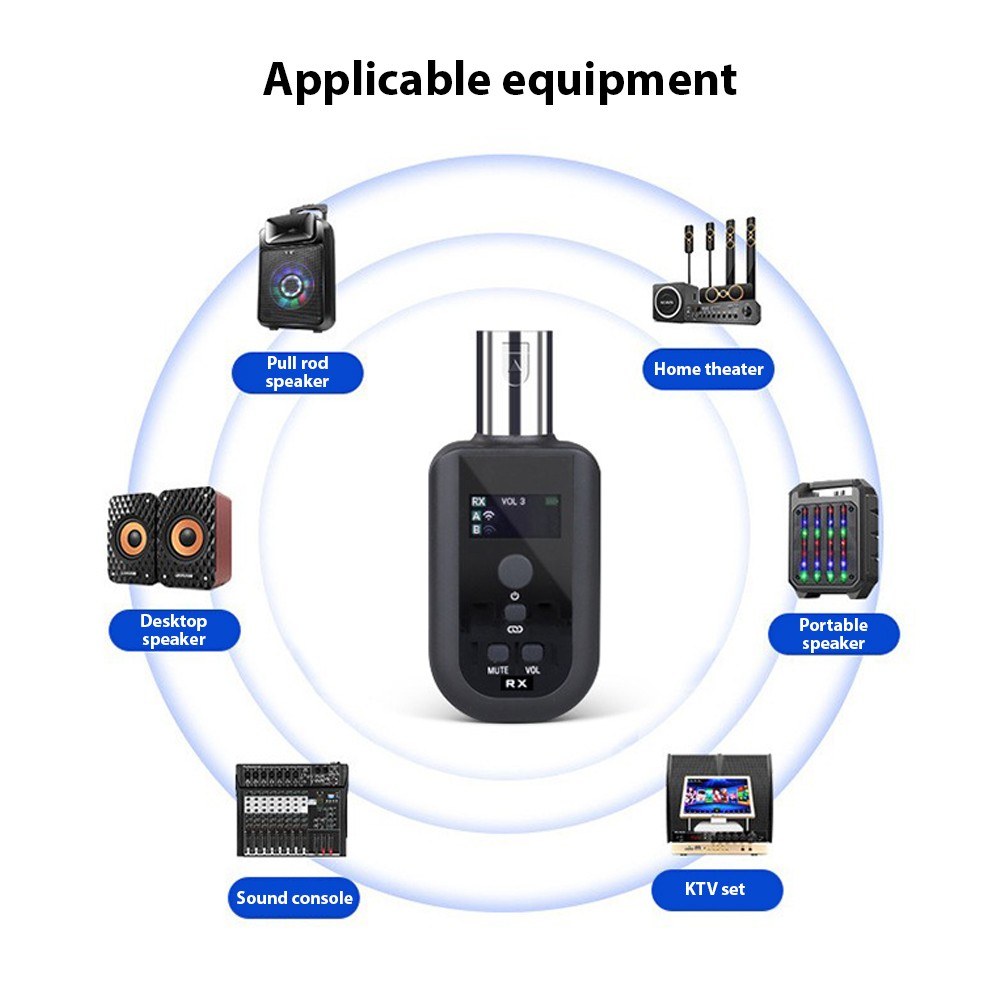

• Versatile and Sensitive: With a sensitivity of 5dBUV, this system captures even the faintest sounds accurately. The XLR connectors allow easy connections to a variety of devices. It works efficiently in temperatures ranging from -10°C to 55°C.

Specifications

Receiver

• Carrier Frequency: 2.4G
• Modulation: FM
• Maximum Frequency Offset: ±45KHz
• Frequency Response: 50Hz - 15KHz
• Signal to Noise Ratio (S/N): > 100dB(A)
• Distortion: (1KHz) < 0.3%
• Working Temperature: -10°C to 55°C
• Working Distance: Approximately 50m/164ft (open area)
• Sensitivity: 5dBUV
• Audio Output Level: Unbalanced output 800MV/3K Ω
• Battery: 350mAh Lithium
• Working Voltage: 3.7V
• Working Current: Approximately 30mA

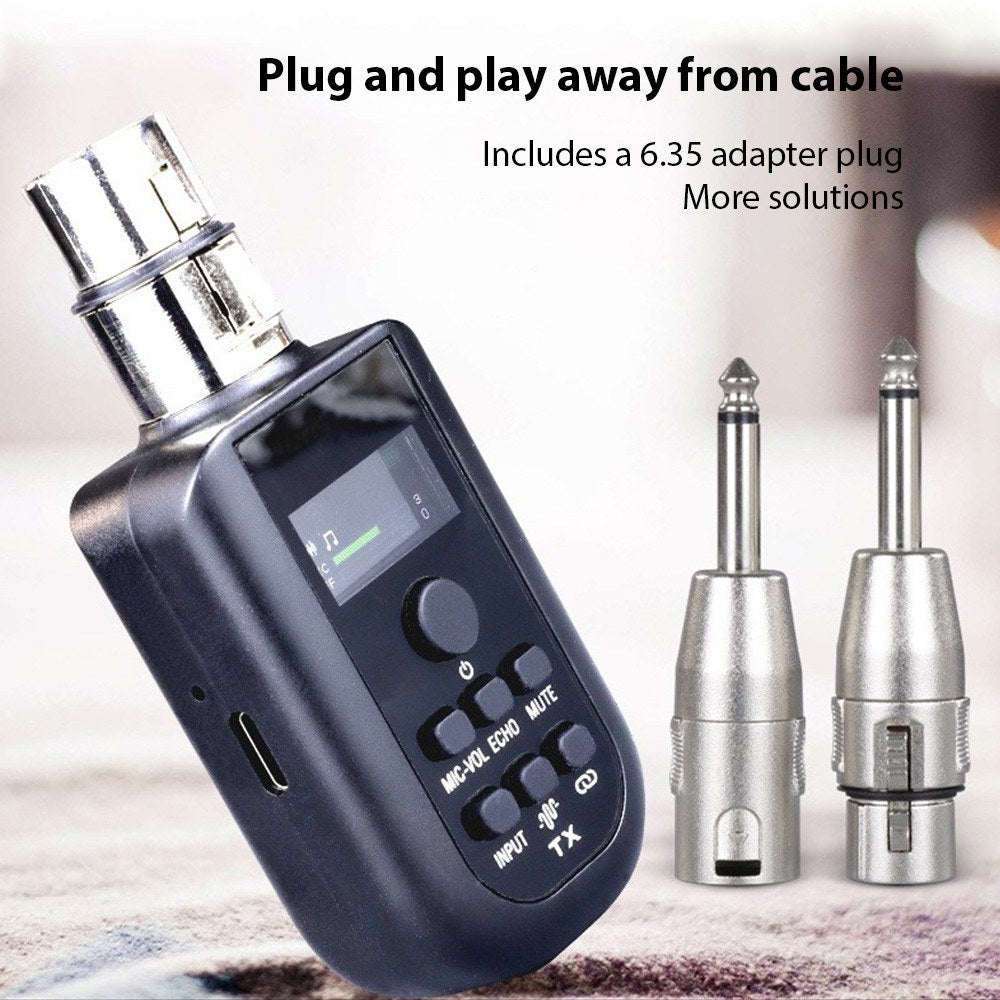

• Audio Output Method: XLR male (can be externally connected to 6.35mm)

Transmission

• RF Power Output: Approximately 10MW
• Transmission Frequency Stability: < 30PPm
• Transmission Carrier Frequency: 2.4G
• Dynamic Range: ≥ 100dB(A)
• Frequency Response: 50Hz - 15KHz
• Maximum Input Sound Pressure: 130dBSPL
• Audio Output Method: XLR female (can be externally connected to 6.35mm)
• Simplified Pickup Head: Dynamic coil type
• Microphone Directionality: Heart-shaped
• Working Voltage: 3.7V
• Working Current: Approximately 30mA
• Battery: Lithium battery (3.7V/350mAh)

Note:

Due to varying display screens and lighting effects, the actual color of the item may differ slightly from the images shown.

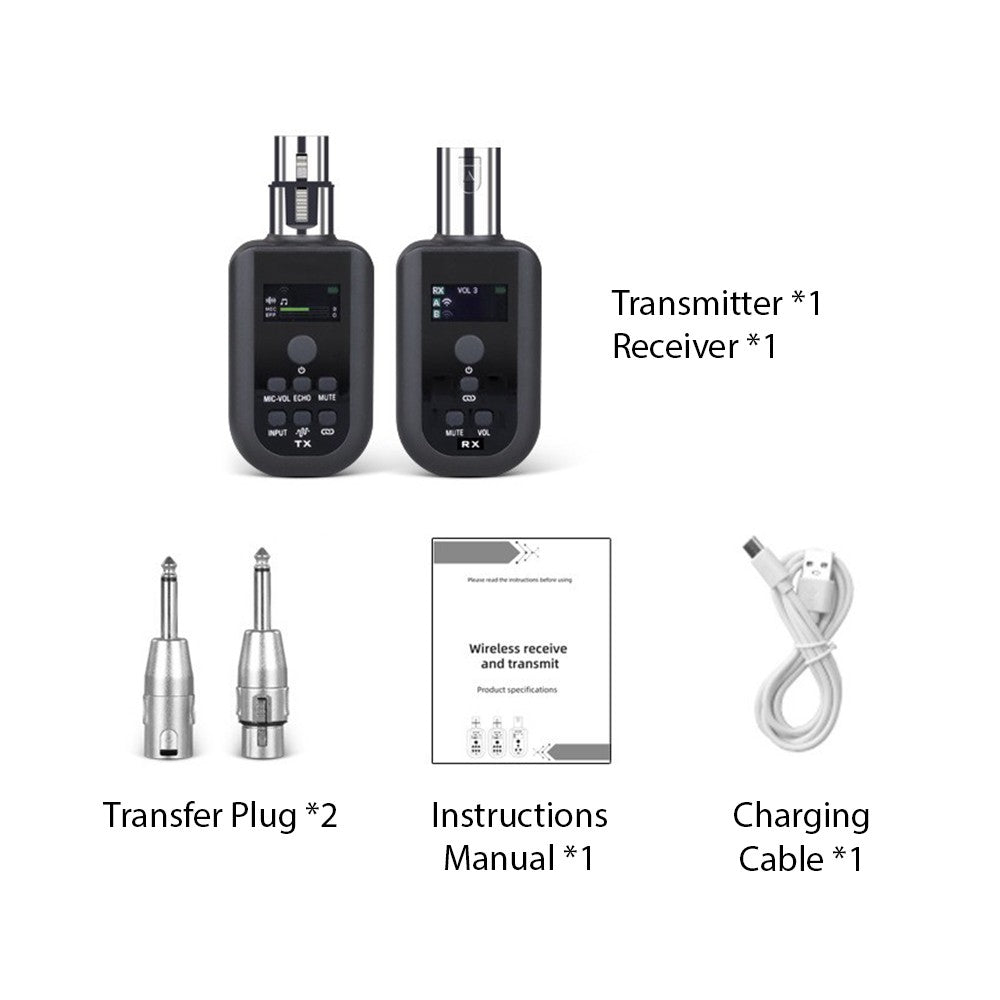

Packing List

• 1 x Transmitter
• 1 x Receiver

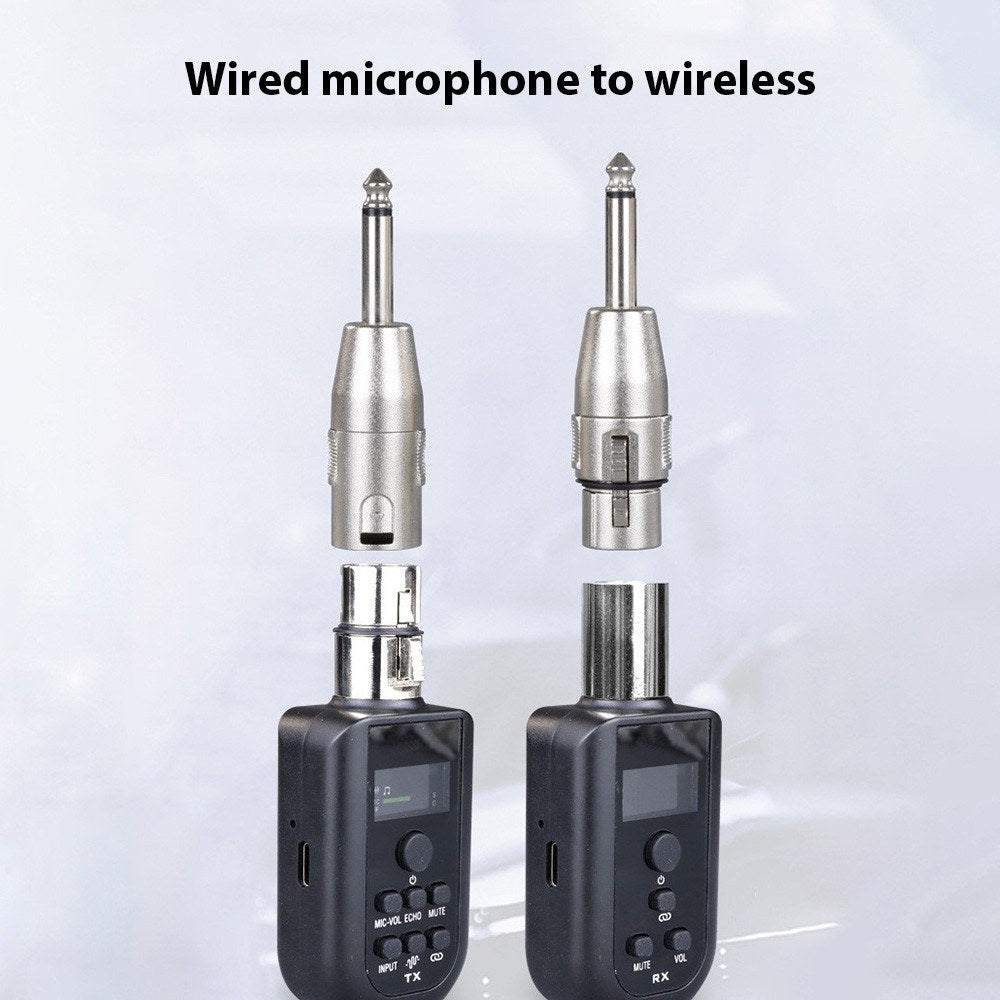

• 2 x Transfer Plug
• 1 x Charging Cable
• 1 x Instructions Manual
