LILYGO® TTGO 2MP Camera Module OV2640 for T-Camera Plus ESP32-DOWDQ6 with 8MB SPRAM - YUV/RGB/JPEG Support

Product Features:

• Camera Model: OV2640
• Resolution: 2 Megapixels

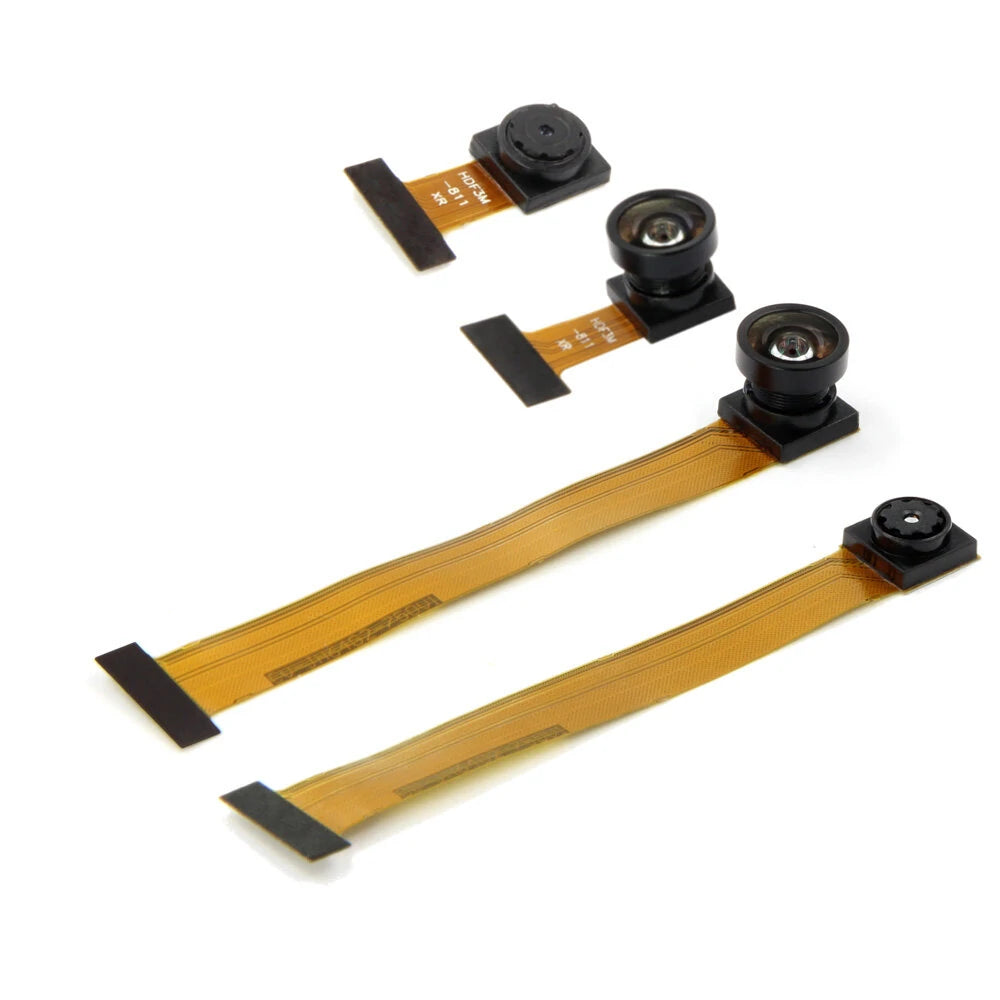

• Lens Options:

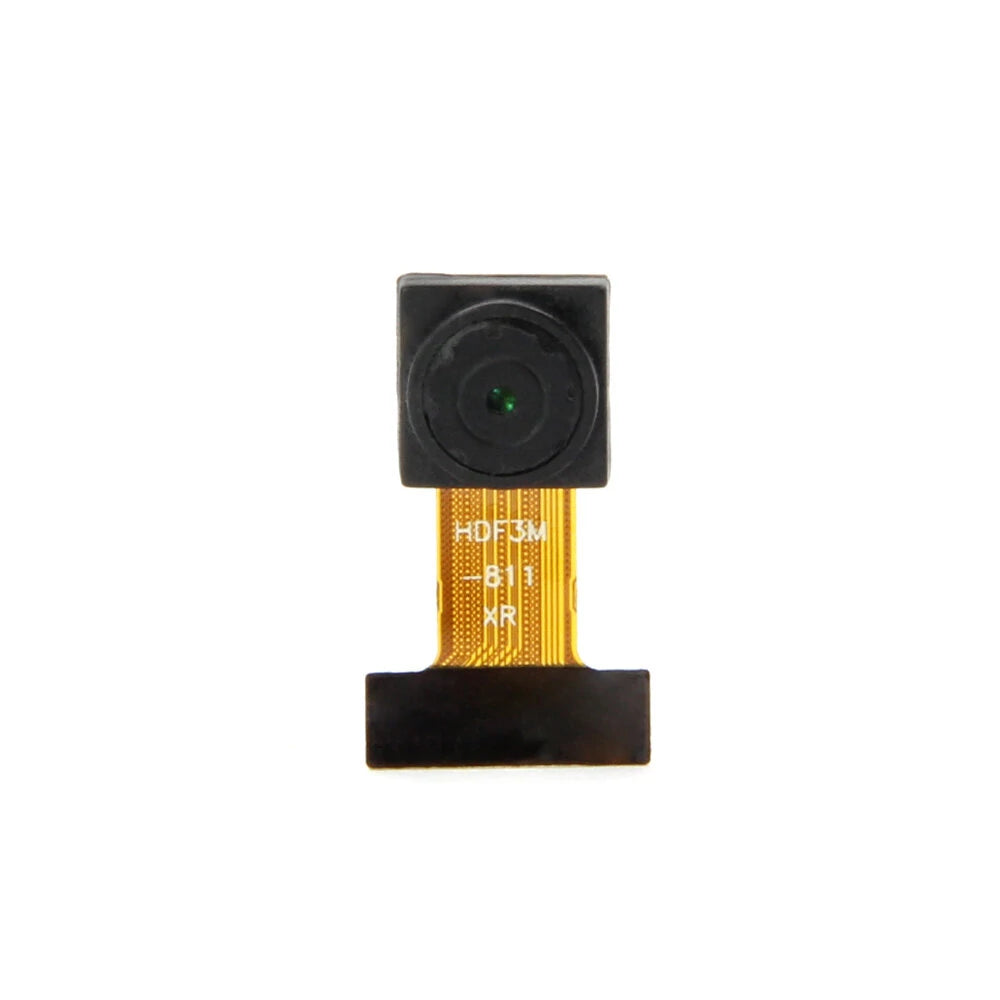

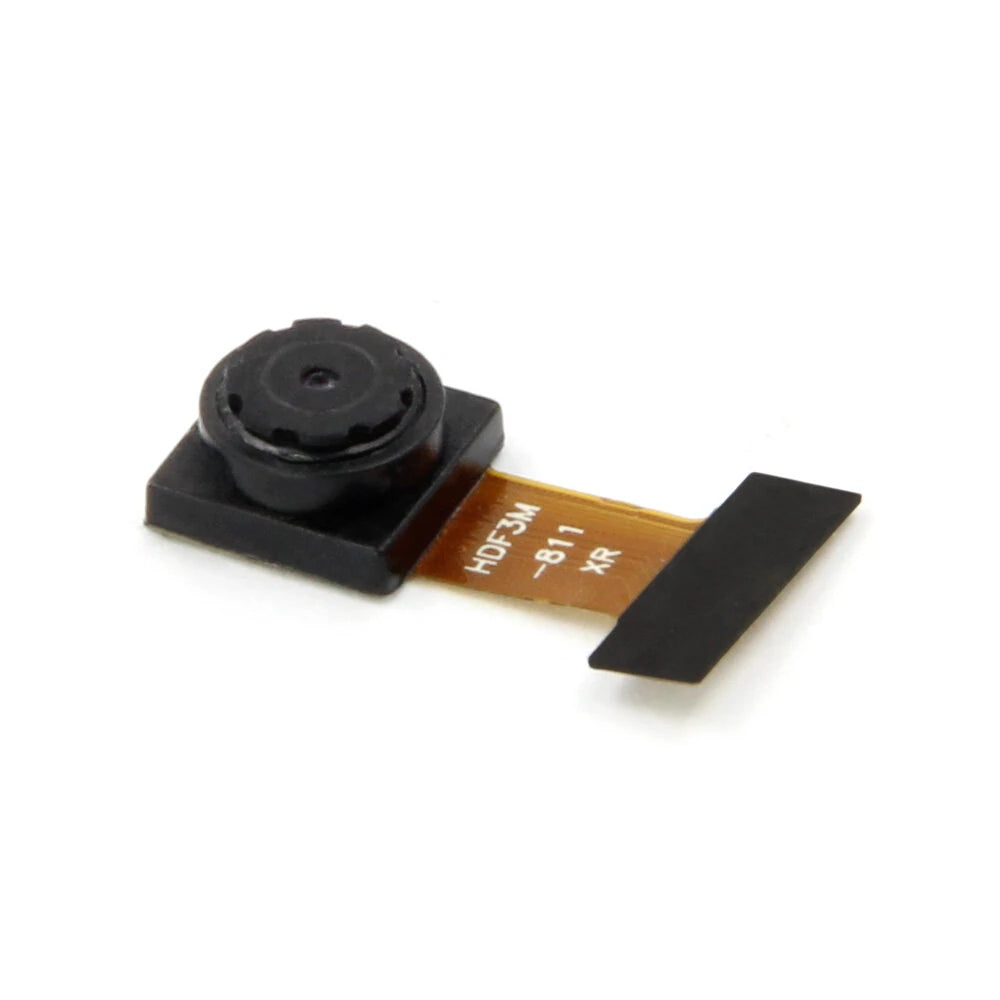

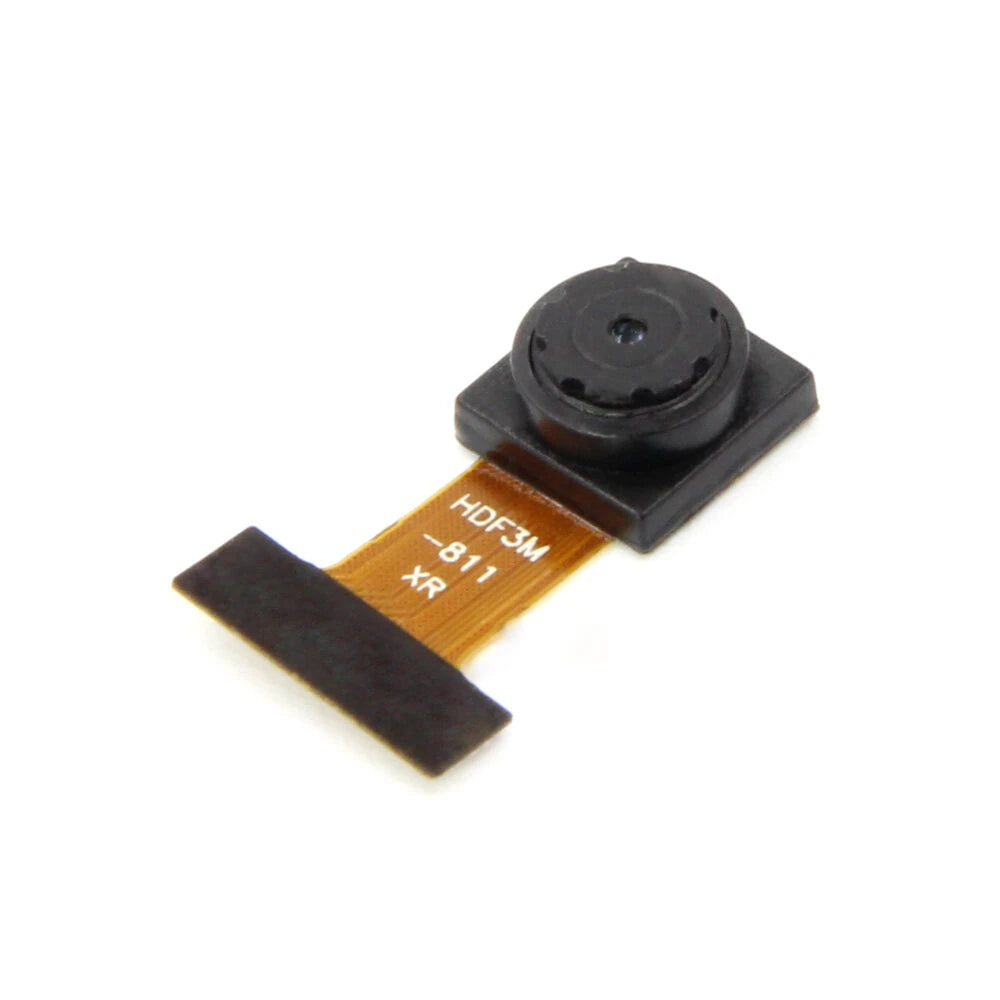

  • Normal

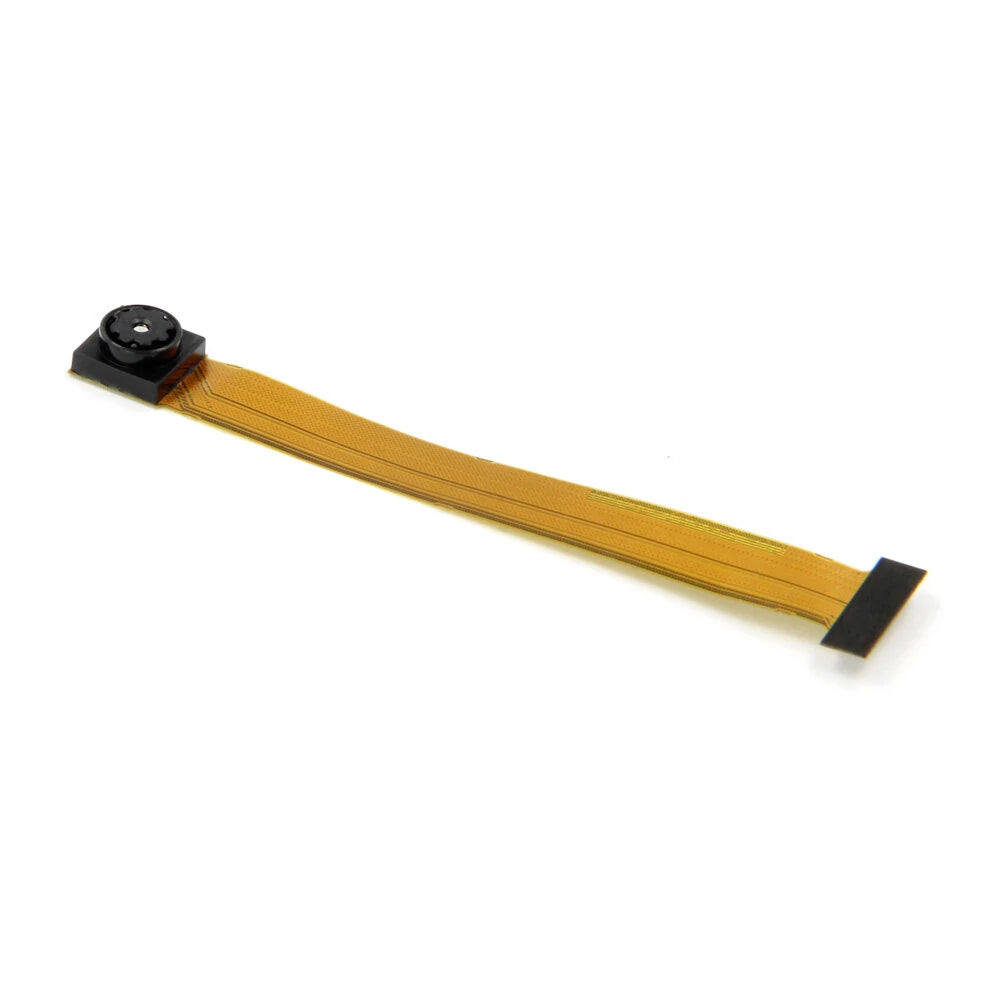

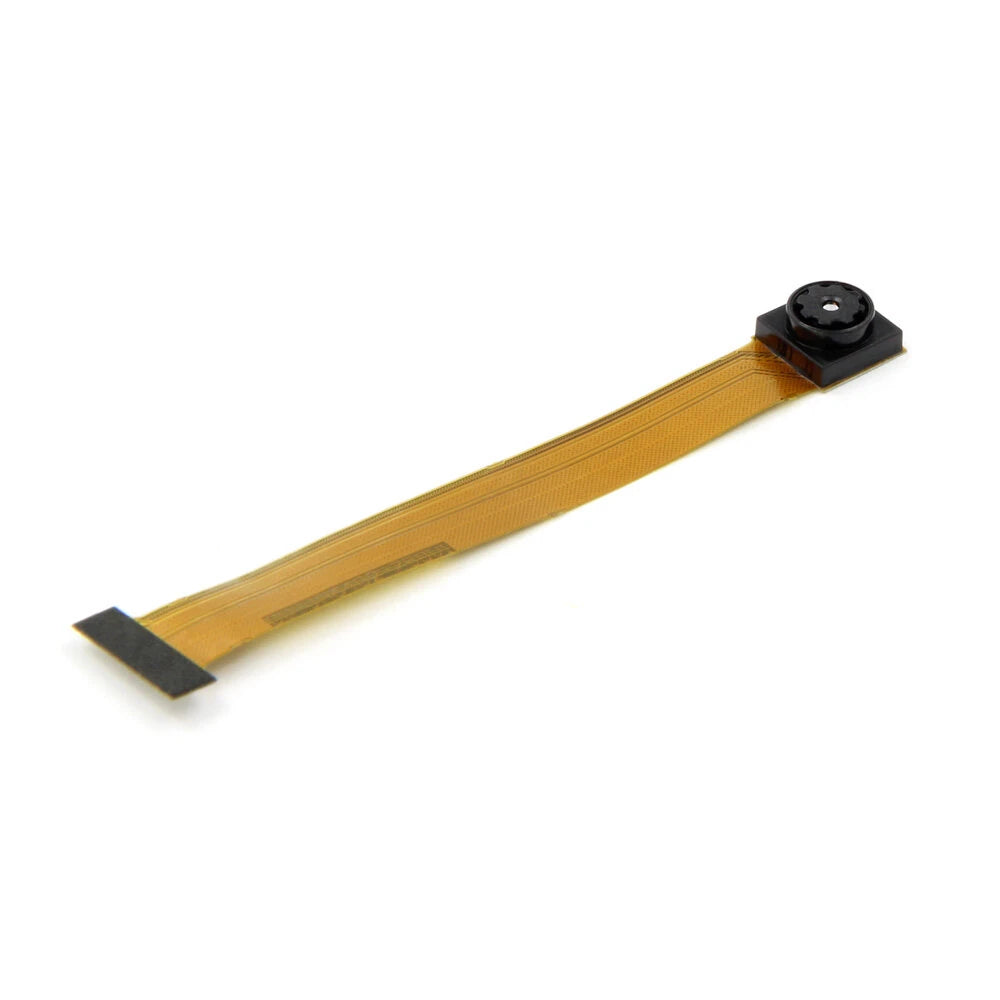

  • Lengthened Normal

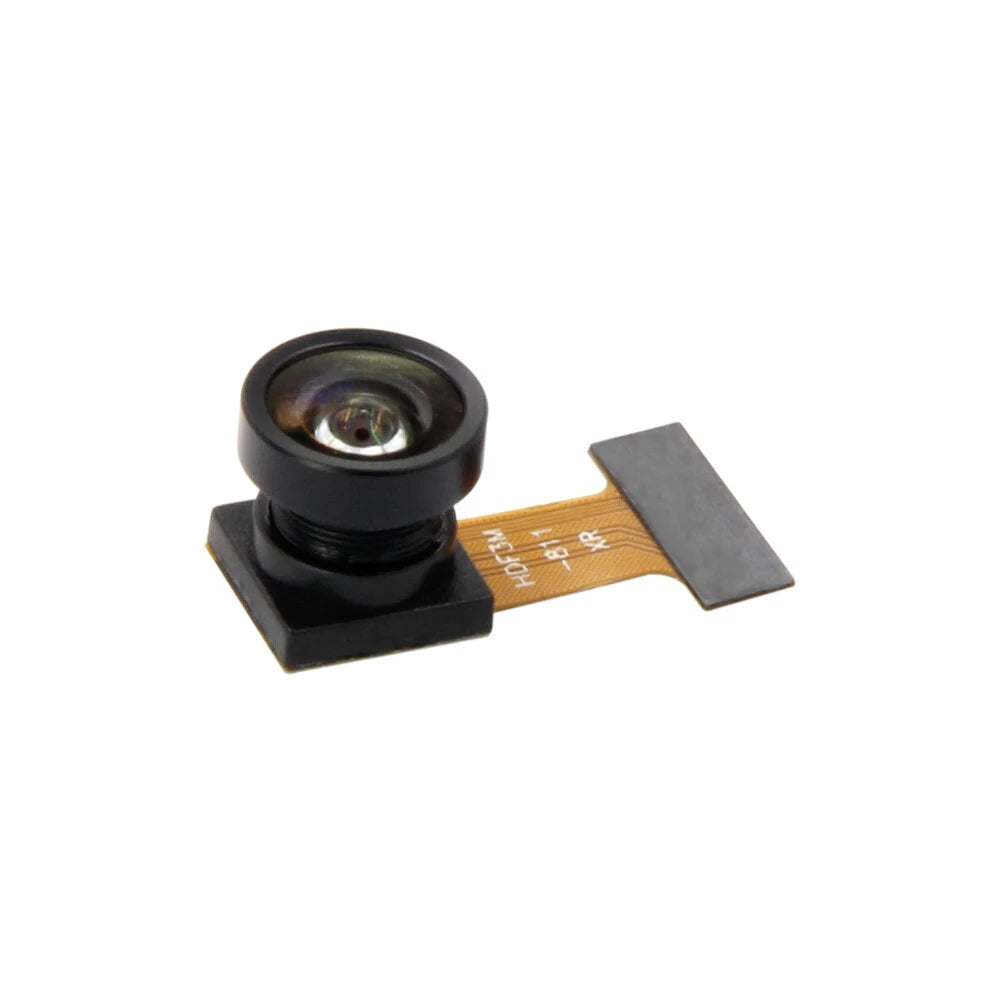

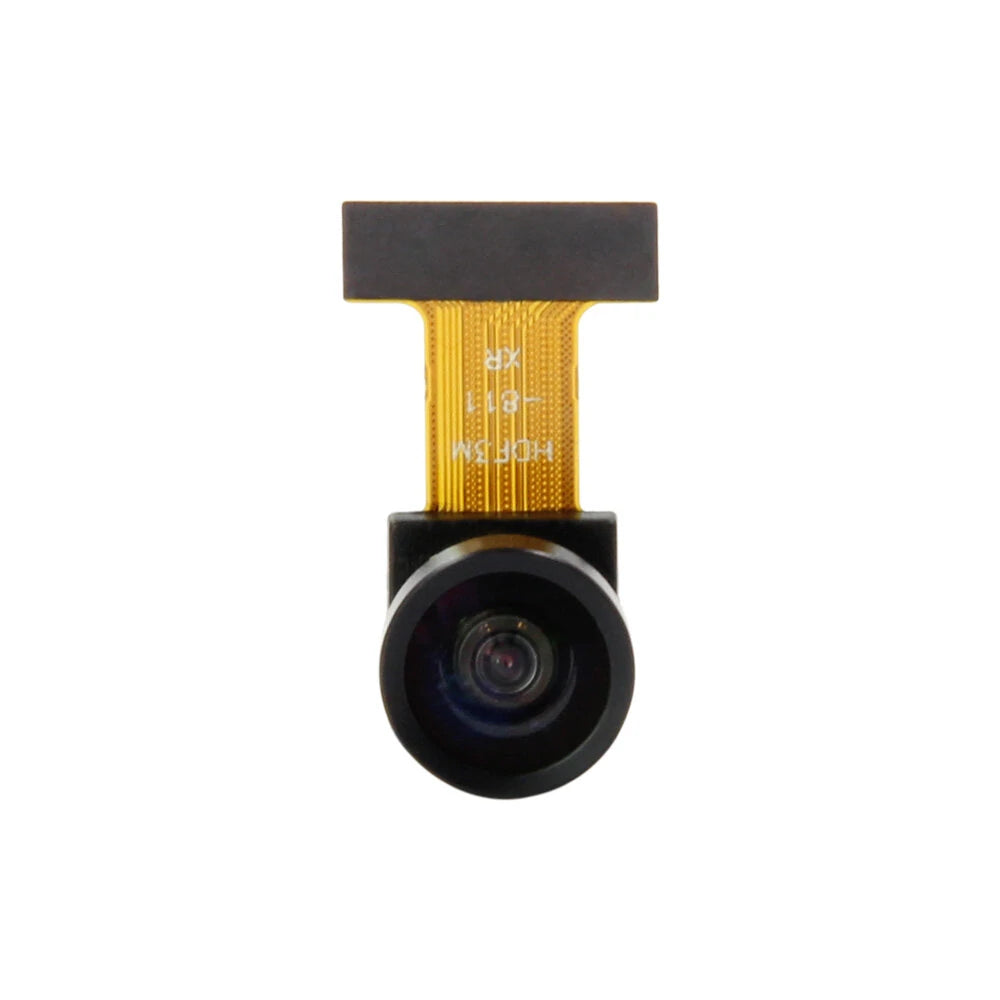

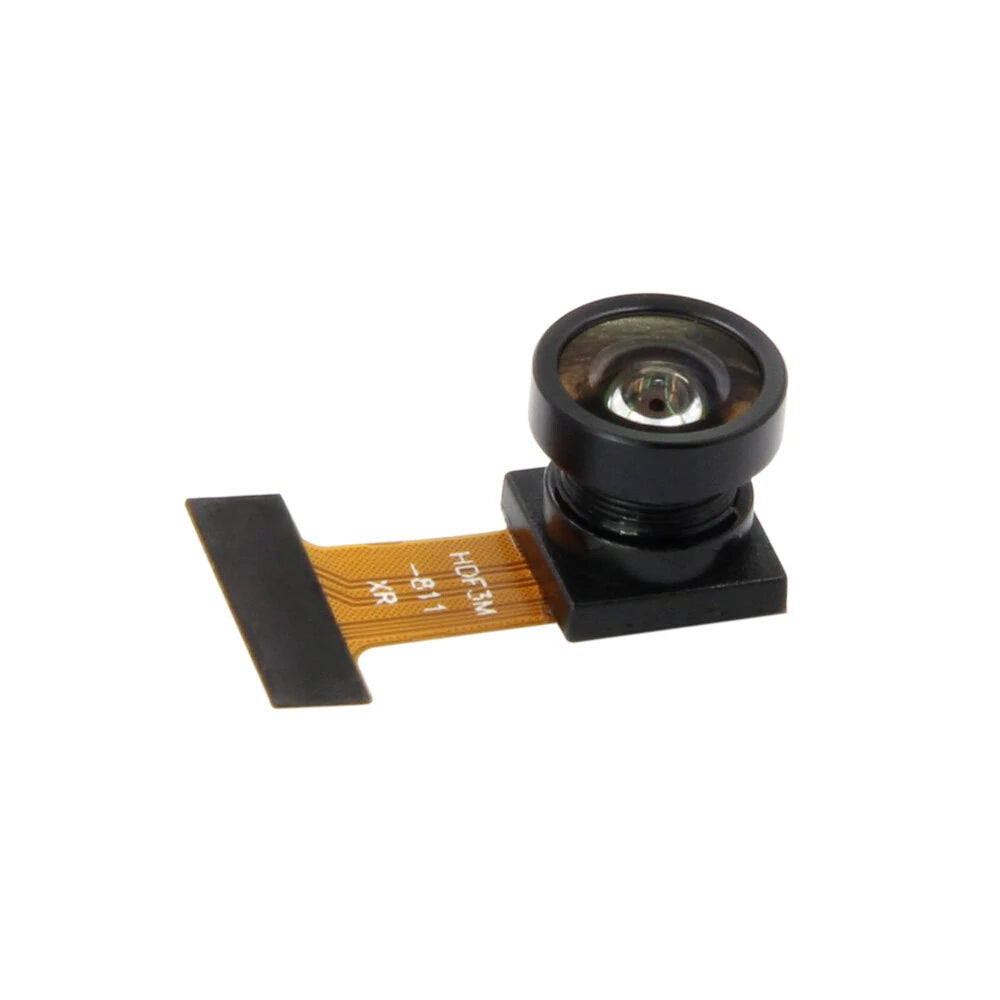

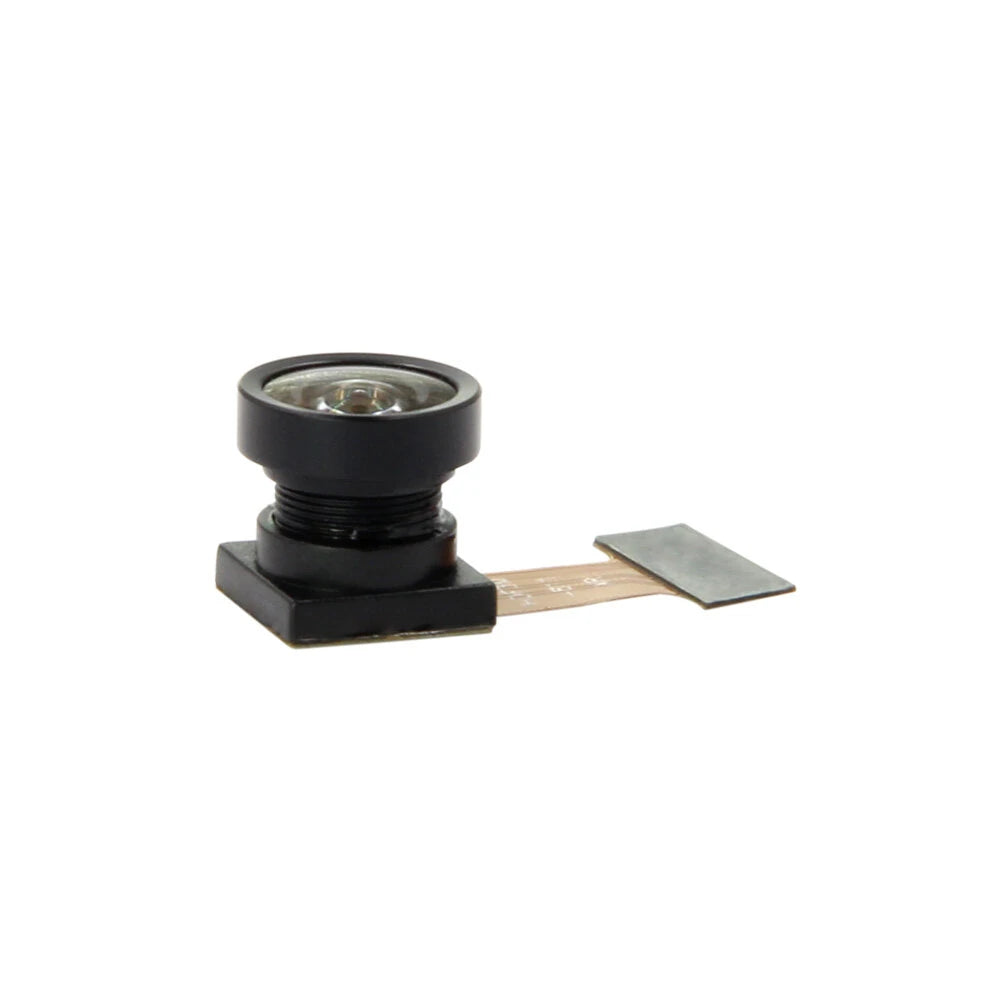

  • Fisheye

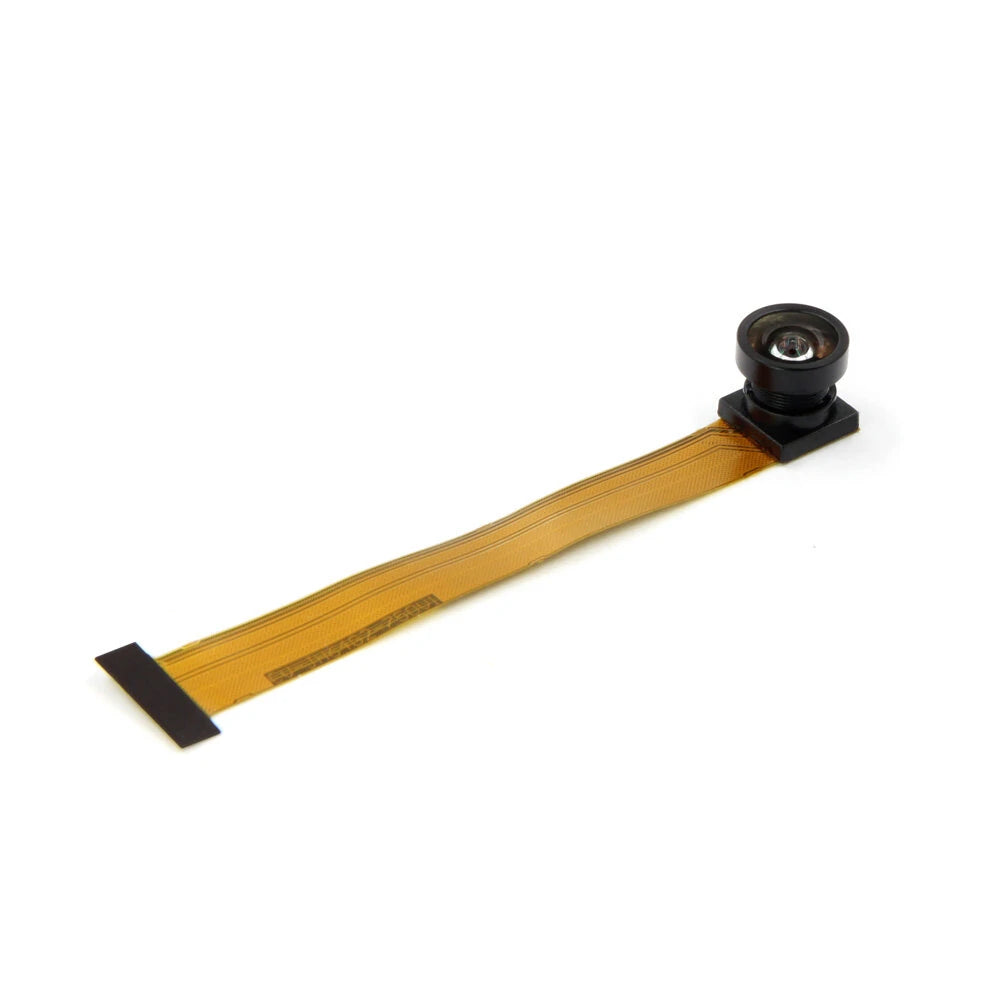

  • Lengthened Fisheye

Dimensions:

• 21.77 x 12.61 x 4.28 mm
• 74.91 x 12.61 x 4.28 mm

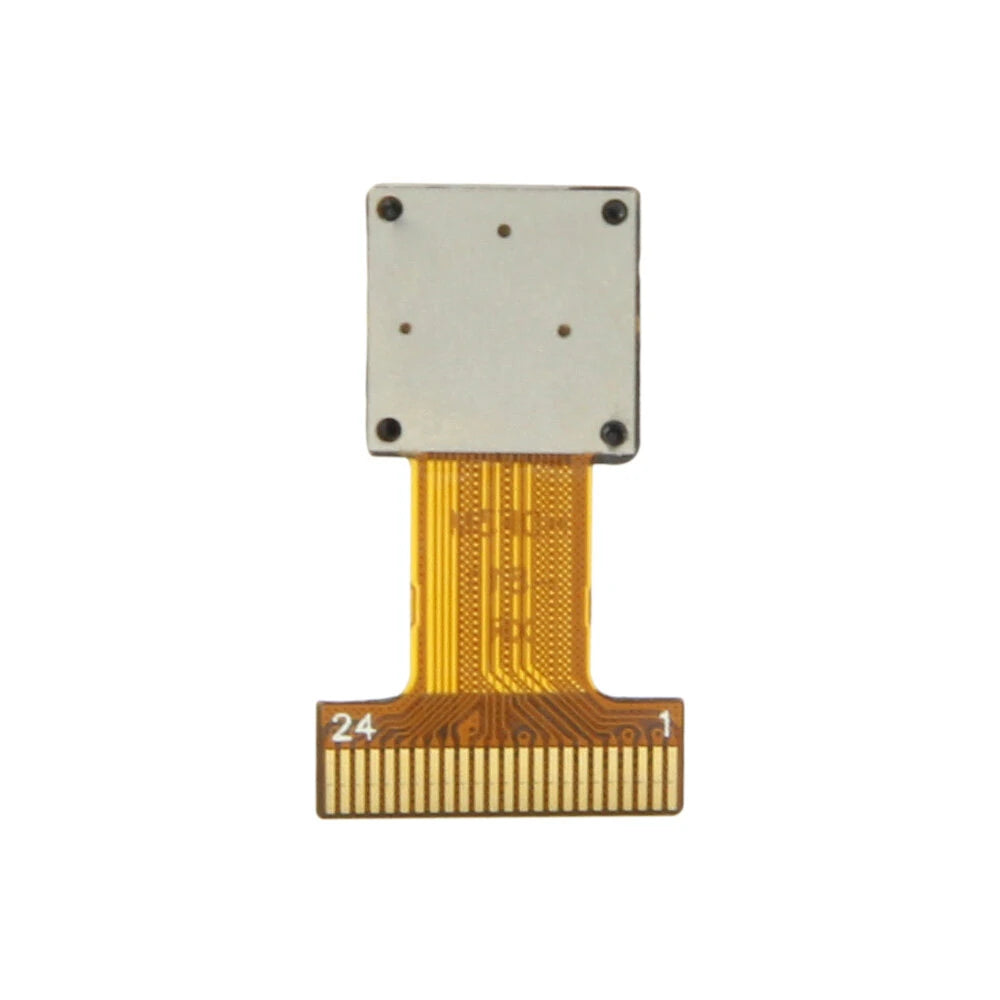

Camera Seat: 8.54 mm, 24 Pin

Image Array Size: UXGA (1600 x 1200)

Power Supply:

• Core: 1.2 VDC ± 5%
• Analog: 2.5 ~ 3.0 VDC
• I/O: 1.7V to 3.3V

Power Requirements:

• Active: 125 mW (15 fps, UXGA YUV mode)
• Active: 140 mW (15 fps, UXGA compressed mode)
• Standby: 600 µA

Operating Temperature Range: -30°C to 70°C

Stable Image Temperature Range: 0°C to 50°C

Output Formats (8-bit):

• YUV (422/420) / YCbCr422
• RGB565 / RGB555
• 8-bit compressed data
• 8-/10-bit RGB data

Lens Size: 1/4"

Chief Ray Angle: 25° non-linear

Frame Rates:

• UXGA/SXGA: 15 fps
• SVGA: 30 fps
• CIF: 60 fps

Sensitivity: 0.6 V/Lux-sec

S/N Ratio: 40 dB

Dynamic Range: 50 dB

Scan Mode: Progressive

Maximum Exposure Interval: 1247 x tROW

Gamma Correction: Programmable

Pixel Size: 2.2 µm x 2.2 µm

Dark Current: 15 mV/s at 60°C

Well Capacity: 12 Ke

Fixed Pattern Noise:

Image Area: 3590 µm x 2684 µm

Package Dimensions: 5725 µm x 6285 µm

Included in Package:

• 1 x Camera
