FNIRSI Portable Handheld Digital Oscilloscope: 400V, 200KHz, 2.5MS/s, 2.8 Screen, Multifunctional Instrument (Standard)

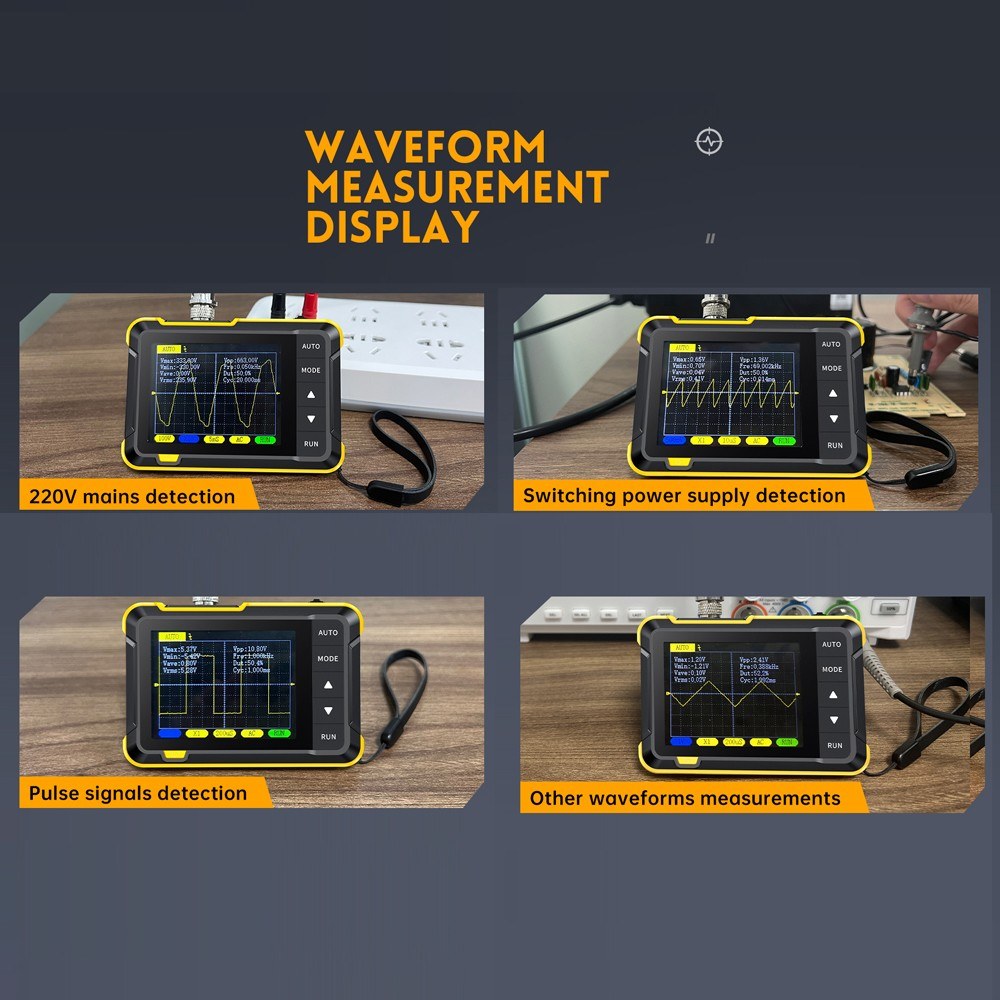

This digital oscilloscope is designed for optimal performance and portability. Featuring a compact size and a 2.8-inch color display, it offers a real-time sampling rate of 2.5MS/s and a 200kHz bandwidth. The oscilloscope supports comprehensive trigger functions (single, normal, automatic) and allows for seamless switching between rising-edge and falling-edge trigger modes. It can measure up to ±400V voltage signals, making it versatile for both periodic analog and non-periodic digital signals. With a range of waveform measurement displays, it caters to all your daily measurement needs. The device includes a 1KHz calibration square wave and a convenient one-button automatic adjustment feature. It also comes equipped with a Type-C port for firmware upgrades and charging. This oscilloscope is perfect for utility measurements, DIY projects, automobile and home appliance repairs, research and teaching, as well as outdoor maintenance.

Features:

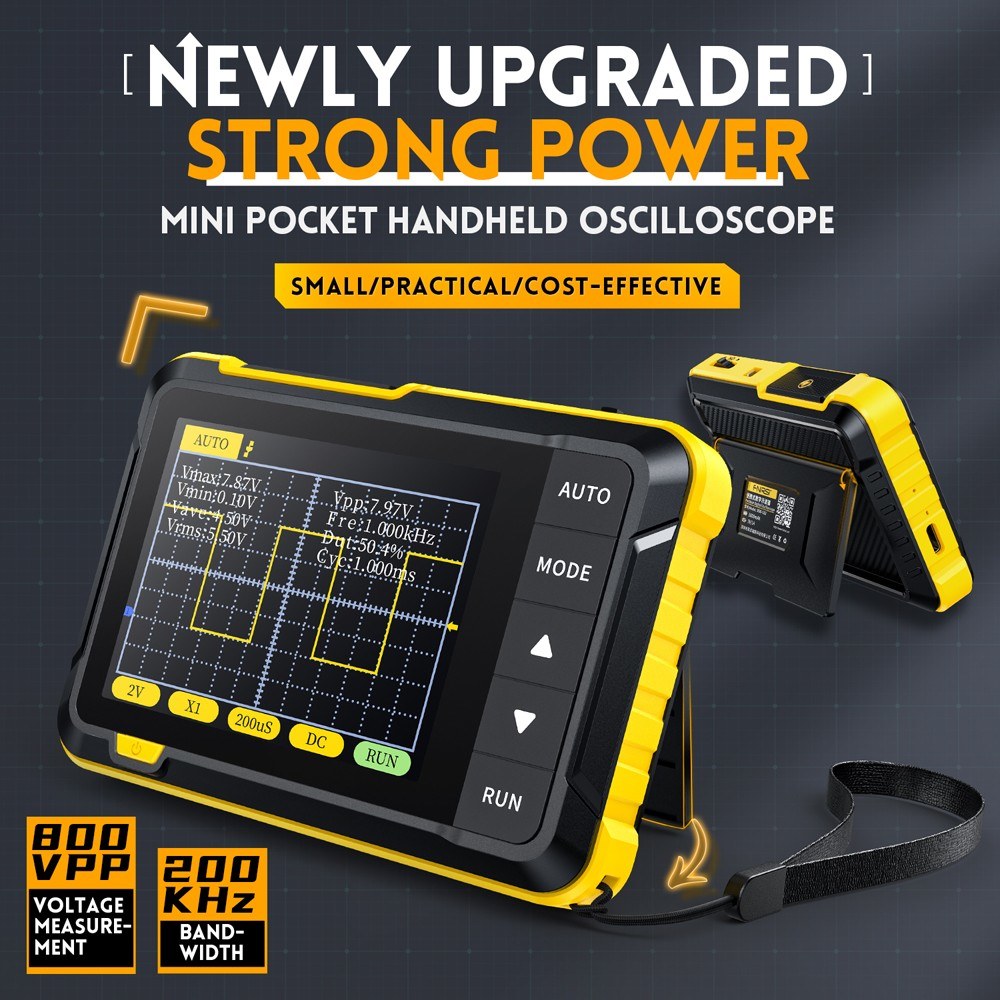

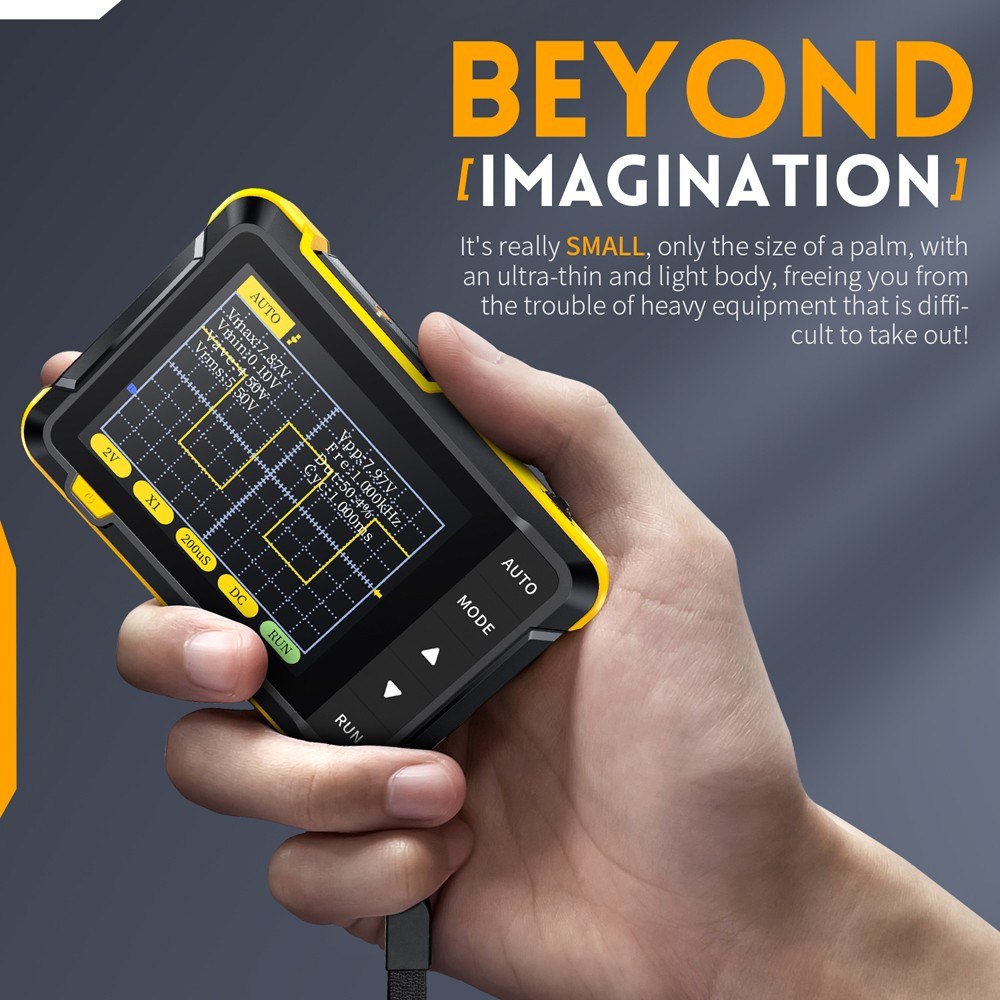

• Compact Size: Lightweight and portable, this oscilloscope saves space and is ideal for on-the-go tasks and on-site debugging.
• Fine Workmanship: Features high-sensitivity buttons, a Type-C port for firmware upgrades and charging, a folding bracket for easy placement, and gear toggle buttons for setting adjustments.

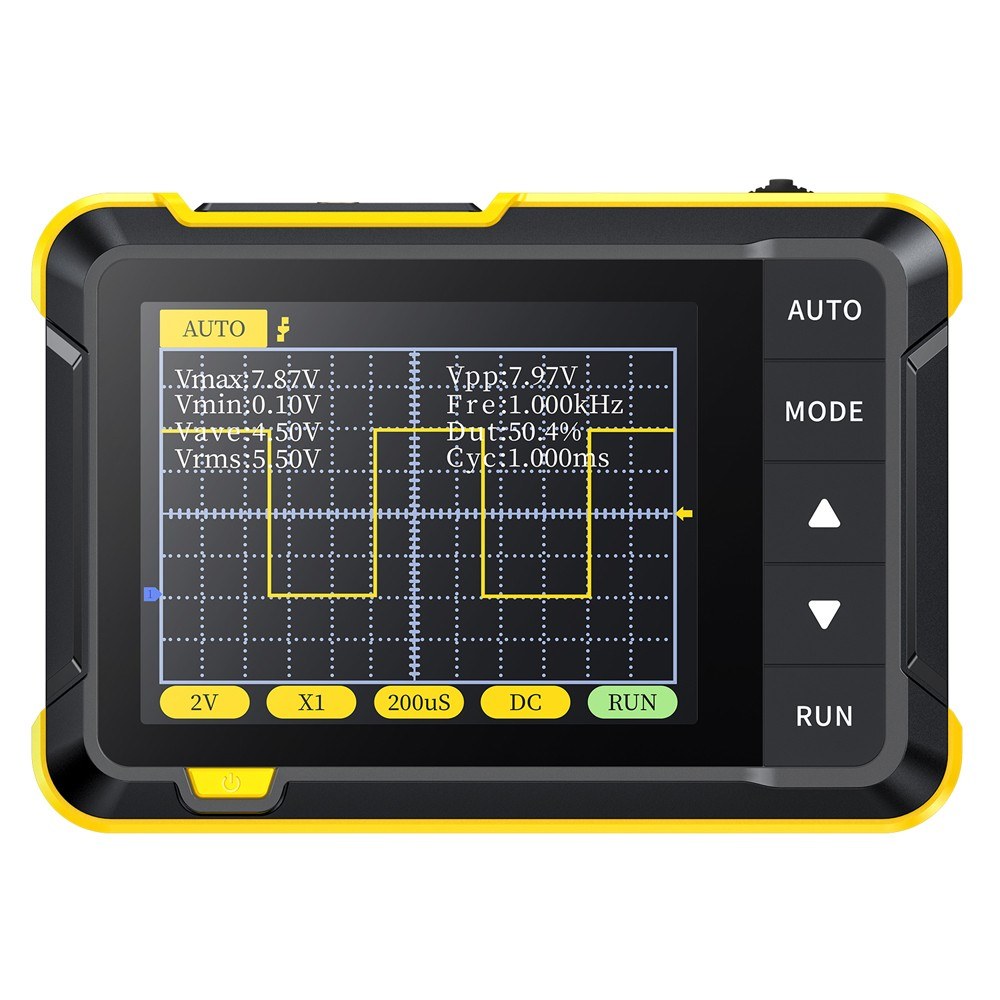

• 2.8-inch Digital Display: Comes with a 320x240 resolution color display, providing bright colors and high contrast for clear data visibility.
• Efficient and Accurate: Offers multiple parameter measurements with a real-time sampling rate of 2.5MS/s and a 200kHz bandwidth. Includes complete trigger functions and supports rising-edge and falling-edge trigger modes, along with ±400V voltage signal measurement.
• 1KHz Calibration Square Wave: Provided with a 1KHz calibration square wave to facilitate easy and precise probe calibration.
• One-Button Automatic Adjustment: Features an efficient one-button AUTO function that displays measured waveforms without requiring tedious adjustments.
• Wide Applications: Built with intelligent anti-burning technology, making it suitable for various occasions, including utility measurements, DIY learning, and repairs.

Specifications:

• Name: Digital Oscilloscope
• Material: Plastics
• Type: Standard Configuration, High Configuration (optional)

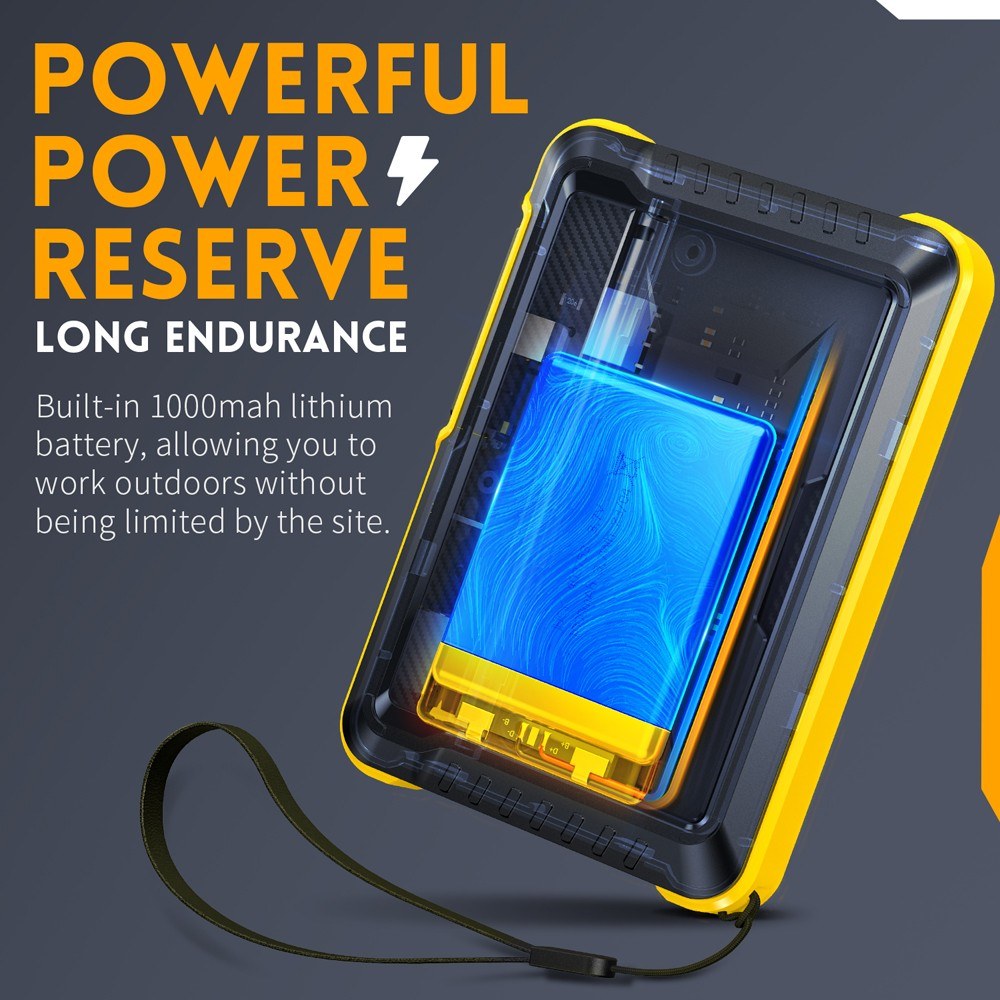

• Battery: 1 x Rechargeable 1000mAh Lithium Battery (included)
• USB Charging: 5V/1A
• Display: 2.8-inch / PPI: 320x240
• Bandwidth: 200kHz
• Realtime Sampling Rate: 2.5MS/s
• Vertical Sensitivity: 10mV/Div-20V/Div (in 1-2-5 increments)
• Time Base Ranges: 10μs/Div-50s/Div (in 1-2-5 increments)
• Calibration Square Wave Frequency: 1kHz
• Duty Cycle: 50%
• Voltage Ranges: X1: ±40V (Vpp: 80V); X10: ±400V (Vpp: 800V)
• Trigger Mode: Automatic/Regular/Single
• Item Size: 99 x 68 x 20mm / 3.90 x 2.68 x 0.79in
• Item Weight: 100g / 3.53oz
• Package Size:
  Standard Configuration: 125 x 85 x 40mm / 4.92 x 3.35 x 1.57in
  High Configuration: 210 x 150 x 50mm / 8.27 x 5.91 x 1.97in
• Package Weight:
  Standard Configuration: 168g / 5.93oz
  High Configuration: 243g / 8.57oz

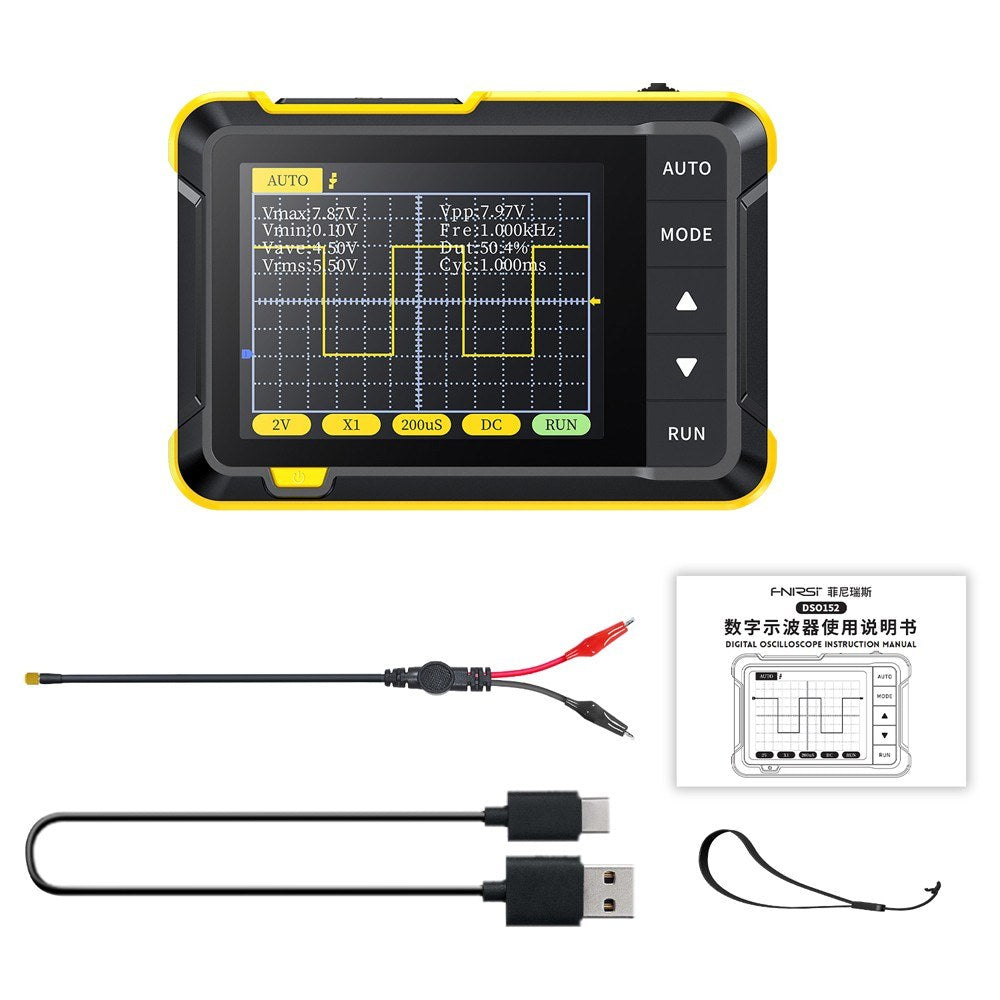

Packing List (Standard Configuration):

• 1 x Digital Oscilloscope
• 1 x Type-C Cable
• 1 x General Probe
• 1 x Guideline

OR

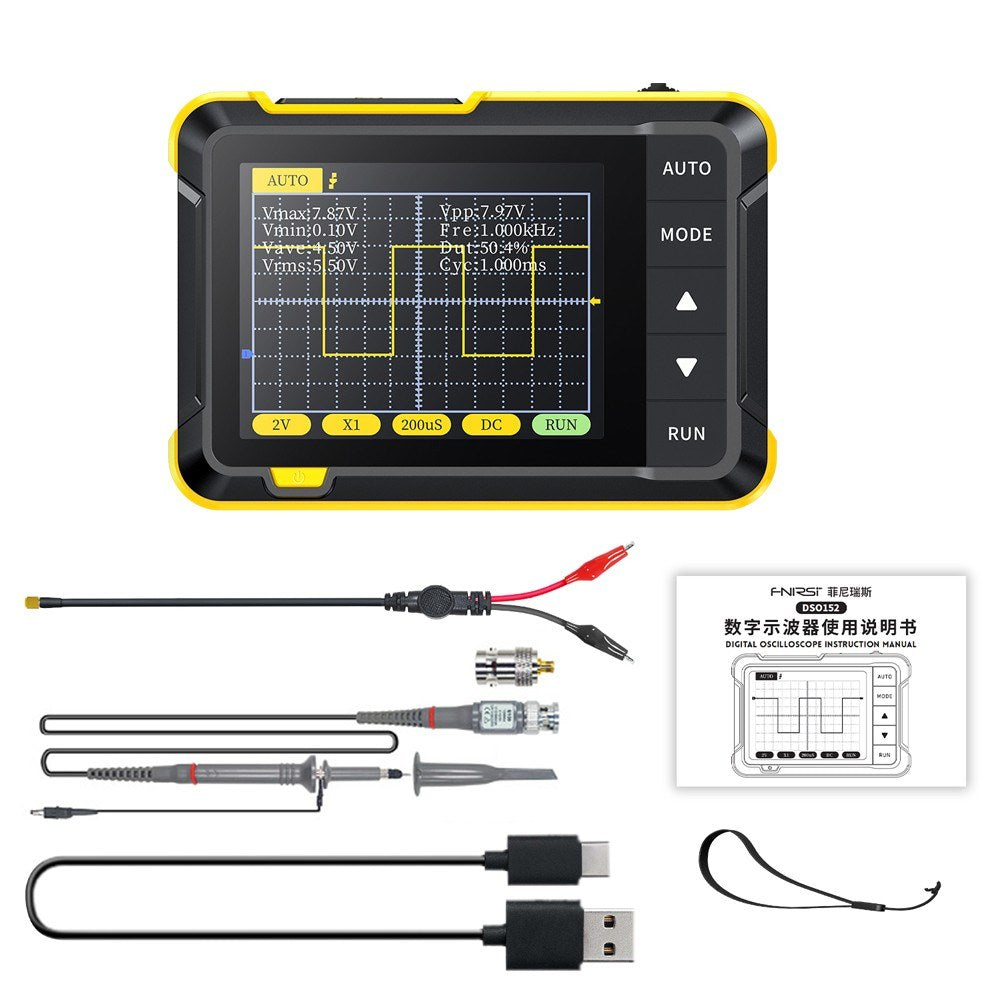

Packing List (High Configuration):

• 1 x Digital Oscilloscope
• 1 x Type-C Cable
• 1 x General Probe
• 1 x P6100 High Pressure Probe
• 1 x Adapter
• 1 x Guideline
