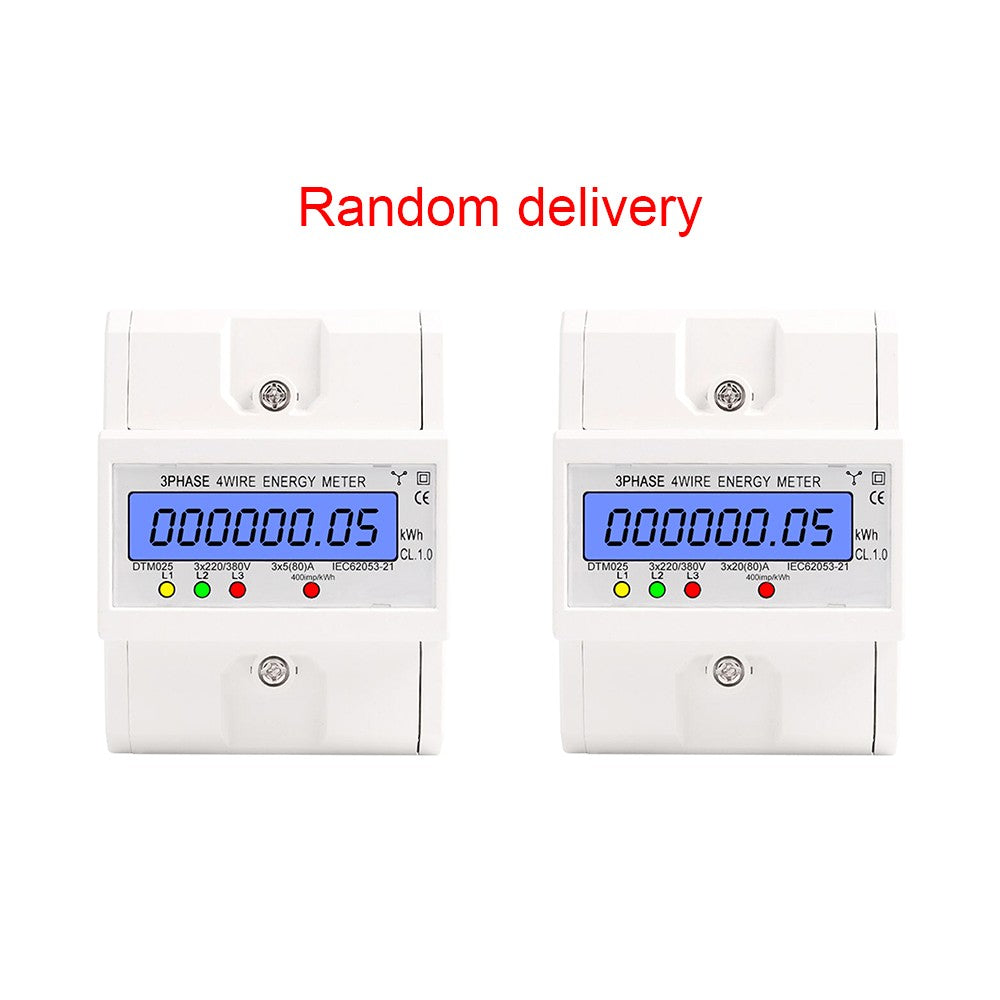

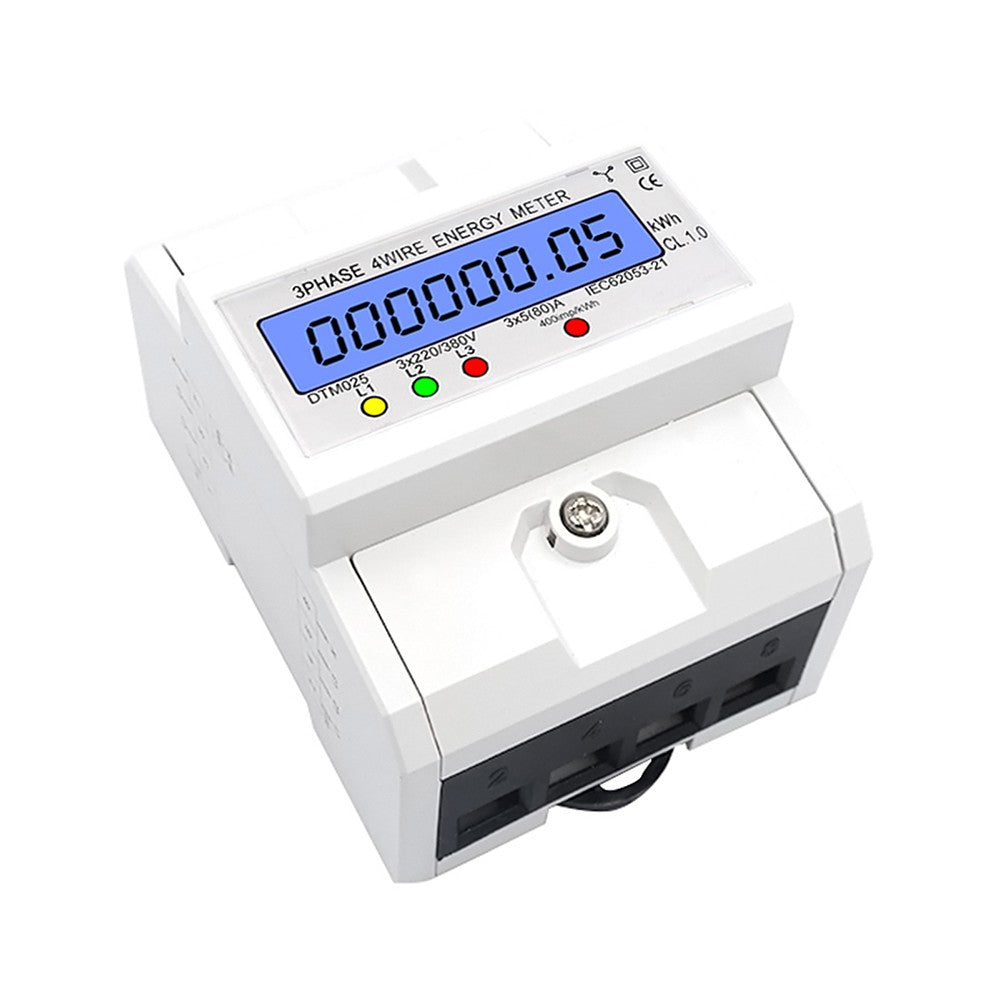

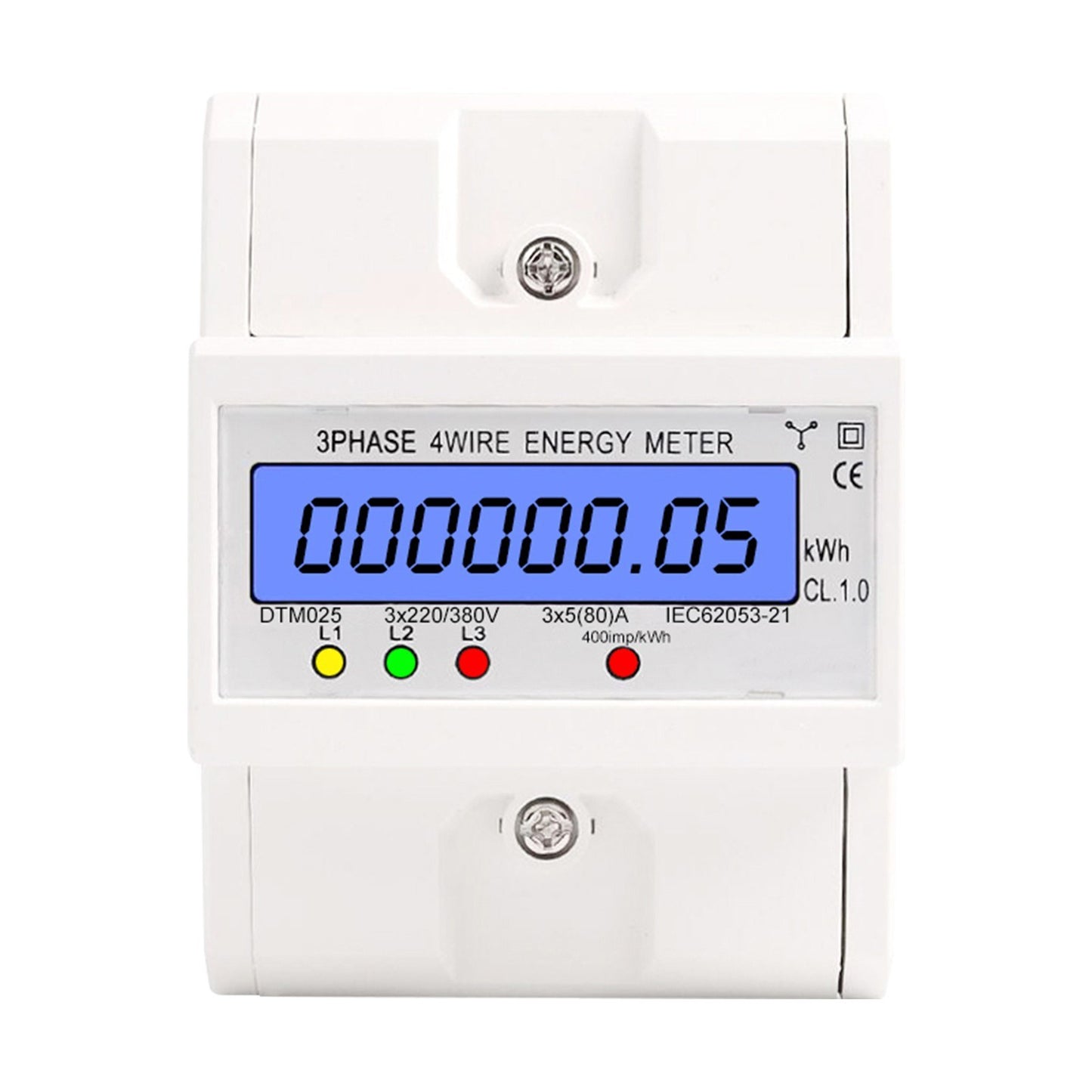

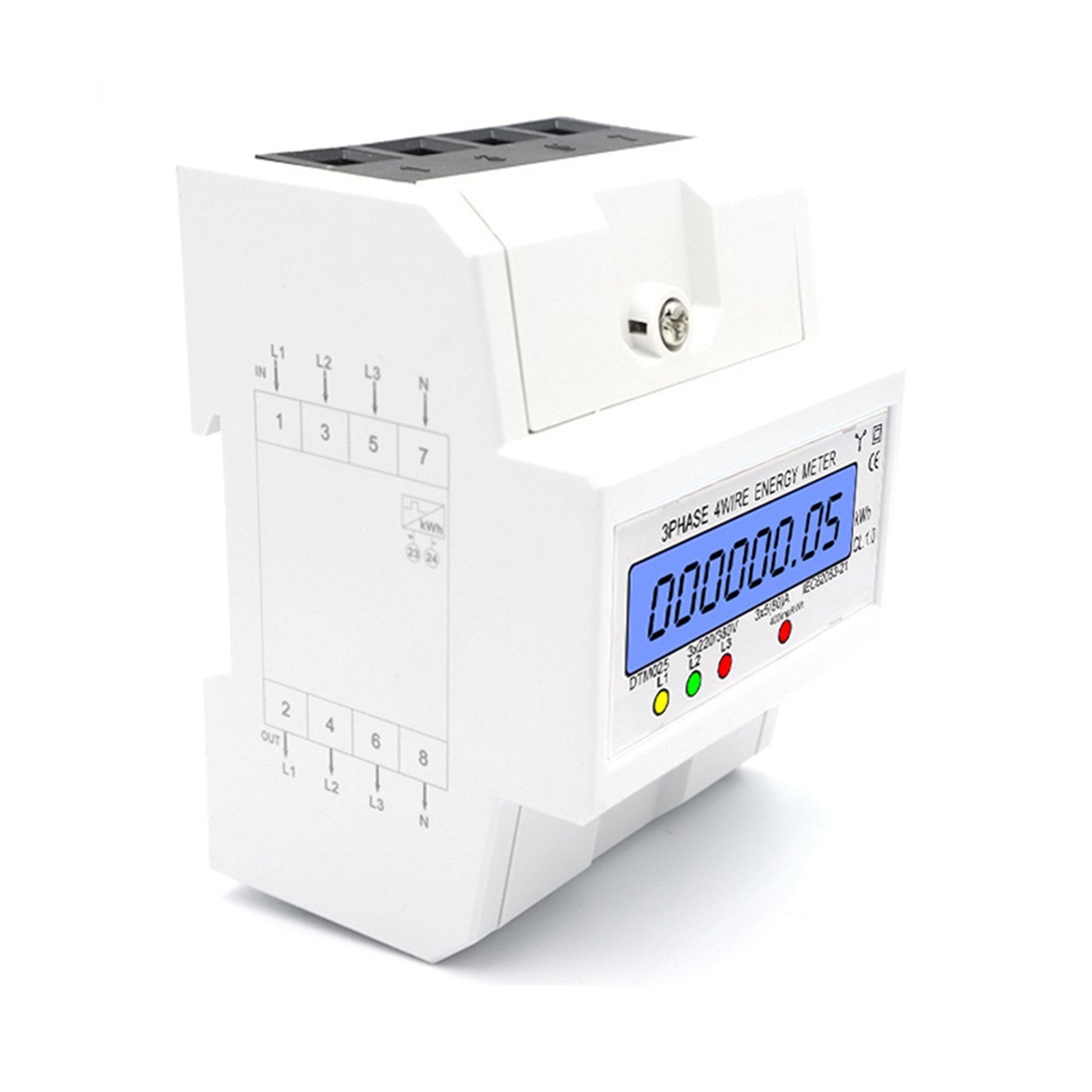

Digital 3 Phase 4 Wire Energy Meter 220/380V 5-80A kWh DIN Rail LCD Display

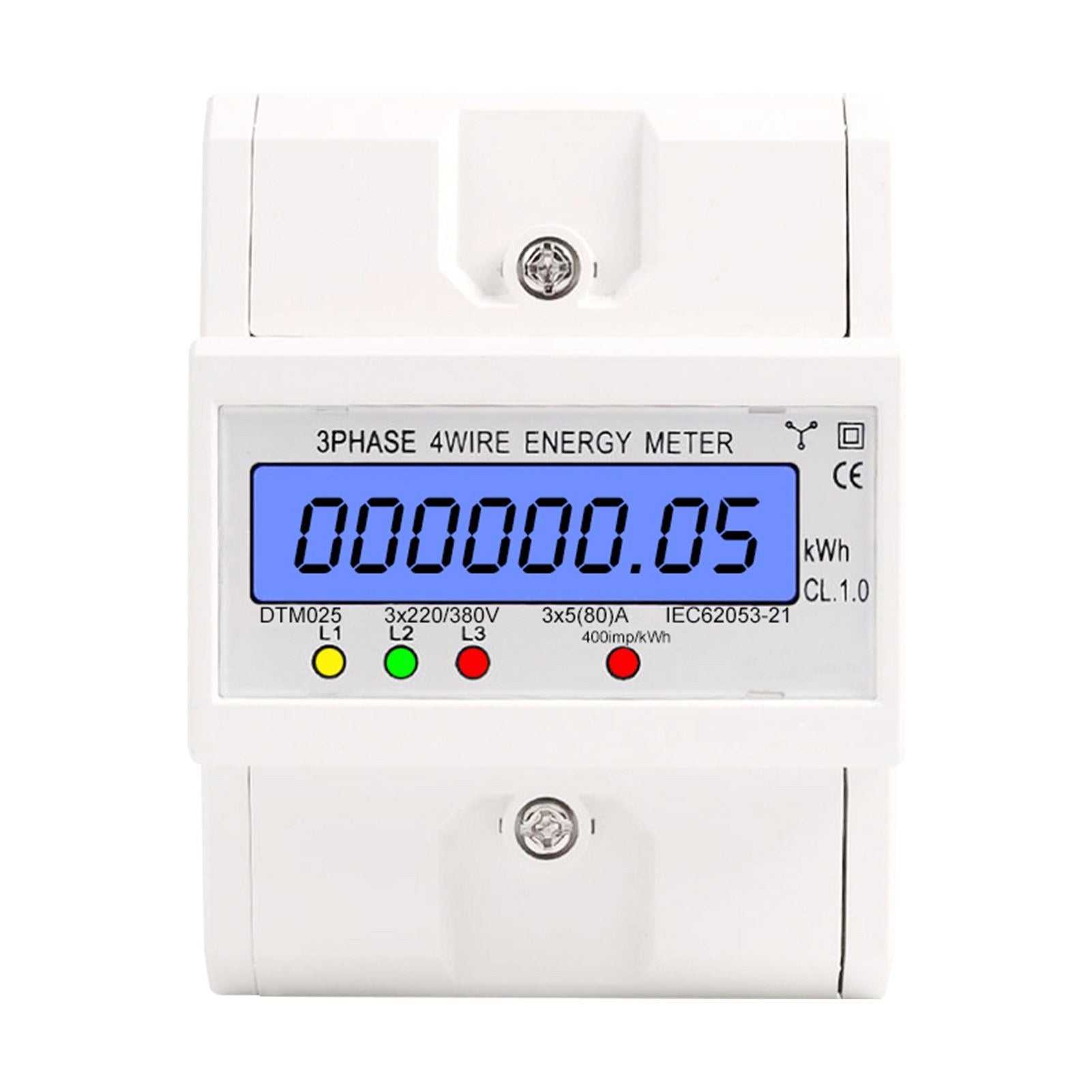

Three Phase Four Module DIN Rail Meter

Introducing a straightforward and efficient solution for your sub-metering systems: our Three Phase Four Module DIN rail meter. Housed in a high-quality flame retardant ABS case, this meter combines concise design, durability, and exceptional performance in a compact size.

Features:

• High-accuracy 3-phase 4-wire energy meter, perfect for measuring rated frequency at 50 or 60Hz single-phase AC active electricity.
• Constructed from flame retardant ABS, offering excellent impact resistance, heat/cold resistance, insulativity, and durability.

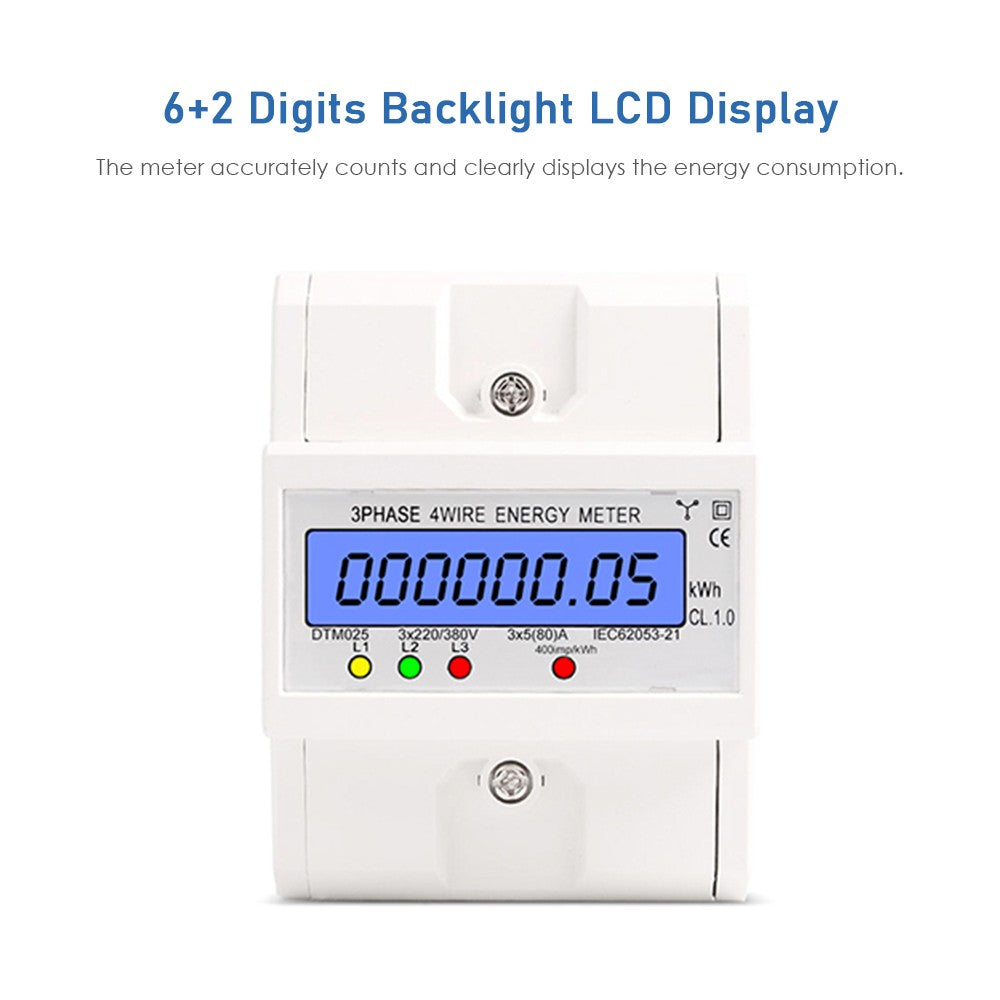

• Equipped with a 6+2 digits backlight LCD display for clear and accurate monitoring of energy consumption.

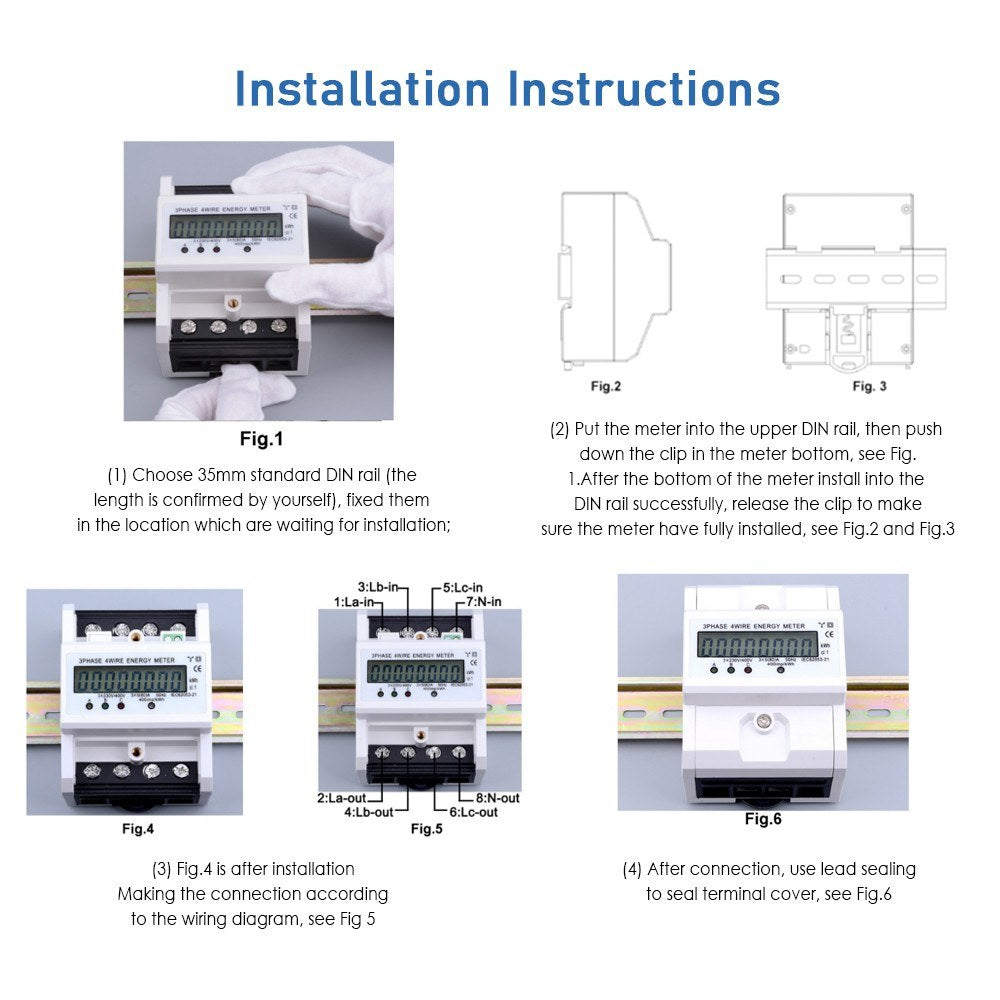

• Compact design with 35mm DIN standard guide rail installation facilitates easy and hassle-free installation.

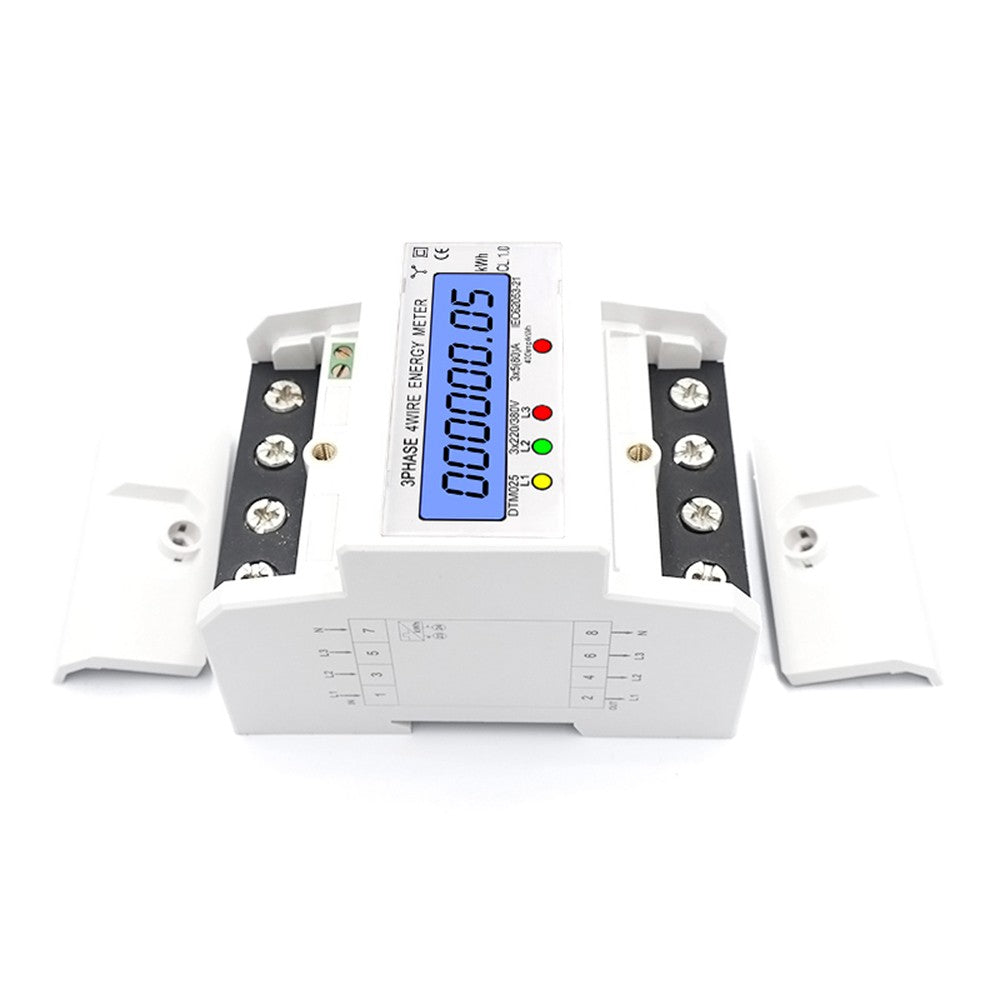

• Pure copper wiring terminal provides outstanding conductivity and corrosion resistance, ensuring reliable performance with high current over time.

Note: The size and color may slightly vary due to manual measurement and lighting conditions. Thank you for your understanding.

Specifications:

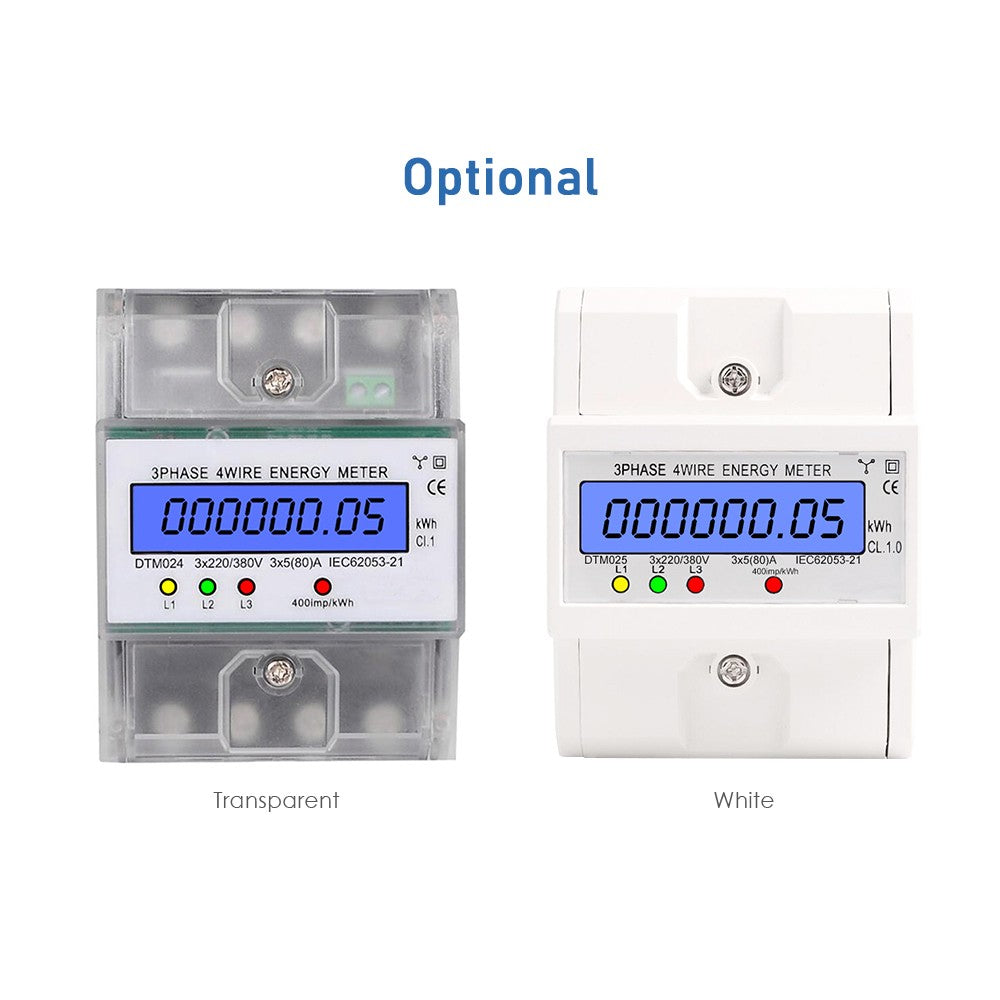

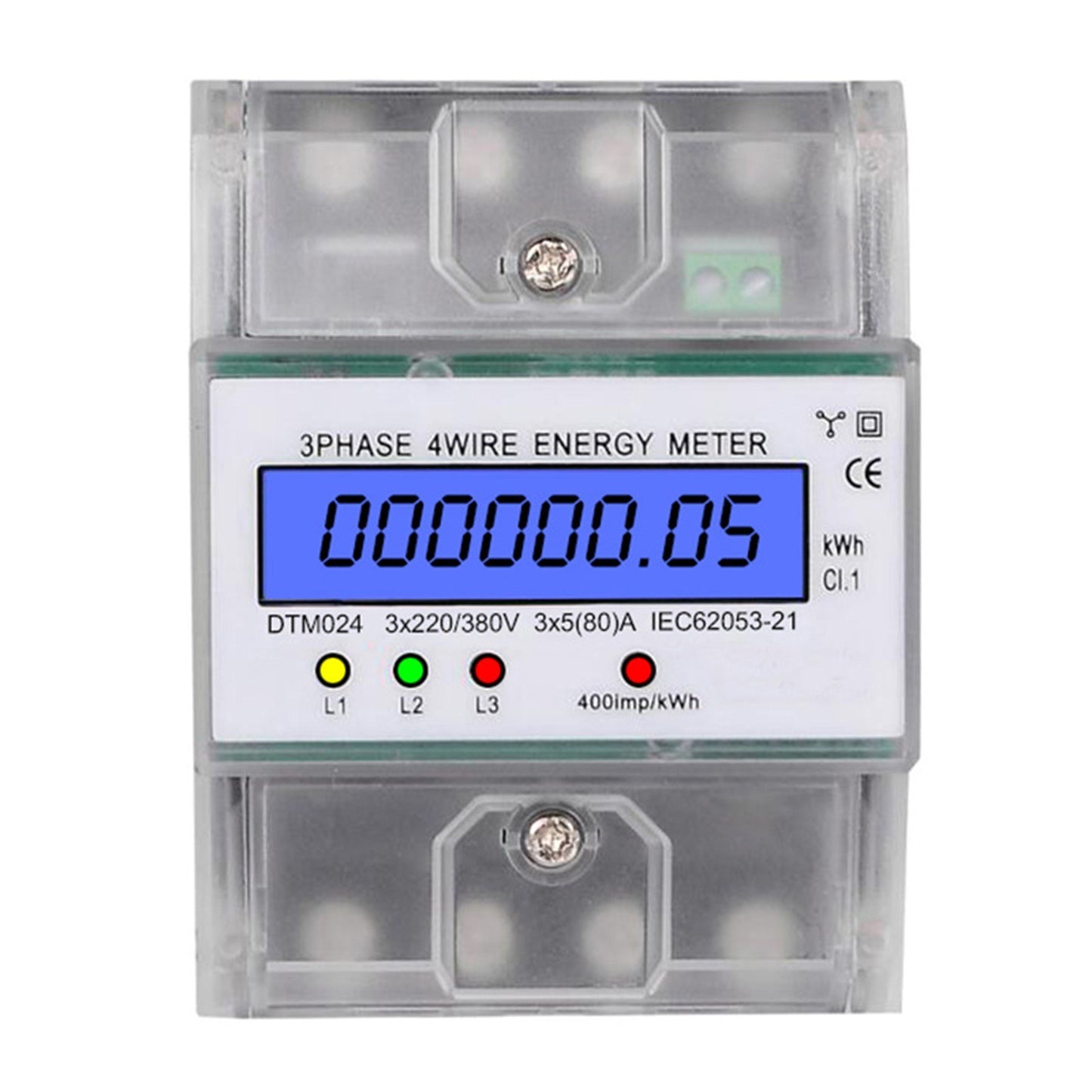

• Case Color: Transparent/ White (Optional)
• Material: Flame Retardant ABS
• Display: LCD Display with Backlight
• Current: 3x5(80)A
• Voltage: 3x220/380V
• Accuracy Class: 1.0
• Standard: IEC62053-21
• Frequency: 50/ 60Hz
• Impulse Constant: 400imp/kWh
• Power Consumption: ≤2W
• Starting Current: 0.004lb
• Working Temperature: -20~55℃
• Storage Temperature: -25~70℃
• Item Size: 100 * 76 * 65mm
• Item Weight: 380g
• Package Size: 110 * 80 * 70mm
• Package Weight: 400g

Package List:

• 1 x Energy Meter
• 1 x User Manual
