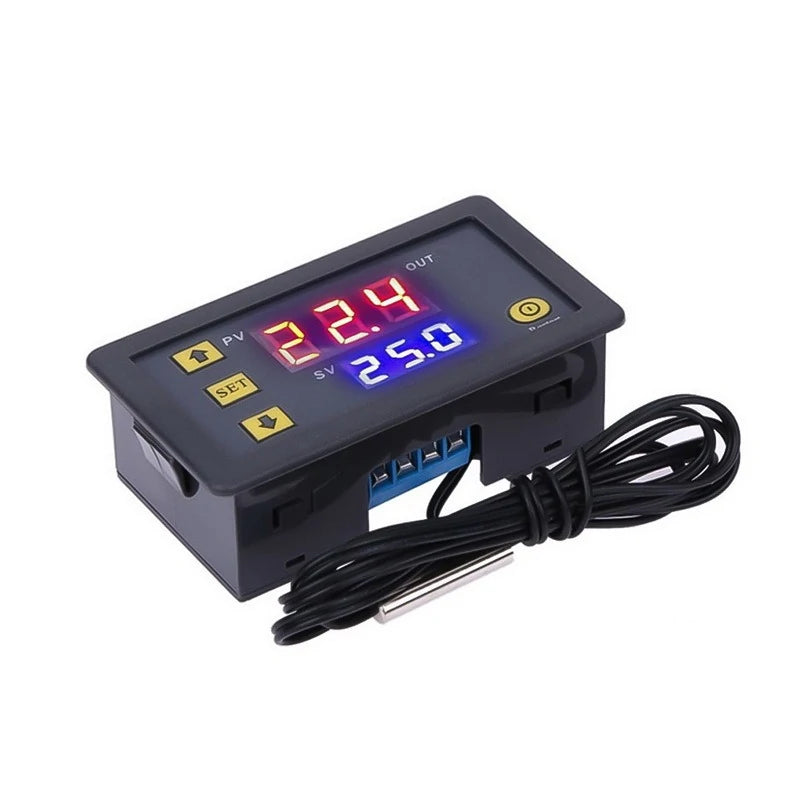

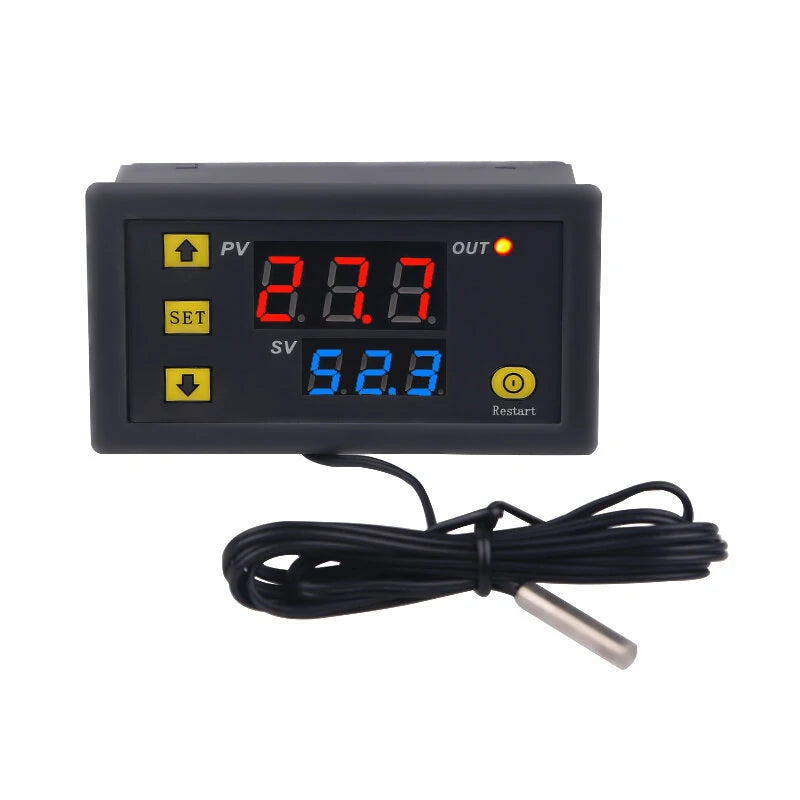

3PCS DC 12V Digital Thermostat Module with Display - Micro Temperature Control Board & Switch

Product Details

Specifications:

• Power Supply: DC 12V
• Temperature Control Range: -55°C to 120°C
• Resolution Ratio: 0.1°C (-9.9 to 99.9); 1°C (other range)
• Color of Displaying: Red/Blue
• Measurement Accuracy: ±0.1°C
• Control Accuracy: 0.1°C
• Sensor: NTC10K Waterproof sensor

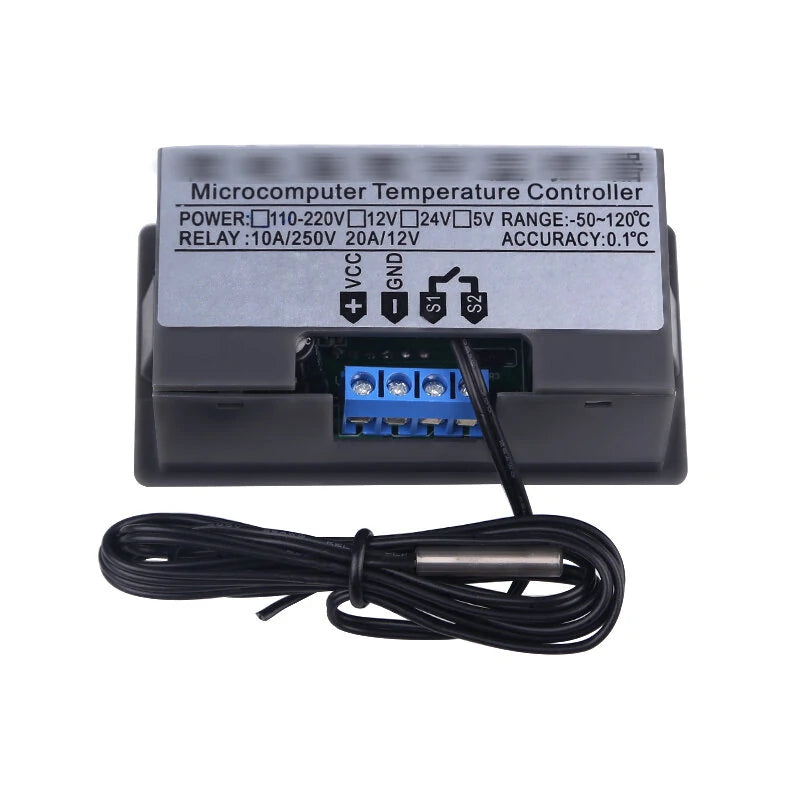

• Output: Relay Contact Capacity 20A 12V / 10A 220V
• Environmental Requirements: -10°C to 60°C, Humidity 20%-85% RH

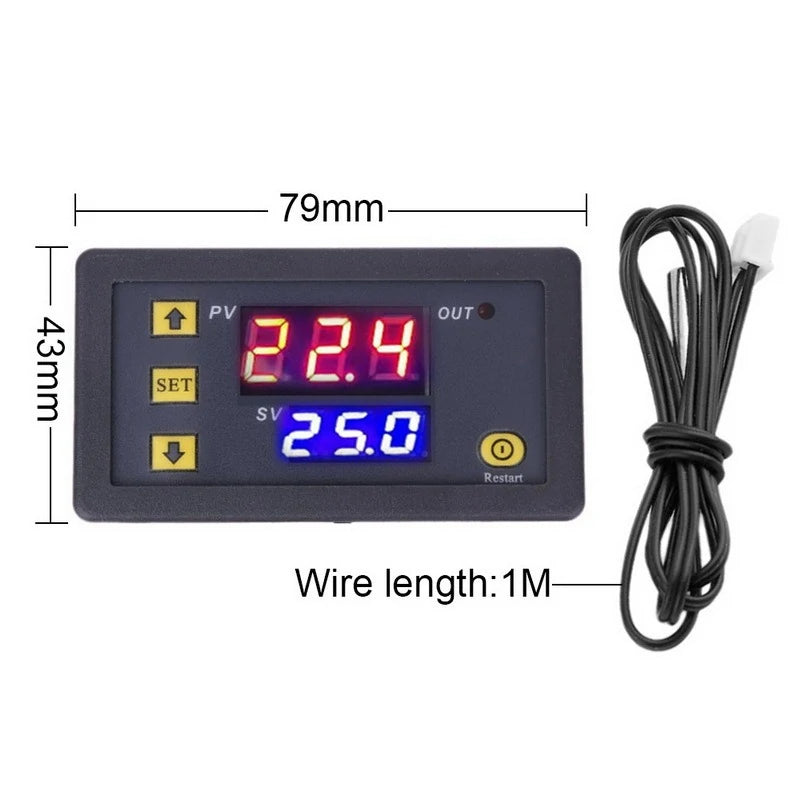

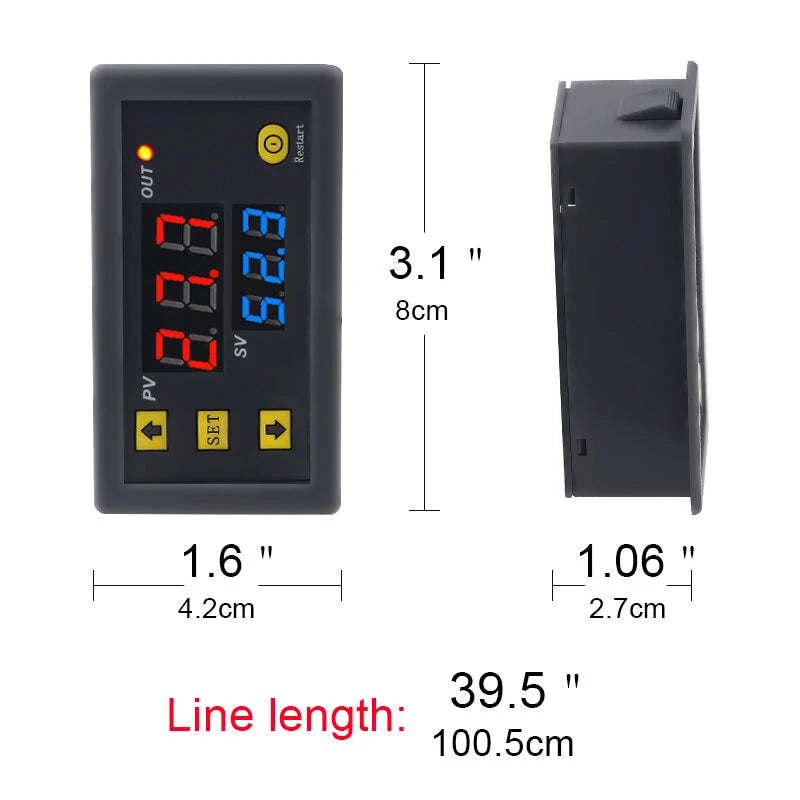

• Dimension: 79mm x 43mm x 26mm
• Cutting Size: 73mm x 39mm
• Sensor Wire: 1 meter

Function Description:

• P0: Refrigeration or Heating mode
• P1: Return Difference Setting
• P2: Maximum Temperature Setting Upper Limit
• P3: Minimum Temperature Setting Lower Limit
• P4: Temperature Correction
• P5: Delay Start Time (unit: minute)

Package Includes:

• 3 x Temperature Controller with NTC10K Waterproof sensor
