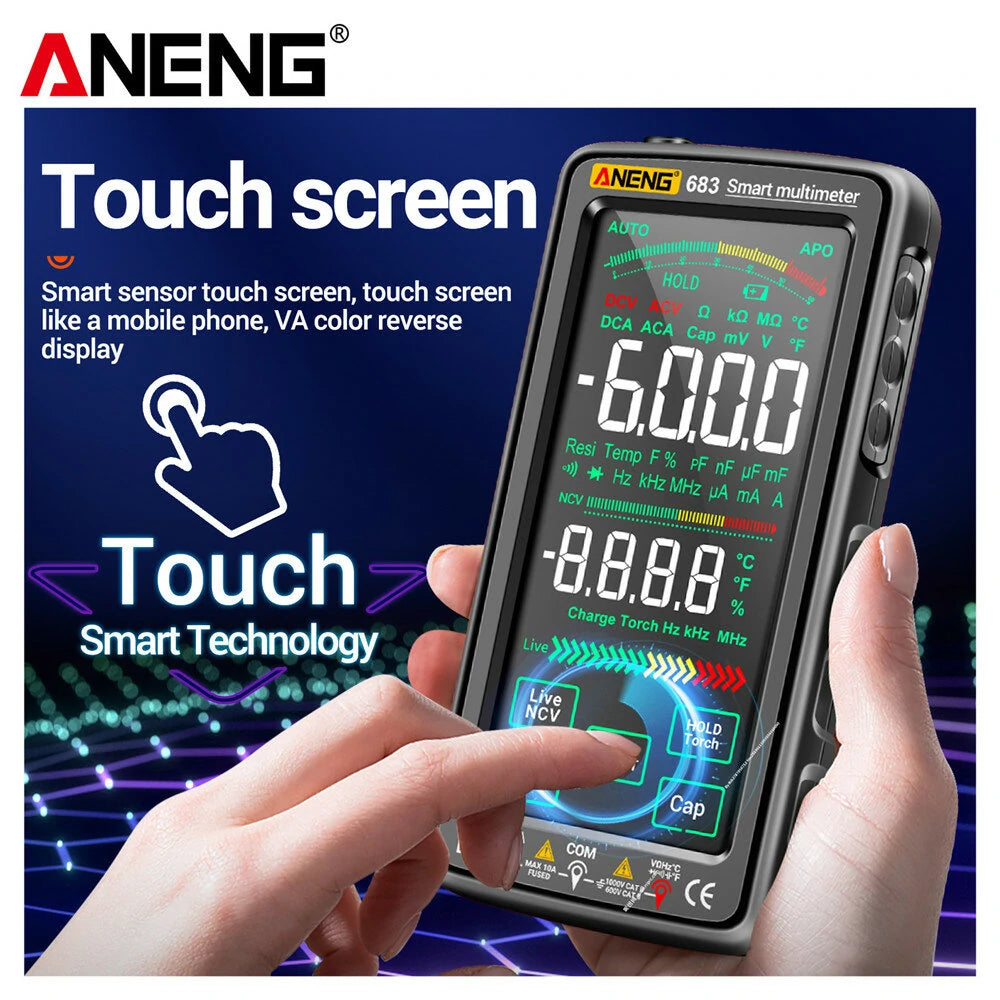

ANENG 683 High-end Touch Smart Multimeter

Introducing the ANENG 683 High-end Touch Smart Multimeter, a 3 5/6 digital device offering stable performance and reliable quality. Equipped with an LCD display and an analog bar, this multimeter provides ease of use with continuous power operation, eliminating the need to adjust the dial for function selection. The device automatically identifies and measures input AC/DC voltage and resistance.

This versatile multimeter can measure:

• DC Voltage
• AC Voltage (sine RMS)
• DC Current
• AC Current (sine RMS)
• Resistance
• Capacitance
• Live-line indication
• Duty ratio
• Diode on/off test
• Symbol unit

Key features include data hold, automatic power off, and a high-capacity rechargeable battery for full functionality and accurate measurements. Ideal for use in laboratories, factories, by radio enthusiasts, and for household applications.

Summary

• Manual Range and Auto Range
• Full Range Overload Protection
• Maximum Voltage Allowed: 1000V DC or 750V AC
• Fuse Protection: uA/mA
• Display: 6000 Counts LCD Monitor with Analog Bar
• Battery Type: 3.7V/2800mAh Rechargeable Battery

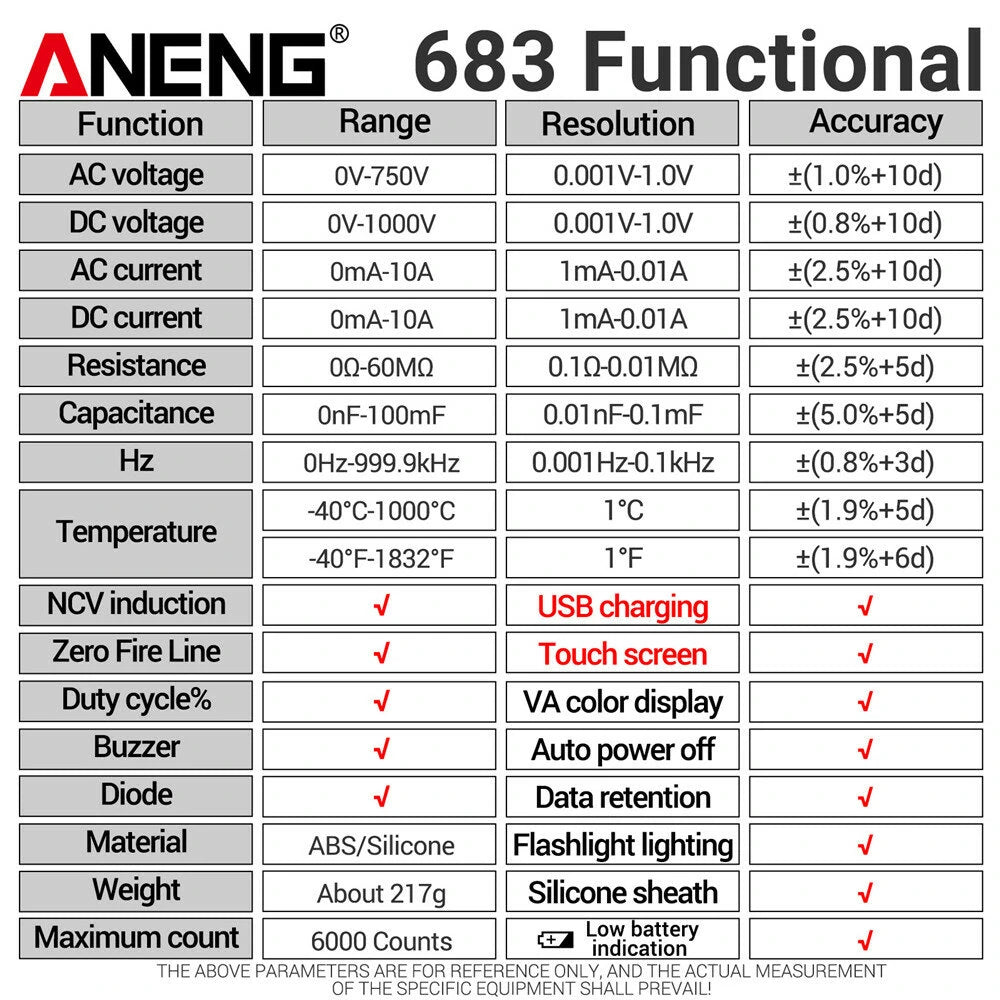

Specifications

DC Voltage

Measuring Range / Resolution / Accuracy:

• 6V / 0.001V / ±(0.5% readings + 3 digits)
• 60V / 0.01V / ±(0.5% readings + 3 digits)
• 600V / 0.1V / ±(0.8% readings + 10 digits)
• 1000V / 1.0V / ±(0.8% readings + 10 digits)

AC Voltage

Measuring Range / Resolution / Accuracy:

• 6V / 0.001V / ±(0.8% readings + 3 digits)
• 60V / 0.01V / ±(0.8% readings + 3 digits)
• 600V / 0.1V / ±(1.0% readings + 10 digits)
• 750V / 1.0V / ±(1.0% readings + 10 digits)

AC and DC Current

Measuring Range / Resolution / Accuracy:

• 6000mA / 1mA / ±(1.0% readings + 5 digits)
• 10A / 0.01A / ±(2.5% readings + 10 digits)

Resistance

Measuring Range / Resolution / Accuracy:

• 600Ω / 0.1Ω / ±(0.8% readings + 3 digits)
• 6kΩ / 0.001kΩ / ±(0.8% readings + 3 digits)
• 60kΩ / 0.01kΩ / ±(0.8% readings + 3 digits)
• 600kΩ / 0.1kΩ / ±(0.8% readings + 3 digits)
• 6MΩ / 0.001MΩ / ±(1.2% readings + 3 digits)
• 60MΩ / 0.01MΩ / ±(2.5% readings + 5 digits)

Capacitance

Measuring Range / Resolution / Accuracy:

• 60nF / 0.01nF / ±(4.0% readings + 20 digits)
• 6uF / 0.001uF / ±(4.0% readings + 20 digits)
• 60uF / 0.01uF / ±(4.0% readings + 20 digits)
• 600uF / 0.1uF / ±(4.0% readings + 20 digits)
• 6mF / 0.1uF / ±(4.0% readings + 20 digits)
• 60mF / 0.01mF / ±(5.0% readings + 5 digits)
• 100mF / 0.1mF (for reference only)

Frequency

Measuring Range / Resolution / Accuracy:

• 9.999Hz / 0.001Hz / ±(0.8% readings + 3 digits)
• 99.99Hz / 0.01Hz / ±(0.8% readings + 3 digits)
• 999.9Hz / 0.1Hz / ±(0.8% readings + 3 digits)
• 9.999kHz / 0.001kHz / ±(0.8% readings + 3 digits)
• 99.99kHz / 0.01kHz / ±(0.8% readings + 3 digits)
• 999.9kHz / 0.1kHz / ±(0.8% readings + 3 digits)

Temperature

Measuring Range / Resolution / Accuracy:

• -40℃ to 300℃ / 1℃ / ±(1.0% + 4d)
• 301℃ to 1000℃ / 1℃ / ±(1.9% + 5d)
• -40°F to 600°F / 1°F / ±(1.2% + 6d)
• 601°F to 1832°F / 1°F / ±(1.9% + 6d)

Additional Features

• Diode Test
• Circuit On/Off Test
• Data Hold
• Automatic Power Off
• Torch

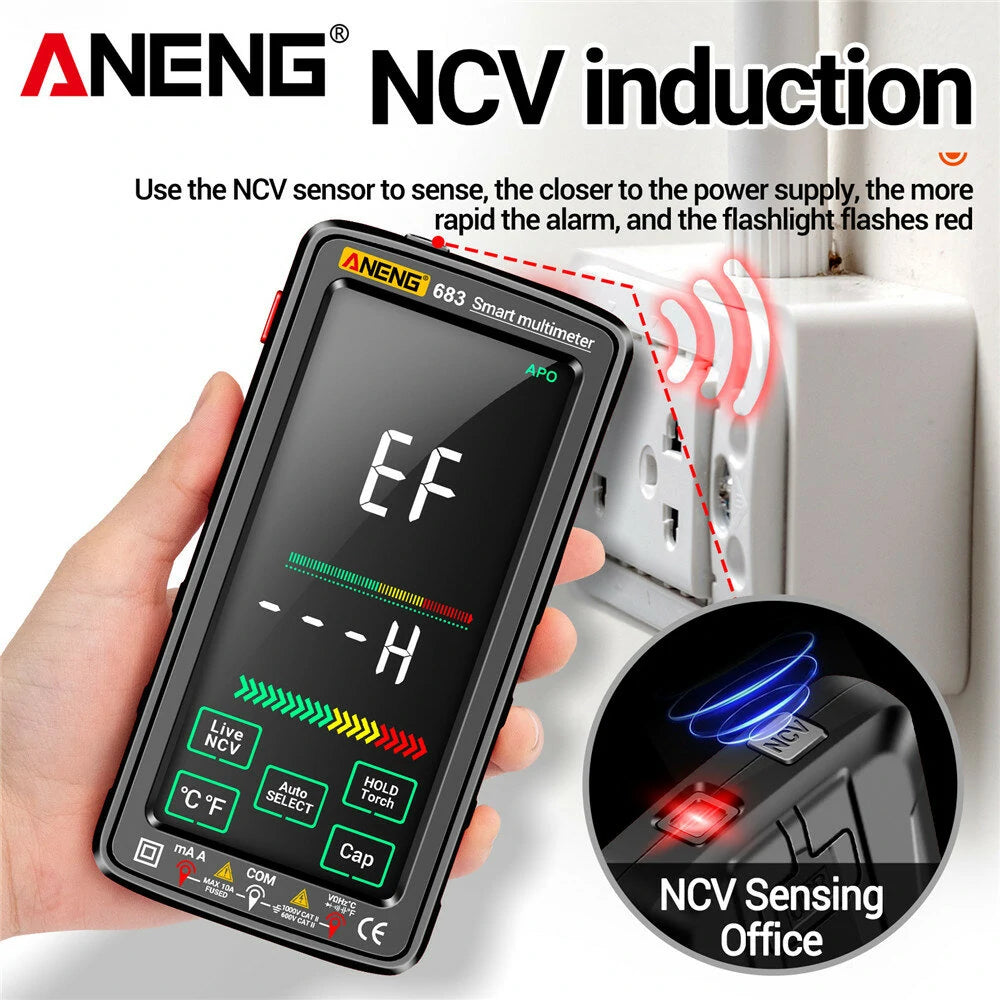

• NCV Test
• Buzzer
• Firing Line Test
