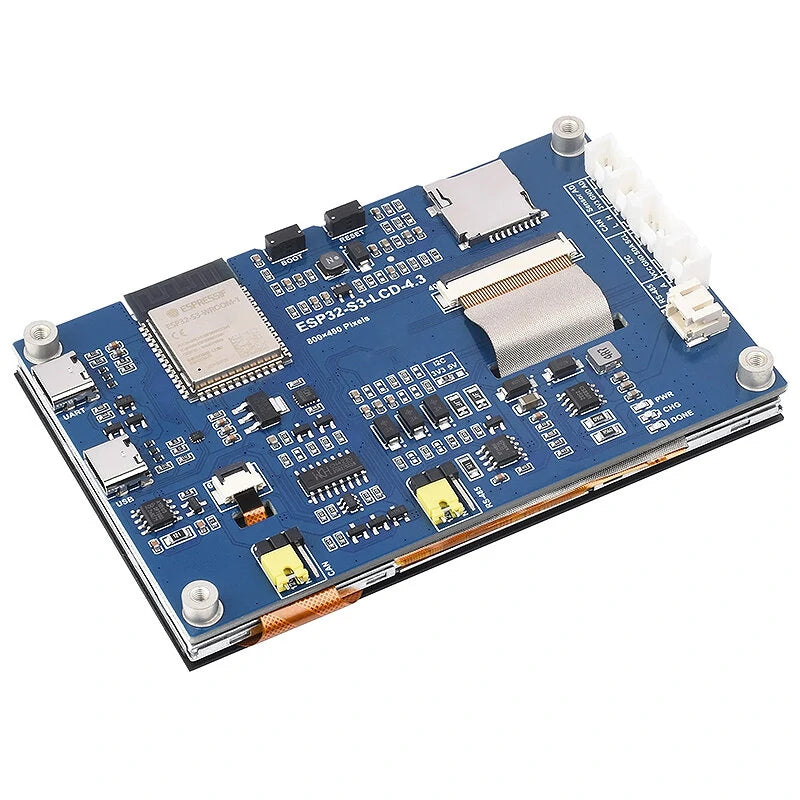

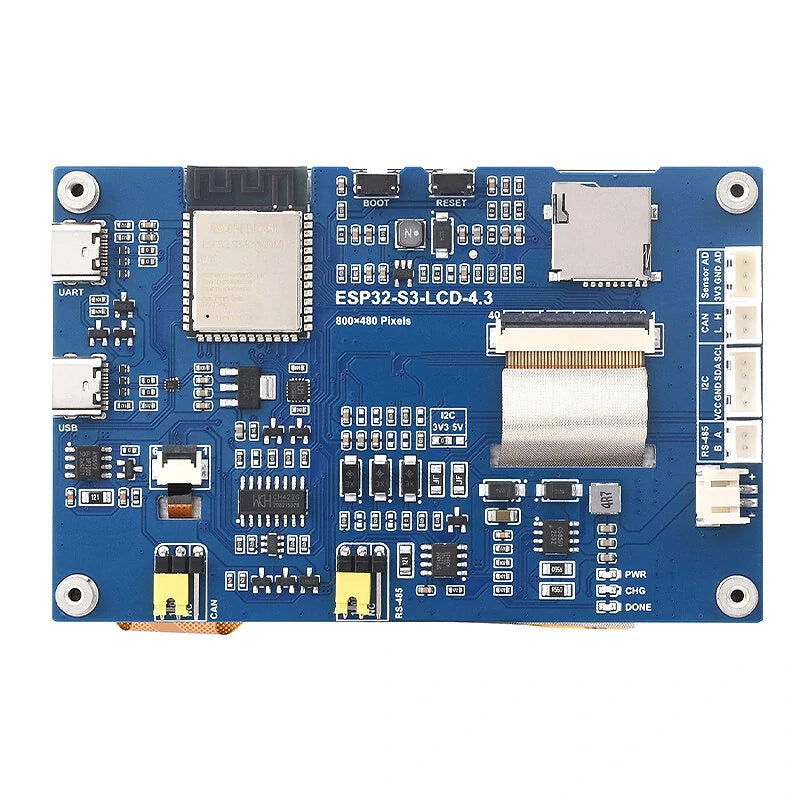

ESP32-S3 4.3inch Capacitive Touch Display Development Board

Specifications:

• Processor: Xtensa 32-bit LX7 dual-core, up to 240MHz frequency
• Wireless Connectivity: 2.4GHz WiFi (802.11 b/g/n), Bluetooth 5 (LE) with onboard antenna
• Memory: 512KB SRAM, 384KB ROM, 8MB PSRAM, and 8MB Flash

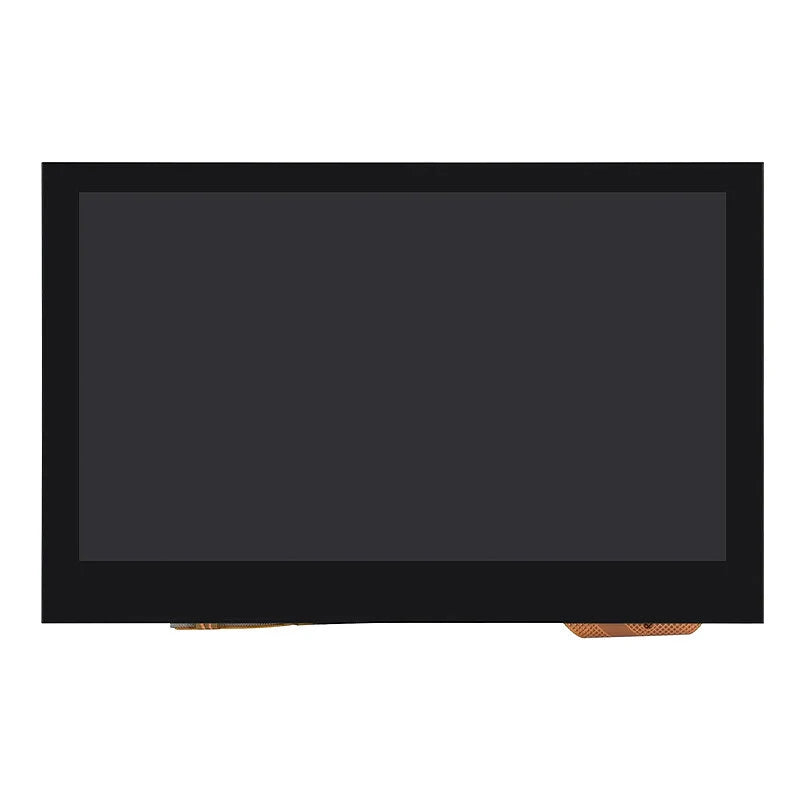

• Display: 4.3-inch capacitive touch with 800×480 resolution, 65K color

Features:

1. Powerful dual-core processor capable of running various GUI programs smoothly with flexible clock and configurable power settings for low power consumption.
2. Integrated wireless functionalities with support for 2.4GHz Wi-Fi and Bluetooth 5 for seamless connectivity.
3. Onboard 4.3-inch capacitive touch display with high resolution and supports 5-point touch control via I2C interface.
4. Abundant memory options with inbuilt SRAM, ROM, PSRAM, and Flash for enhanced performance.
5. Multiple peripheral interfaces including CAN, RS485, I2C, and TF card slot, alongside a full-speed USB port for extended usability.

Package Includes:

• 1x ESP32-S3 4.3inch Capacitive Touch Display Development Board
• 2x HY2.0 2P to 2PIN Male Cable (10cm)
• 1x HY2.0 2P to 3PIN Male Cable (10cm)
• 1x HY2.0 2P to 4PIN Male Cable (10cm)
• 1x Standoff Pack
