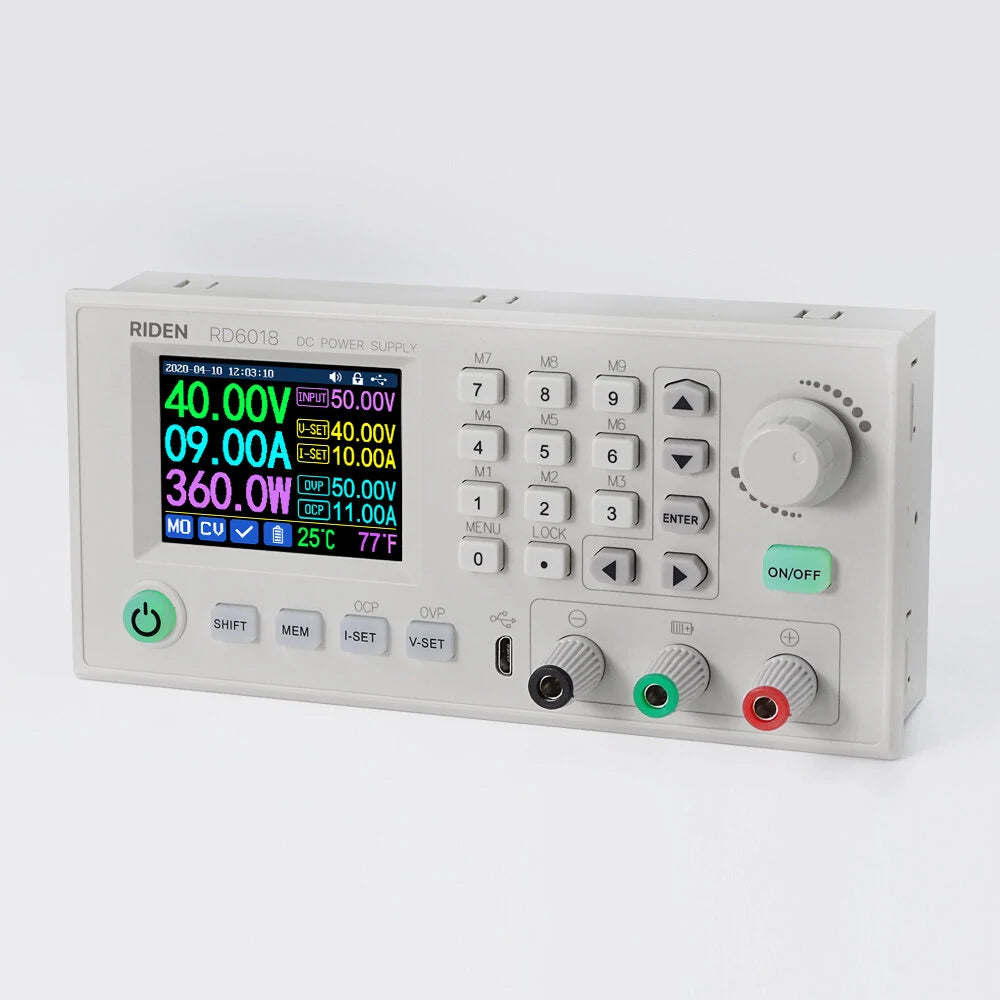

RD6018 Series Power Supply

Important Notes Before Purchase:

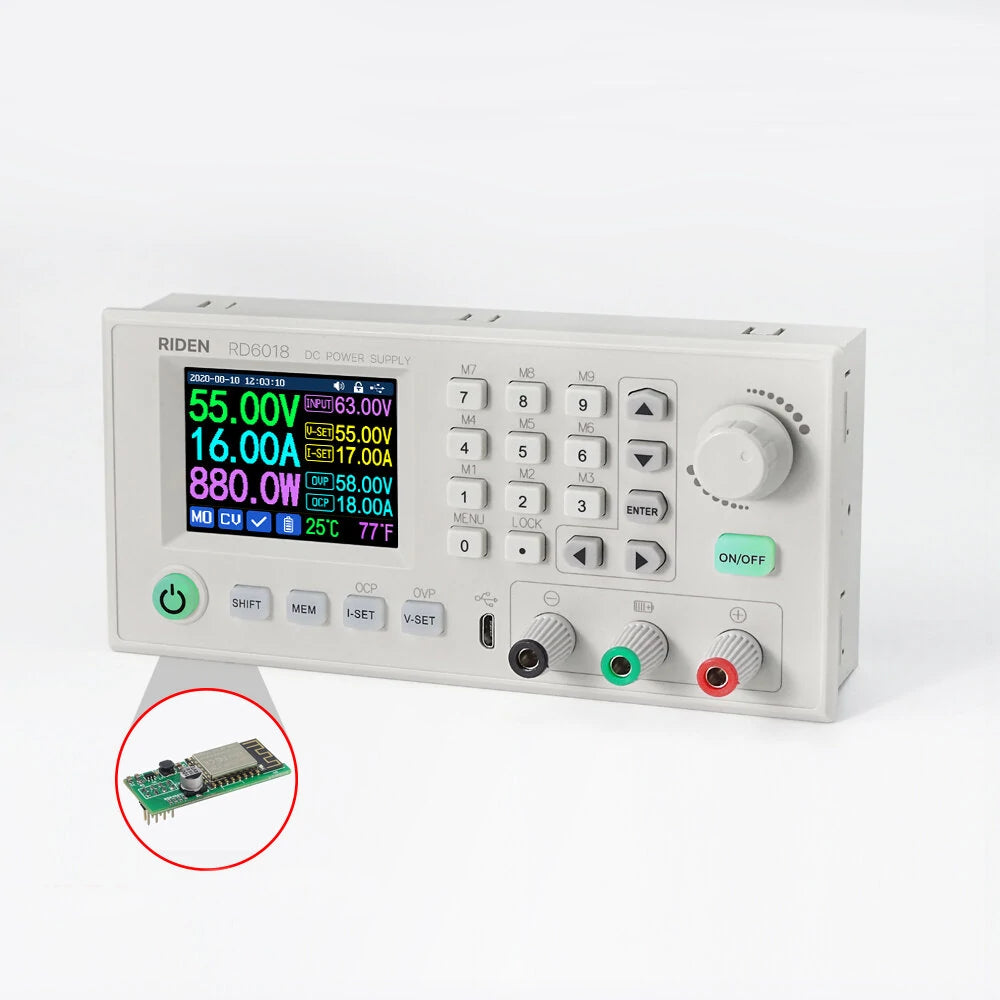

• The RD6018 series includes two versions: RD6018 and RD6018-W. The RD6018-W version comes with a WiFi board, while the RD6018 does not. The RD6018-W can connect to an app via WiFi or to PC software using a USB micro cable. The RD6018 only supports PC software connection via USB micro cable and does not support app connectivity.
• Note: WiFi connectivity is a test function. If your computer cannot connect to PC software via WiFi due to compatibility issues, please disregard this feature. We offer no guarantee or technical support for this function and may discontinue it based on customer feedback.
• The PC software supports Windows 7 and above. The app supports Android 5.0 and above. Due to possible compatibility issues, please download and test the software/apps before purchasing. We do not offer refunds if the main functionality works except for the PC software or app.
• The supplied AC-DC switch power supply is 800W, which is below the RD6018's maximum output of 1080W. For full output, a 65V 1200W power source is required, but it will not fit the S800 case, so a custom case is necessary.
• A backup fuse is included in the RD6018/RD6018-W package. If necessary, use the backup fuse temporarily but it's recommended to replace the damaged fuse with a soldered one.
• For RD6018-W connection issues to a router, disable the client isolation/AP isolation and WMM function on your network.
• Please use the compatible front-end power supply (Product ID: 1995201). We do not support damages caused by incorrect power supply use.

Technical Parameters:

Communication Support:

• USB Communication: Yes
• WiFi Communication: Available only in W versions

Package Contents:

• RD6018 version: 1 x RD6018 power supply without WiFi module
• RD6018-W version: 1 x RD6018-W power supply with WiFi module

For more information, please refer to the operation instructions and instructional videos.
