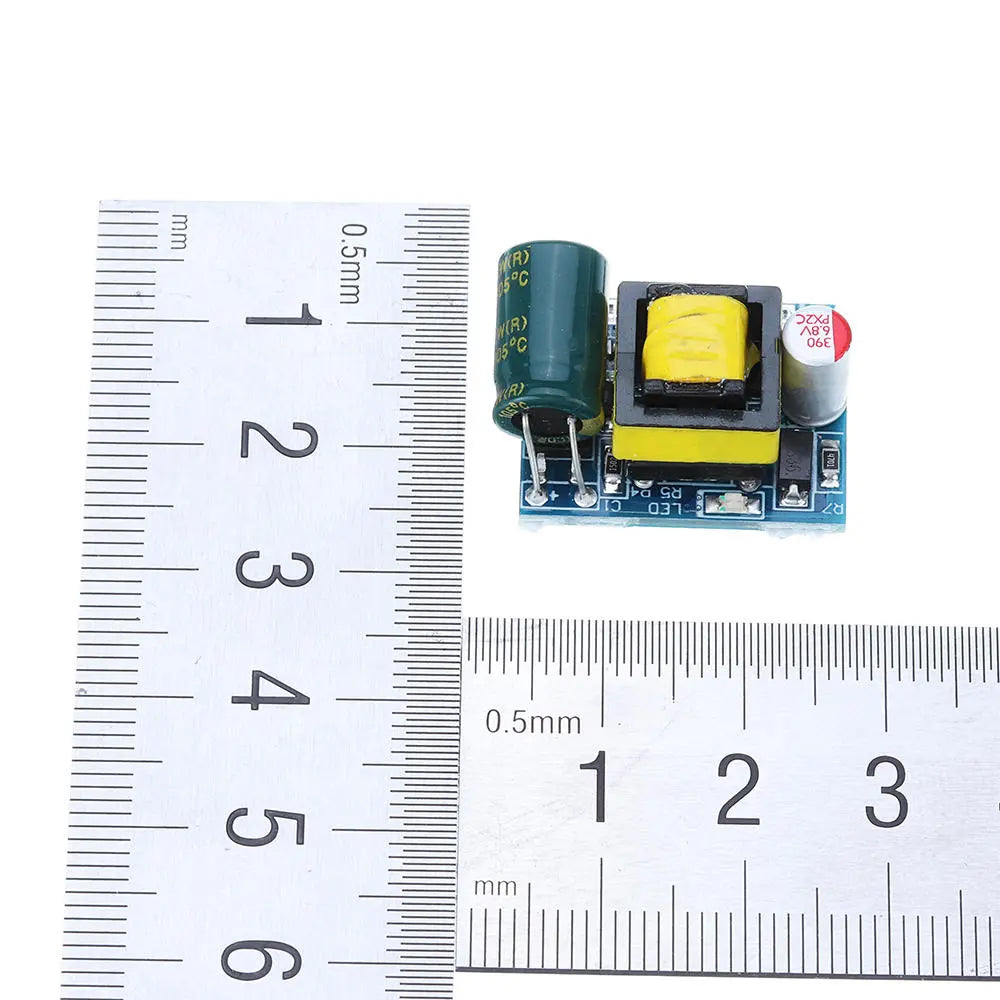

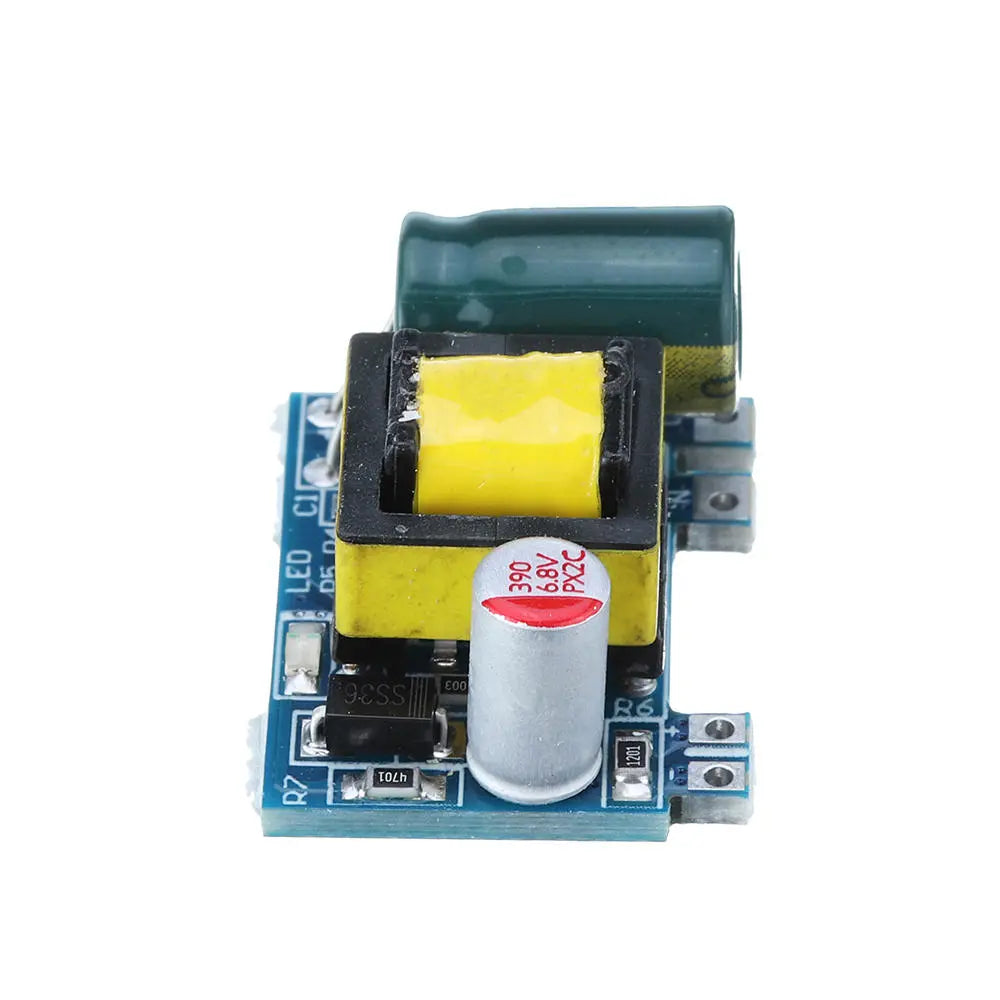

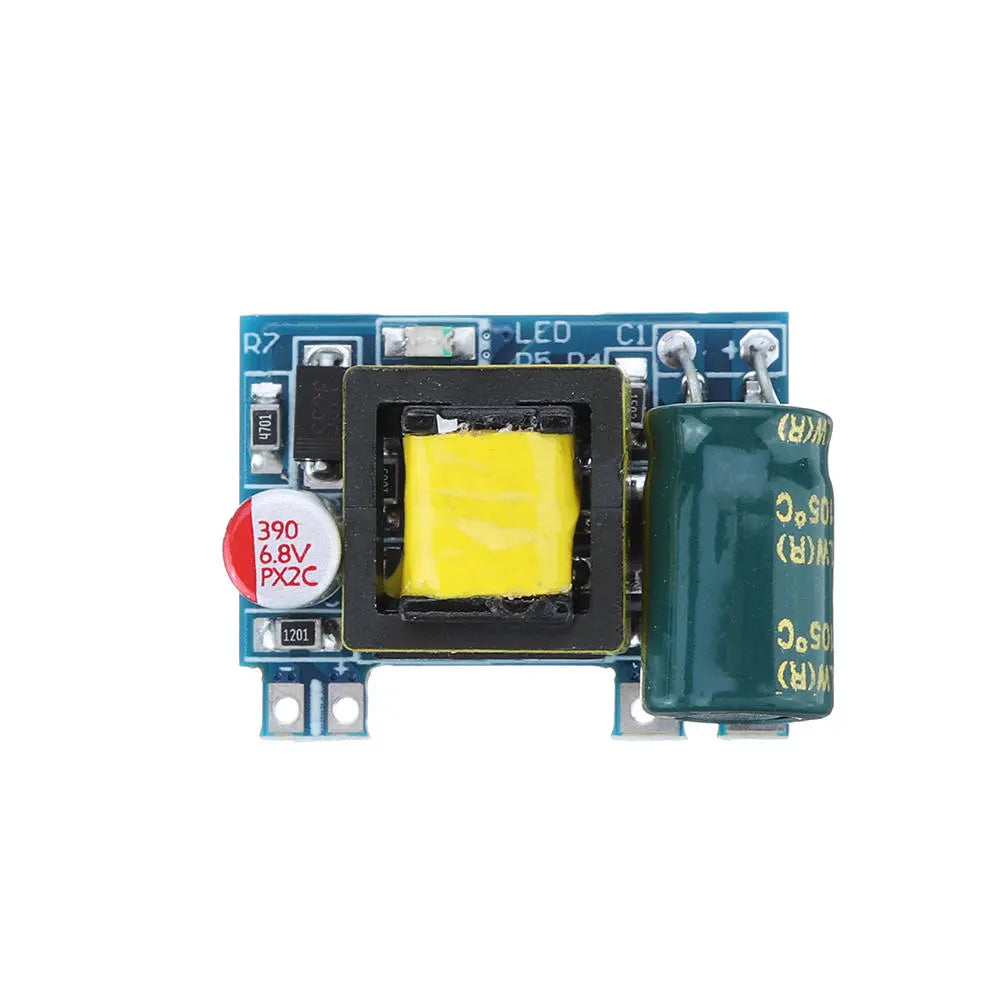

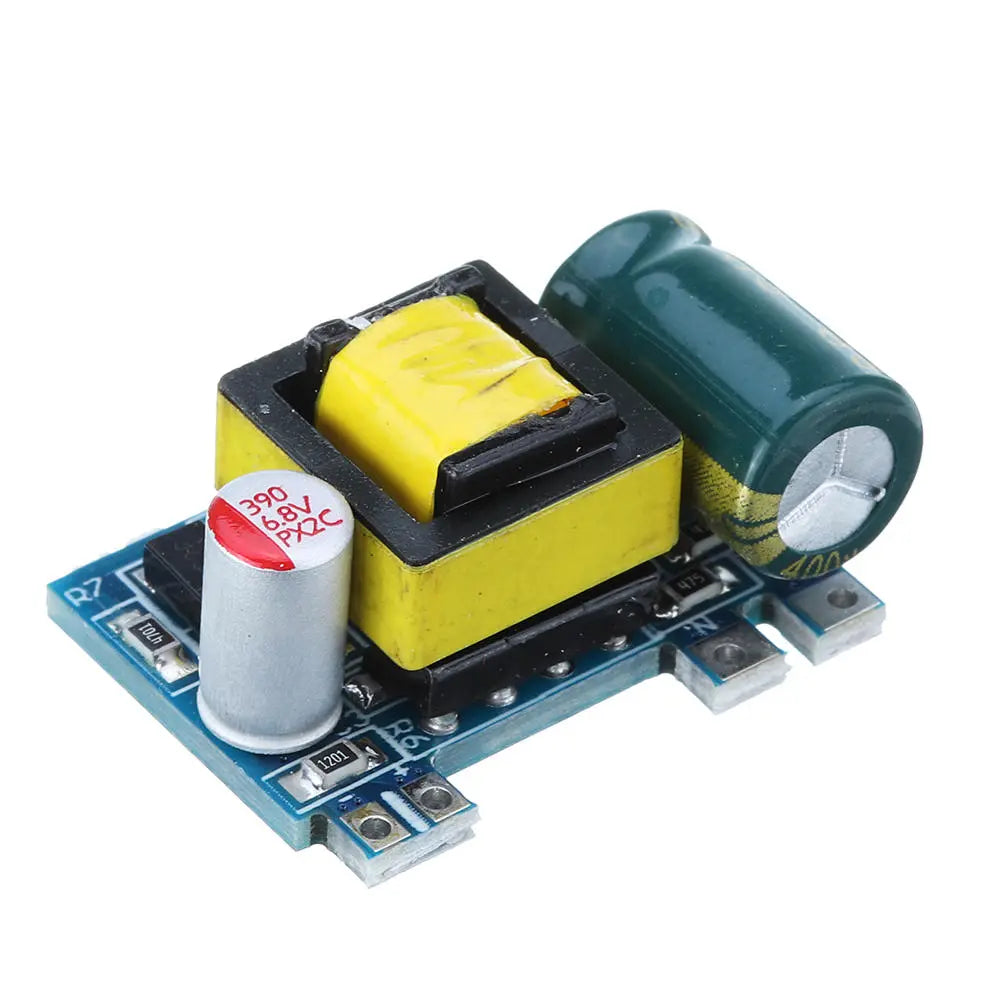

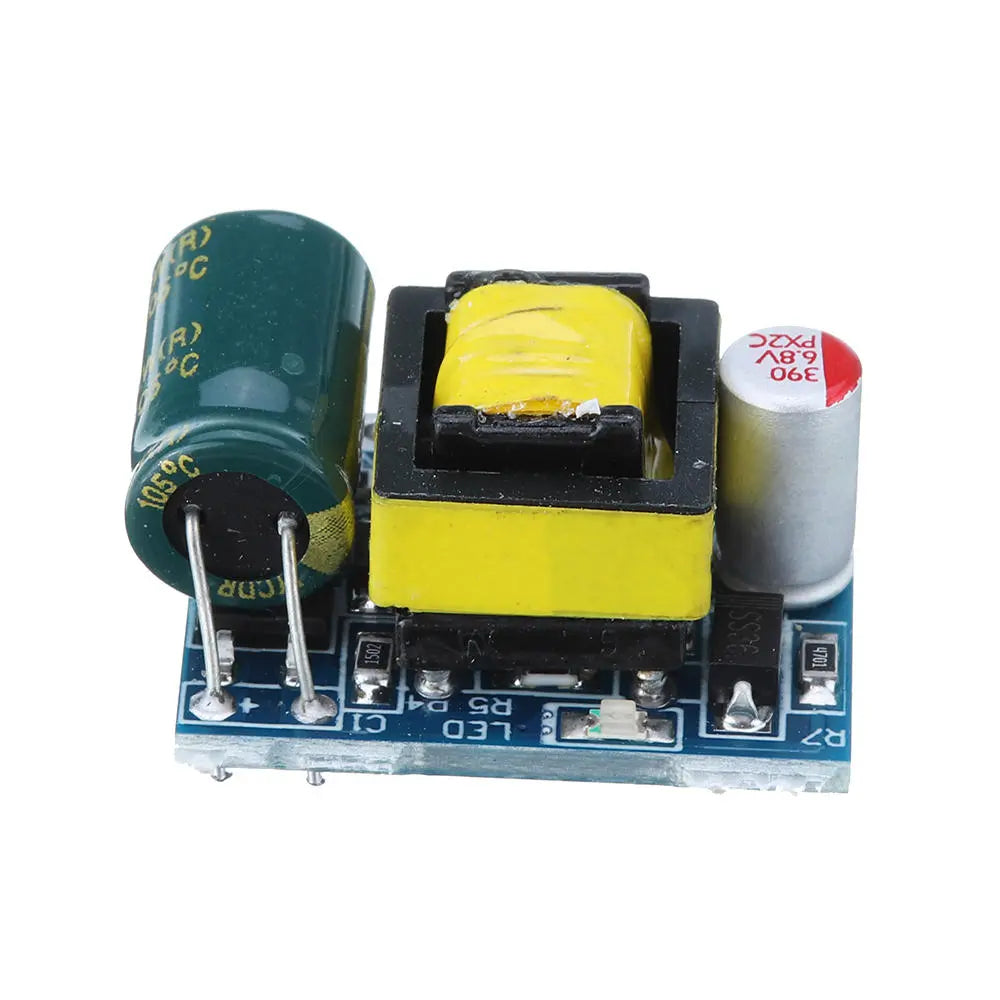

3pcs 5V 700mA 3.5W Isolated Switching Power Supply Module, AC-DC Buck Regulator 220V Converter

Product Specifications:

• Input Voltage Range: AC 50V-277V / DC 70V-390V
• No-Load Power: Minimize energy waste when idle
• Output Characteristics:
  • Features multiple voltage modules for parallel use
  • Suitable for delivering large currents in compact spaces
• Output Voltage: 5V ±0.15V at no load and full load; light load reduction by 0.1V, with recovery during heavy load; 50% load ripple 60mV
• Output Current: 0mA-700mA; shifts to constant current mode when fully loaded
• Test Resistance: 7 ohms at 4.9V for 5V output
• Output Indicator: Green light signals operating status
• Output Power: 3.5W with an approximate efficiency of 80%
• Output Protection: Provides safeguards against over-voltage, over-current, excessive temperature, over-working conditions, and short circuits
• Overall Height: 13.5mm - compact design for versatile applications

Package Includes:

• 3 x AC-DC 5V 700mA 3.5W Isolated Switching Power Supply Modules
