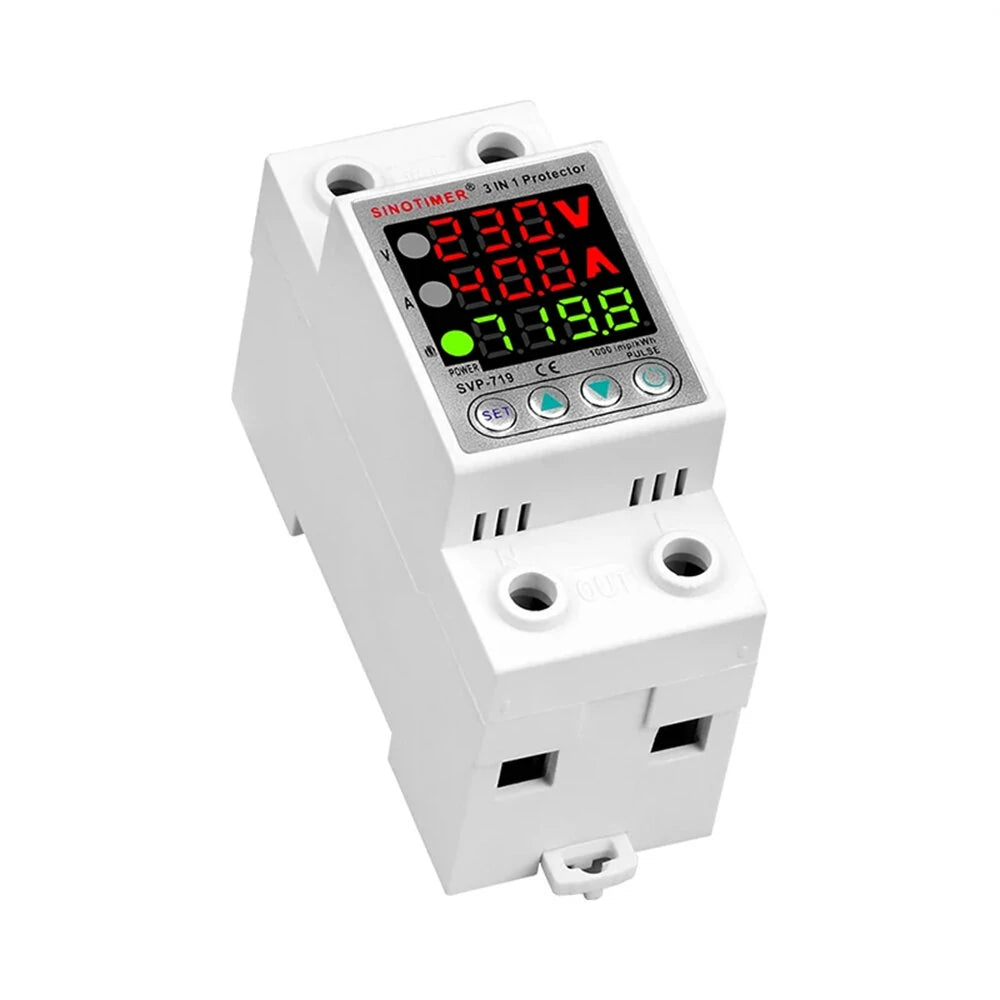

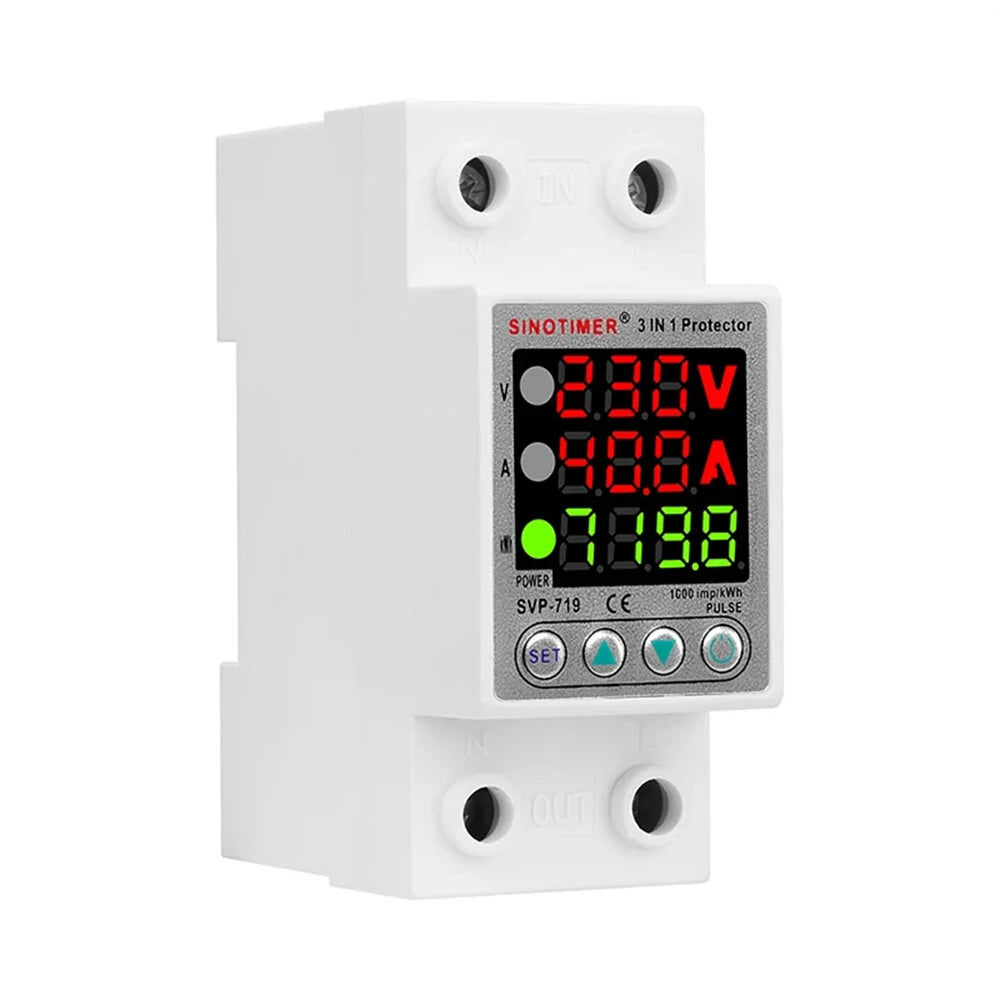

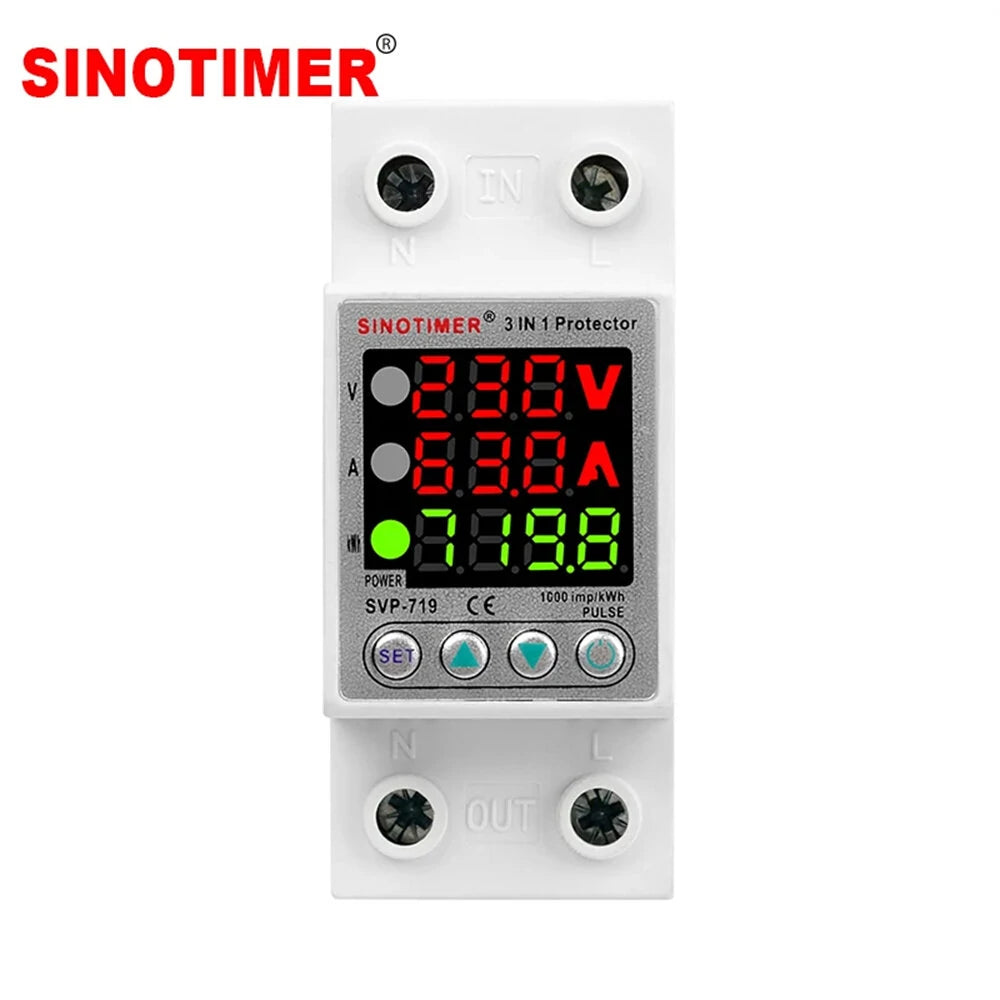

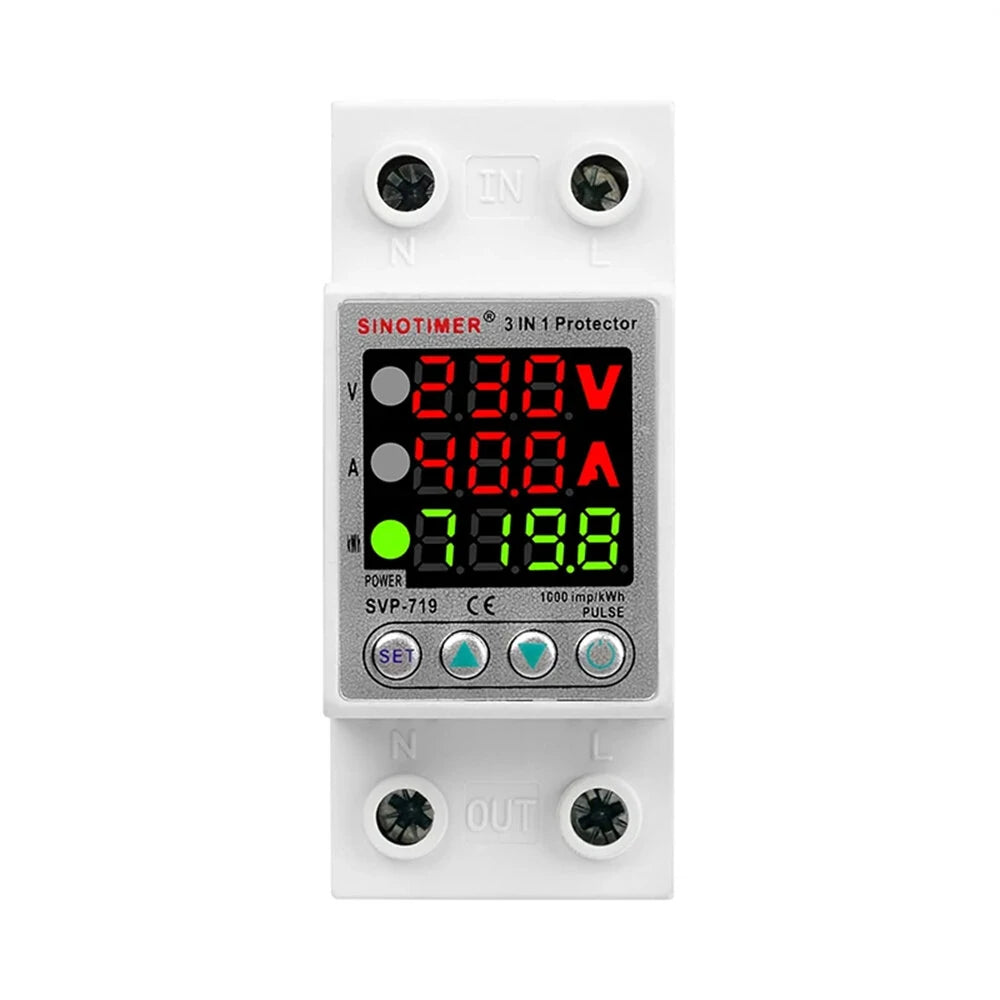

Adjustable 40A/63A Voltage Relay with Over/Under Protection & Precision Wattmeter for Power Monitoring

Features

• Over Voltage Protection: Safeguards your electronics from power spikes.
• Under-voltage Protection: Prevents potential damage to your equipment during power sags.
• Over-current Protection: Protects against high currents that might cause harm.
• Automatic Recovery System: Restores normal operation after temporary faults without manual intervention.
• Precision Measurement: Clearly displays voltage, current figures, and power consumption.

Specifications

• Rated Supply Voltage: AC 220V
• Operating Voltage: AC 80-400V (single phase)
• Rated Frequency: 50/60Hz
• Current (>A) Setting Range: 1-40/63A OFF
• Overvoltage (>U) Setting Range: 230-300V/OFF
• Kilowatt-hour Protection Value: 1-9999/OFF
• Optional Rated Current: 40/63A
• Output Contact: 1NO
• Operating Temperature: -50℃ to 55℃
• Humidity: ≤50% at 40℃ (without condensation)
• Storage Temperature: -30℃ to 70℃

Package Included

• 1 x Adjust Voltage Relay (Current as your choice)
