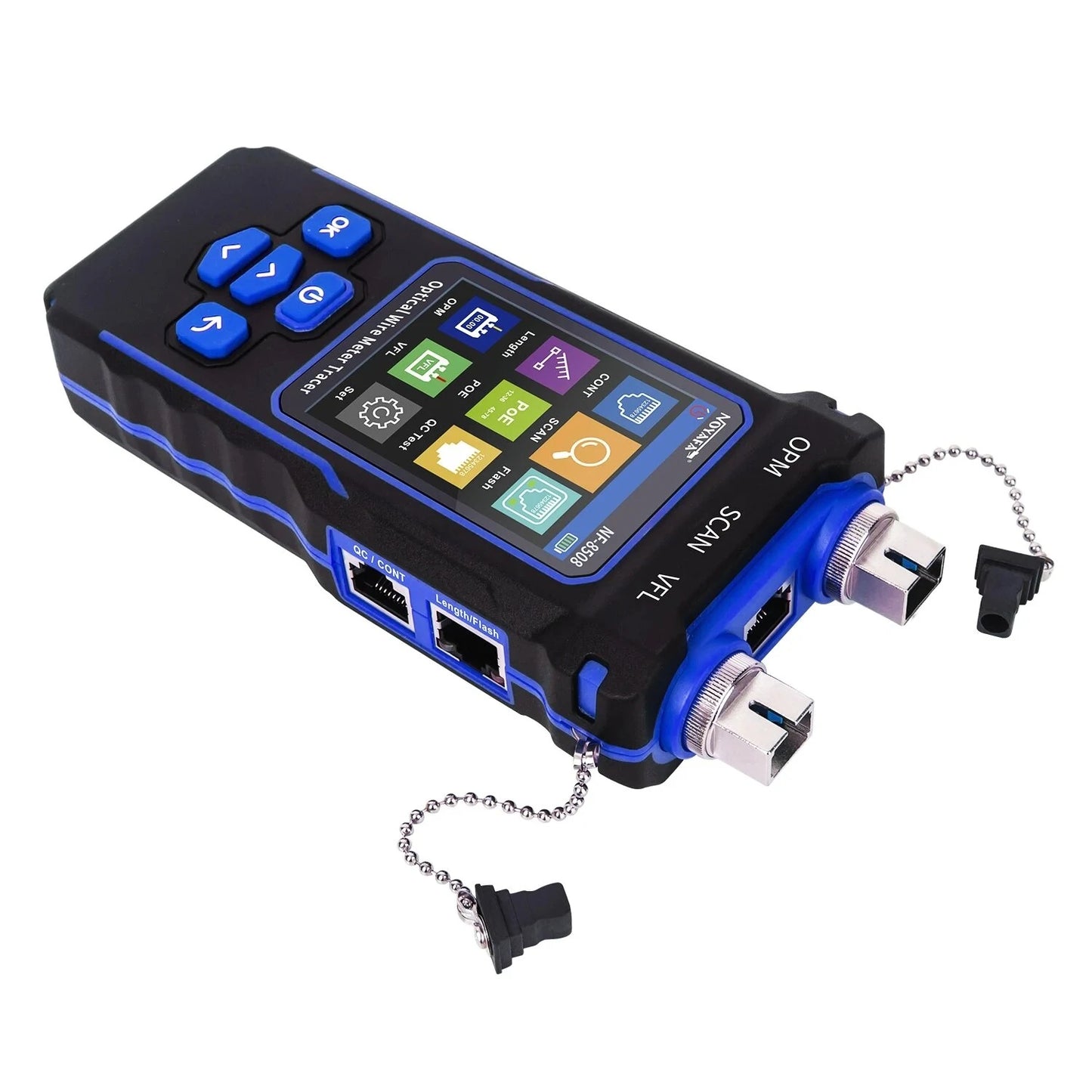

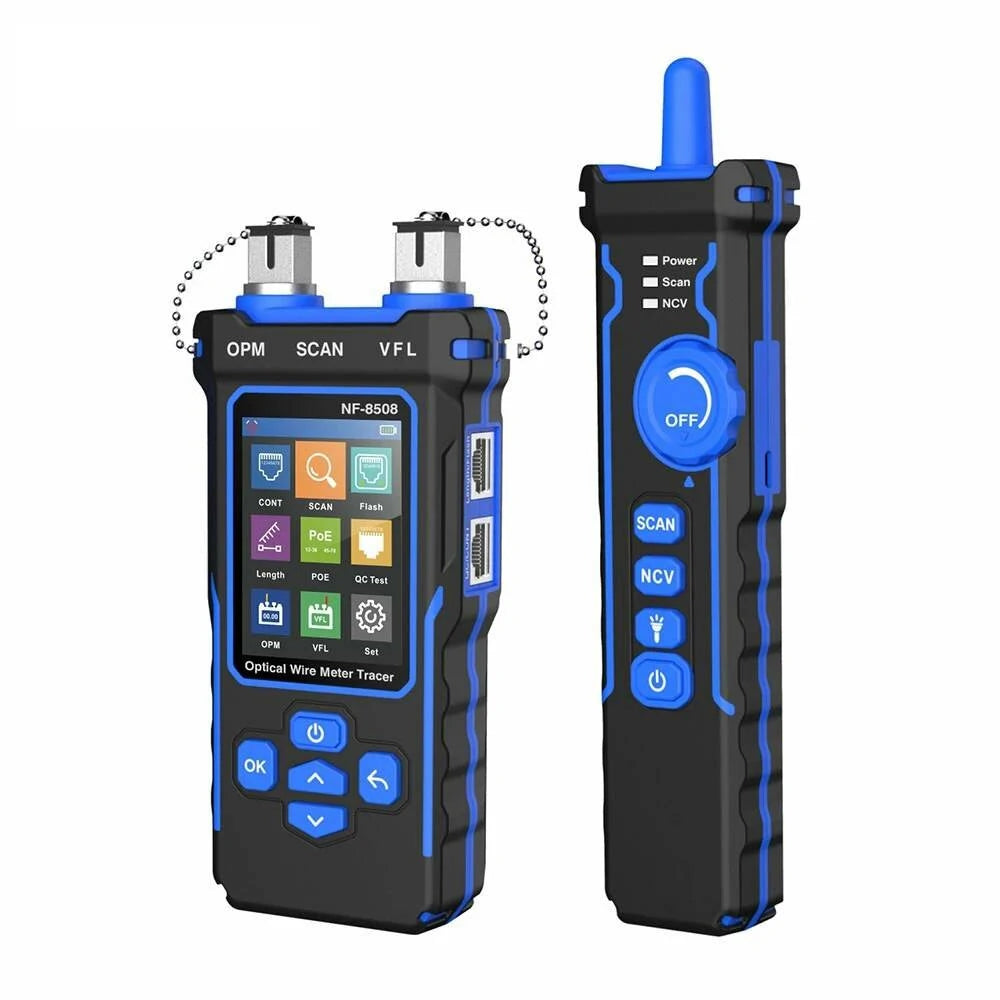

NOYAFA NF-8508 Digital Network Cable & Optical Wire Tester with LCD, Rechargeable PoE Checker & Line Tracer

Product Features

• Transmitter Testing Function: Comprehensive functions including cable continuity testing, cable scan, port flashing, cable length measurement, PoE test, QC testing for crystal head, optical power meter (OPM), and visual fault location (VFL) function.
• PoE Test: Automatic identification of midspan/endspan/power by 8 cores, with recognition of standard and non-standard devices.
• Optical Power Meter: Supports wavelength switching between 850/1300/1310/1490/1550/1625nm with unit switching at dBm, dB, or mW, µW, nW; plus REF switching.
• Visual Fault Location Function: Effectively detects and locates fiber breaks and other issues such as poor connections or fiber bends.
• Receiver Function: Includes sensitivity adjustment, 300m no-load shielded network cable operations, NCV detection, and auxiliary lighting.
• Non-contact Voltage Detecting: Use the receiver to detect AC voltage in household wiring.
• Illuminate Function: Built-in lamp to assist in lighting up work areas.

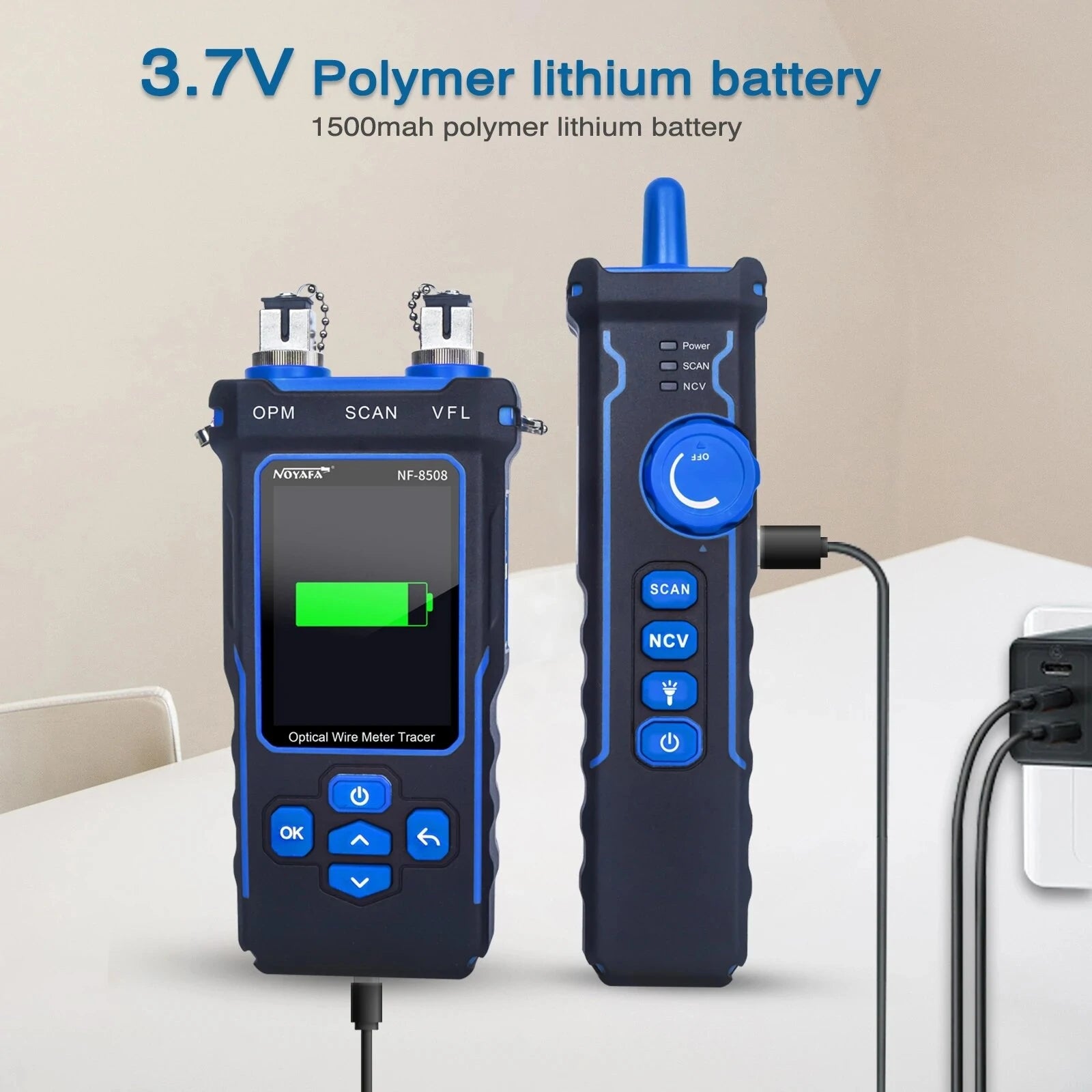

• Battery Operated: Equipped with a 1500mAh polymer battery in both transmitter and receiver, rechargeable via Type-C with indicators for charging and low battery.
• Additional Settings: Backlight brightness (level 1/2/3), adjustable backlight and auto-off times, and red light flashing options under VFL function (fast/slow/steady).
• Wide Applications: Ideal for network line engineering and maintenance in telecommunication, computing, and metal conductor operations.

Specifications

General

• Material: ABS
• Cable Type: CAT5/CAT6
• Voltage: 60V
• Package Weight: 586g / 20.67oz
• Package Size: 24 x 16.5 x 5.5 cm / 9.45 x 6.50 x 2.17 in

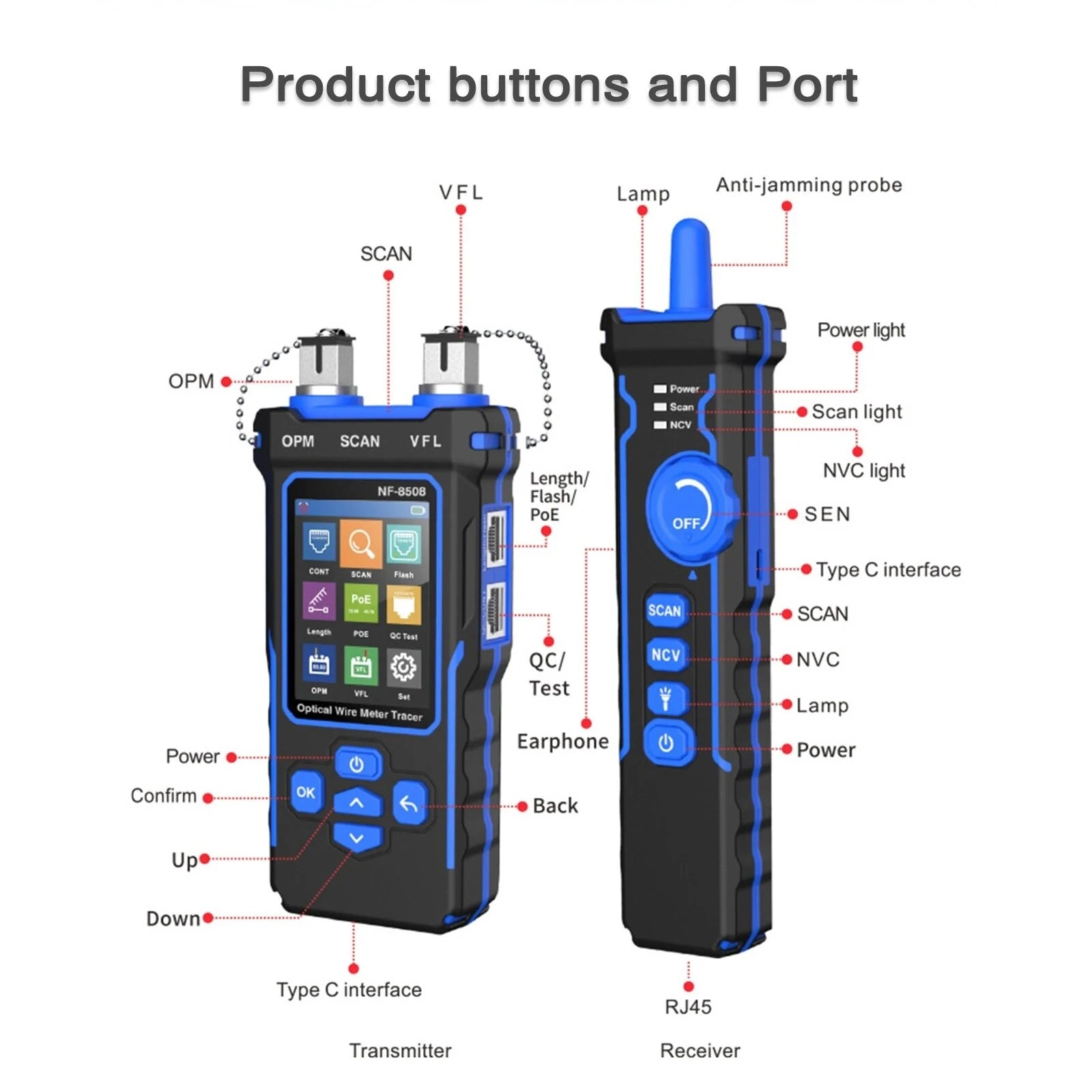

Transmitter

• Wiremap Port: RJ45
• Remote Continuity: ≥300m
• STP/NTP: Yes
• Short Circuit Reminder: Yes
• Anti-jamming and Normal Mode: Yes
• Audio Transmission Frequency: 455KHz
• Audio Transmission Distance: RJ45 300m
• NVL: 10mW
• Power Meter: 850/1300/1310/1490/1550/1625nm (wavelength)
• Crimping: RJ45-8 cores, min length ≥10cm
• Power Supply: 3.7V 1500mAh polymer lithium battery

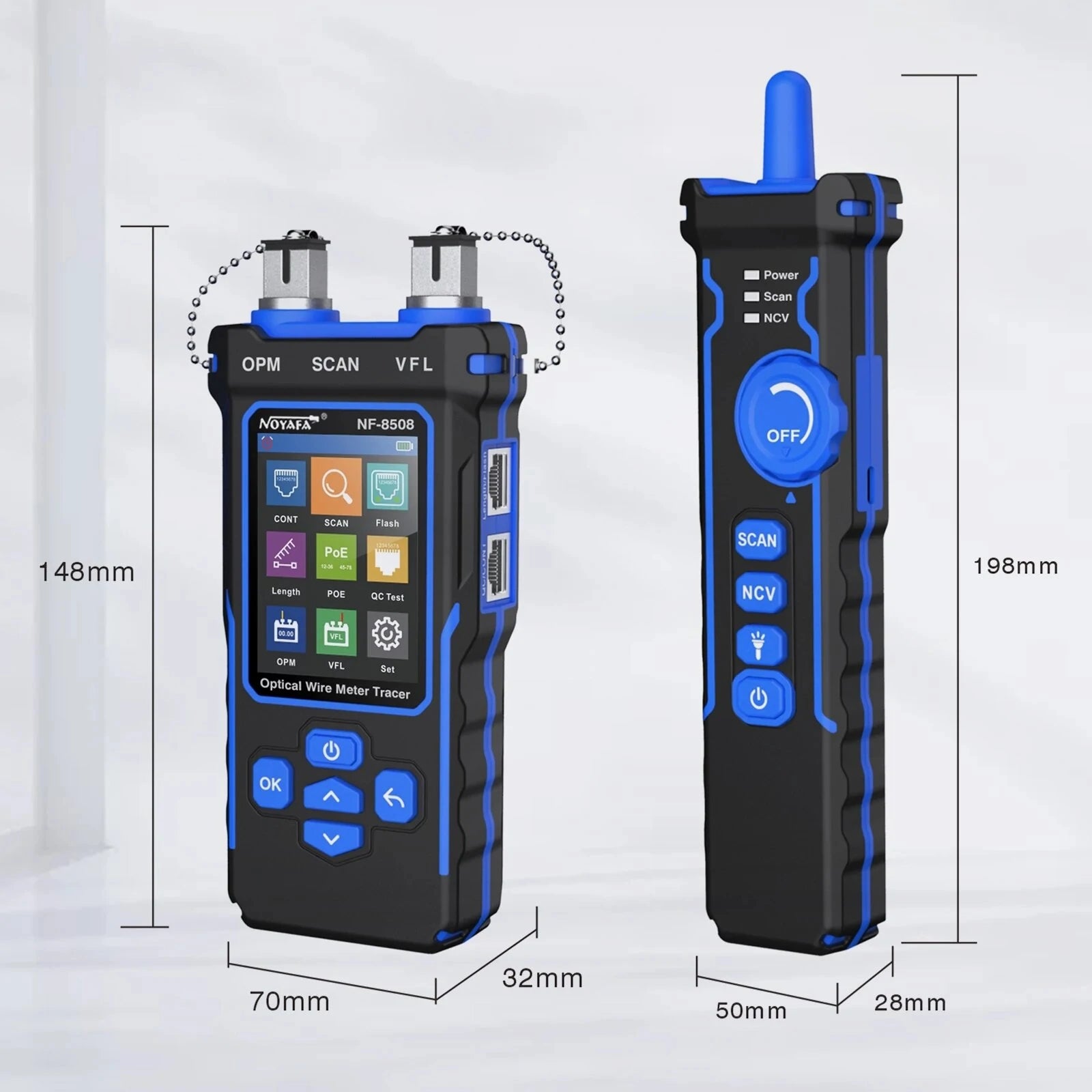

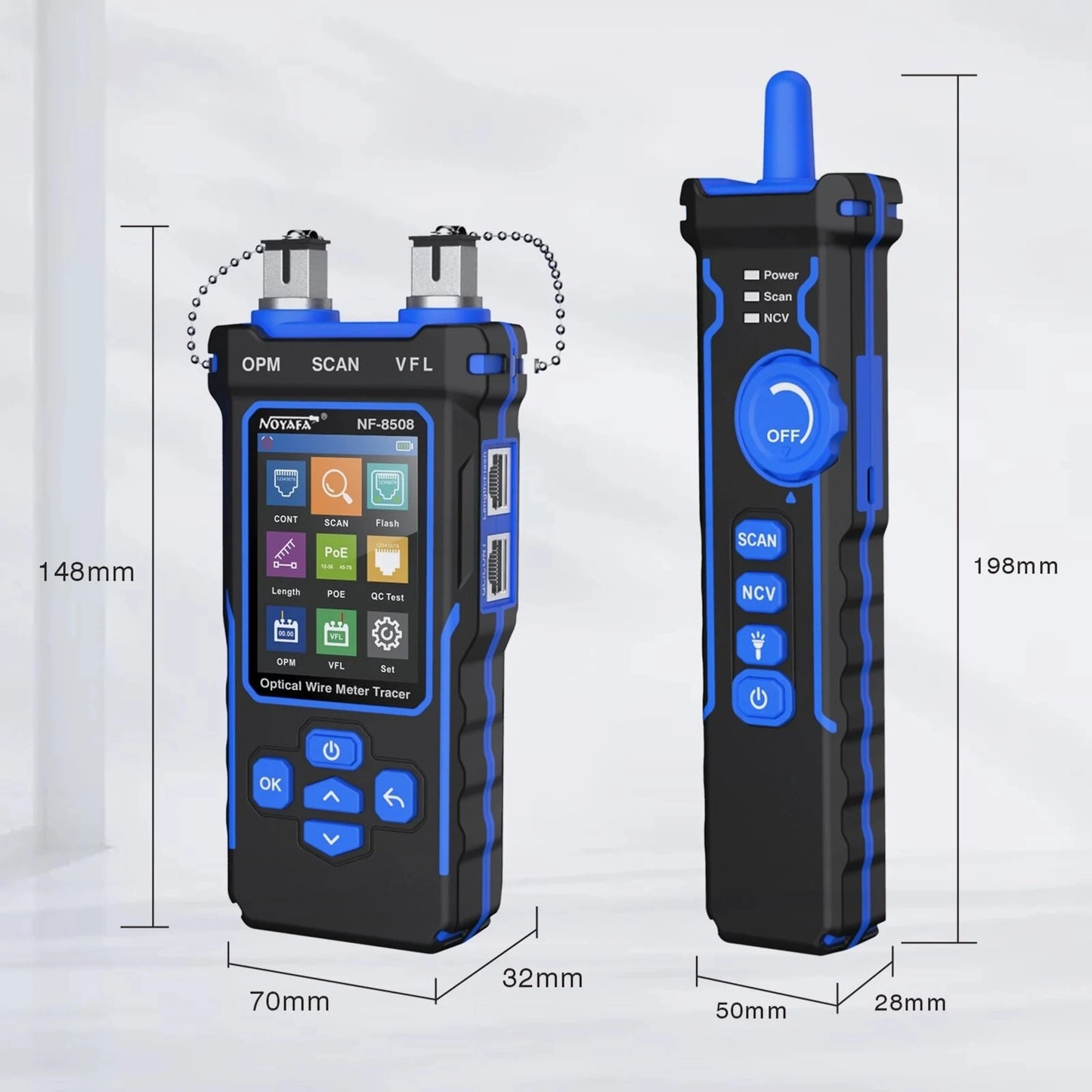

• Size: 148 x 70 x 32 mm / 5.83 x 2.76 x 1.26 in

Receiver

• Scan Current: ≤300mA
• Remote Continuity: ≥300m
• NCV Detection: Yes
• Lamp: Yes
• Low Voltage Prompt: Yes
• Power Supply: 3.7V 1500mAh polymer lithium battery
• Size: 198 x 50 x 28 mm / 7.80 x 1.97 x 1.10 in

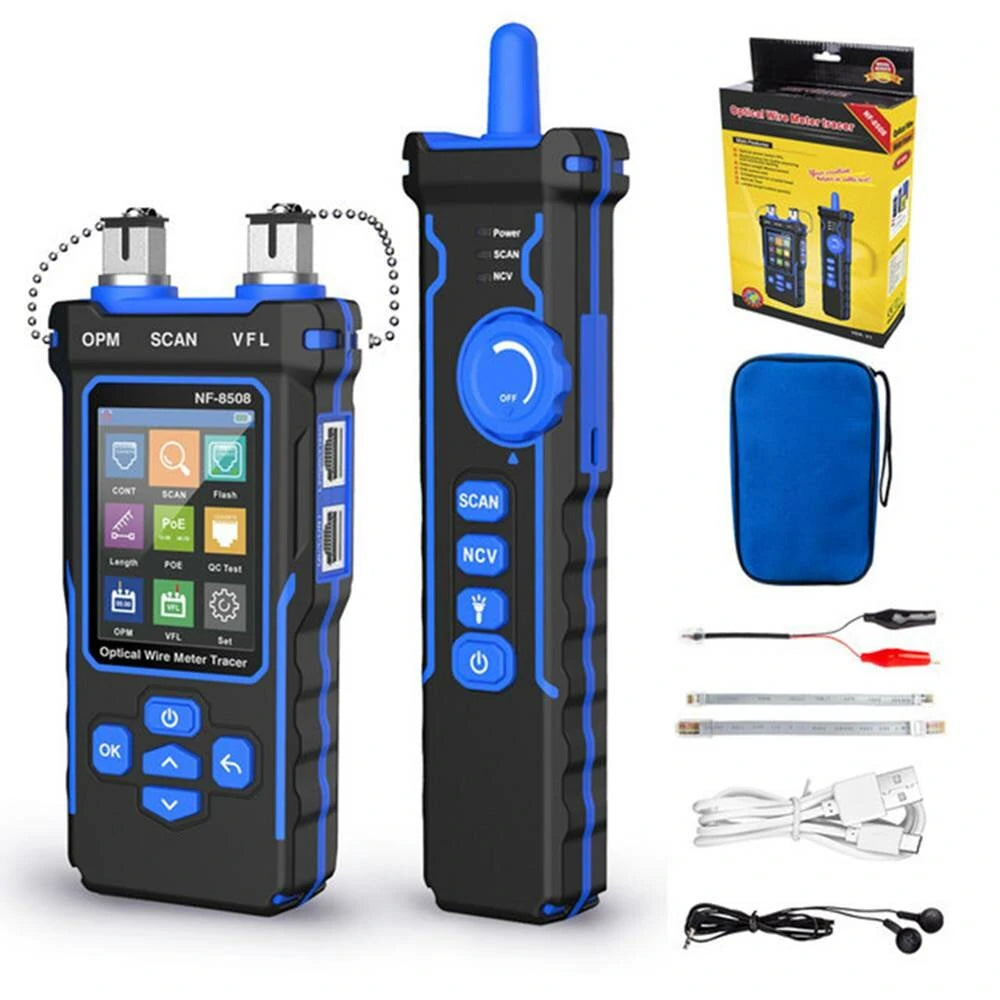

Package Includes

• 1 x Transmitter
• 1 x Receiver
• 1 x RJ45 Adapter Line
• 1 x RJ11 Adapter Line
• 1 x Crocodile Clip Test Line
• 1 x Type-C Data Cable
• 1 x Earphone
• 1 x Carry Bag
• 1 x Manual (English)
