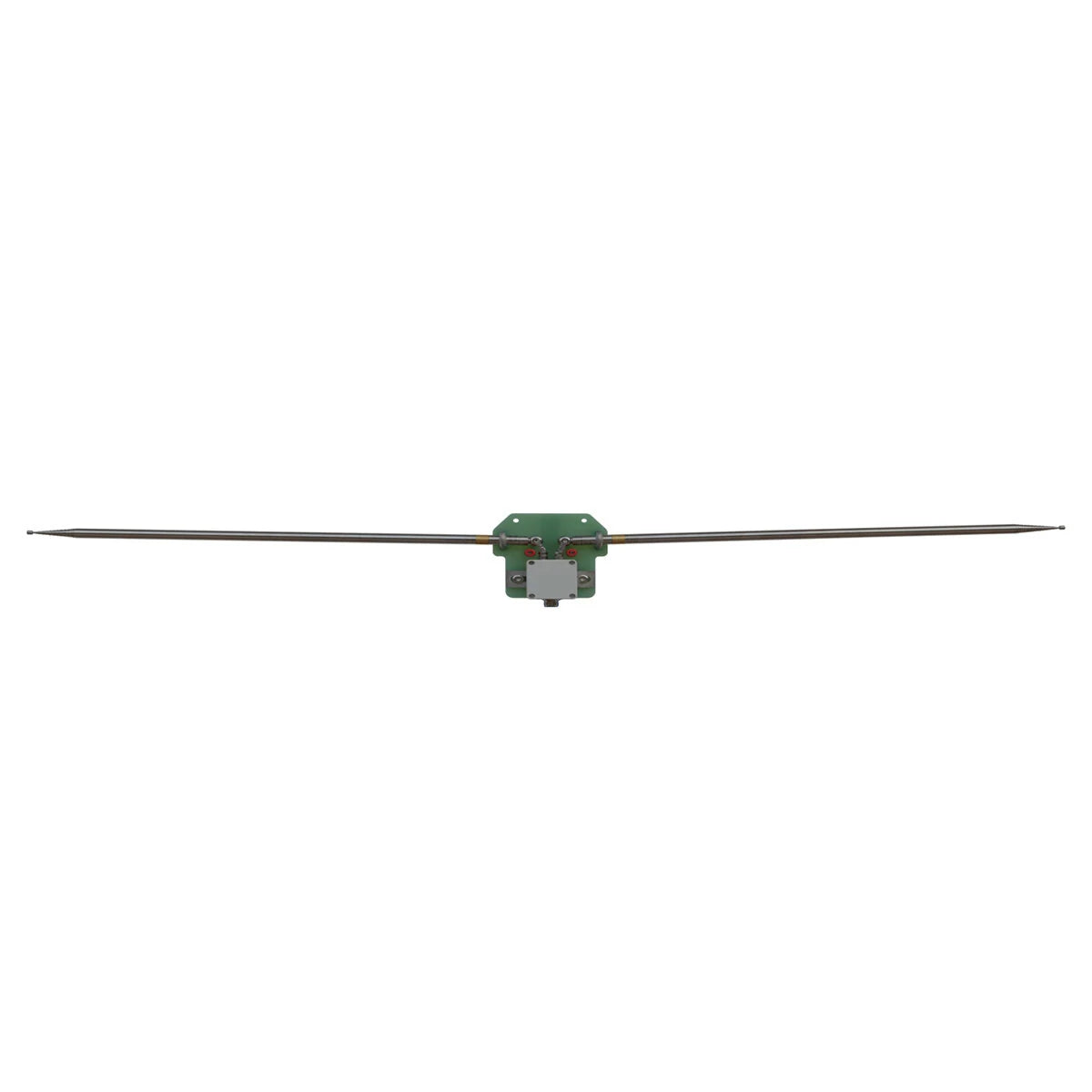

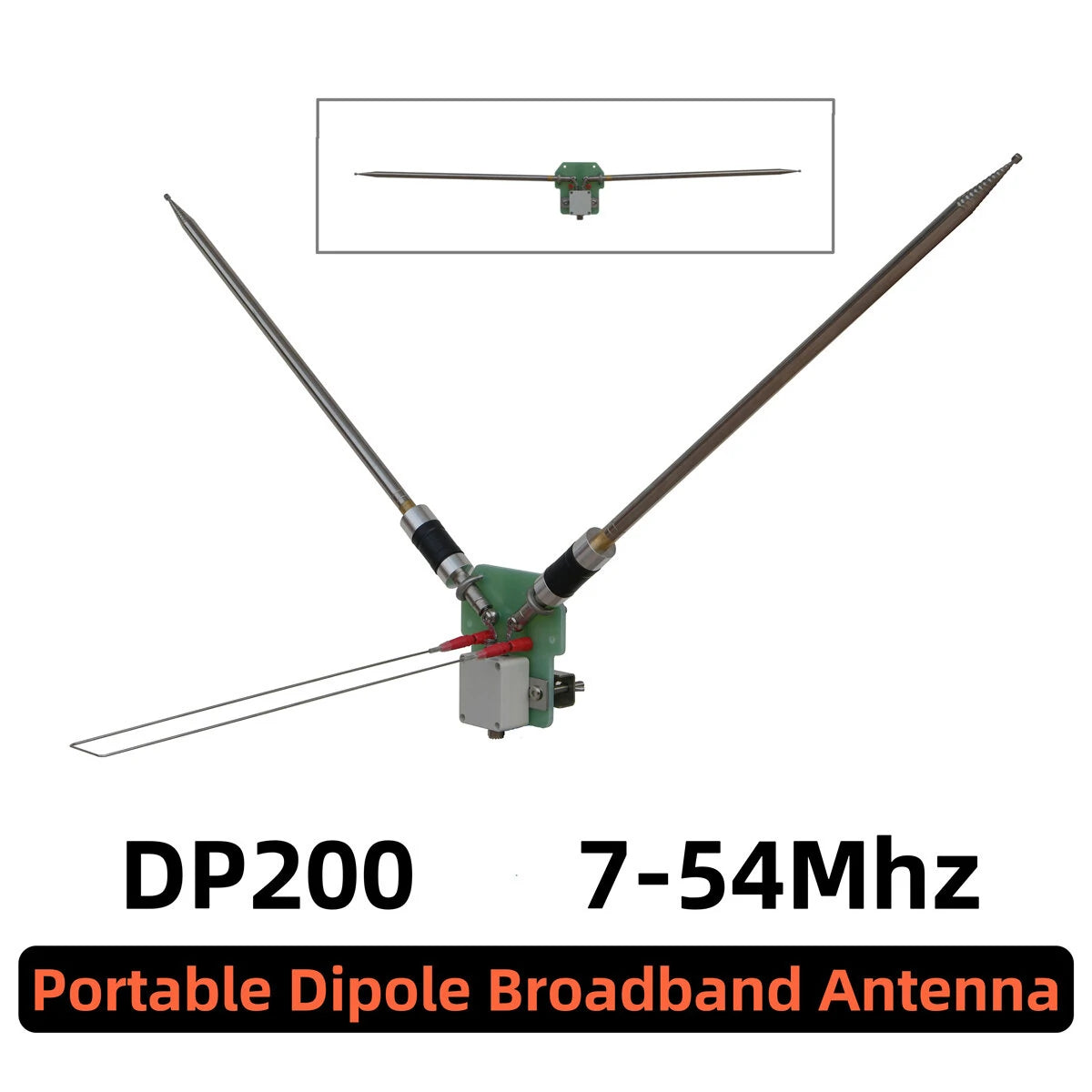

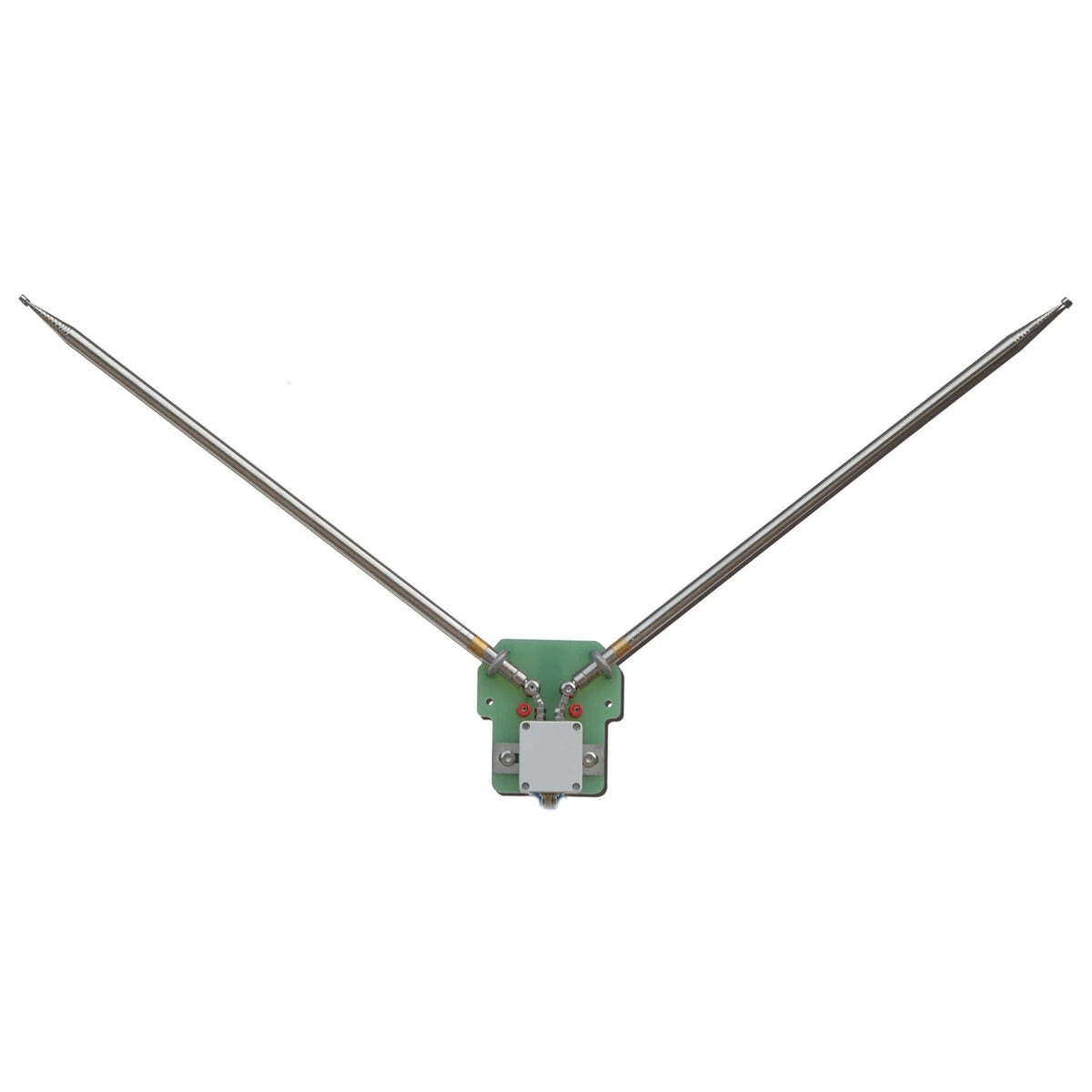

HamGeek TZT DP200 7-54MHz 200W Portable Dipole Broadband Antenna - Superior to GP Antenna

Features:

• Wide Frequency Coverage: The TZT HamGeek DP200 is a portable dipole antenna designed to operate within a broad frequency range of 7-54MHz. It can be adjusted to work in the UV segment, providing versatile performance for ham radio enthusiasts.
• Excellent Signal Quality: With a SWR of less than 1.5, this antenna ensures efficient transmission and reception, resulting in clear and reliable communication.
• Horizontal Polarization: The antenna utilizes horizontal polarization, allowing for optimal signal propagation and reception characteristics.
• High Power Handling: The DP200 can handle continuous power up to 200W and a maximum power of 500W, making it suitable for various power-intensive applications and scenarios.
• Compact and Expandable: The antenna can be folded to a compact size of 0.52m (1.7ft), enabling convenient portability. When fully stretched, it reaches an impressive length of 11.3m (37.1ft), providing an extended range for enhanced performance.
• Durable Construction: Built to withstand outdoor conditions, the antenna features a sturdy design and a maximum windward face of 0.026m², ensuring stability and reliability even in challenging weather.

Specifications:

• Brand: TZT HamGeek
• Model: DP200
• Bandwidth: 7-54MHz (adjustable to work in UV segment)
• SWR: Less than 1.5
• Polarization Mode: Horizontal polarization
• Input Impedance: 50 Ω
• Continuous Withstand Power: 200W
• Maximum Withstand Power: 500W
• Folded Size: 0.52m (1.7ft)
• Maximum Stretched Size: 11.3m (37.1ft)
• Maximum Windward Face: 0.026m²

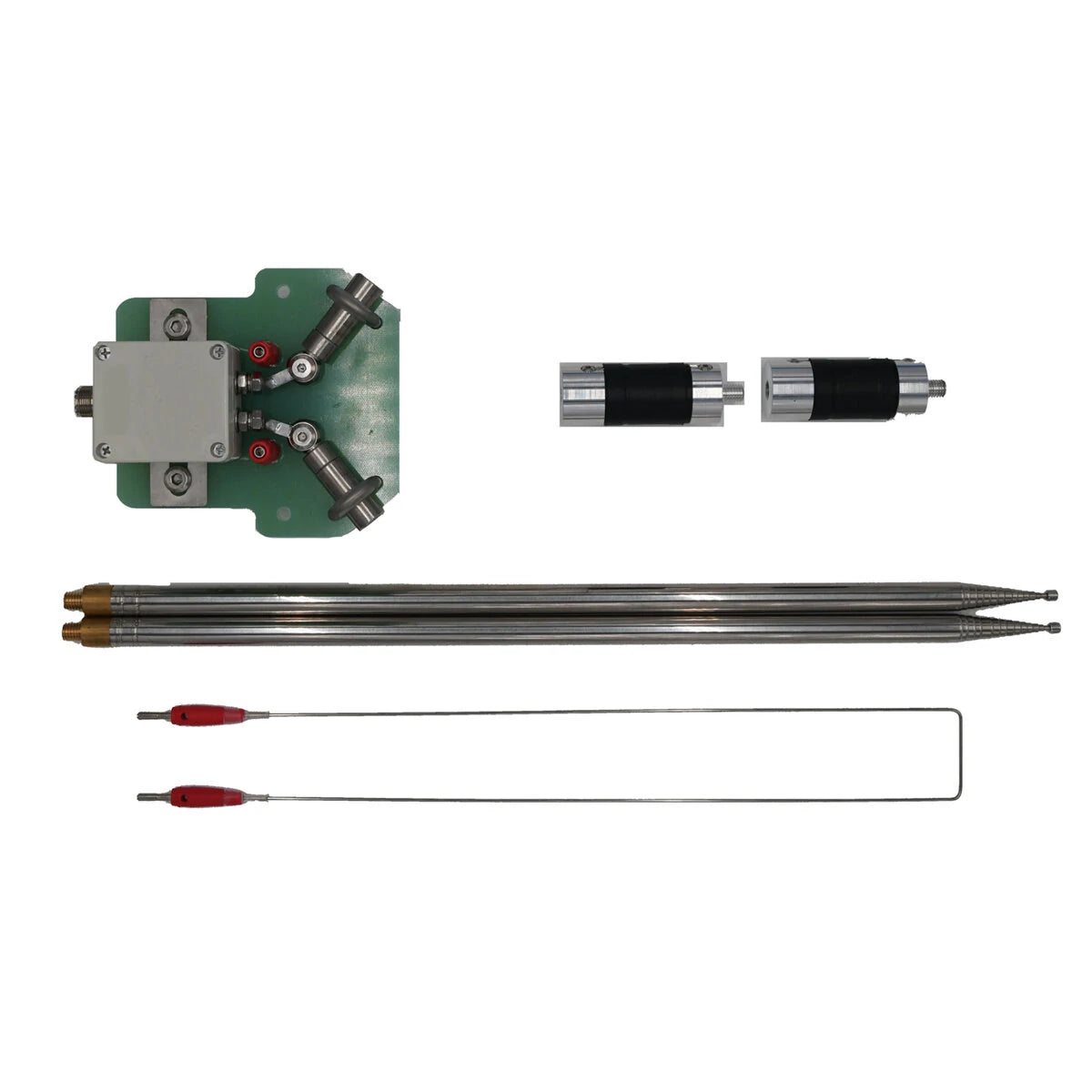

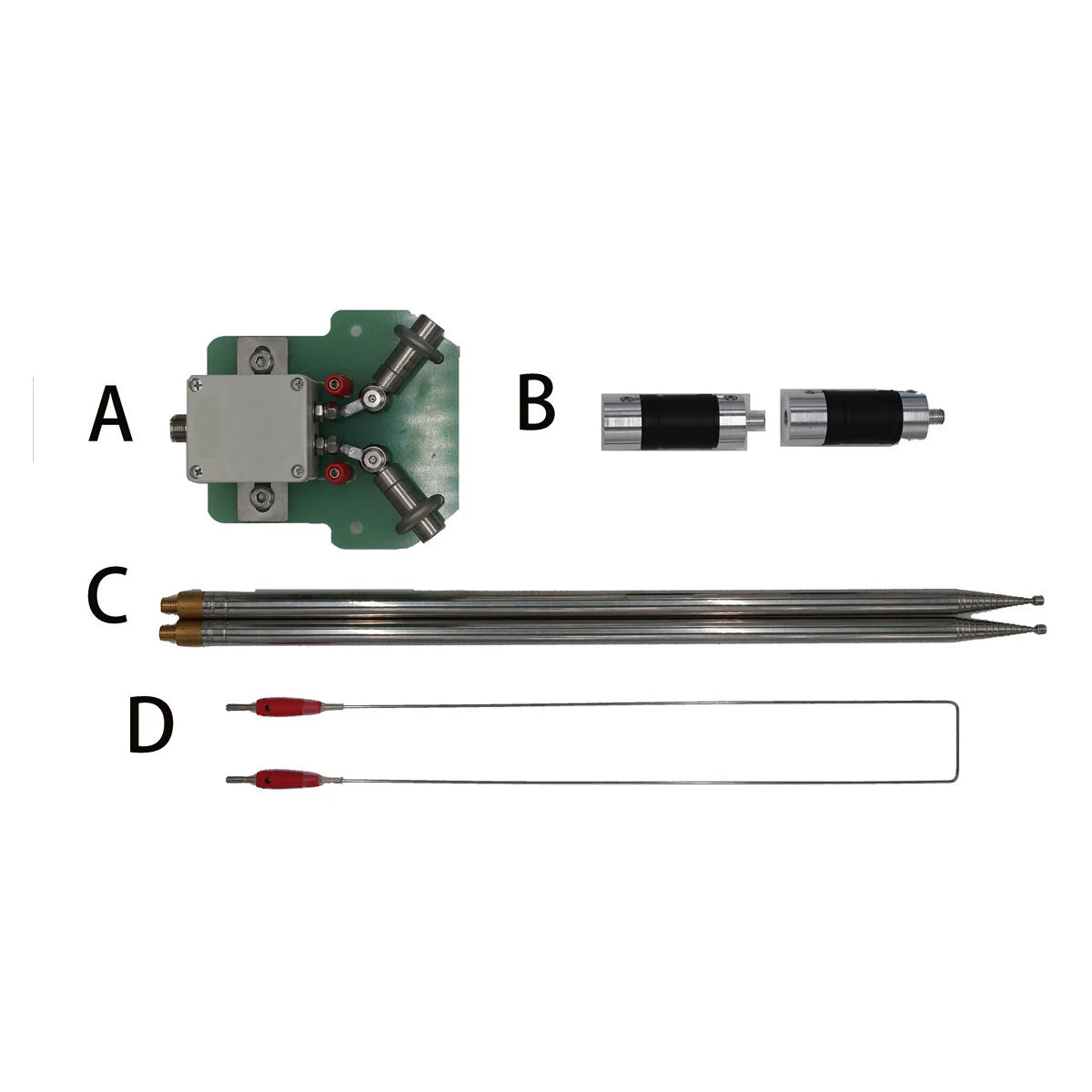

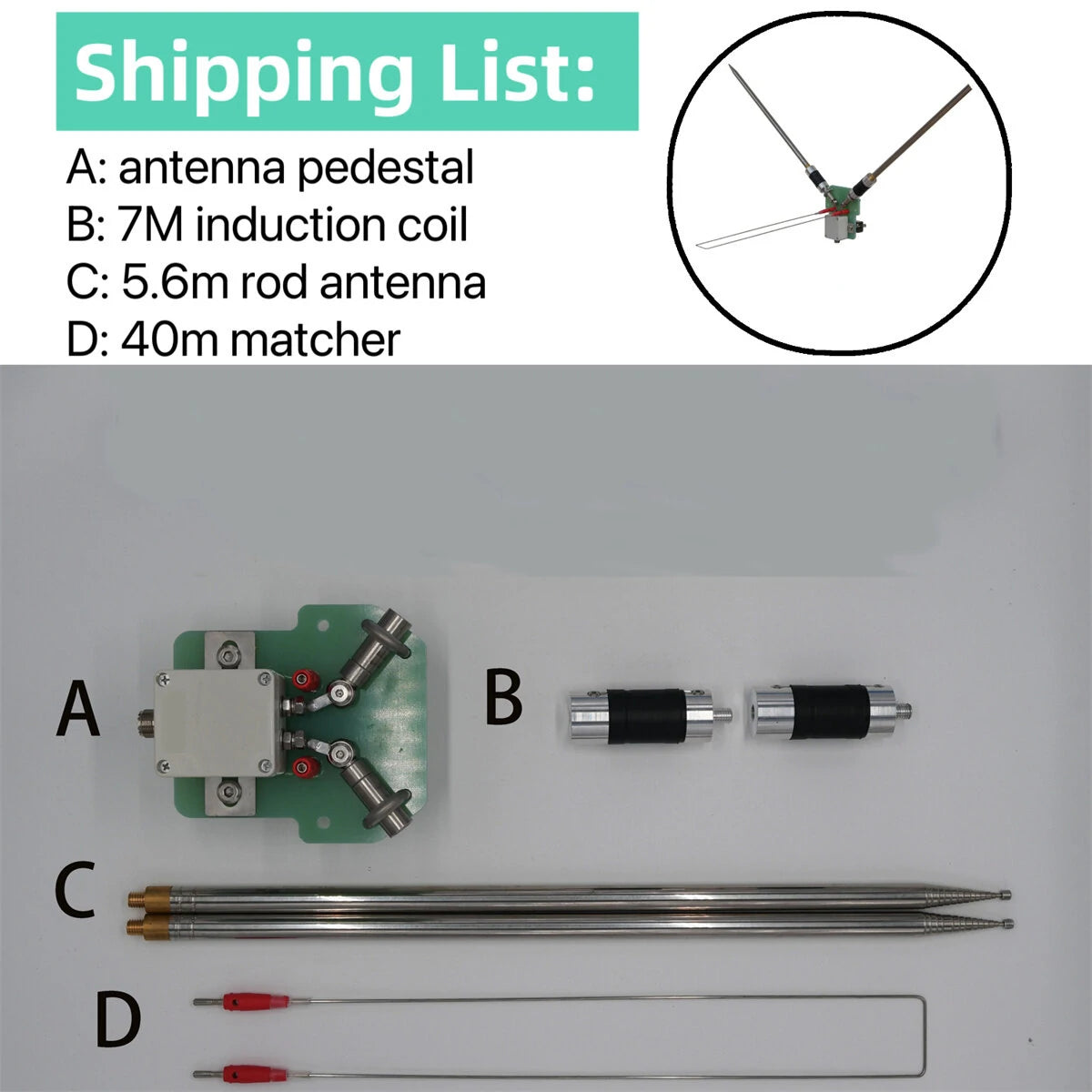

Package Included:

• 1 x Antenna Pedestal
• 2 x 7M Induction Coils

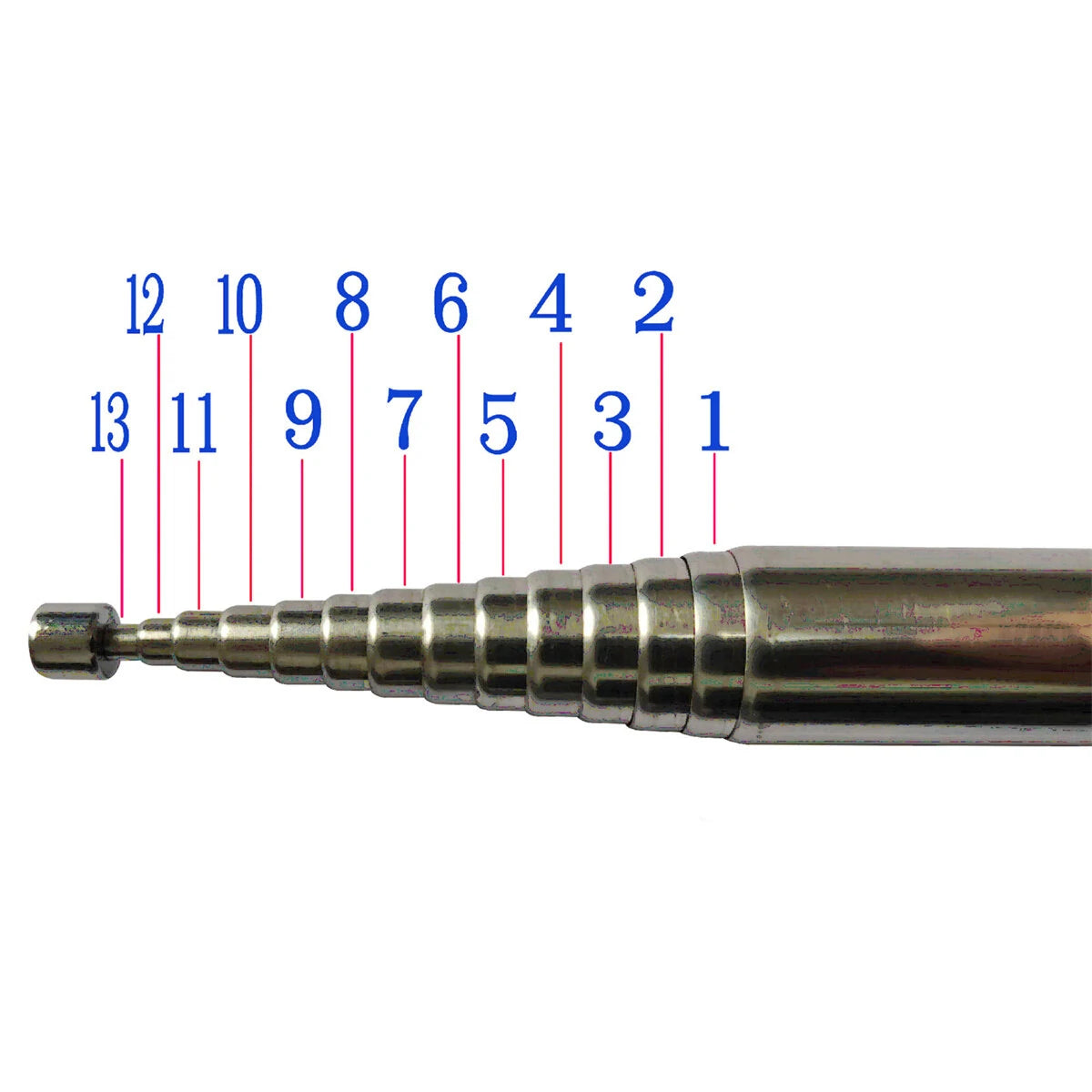

• 2 x 5.6m Rod Antennas
• 1 x 40m Matcher
