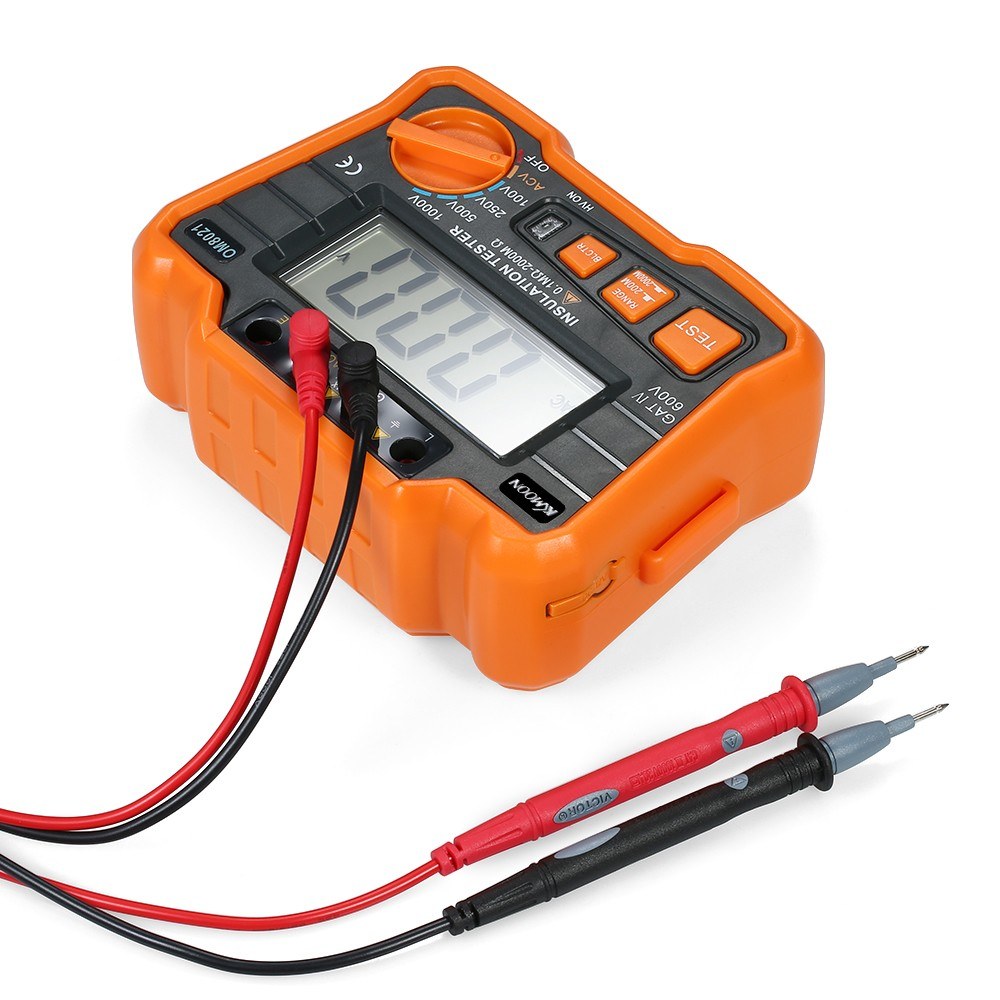

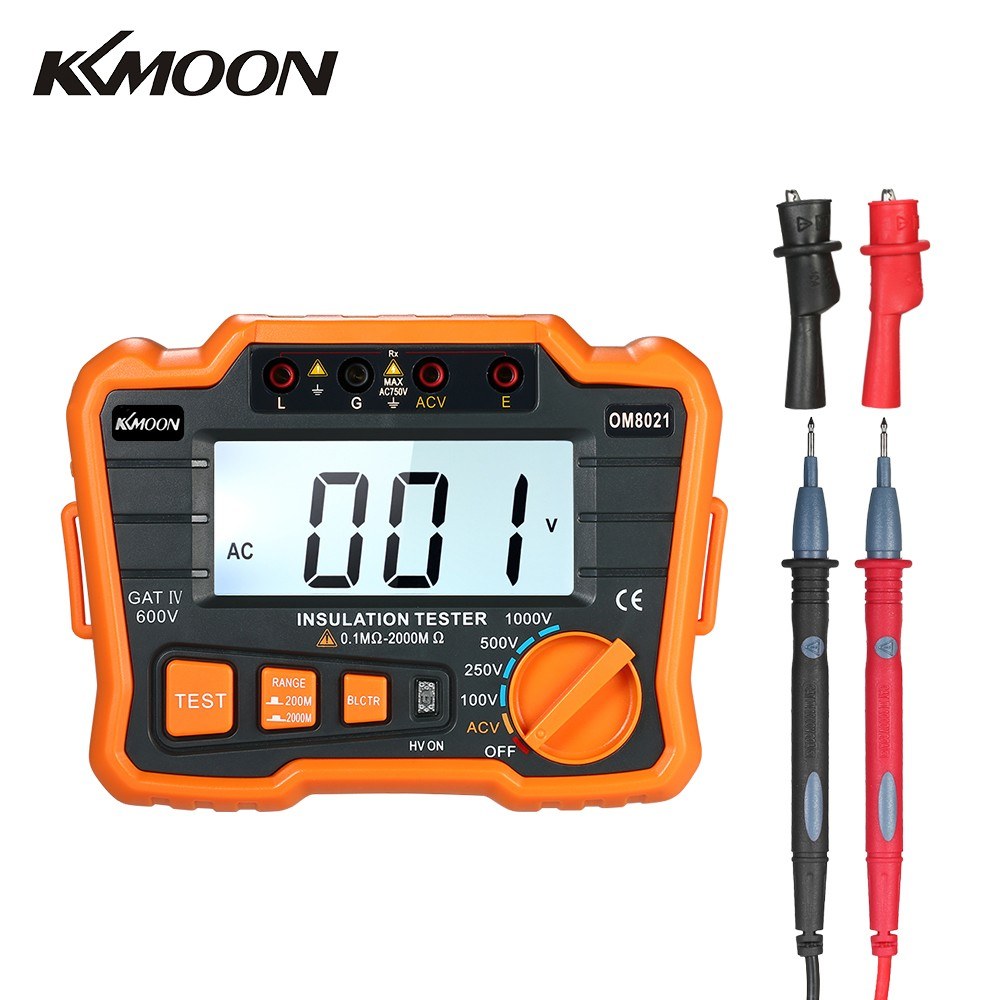

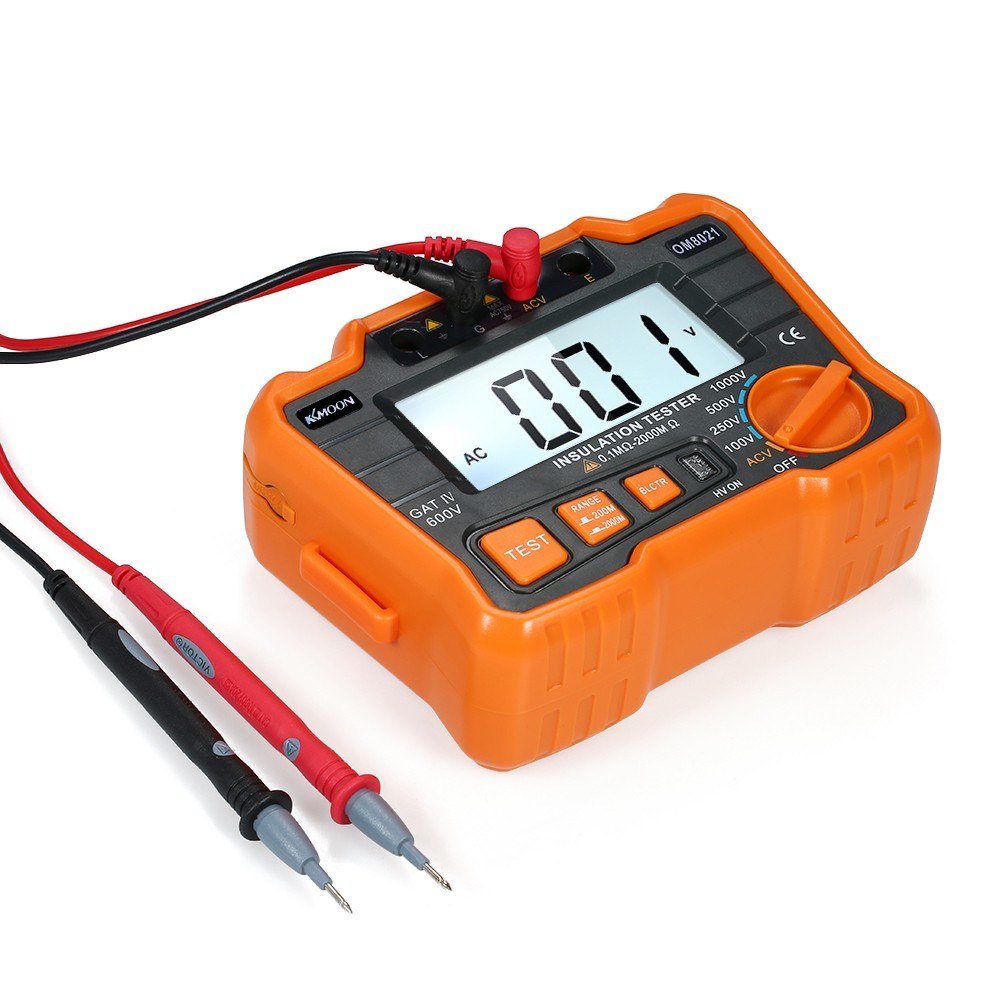

KKmoon 1000V Insulation Resistance Tester Megohmmeter with LCD Backlight Display

This professional digital insulation tester is designed for outstanding performance and reliability. It utilizes a low-consumption DC voltage converter with a high conversion ratio for efficient energy storage, transforming a 9V input to output voltages of 100V, 250V, 500V, and 1000V DC. The large LCD screen, with a switchable backlight, ensures easy readability.

Features:

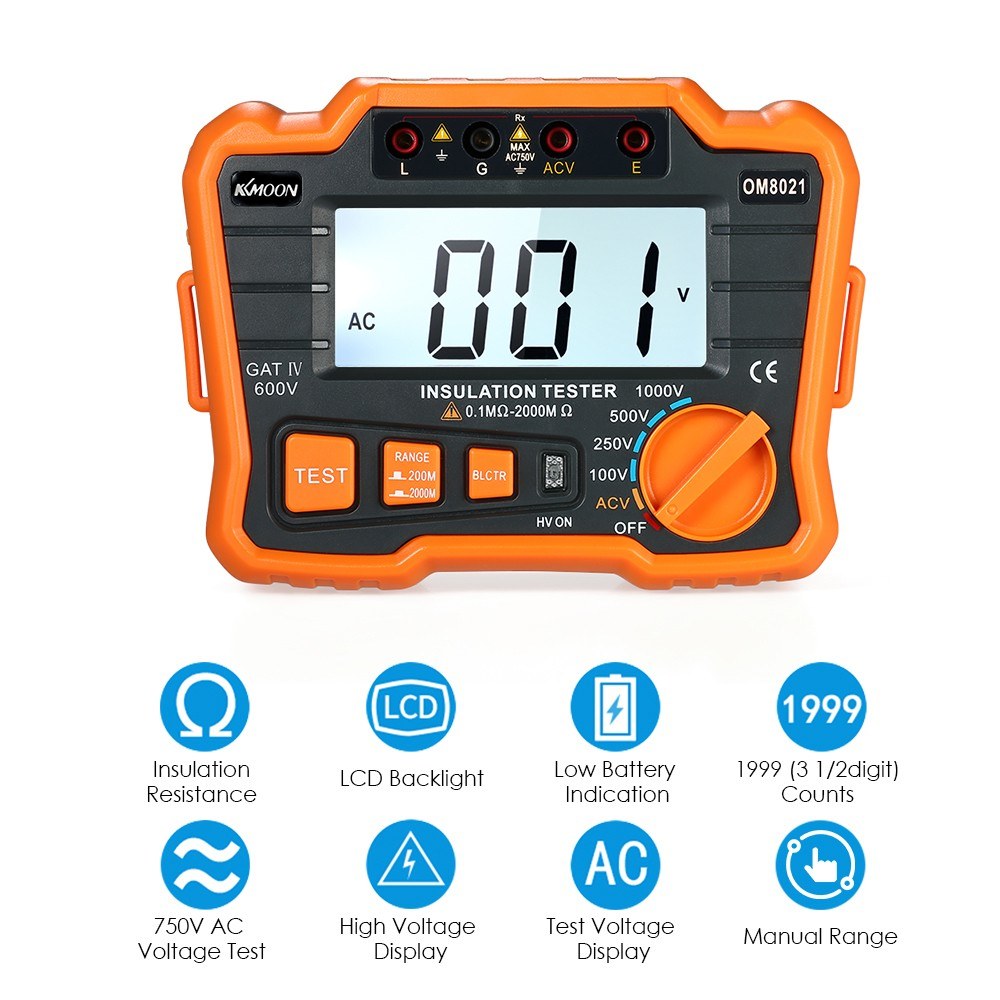

• Large LCD display with 2000 counts, switchable backlight for easy reading.
• Selectable test voltages: 100V, 250V, 500V, 1000V.
• Stable performance ensuring reliable insulation resistance testing.
• Convenient locking function for the TEST button and broad measurement range.

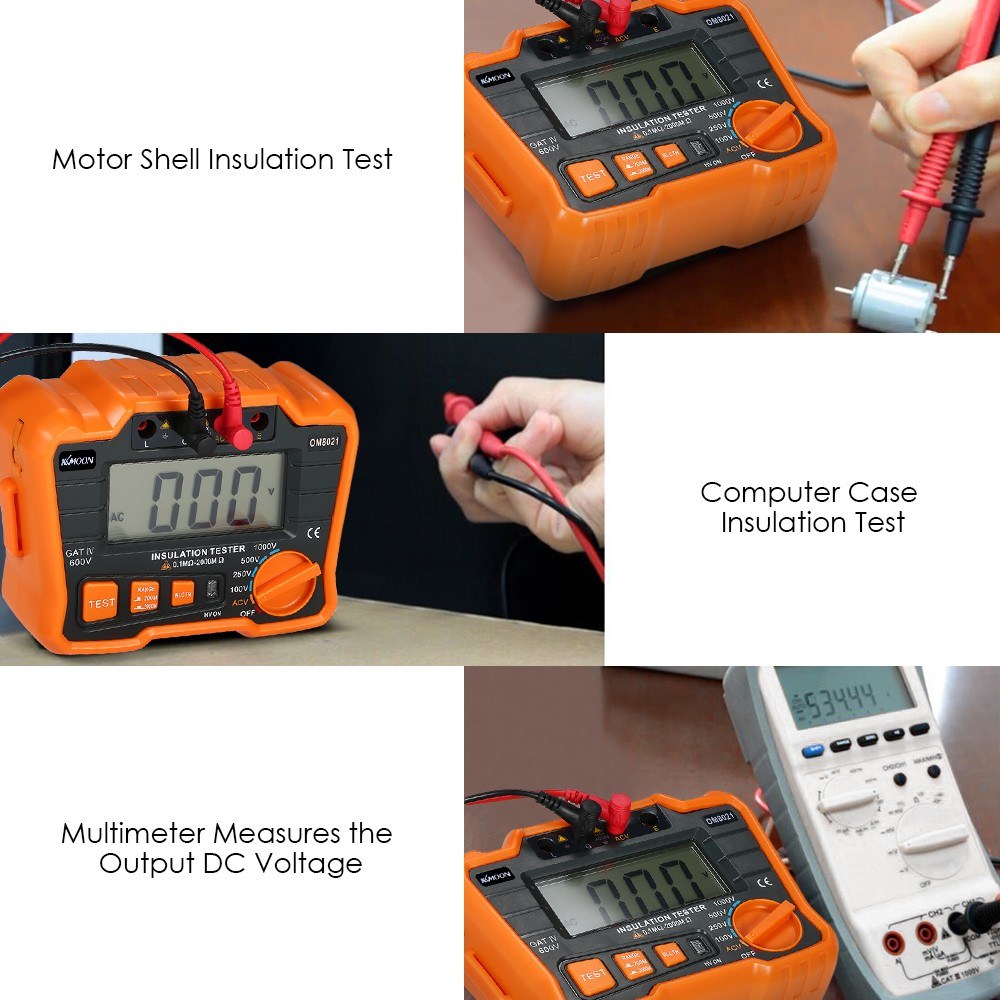

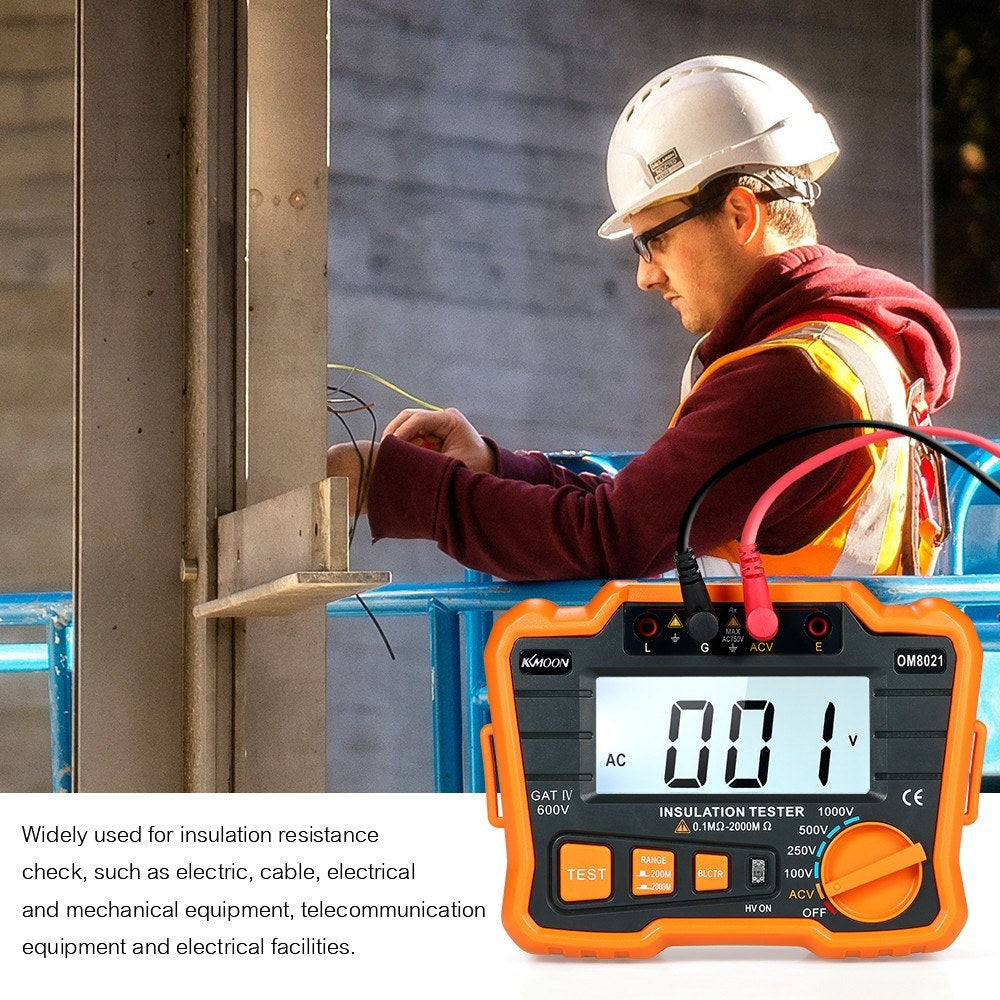

• Excellent overload protection, suitable for checking insulation resistance in electronics, cables, and telecommunication equipment.
• Operates on a DC 12V power supply or 6 AA batteries (not included), with low battery and high voltage indications.

Specifications:

• Brand Name: KKmoon
• Color: Black + Orange
• Material: Plastic
• Display: LCD with Backlight, 1999 (3 1/2 digit) count
• Range Control: Manual Range
• LCD Size: 90 x 38 mm / 3.5 x 1.5 inches
• Output Voltage Options: DC 100V, 250V, 500V, 1000V
• Output Current: 2mA at specified resistances

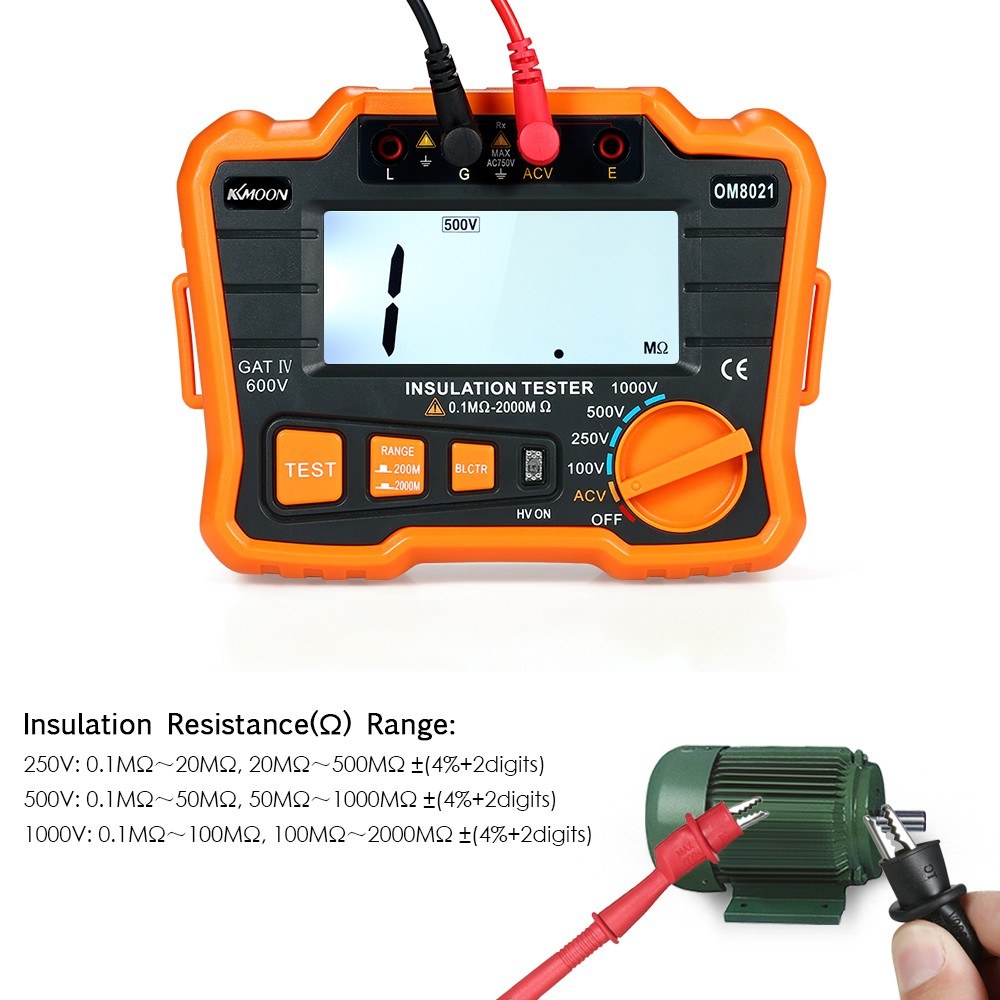

• Insulation Resistance Range:
• 250V: 0.1MΩ～20MΩ, 20MΩ～500MΩ ±4% + 2 digits
• 500V: 0.1MΩ～50MΩ, 50MΩ～1000MΩ ±4% + 2 digits
• 1000V: 0.1MΩ～100MΩ, 100MΩ～2000MΩ ±4% + 2 digits
• Short Circuit Current: Approximately 2mA
• Median Resistance: 2MΩ
• Terminal Positions: L, E, ACV, G (750V)

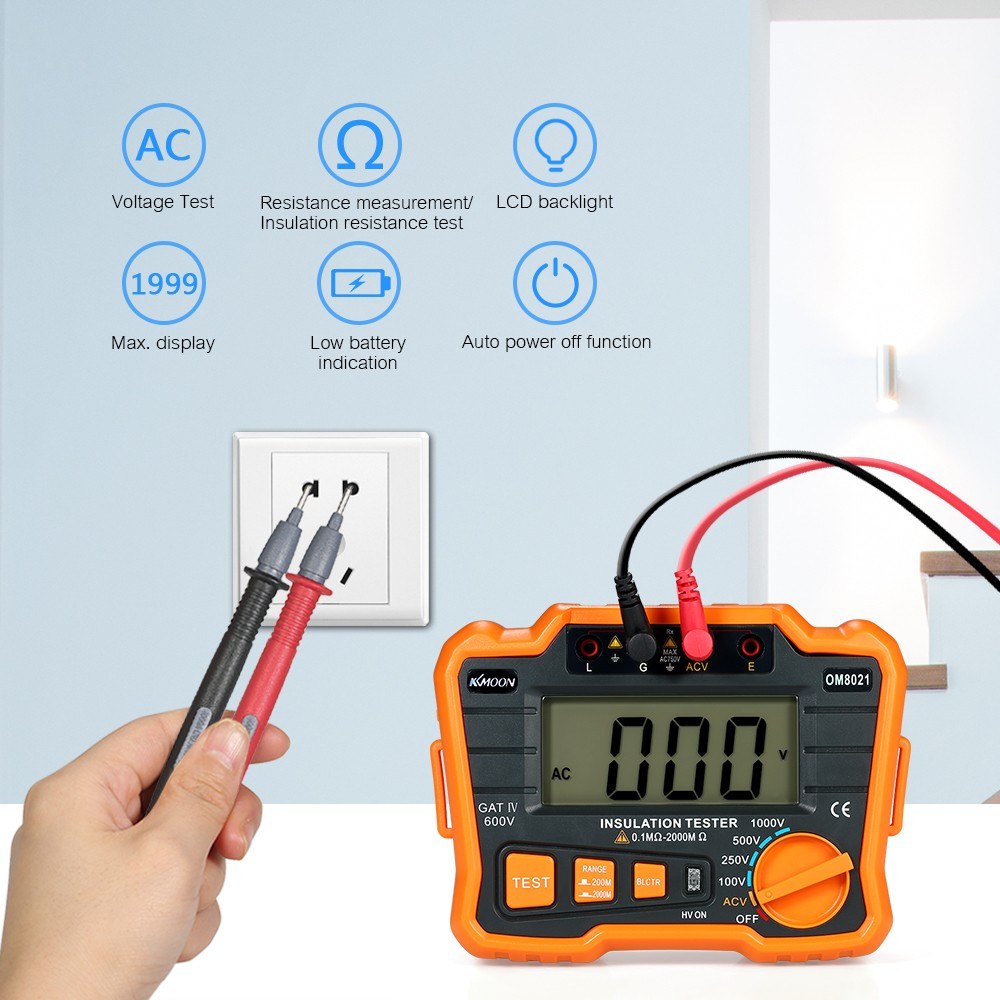

• AC Voltage: 1V-750V ±1.0% + 6 digits
• Low Battery Indicator: Yes
• LED Backlight: Yes
• High Voltage Indication: Yes

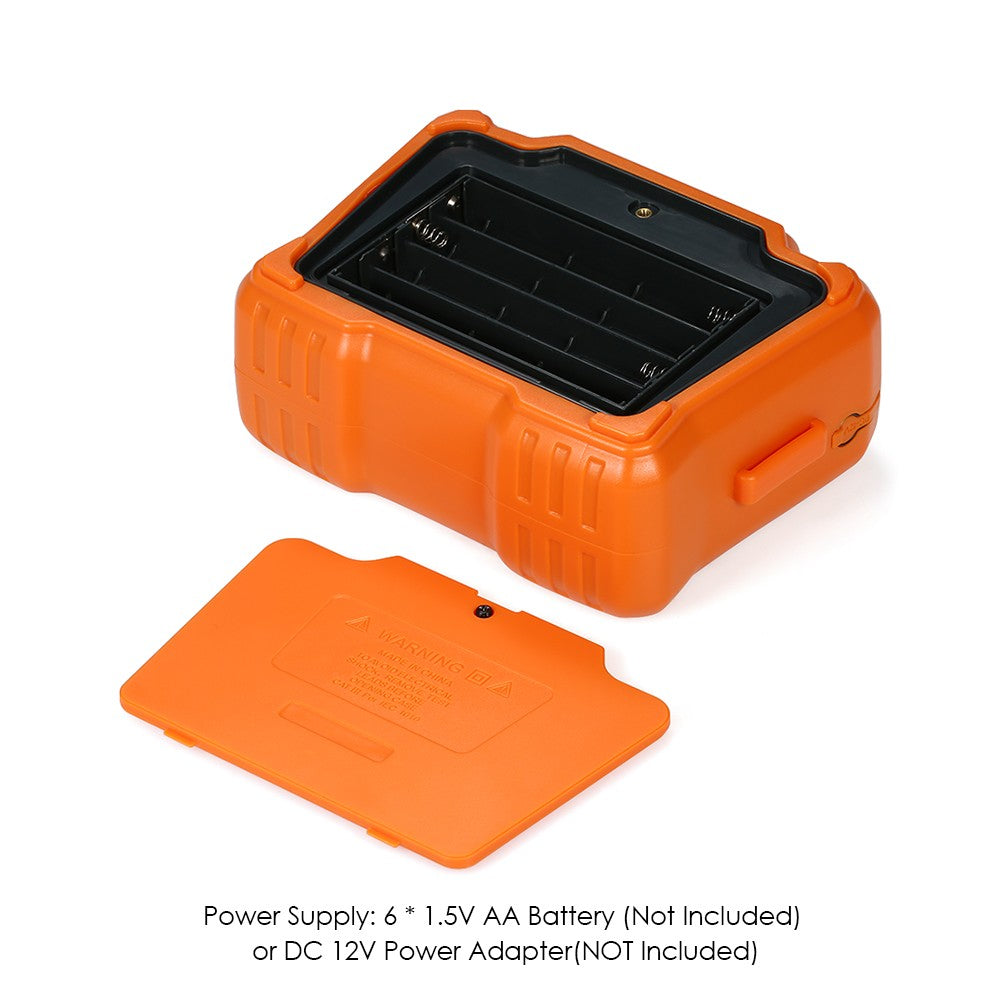

• Power Supply: 6 x 1.5V AA Batteries (Not Included) or DC 12V Adapter (NOT Included)
• Working Temperature/Humidity: 0 to 40℃, 30 to 85% RH
• Storage Temperature/Humidity: 0 to 50℃, 30 to 85% RH

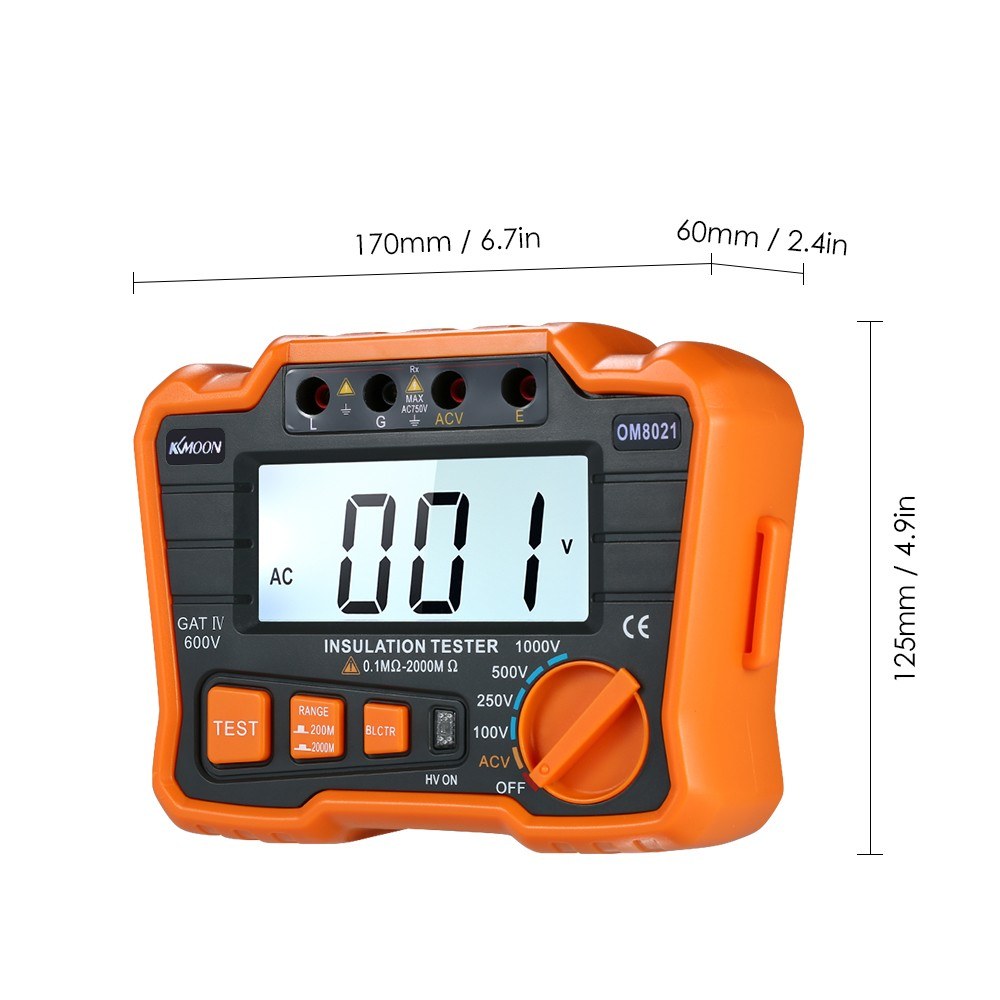

• Item Size: Approx. 170 x 125 x 60 mm / 6.7 x 4.9 x 2.4 inches
• Item Weight: 541 g / 19.1 oz
• Package Size: 21.5 x 18 x 8 cm / 8.5 x 7.1 x 3.1 inches
• Package Weight: 844 g / 29.8 oz

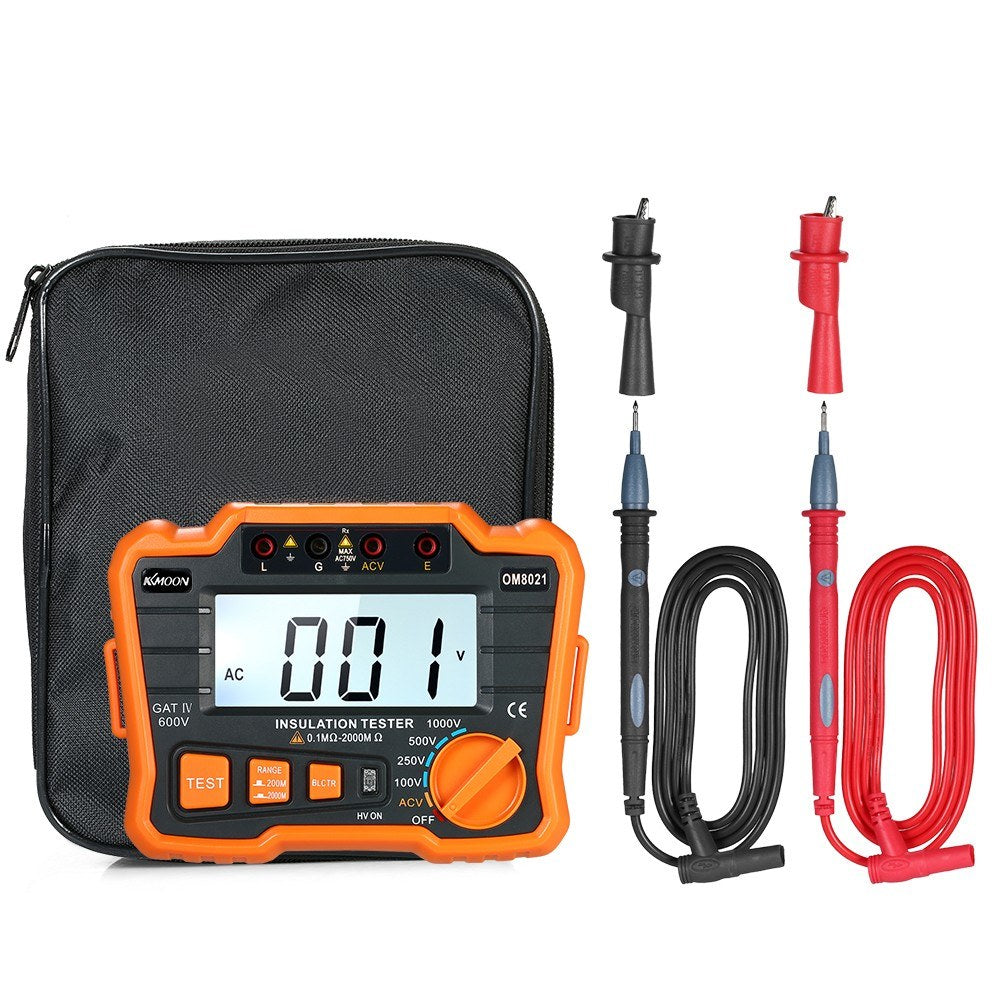

Package Includes:

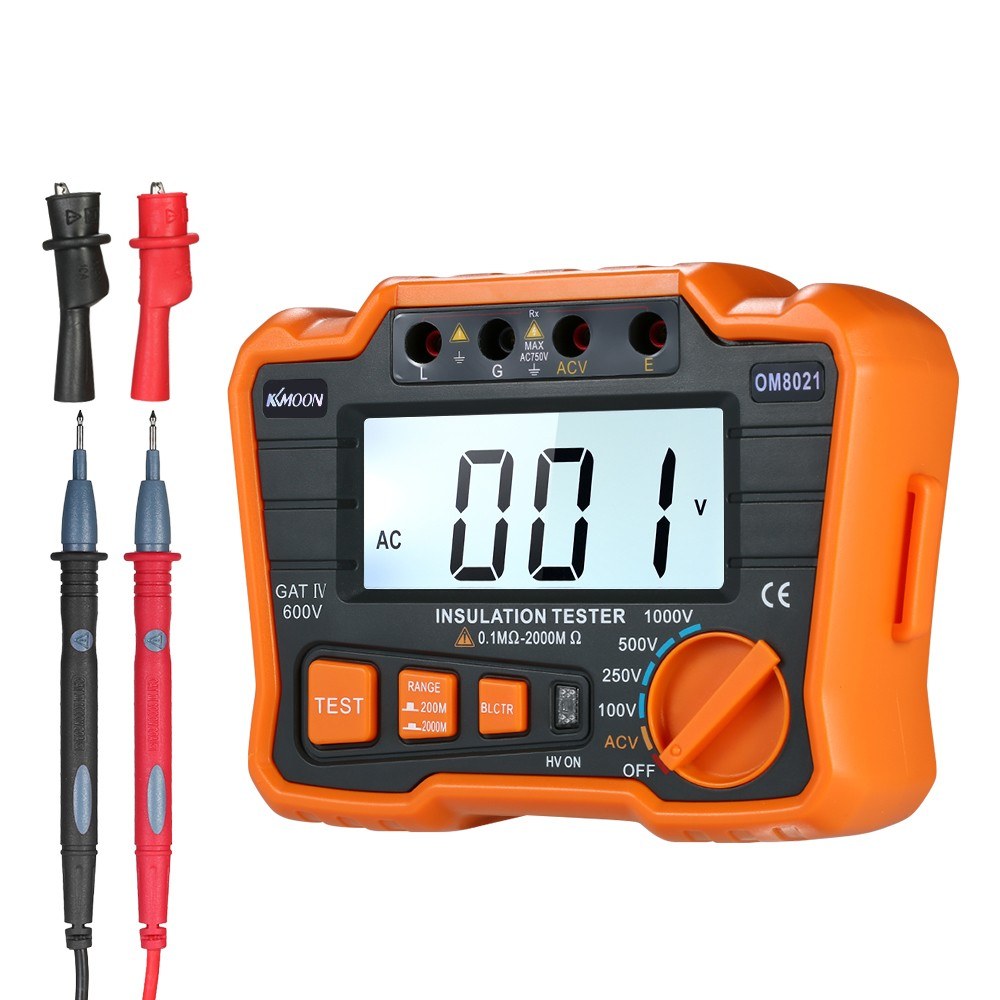

• 1 x Digital Insulation Tester
• 1 x Pair of 10A Test Leads

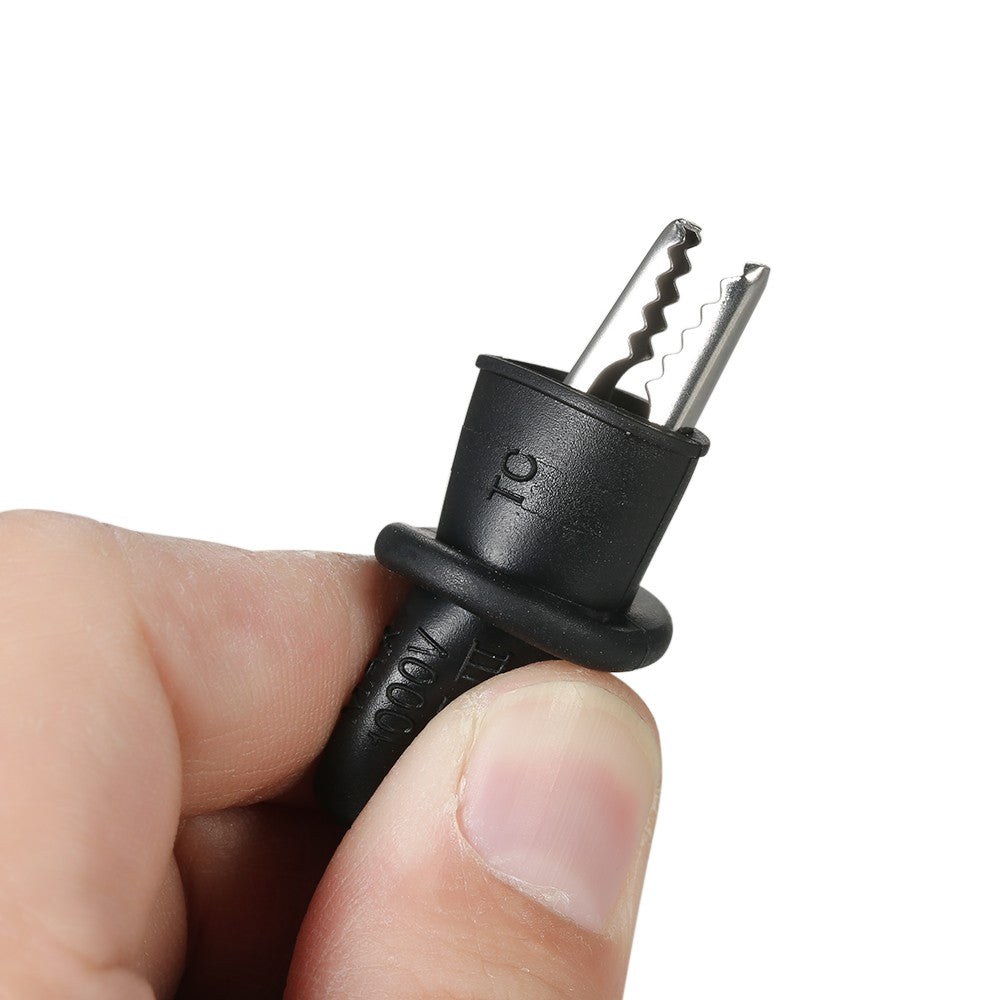

• 2 x Alligator Clips
• 1 x Storage Bag
• 1 x User Manual (English)
