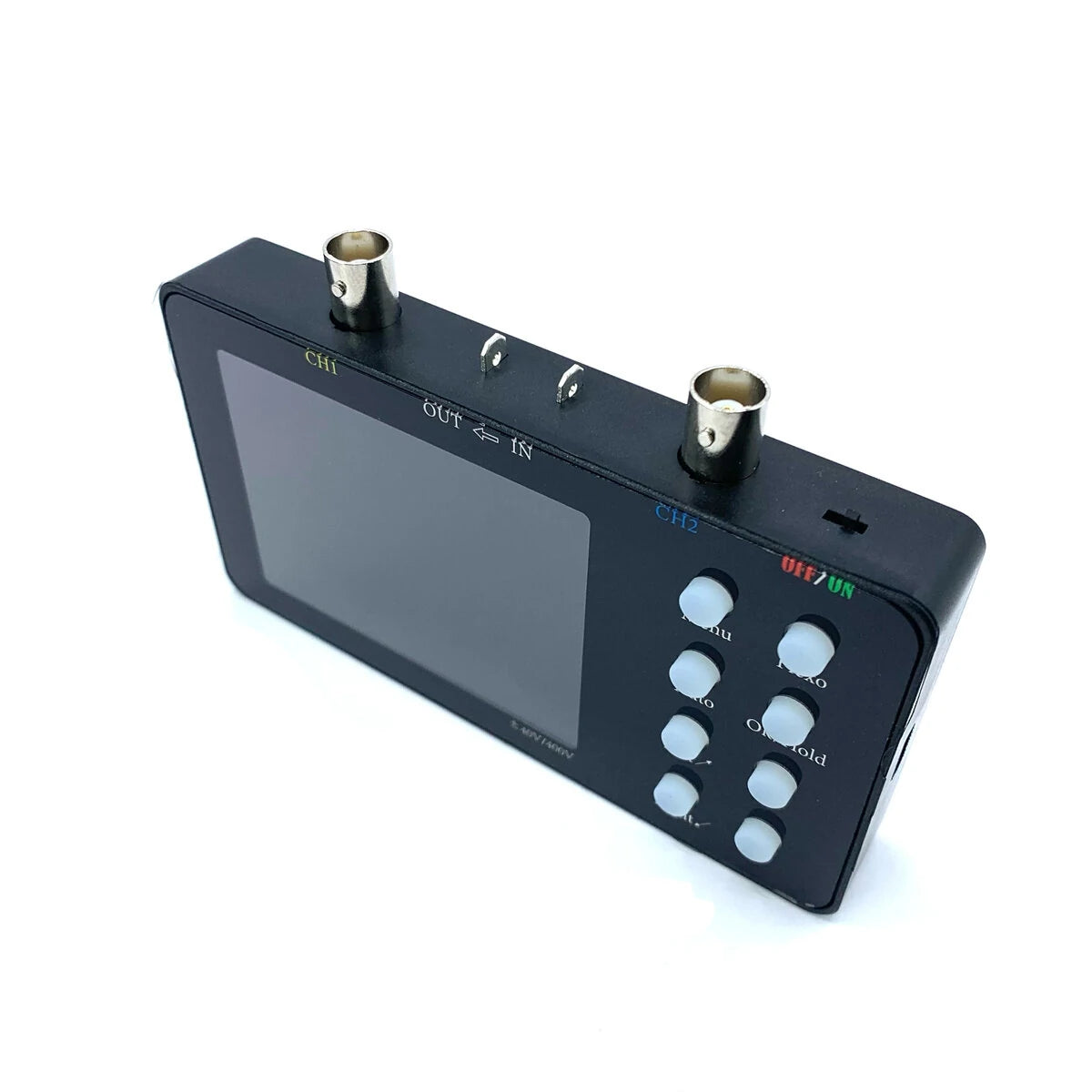

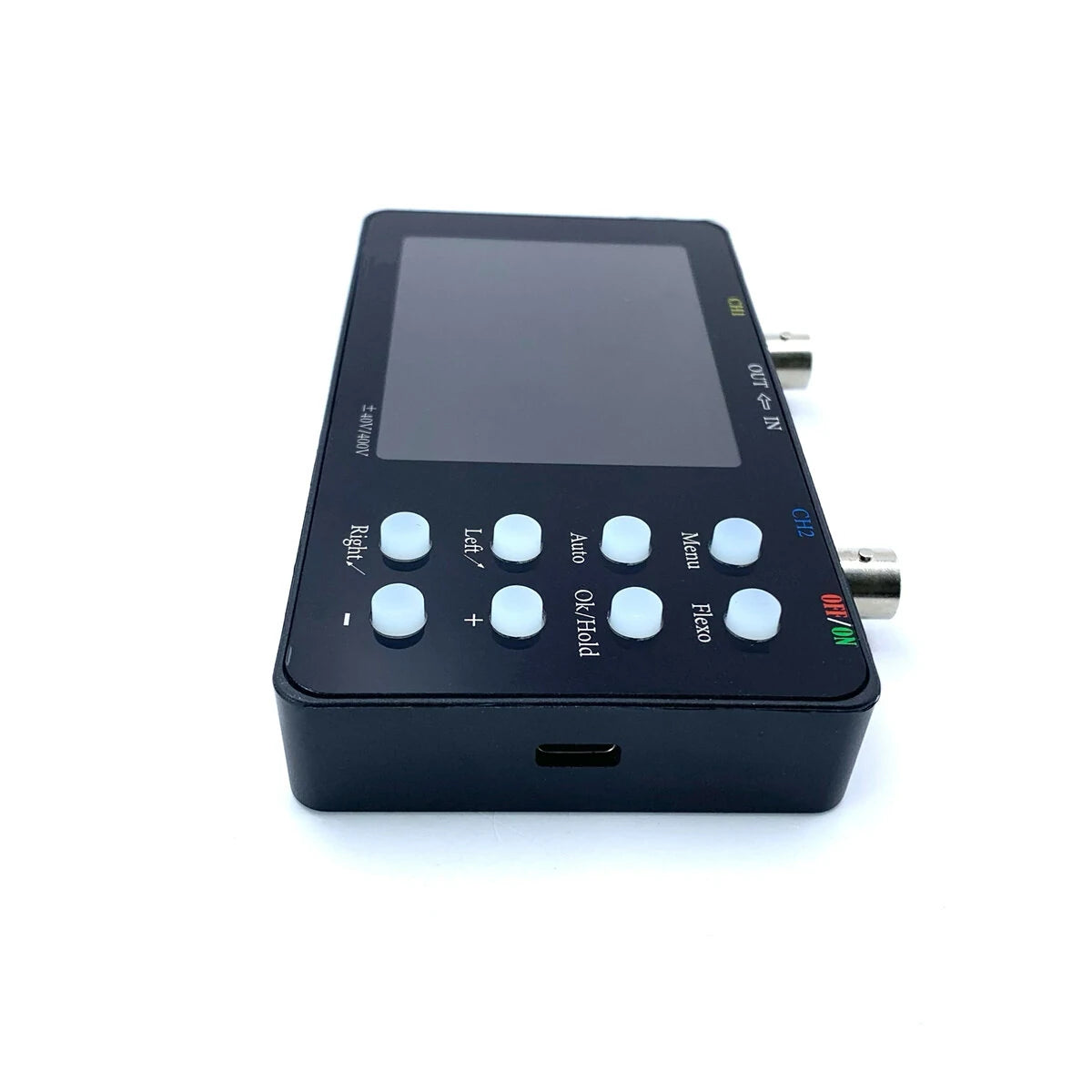

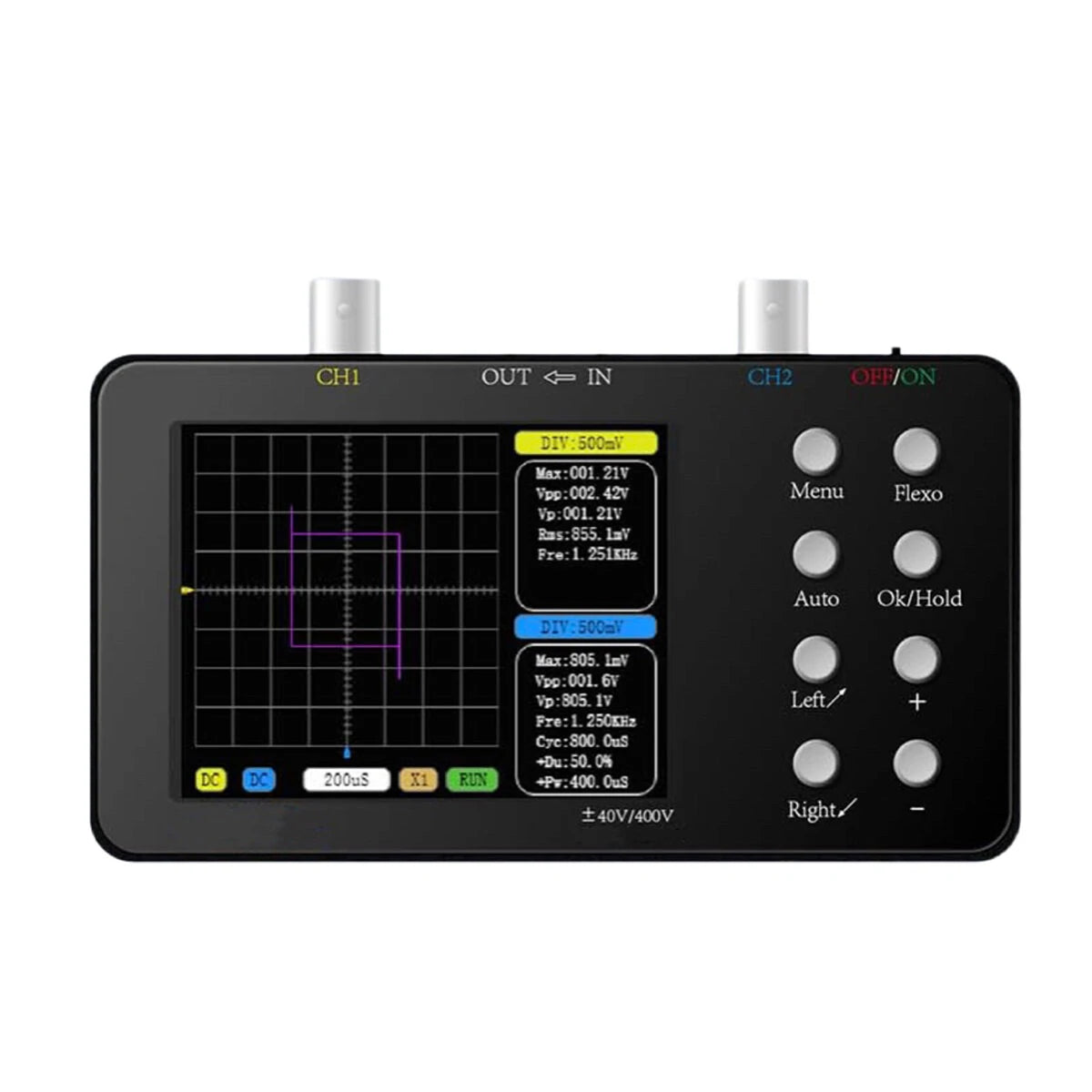

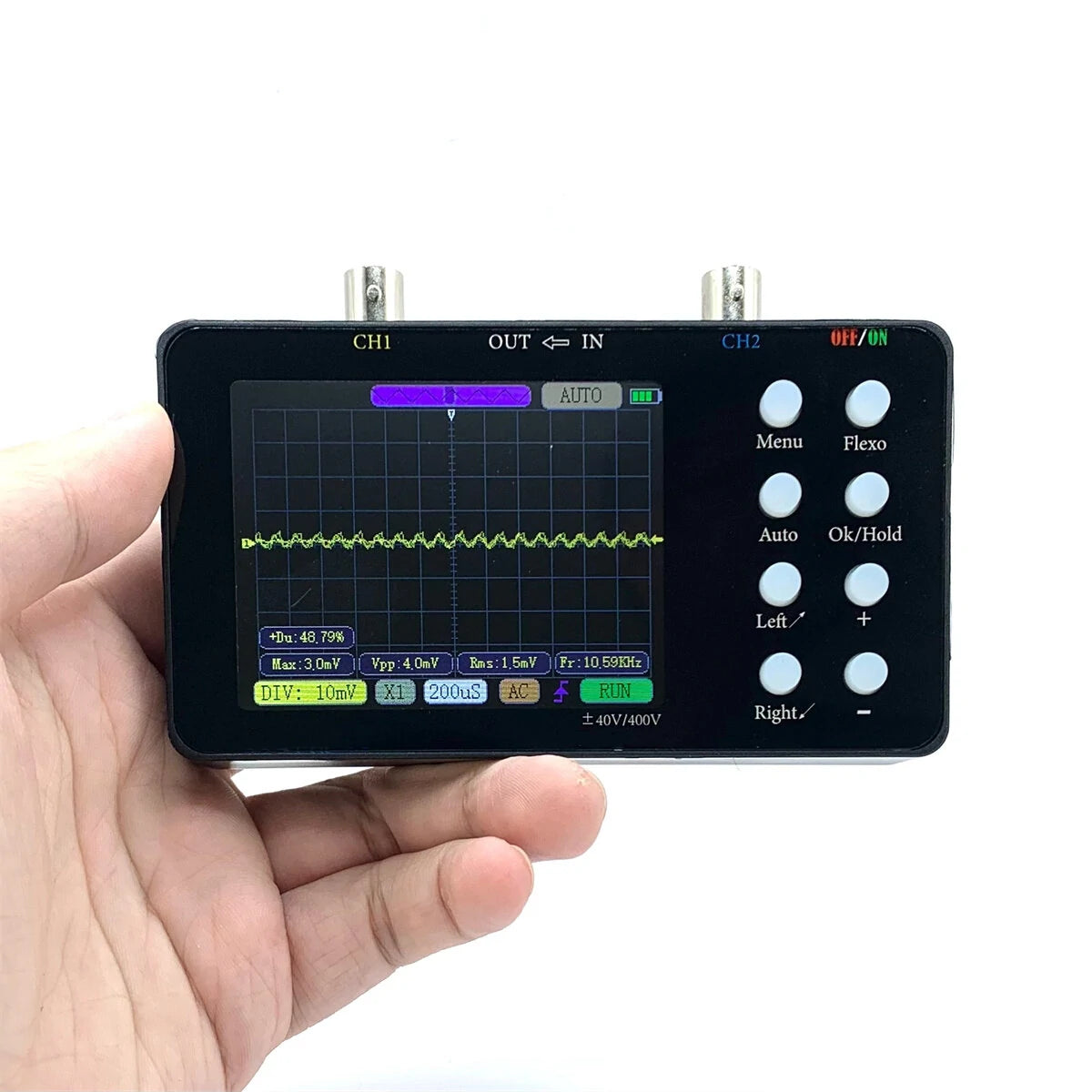

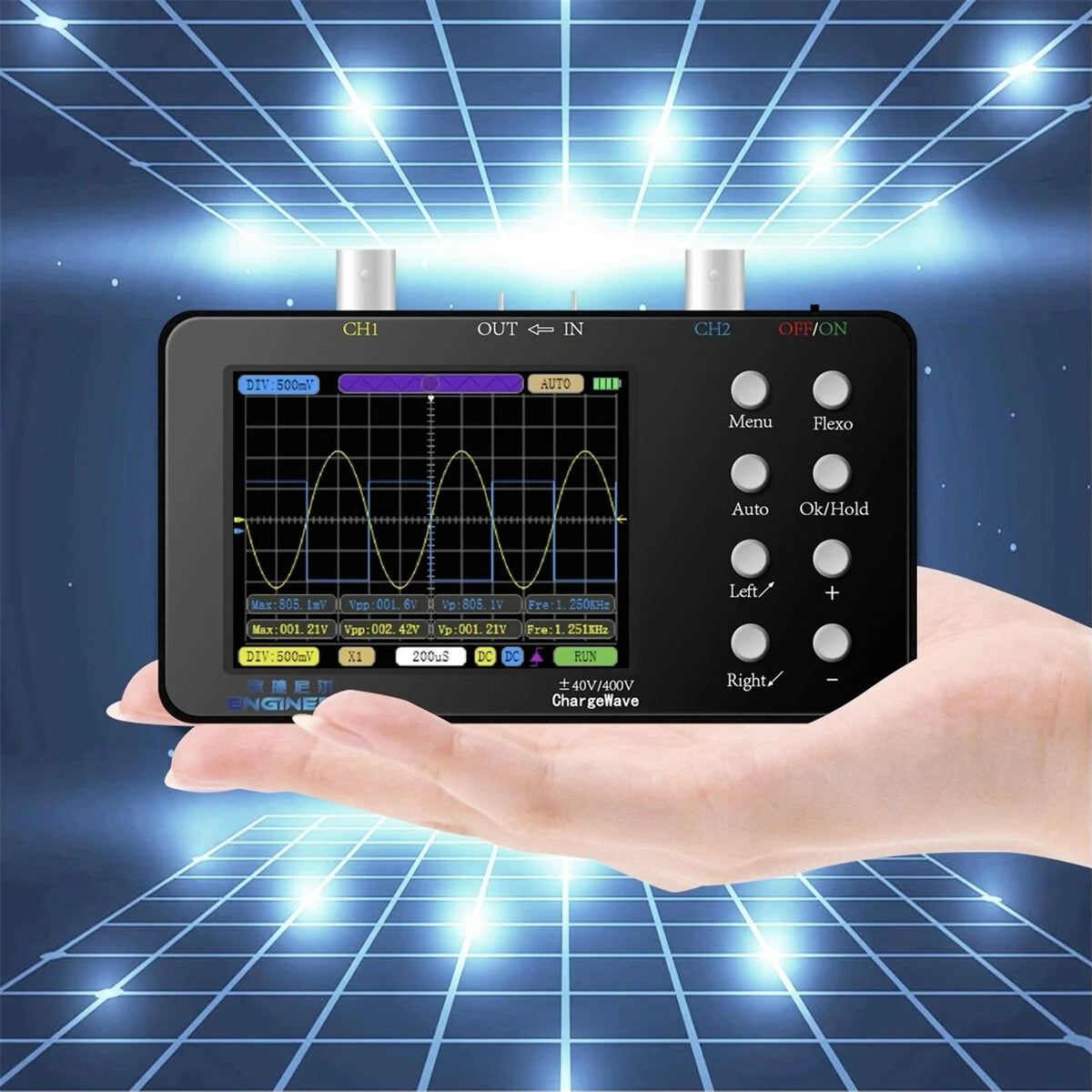

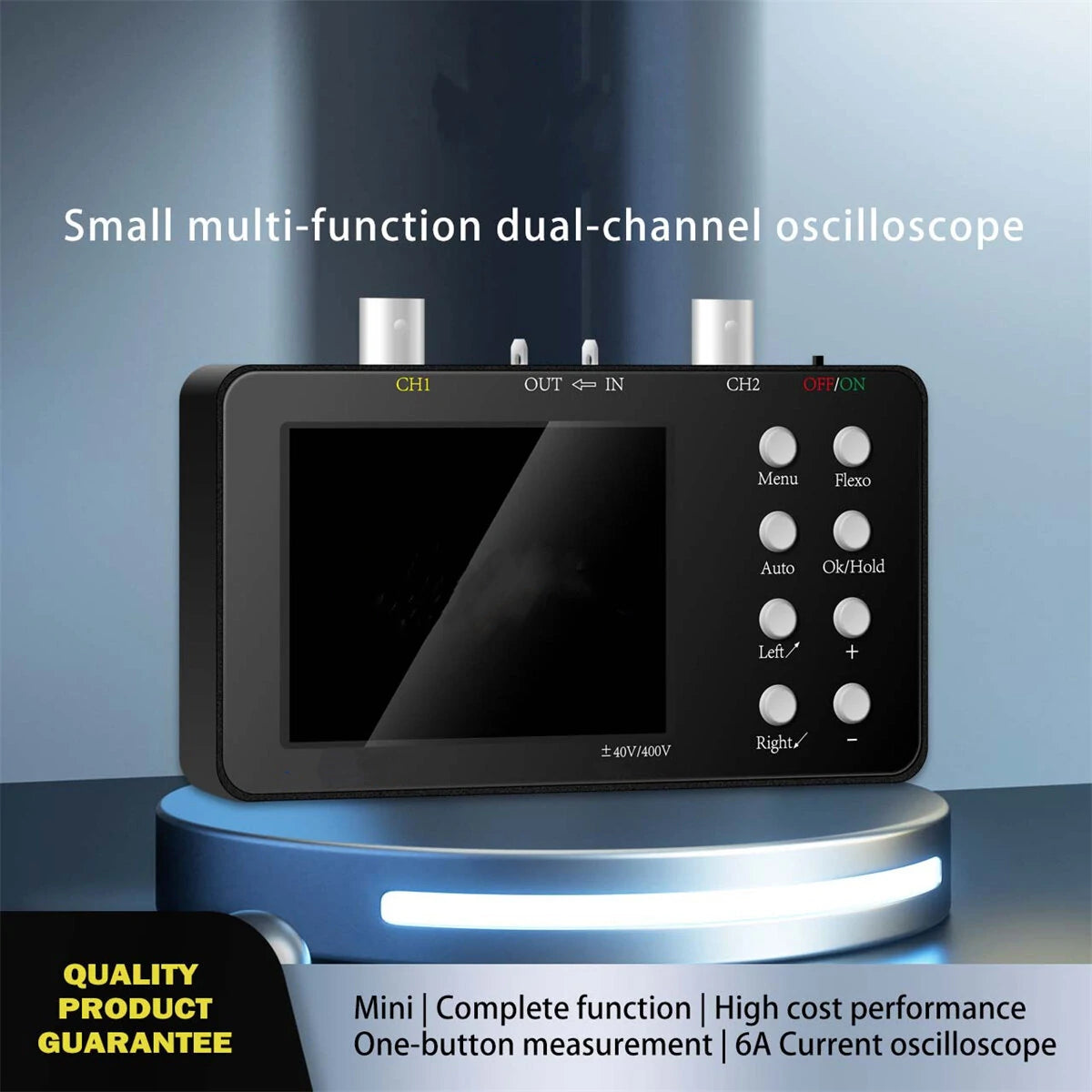

Dual Channel Digital Oscilloscope 10MHz, 50MSa/s, AUTO, Anti-Burn Protection

Features:

• 50M sampling rate with an actual bandwidth of 2MHz and an analog bandwidth of 10MHz.
• Complete triggering functions (single, normal, automatic) for measuring both periodic analog signals and non-periodic digital signals.
• Maximum measurable voltage is ± 400V.
• One-click AUTO function to display measured waveforms easily, avoiding complex adjustments.
• 20K storage depth with support for waveform compression and unfolding.
• Current waveform compression with a maximum factor of 165 times, allowing detailed viewing of current changes.
• Supports high-pressure anti-burning function.
• Rich scalability for expanding functions using different modules (current modules under development).
• Support for upper computer software with future system updates and FTT support.

Applicable Scope: Home appliance repair, mobile phone repair, car repair, electronic DIY, etc.

Specifications:

• Sampling rate: 50M/1CH
• Number of channels: 2
• Analog bandwidth: 10MSa/S (1 CH)
• Actual bandwidth: 2MSa/S (1 CH)
• Measurement voltage: X1 (± 40V), X10 (± 400V)
• Input impedance: 1M Ω
• Storage depth: 20KB
• Parameter display: 12 types
• Current measurement: 0-6A
• Minimum accuracy: 2mA
• Current sampling rate: 2.4KSa/s
• Display: 3.2-inch LCD, 320 x 240 resolution
• Charging voltage: 5V
• Battery capacity: 2500 mA
• Continuous working hours: 4.5-6H
• Shell size: 120mm x 66mm x 18.5mm

Function Expansion: (Software and hardware functions below are currently not supported)

• Hardware: Expand more functions via different modules and the oscilloscope's USB interface. Future modules include audio module, two-way function generator module, transistor tester module, etc.
• Module Function Introduction:
  • Audio module: Displays external sound waveforms and sound decibels in real-time.
  • Two-way function generator module: 0~100KHz PWM output, 17 kinds of waveform outputs, adjustable amplitude 0~3V.
  • Transistor testing module: Tests on/off, RF infrared, capacitor, resistor, inductor, diode, transistor, and others.
• Software: Supports upper computer software for system updates and future features like FTT and communication.
• Contact customer service after September 1, 2023, for the latest firmware.

Optional Set: A / B / C

Package Included:

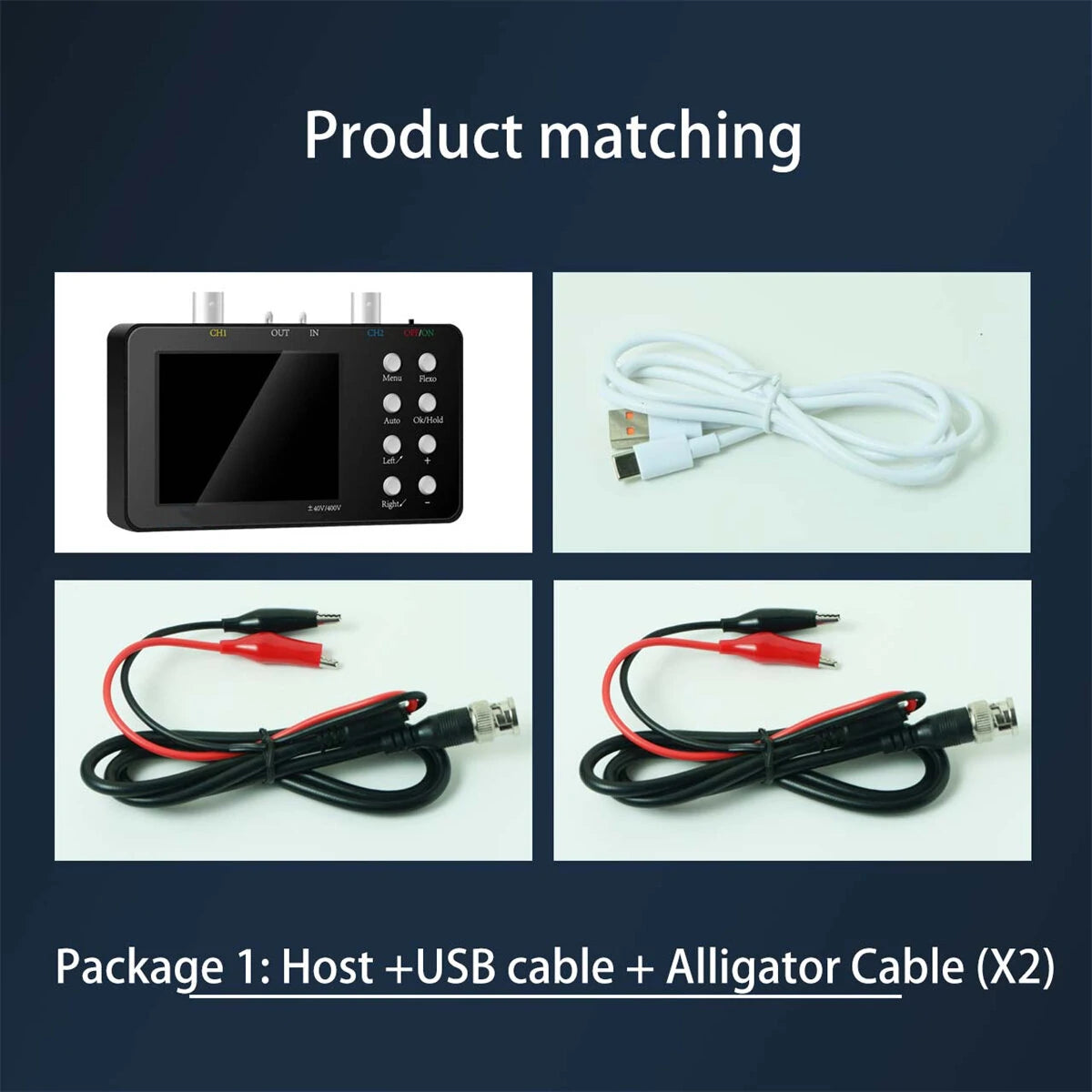

• Type A:
  • 1 x Digital Oscilloscope
  • 1 x USB Cable
  • 2 x Alligator Cables

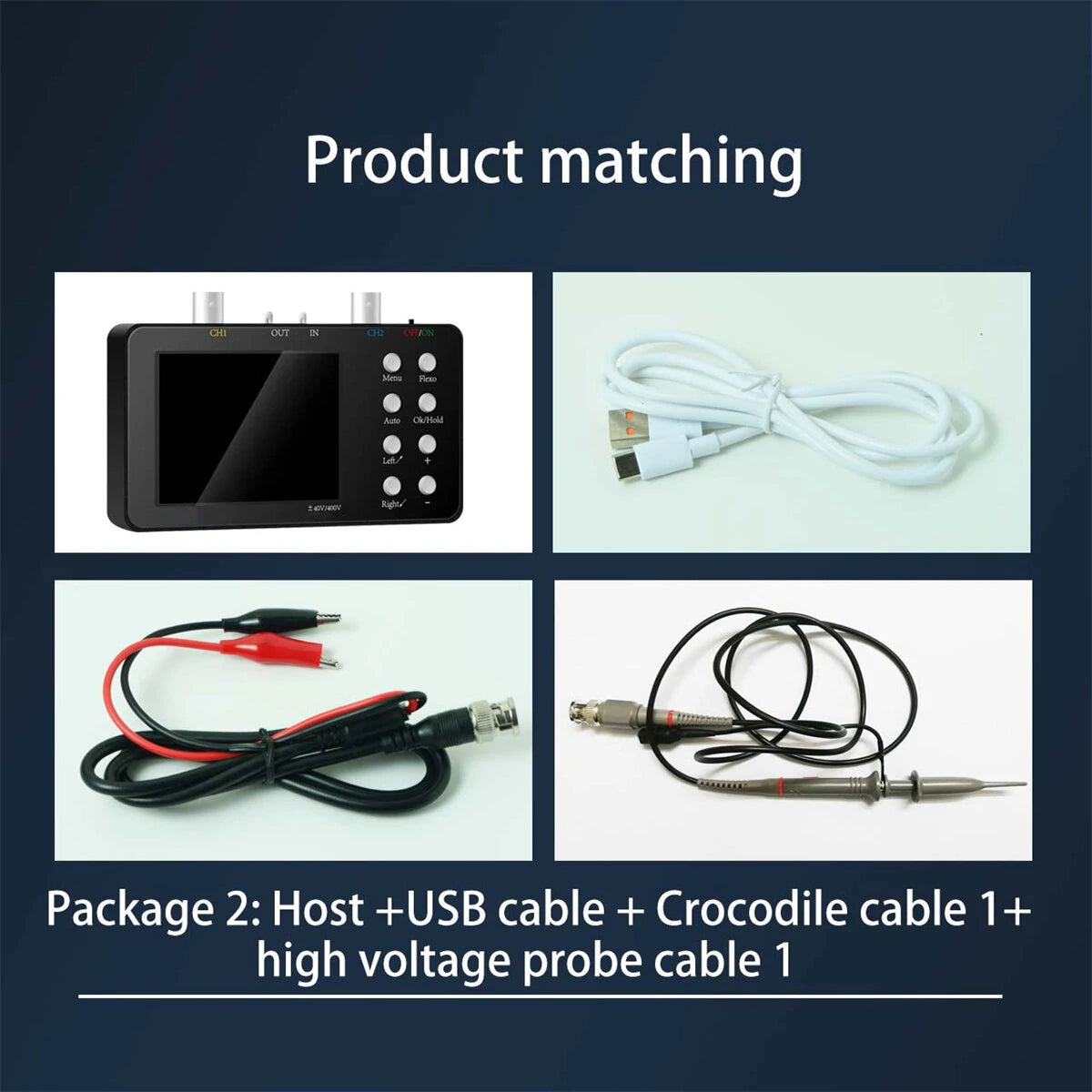

• Type B:
  • 1 x Digital Oscilloscope
  • 1 x USB Cable
  • 1 x Alligator Cable
  • 1 x High Voltage Probe Cable

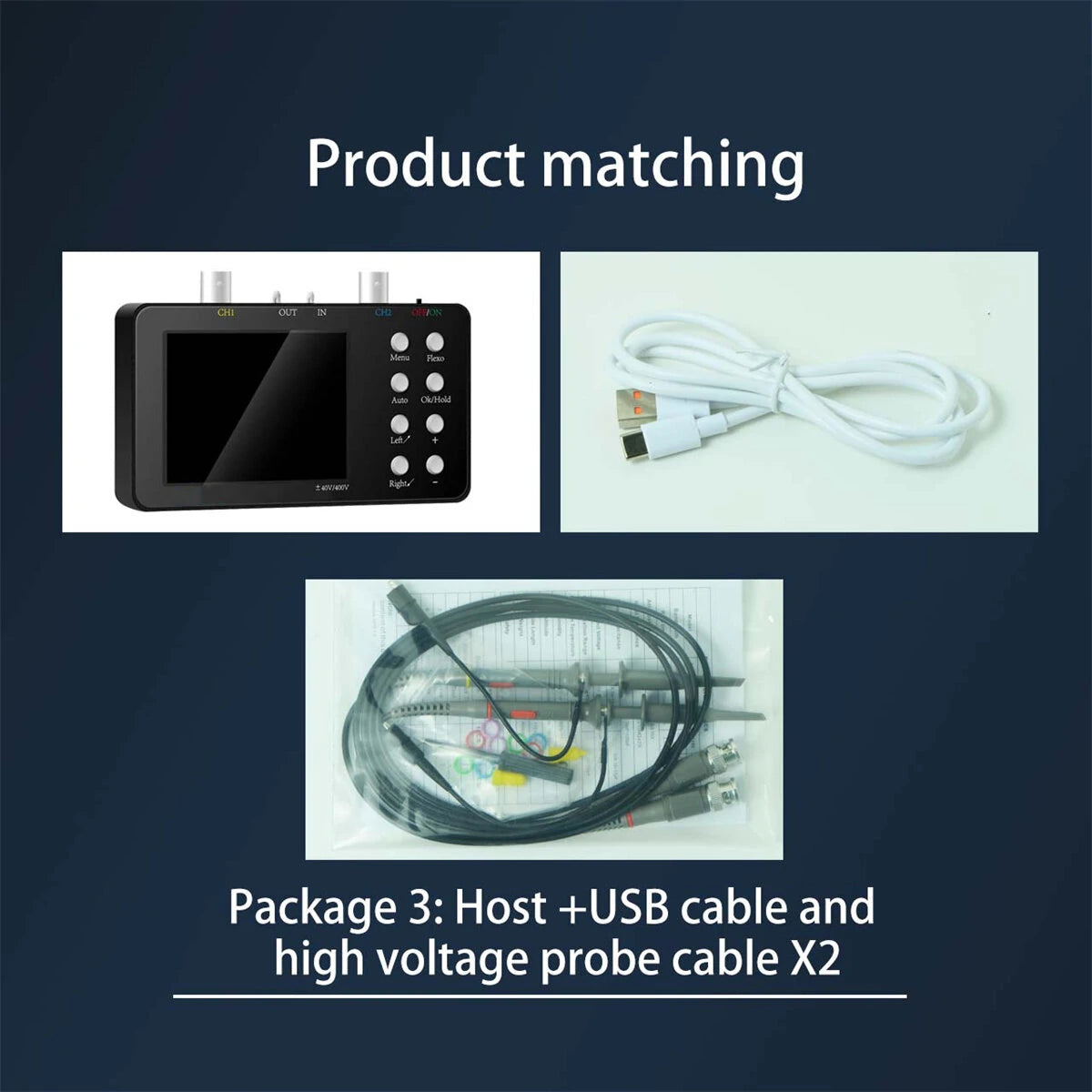

• Type C:
  • 1 x Digital Oscilloscope
  • 1 x USB Cable
  • 2 x High Voltage Probe Cables
