7W Power Amplifier

Specifications

• Operating Frequency: 65-110MHz
• Output Power: 7-8W
• Input Power: 0.1-1mW (-10~0dBm, compatible with one S9018 oscillator output power)
• Input & Output Impedance: 50 ohms
• Connection Terminals: SMA-k female (external thread, inner hole)
• Working Voltage: 12V (15V max)
• Working Current: 1A
• Size: 8 x 4 cm (excluding connector size)

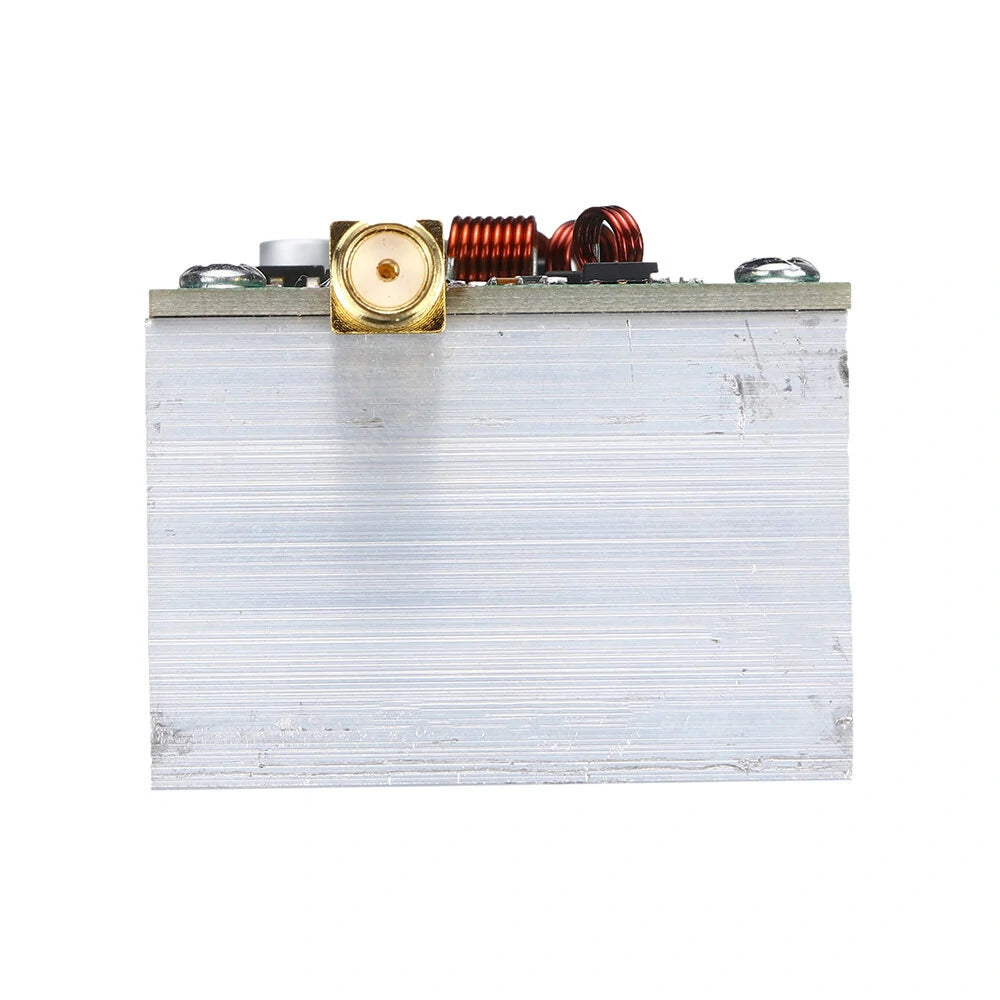

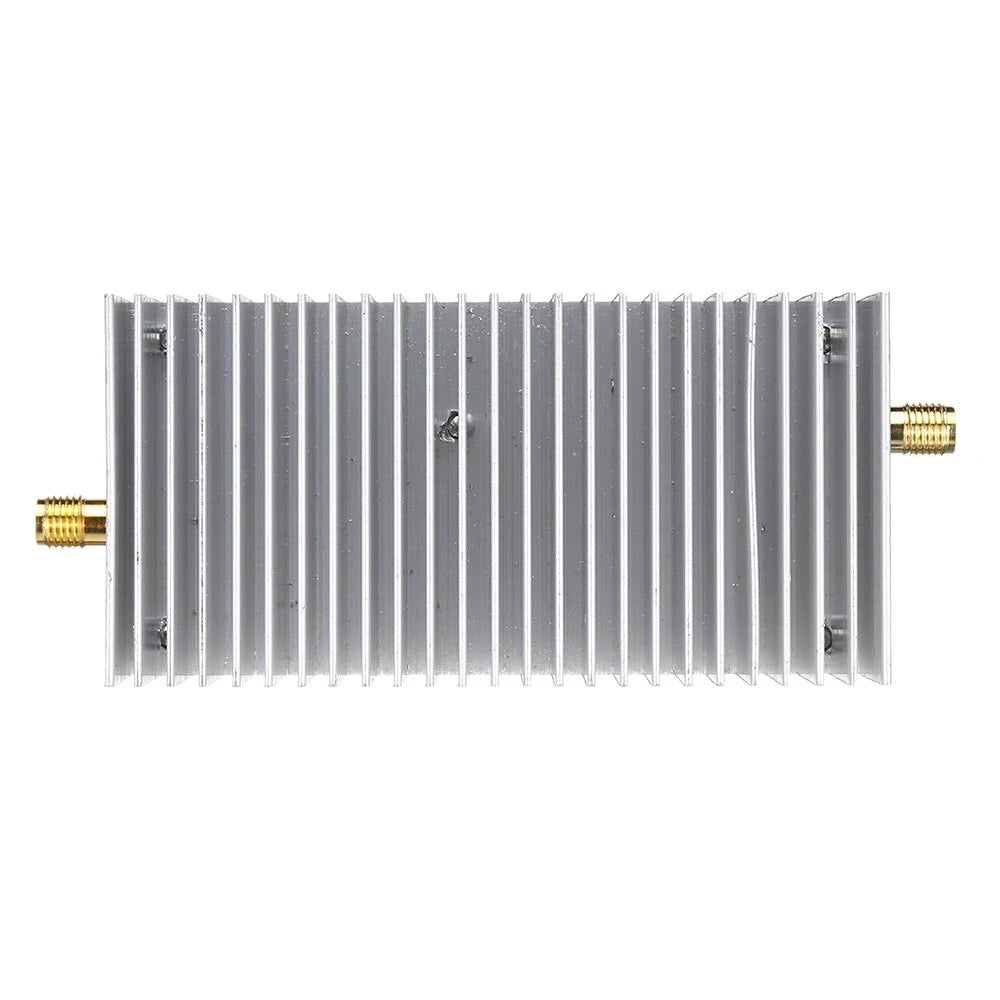

• Weight: 103g (including full set of radiator)

Package Includes

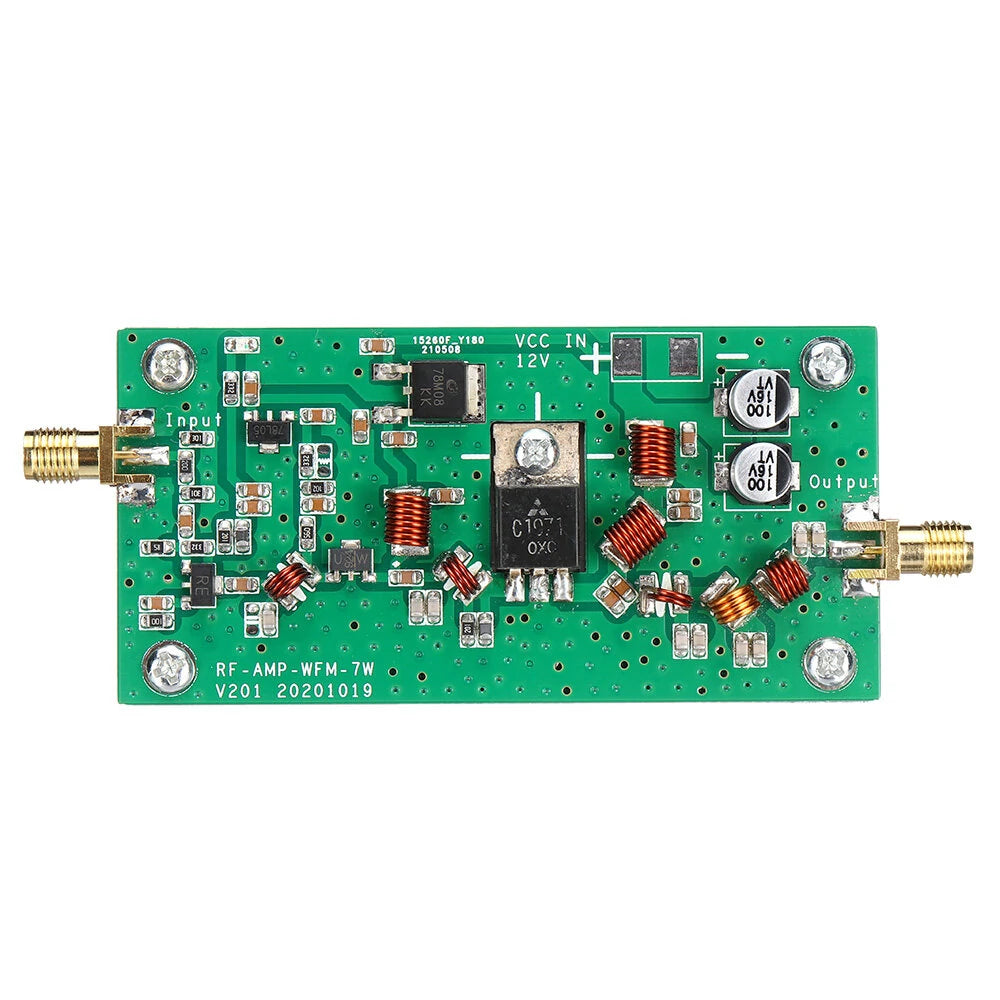

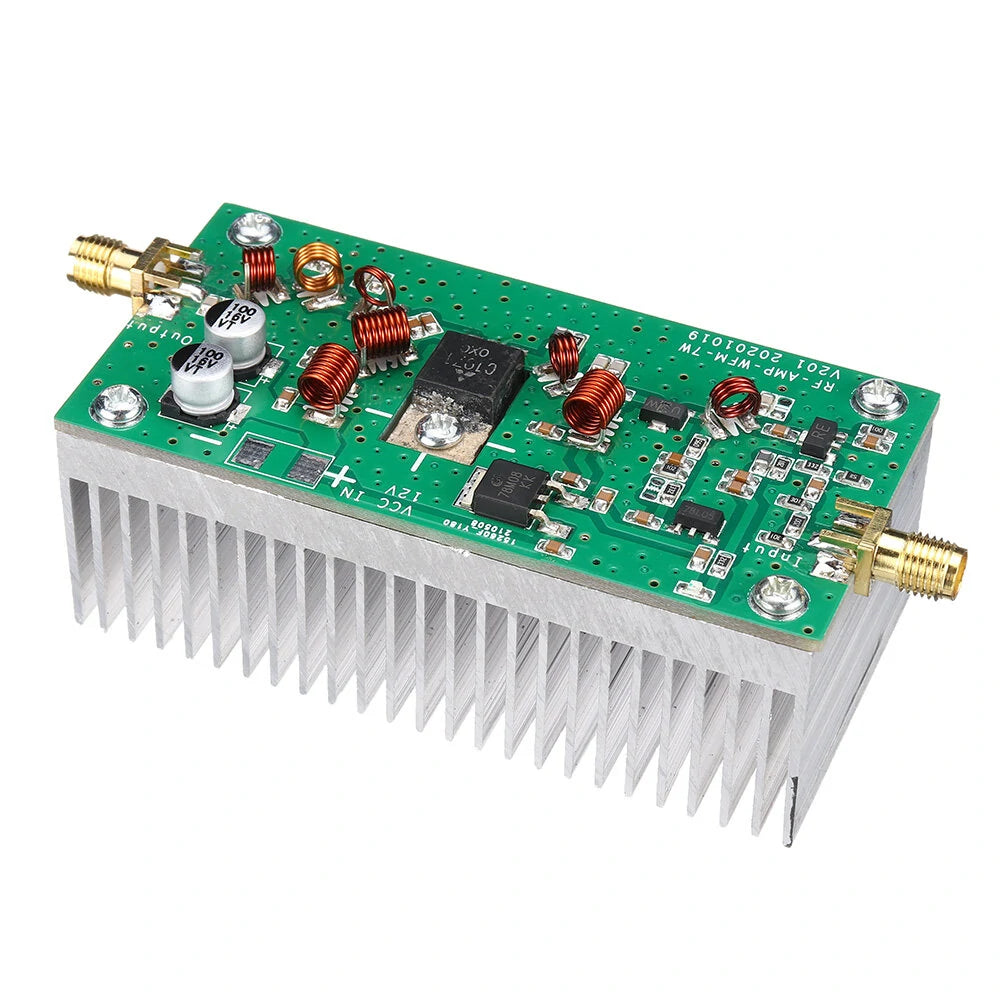

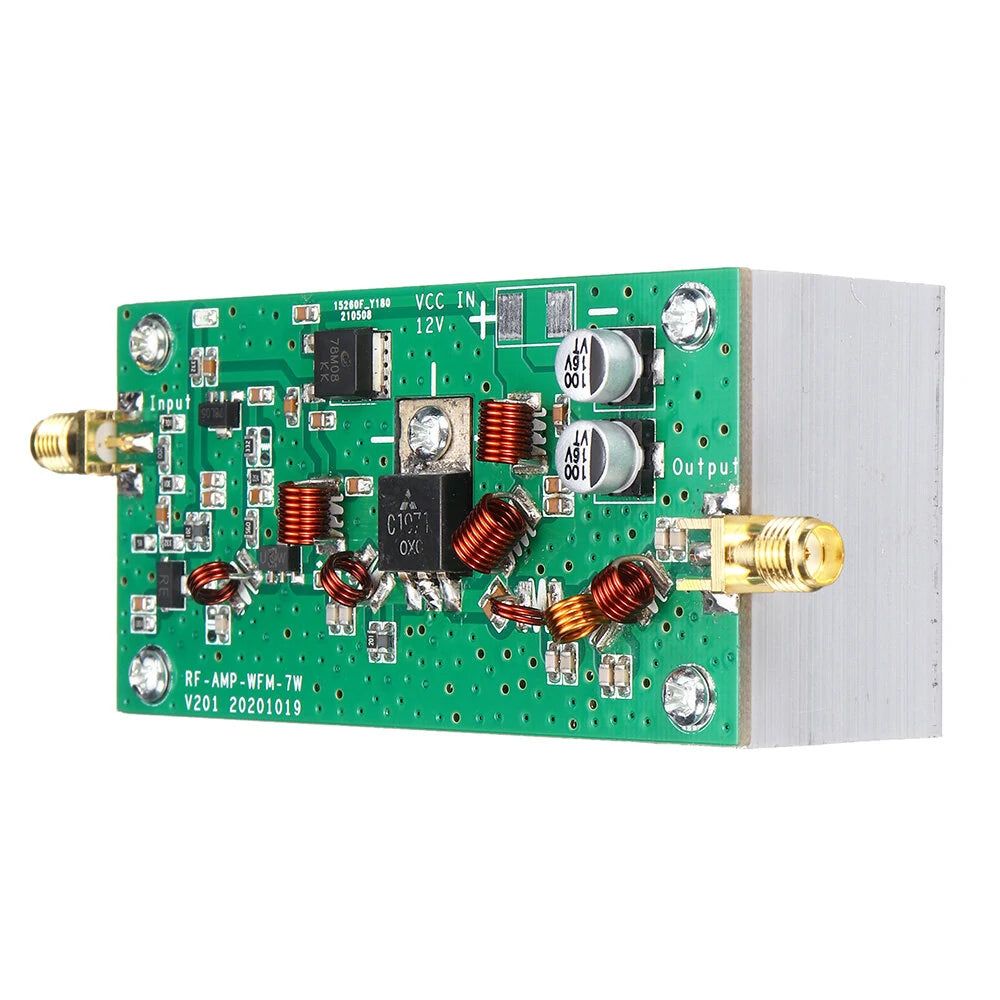

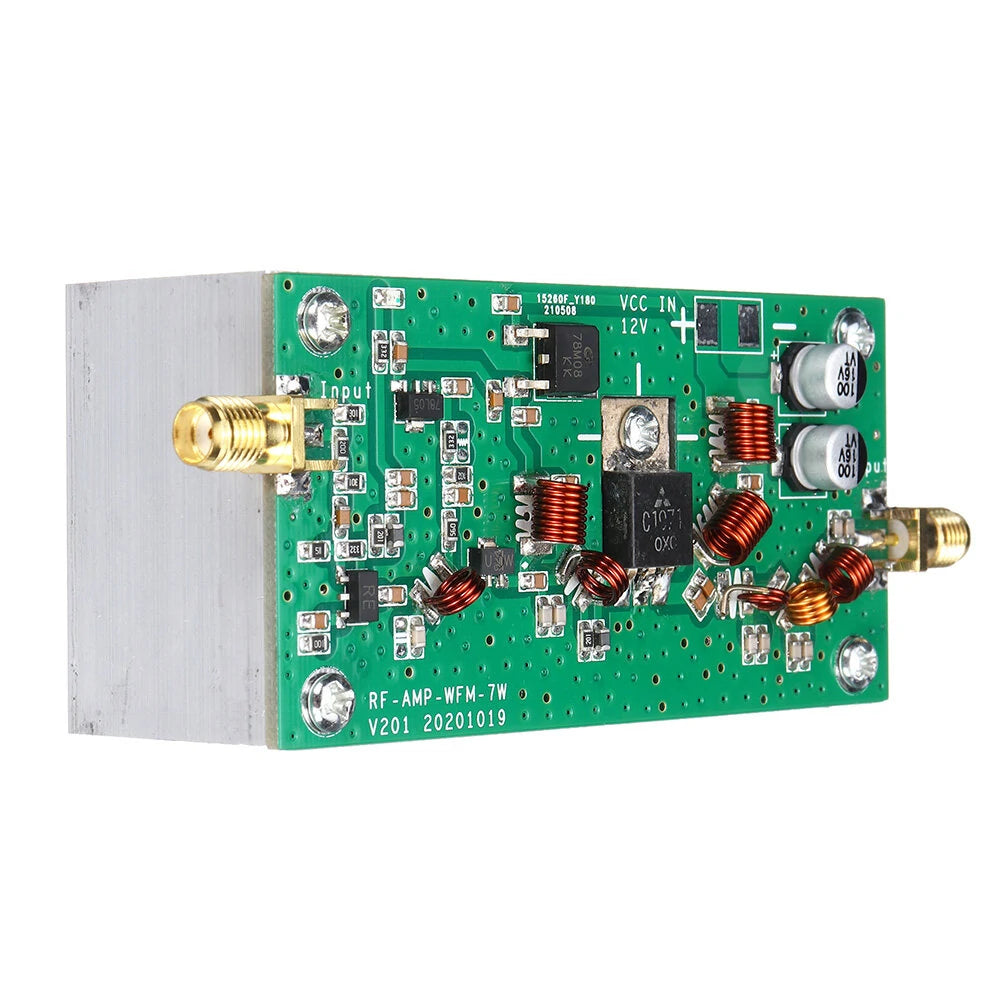

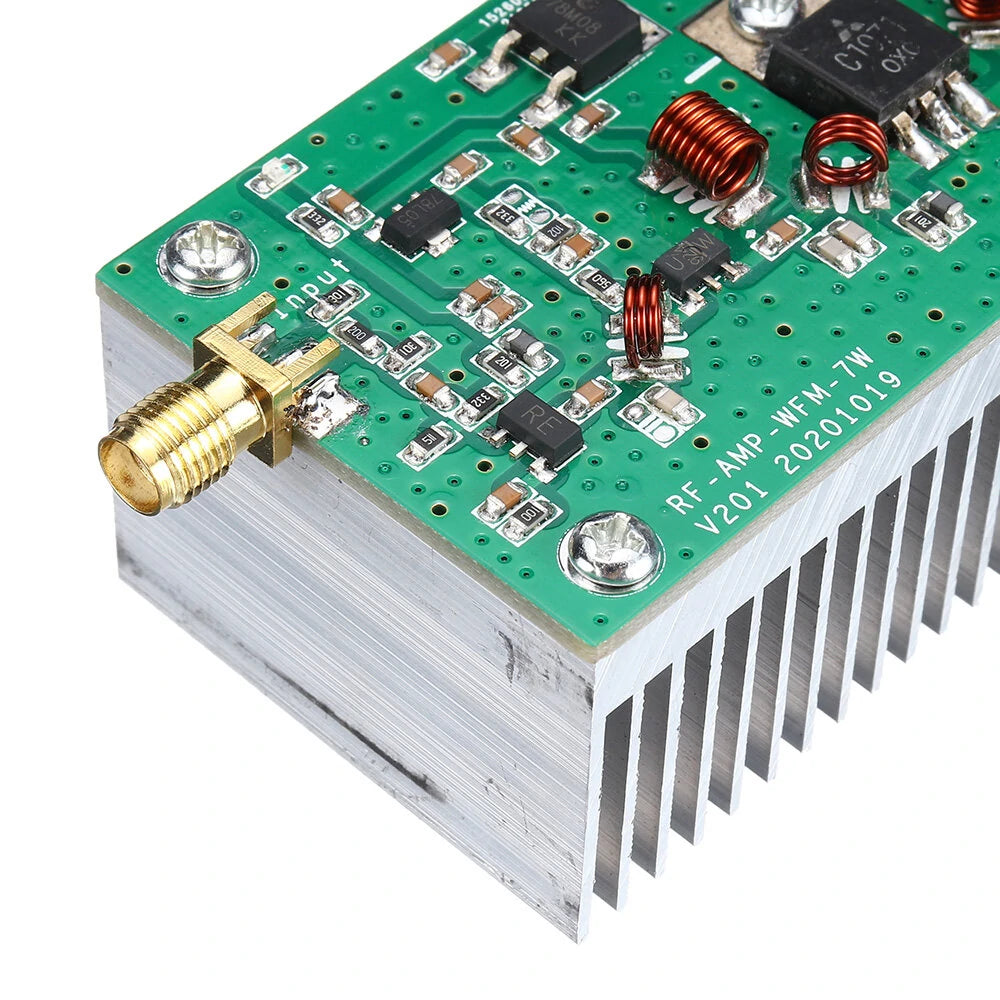

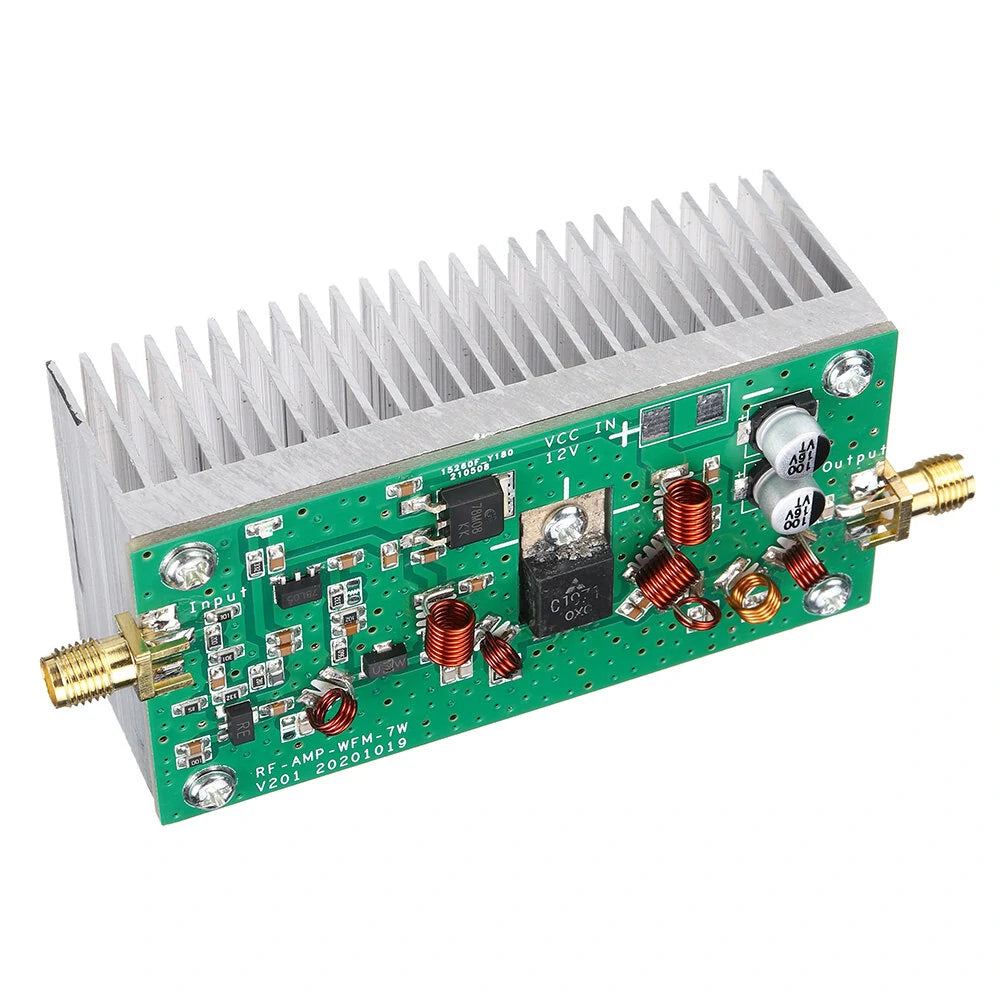

• 1 x FM Power Amplifier Board

Important Note

Ensure to use a coaxial cable for outdoor connections. The antenna must be either a GP or J-type to function properly. Avoid using a rod antenna directly on the output port, as it will not perform correctly. Additionally, the antenna should resonate at the working frequency, and the standing wave ratio should not exceed 1.5.
