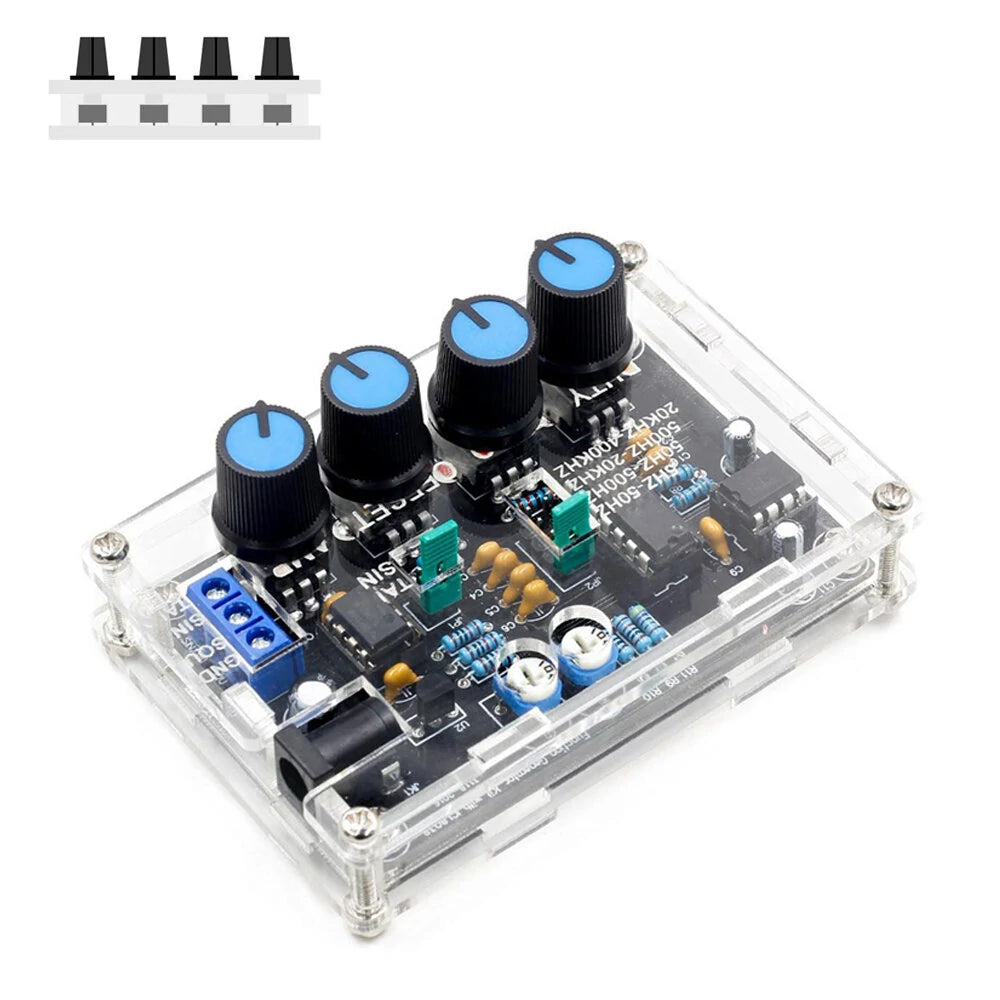

Signal Generator DIY Kit

This professional Signal Generator DIY Kit allows you to generate multiple waveform types, including sine, triangle, square, forward, and reverse sawtooth waves. Perfect for DIY enthusiasts, this kit requires welding and installation.

Features:

• Utilizes the ICL8038 and high-speed operational amplifier for greater accuracy.
• Outputs sine, triangle, square, forward, and reverse sawtooth waveforms.
• Frequency Range: 5Hz to 400kHz; Duty Cycle Range: 2% to 95% (Adjustable).
• Supports dual power amplifier without blocking capacitors ensuring low distortion at both high and low frequencies.
• Adjustable frequency and amplitude with both coarse and fine tuning options.
• All components are through-hole, making them easy to install.

Specifications:

• Material: FR4 Acrylic
• Supply Voltage: 12V to 15V
• Frequency Range: 5Hz to 400kHz (Adjustable)
• Duty Cycle Range: 2% to 95% (Adjustable)
• Low Distortion Sine Wave: 1%
• Low Temperature Drift: 50ppm/°C
• Triangular Wave Linearity: 0.1%
• DC Bias Range: -7.5V to 7.5V
• Output Amplitude Range: 0.1V to 11V peak-to-peak (operating voltage 12V)

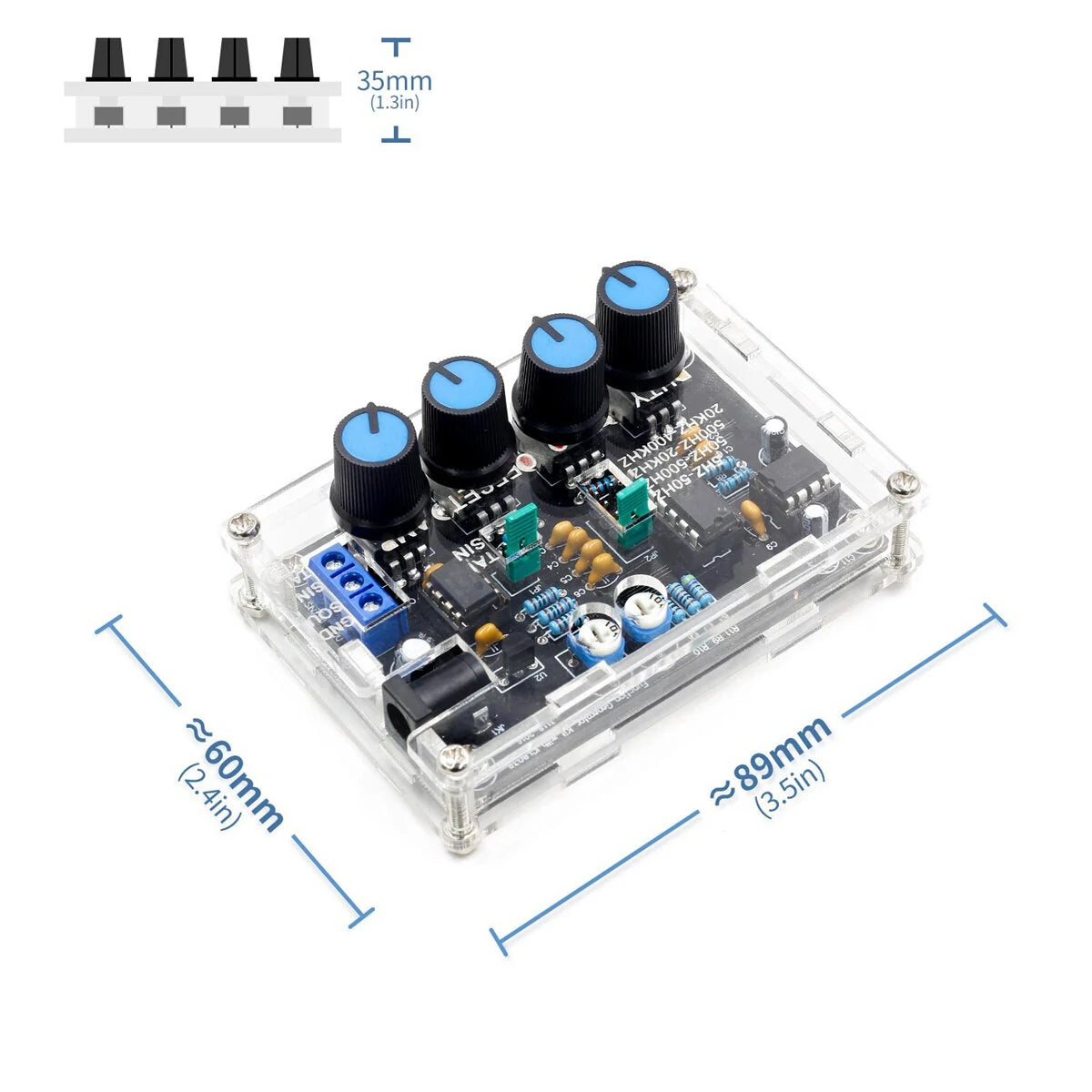

• Board Size: Approx. 7.8 x 5cm (3.07 x 1.97in)
• Finished Product Size: Approx. 8.7 x 6 x 1.7cm (3.43 x 2.36 x 0.67in)

Product Weight: 81g (2.86oz)

Package Size: Approx. 11 x 7 x 3cm (4.33 x 2.76 x 1.18in)

Package Weight: 95g (3.35oz)

Note: The testing picture is for reference only; actual product appearance may vary slightly.

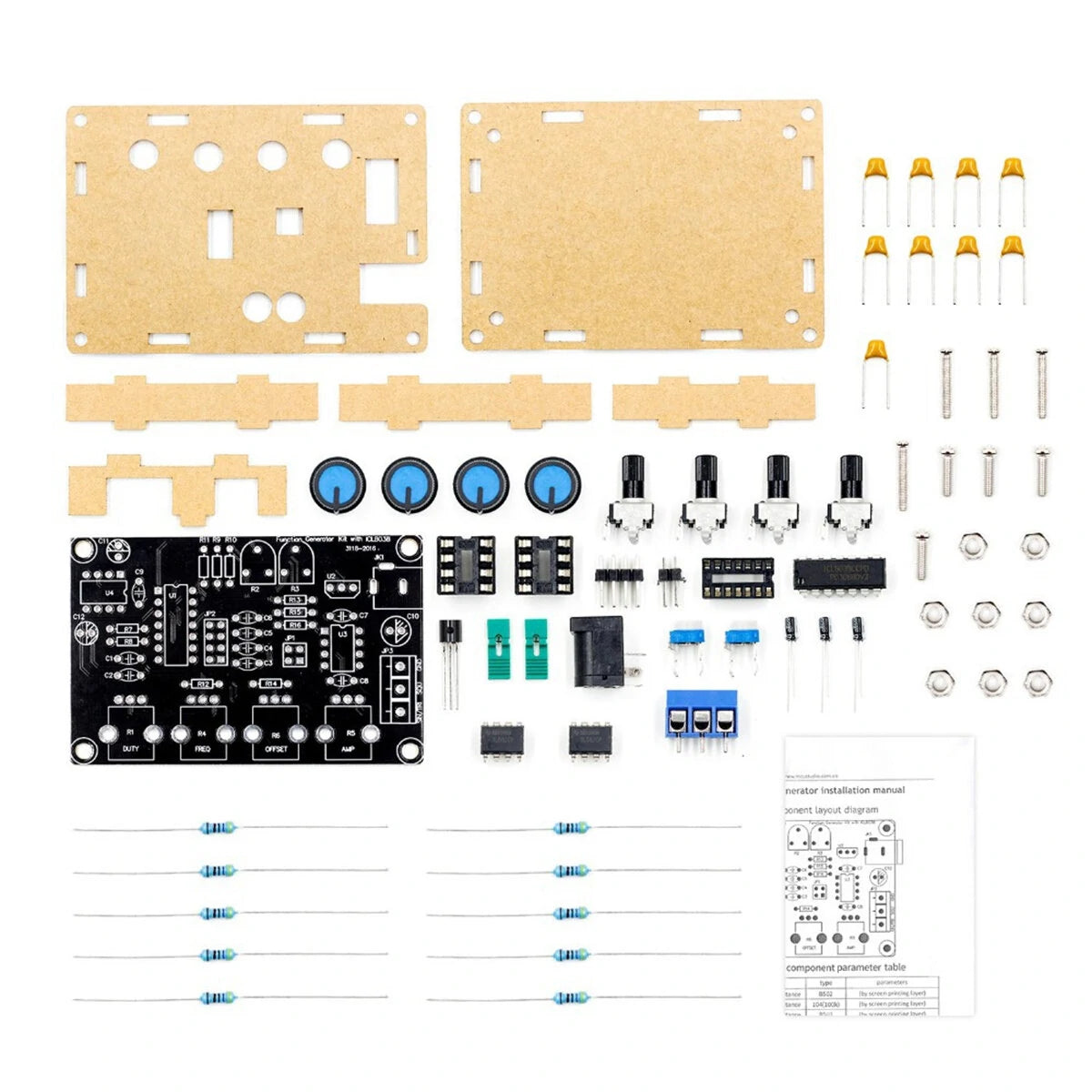

Package Includes:

• 1 x Signal Generator DIY Kit

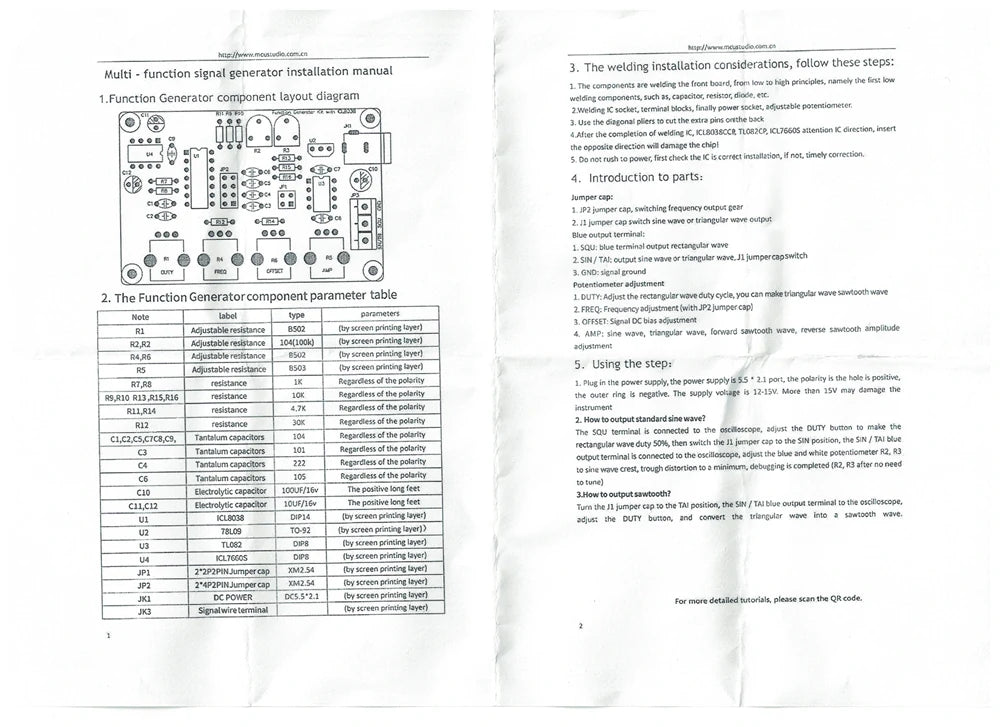

• 1 x User Manual (English)
