Smart Electric Radiator Thermostat 16A - FP Signal Programmable Temperature Controller

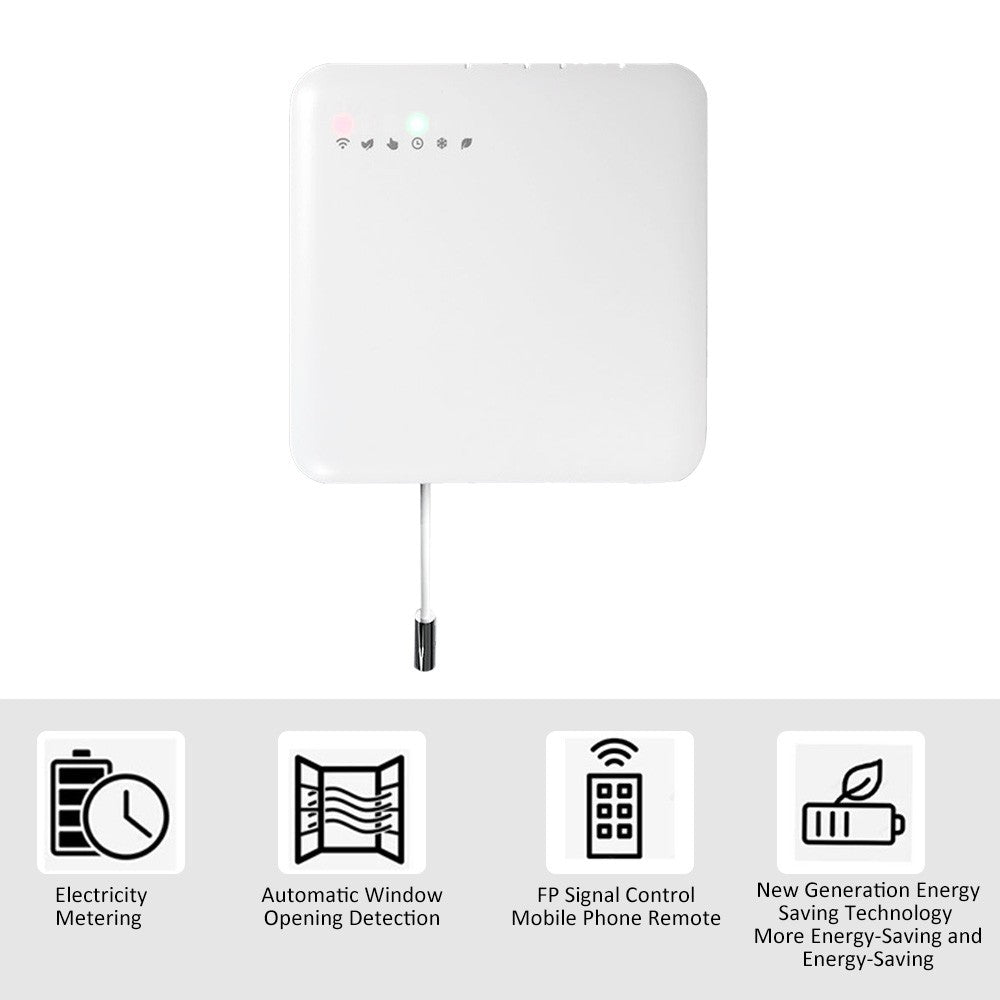

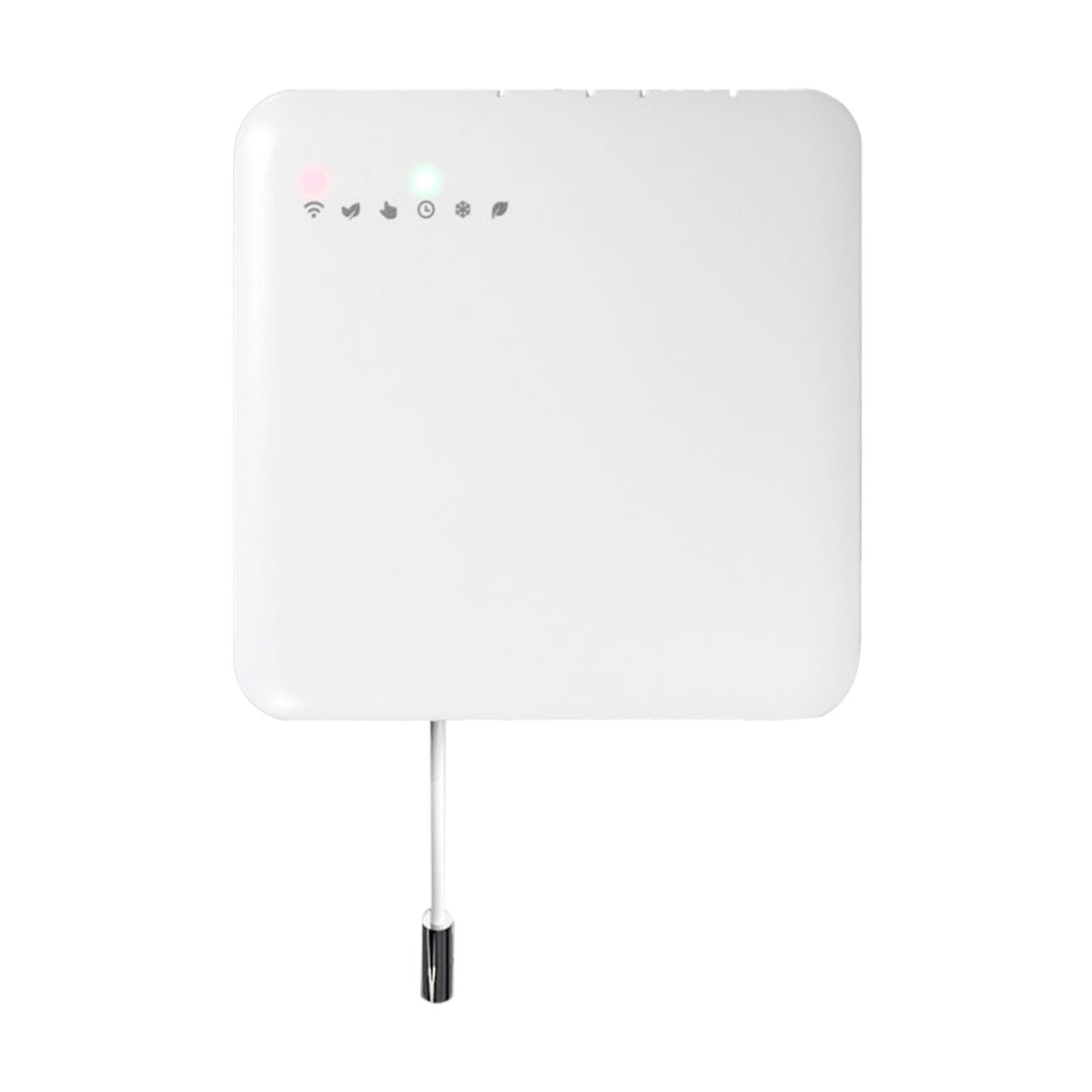

ME223EH Electric Radiator Thermostat

The ME223EH is designed for both standard and FP signal-controlled electric radiators. It features a built-in NTC temperature sensor that monitors room temperature and compares it with your set temperature, automatically adjusting the radiator to maintain a constant indoor temperature.

Features:

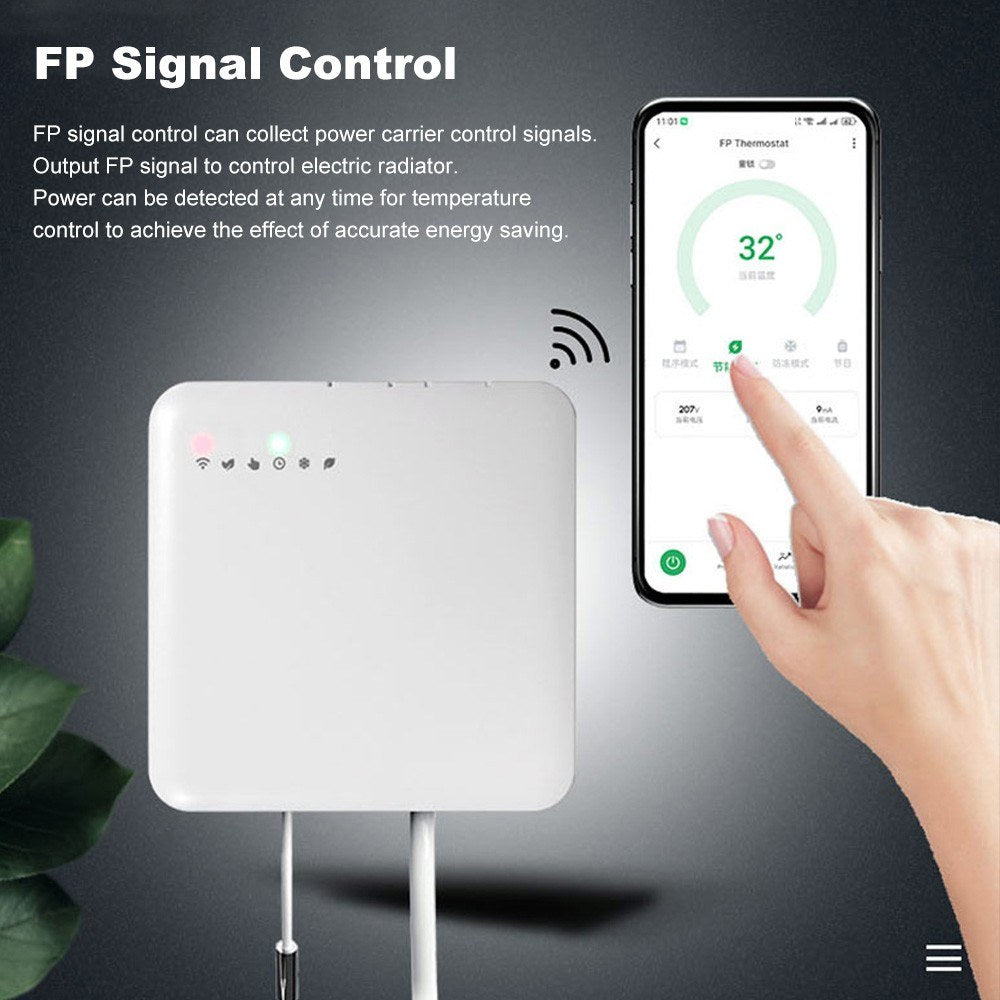

• FP Signal Control: Collects power carrier control signals and outputs FP signal to manage your electric heater efficiently.

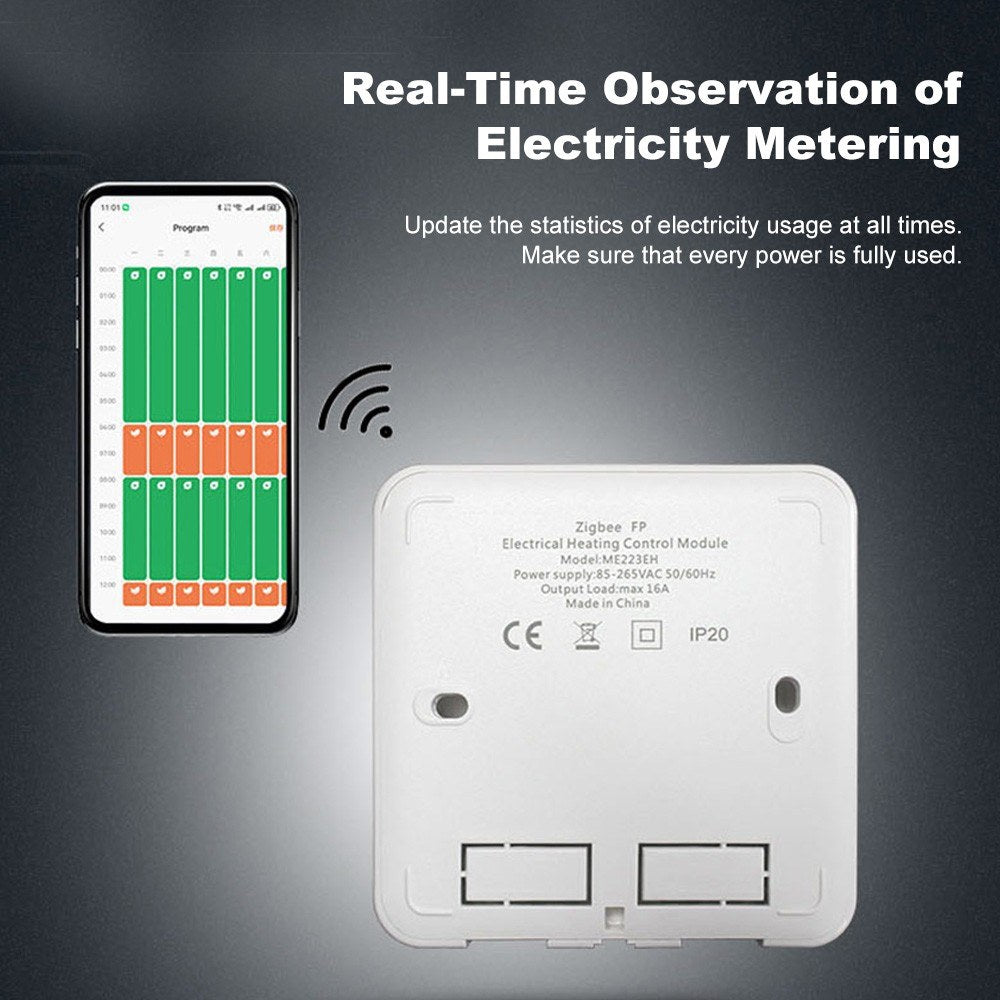

• Electricity Measurement: Ensures every kilowatt-hour is fully utilized with precise electricity usage statistics.
• Open Window Function: Automatically turns off the heater if the room temperature drops by 6℃ in 4 minutes due to an open window. This function can be manually or automatically restored if the temperature rebounds.
• APP Control: Manage your thermostat remotely using your smartphone for maximum convenience.
• Six Heating Modes: Customize your comfort with Holiday, ECO, Programming, Anti-freezing, Comfort, and Manual Modes.
• Accurate Temperature: High-precision sensor with 0.5°C accuracy for automatic temperature regulation.
• Weekly Programmable: Set different temperatures for up to 4 time periods per day to fit your schedule.
• Storage Function: Retains settings even during power outages for seamless operation.
• Versatile Usage: Ideal for use in homes, offices, hotels, and more with electric heaters.

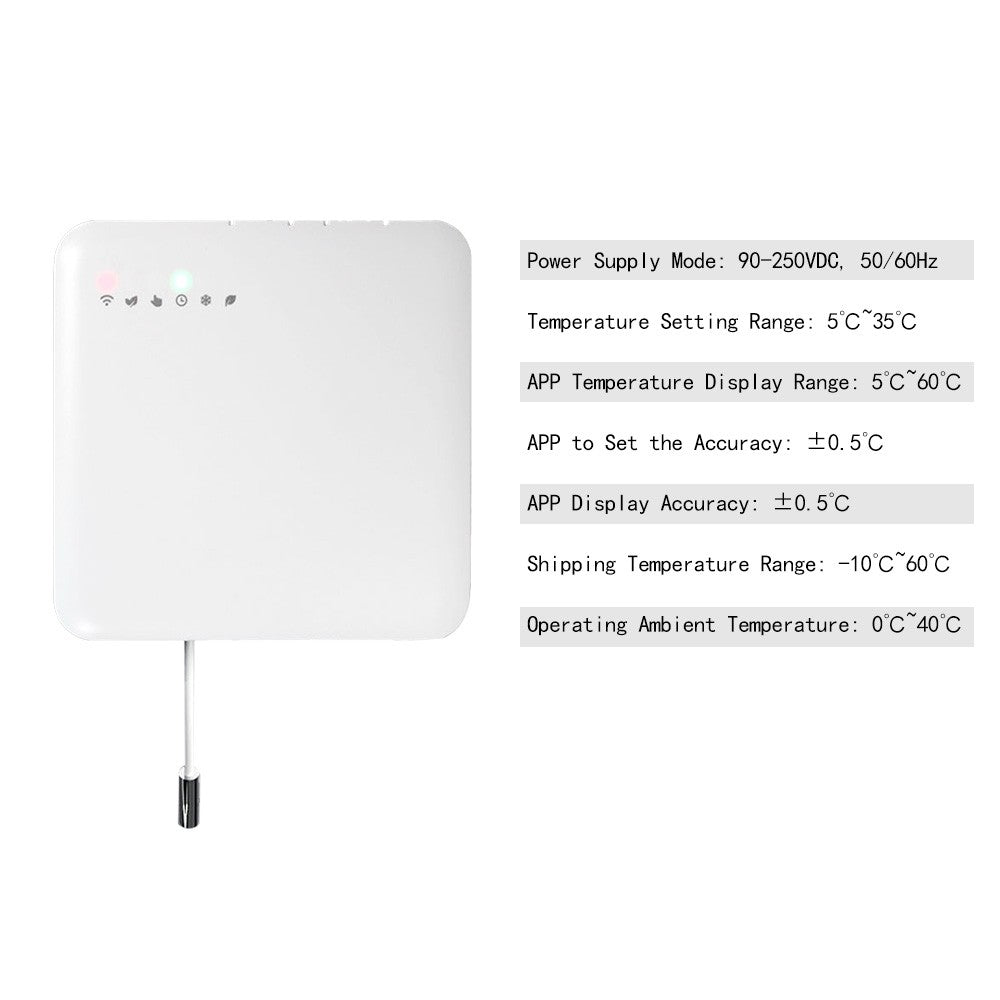

Specifications:

• Model: ME223EH
• Material: ABS
• Power Supply Mode: 90-250VDC, 50/60Hz
• Current Load: 16A
• Temperature Setting Range: 5℃~35℃
• APP Temperature Display Range: 5℃~60℃
• APP Set Accuracy: ±0.5℃
• APP Display Accuracy: ±0.5℃
• Shipping Temperature Range: -10℃~60℃
• Operating Ambient Temperature: 0℃~40℃
• Six Controlled Heating:
  • Holiday mode: 5℃~40℃ (default 18℃)
  • ECO mode: 10℃~20℃ (default 16℃)
  • Programming mode: 24-hour programming
  • Antifreeze mode: Automatic heating to maintain above-set temperature
  • Comfort mode: 18℃~25℃ (default 22℃)
  • Manual mode: Available in switch mode
• Signal Cable Length: 60cm

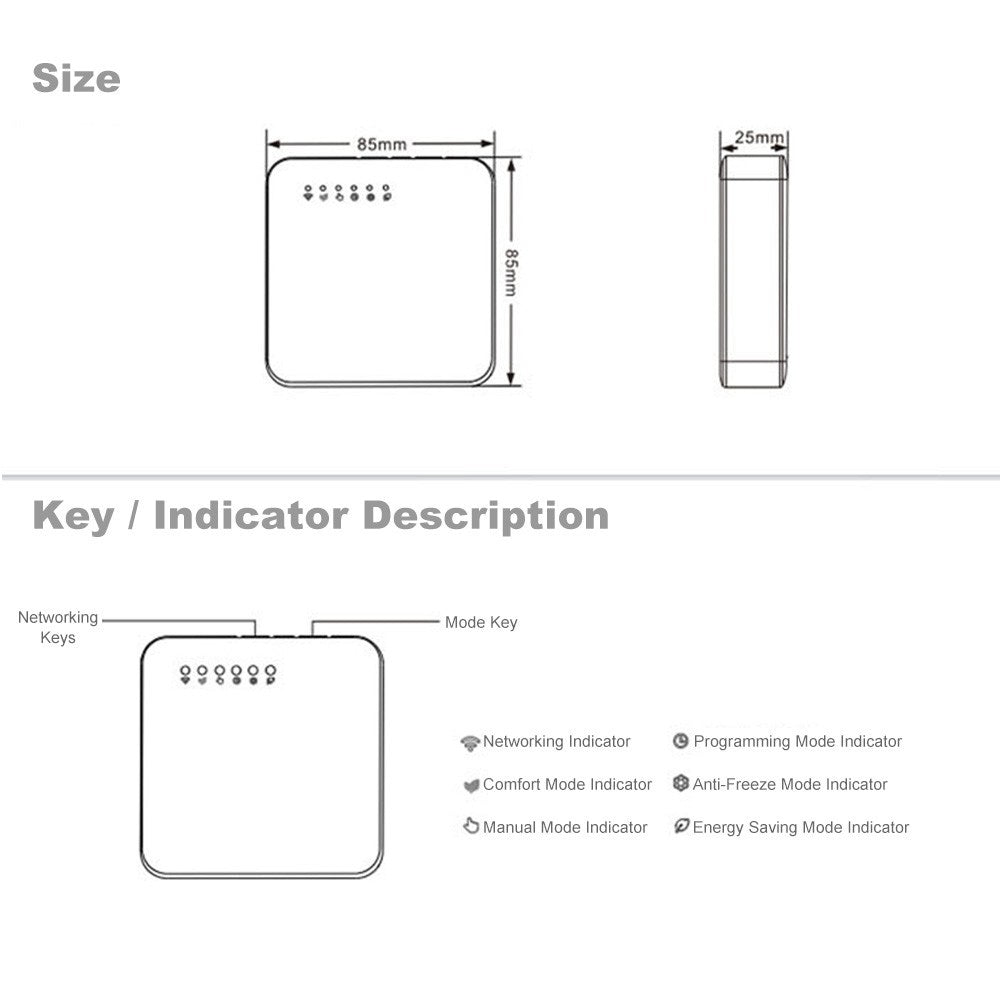

• Item Size: 84 x 84 x 23mm / 3.31 x 3.31 x 0.91in
• Item Weight: 112g / 3.95oz
• Package Weight: 166g / 5.85oz
• Package Size: 9 x 9 x 8.8cm / 3.54 x 3.54 x 3.46in

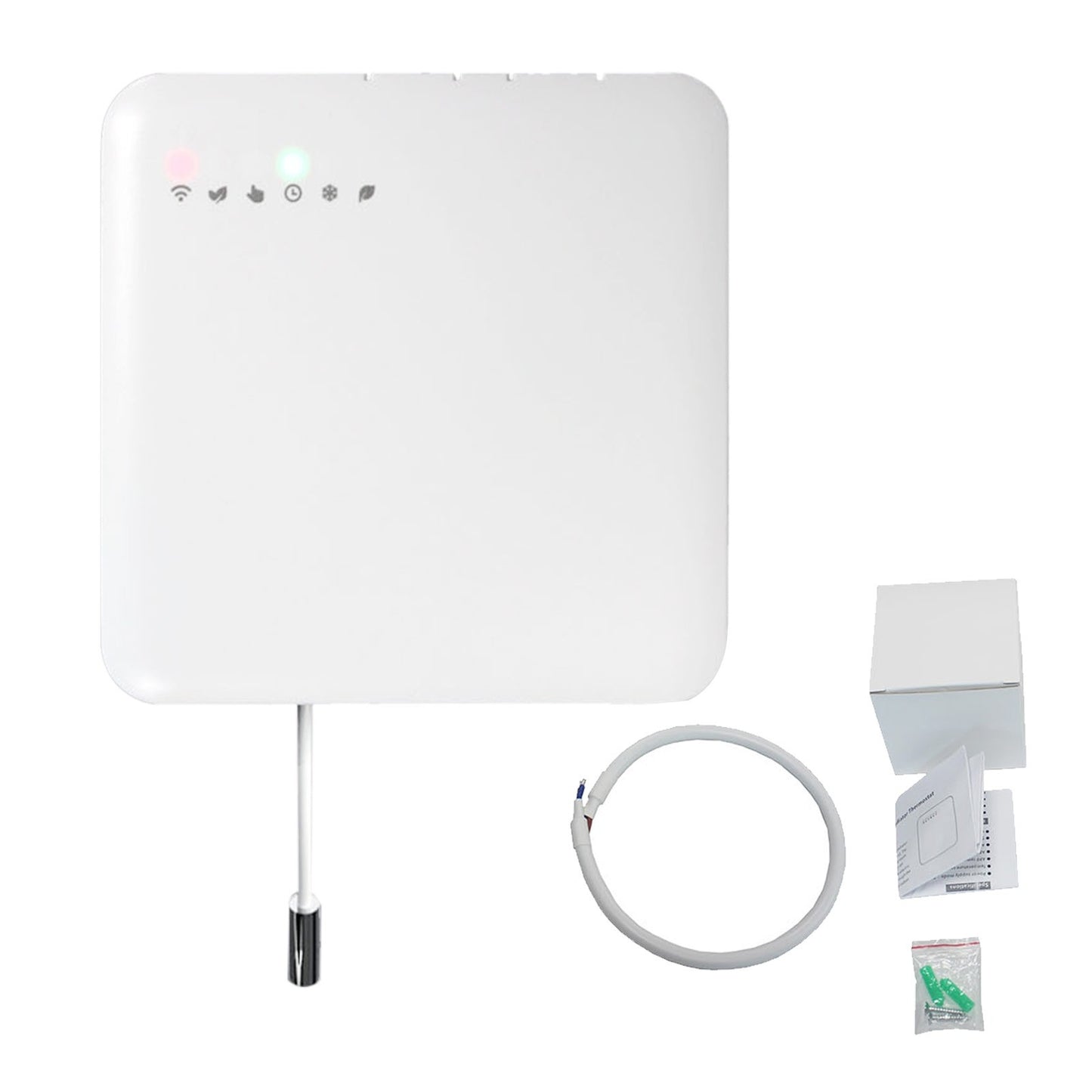

Package List:

• 1 x FP Signal Electric Radiator Thermostat
• 1 x Signal Cable
• 2 x Screws
• 2 x Protective Cover
• 1 x User Manual (English)
