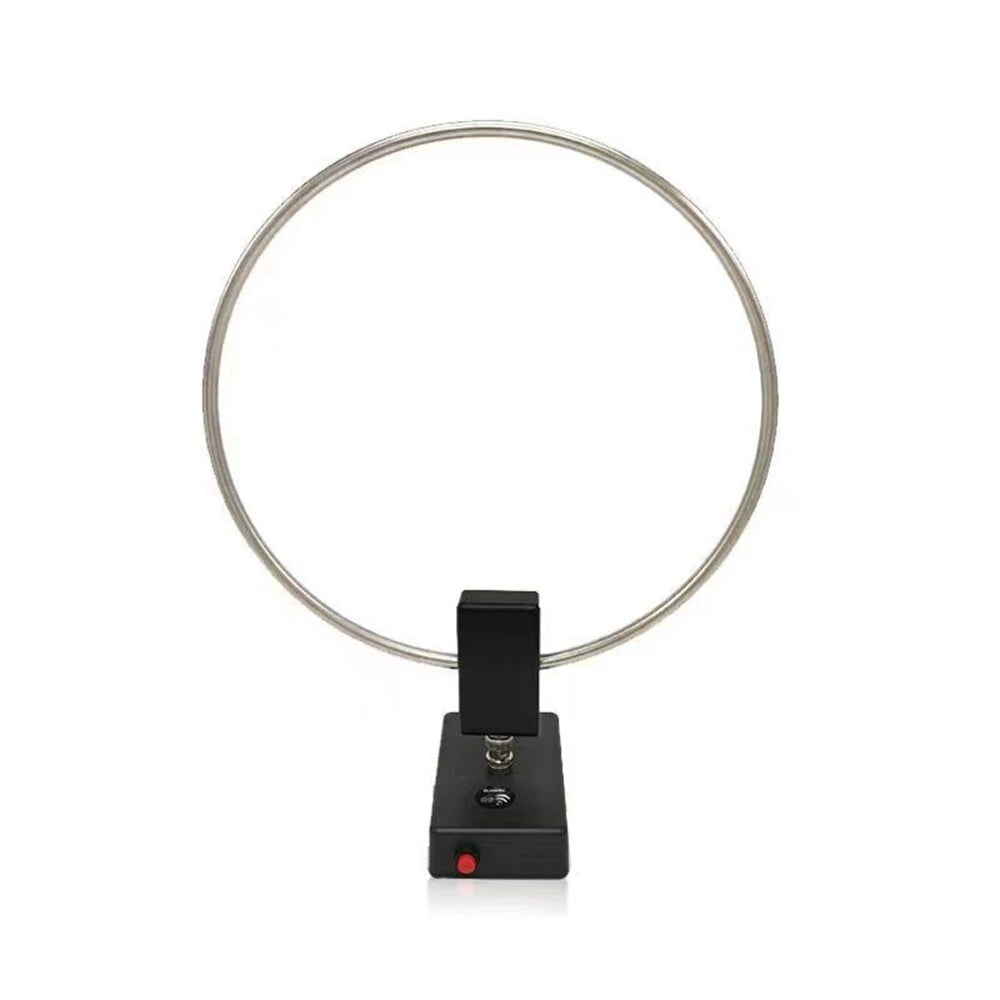

GA800 Small Active Loop Shortwave Antenna 10KHz-159MHz HF Radio

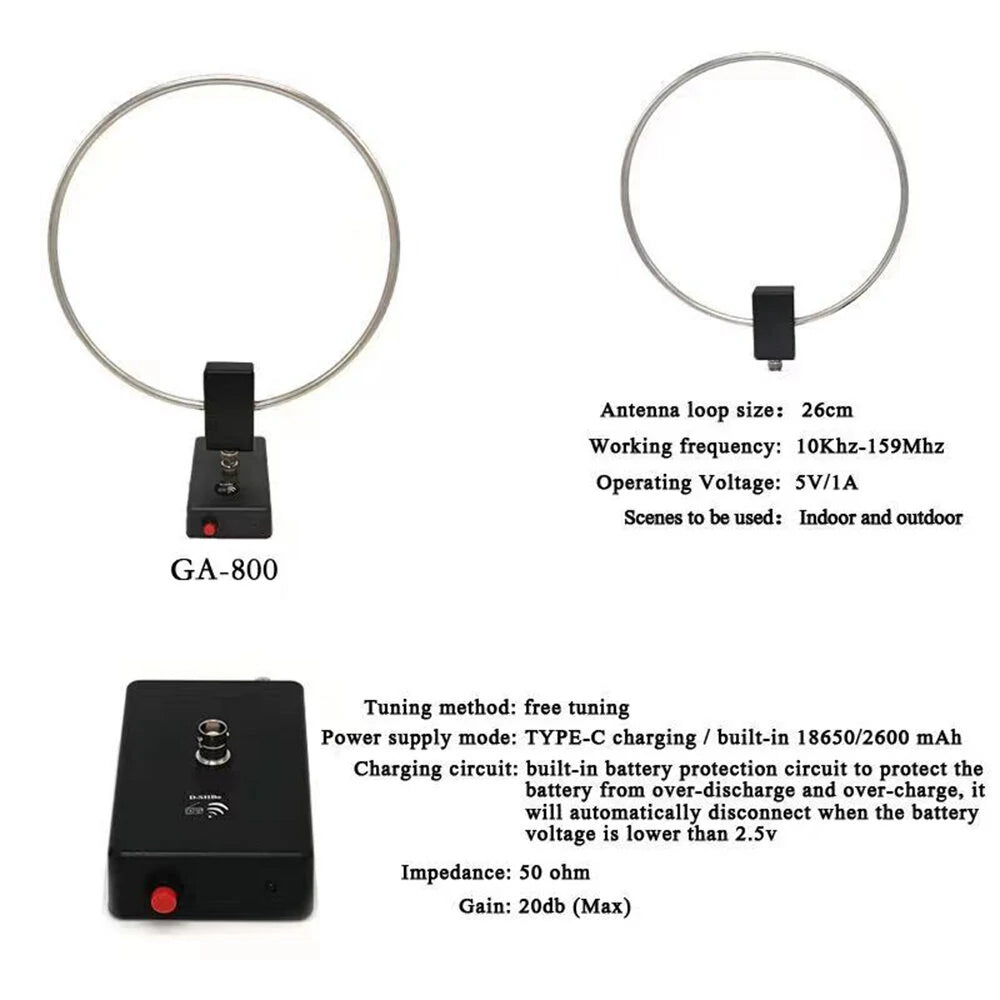

Product Specifications:

• Antenna Loop Size: 260mm (10.2") inner diameter
• Control Box Dimensions: 107 x 65 x 26mm (4.2 x 2.6 x 1")
• Working Frequency: 10KHz - 159MHz
• Operating Temperature: -10℃ to +60℃
• Working Voltage: 5V/1A
• Power Supply Mode: TYPE-C charging / Built-in 18650/2600mAh battery
• Impedance: 50 Ohm
• Gain: 20dB (Max)
• Charging Circuit: Built-in battery protection to prevent over-discharge and over-charge. Automatically disconnects if battery voltage falls below 2.5V.
• Packing Weight: 650g
• Packing Dimensions: 28 x 28 x 5cm

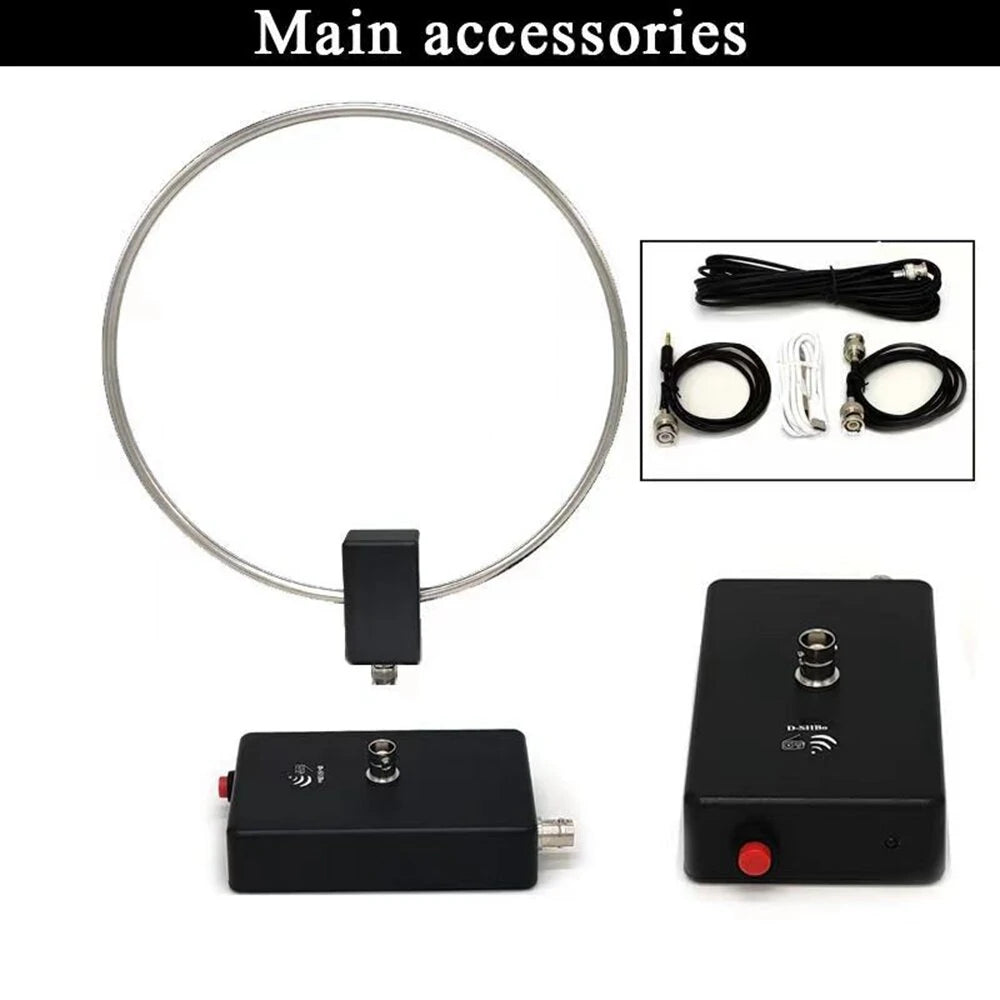

Package Includes:

• 1 x Antenna with Control Box
• 1 x User Manual
• 1 x BNC Cable (5m / 16.4ft)
• 1 x Power Cable (Type-C)
• 2 x Output Cables (BNC-3.5 x 1m / 3.3ft; BNC-BNC x 1m / 3.3ft)
• 1 x Adapter (BNC-SMA)
