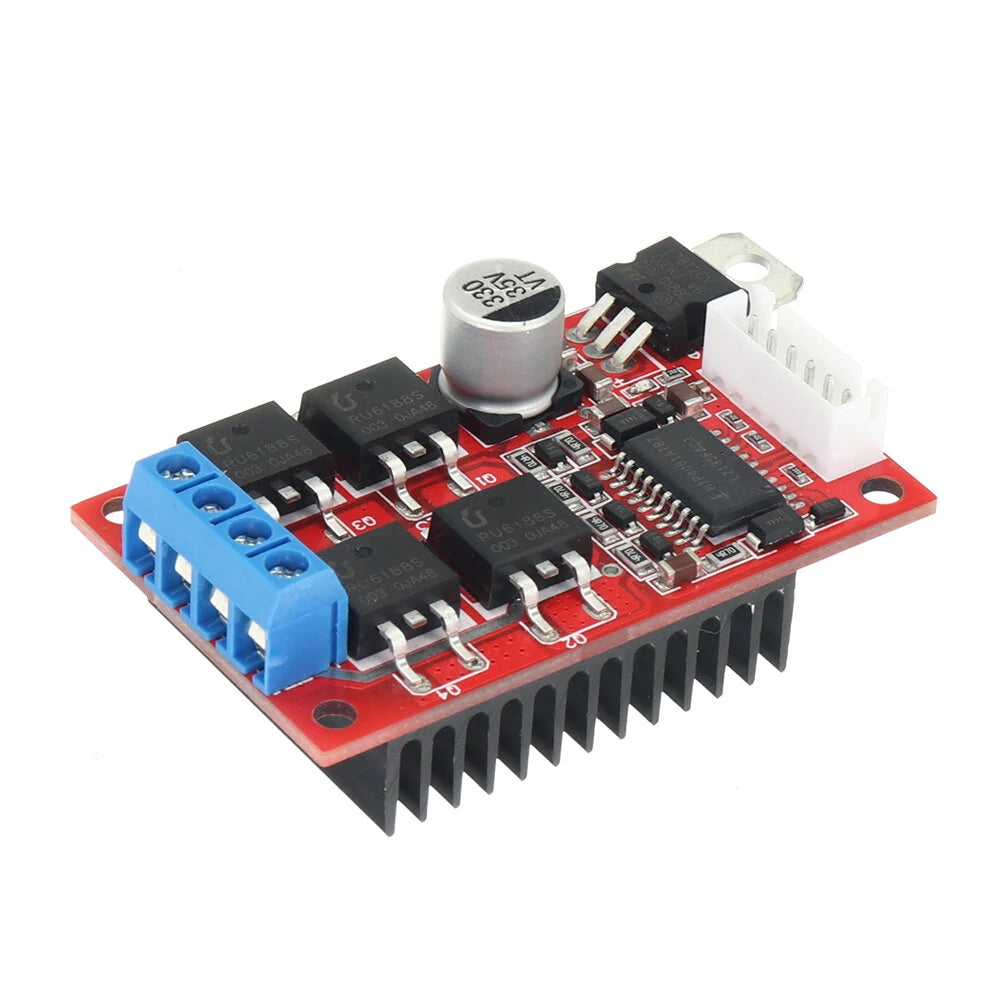

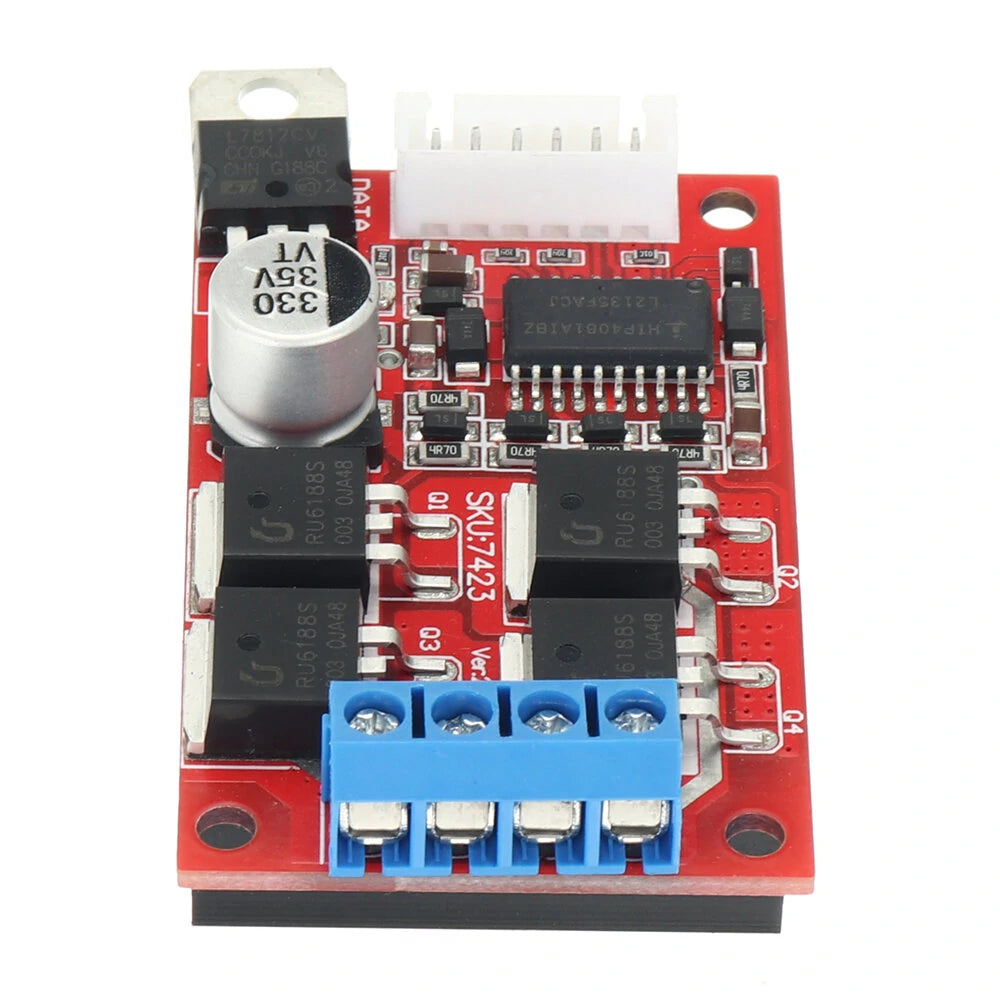

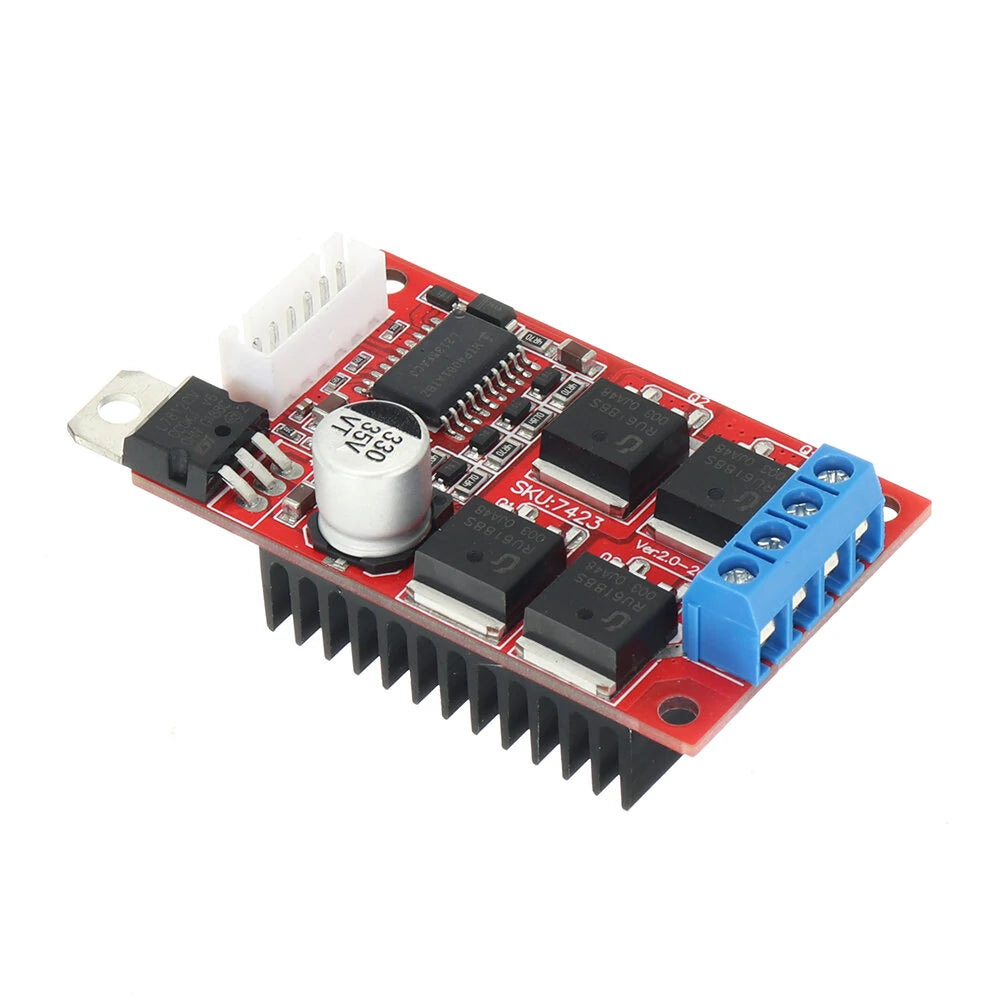

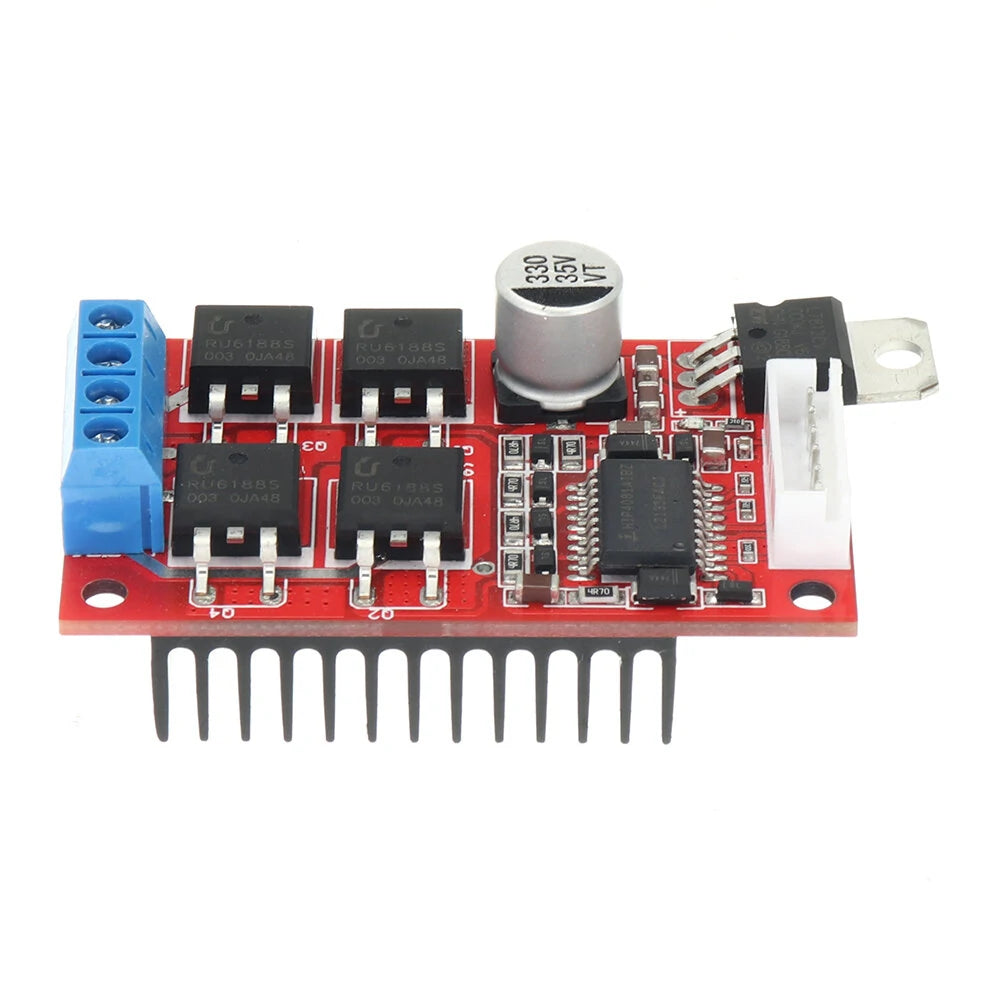

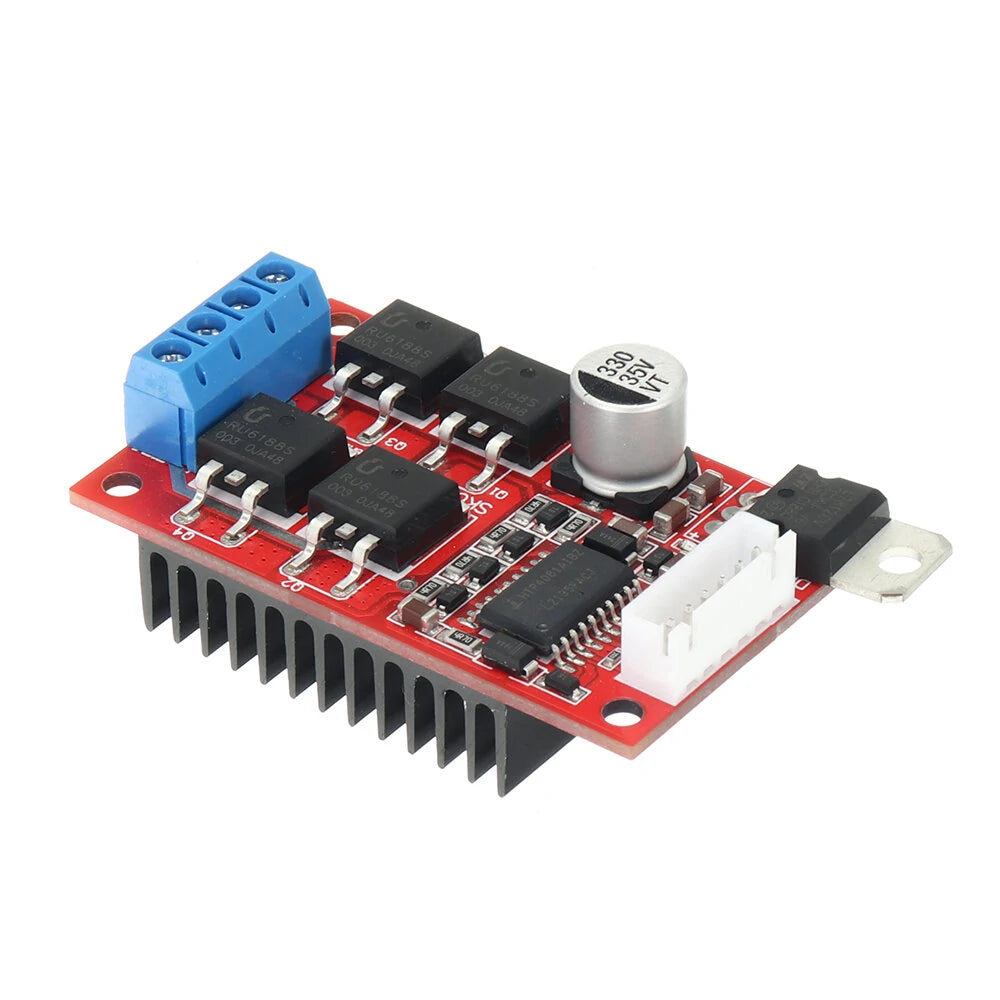

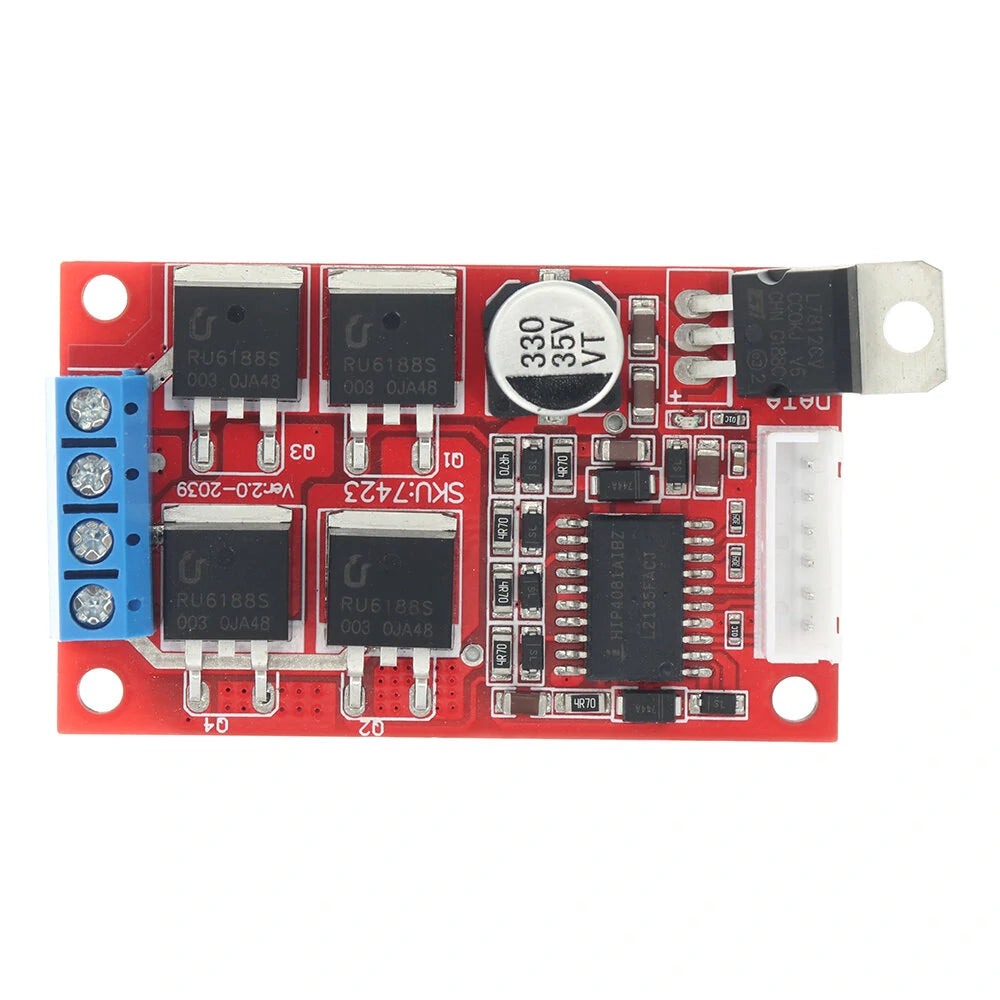

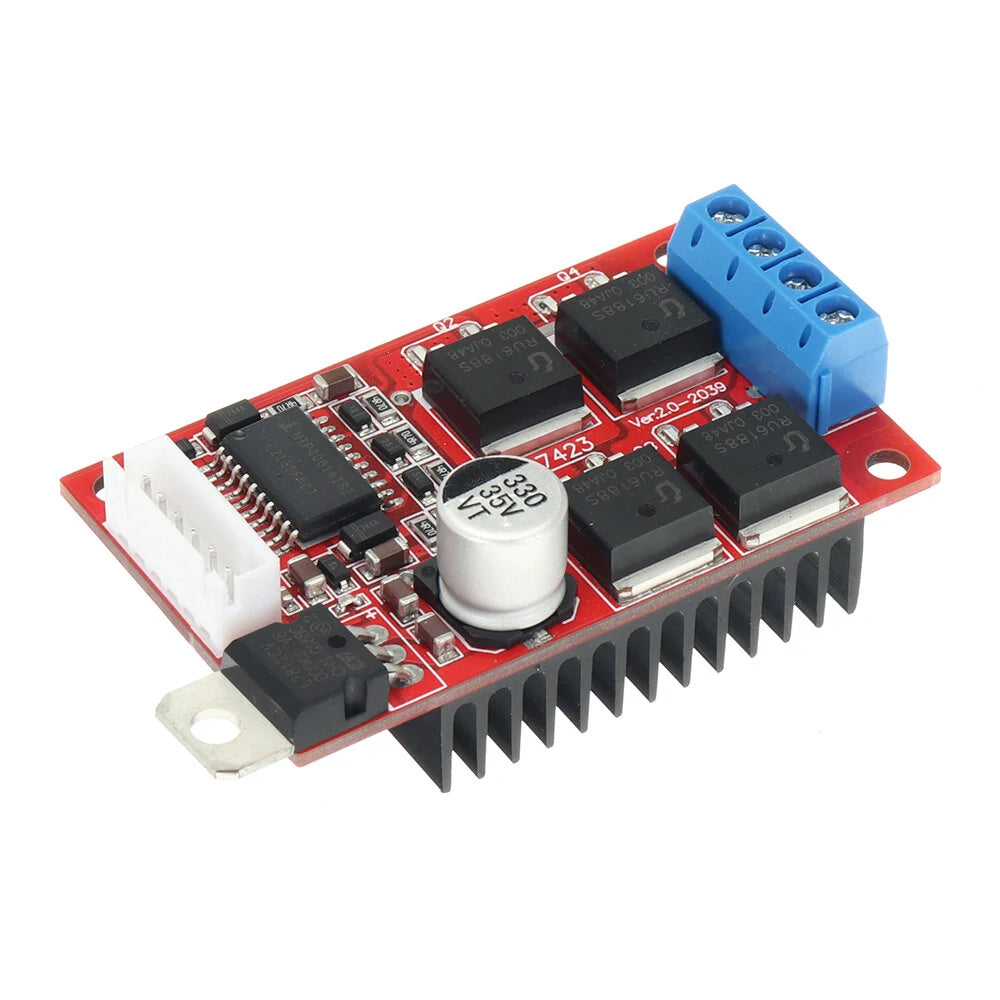

20A H-Bridge DC Motor Speed Controller, 450W, DC12-36V PWM, Forward/Reverse/Brake

Product Specifications:

• Product Name: 450W 20A H Bridge DC Motor Speed Controller Driver Module
• Applicable Range: Ideal for large power DC motor drives, widely used in large vehicles, robots, and more.
• Drive Voltage: DC 11-36V input, direct current voltage (no alternating current input)
• Output Current:
  • Rated continuous output: 24V at 15A, 360W with no need for a radiator
  • Max output: 36V 15A, 450W
• Output Power: Natural cooling rating at 450W with 36V 15A supply
• Working Temperature: Industrial-grade (-40°C to +85°C)
• Weight: 293g

Key Features:

• Versatile Control: Allows for three-line control adjustments including speed, direction, and braking.
• Wide Voltage Support: Supports a voltage range from 10-36V with an undervoltage protection feature.
• High Load Capacity: Continuously loads current up to 20A with a simple radiator, handling peak currents up to 110A for short periods.
• Compact Design: Small size with dimensions of 6.6cm x 3.8cm, and a height of 2.8cm when a 1cm thick radiator is attached.
• Easy Integration: Can be directly integrated with PLC or 3.3V to 5V single-chip microcomputer IO ports, featuring a built-in interface level buffer.

Product Usage Instructions:

Enable: Power on the device.

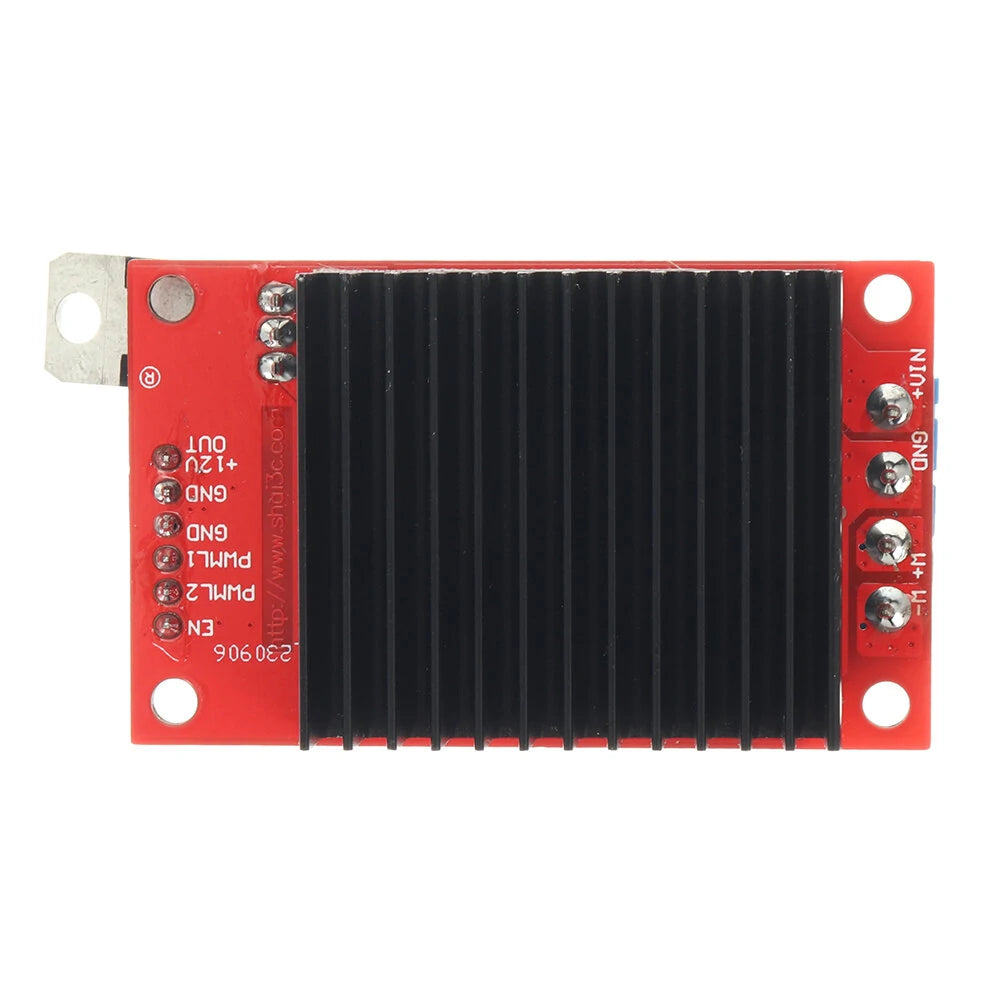

Control Lines:

• Pwml1: Controls forward movement.
• Pwml2: Controls reverse movement.
• GND: Ground connection for power supply.

Output Connections:

• VIN+: Positive power supply input (Active 10V-36V)
• GND: Negative power supply input
• M+: Connect to positive motor wire
• M-: Connect to negative motor wire

Control Methods:

Level Control Method:

• En = 0, Pwml1 = 0, Pwml2 = 1: Motor rotates forward
• En = 0, Pwml1 = 1, Pwml2 = 0: Motor reverses
• En = 0, Pwml1 = 1, Pwml2 = 1: Motor brakes
• En = 1, Pwml1 = 1, Pwml2 = 1: Motor is free

PWM Control Method:

• En = 0, Pwml1 = PWM signal (adjustable), Pwml2 = 1: Motor rotates forward, speed adjustable
• En = 0, Pwml1 = 1, Pwml2 = PWM signal (adjustable): Motor reverses, speed adjustable
• En = 0, Pwml1 = 1, Pwml2 = 1: Motor brakes
• En = 1, Pwml1 = 1, Pwml2 = 1: Motor is free

Package Includes:

• 1 x Module Board
