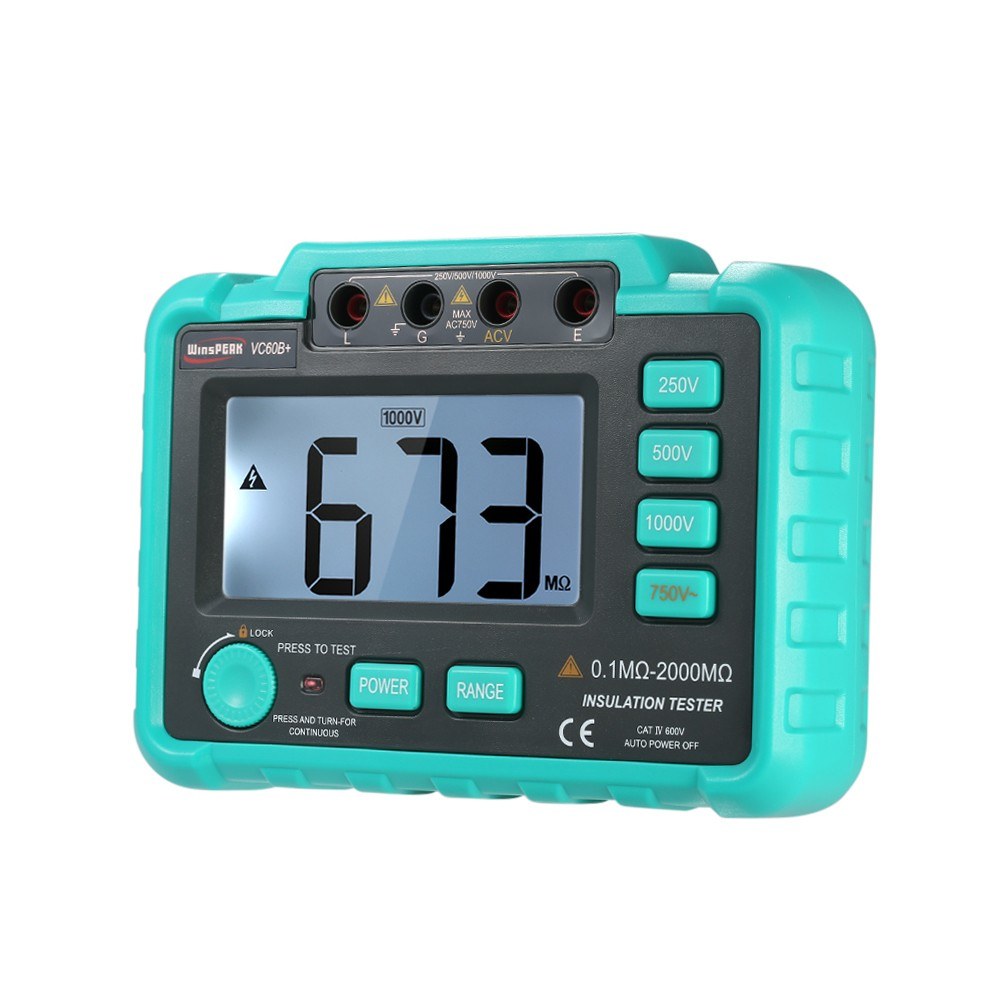

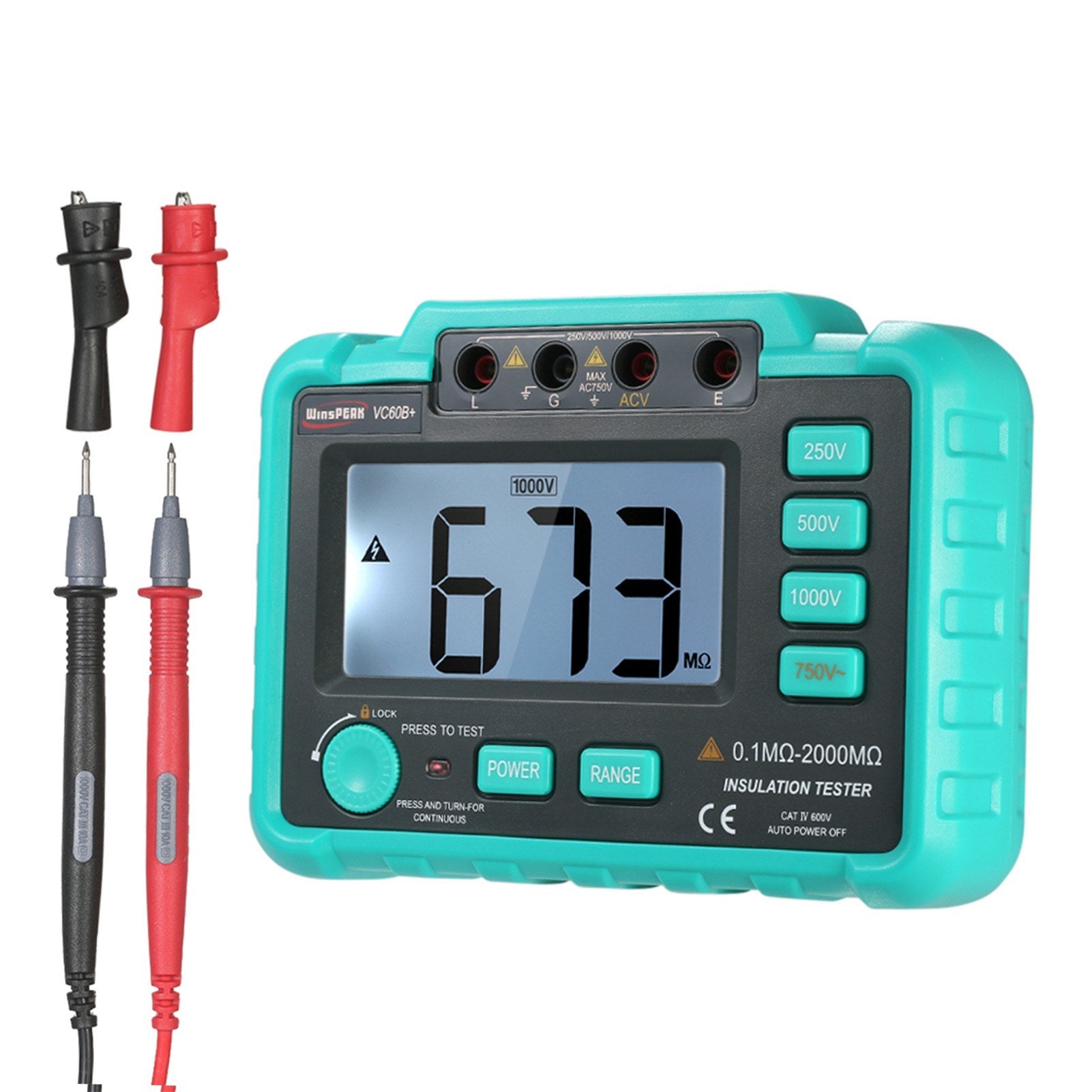

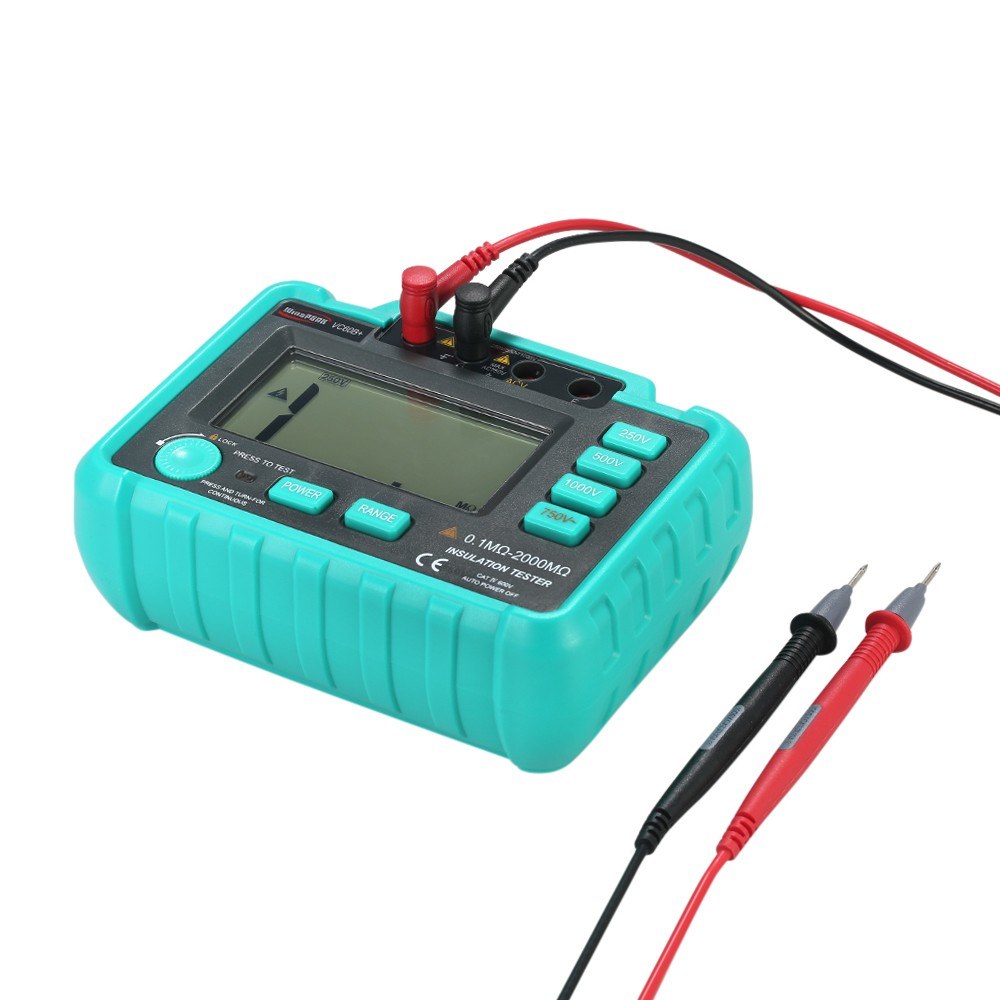

WinsPEAK VC60B+ LCD Digital Megohmmeter 250V/500V/1000V Insulation Resistance Tester

Introducing our advanced digital Insulation Resistance Tester, designed for efficient and accurate electrical measurements. This device uses a low-loss, high-ratio inductance energy storage DC voltage converter to convert 12V to DC 250V/500V/1000V. It features a digital LCR Bridge for precise resistance evaluation, making it ideal for insulation resistance testing.

Key Features:

• Wide Measuring Range: Up to 2000MΩ at 1000V with an accuracy of ±(4% of reading + 2 digits).
• Large LCD Display: 90 x 48mm with backlight, capable of displaying up to "1999".
• Convenient Functions: Includes data hold, test lock, and auto power off for ease of use.
• Low Power Consumption: Consumes less than 300mW during no-load measurement.
• Stable Performance: Perfect for testing insulation resistance in motors, cables, electrical and telecommunication equipment.

Product Specifications:

• Color: Dark Grey and Green
• Material: Durable ABS
• Output Voltage: DC250V/500V/1000V, ±10%

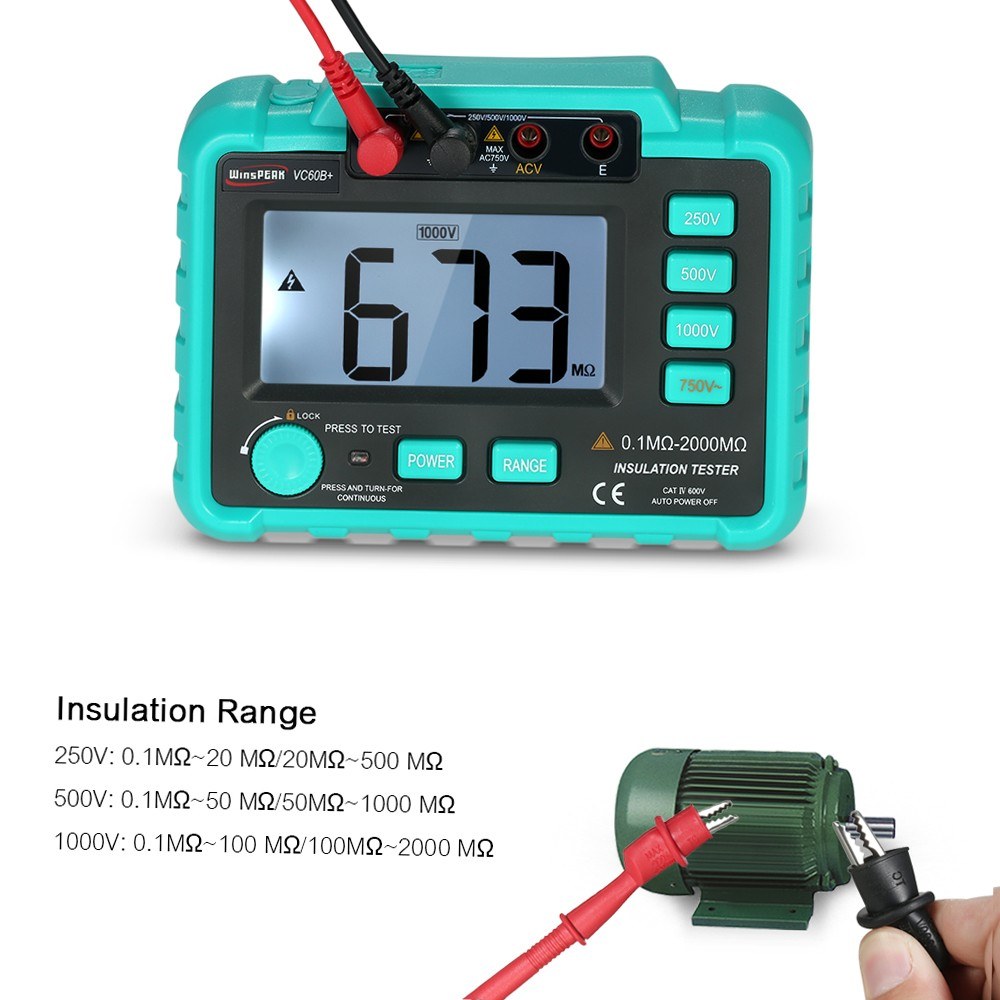

• Insulation Range:
  • 250V: 0.1MΩ~20 MΩ / 20MΩ~500 MΩ
  • 500V: 0.1MΩ~50 MΩ / 50MΩ~1000 MΩ
  • 1000V: 0.1MΩ~100 MΩ / 100MΩ~2000 MΩ
• Accuracy: ±(4% reading + 2 digits)
• Short-circuit Current: <1.6mA
• Median Resistance: 250V/500V: 2MΩ; 1000V: 5MΩ

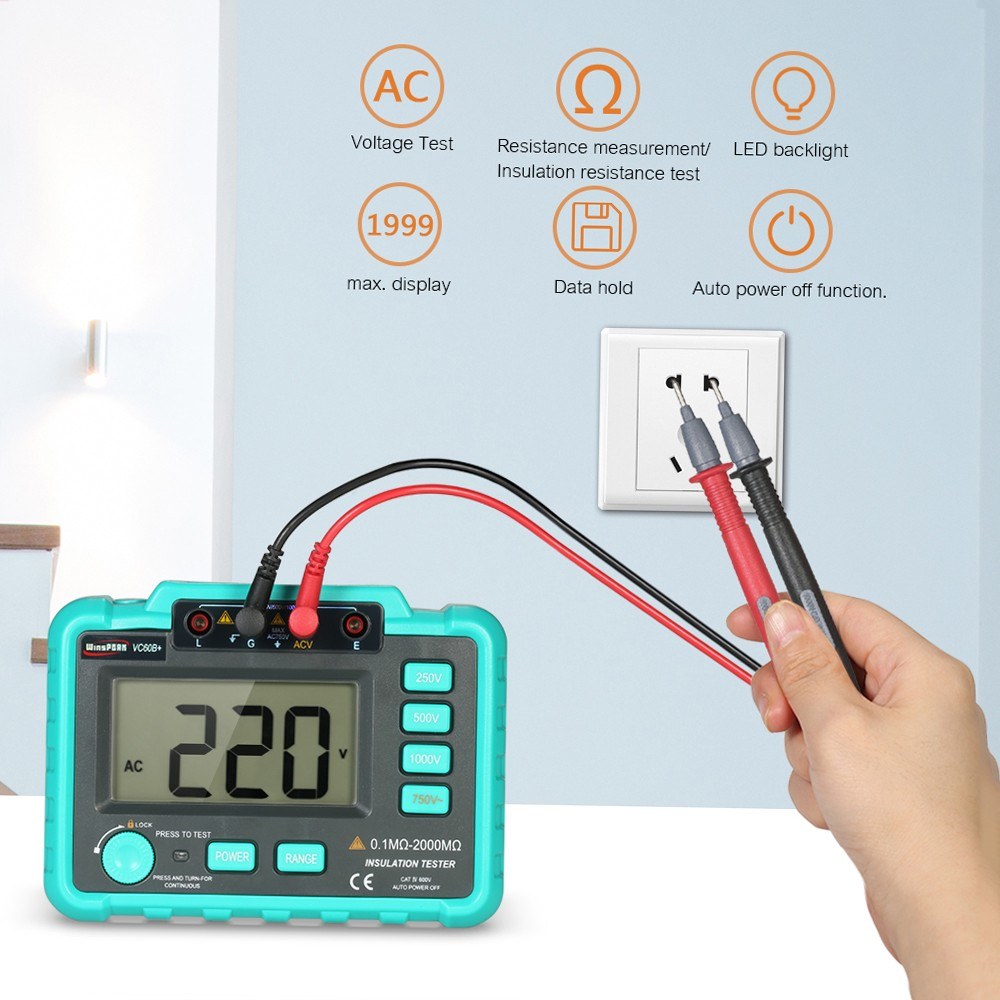

• Voltage Test: AC750V with accuracy of ±(1% reading + 6 digits)
• Input Impedance: 1MΩ
• Frequency Response: 50~200 Hz
• Measurement Method: A / D Conversion with a sampling rate of 3 times/second
• Operating Conditions: Temperature 0~40°C, Humidity 30%~85%RH

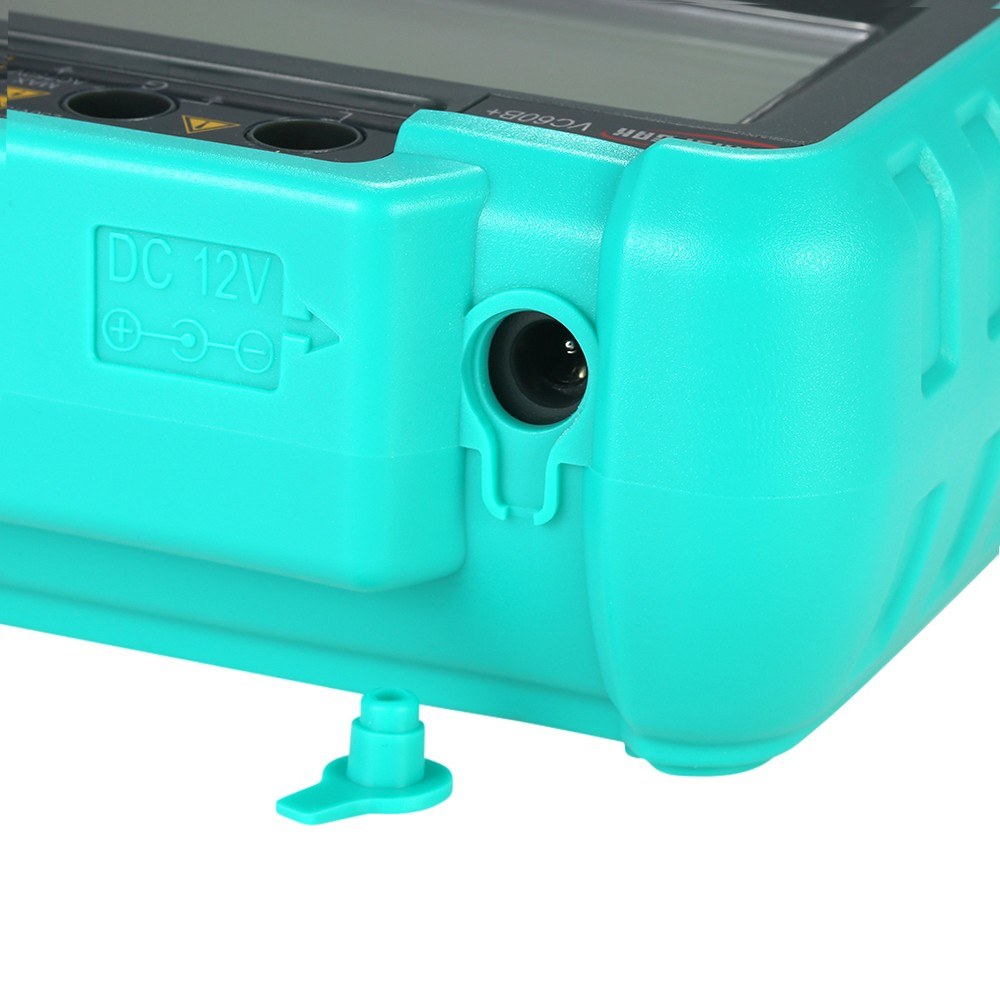

• Power Supply: 8 x 1.5V LR6 Batteries (not included) or DC 12V Power Adapter (not included)
• Product Size: 170 x 120 x 60mm / 6.7 x 4.7 x 2.36in
• Product Weight: 528g / 18.65oz
• Package Size: 20 x 16.5 x 7cm / 7.87 x 6.5 x 2.76in
• Package Weight: 730g / 25.77oz

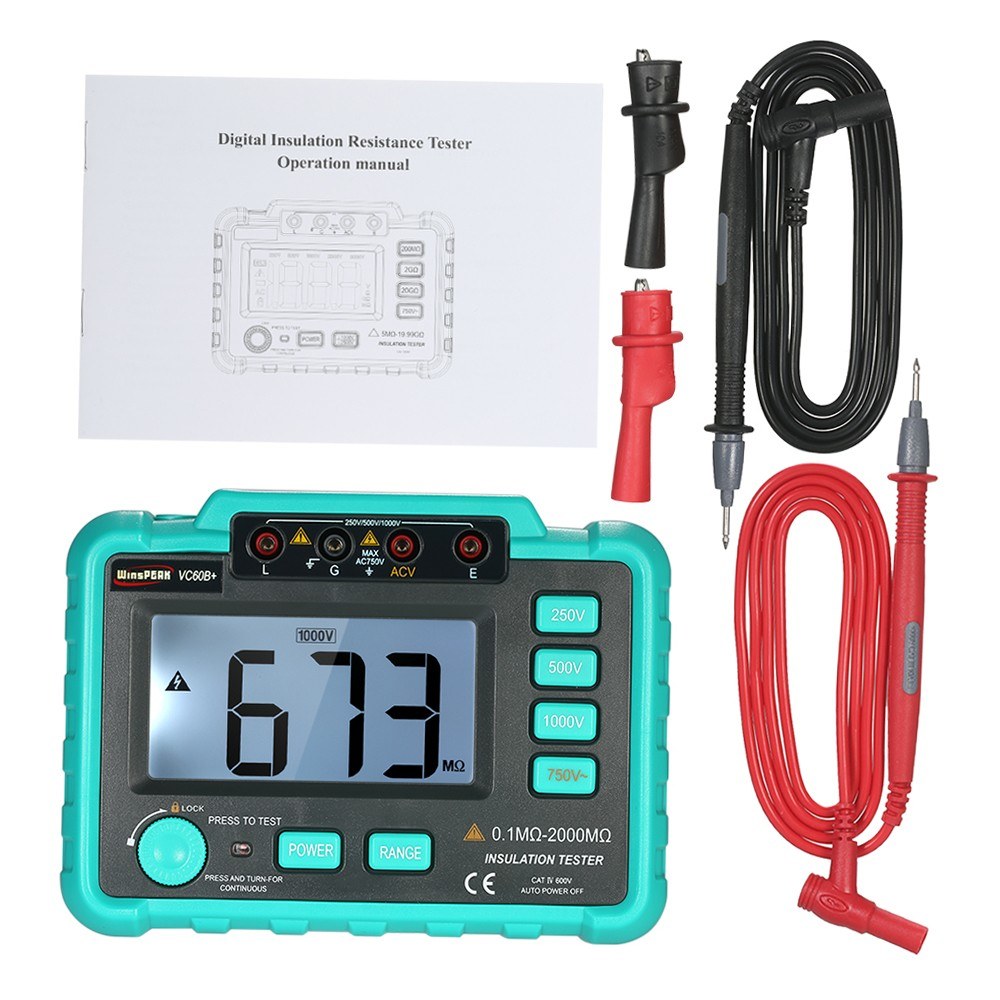

Package Includes:

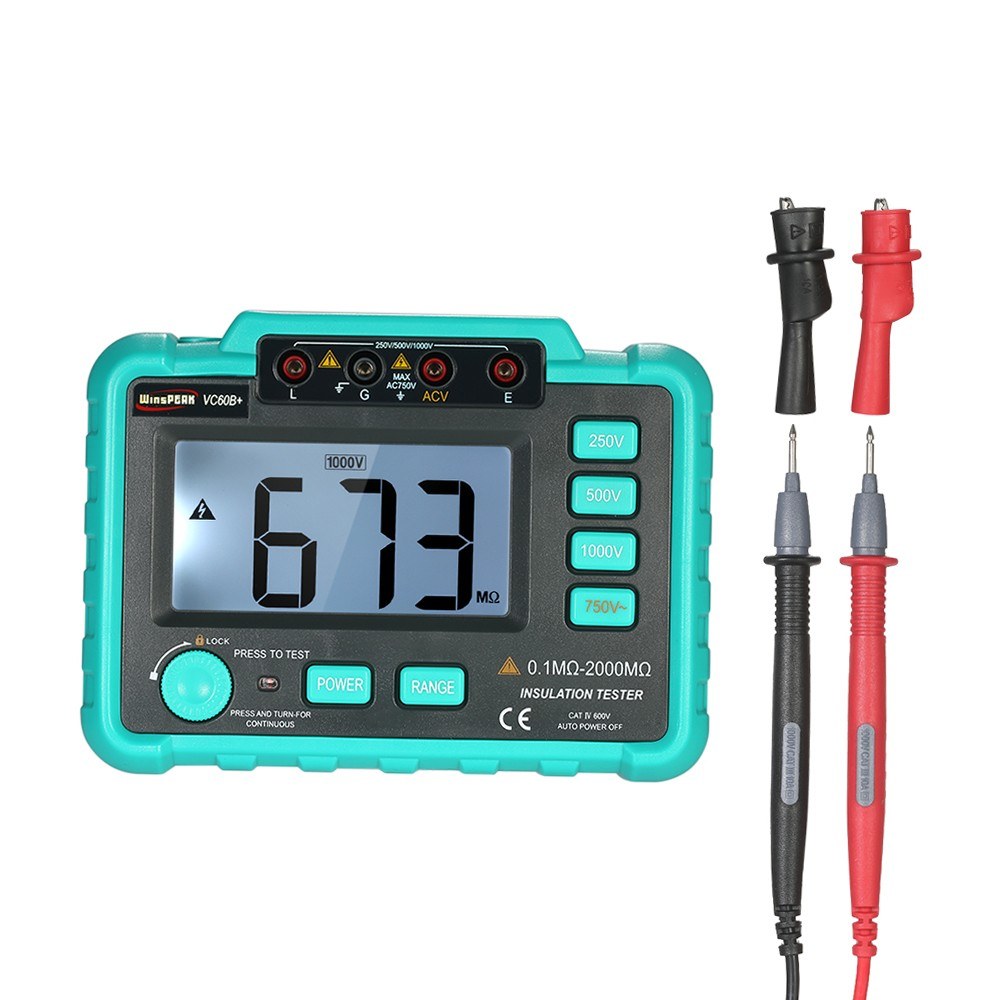

• 1 Insulation Resistance Tester
• 1 Pair of 10A Test Leads

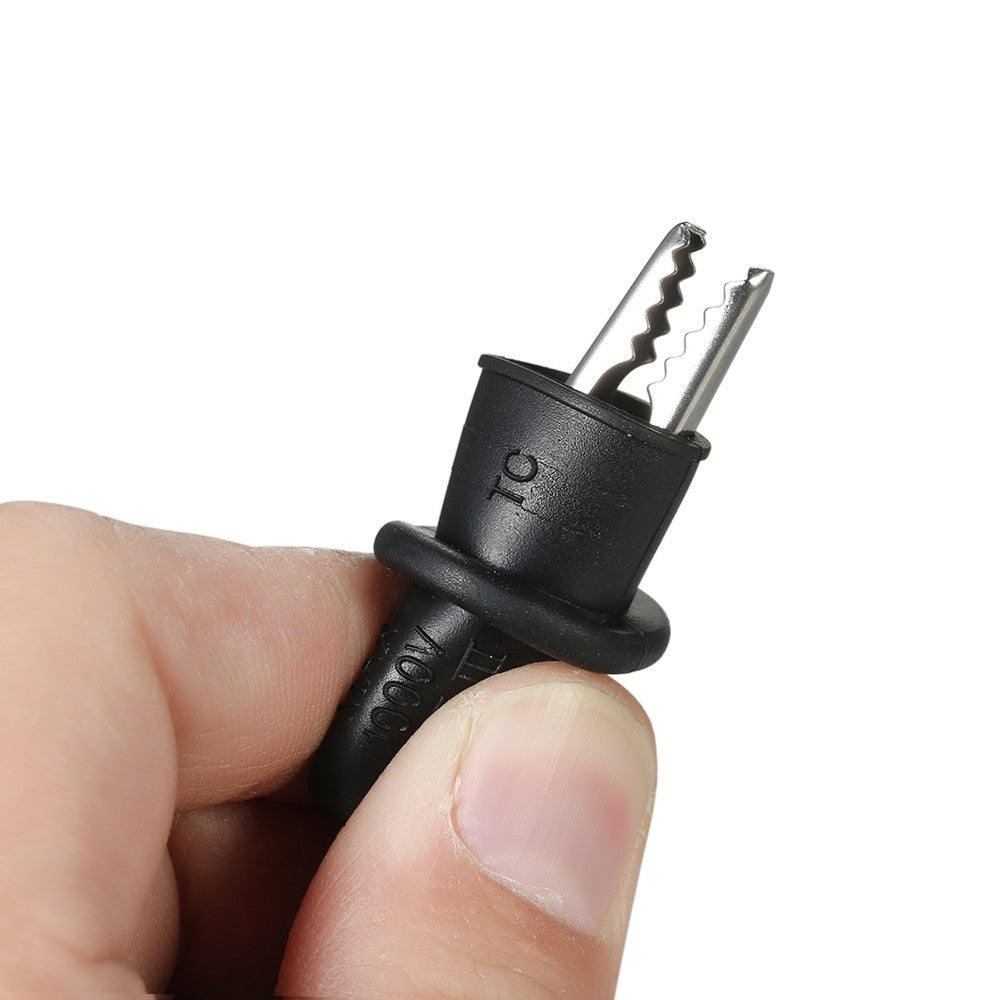

• 2 Alligator Clips
• 1 User Manual (English)
