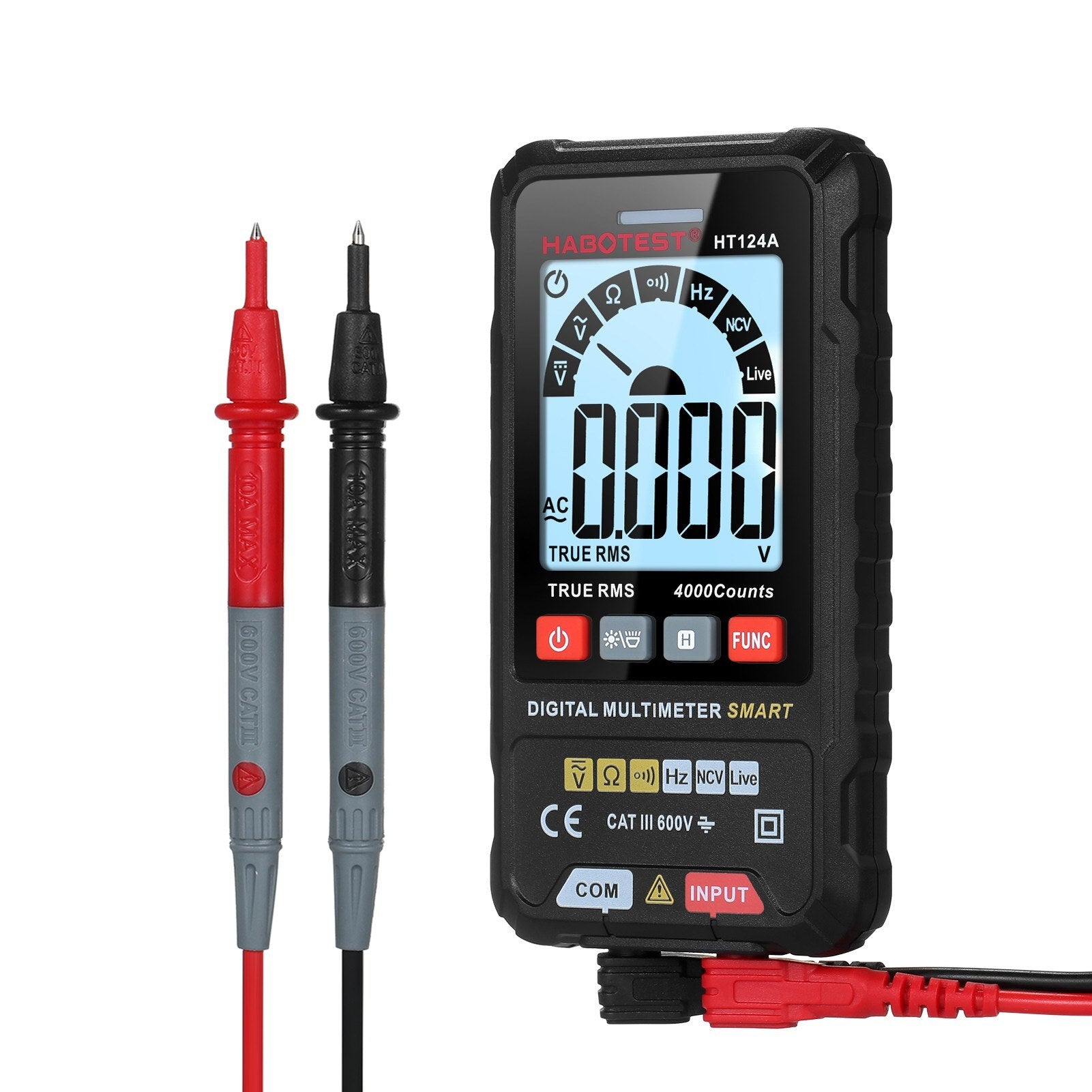

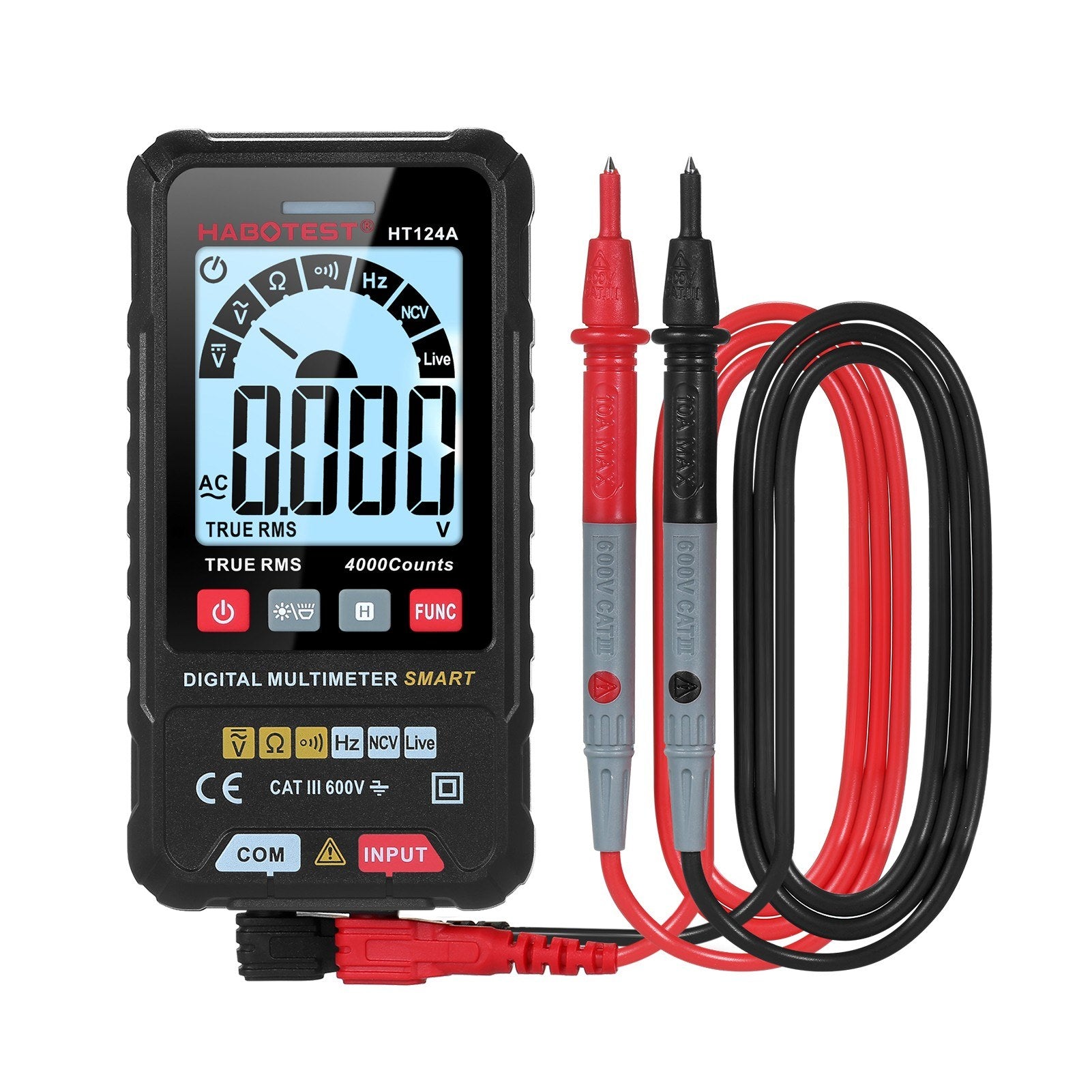

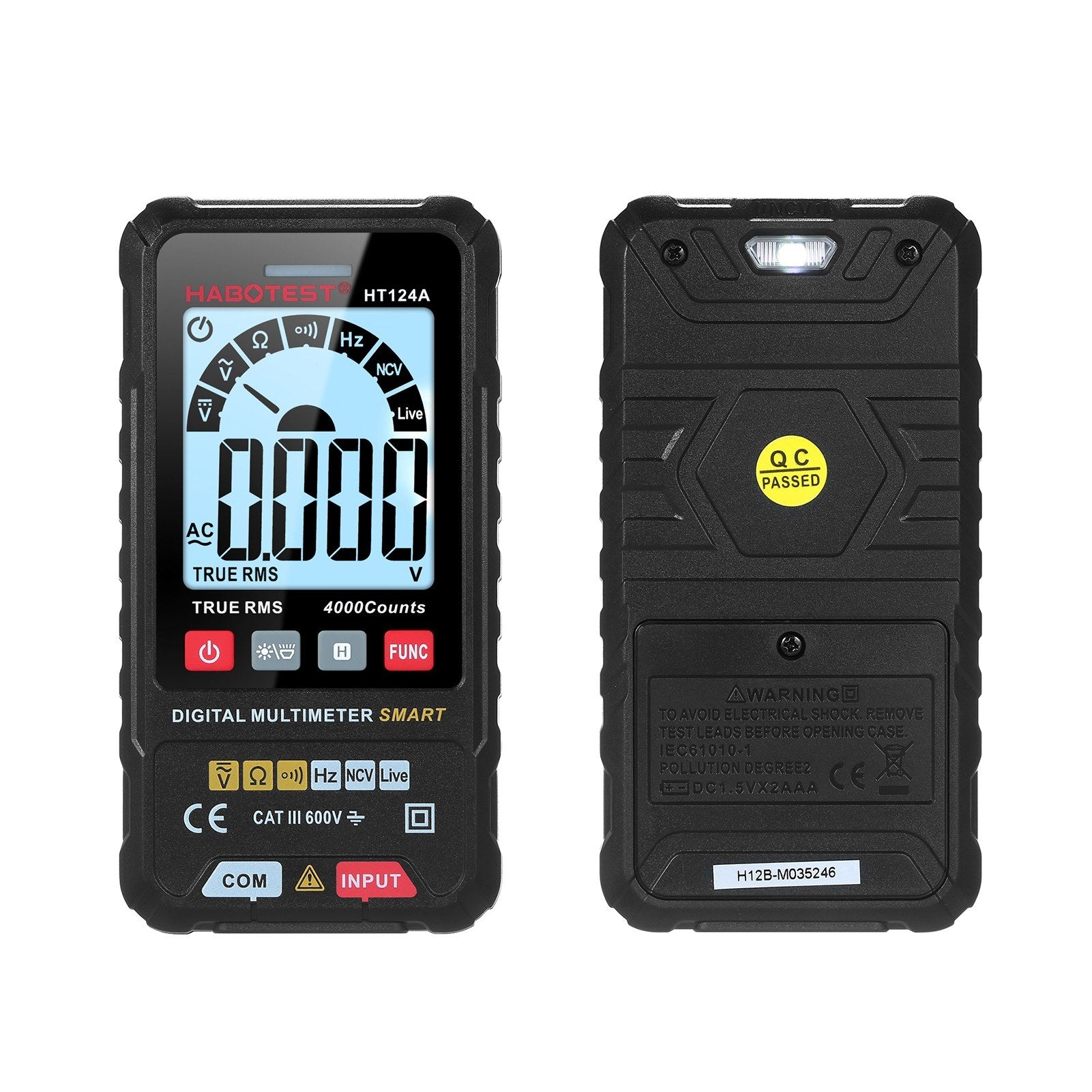

3-in-1 Multifunctional Digital Multimeter

This multifunctional tool integrates a smart digital multimeter, electrical test pen, and flashlight into one convenient device. Perfect for tackling electrical testing, automotive repairs, and various household or industrial electrical issues. Its user-friendly design features a backlit LCD screen for easy readings and an ergonomic grip for comfortable handling.

Features

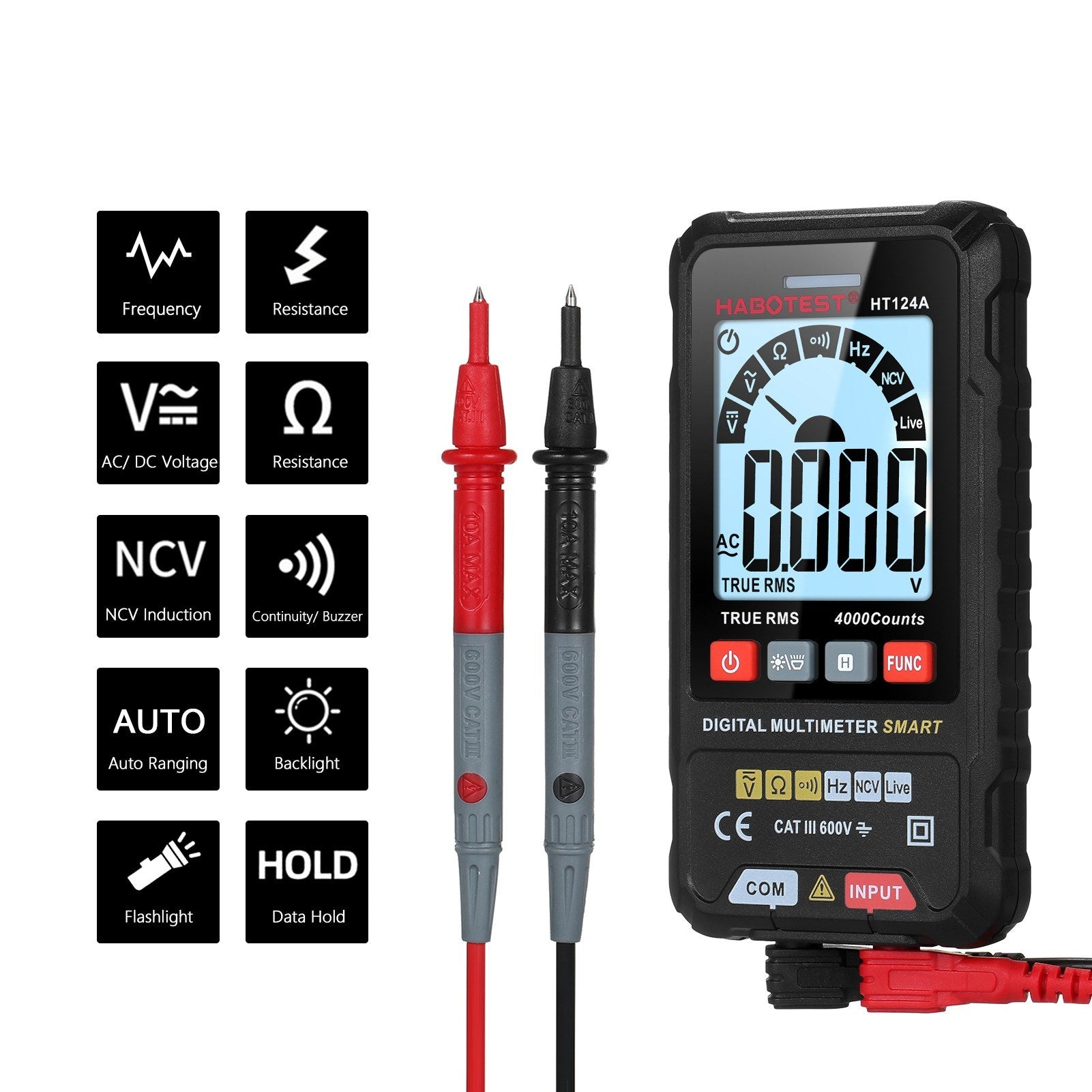

• 3-in-1 Multifunction: Smart digital multimeter, electrical test pen, and flashlight combined in a single device. Easy-to-install and use measuring pens.

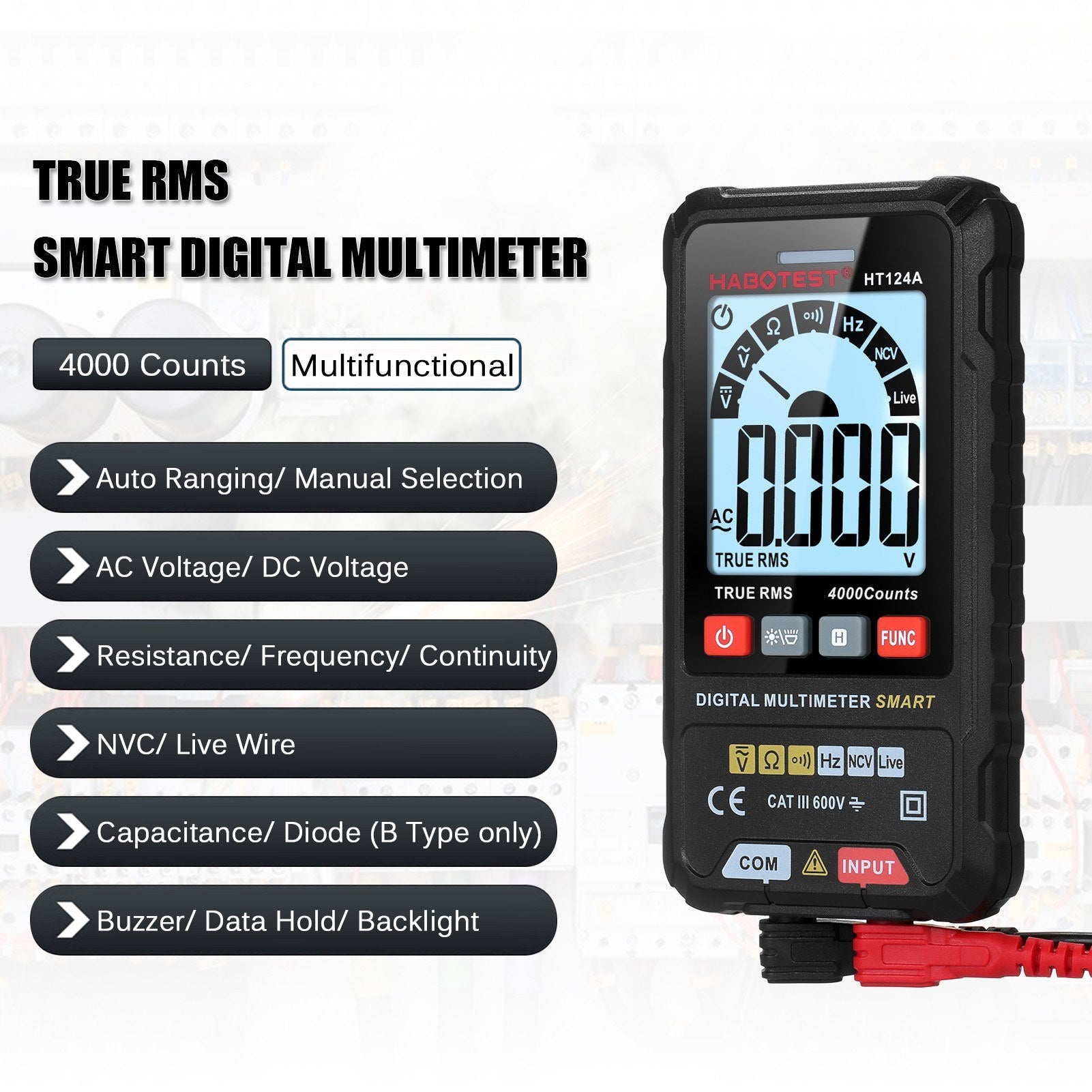

• Auto Recognition / Manual Selection: Offers high accuracy, a wide measuring range, and 4000 counts. Automatically recognize or manually select to test AC voltage, DC voltage, resistance, frequency, and continuity. The HT124B model also tests capacitance and diode.

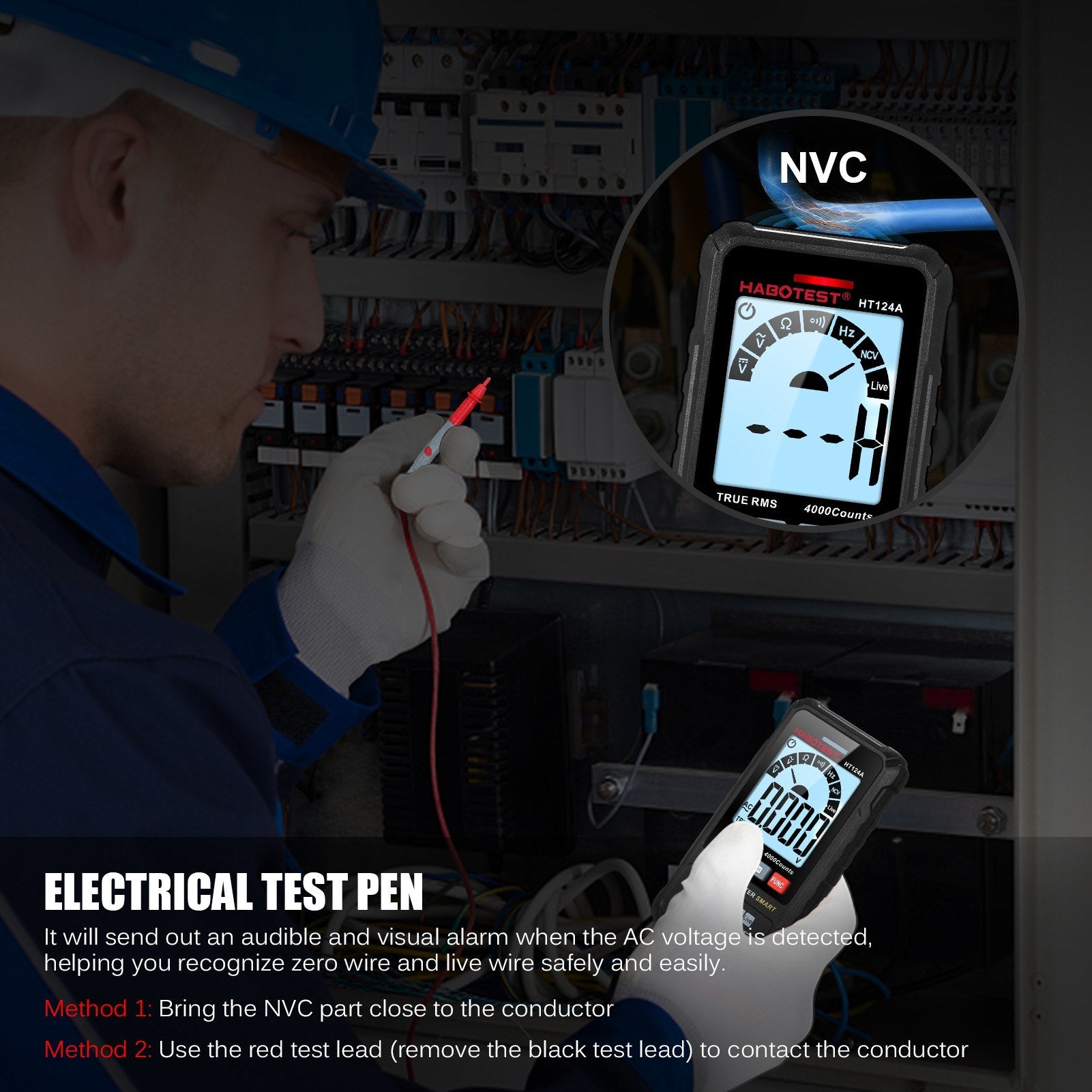

• Electrical Test Pen: Detect AC voltage with an audible and visual alarm when the NVC part is near a conductor or the red measuring pen contacts it. Simplifies differentiation between zero and live wires.

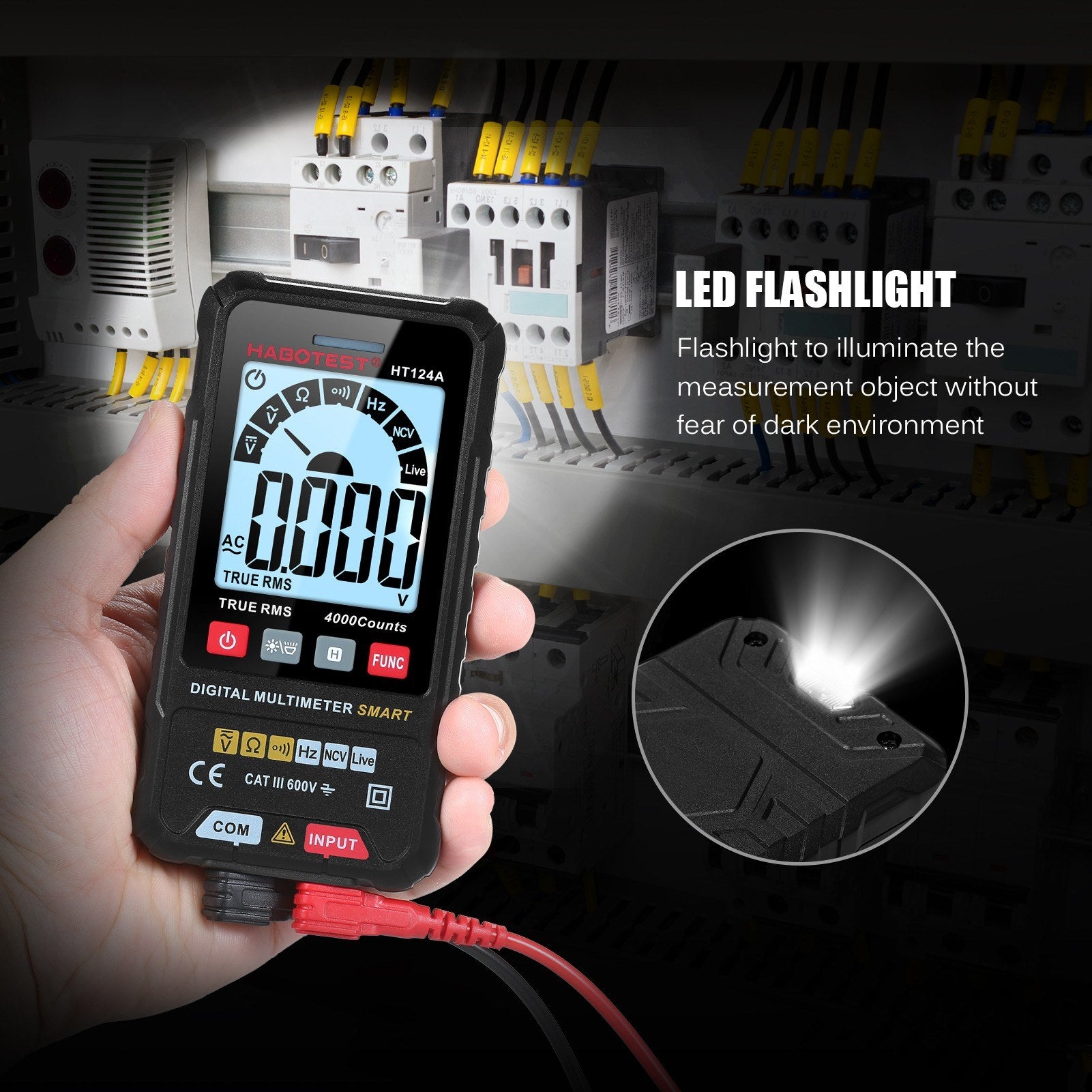

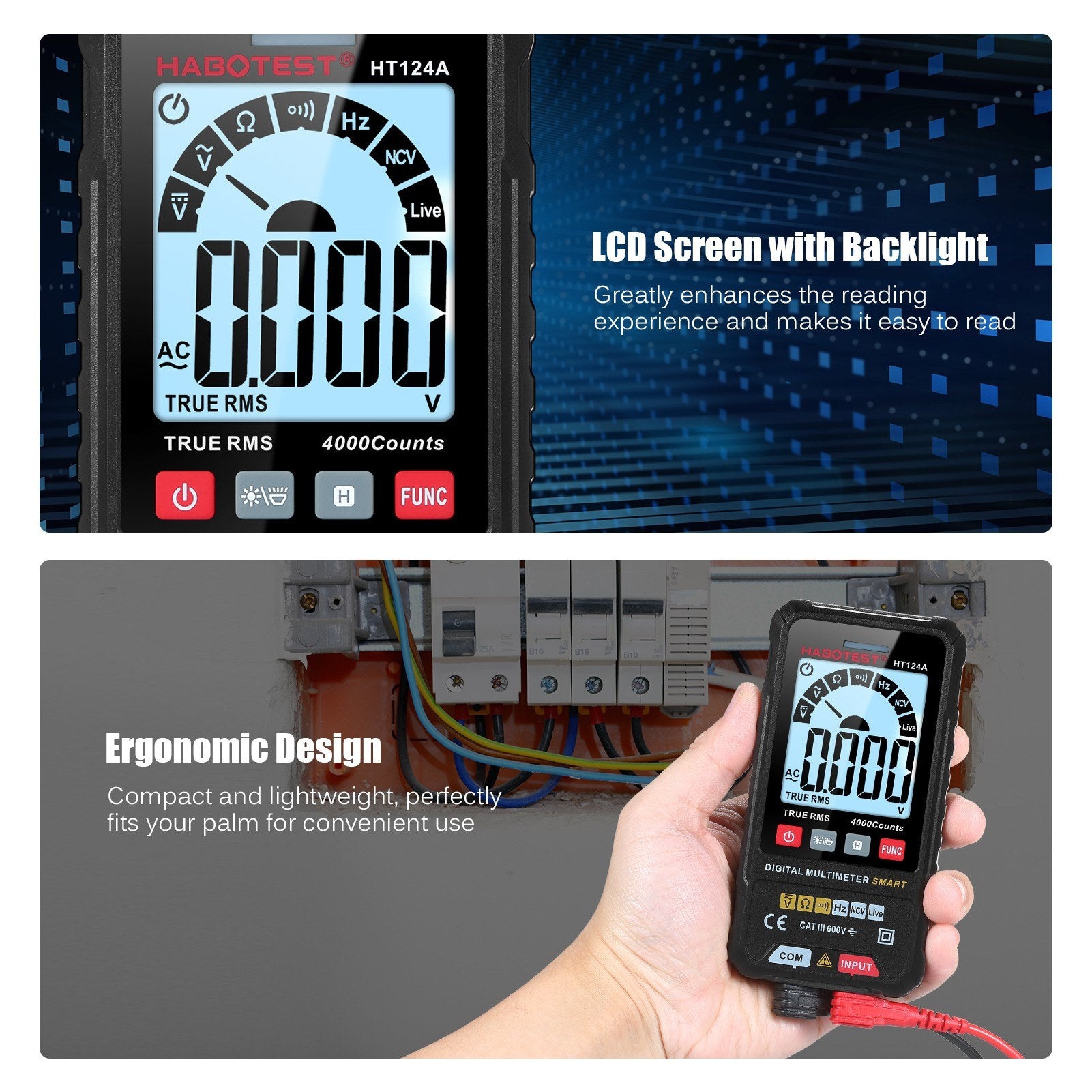

• Backlight LCD Screen & Flashlight: Enhance readability with a backlit LCD screen. A built-in flashlight illuminates your work area, making it ideal for dark environments.

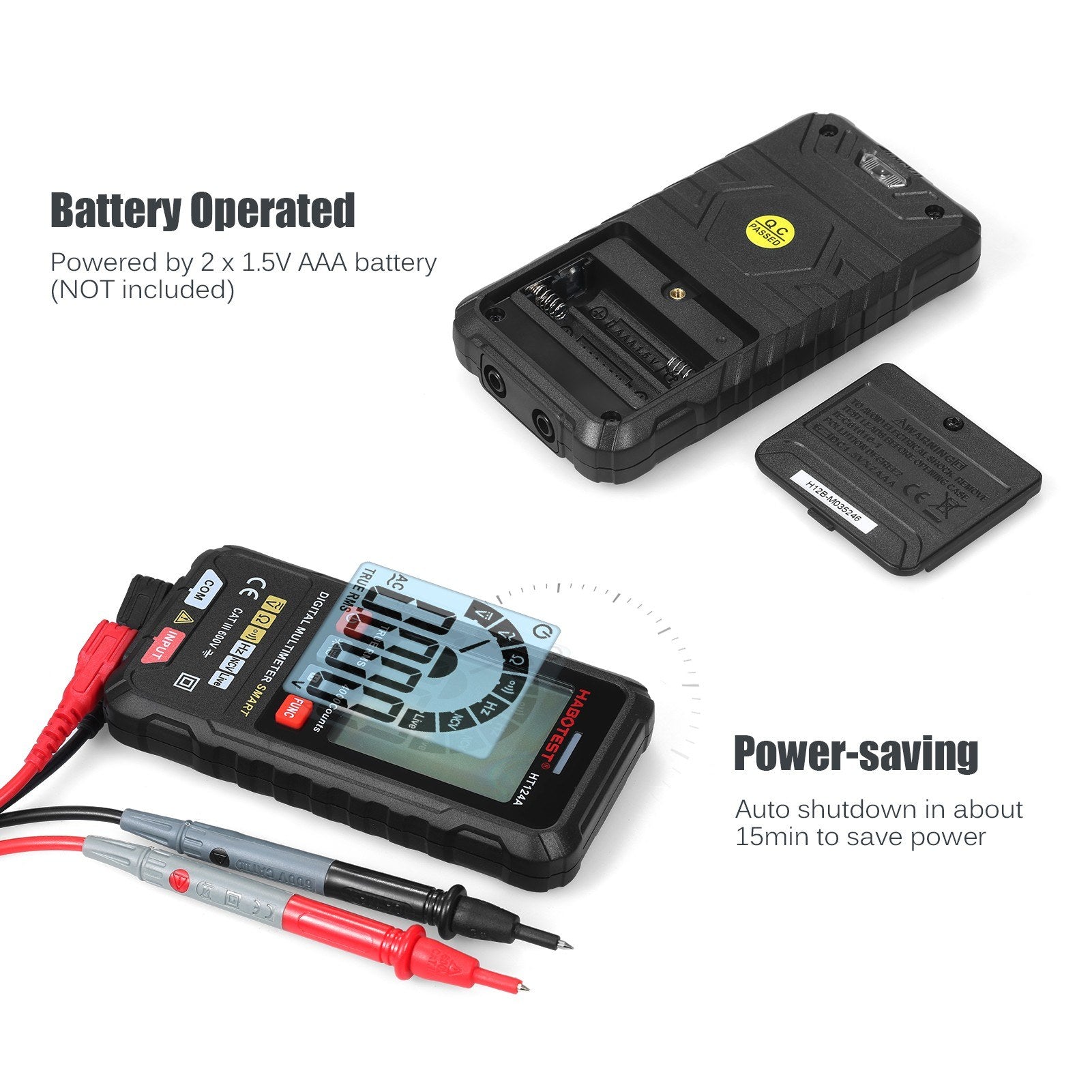

• Battery Operated & Compact Size: Powered by two AAA batteries (not included) and an auto shutdown feature after approximately 15 minutes to conserve battery life. Ergonomically designed to fit comfortably in your hand, with a concise, lightweight build for easy portability.

Note

1. Please read the user manual carefully before use.
2. Size and color might slightly vary due to manual measurement and lighting conditions.

Specifications

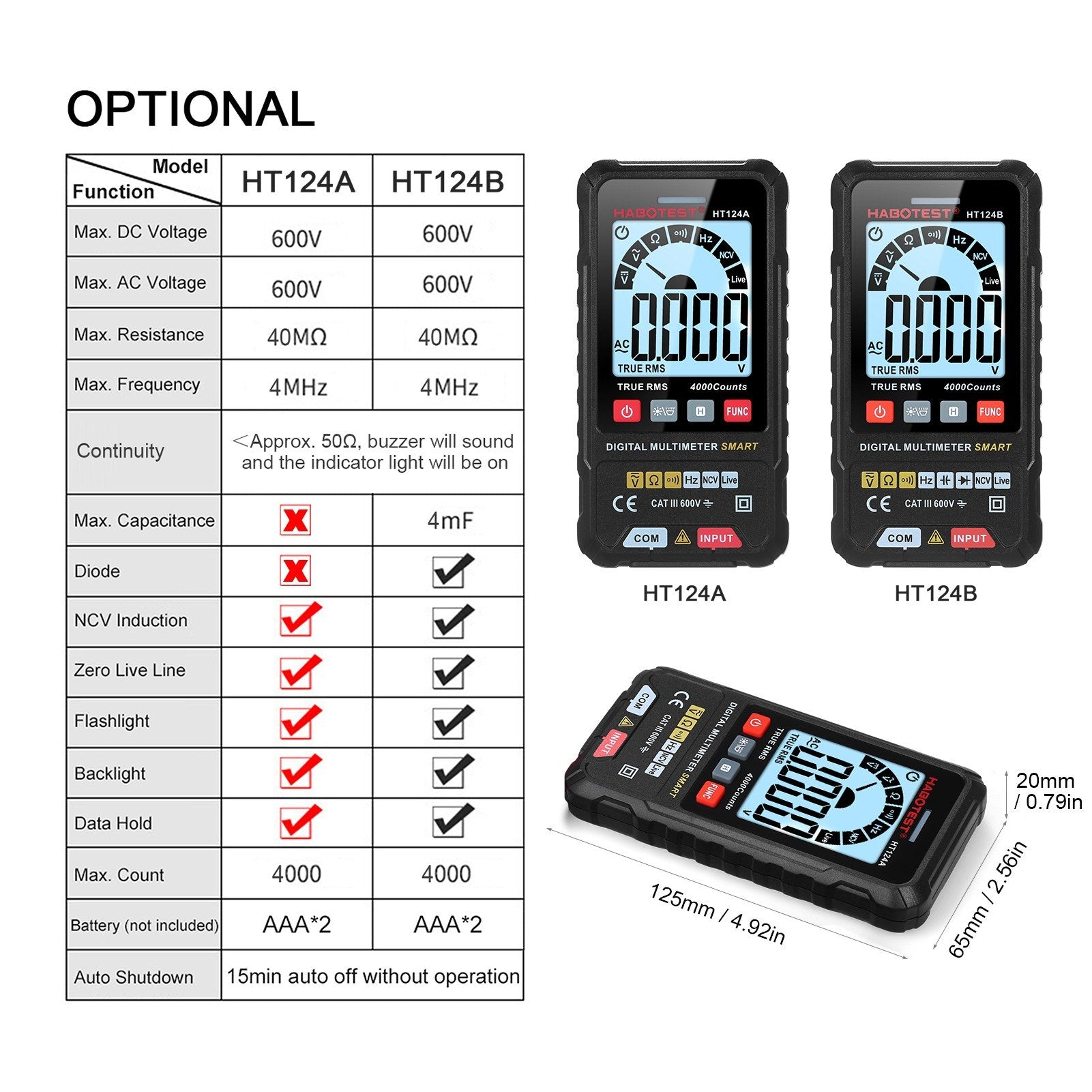

• Model: HT124A / HT124B (Optional)

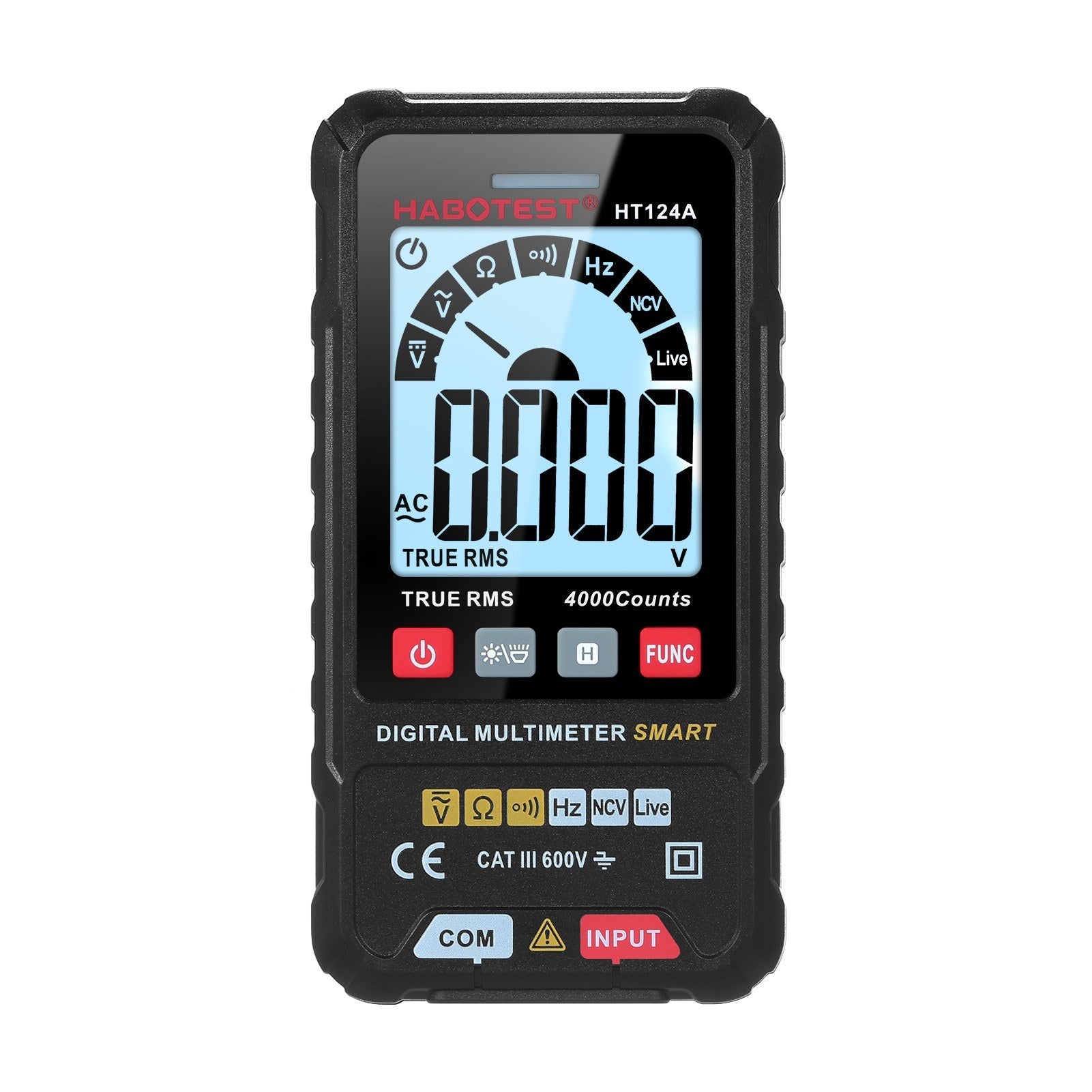

  • HT124A: Without Capacitance Measurement / Diode Test

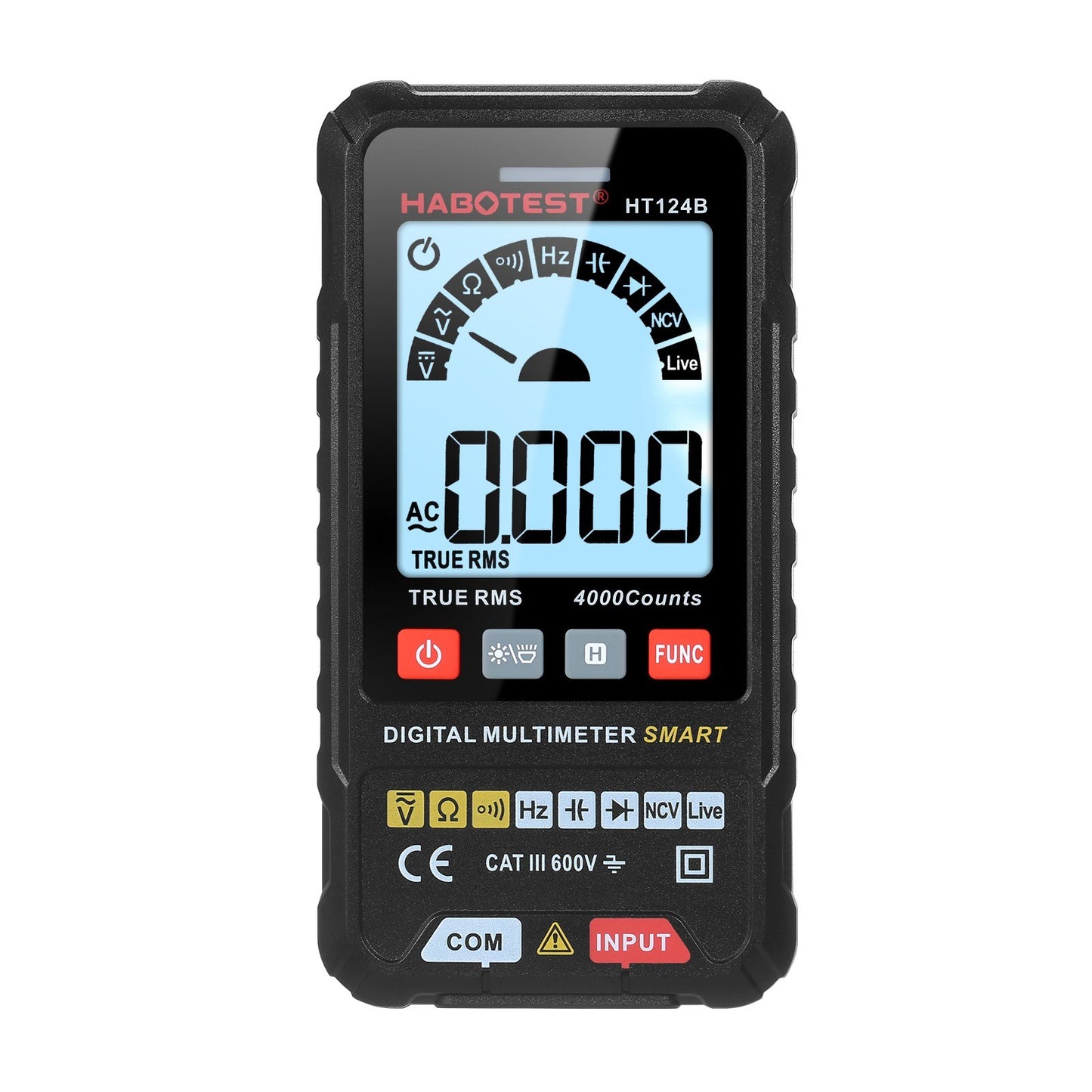

  • HT124B: With Capacitance Measurement / Diode Test
• Color: Black
• Material: ABS
• Screen: LCD with Backlight
• Max. Count: 4000 Counts
• Max. Voltage: 600V DC or AC
• Max. Resistance: 40MΩ
• Continuity: < Approx. 50Ω (buzzer will sound and the indicator light will be on)
• Max. Frequency: 4MHz
• Max. Capacitance: 4mF (HT124B only)
• Display Diode Voltage Drop: (HT124B only)

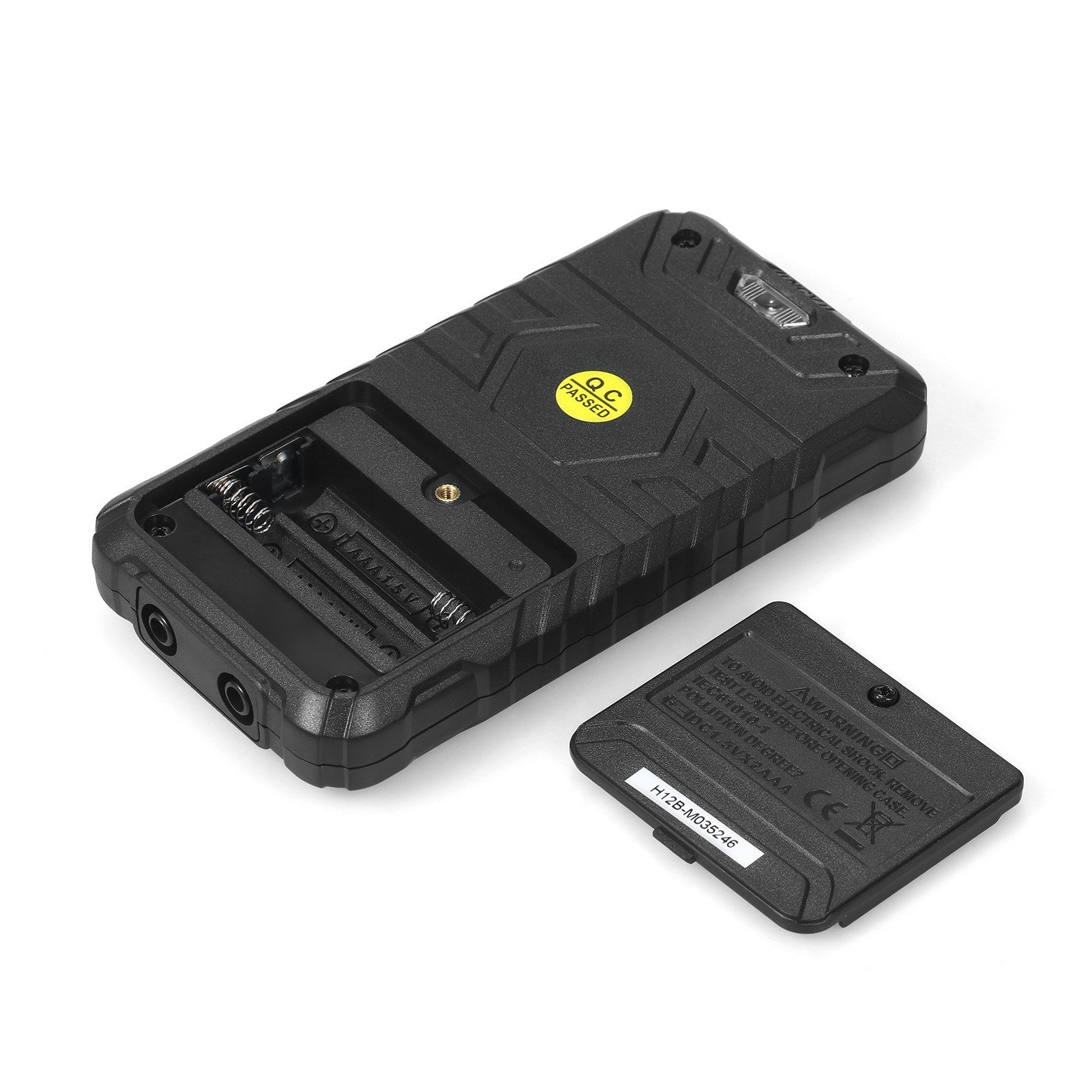

• Power Supply: 2 * 1.5V AAA Battery (NOT included)
• Auto Shutdown: Approximately 15 minutes
• Operating Height: < 2000m
• Operating Environment: 0~40℃ (< 80% RH, < 10℃ non-condensing)
• Storage Environment: -10~60℃ (< 70% RH, remove the battery)
• Item Size: 125 * 65 * 20mm / 4.92 * 2.56 * 0.79in
• Item Weight: 104g / 3.66oz
• Package Size: 16.5 * 9.5 * 5cm / 6.50 * 3.74 * 1.97in
• Package Weight: 228g / 8.02oz

Package List

• 1 * Smart Digital Multimeter
• 2 * Measuring Pen
• 1 * User Manual (English)
