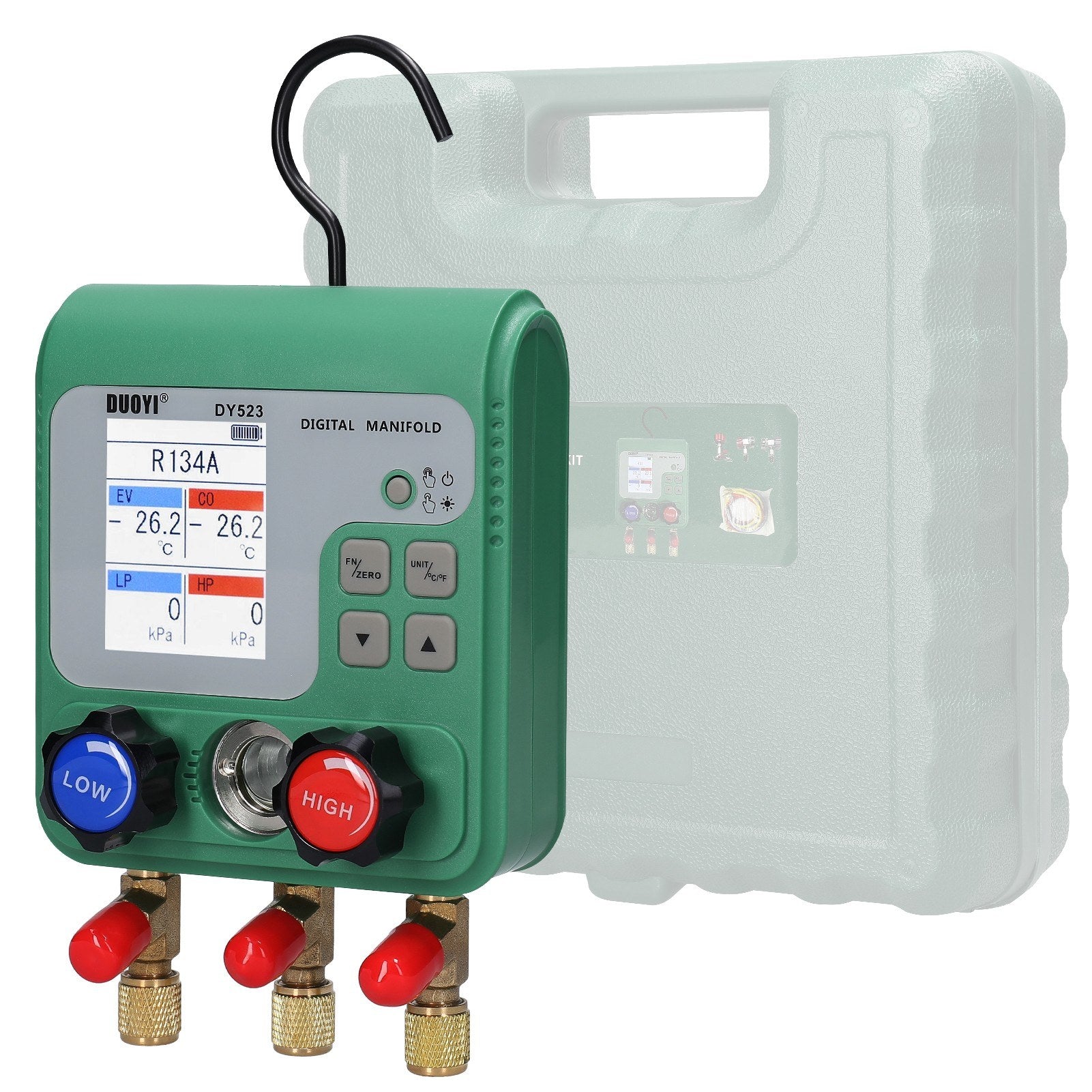

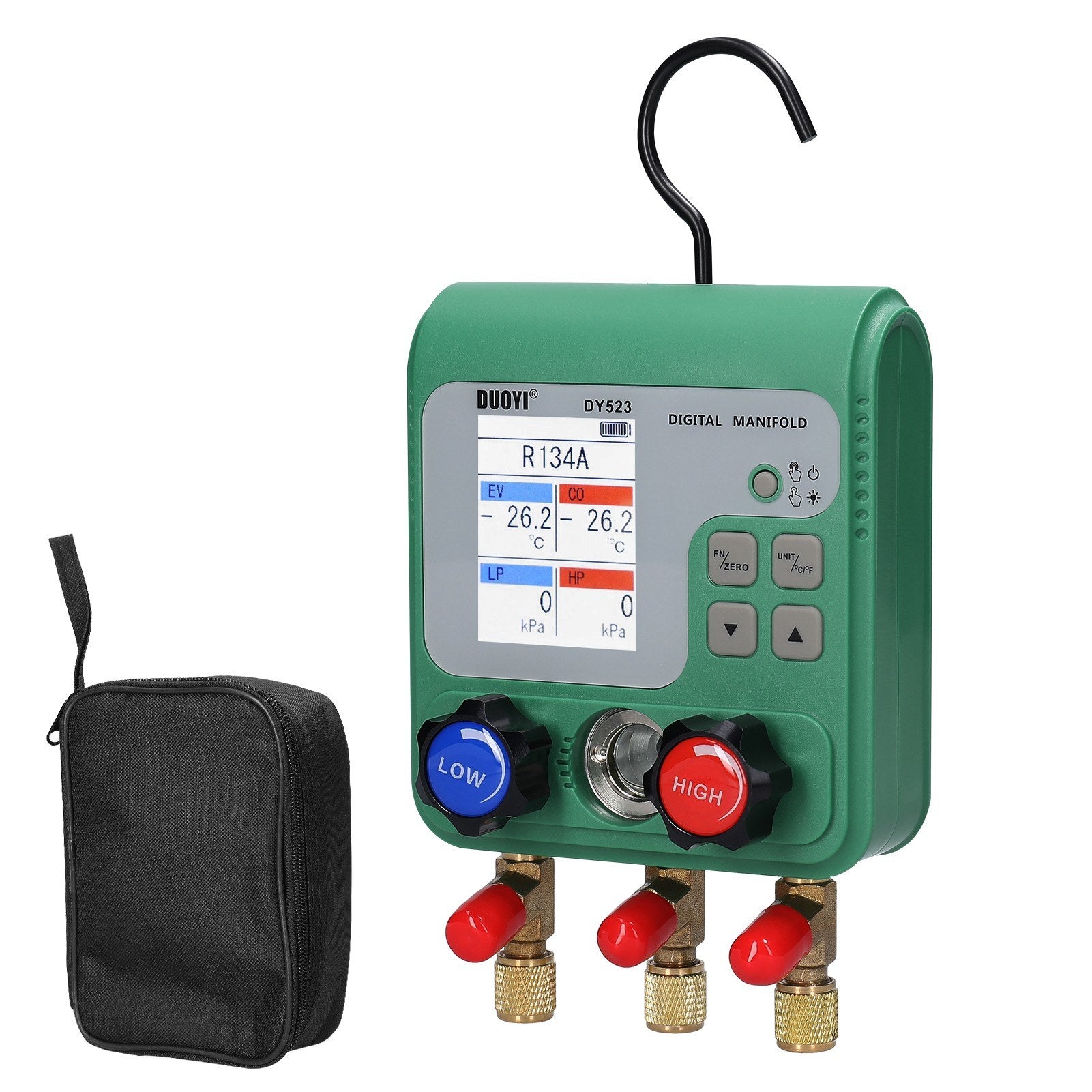

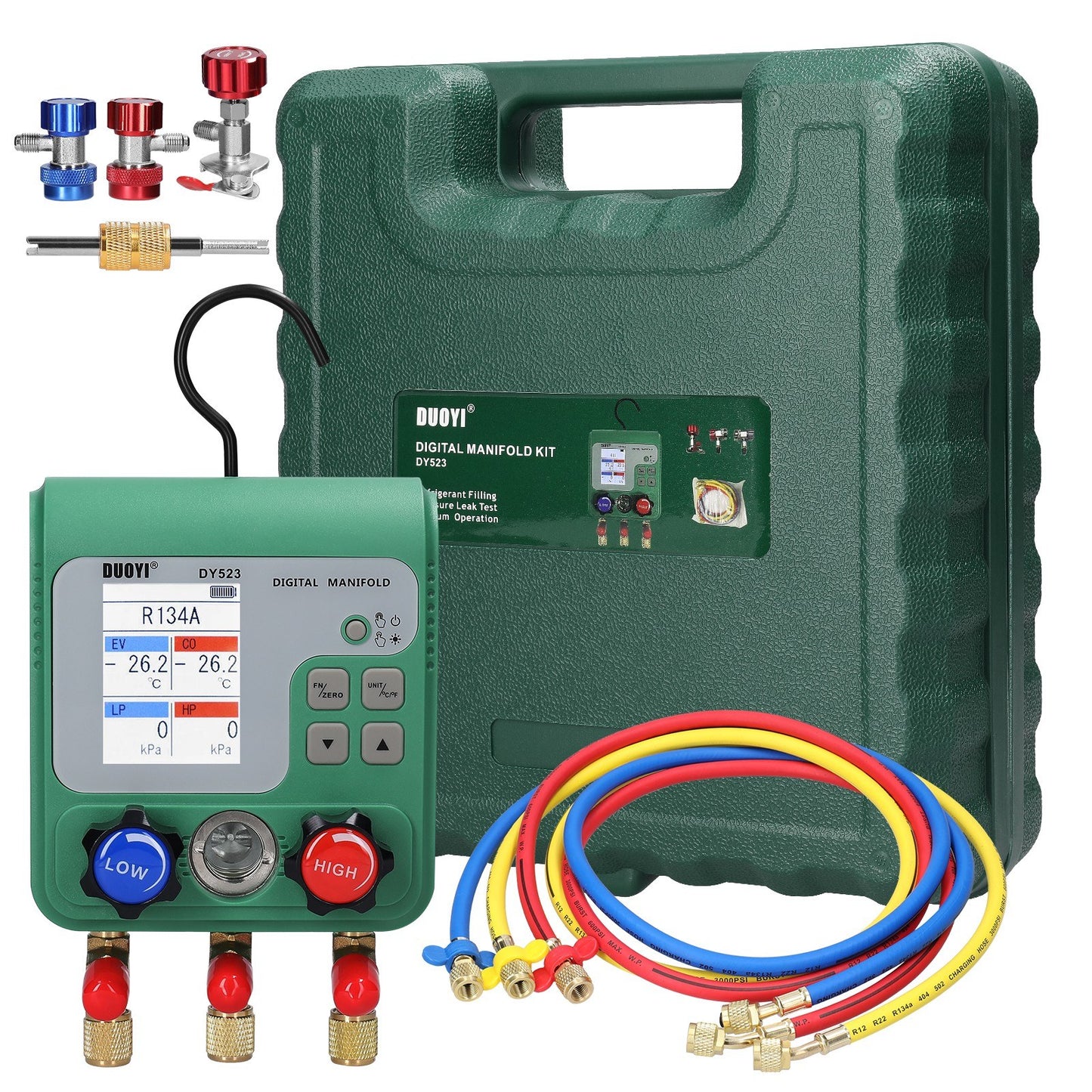

Digital Manifold Gauge for Auto Refrigerant with Vacuum and Pressure Meter

Product Description

Application Scope: This product is ideal for the installation and maintenance of air conditioning systems, daily maintenance of refrigerators, routine inspections of freezers, and maintenance of automotive air conditioning systems.

Features:

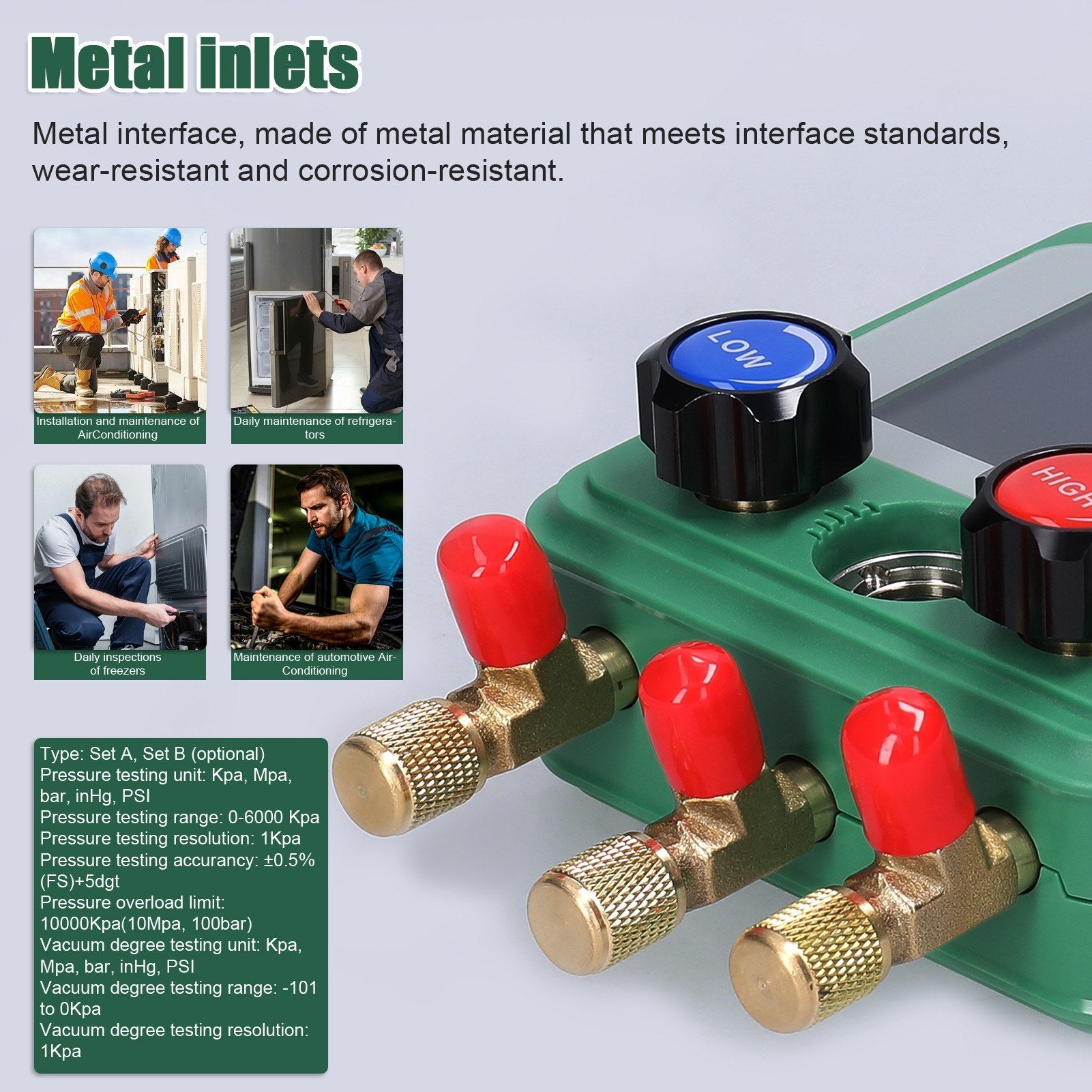

• Durable Metal Interface: Crafted from high-quality metal materials, this interface is wear-resistant and corrosion-resistant, meeting industry standards.
• High Stability Chip: Equipped with a 32-bit digital processing unit and a high-accuracy data acquisition unit, it ensures stable and precise pressure data measurement.

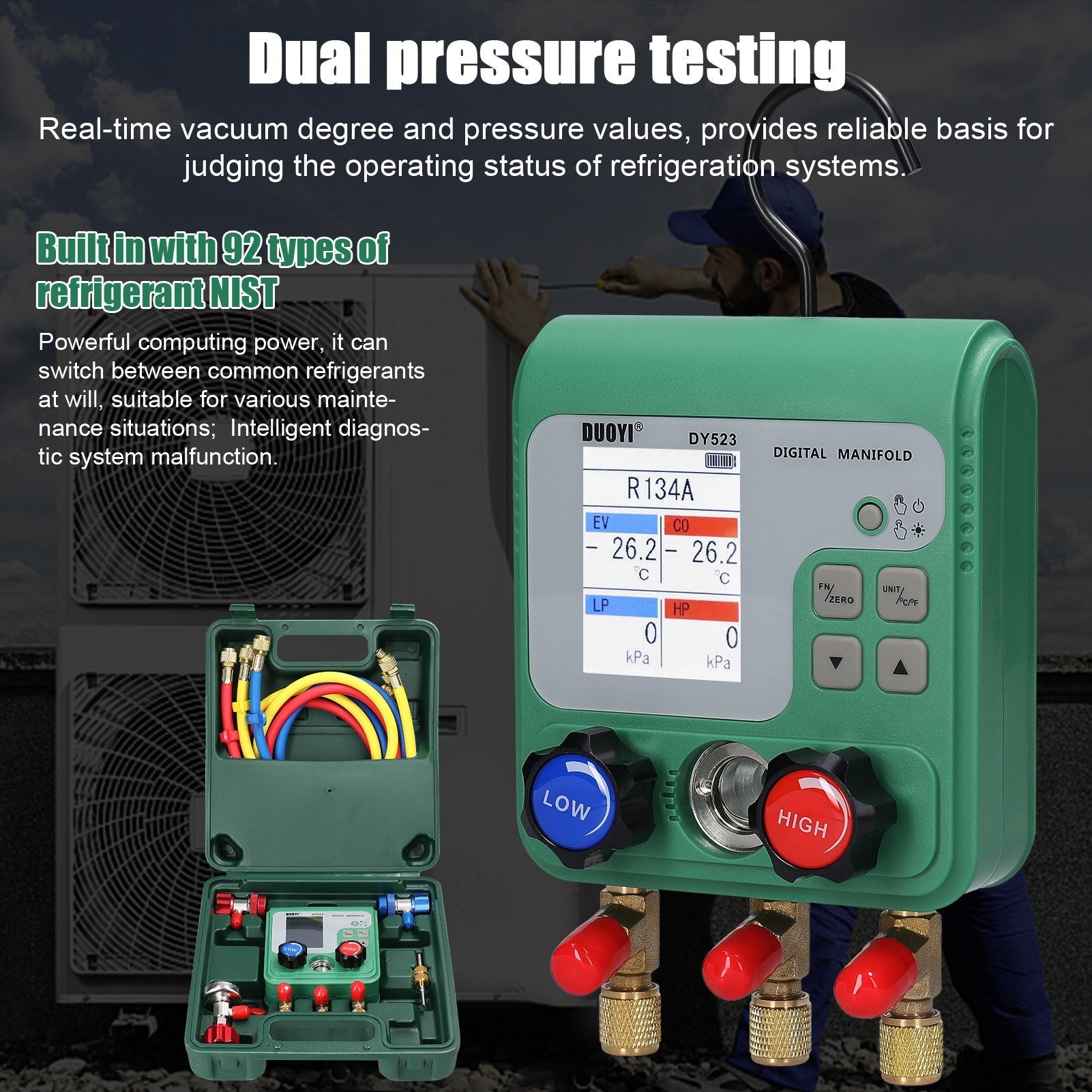

• Dual Pressure Testing: Offers real-time vacuum degree and pressure values, providing a reliable basis for assessing the operational status of refrigeration systems.
• Comprehensive Refrigerant Compatibility: Built-in support for 92 types of refrigerant NIST, the device boasts powerful computing power, allowing easy switching between common refrigerants as needed. It includes an intelligent diagnostic system for malfunctions.
• Leakage Monitoring: Capable of recording leakage time and speed, it allows for easy operation and direct reading of process data.
• Temperature Display: Displays evaporation and condensation temperatures, aiding in the assessment of refrigeration capacity and expansion valve operation.

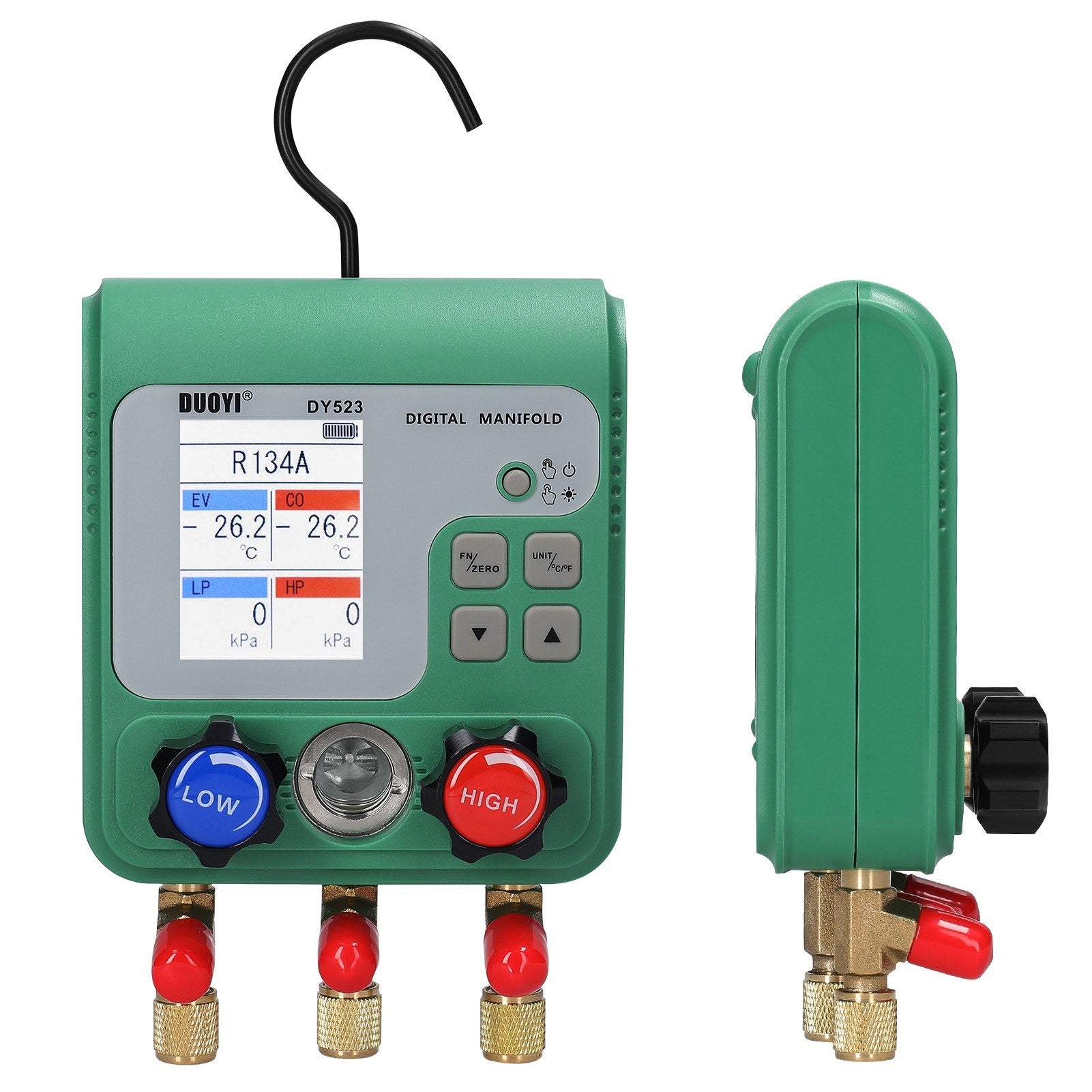

• Convenient Design: Features a foldable hook design for easy carrying and storage.
• Reliable Sealing: Built-in brass valves with a spherical structure ensure strong sealing performance.

Specifications:

• Type: Set A, Set B (optional)
• Pressure Testing Units: Kpa, Mpa, bar, inHg, PSI
• Pressure Testing Range: 0-6000 Kpa
• Pressure Testing Resolution: 1 Kpa
• Pressure Testing Accuracy: ±0.5% (FS) + 5dgt
• Pressure Overload Limit: 10000 Kpa (10 Mpa, 100 bar)
• Vacuum Degree Testing Units: Kpa, Mpa, bar, inHg, PSI
• Vacuum Degree Testing Range: -101 to 0 Kpa
• Vacuum Degree Testing Resolution: 1 Kpa
• Battery: 3 x AA batteries (not included)

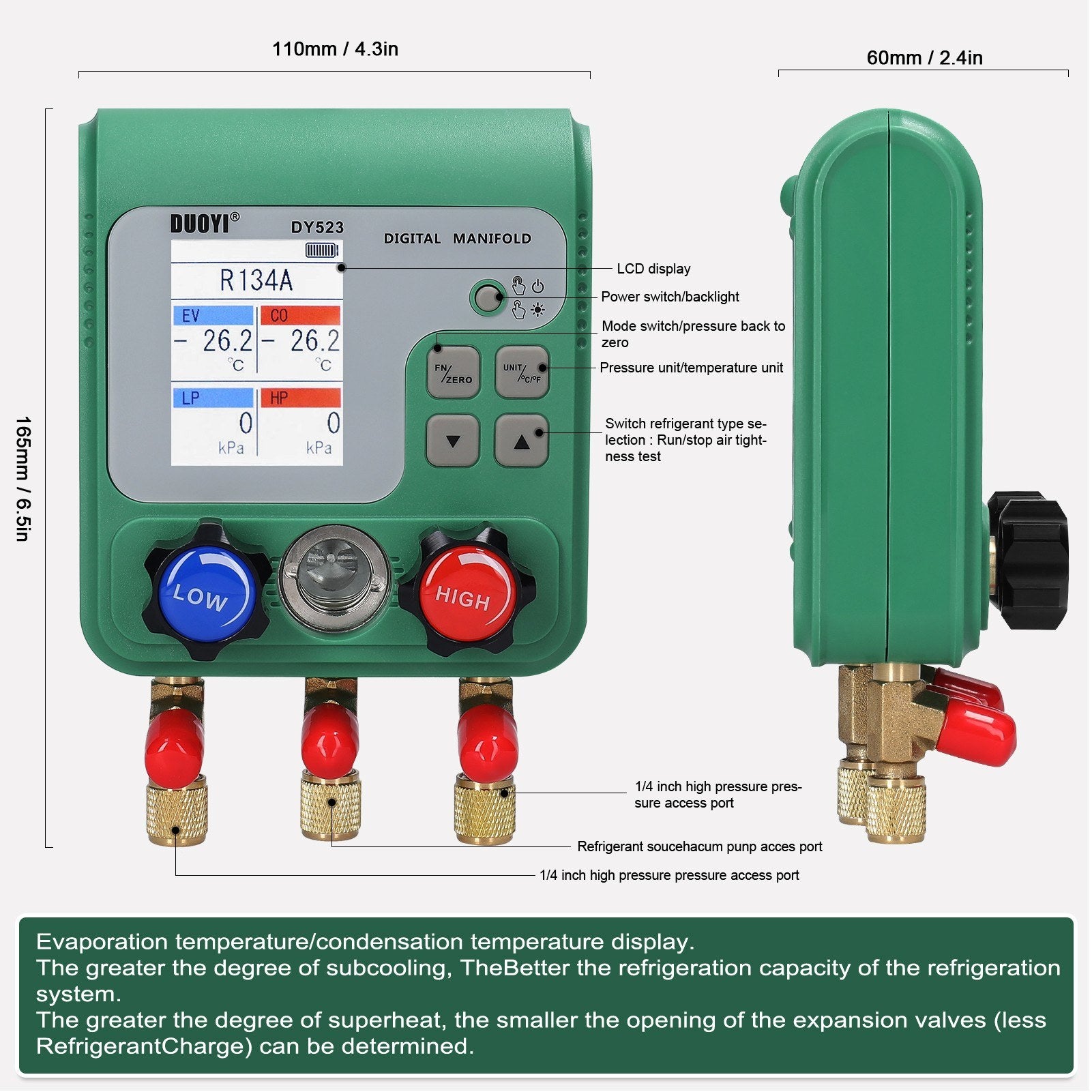

• Item Size: 165 x 110 x 60 mm / 6.5 x 4.3 x 2.4 in

Package Details:

• Set A:
  • Package Size: 190 x 160 x 80 mm / 7.5 x 6.3 x 3.1 in
  • Package Weight: 900 g / 2.0 lb
  • Contents: 1 Pressure Gauge
• Set B:
  • Package Size: 278 x 250 x 100 mm / 10.9 x 9.8 x 3.9 in
  • Package Weight: 2800 g / 6.2 lb

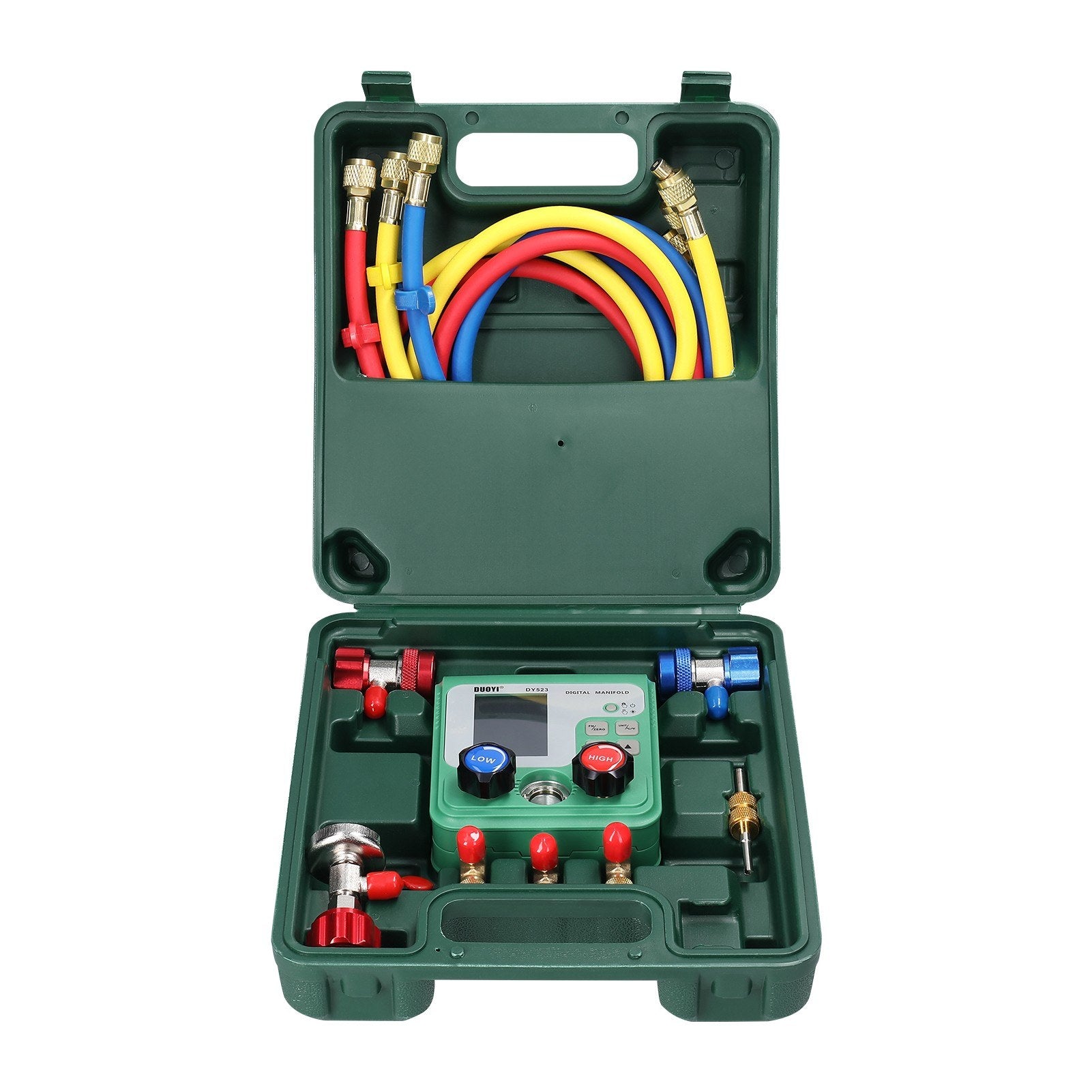

  • Contents: 1 Pressure Gauge, 2 Connectors, 1 Bottle Opener, 1 Hose, 1 Wrench, 1 Storage Box
