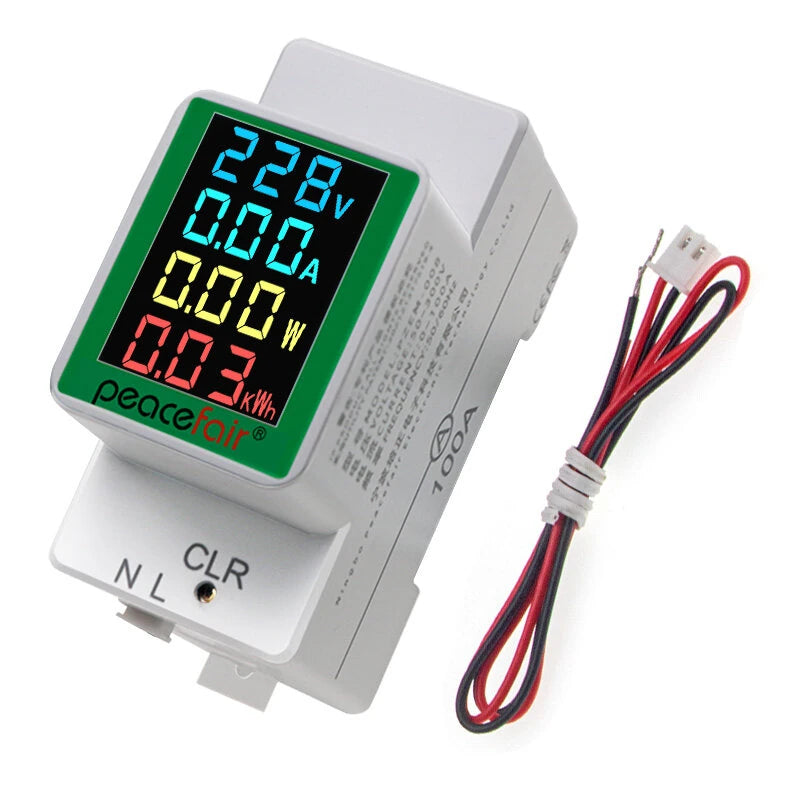

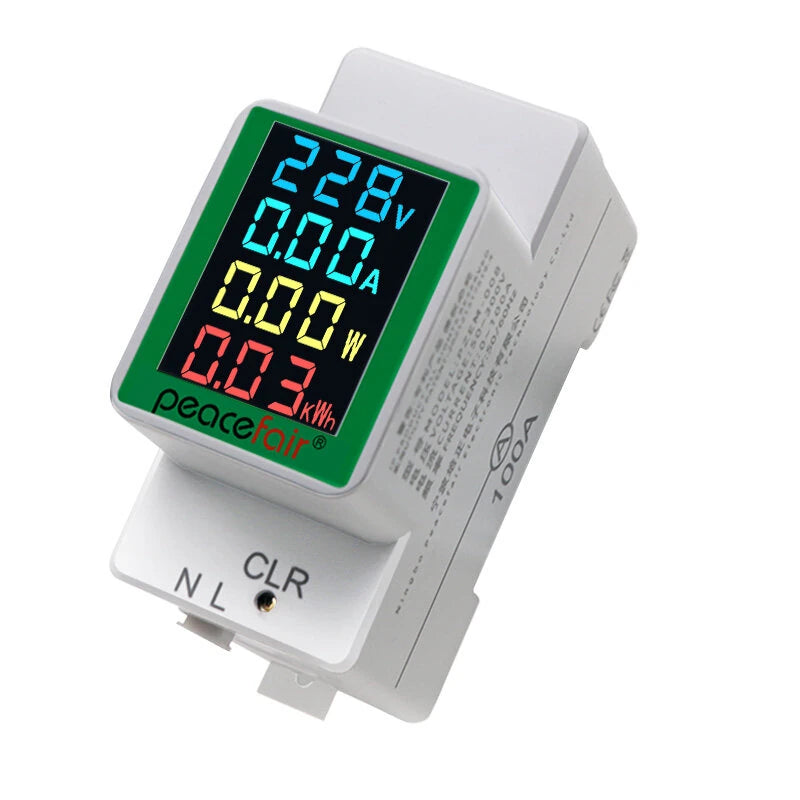

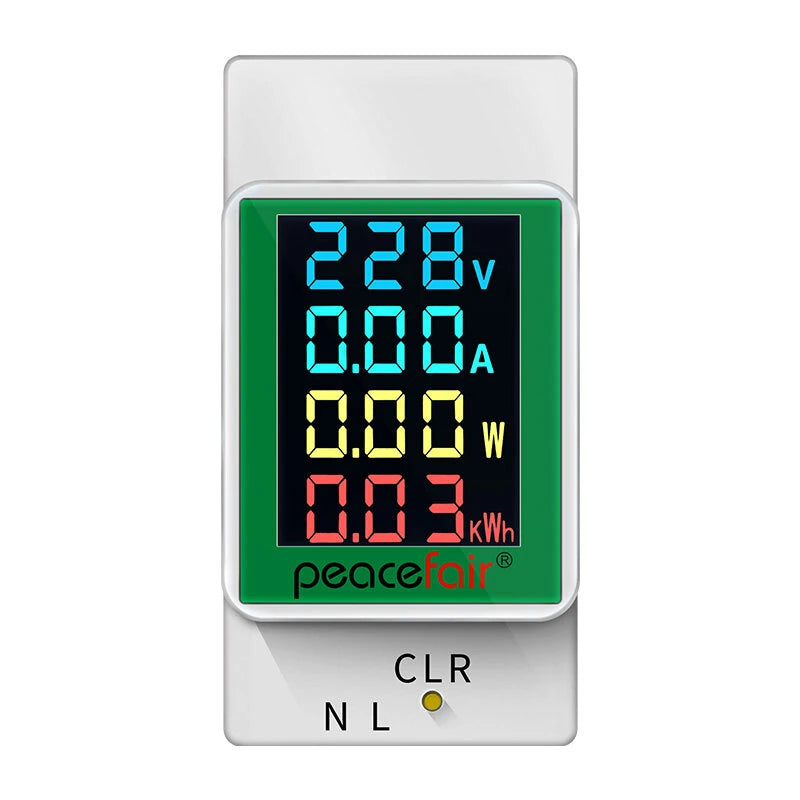

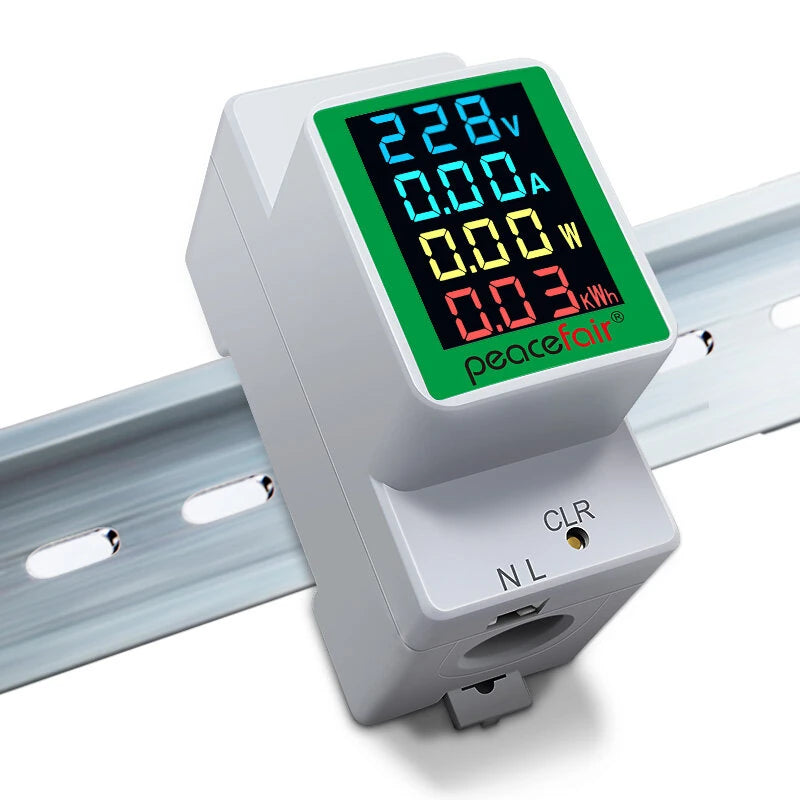

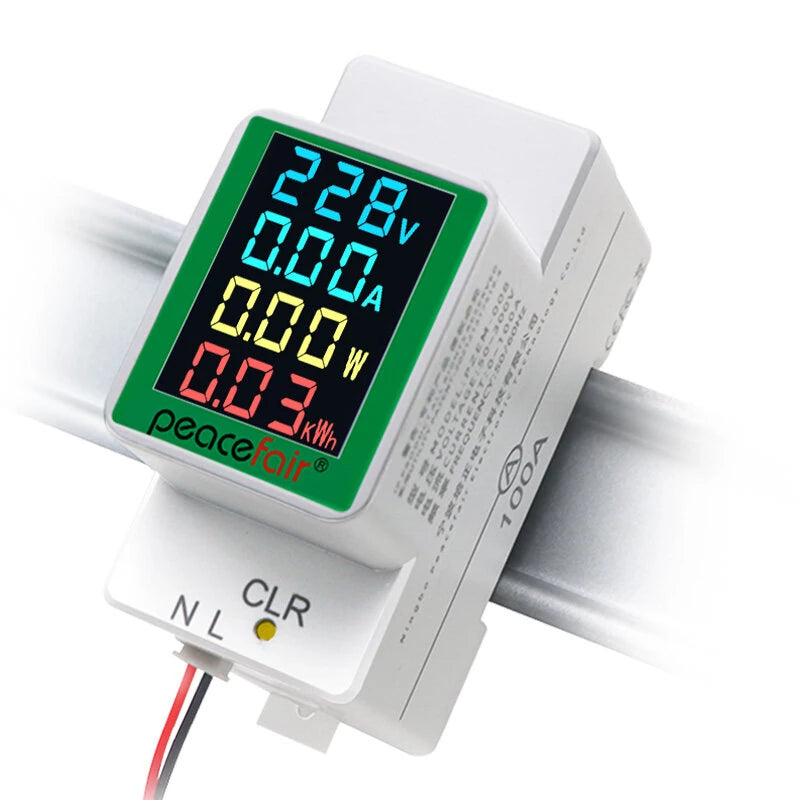

Peacefair® PZEM-008 Din Rail Digital Power Energy Meter - AC 50-300V, 100A Watt Kwh Wattmeter Monitor, Ammeter Voltmeter

Product Features:

• Voltage Measurement:
  • Range: AC 50～300V
  • Starting Test Voltage: 50V
  • Accuracy: ±1%
• Current Measurement:
  • Range: 0～100A
  • Display Format:
    • ＜10A: displays as 9.99A
    • ＜100A: displays as 99.9A
  • Starting Test Current: 0.02A
  • Accuracy: ±1%
• Active Power Measurement:
  • Range: 0～30kW
  • Display Format:
    • ＜10W: displays as 9.99W
    • ＜100W: displays as 99.9W
    • ＜1000W: displays as 999W
    • ＜10000W: displays as 9.99kW
    • ≥10000W: displays as 30.0kW
  • Starting Test Power: 0.5W
  • Accuracy: ±1%
• Energy Measurement:
  • Range: 0～1999kWh
  • Display Format:
    • ＜10kWh: displays as 9.99kWh
    • ＜100kWh: displays as 99.9kWh
    • ＜1000kWh: displays as 999kWh
    • ＜10000kWh: displays as 1999kWh
  • Note: Over the test range will maintain the data, otherwise you can reset it.
  • Accuracy: ±1%

Additional Functions:

• Backlight Control: The backlight can be turned on or off with a short press of the key.
• Reset Energy: Long press the key for over 3 seconds until the energy data flashes. Release the key, then a short press to reset the energy. After 3 seconds, it will stop flashing, and the energy reset will be canceled.
• Data Storage: Energy data and backlight status are saved when the power is off.

Package Includes:

• 1 x Meter
