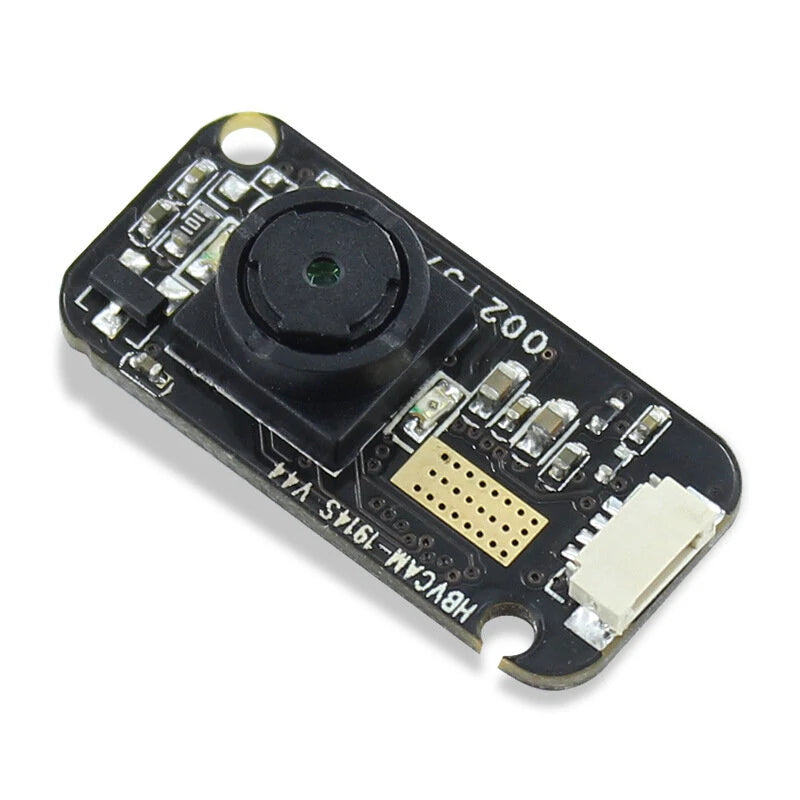

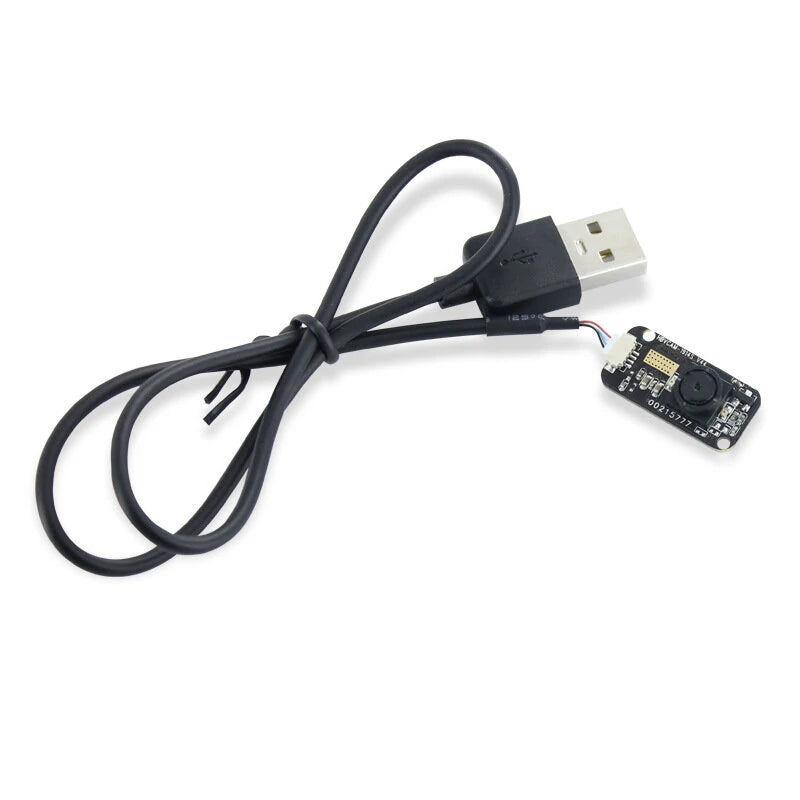

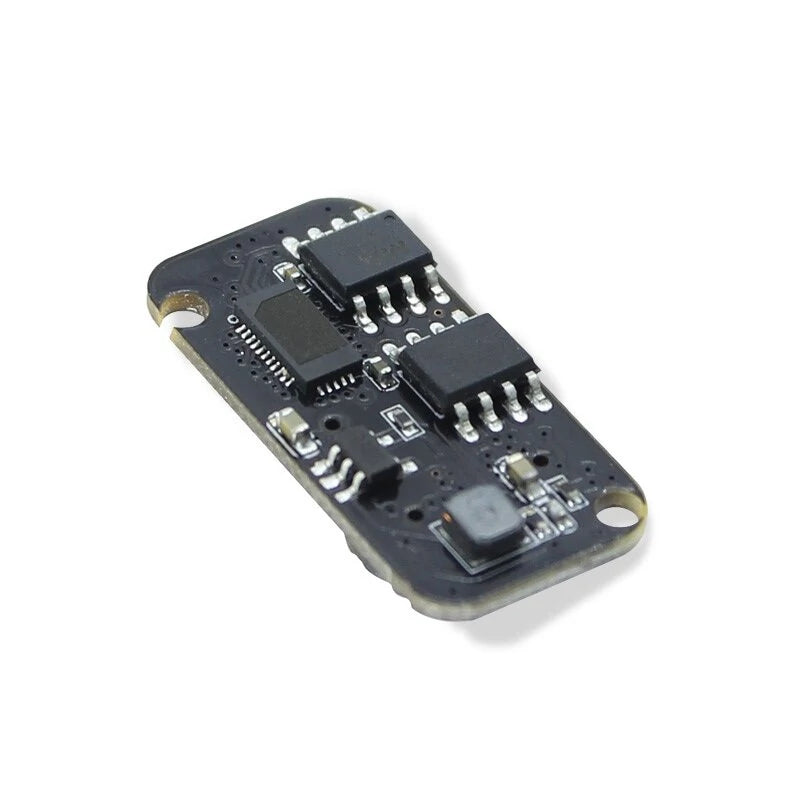

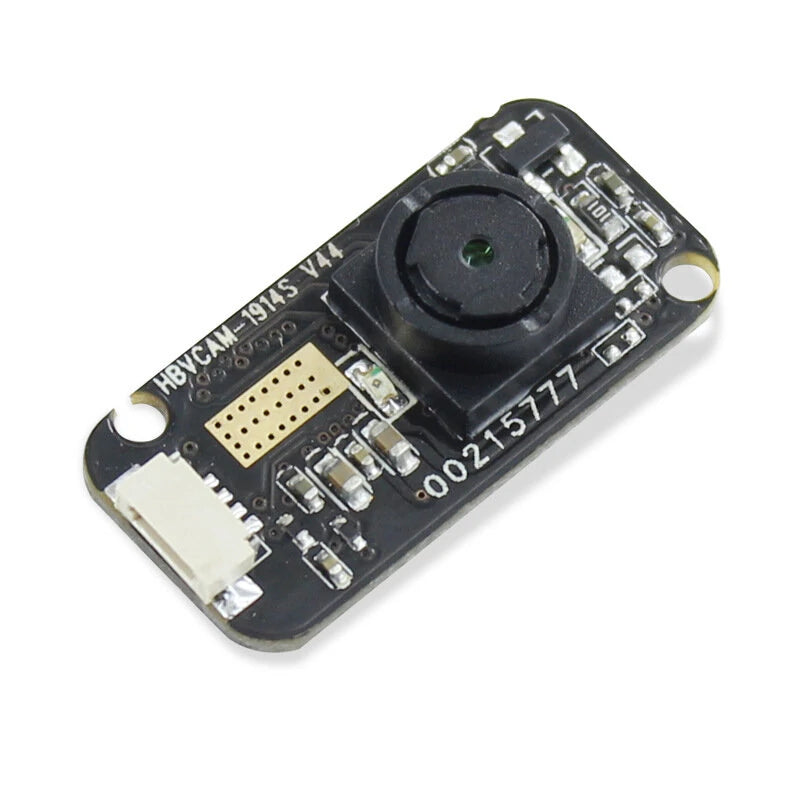

High-Speed Eye Tracker Camera Module: 30/120 FPS, Fixed Focus, Distortion-Free, 300,000 Pixels, USB Driver-Free

High-Speed Eye Tracker Camera Module: 30/120 FPS, Fixed Focus, Distortion-Free, 300,000 Pixels, USB Driver-Free

Regular price $8.49 USD
Regular price $0.00 USD Sale price $8.49 USD
Sale Sold out
Shipping calculated at checkout.
Resolution & Frame Rate

Shipping Icon Estimated Delivery: -

Camera Module Description

Product Specifications

  • Module No.: HBVCAM-1914S V44
  • Module Size: 25mm x 12mm x 6mm ±0.2MM
  • Operating Temperature: -30° to 70°
  • Stable Image Temperature: 0° to 50°
  • Assembly Technique: SMT (ROHS compliant)
  • Focus: Fixed
  • Object Distance: 30cm
  • Resolution: 400LW/PH (Center)
  • PCB Printing Ink: Black
  • Interface: USB 2.0
  • Power Supply: USB bus power
  • Supply Voltage: DC 5V ±5%
  • Maximum Power Consumption: 500mW
  • Operating System Compatibility: Windows XP/7/8/Vista, Android 4.0, macOS, Linux with UVC
  • Sensor: GC0308 (1/6.5")
  • Sensor Package: CSP, Bare Die
  • Maximum Resolution: 640x480
  • Sensitivity: 3.0mv/(lux-sec)
  • Pixel Size: 3.4um x 3.4um
  • Maximum Image Transfer Rate:
    • MJPEG 160x120 30FPS / YUY2 160x120 30FPS
    • MJPEG 320x240 128FPS / YUY2 320x240 128FPS
    • MJPEG 640x480 30FPS / YUY2 640x480 30FPS
  • S/N Ratio: 42 dB
  • Max Dynamic Range: 58 dB
  • Shutter Type: Electronic rolling shutter
  • Auto Features: AGC, AEC, White balance
  • Output Formats: YUY2, MJPEG
  • Microphone: None
  • Lens Construction: 4P
  • F-Number: 2.8
  • Effective Focal Length: 2.6mm
  • Field of View: 50°
  • Relative Illumination (Sensor): 70%
  • IR Filter: 850±10nm
  • Module Package: Anti-electrostatic tray
  • Certifications: FCC, CE, ROHS

Package Includes:

  • 1 x Camera Module (optional)
