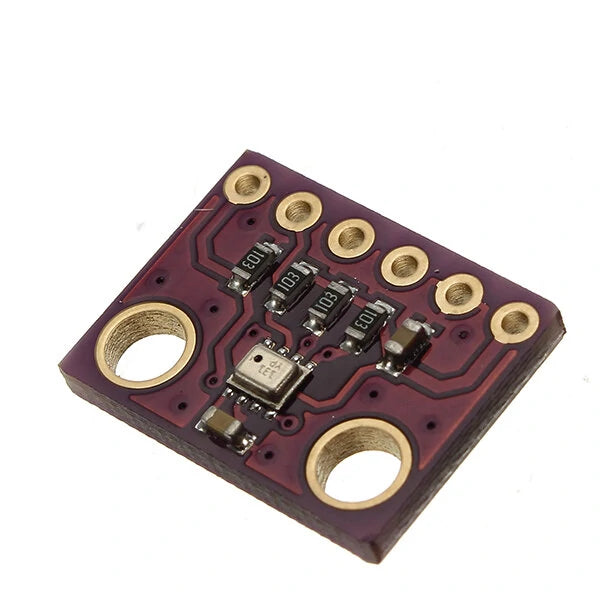

BMP280 Atmospheric Pressure Sensor Module - High Precision 3.3V

Description

Discover the cutting-edge GY-BMP280-3.3 Atmospheric Pressure Sensor Module, equipped with the latest BMP280 sensor. This environmental sensor offers precise measurement of temperature and barometric pressure, serving as an advanced upgrade to previous models like BMP085, BMP180, and BMP183. Ideal for a wide array of weather sensing applications, this versatile sensor supports both I2C and SPI communication, making it easy to integrate into your projects.

As a cost-effective and reliable sensing solution, the BMP280 sensor boasts ±1 hPa absolute accuracy for barometric pressure measurements and ±1.0°C accuracy for temperature. Its exceptional pressure sensitivity makes it suitable for use as an altimeter, offering ±1 meter accuracy in altitude detection.

Features

• Model: GY-BMP280-3.3
• Chip: BMP280
• Power Supply: 3V
• Communication Method: Standard IIC/SPI communication protocol
• Air Pressure Range: 300-1100 hPa
• Pin Spacing: 2.54mm
• Module Size: 11.5mm x 15mm

Typical Applications

• Enhancement of GPS Navigation (e.g., time-to-first-fix improvement, dead-reckoning, slope detection)
• Indoor Navigation (floor detection, elevator detection)
• Outdoor Navigation, Leisure, and Sports Applications
• Weather Forecasting
• Healthcare Applications (e.g., spirometry)
• Vertical Speed Indication (e.g., risk/sink speed)

Package Included

• 1 x GY-BMP280-3.3 Atmospheric Pressure Sensor Module
