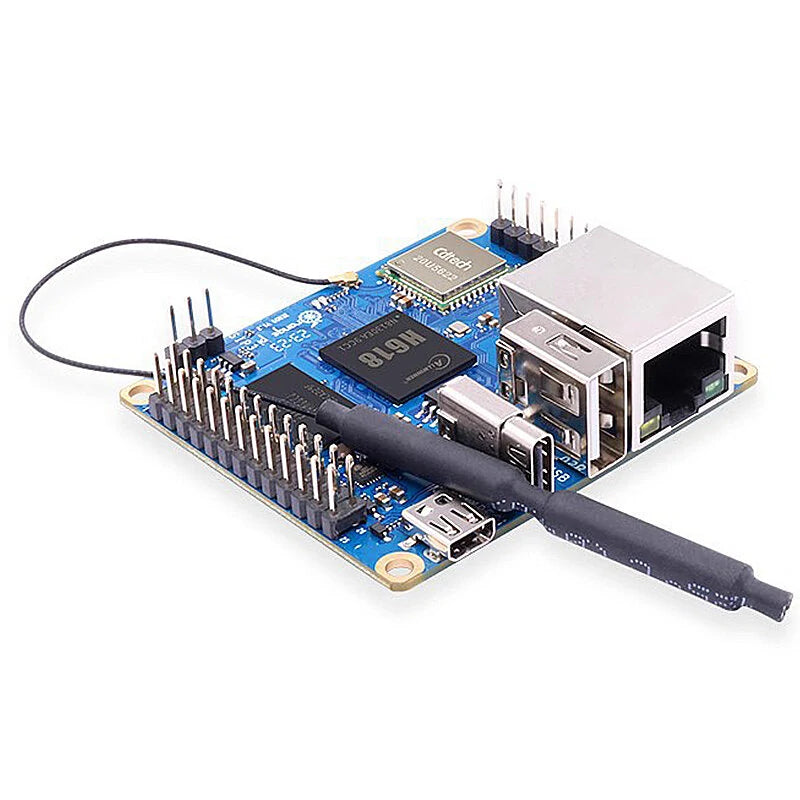

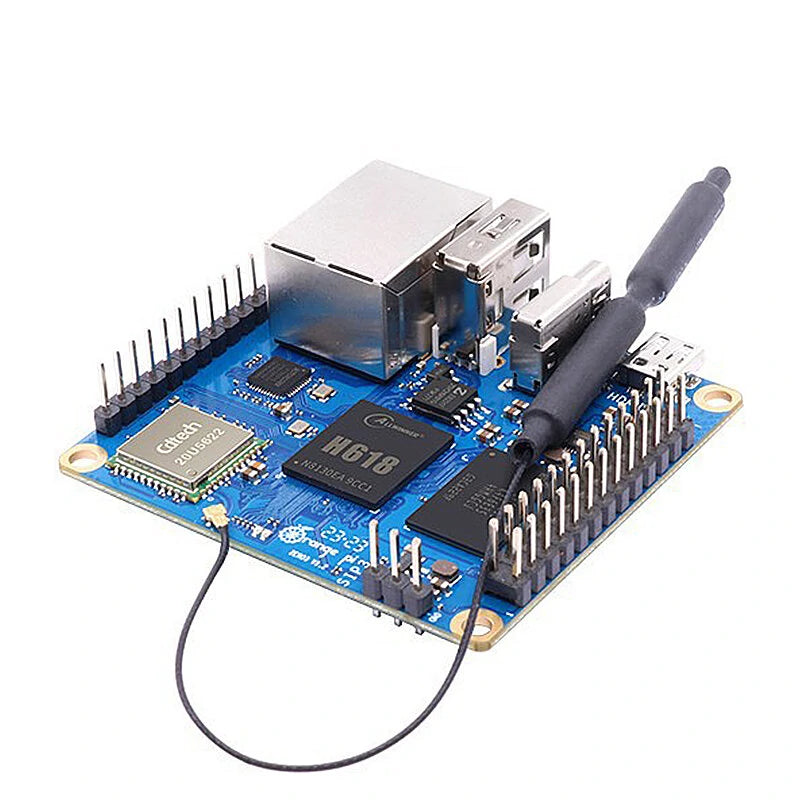

Orange Pi Zero 3 (4GB RAM)

Specifications

• Processor: Allwinner H618 64-bit Cortex-A53 Quad-core CPU, 1.5GHz
• Memory: 4GB LPDDR4 RAM
• Storage: TF (MicroSD) card slot, 16MB SPI Flash
• Wireless Connectivity: Dual-band WiFi (2.4GHz and 5GHz)
• Bluetooth: Version 5.0
• Ethernet: Gigabit LAN (10M/100M/1000M)
• USB Ports: USB 2.0
• Video Output: Micro HDMI
• Power Input: Type-C
• Dimensions: 50x55mm
• Operating Systems: Android 12 TV, Debian 11/12, Ubuntu 22.04/20.04

Features

• Powerful Performance: Equipped with an Allwinner H618 quad-core 64-bit Cortex-A53 processor running at 1.5GHz, offering efficient performance for various applications.
• Ample Memory: 4GB of LPDDR4 RAM ensures smooth multitasking and the ability to run multiple applications simultaneously without performance bottlenecks.
• Fast Connectivity: Seamless wireless connections with dual-band WiFi (2.4GHz and 5GHz) and Bluetooth 5.0 for efficient data transfer and peripheral connections.
• Versatile I/O Options: Features a Gigabit LAN port for high-speed wired networking, a USB 2.0 port for connecting peripherals, and a Micro HDMI port for video output to external displays.
• Compact and Portable: With dimensions of 50x55mm, perfect for space-constrained projects and easily integrated into various DIY electronics and robotics applications.

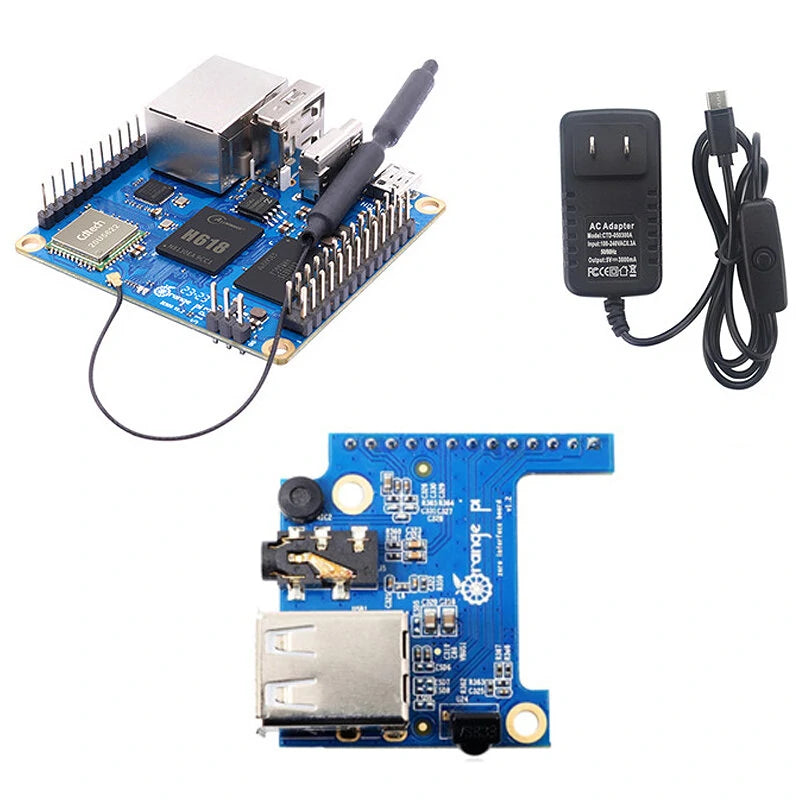

Package Includes

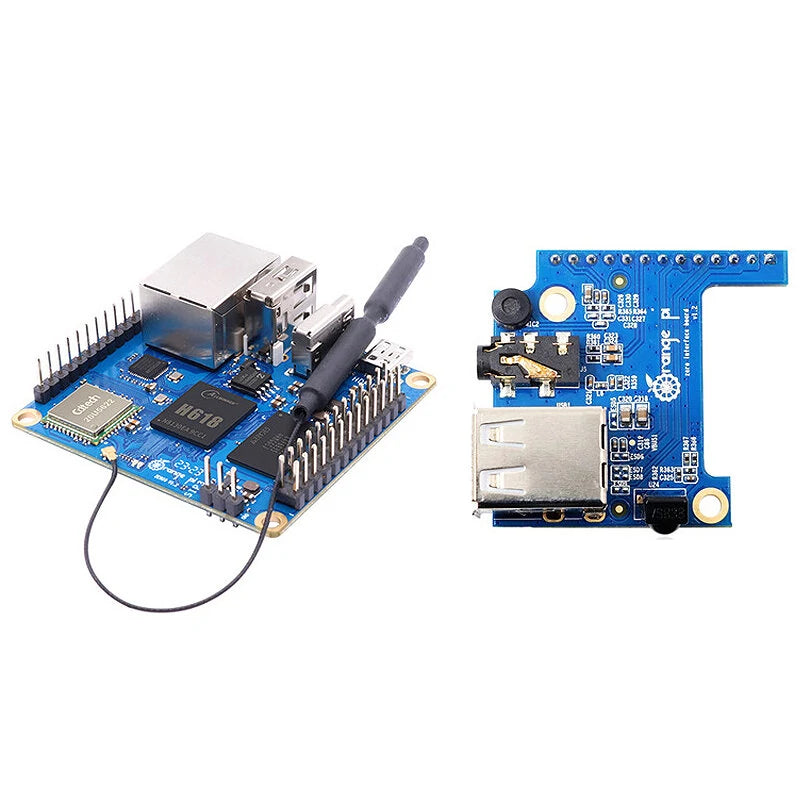

• 1x Development Board
• 1x Expansion Board (Optional)

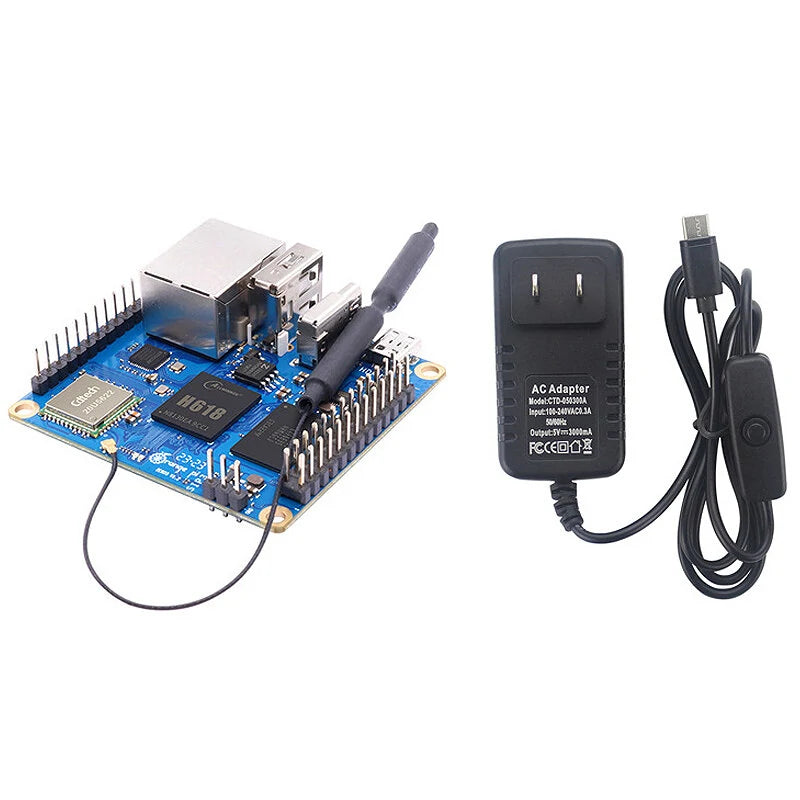

• 1x US Plug Adapter (Optional)
