Geekcreit® Mini Digital Voltmeter Ammeter, DC 100V 10A, 0.28 Inch, 4-Bit 5-Wire LED Dual Display

Precise Details

Features:

• High precision: 4-digit
• Working voltage: DC 4V-28V
• Working current:

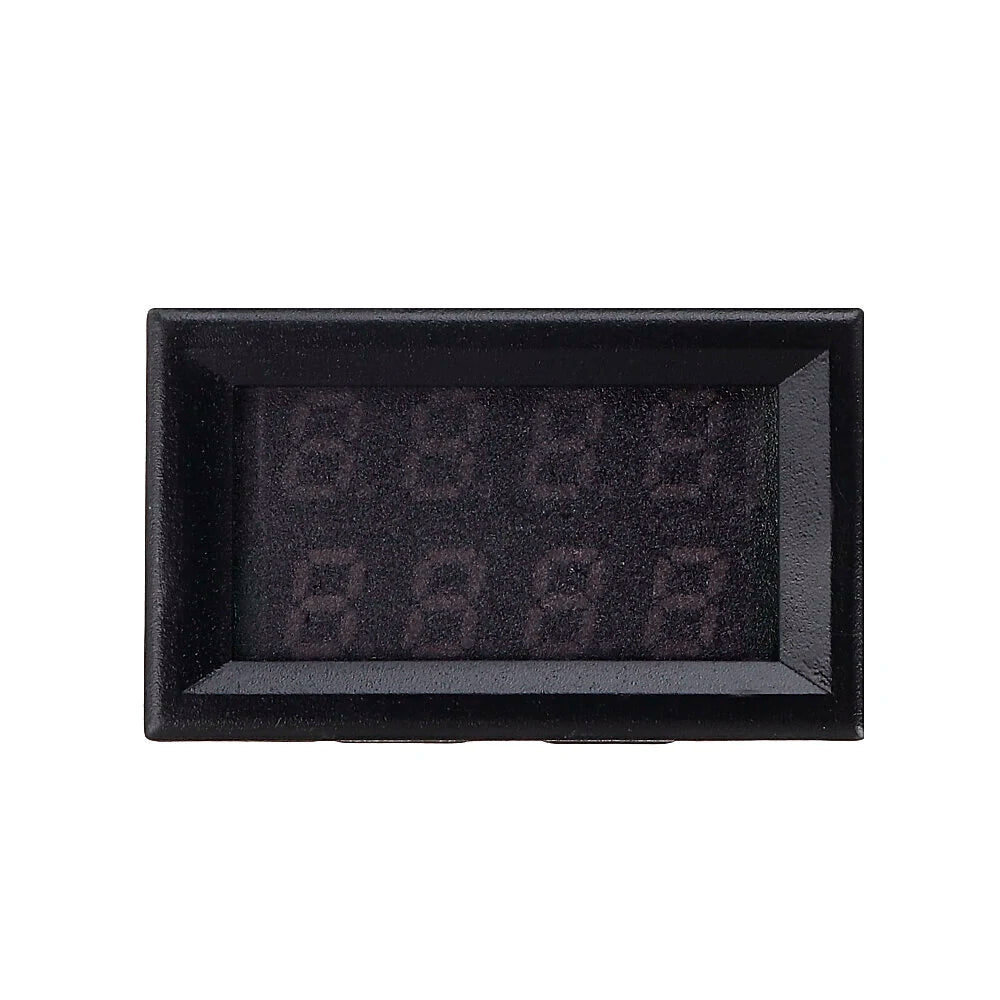

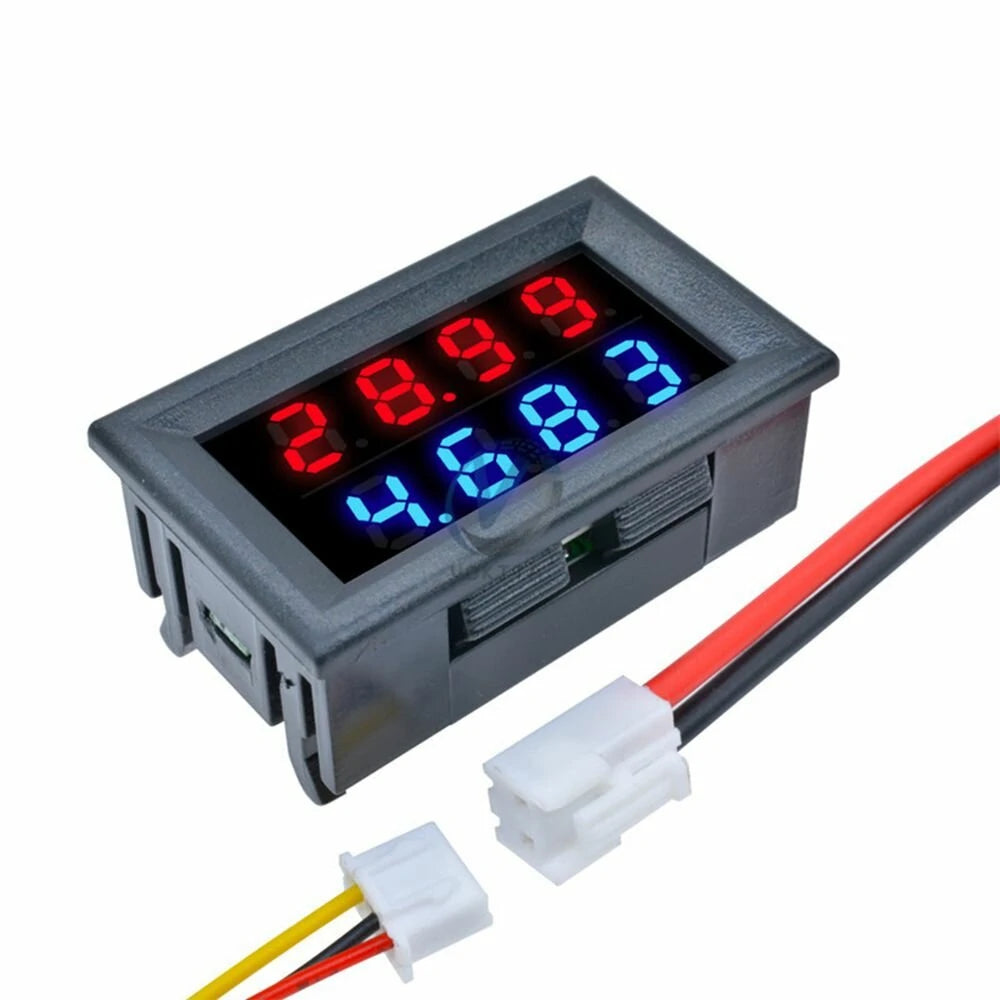

• Display: 0.28" Red + Blue Dual LED Display
• Voltage Measuring Range: DC 0.000V-100.0V
• Current Measuring Range: 0-9.999A
• Refresh rate: approximately 1S / 3 times
• Operating temperature: -10°C to 65°C
• Working pressure: 80 to 106 kPa
• Size: 48 x 29 x 20 mm
• Mounting hole: 46 x 27 mm
• Current: Range x 0.08% + Two decimal points
• Voltage: Range x 0.08% + Two decimal points

Wiring Instructions:

• Red wire (thin): Power supply +
• Red wire (thick): IN+, current input
• Yellow wire (thick): PW+, measuring terminal voltage input positive
• Black wire (thick): COM, common measuring

Note:

Please follow the wiring diagram carefully. Ensure the load is only connected to the positive terminal, not the negative, to avoid damaging the device.

Package Includes:

• 1 x DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter
