10-Pack Rain Detection Sensor Modules - Weather and Humidity Monitor

Product Description:

• The Rain Sensor Kit is designed for an array of weather monitoring applications. It can translate rainfall into reference signals and AO outputs suitable for diverse environments.
• Built with high-quality FR-04 materials, the sensor’s 5.0 x 4.0 cm double-sided board is nickel-plated for enhanced oxidation resistance and conductivity, ensuring superior performance and durability.
• Features both digital switching outputs (0 and 1) and an analog AO voltage output for versatile applications.
• Includes TTL-level output with a valid low signal, capable of driving relays, buzzers, small fans, and more, with a driving capability of 100mA.
• Sensitivity adjustments can be made easily using the onboard potentiometer.
• LED indicator illuminates under dry conditions when output is high. When wet, the output switches to ground level and the LED light turns off.

Specifications:

• Small board PCB size: 3.2 cm x 1.4 cm
• Operating voltage: 3.3V-5V
• Voltage: 5V

Features:

• Adjustable sensitivity via distribution bit
• Easy installation with fixed bolt holes
• Power and output signal LED indicators
• Comparator output with a clean signal and waveform, supporting over 15mA driving capability
• Wide voltage LM393 comparator
• Large rain detection area for improved sensitivity
• Positioning holes on the board to facilitate installation
• Separate raindrop sensor and control panel for easy wiring

How to Use:

1. Connect the sensor to a 5V power supply. The power indicator will light up when the sensor board is dry, showing a high DO output. Upon detecting water, DO output becomes low, and the indicator light switches. Once dried, the output reverts to high.
2. AO analog output can be interfaced with the microcontroller's AD port to measure droplet size in the rainfall.
3. DO TTL digital output can detect the presence of rain when connected to a microcontroller.

Connection Mode:

• VCC: Positive power supply (3-5V)
• GND: Ground
• DO: TTL switching signal output
• AO: Analog signal output

Package Includes:

• 10 x Rain sensing boards
• 10 x Control boards

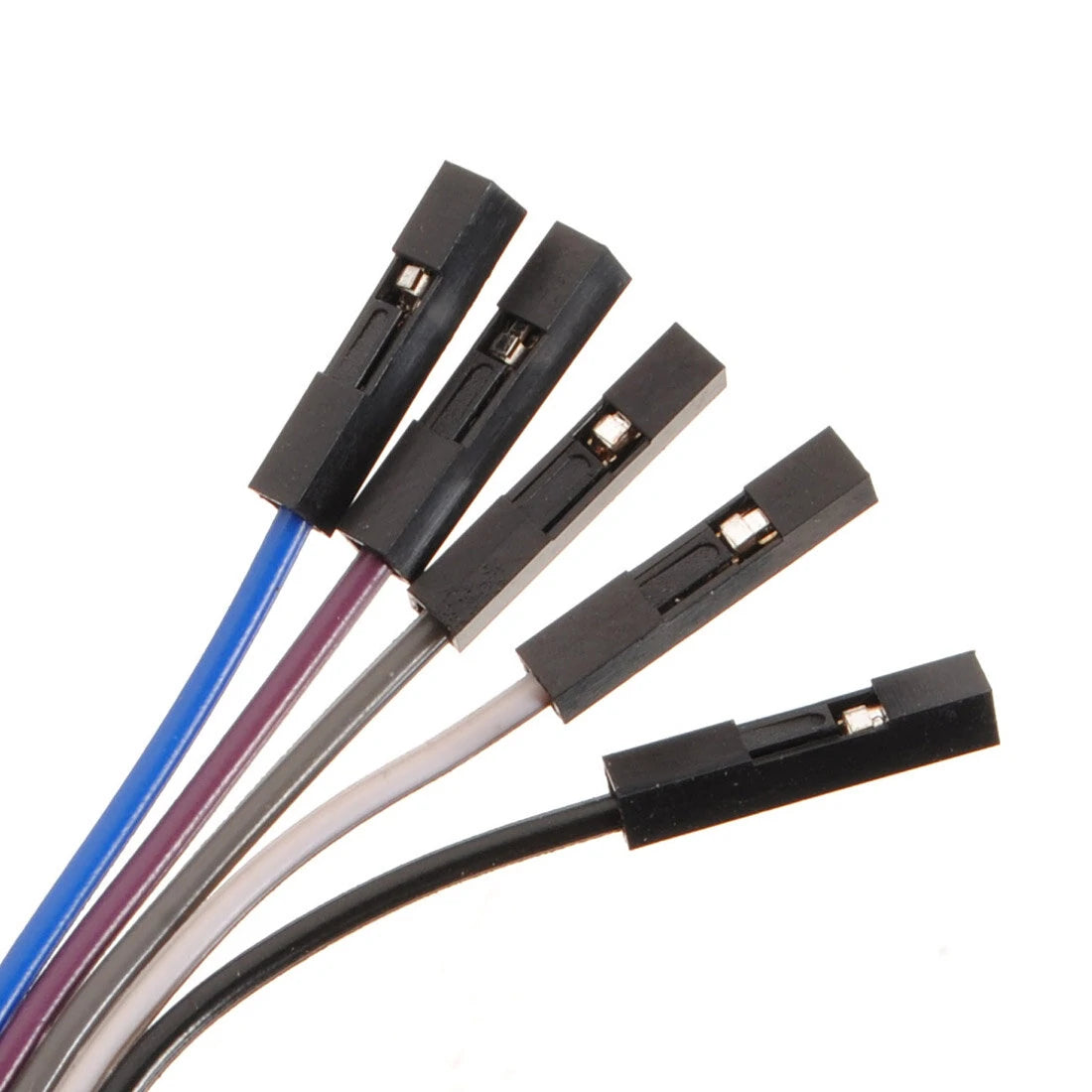

• 10 x 20cm Dupont Line sets
