3-Channel Dust Particle Counter & Air Quality Tester: 0.3um/2.5um/10um PM2.5 PM10 Detector with 3.2 TFT Color Screen, Rechargeable, Temp & Humidity Monitor for Home, Office, Industrial Use

The product employs advanced scattering technology to monitor air quality, temperature, humidity, and AQI Grade. It features 999 data record groups, a viewable data curve, a 3.2-inch TFT full-color display, and an automatic measurement function with real-time date and time tracking. Enjoy the flexibility of a rechargeable lithium battery or an external USB power supply for stable data and long-lasting performance.

Features:

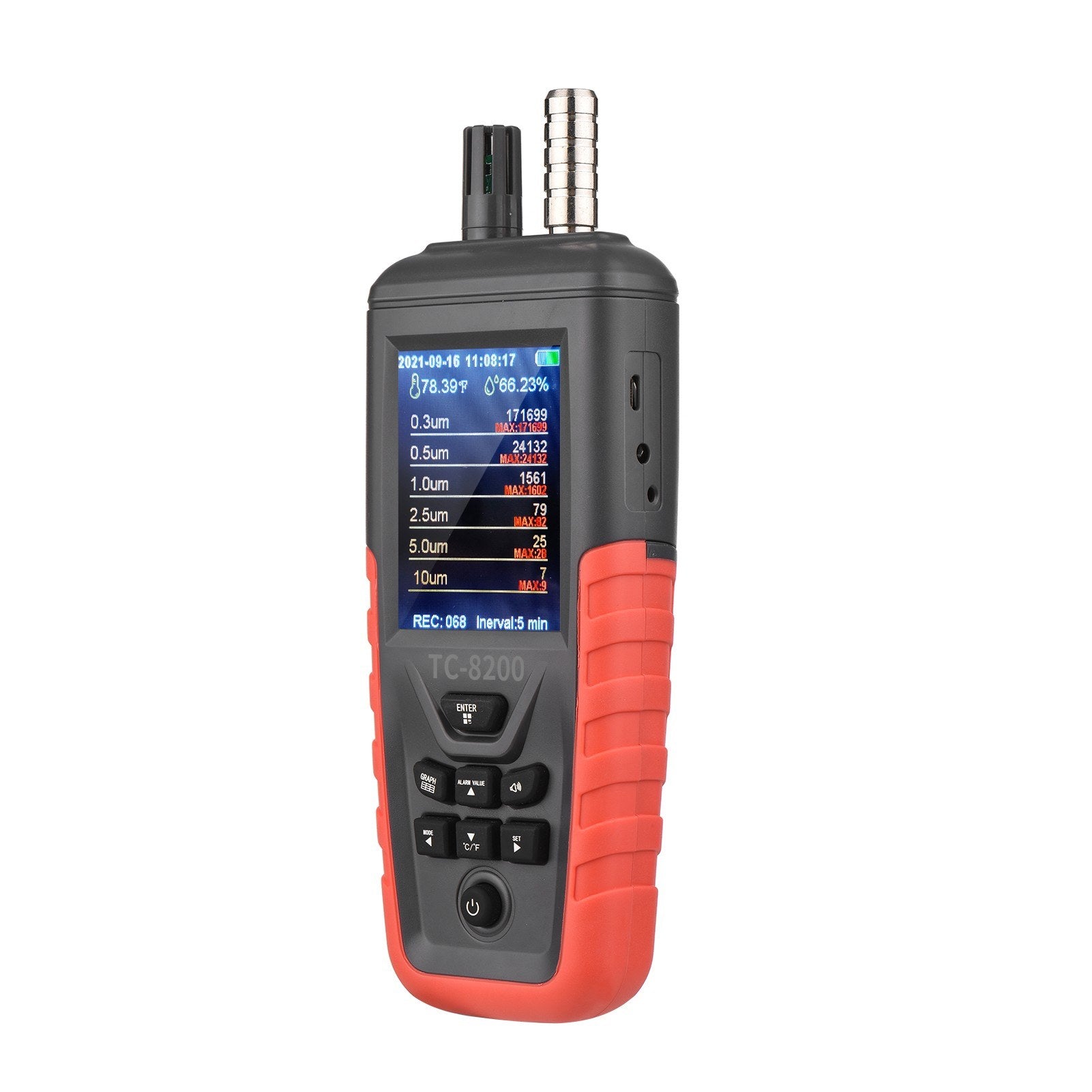

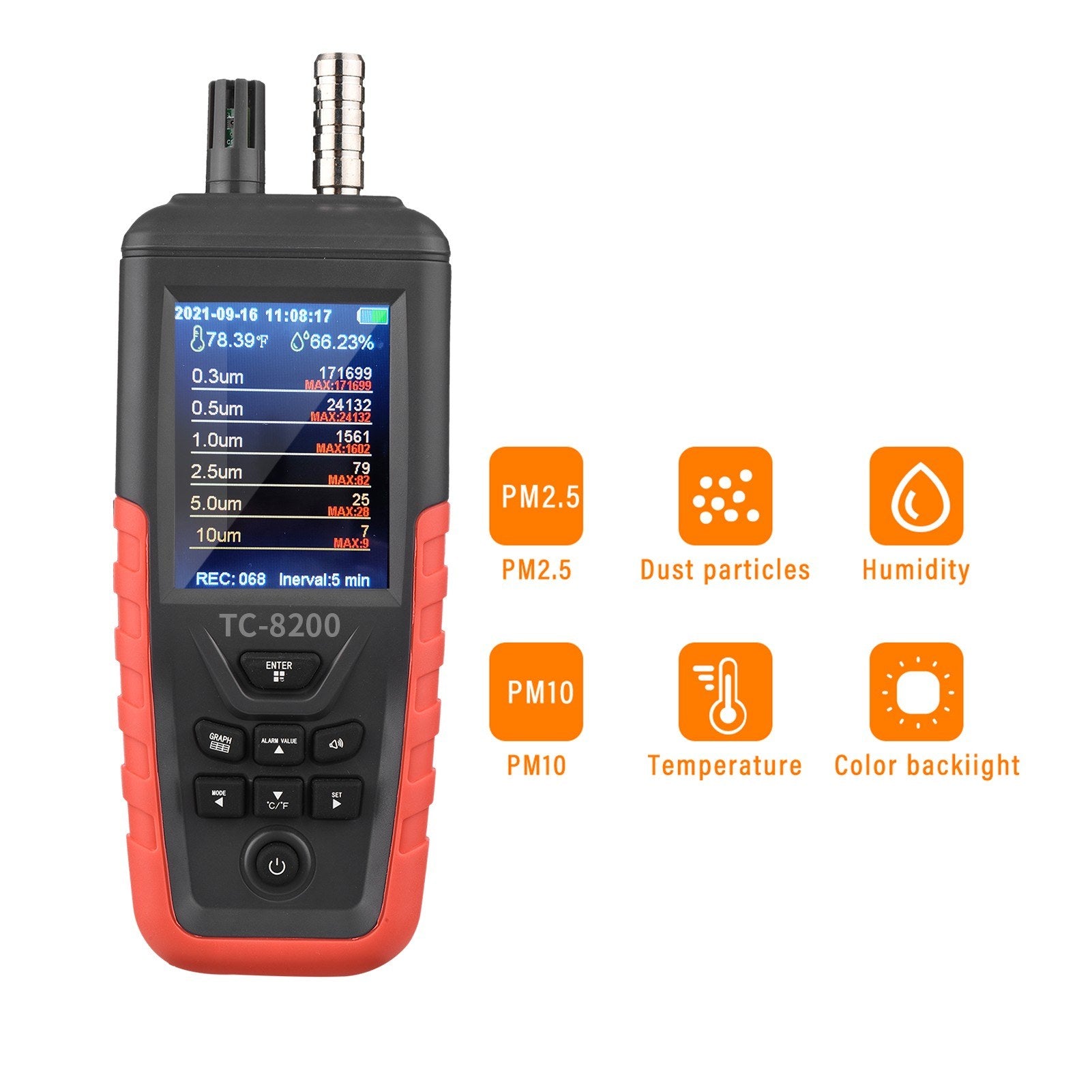

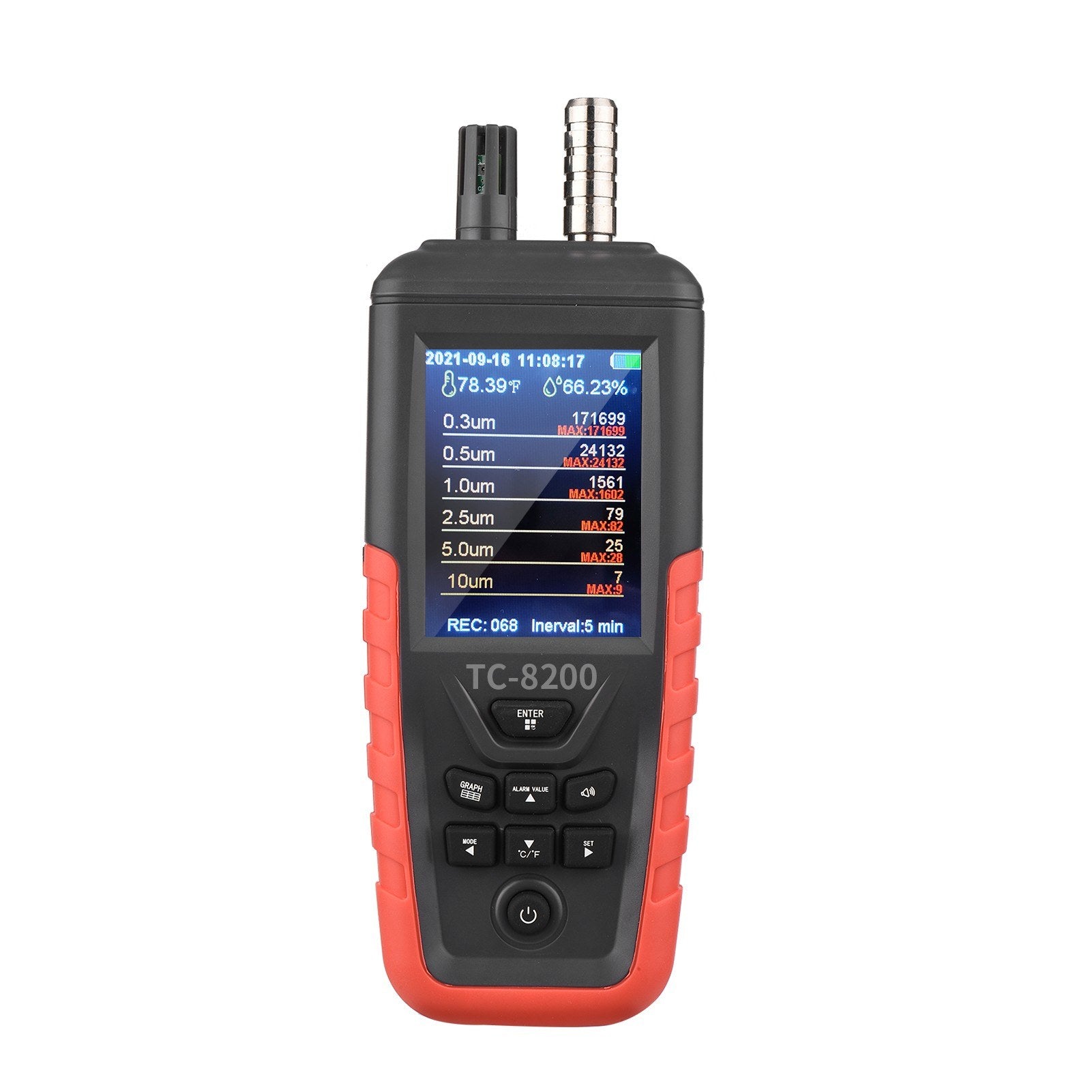

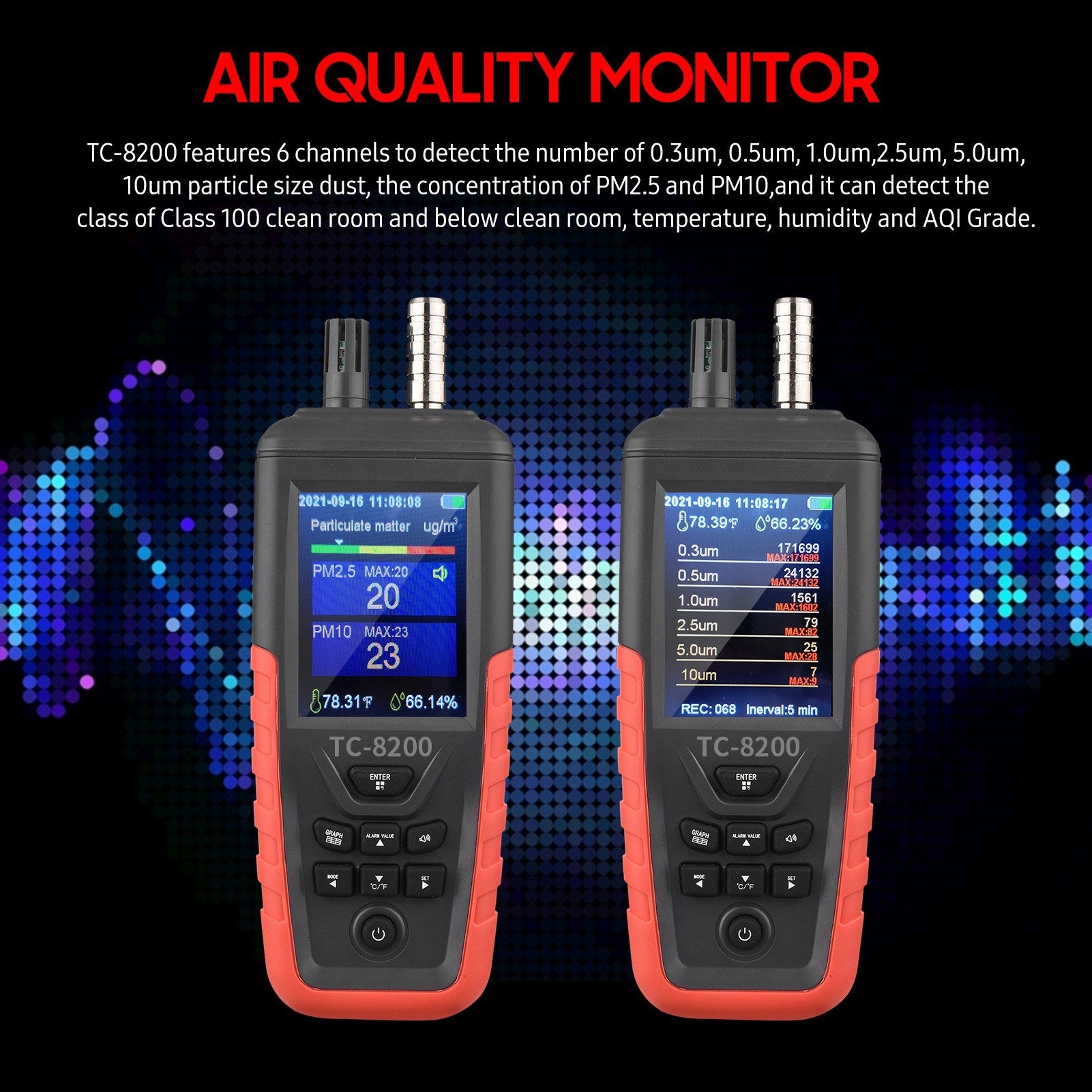

• Air Quality Monitor: Choose between two models. The TC-8100 detects 0.3μm and 2.5μm dust particles, PM2.5, PM10, AQI Grade, temperature, and humidity. The TC-8200 detects 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm particle sizes, PM2.5, PM10, clean room classes up to Class 100, temperature, humidity, and AQI Grade.

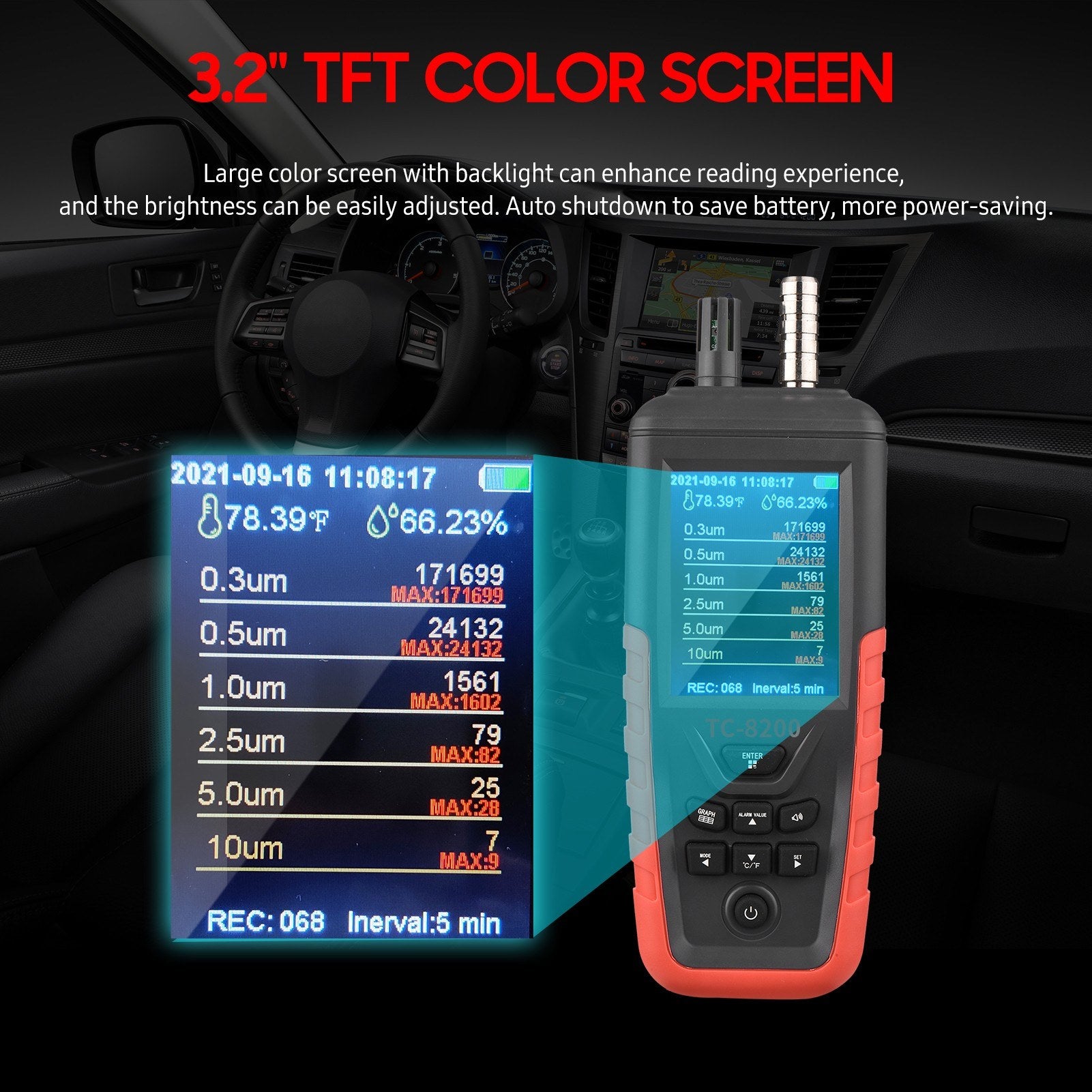

• 3.2" TFT Color Screen & Comfortable Buttons: The large color screen with backlight enhances readability and allows brightness adjustments. It displays real-time date and time, offers °C/℉ switching, and features an auto shutdown for power efficiency. The comfortable buttons ensure easy operation.

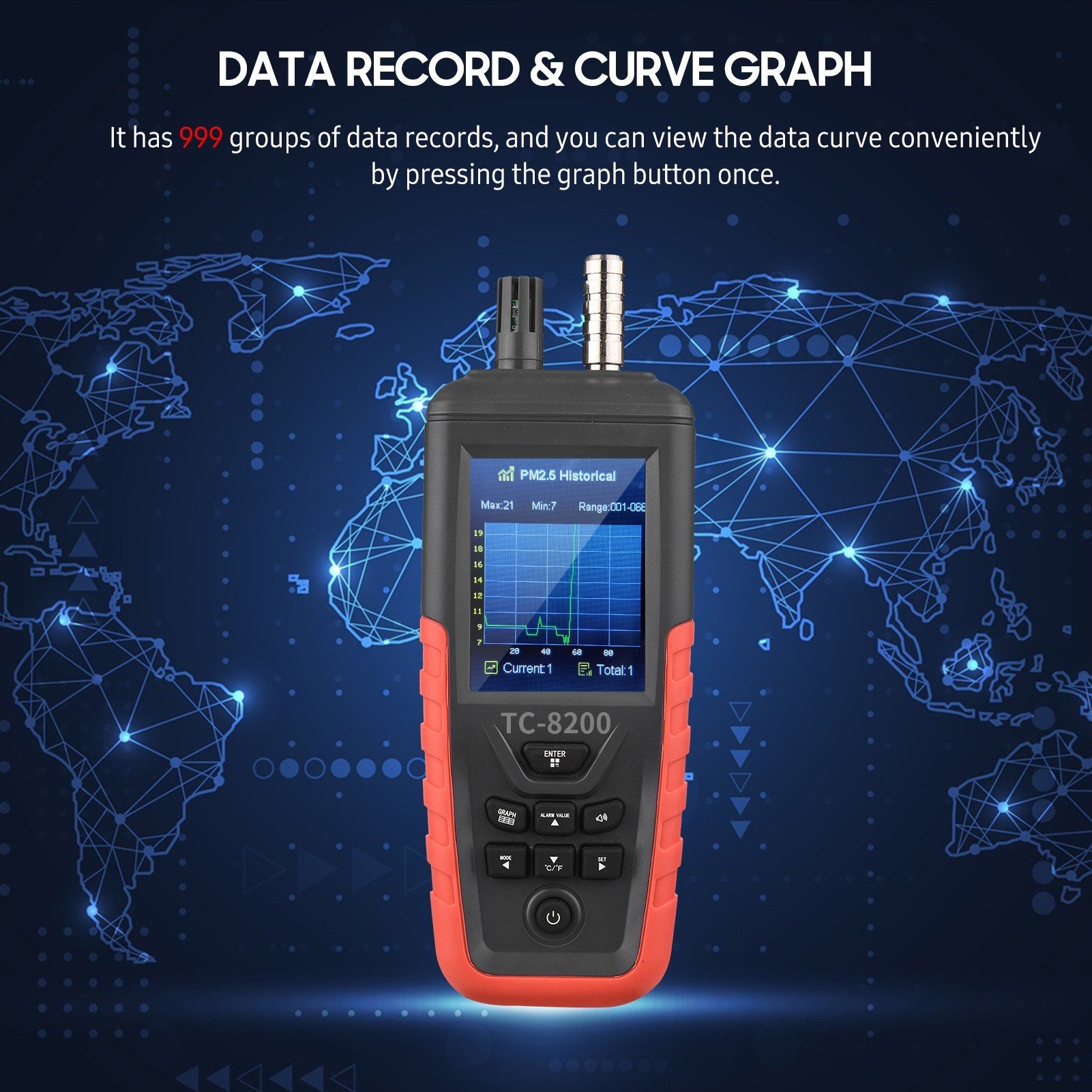

• Data Record, Curve Graph & PM2.5 Alarm: Access 999 data records and view the data curve with a single button press. The PM2.5 alarm function includes an adjustable alarm buzzer and value settings.
• Dual Power Supply: Opt for the rechargeable 2000mAh lithium battery for up to 9 hours of use, or use a USB cable for power. The easy-to-remove battery cover simplifies battery replacement.

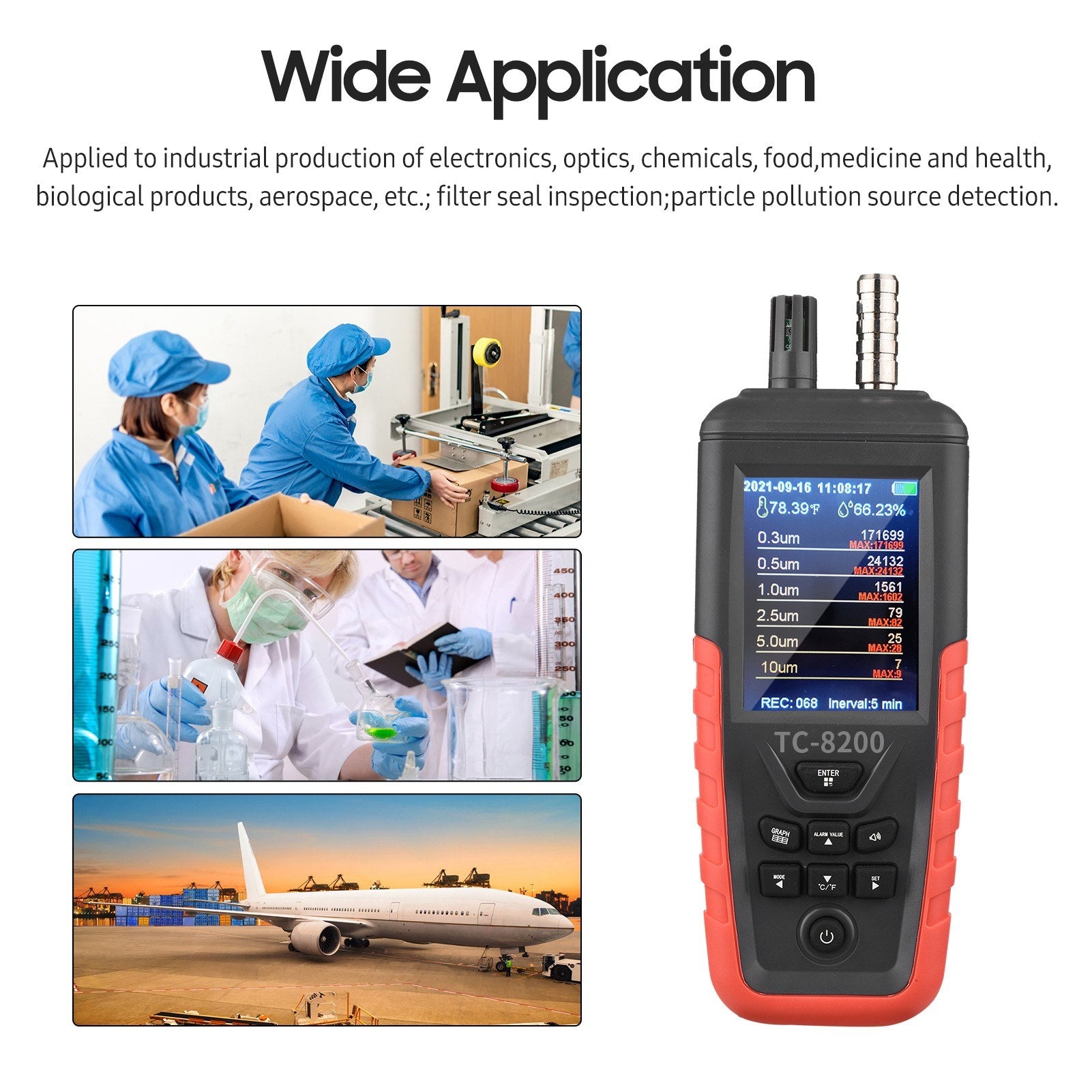

• Tripod Support & Wide Application: Comes with a tripod for convenience. Suitable for clean room inspections, industrial production in electronics, optics, chemicals, food, medicine, aerospace, and more. Ideal for filter seal inspections and particle pollution source detection.

Specifications:

• Color Options: Grey & Yellow / Grey & Red

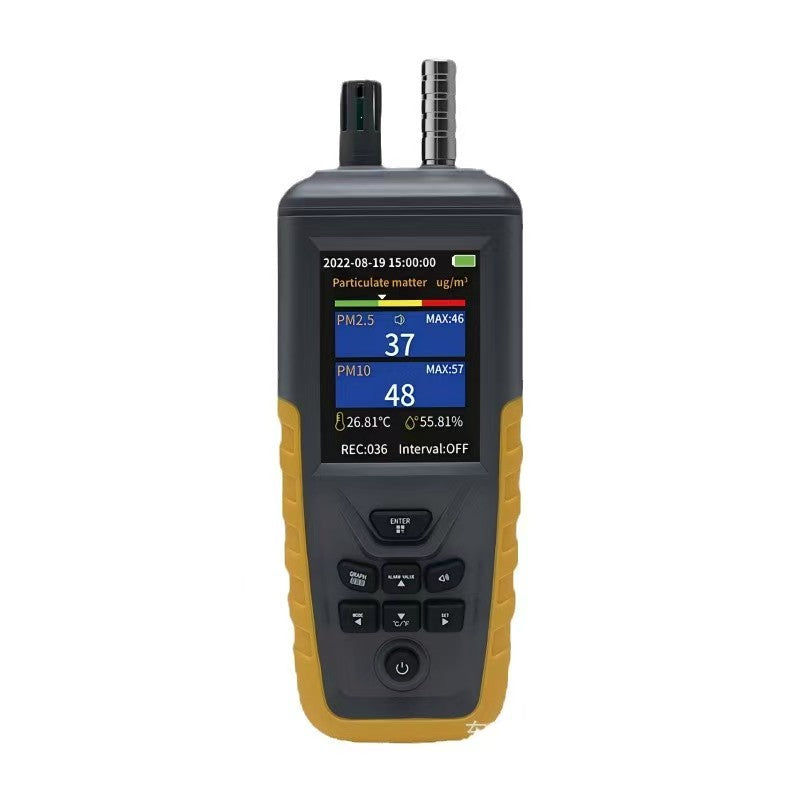

• Model Options: TC-8100 (Grey & Yellow) / TC-8200 (Grey & Red)
• Material: ABS
• Concentration Resolution: 1μg/m³
• Flow Rate: 1 liter/min (2.83L=1L*2.83)
• Response Time: Approximately 1 second
• Boot Stabilization Time: Approximately 10 seconds
• Temperature Measurement: -10~60°C Range, ±2°C Accuracy, 0.01°C Resolution
• Humidity Measurement: 0~100% Range, ±3% Accuracy, 0.01% Resolution
• Battery: Built-in 3.7V 2000mAh Lithium Battery
• Charging Voltage: 5V / USB

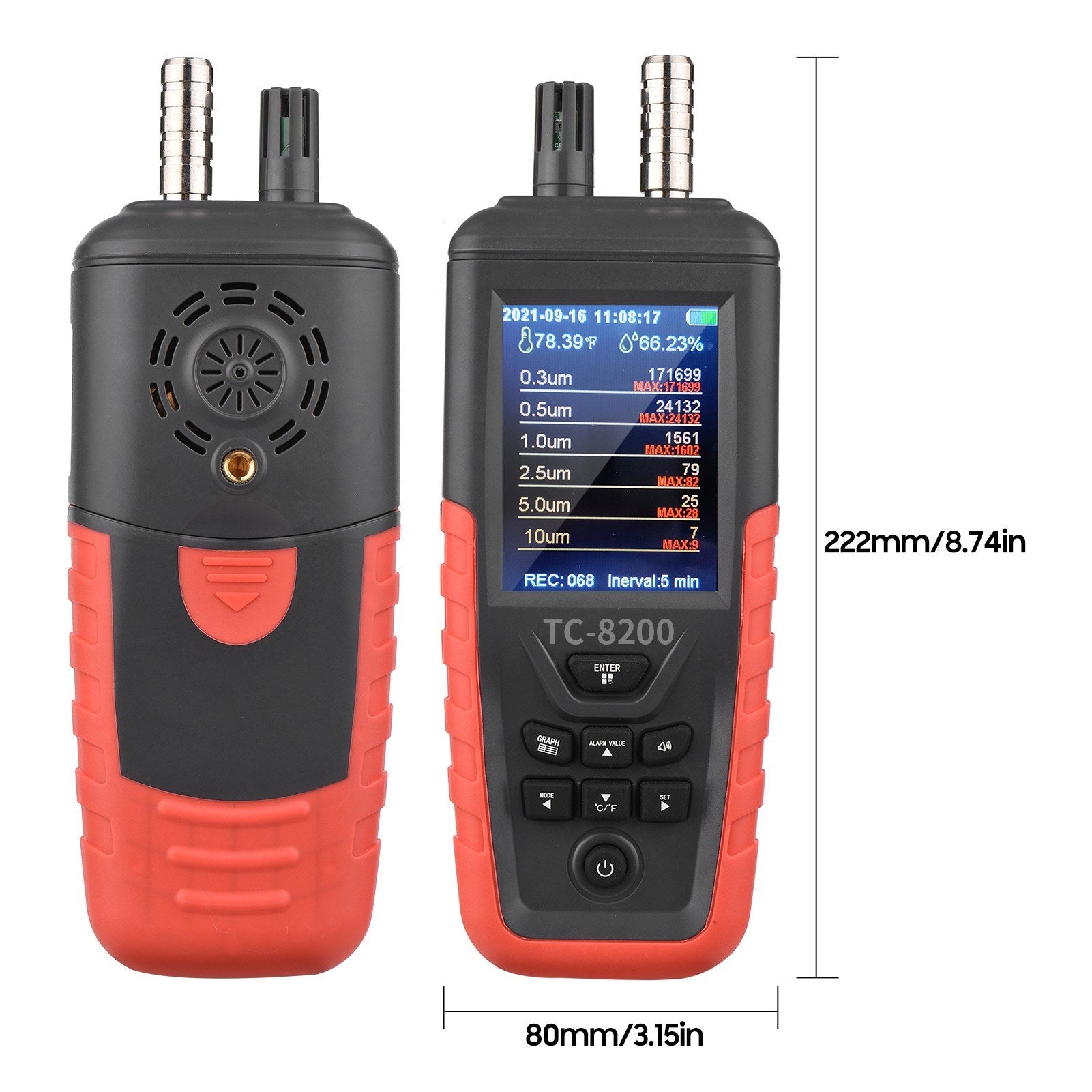

• Item Size: 222 x 80 x 46mm / 8.74 x 3.15 x 1.81in
• Item Weight: 311g / 10.98oz
• Package Size: 26 x 21 x 8cm / 10.24 x 8.27 x 3.15in
• Package Weight: 738g / 1.63lbs

TC-8100 Model:

• 3-channel Particle Sizes: 0.3μm, 2.5μm, 10μm
• PM2.5 Range: 0~1000μg/m³
• PM2.5 Precision: ±12μg/m³

TC-8200 Model:

• 6-channel Particle Sizes: 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm
• PM2.5 Range: 0~1000μg/m³
• PM2.5 Precision: ±10μg/m³ (0~100μg/m³), ±10% (100~1000μg/m³)
• Output Range: ≤2,000,000 Granule/L
• Meets ISO 14644-1 ISO5 Level-ISO9 Level standards

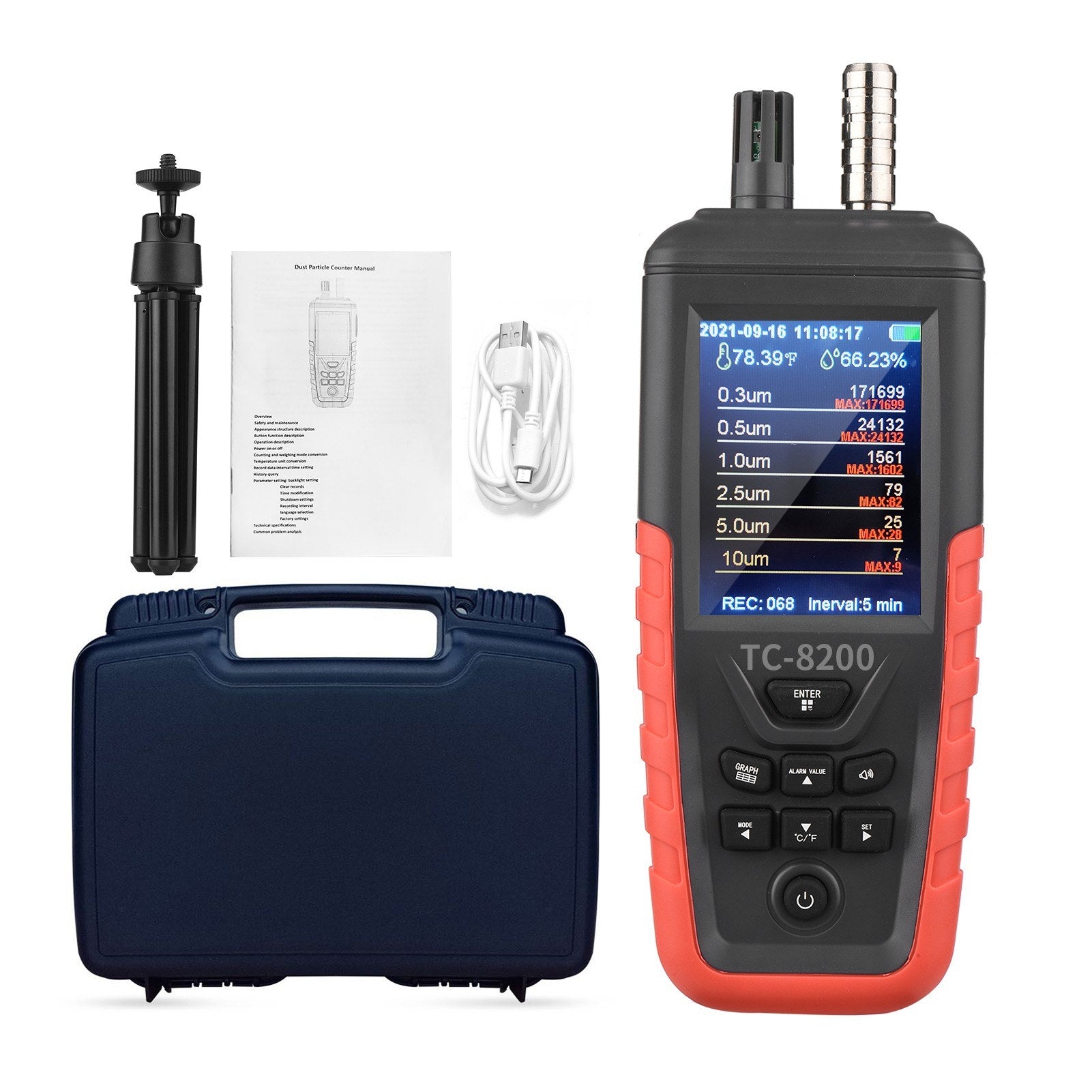

Package Includes:

• 1 Dust Particle Counter
• 1 USB Cable
• 1 Tripod
• 1 User Manual (English)
