4K Microscope Camera

Discover the precision and versatility of our 4K Microscope Camera. Ideal for technology enthusiasts and professionals seeking high-quality imaging solutions.

Specifications

• Item Type: Microscope Camera
• Model: HY-6210
• Sensor: Sony CMOS IMX334 Sensor
• Optical Format: 1/1.8 inch
• Pixel Size: 2.0μm x 2.0μm

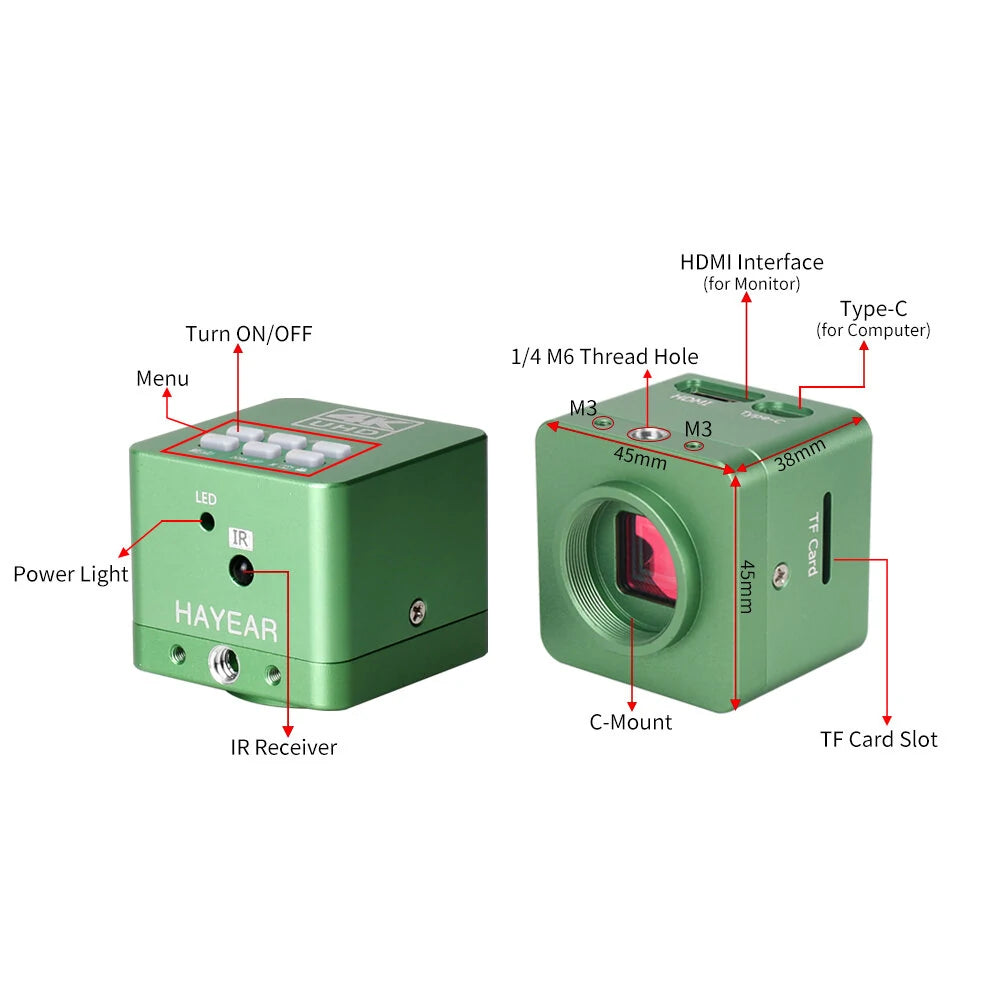

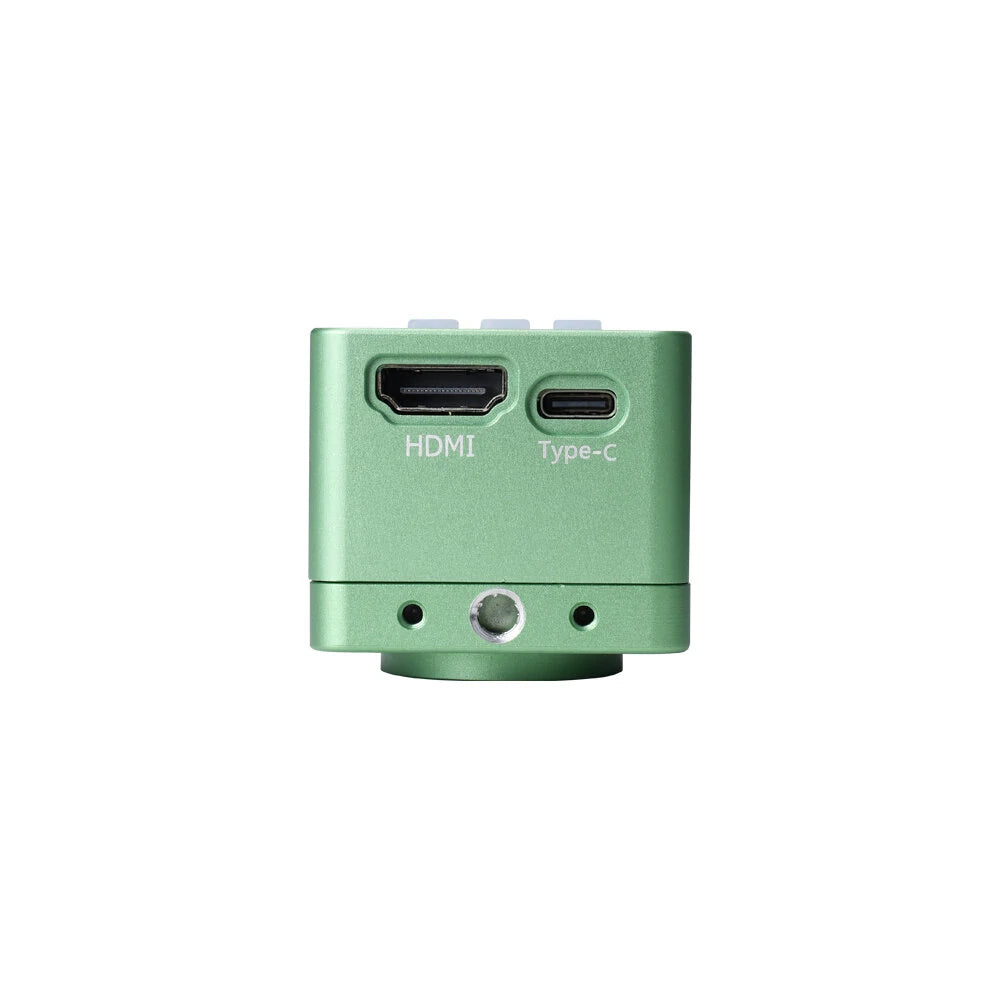

• Interface: HDMI (Type A), USB (Type B), Small memory card
• Image Resolution: 41MP (HDMI)
• Video Resolution: 4K: 3840x2160P at 30FPS, 2K: 1920x1080P at 60FPS (HDMI)
• Screen Scale: Supports 4:3, 16:9 (HDMI)
• USB 2.0: 1920x1080 at 60FPS, 1280x720 at 60FPS
• Memory Card: Supports up to 512GB (not included)
• AWB: AWB color correction/automatic/manual
• R.G.B Value Setting: Independent
• Exposure: Automatic/manual, AE value can be set
• Cross Line: 8 lines, customizable color, width, position
• Scale Line: 2 lines
• Dotted Line: 2 lines, customizable color, width, position
• Sharpness and Contrast: Supported
• Mono Negative Film: Supported
• Mirror: Horizontal and vertical mirror supported
• Languages: English, Simplified Chinese, French, Spanish, Japanese, German, more
• Digital Zoom: Supported
• Infrared Remote Control: Supported
• Voltage Input: DC 12V
• Power Supply Voltage: AC 100-240V input, DC 12V output
• Power Consumption: Max 0.15W (12V, 0.12A)
• Lens Interface: C/CS port
• Remote Control Battery: 1 x CR2302 button battery (not included)
• Product Size: 45 x 45 x 38 mm (LxWxH)
• Package Size: 160 x 100 x 80 mm (LxWxH)
• Product Weight: 106g
• Gross Weight: 350g

Notes

• PC Support: Compatible with Windows XP/7/8/10 systems.
• USB Output: Software operating white balance, exposure, and color adjustment not available. Camera keys and remote control are not effective.
• HDMI Output: Functionality adjustable when connected to a monitor. Camera keys available, and remote control is operational wirelessly.
• When using USB connection, ensure no memory card is in the camera. Memory card storage is exclusive for HDMI output. USB output stores on PC.
• For computer connection, directly plug in the USB cable (no need for additional power).

Package Includes

• 1 x 4K Microscope Camera
• 1 x Power Supply
• 1 x USB Cable
• 1 x HDMI Cable
• 1 x Remote Control
