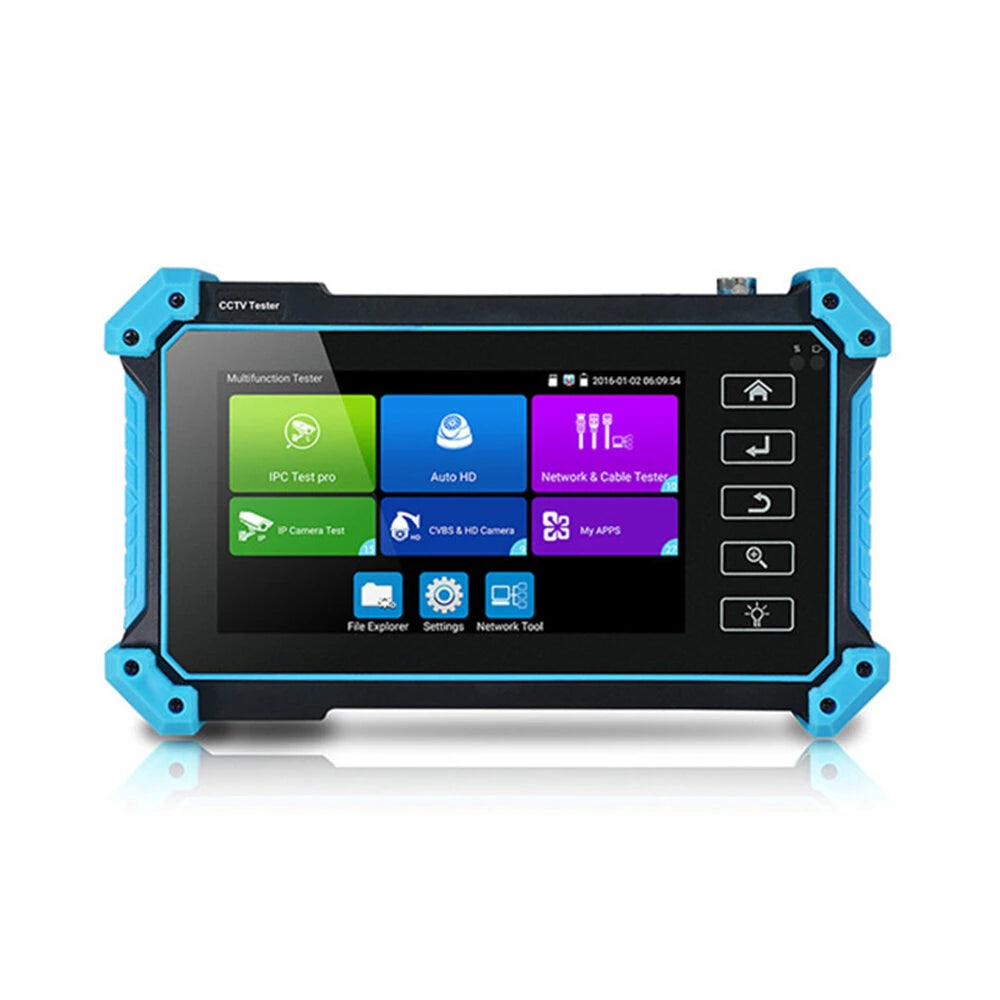

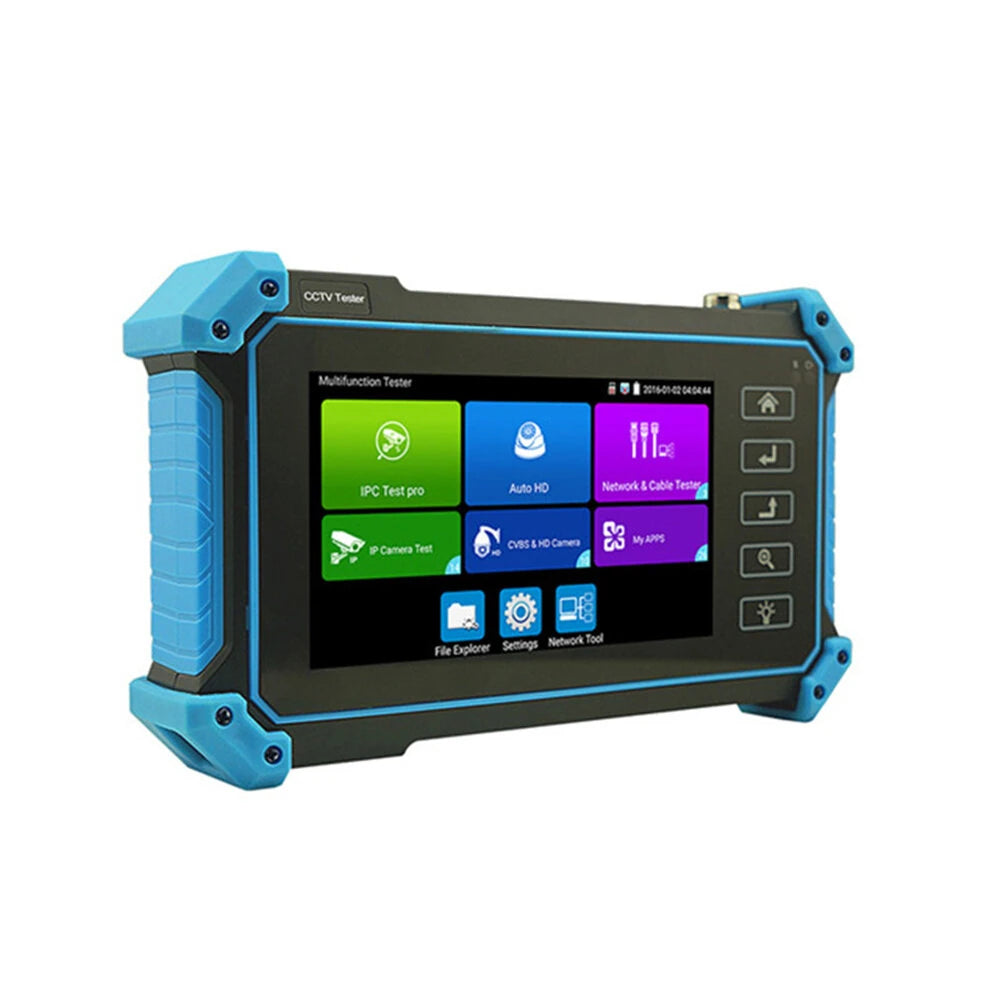

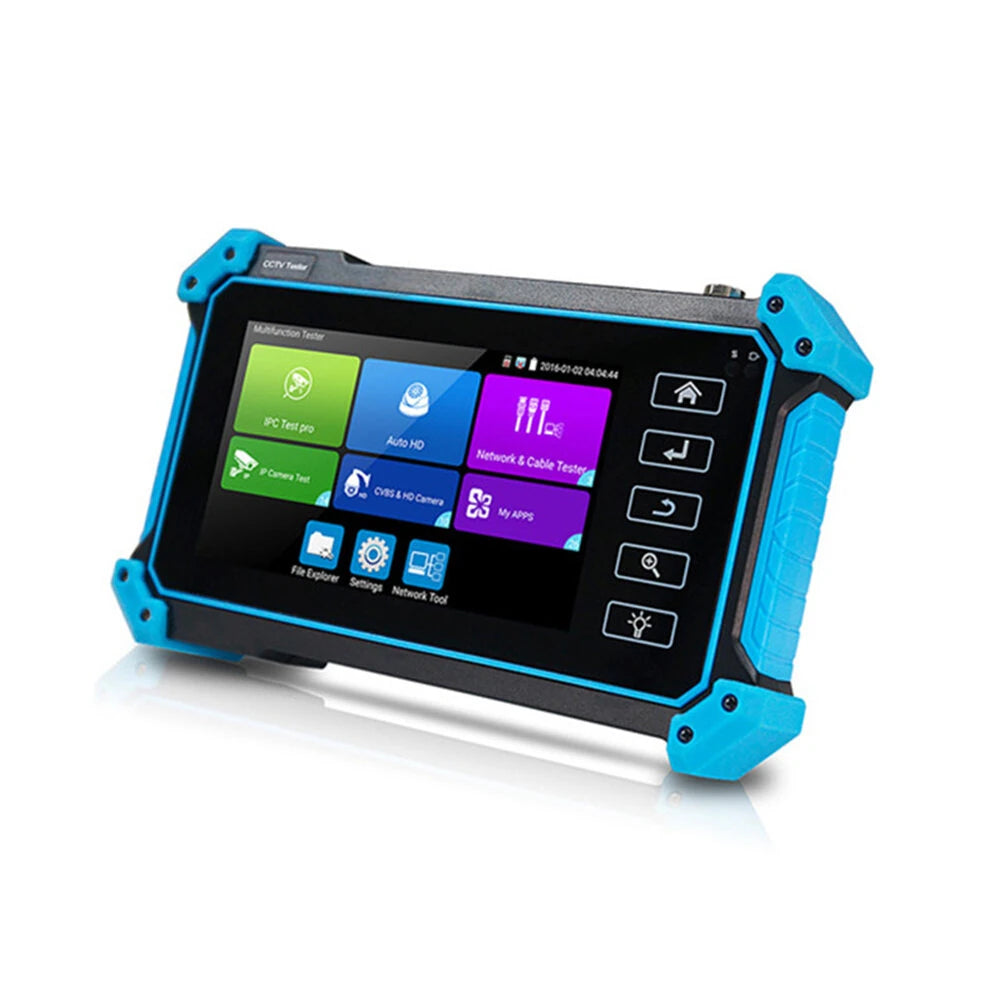

5-in-1 4K CCTV Tester: IPC-5100 Plus, IP CVI TVI AHD Analog, VGA Input, POE, TDR, Digital Cable Tracer

Specifications

Brand: OWON

Optional Models: IPC-5100 Plus, IPC-5100C Plus

Features

The following features are available for both models:

• 8MP AHD
• 8MP TVI
• 8MP CVI
• HD-SDI/3G-SDI/EX-SDI*
• IN*
• VGA IN*

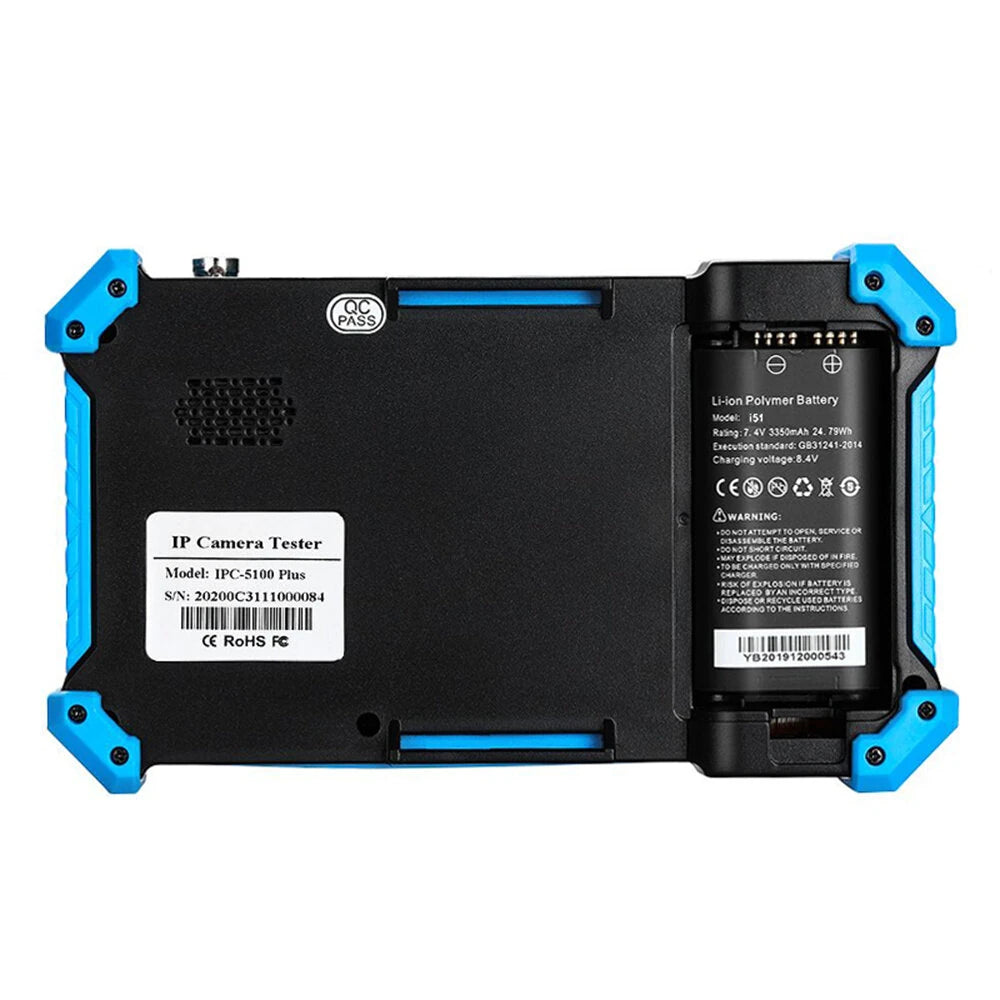

Battery: 3350mAh

Note: The IPC-5100C Plus includes a Digital Cable tracer*.

Camera Tests

• 5.4 inch IPS touch screen, 1920x1080 resolution
• Supports H.265 & H.264 IP and 4K video display via mainstream
• Analog camera test with a PTZ controller
• 8MP TVI test: 3840x2160P at 12.5/15 FPS, 4x zoom, video record & playback, coaxial PTZ control & OSD menu
• 8MP AHD test: 3840x2160P at 15 FPS, 4x zoom, video record & playback, coaxial PTZ & OSD menu
• 8MP CVI test: 3840x2160P at 12.5/15 FPS, 4x zoom, video record & playback, coaxial PTZ & OSD menu
• 8MP EX-SDI test (IPC-5200 Plus only): 3840x2160P at 25/30 FPS
• HD-SDI test (IPC-5200 Plus only): 1920x1080P at 25/30/50/60 FPS
• 3G-SDI test (IPC-5200 Plus only): 1920x1080P at 50/60 FPS
• Auto HD app for automatic HD coax camera type recognition
• VGA input: up to 2048x1152 at 60 FPS (IPC-5100 Plus, IPC-5200 Plus)
• Input: up to 4K 30FPS (IPC-5100 Plus, IPC-5200 Plus)
• Rapid ONVIF for auto login and testing report creation
• IPC test pro: auto scan and activate HIKVISION and Dahua cameras
• AXIS and Hikvision camera test with user-defined settings
• DC12V/3A power output
• Built-in Wi-Fi for wireless camera support and hotspot creation

Cable Test

• Improvement cable tester for UTP, telephone cables, and more
• RJ45 TDR cable test for pair status, length, and more
• Digital Cable tracer for efficient cable searching*

Other Functions

• Network tools: Ping, IP scan, Port Flash, DHCP server, etc.
• Tester Play: simultaneous display on mobile and PC
• Traffic monitoring for network connection speeds
• Software updates and app installations available
• Media player supports 4K and MKV/MP4 files
• Audio input for recording and saving audio
• Long battery life with 3350mAh for IPC-5100 and IPC-5200 Plus models

Applications

• CCTV system installation and maintenance
• Network cabling project installation and maintenance
• Dome and 4K H.265 IP camera testing
• Video transmission channel testing
• PTZ controller

Package Included

• Type A: 1 x IPC-5100 Plus

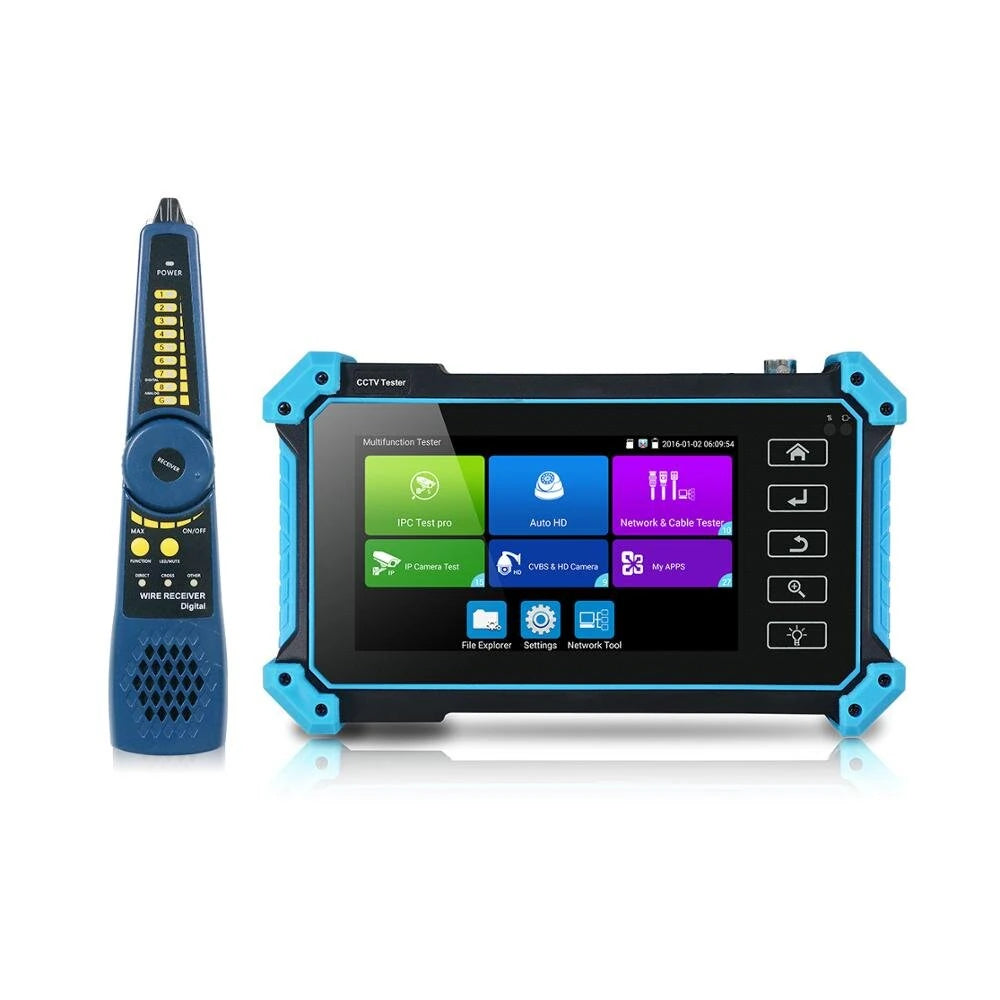

• Type B: 1 x IPC-5100C Plus, 1 x Line Finder
