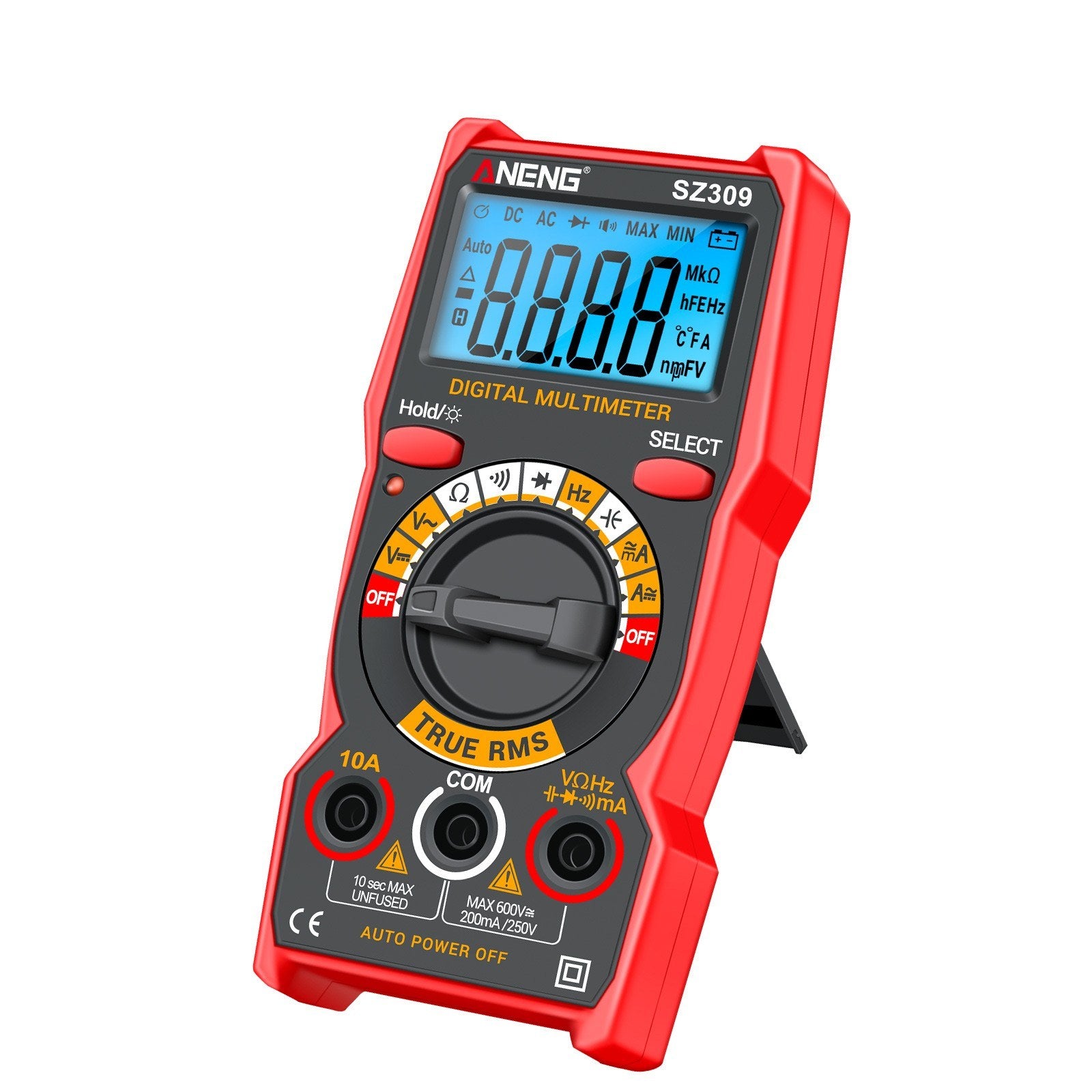

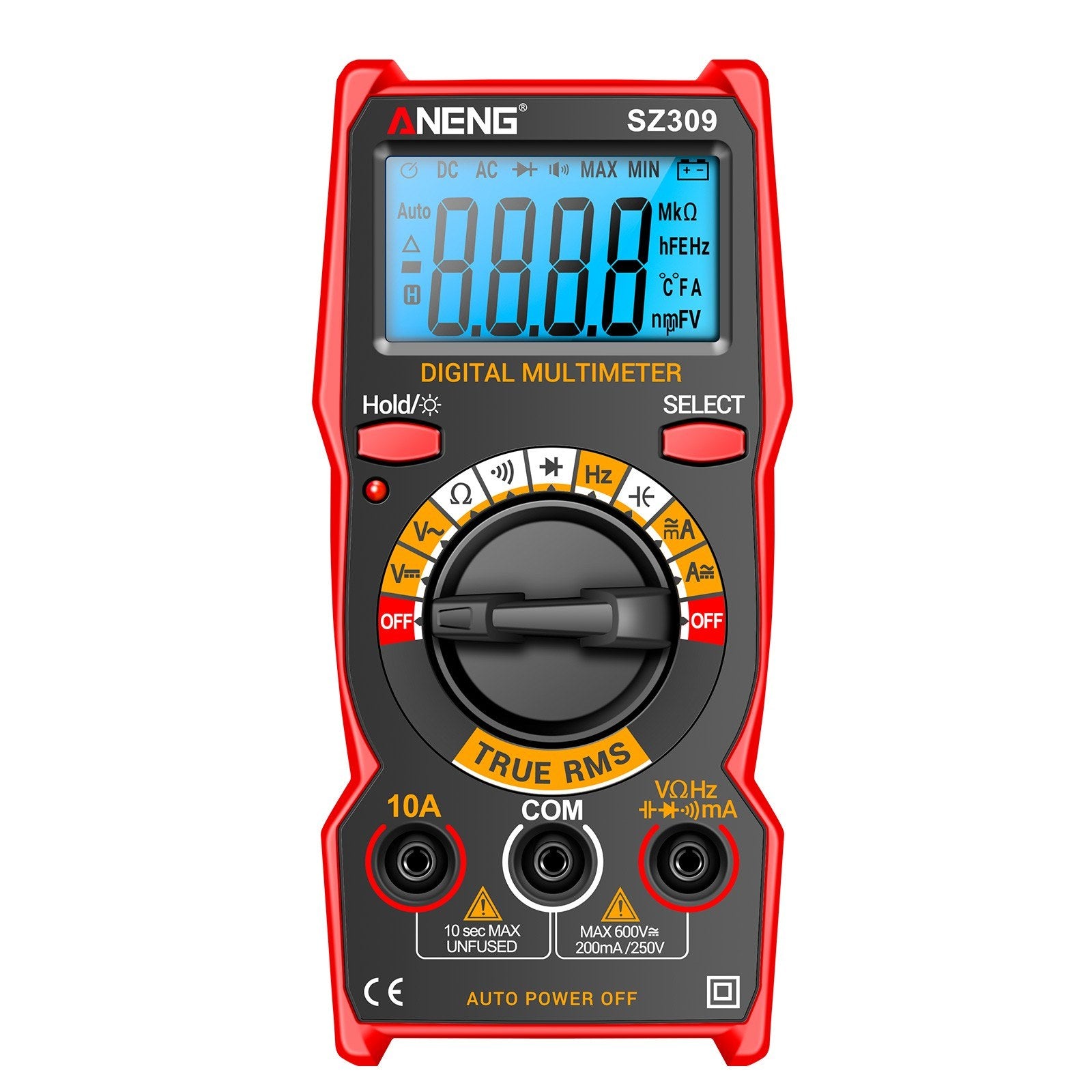

Intelligent Multimeter

Features:

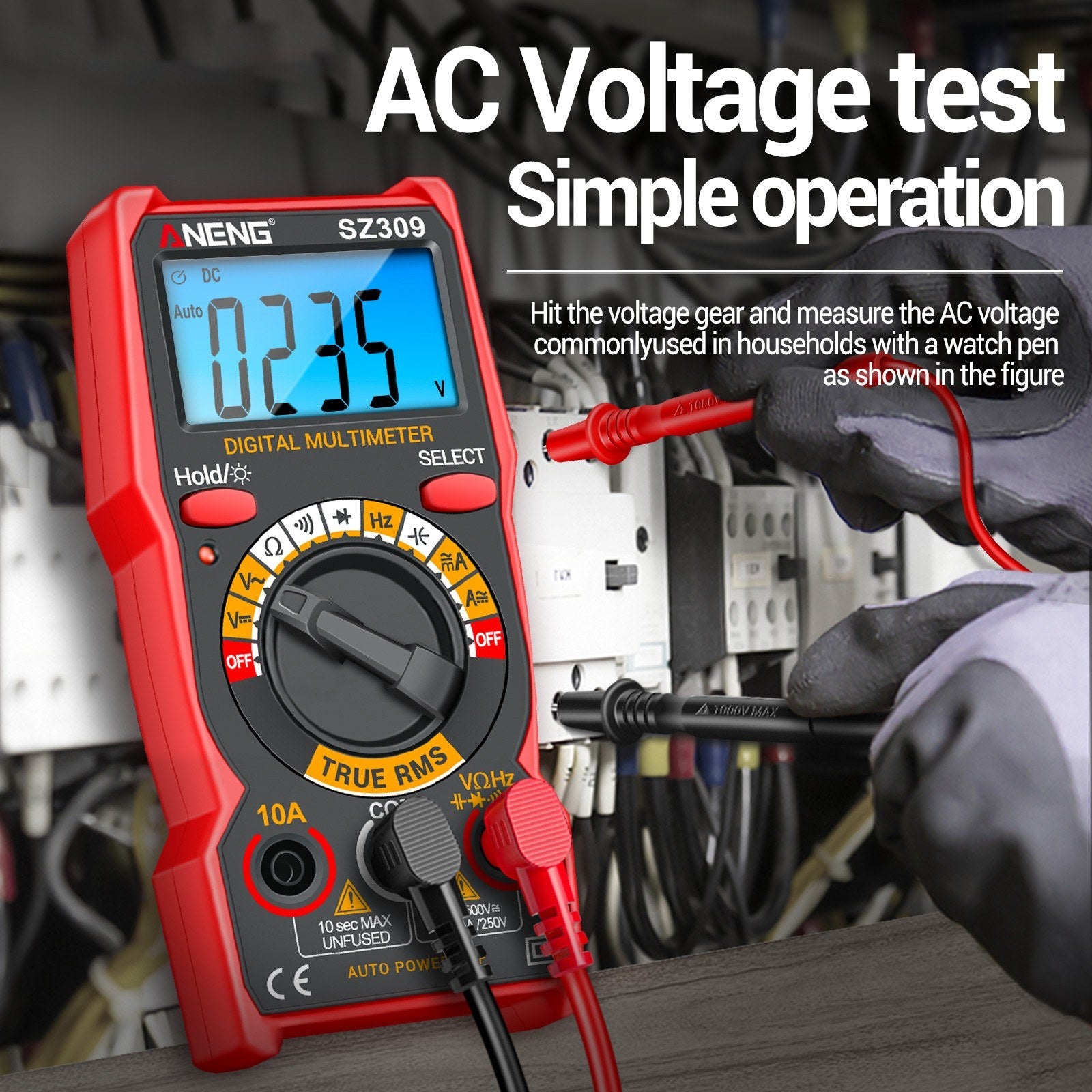

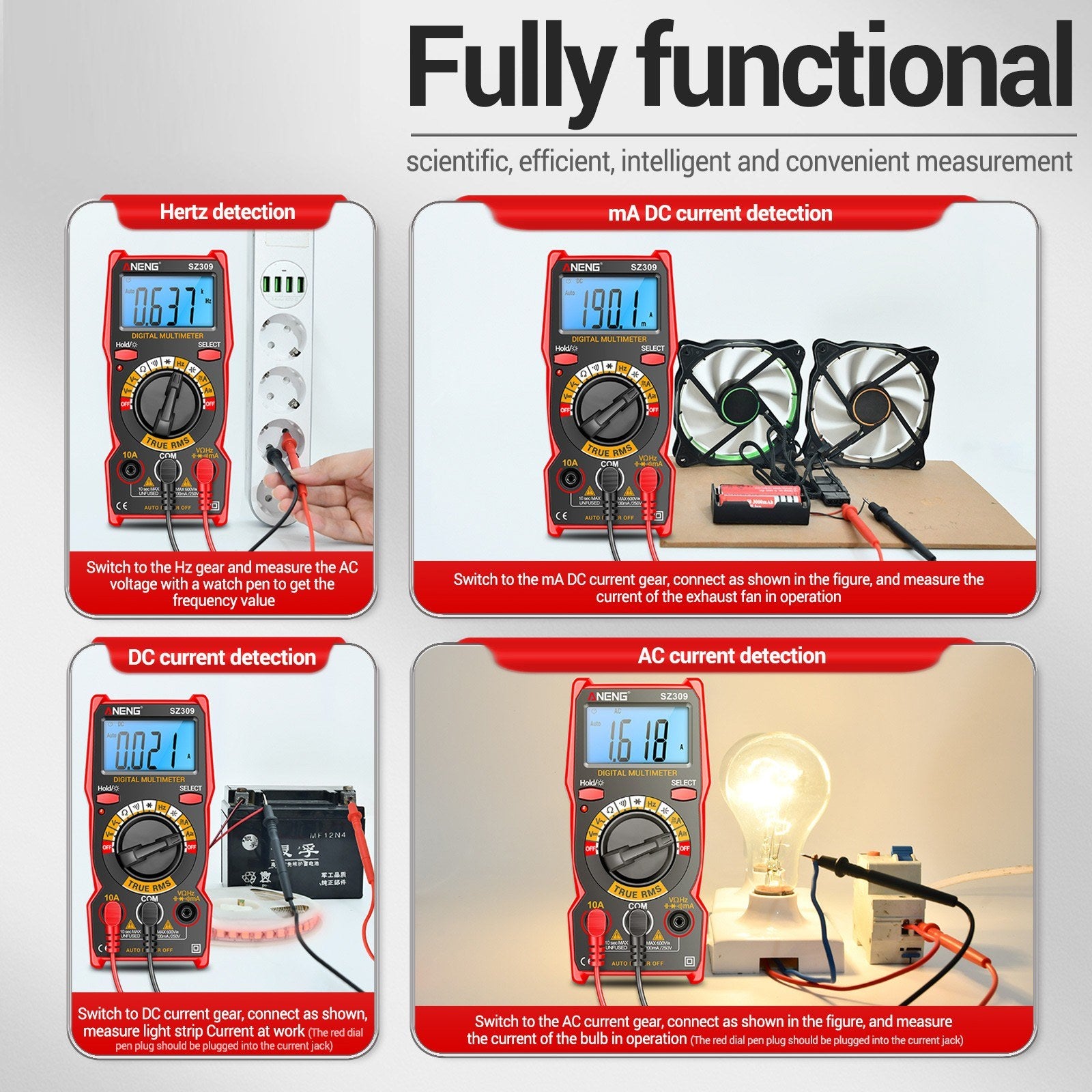

• Multi-Function: Provides readings for a variety of electrical tests such as AC and DC voltage, AC/DC current, resistance, capacitance, diode testing, buzzer, and frequency. Perfect for meeting most electrical measurement needs.
• Accurate and Fast Detection: Utilizes precise detection technology for quick and accurate measurements, ideal for troubleshooting, repair work, or general electrical assessments.

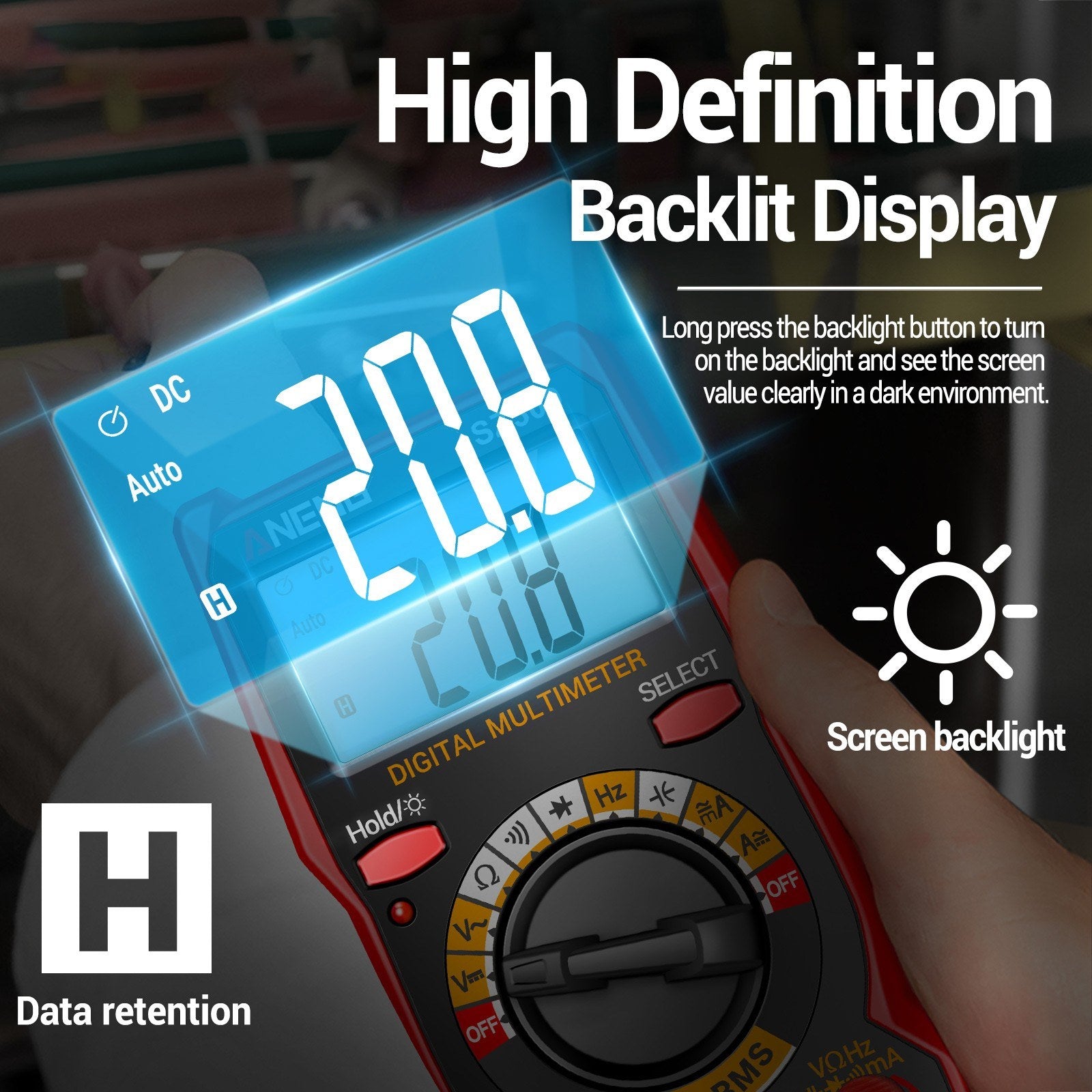

• High Definition Backlit Display: Long press the backlight button to illuminate the display, enabling clear screen visibility even in dimly lit environments.
• Back Shrink Support Frame: Features an adjustable and innovative inclined vertical bracket design for easy portability and placement.
• Widely Used: Designed for safety and accuracy, suitable for electrical testing by electricians, household applications, automotive diagnostics, and tackling industrial electrical problems.

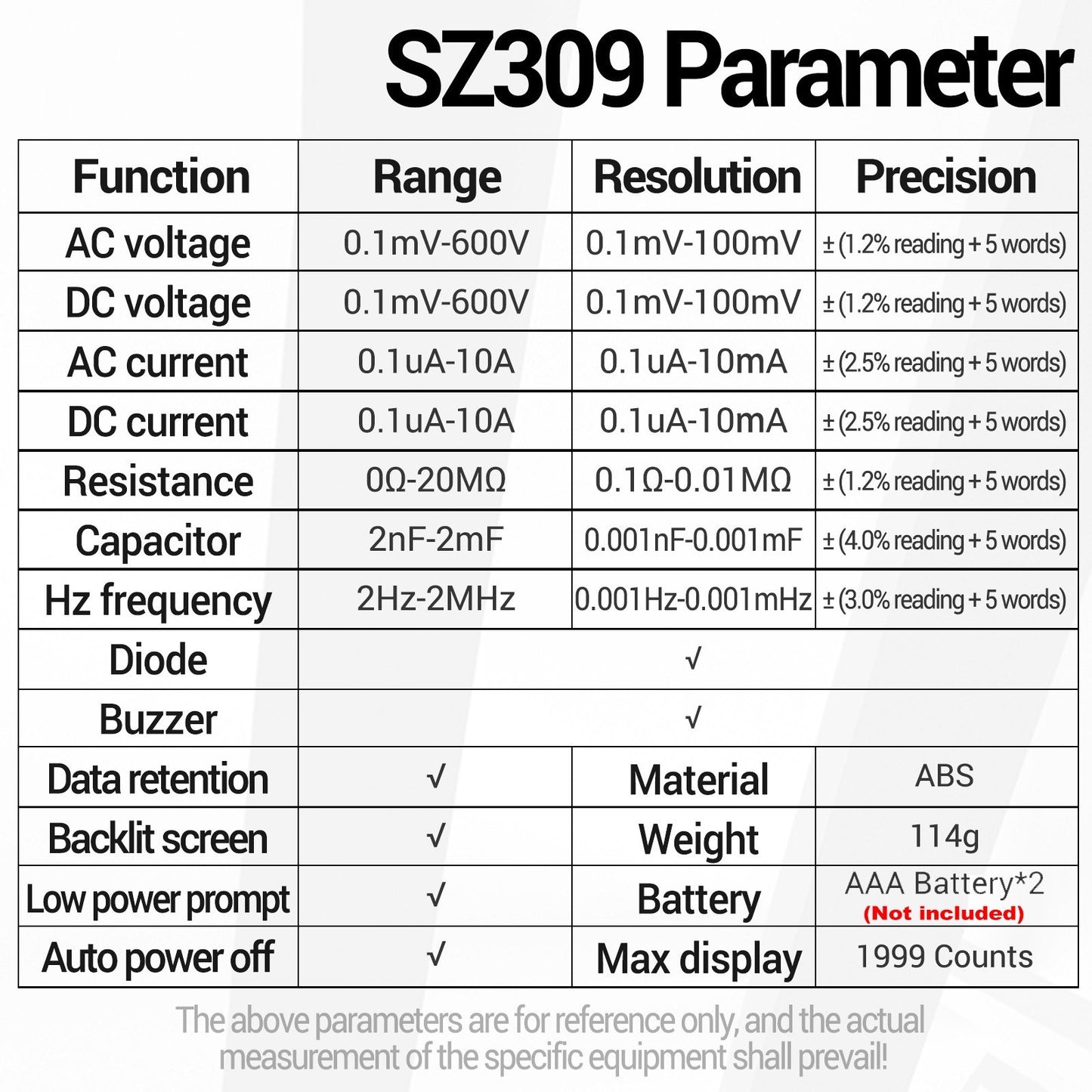

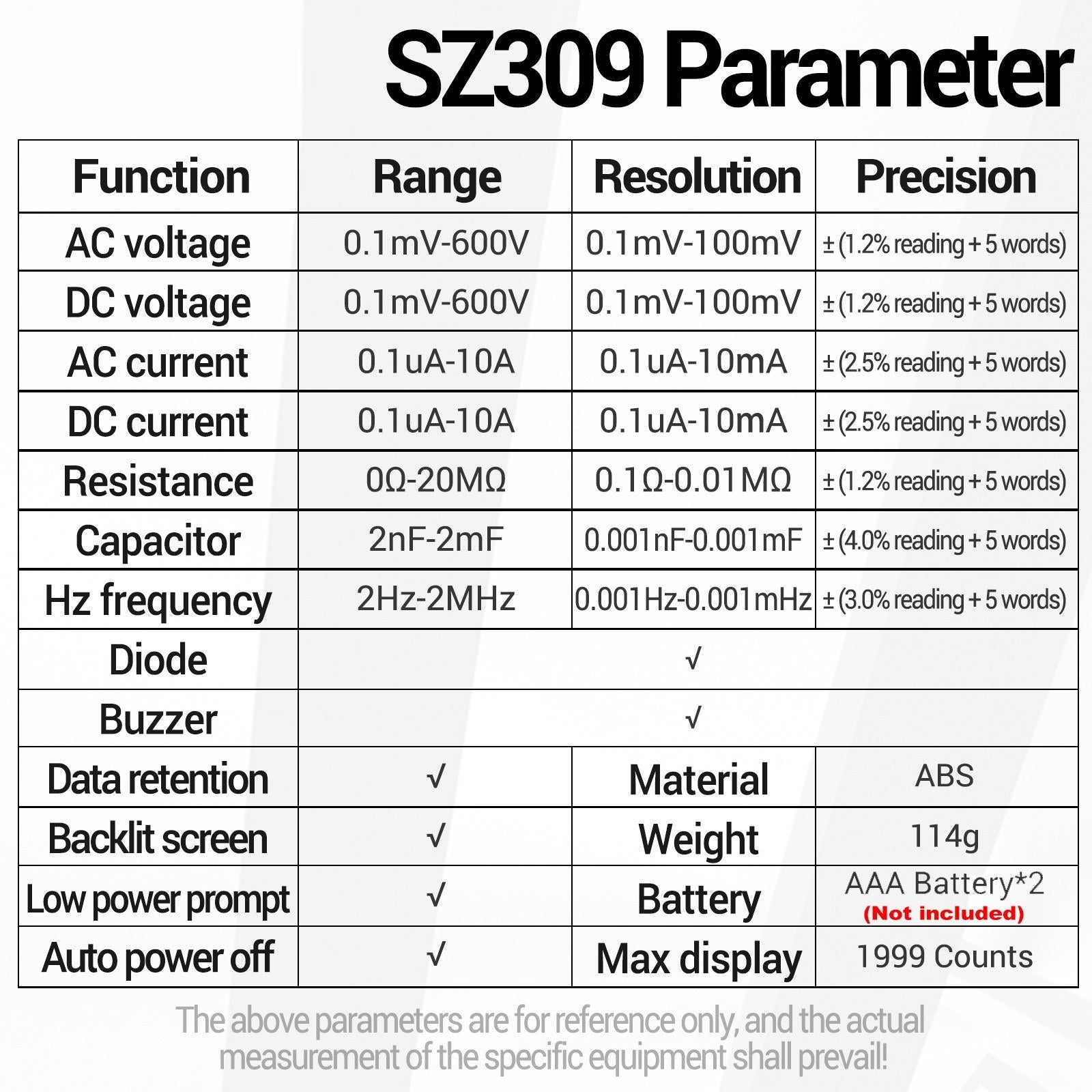

Specifications:

• Model: SZ309
• Material: ABS
• AC Voltage: 0.1mV-600V, 0.1mV-100mV, ±(1.2% reading + 5 words)
• DC Voltage: 0.1mV-600V, 0.1mV-100mV, ±(1.2% reading + 5 words)
• AC Current: 0.1μA-10A, 0.1μA-10mA, ±(2.5% reading + 5 words)
• DC Current: 0.1μA-10A, 0.1μA-10mA, ±(2.5% reading + 5 words)
• Resistance: 0Ω-20MΩ, 0.1Ω-0.01MΩ, ±(1.2% reading + 5 words)
• Capacitor: 2nF-2mF, 0.001nF-0.001mF, ±(4.0% reading + 5 words)
• Frequency (Hz): 2Hz-2MHz, 0.001Hz-0.001MHz, ±(3.0% reading + 5 words)
• Diode: Yes
• Buzzer: Yes
• Data Retention: Yes
• Backlit Screen: Yes
• Low Power Prompt: Yes
• Battery: 2 * AAA batteries (Not included)
• Auto Power Off: Yes
• Max Display: 1999 Counts

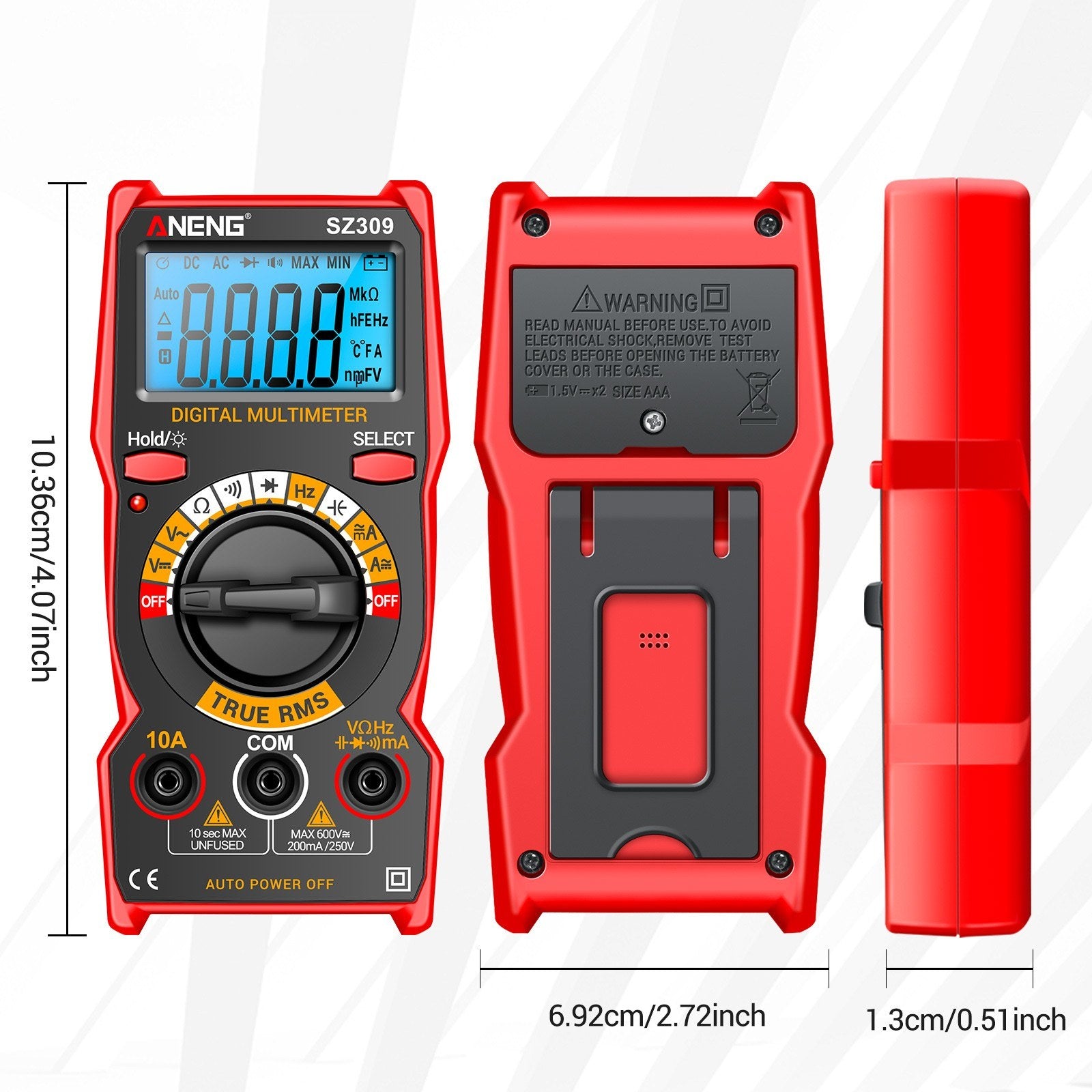

• Item Size: 103.6 * 69.2 * 13mm / 4.07 * 2.72 * 0.51in
• Item Weight: 114g / 4.02oz
• Package Weight: 180g / 6.34oz
• Package Size: 16 * 11 * 4.5cm / 6.29 * 4.33 * 1.77in

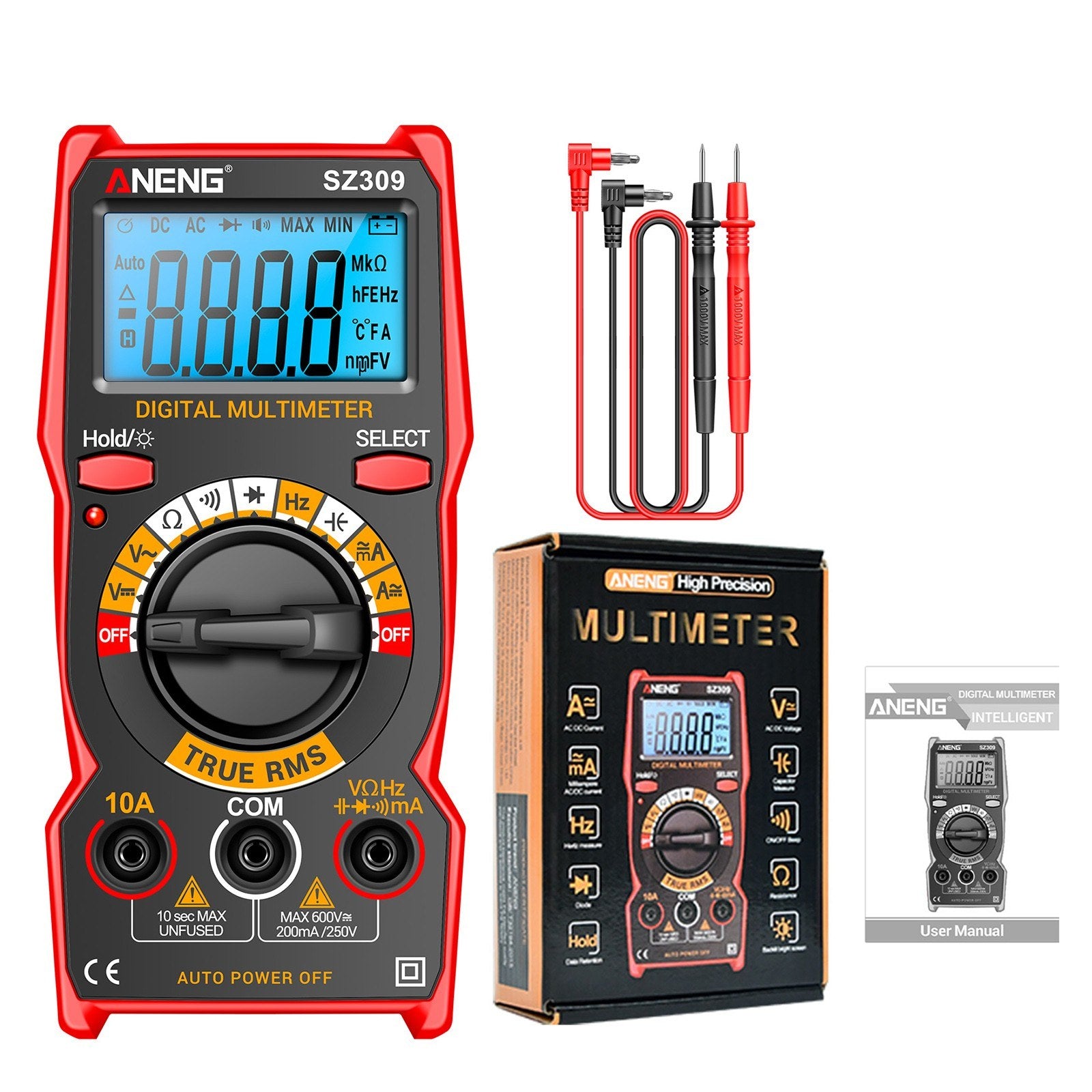

Package List:

• 1 * Multimeter
• 2 * Test Leads
• 1 * Packing Box
• 1 * User Manual (English)
