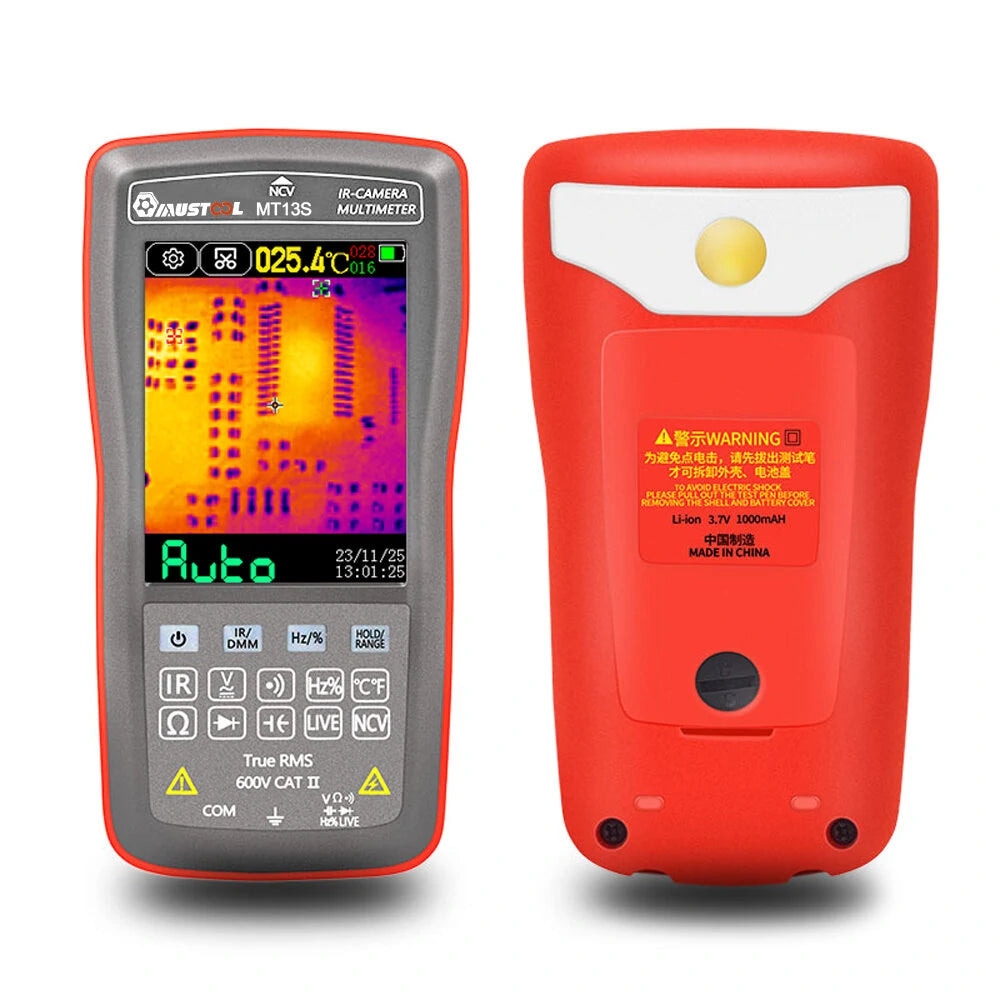

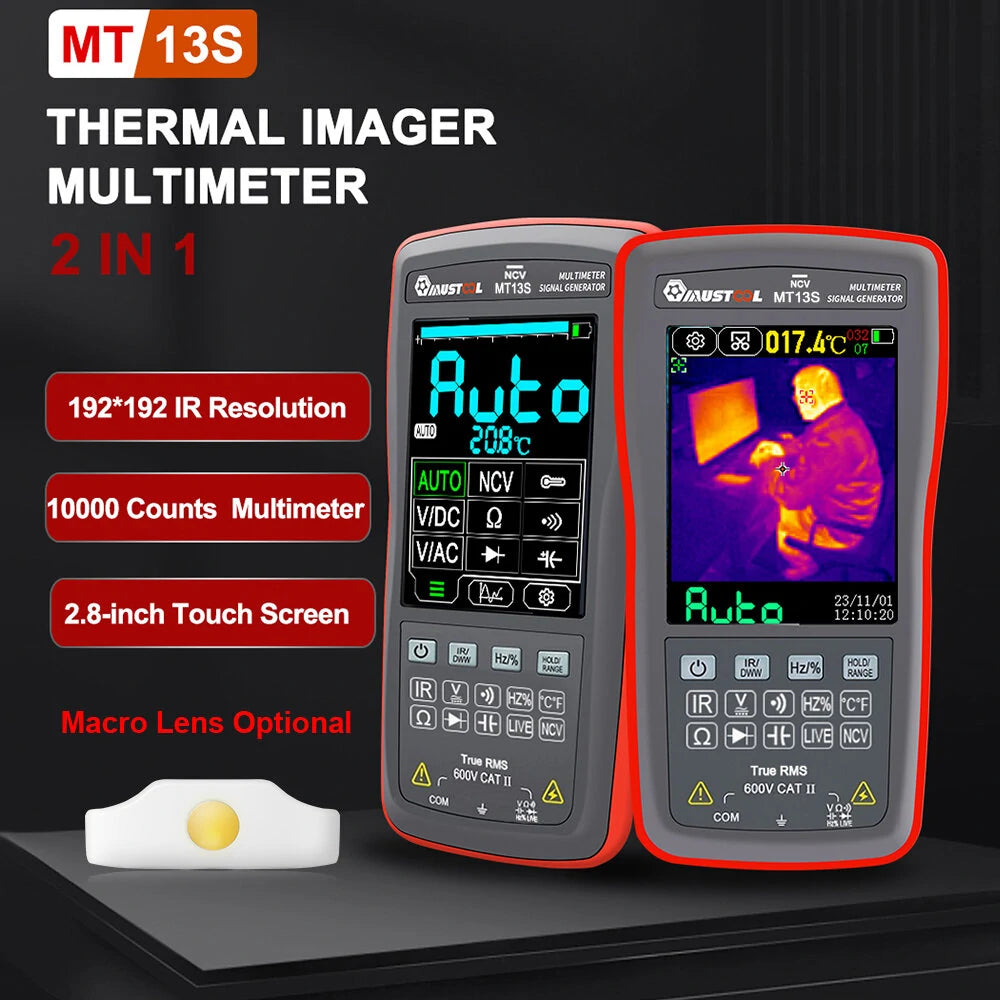

Mustool MT13S 2-in-1 Thermal Imager & Multimeter, 10,000 Counts, 192x192, 2.8 Touch Screen for Electric Circuit & Automobile Inspection - 2024 Model

Download the MT13S Product Manual

Features:

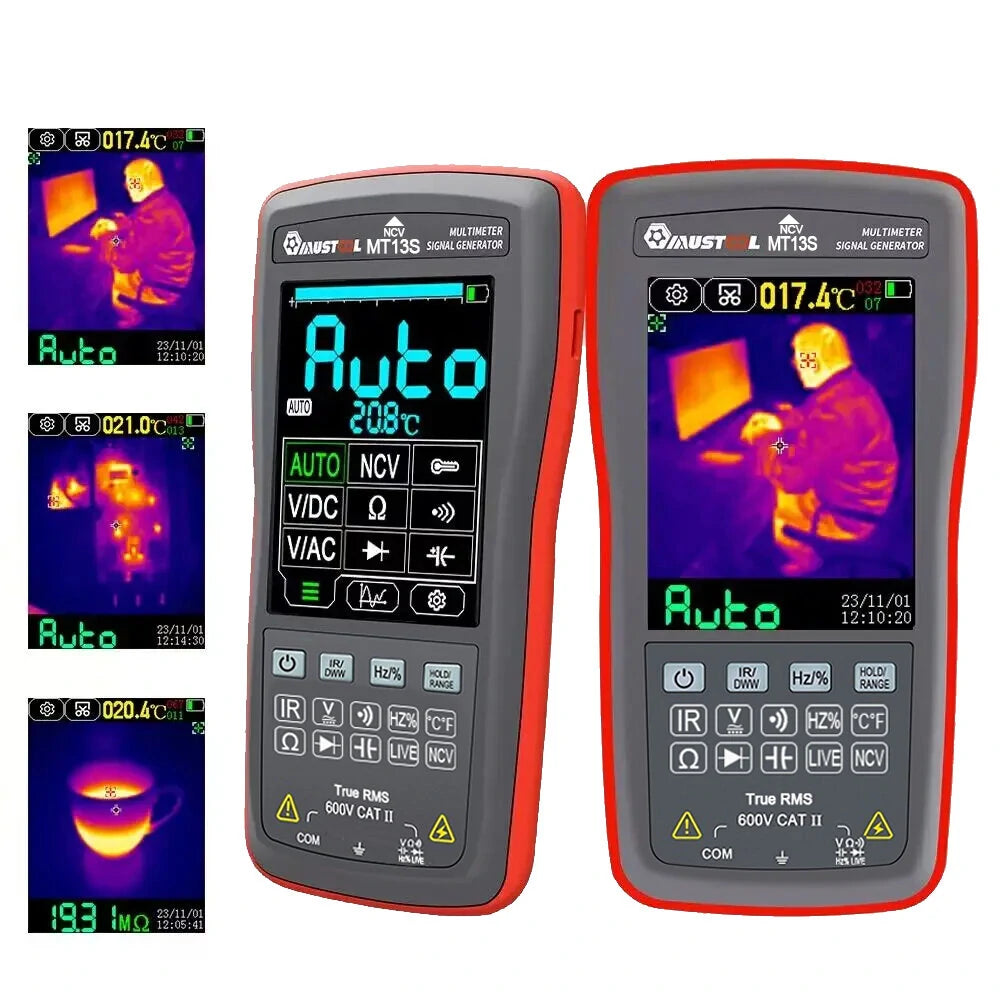

• High-Resolution Images: Equipped with an uncooled focal plane sensor and an image capture frequency of 20Hz, coupled with 192x192px imaging pixels, this device ensures clear and detailed thermal images.
• Adjustable Field of View: The field of view is tunable from 0.1 to 0.99, with a default setting of 0.95, making it versatile for different applications.
• Multifunctional Multimeter: The integrated multimeter can handle readings up to 1000V for DC and 750V for AC inputs. It also includes extensive measurement capabilities for resistance, capacitance, diode, and duty cycles.

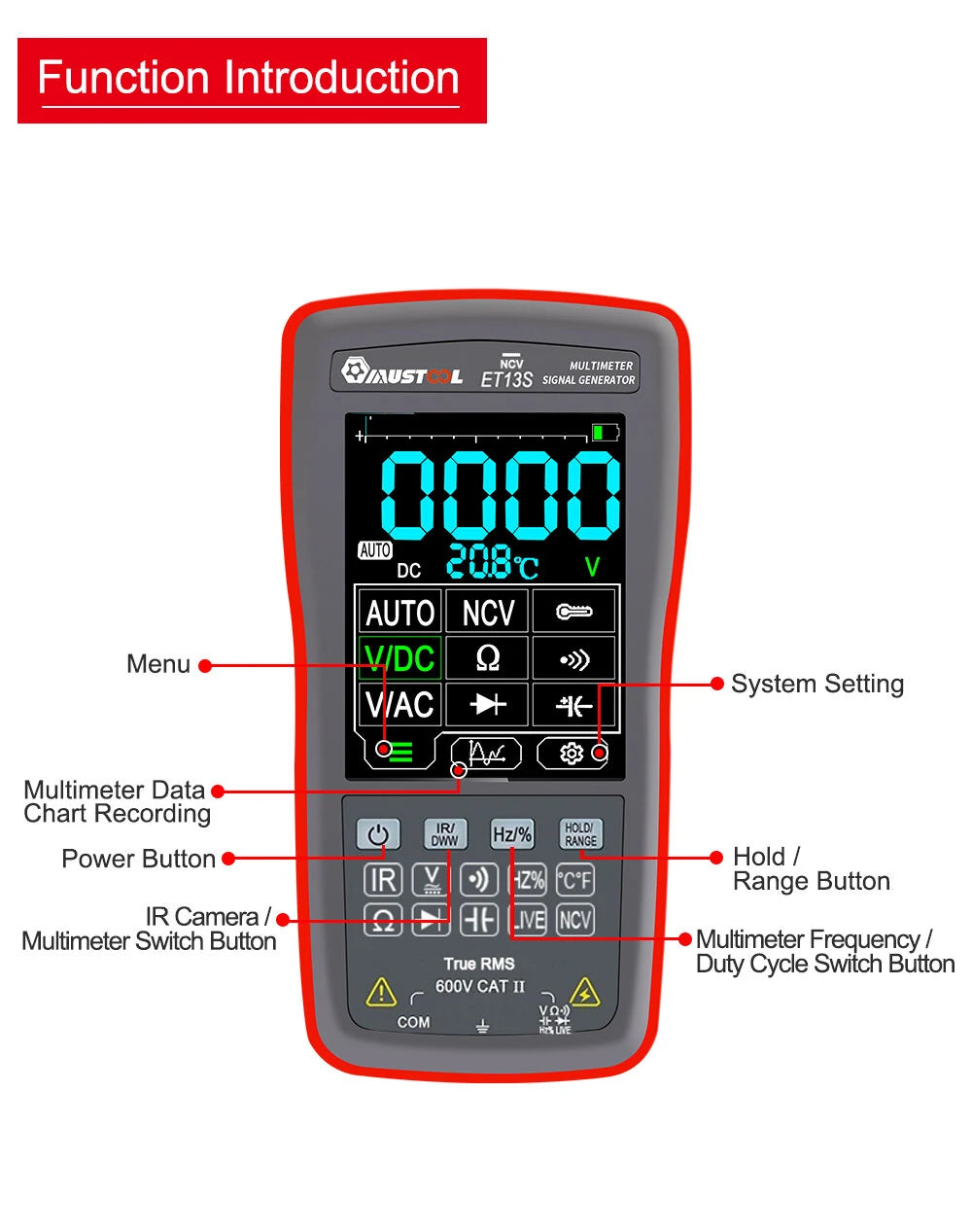

• User-Friendly Interface: Featuring a 2.8-inch LCD touch screen with 320x480 resolution and Type-C USB interface, the device offers interactive operations.
• Portable and Power-Saving: Its compact size, lightweight design, and built-in Li-ion battery provide an easy-to-carry, power-saving solution suitable for fieldwork tasks.

Specifications:

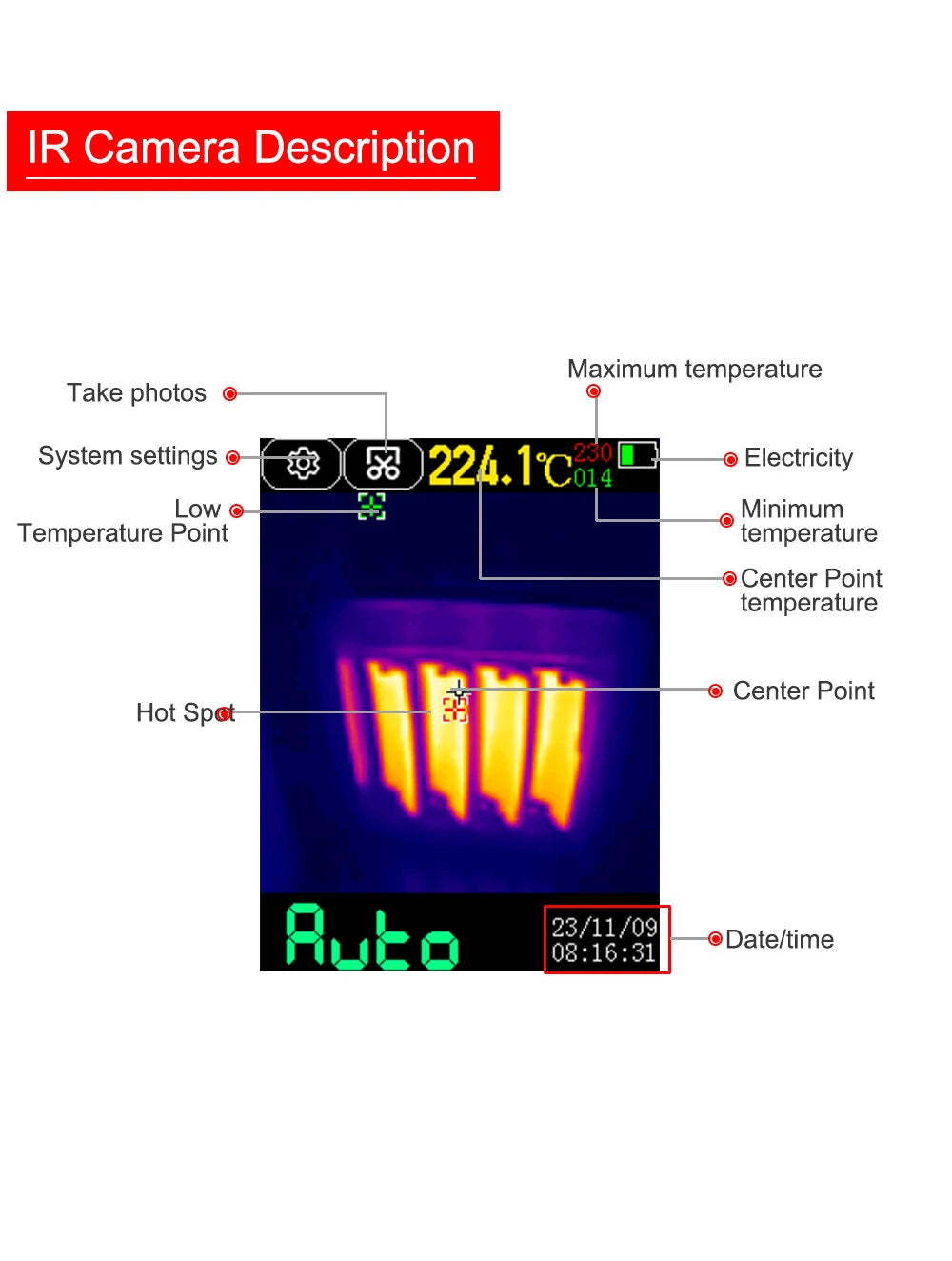

Thermal Imaging Parameters

• Model: MT13S or MT13SPRO (optional)
• Sensor: Uncooled focal plane
• Image Capture Frequency: 20Hz
• Thermal Imaging Pixel: 192x192
• Display Image Resolution: 240x240
• Field of View (FOV): 50.0(H) x 50(V)/72.1(D)
• Emissivity: Tunable 0.1-0.99, default 0.95
• Measurement Temperature Range: -20℃ to +550℃
• Mode: Automatic gain

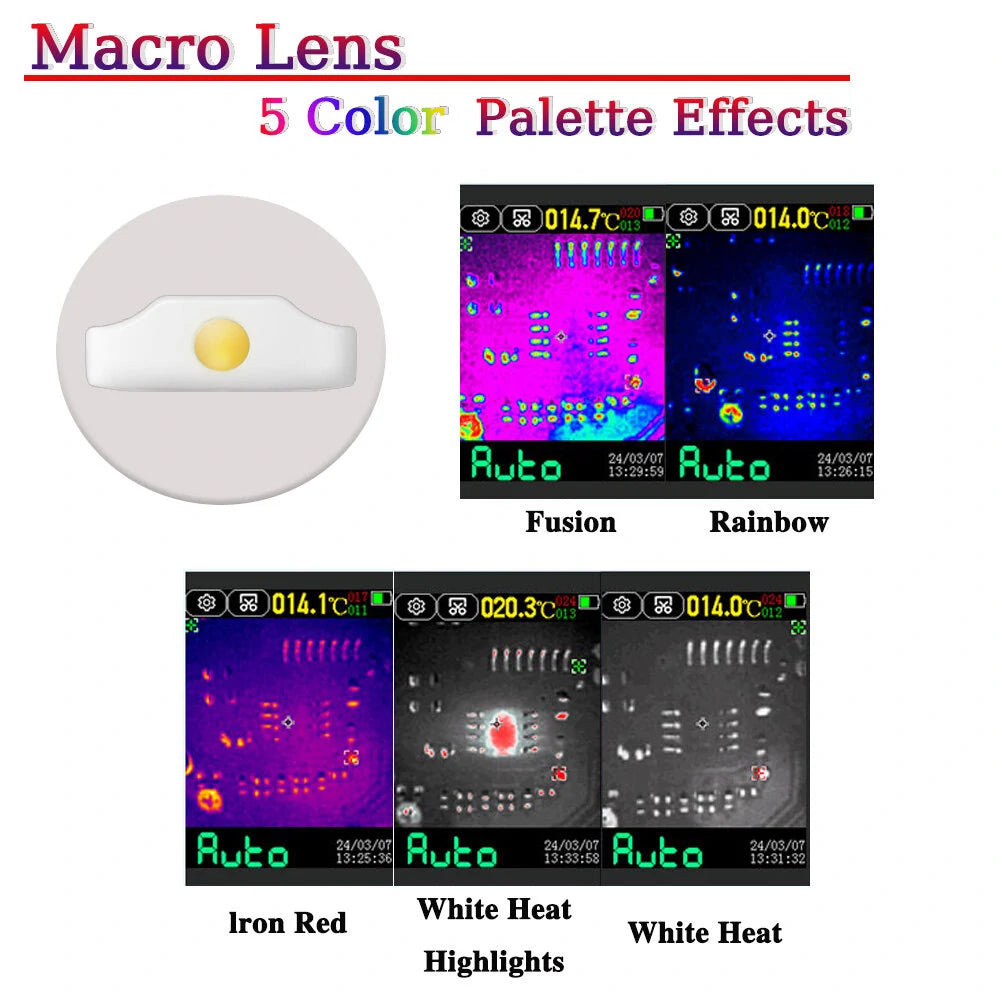

• Color Board: Iron Red, Rainbow, Fusion, White Heat, White Heat Highlights
• Temperature Measurement Error: >0℃±2℃ or ±2% ≤0℃±5℃ or ±5
• Display Temperature Accuracy: 0.1℃/0.1F

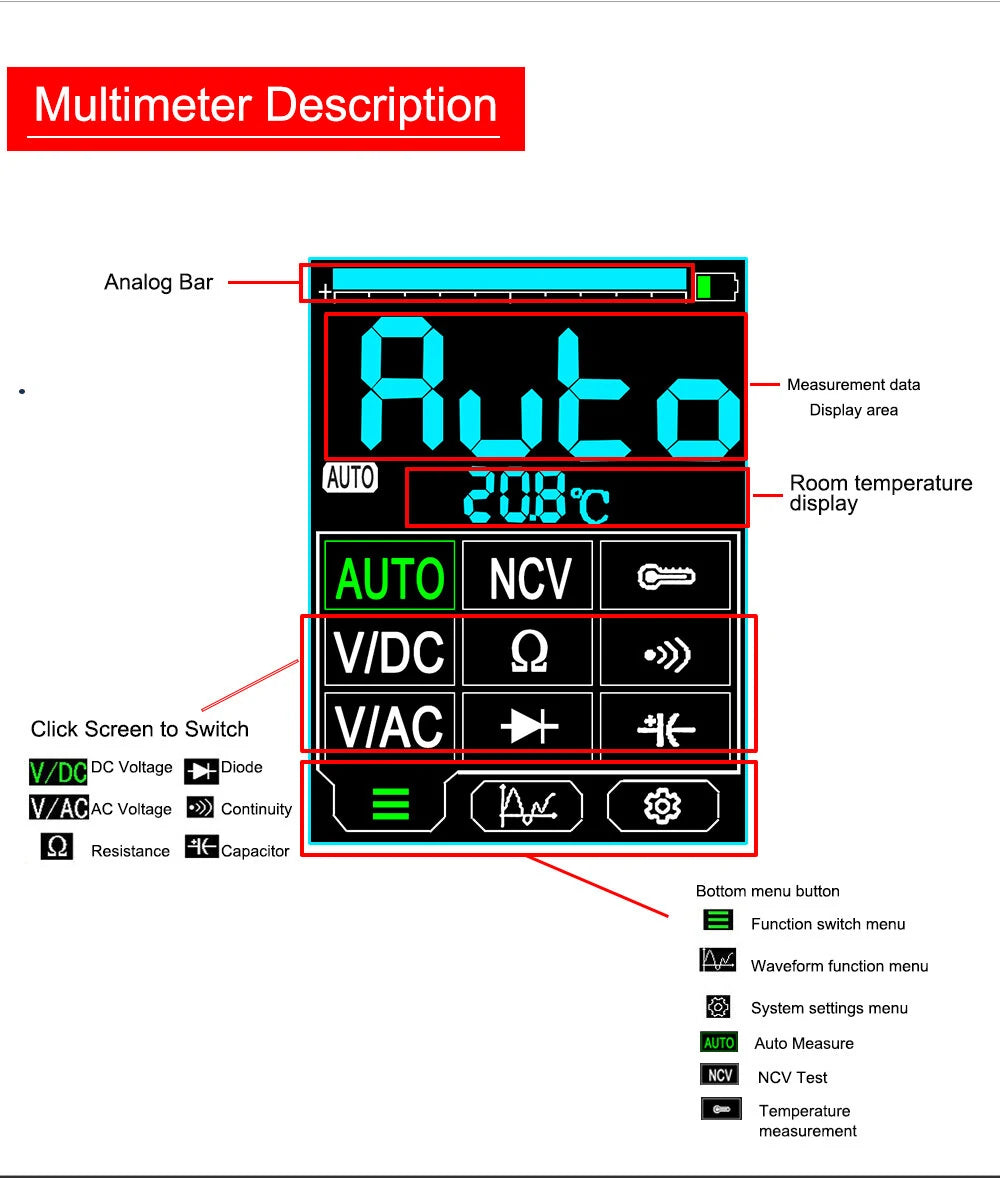

Multimeter Parameters

• DC Highest Input Voltage: 1000V
• AC Highest Input Voltage: 750V
• Resistance Highest Measurement Resistance: 99.99MΩ
• Capacitance Highest Measurement Capacity: 99.99mF
• Duty Cycle Measurement Range: 0.1% to 99.9%
• Diode Measurement Range: 0V to 3V
• On-Off Test Maximum Resistance: 999.9Ω
• Display Number: 9,999 counts, updated about 3 times per second

Other Device Parameters

• Display Screen: 2.8 inches, 320x480 resolution
• Touch Screen: Resistive touch screen
• USB Interface: Type-C USB
• Storage Capacity: 3.5MB
• Image Format: BMP file
• Battery: Built-in lithium battery
• Storage Temperature: 20°C to 60°C (-4°F to 140°F)
• Working Temperature: 0°C to 50°C (32°F to 122°F)
• Product Size: 134mm x 69mm x 25mm
• Product Weight: 130g (excluding accessories)

Package Includes:

• 1 x Thermal Imaging Multimeter
• 1 x Macro Lens (optional)
• 1 x Type-C USB Cable
• 1 x User Manual
