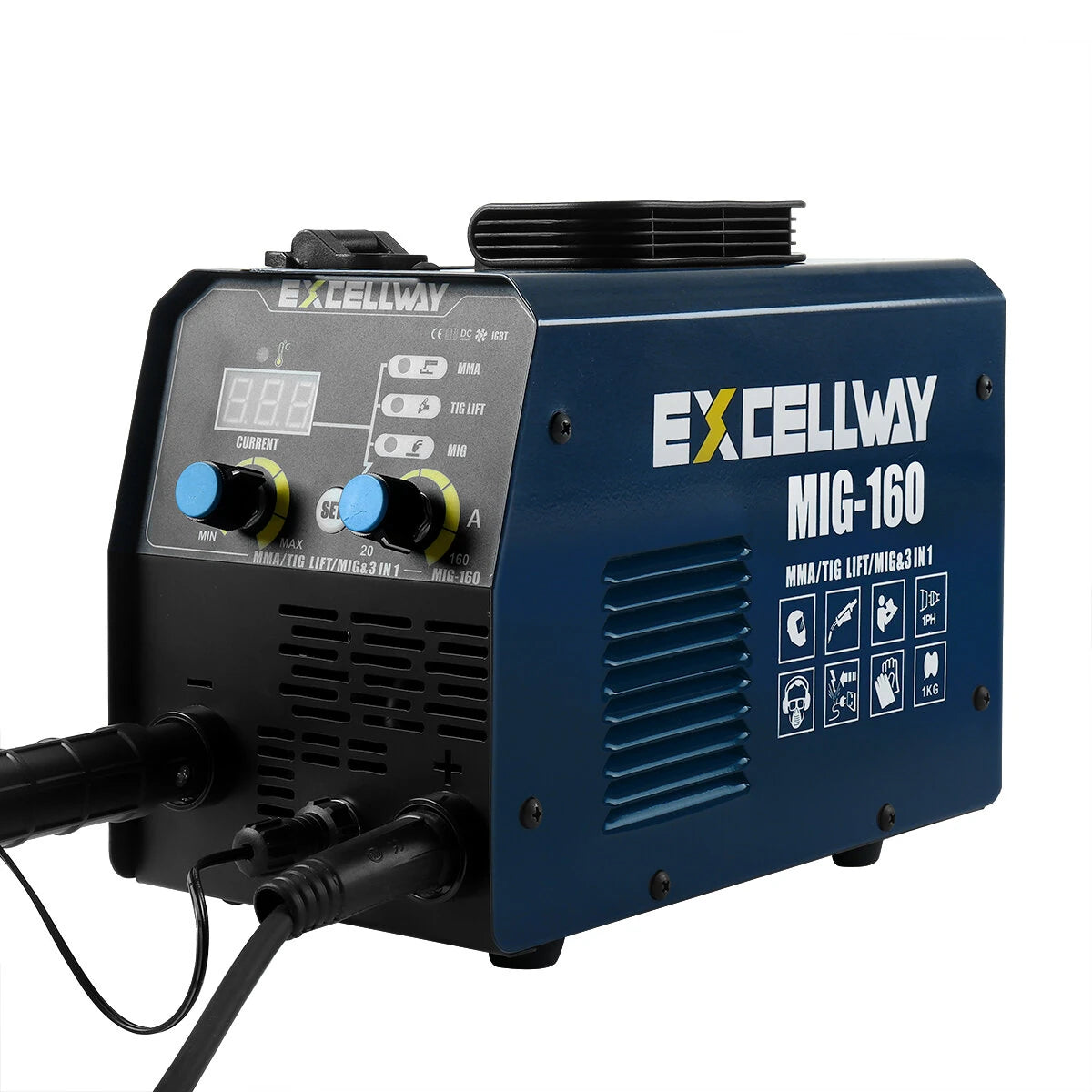

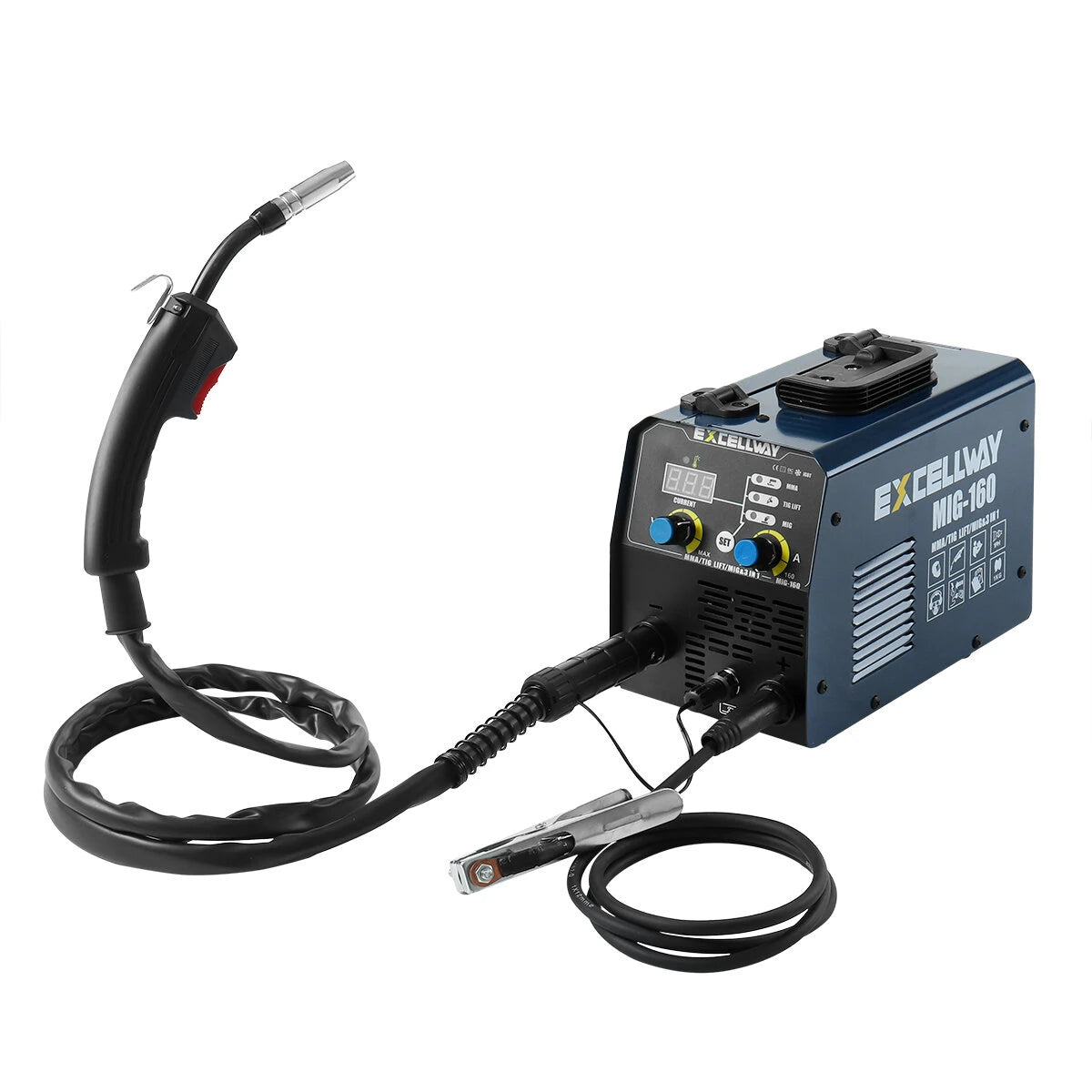

Gasless MIG Welder Excellway MIG 160ECO with MMA

Description:

• Magnetic fields may affect cardiac pacemakers. Pacemaker users should consult a medical professional before approaching the welding area.
• Moving parts can lead to personal injury. Keep away from moving components, such as fans. Ensure all doors, panels, covers, and other protective devices are properly closed and secured.

Specifications:

• Brand: Excellway
• Color: Blue & Black
• Type: MIG160
• Input power voltage: Single-phase AC220V±15%, 50/60Hz
• Rated input current: 4.5A
• Rated power capacity: 3.6KVA
• Recommended fuse capacity: 30A
• Current adjustment range: 30-160A
• Voltage adjustment range: 11-21V
• No-load voltage: 16.3V
• Feeding speed adjustment range: 2-15 (m/min)
• Flux-cored wire diameter: 0.8/1.0mm
• Rated duty cycle: 35% at 40℃
• Efficiency: 85%
• Power factor: 0.7
• Protection class: IP21S
• Insulation class: F

Features:

• Self-shielded arc welding available.
• IGBT technology with unique control for enhanced reliability.
• High duty cycle, suitable for prolonged welding.
• Closed-loop feedback control for constant voltage output, even with network voltage fluctuations within 15%.
• Adjustable welding voltage and circuit for superior welding characteristics.
• Dynamic characteristic control circuit in gas-shielded arc welding, providing a stable arc with minimal spatter, excellent shaping, and efficient welding.
• Melting ball removal and slow wire feeding function to increase arc starting success rate.
• Stable current and excellent arc starting in MIG welding.
• Inverter frequency of 50 kHz, reducing the welder's volume and weight significantly.
• Significant reduction in metal loss for enhanced welding efficiency and energy-saving effect.
• SYN adjustment.
• Suitable for welding plate thicknesses above 0.8mm, including middle and thin plates.

Package Includes:

• 1 x Excellway MIG/MMA Welder

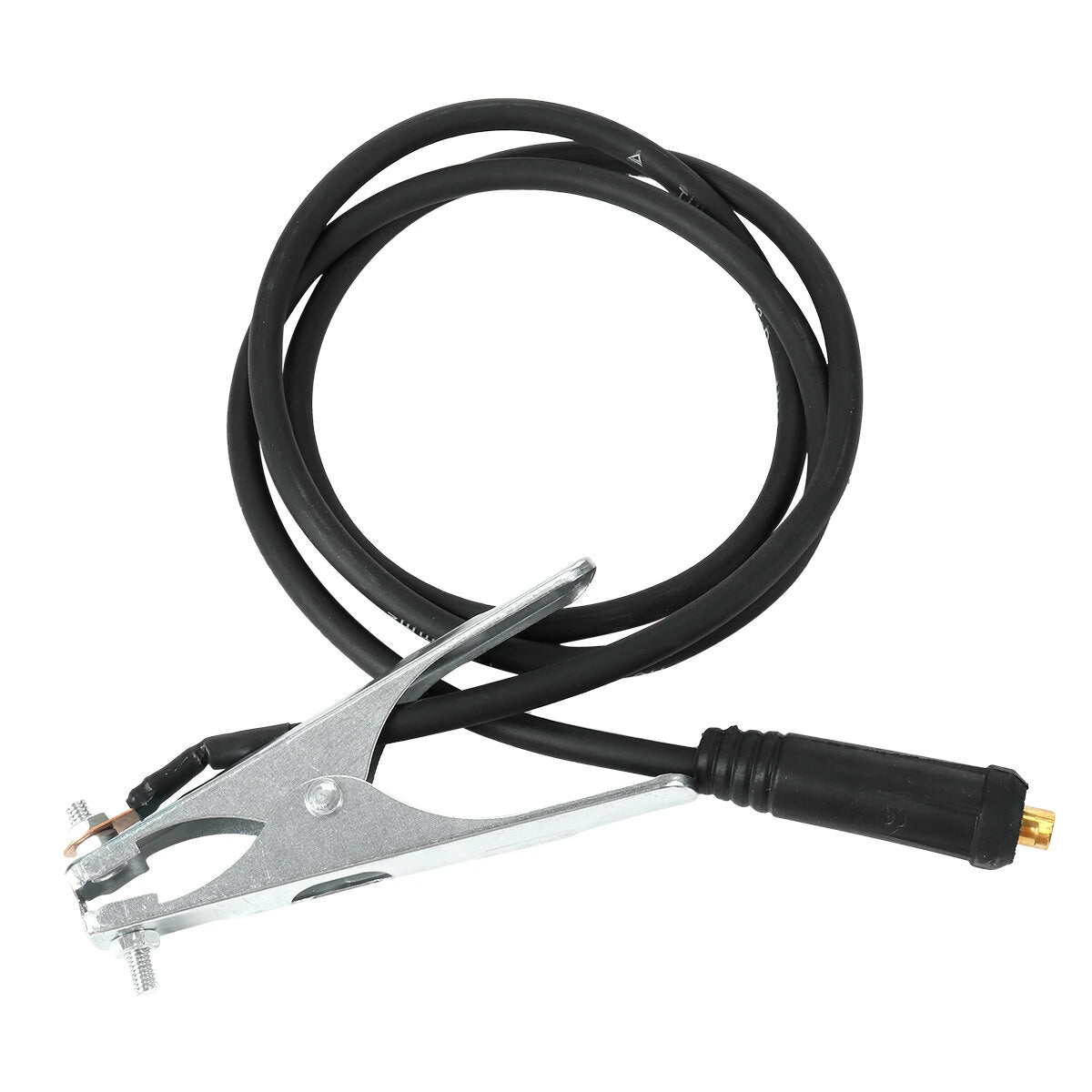

• 1 x 200A Earth Clamp

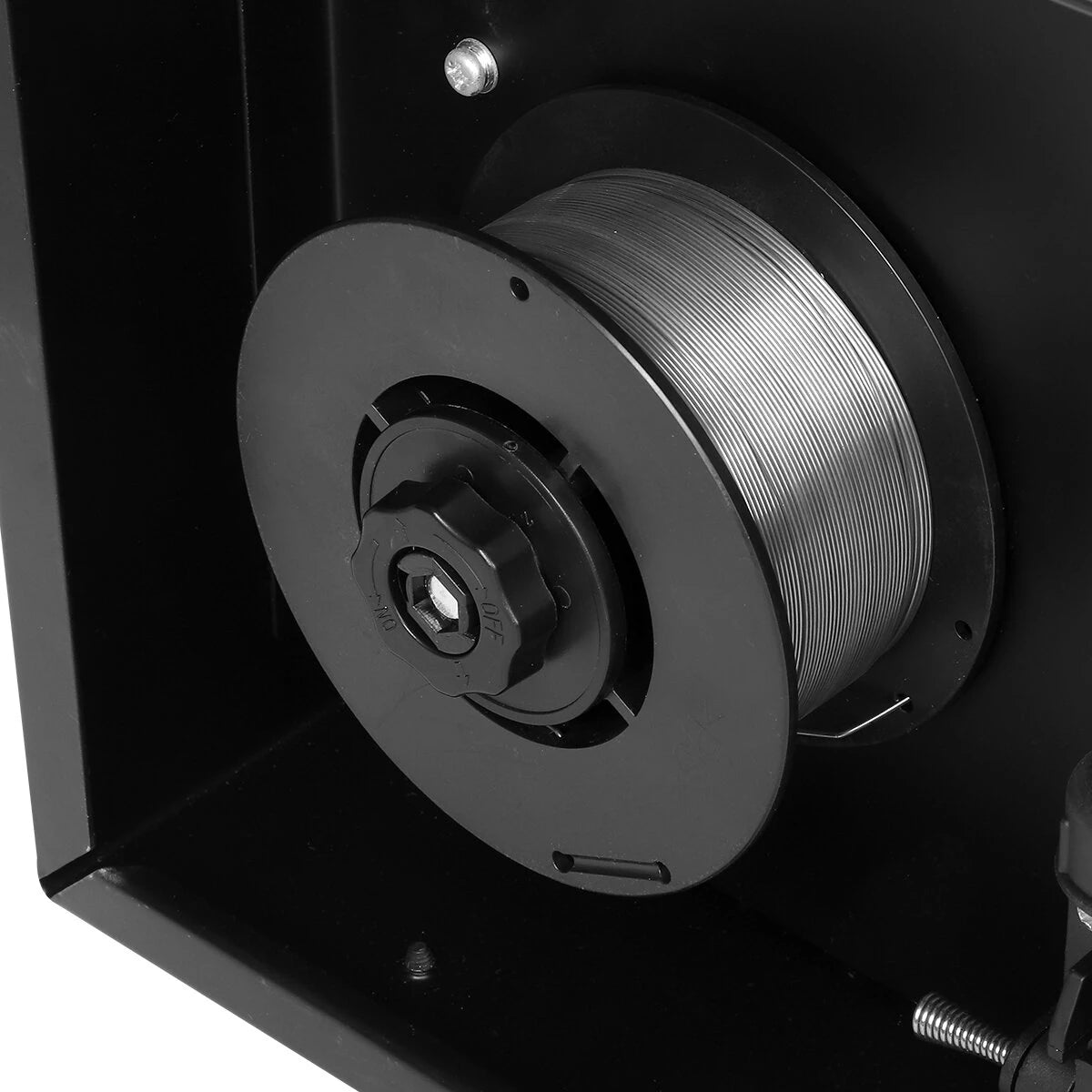

• 1 x 0.5kg Flux Core

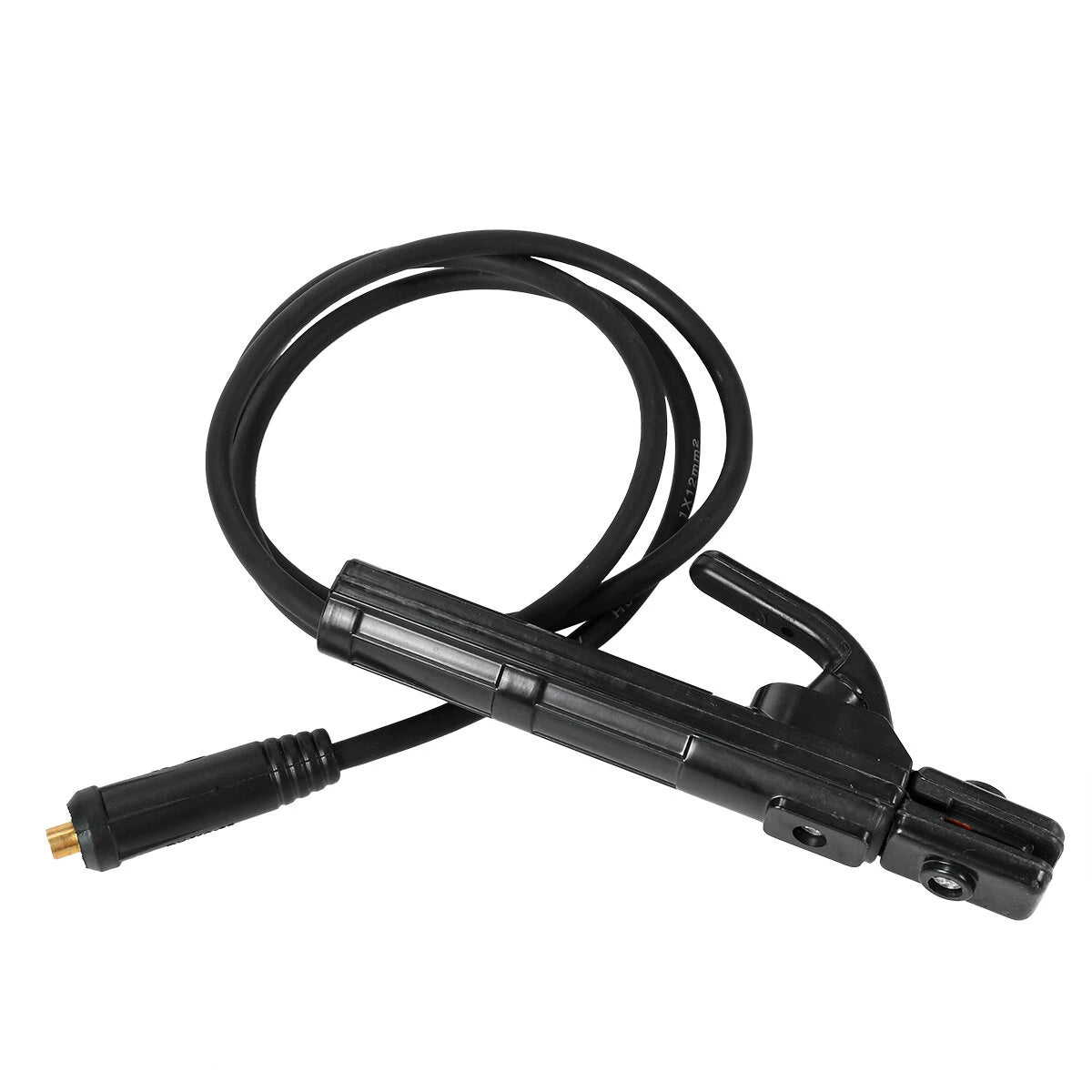

• 1 x 200A Electrode Holder
• 1 x Ground Terminal
• 1 x User Manual
