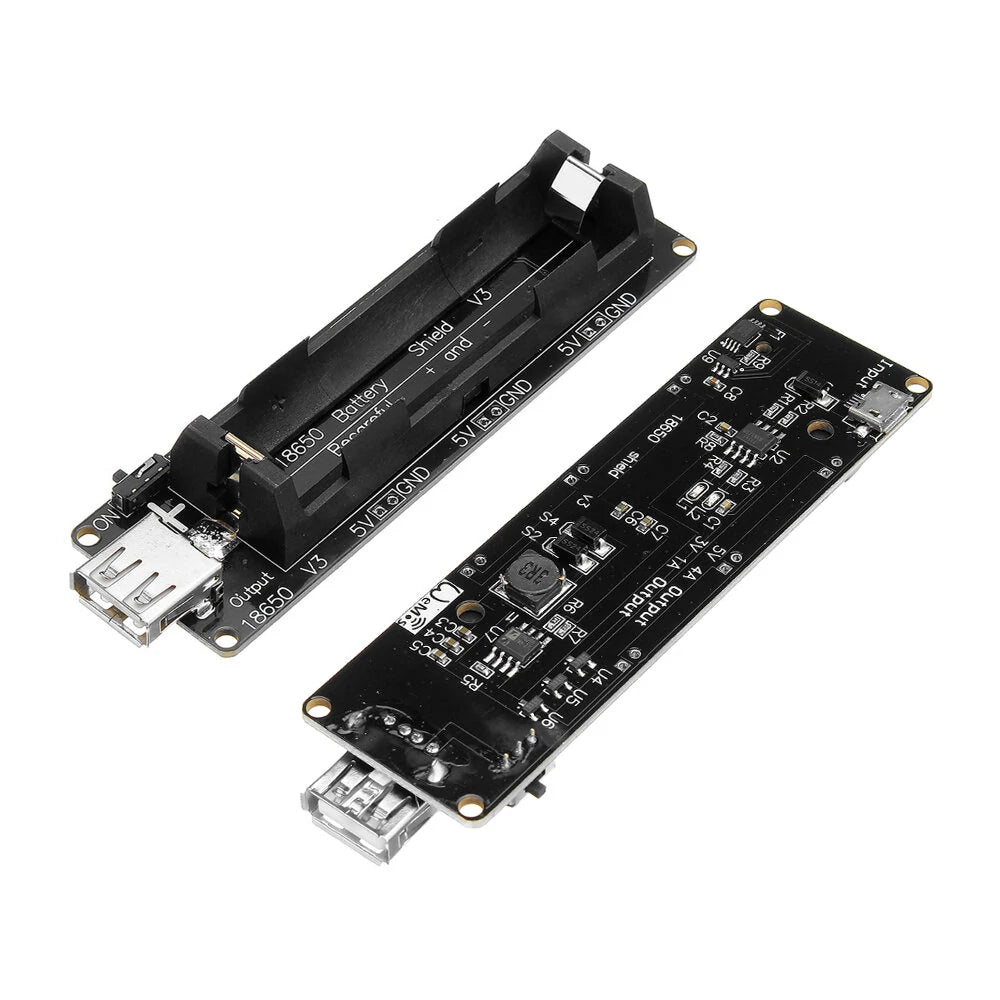

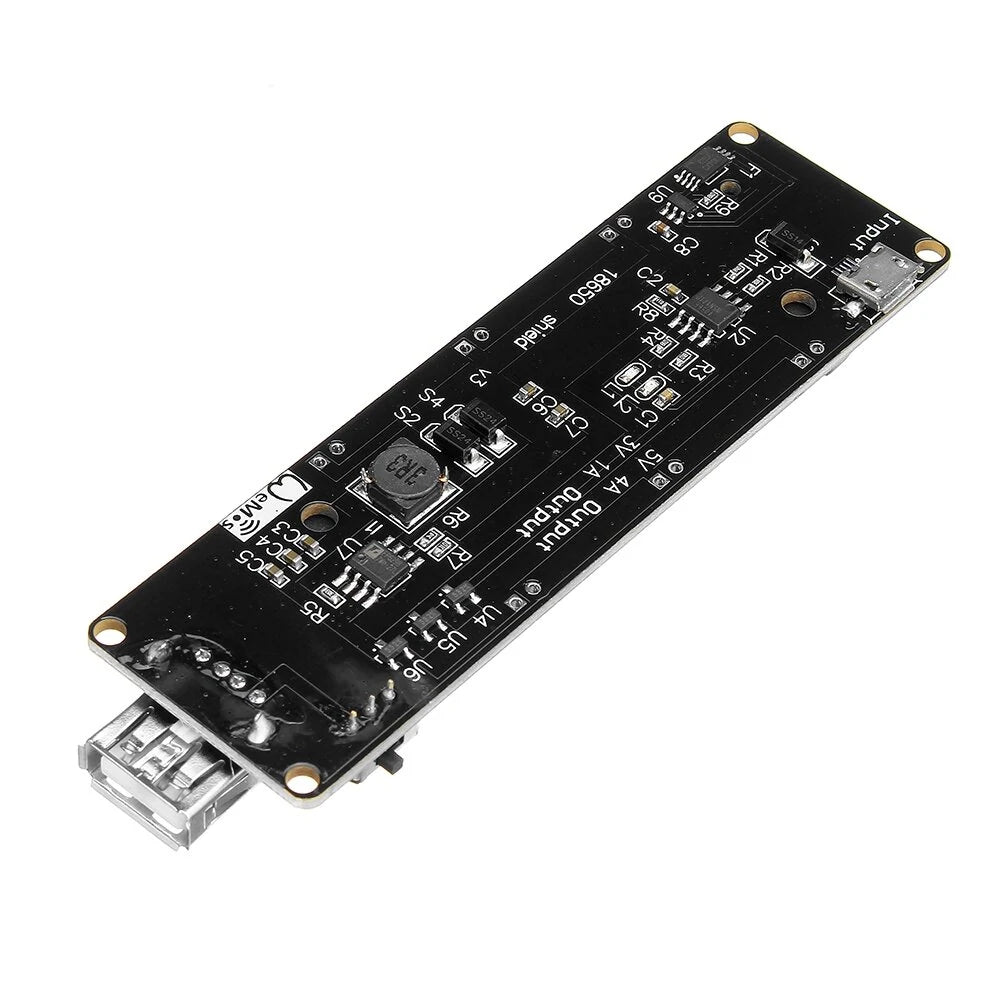

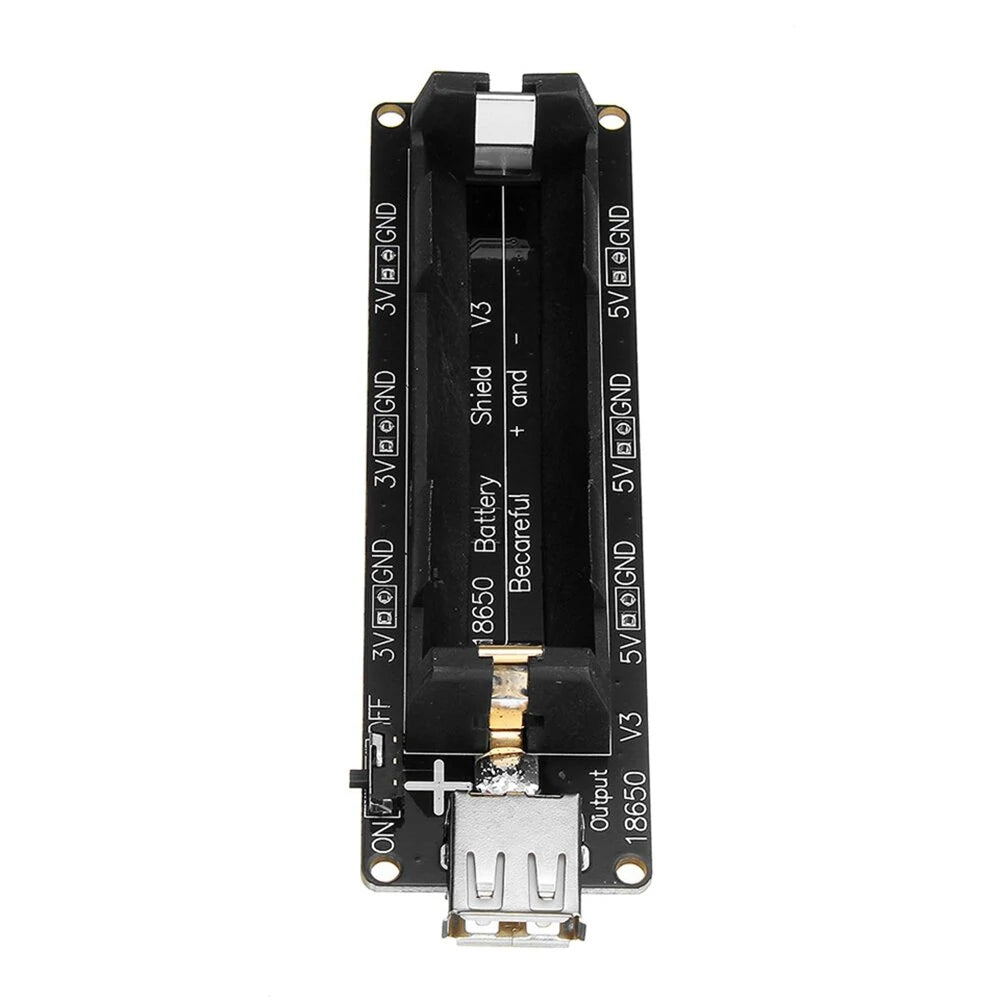

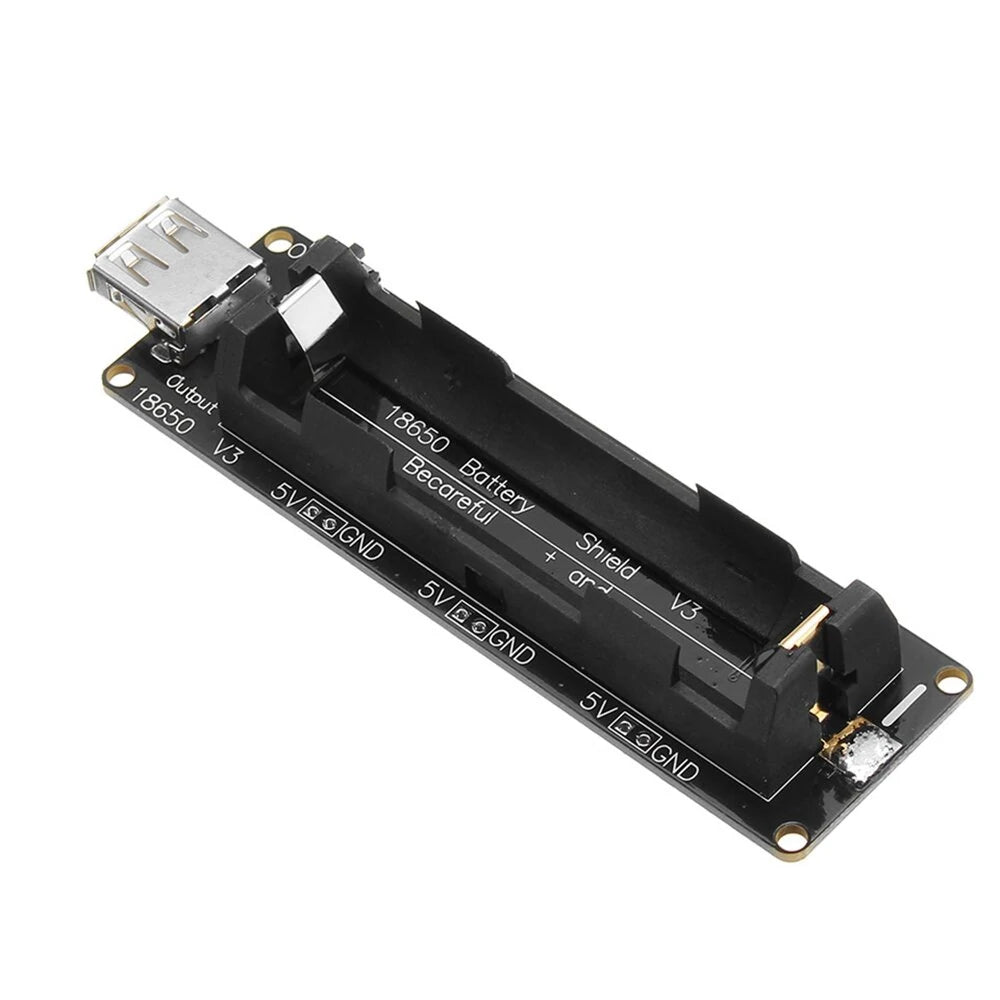

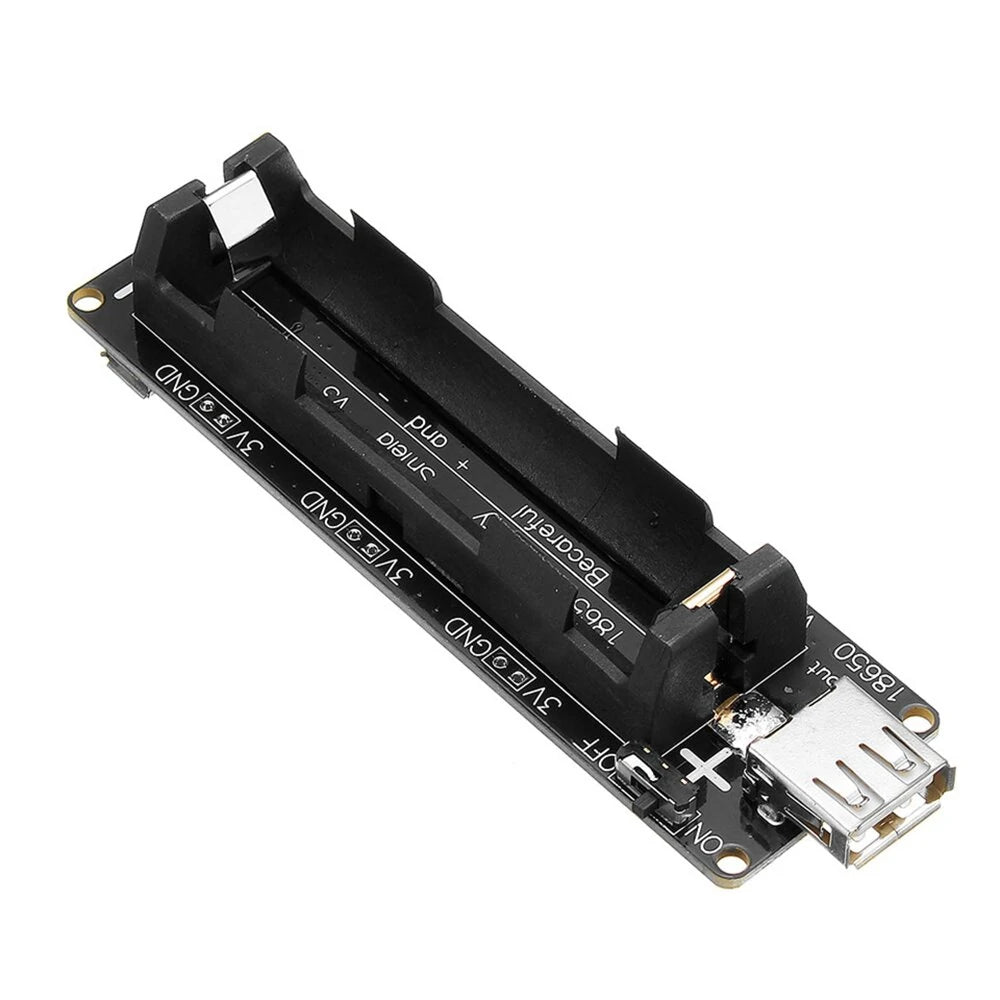

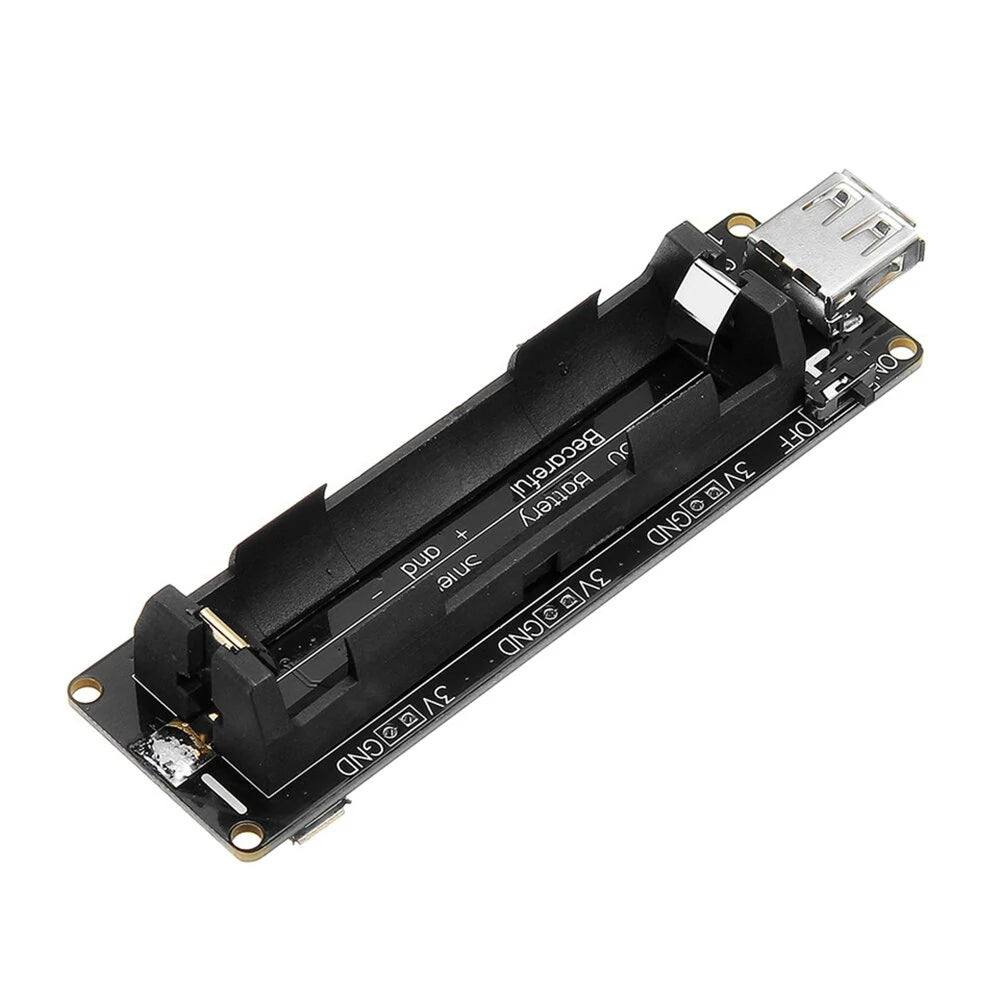

ESP32/ESP32S 18650 Battery Charge Shield V3 - Micro USB/Type-A USB 0.5A Test Charging Protection Board Compatible with Arduino by Geekcreit

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Year: Select
• Make: Select
• Model: Select
• Submodel: Select
• Trim: Select
• Engine: Select

Clear All

This part is compatible with 0 vehicle(s). Show all compatible vehicles

This part is compatible with 1 vehicle(s) matching your criteria.

This part is not compatible with your recent searches:

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Note:

• This module is suitable for 18650 battery only.
• This module can be powered using a Raspberry Pi and a sensor at the same time.
• Output current up to 2A.
• Warning: This product does not include the 18650 battery. Ensure correct installation of the battery by following the - direction on the PCB, not the battery holder.

Features:

• Over-charging and over-discharge protection
• Micro USB charging interface
• Charge current: 0.5A
• One switch to control the USB output
• Input voltage: 5 ~ 8V
• Three 3V 1A output interfaces
• Three 5V 2A output interfaces
• LED indicator: Green for full charge, red for charging

Package Includes:

• 1 x 18650 Battery Charging Protection Board
