Battery Capacity Voltage Tester

The Battery Capacity Voltage Tester is a versatile and reliable tool designed to support a variety of battery types, including:

• Lithium-ion (L03 series to L07 series)
• Lead-acid (12 VDC, 24 VDC)
• Lithium-iron-phosphate (F03 series to F08 series)

Equipped with a self-adjustable voltage detection range from 8VDC to 30VDC and an intelligent calibration function, this tester ensures precise and accurate readings.

Key Features

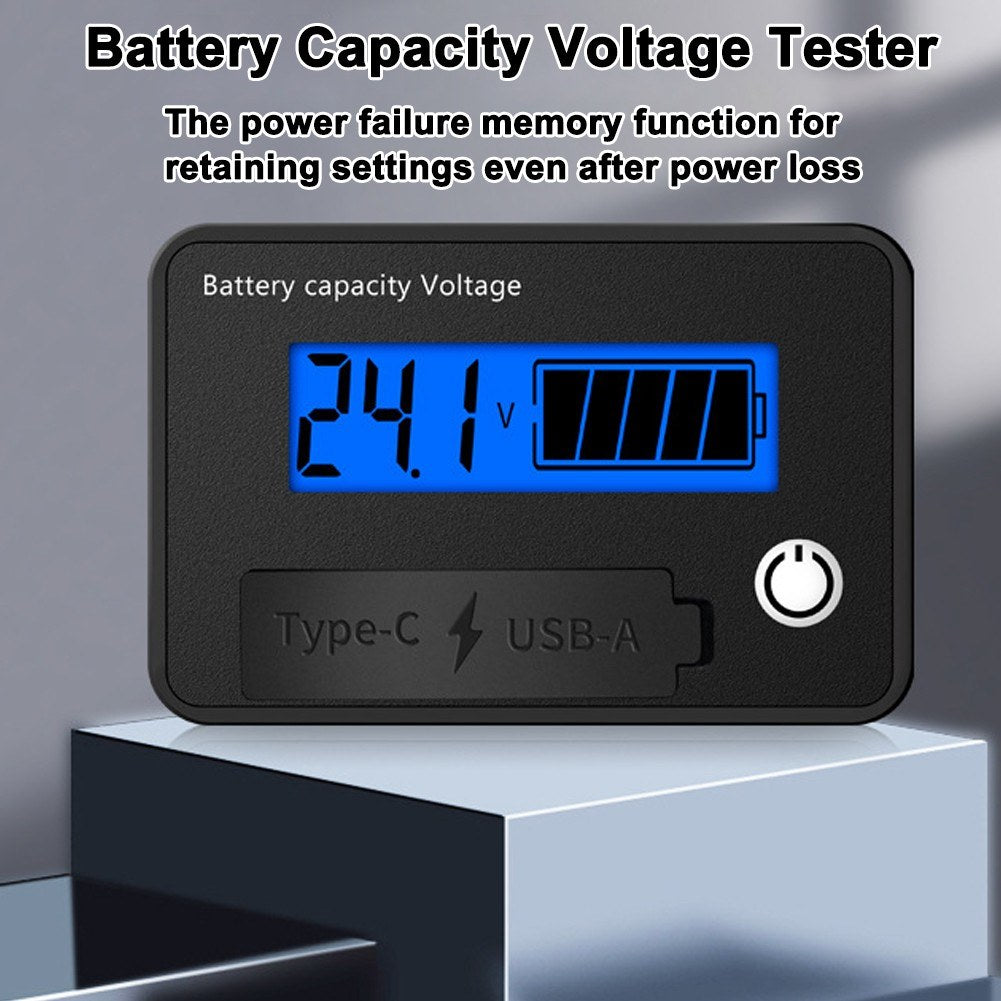

• Multi-Battery Compatibility & Memory Function: Supports various battery types and retains settings even after a power loss.
• Customizable Voltage & Calibration: Offers precise voltage readings with an intelligent calibration feature using a high-precision 30VDC power source.
• Intuitive User Interface & Settings: Features an easy-to-use control panel for configuring voltage values, alarm thresholds, and display settings.

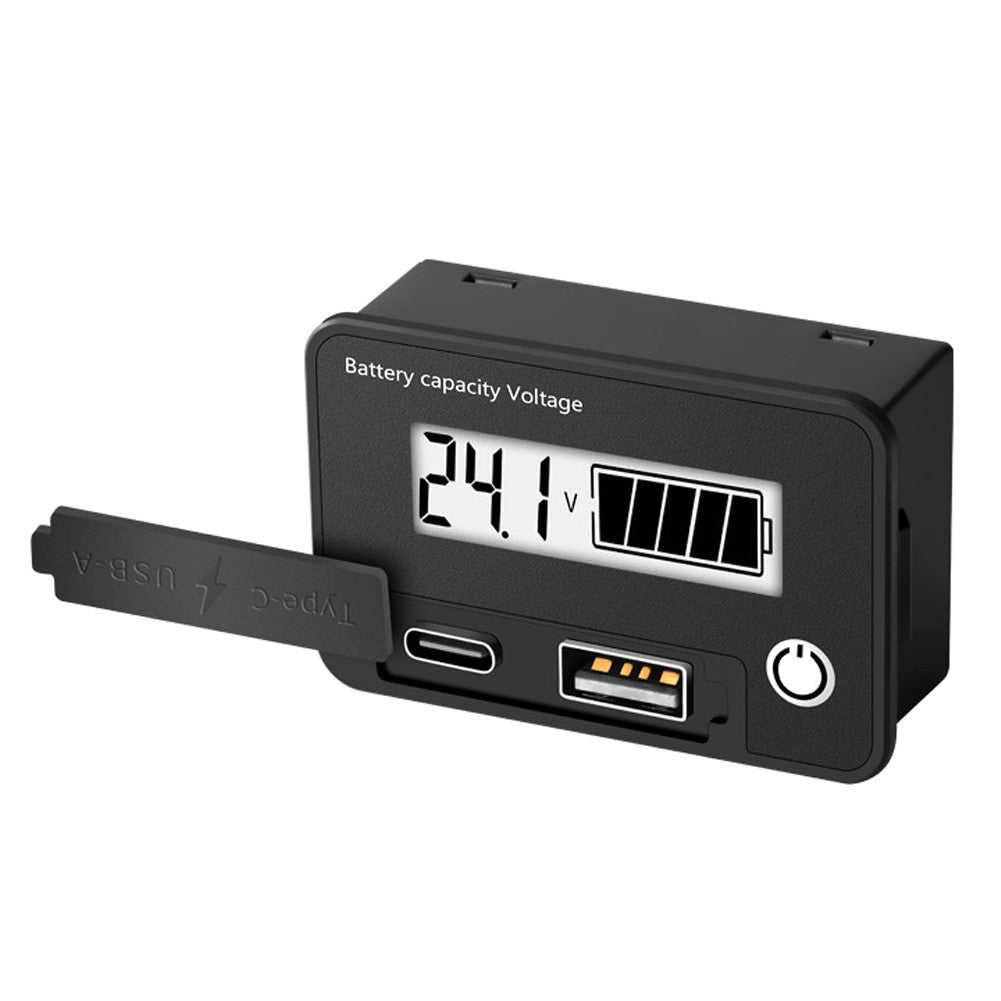

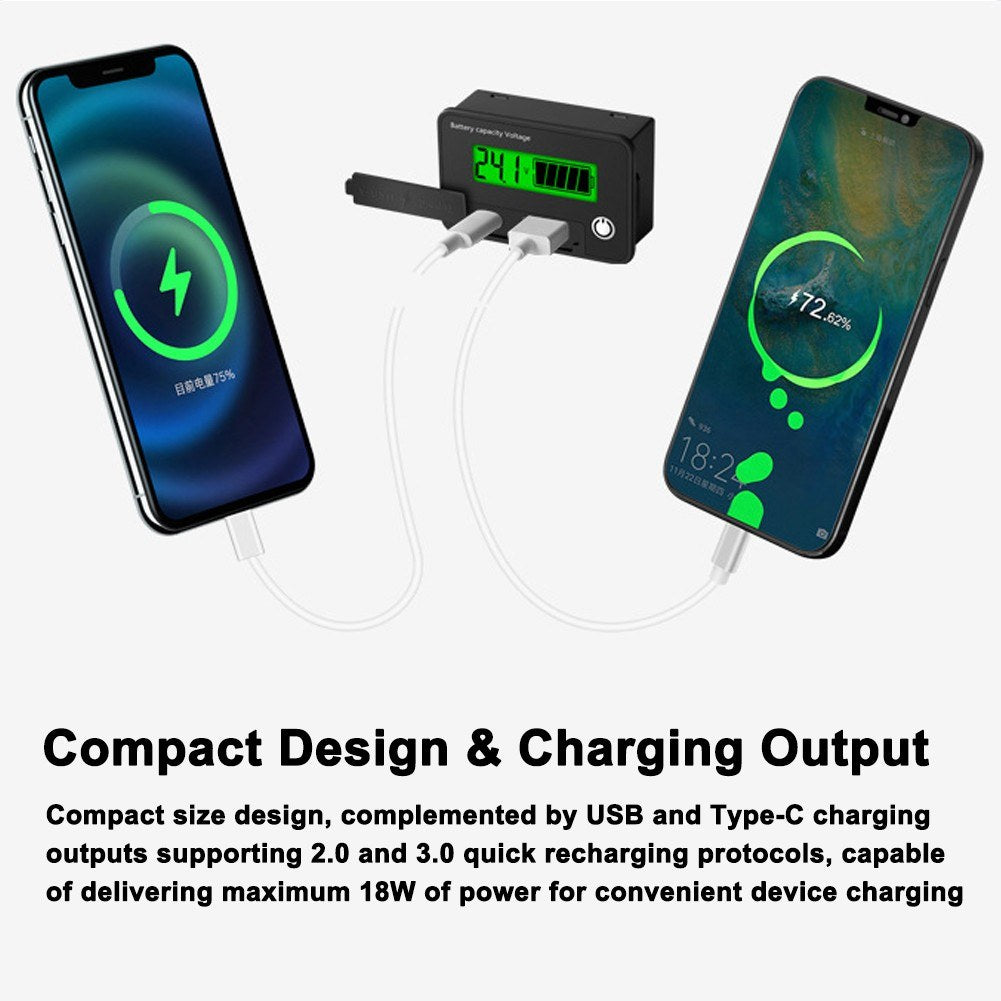

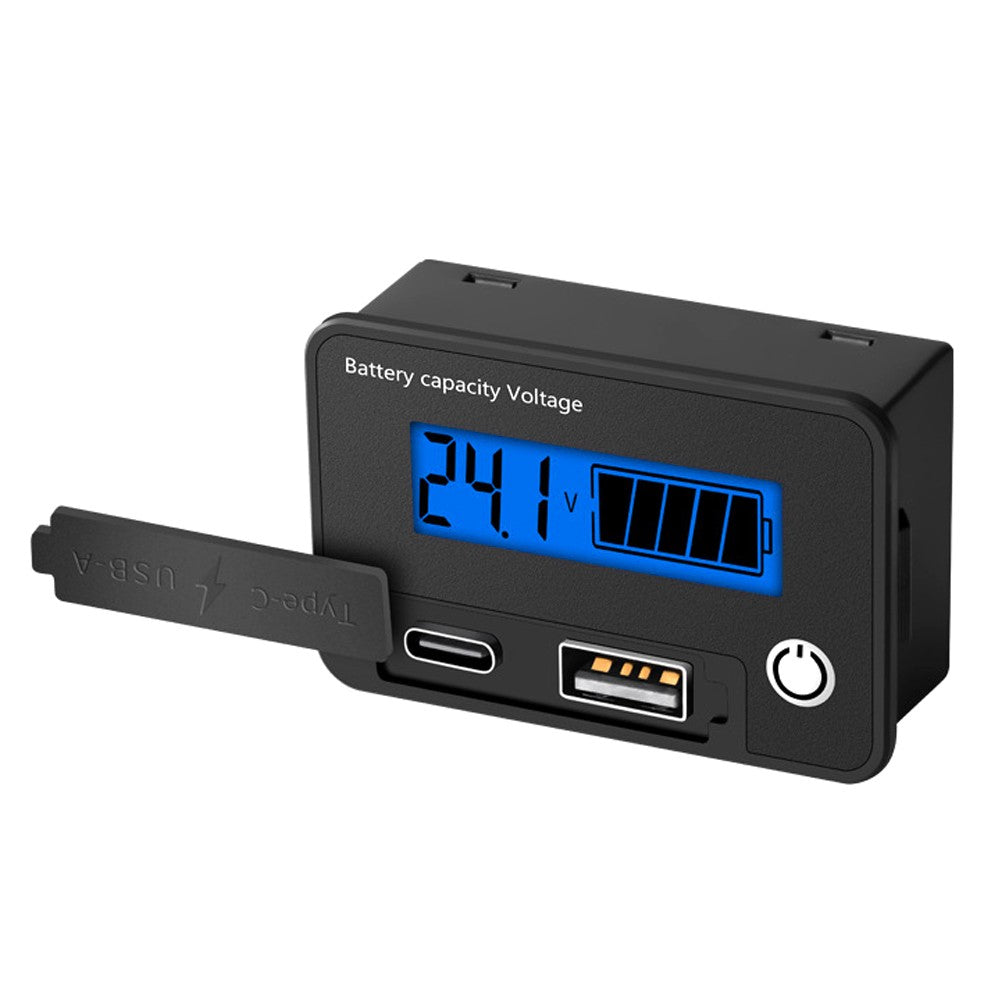

• Compact Design & Charging Output: Compact size with USB and Type-C quick charge outputs, providing up to 18W for device charging.
• Versatile Applications & Quick Refresh Rate: Suitable for electrical cabinets, exhibition displays, solar inverters, and more, with a fast refresh rate of 500ms per cycle.

Specifications

• Name: Battery Capacity Voltage Tester
• Material: Aluminum alloy

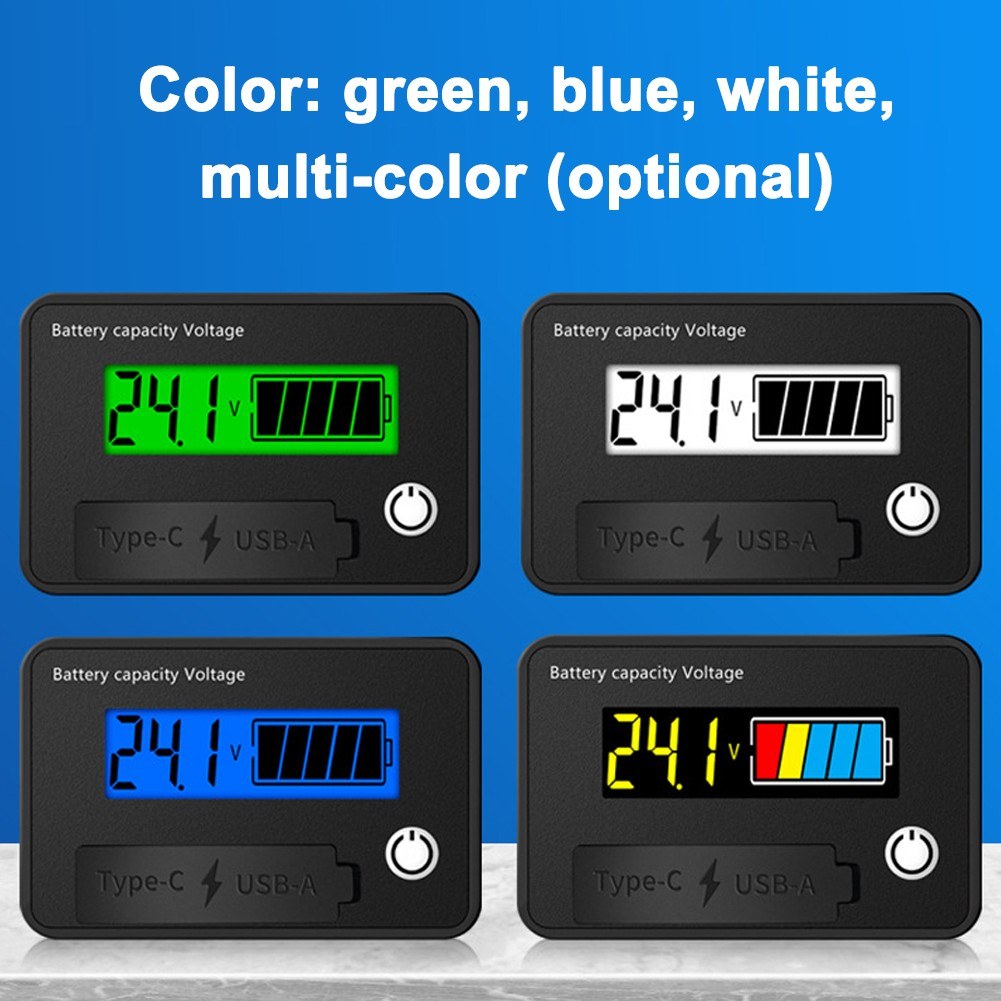

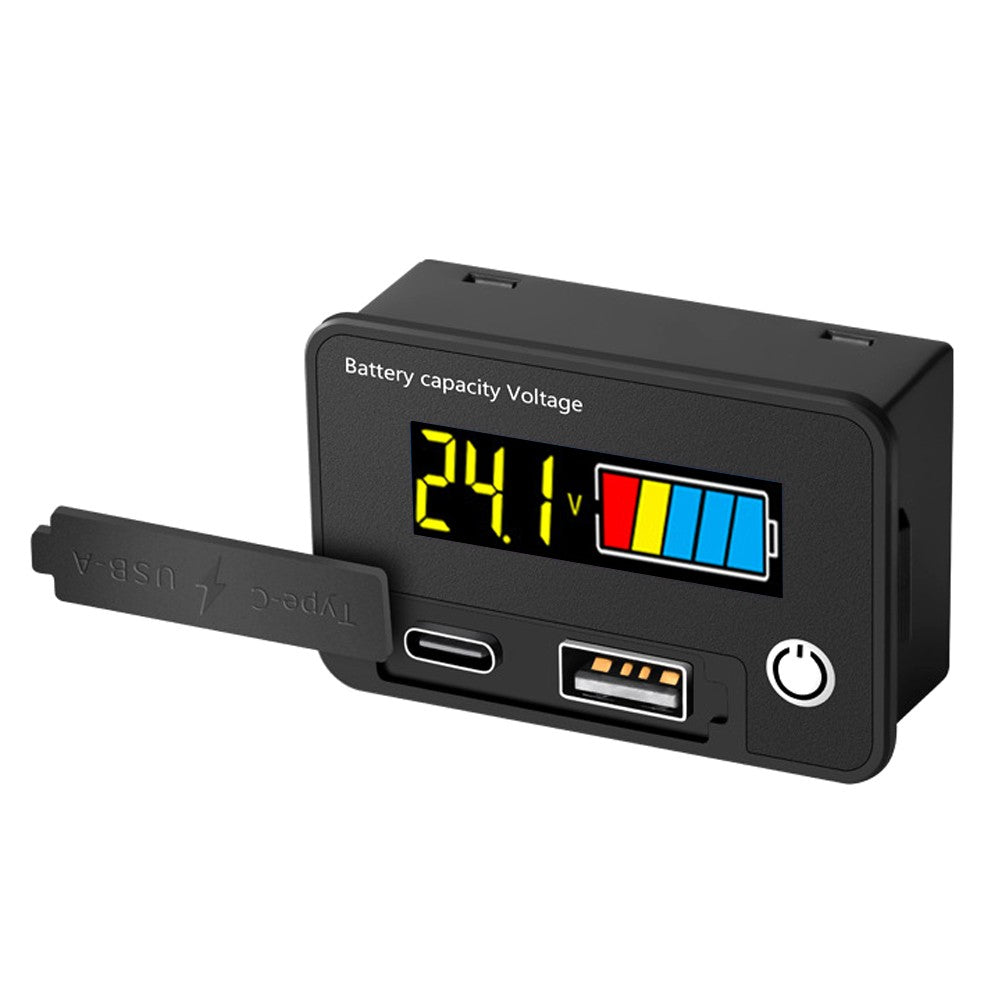

• Color: Green, Blue, White, Multi-color (optional)
• Voltage Detection Range: 8-30VDC
• Detection Accuracy: ±1%
• Operating Current: <15mA (without charging function)

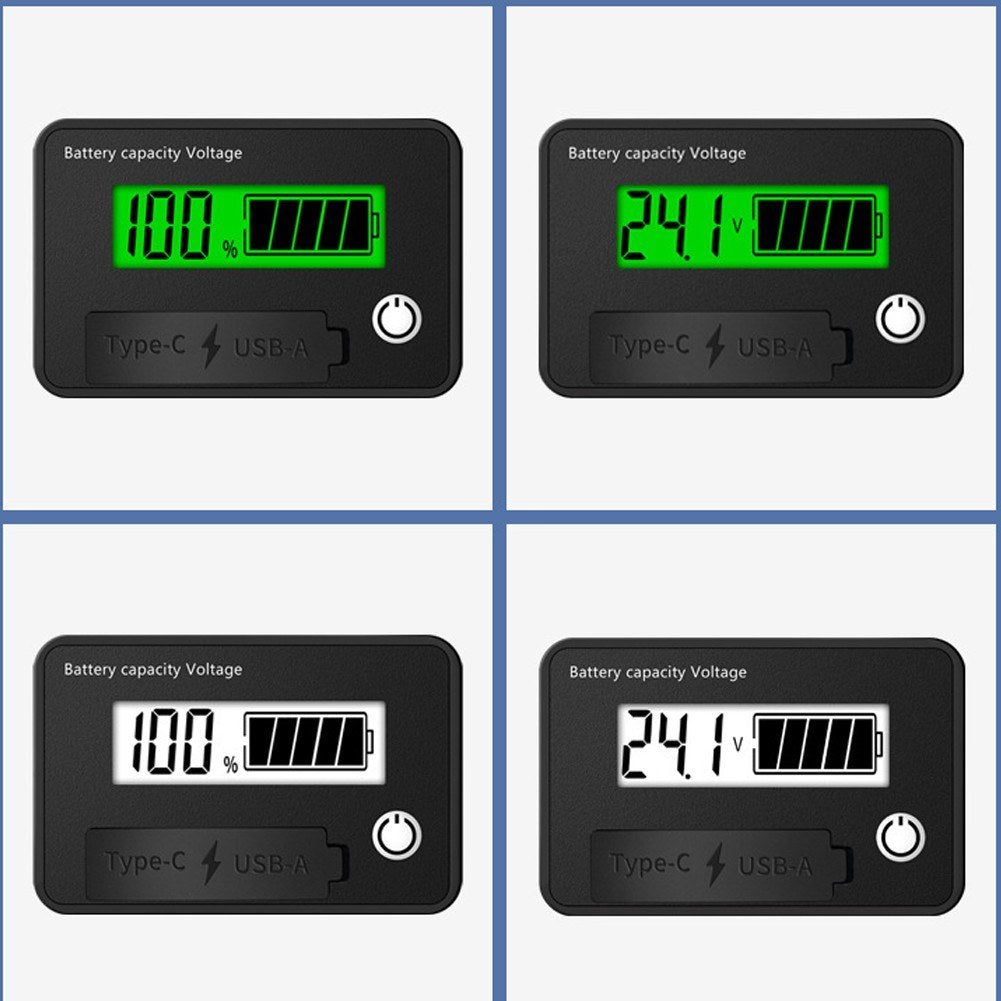

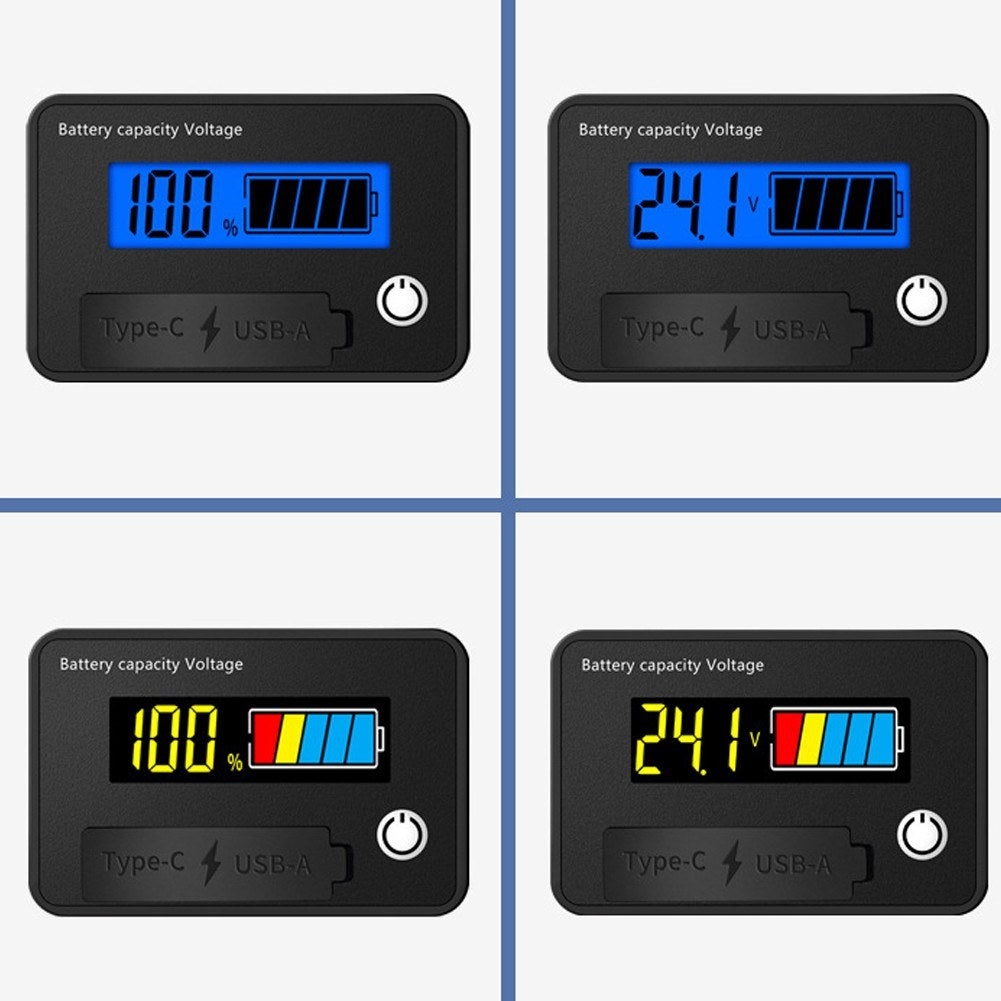

• Display: LCD screen
• USB Output: Quick recharging 2.0/3.0, maximum output 18W (5V-3.4A, 9V-2A, 12V-1.5A)
• Type-C Output: Quick recharging 2.0/3.0, maximum output 18W (5V-3.1A, 7V-2.4A, 9V-2A, 12V-1.5A)
• Refresh Speed: 500ms/time

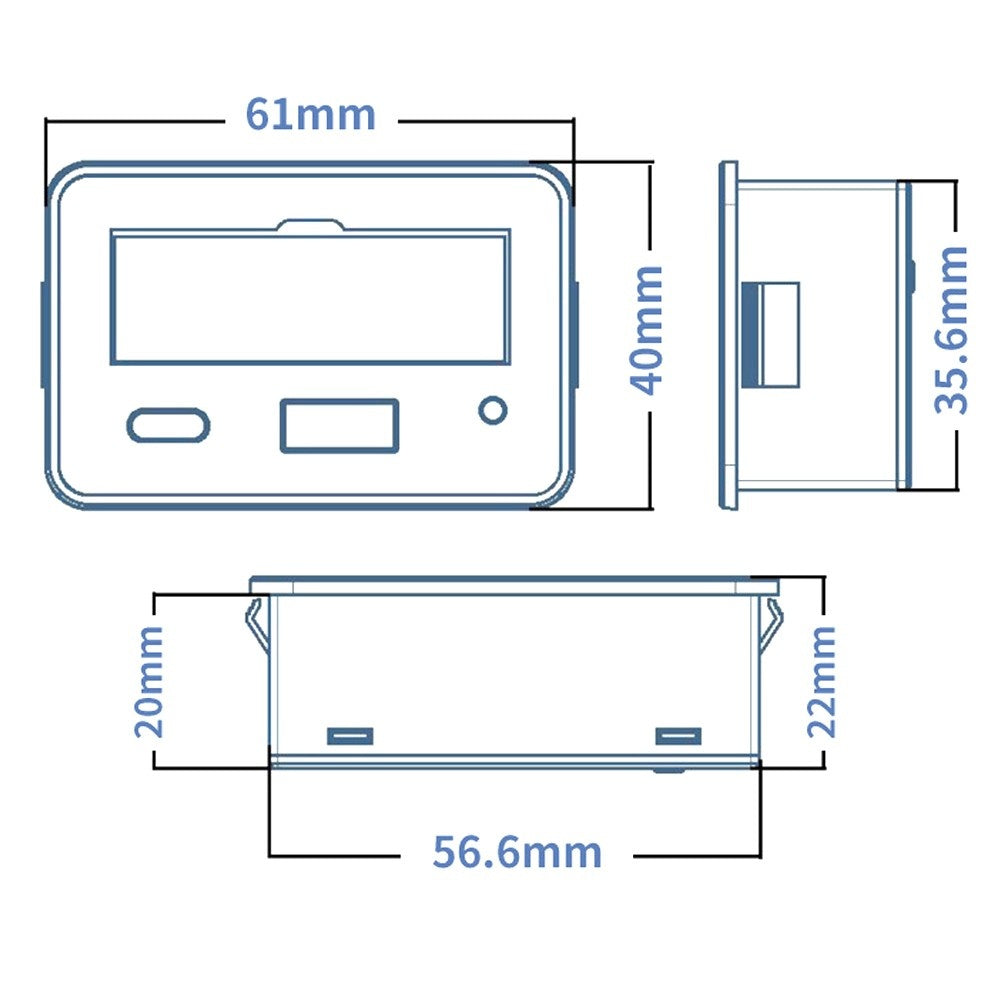

• Installation Size: 58.5mm x 36.5mm / 2.30in x 1.44in

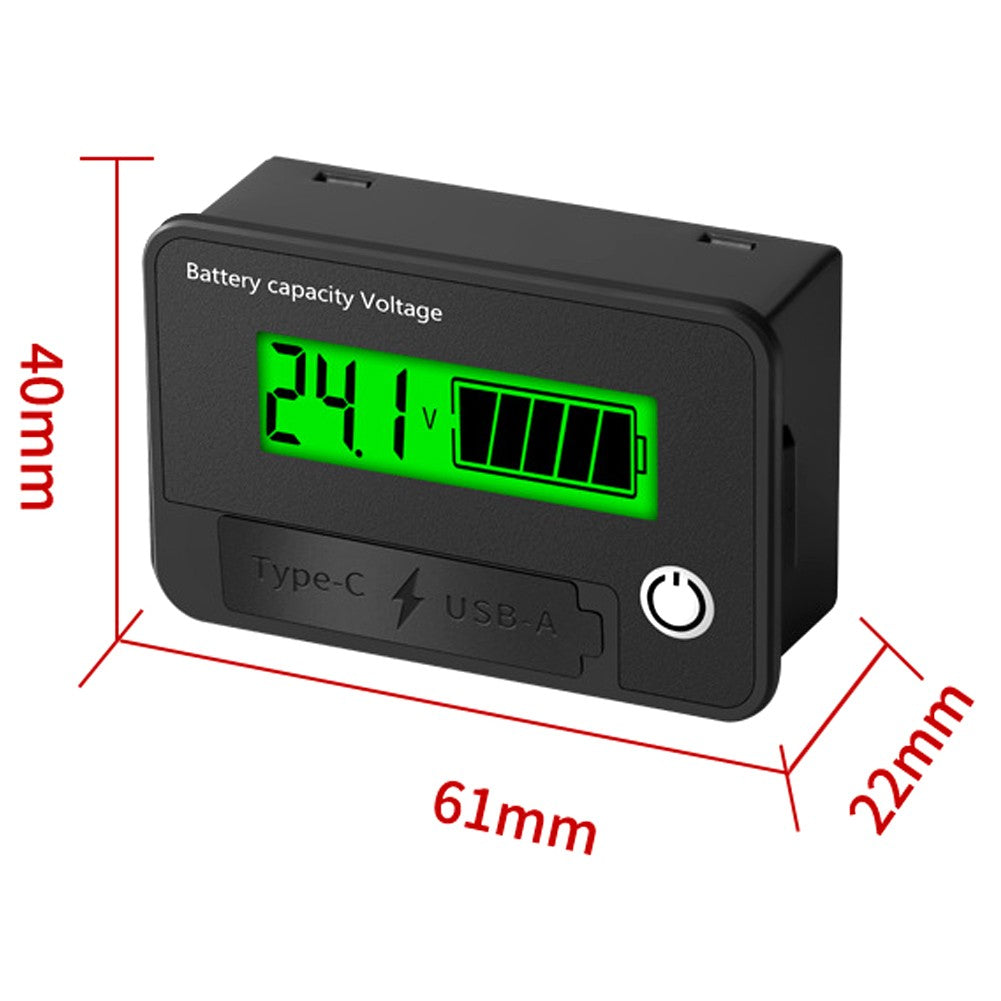

• Item Size: 61mm x 40mm x 22mm / 2.40in x 1.57in x 0.87in
• Package Size: 63mm x 42mm x 24mm / 2.48in x 1.65in x 0.94in
• Package Weight: 34g / 1.20oz

Packing List

• 1 x Battery Capacity Voltage Tester
