ZigBee Smart Relay Module 1/2/4CH Voice-Controlled Switch Compatible with Alexa & Google Home Requires Tuya Hub

Product Details

Description

The ZigBee-Enabled Smart Switch is a versatile interlock/jog/self-locking switch compatible with various hubs, including SONOFF Bridge, Amazon Hub, Samsung SmartThings Hub, Philips Hue Hub, and Tuya Smart Bridge. It pairs quickly using the ZigBee 3.0 protocol. Safety is assured with a fire-proof, flame-retardant shell and AES-128 encryption for data privacy. It also functions as a ZigBee router, ensuring stable connections with multiple devices at home.

Technical Specifications

• 4 Channels:
  • Working voltage: AC/DC 7-32V / USB 5V or AC 85-250V / USB 5V
  • ZigBee standard: 3.0
  • Max load: 10A per channel, 16A total
  • Radio frequency: 433MHz
• 2 Channels:
  • Input voltage: DC/AC 7-32V / USB 5V or AC 85-250V / USB 5V
  • Max. Current: 2200W at 10A
  • ZigBee standard: 3.0
  • Radio frequency: 433MHz
  • Operating temperature: -20°C to 70°C
• 1 Channel:
  • Input voltage: DC/AC 7-32V / USB 5V or AC 85-250V / USB 5V
  • Max. Current: 2200W at 10A
  • ZigBee standard: 3.0
  • Radio frequency: 433MHz
  • Operating temperature: -20°C to 70°C

Features

• Supports ZigBee gateway control
• Manage numerous ZigBee smart switches on a single smartphone
• Real-time status tracking in Tuya/Smart Life app
• Remote control of household appliances like lights, kettles, and curtains
• Eight-time schedule/countdown/cycle timers per device
• Voice control compatibility with Amazon Alexa and Google Assistant
• RF Control: Compatible with 433MHz RF remote controls

Package Includes

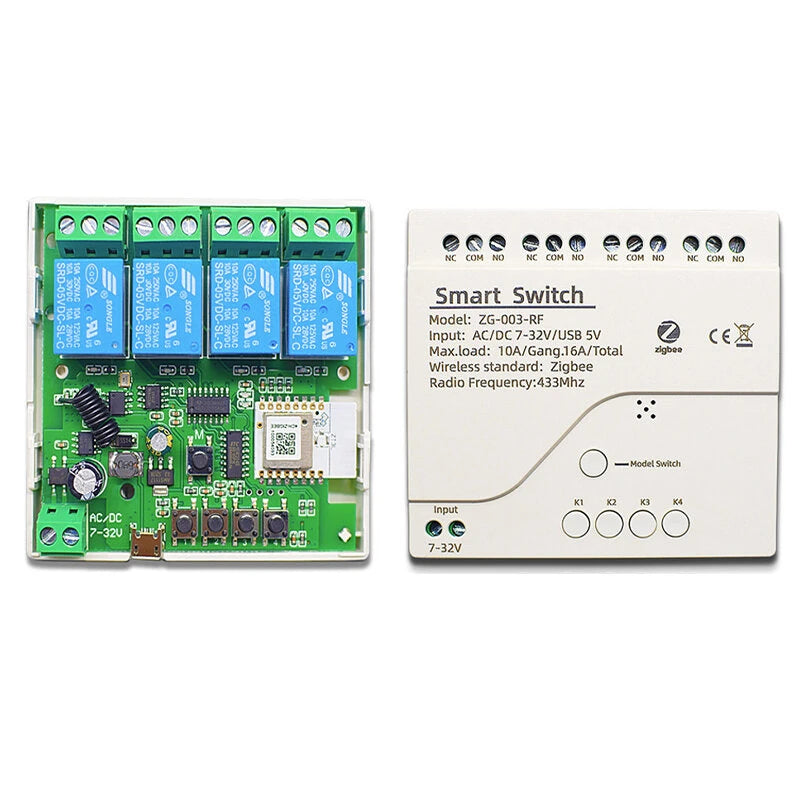

• 1x Relay Board
• 1x Shell

Checklist Before Use

Please ensure the device is used with a ZigBee gateway. Be near the gateway during pairing.

Working Modes

1. Inching Mode: Activates a channel for a set time, adjustable within the app.
2. Self-locking Mode: Each channel can be toggled on/off independently.
3. Interlocking Mode: Activating one channel automatically deactivates others.

To change modes, press the mode button on the device.
