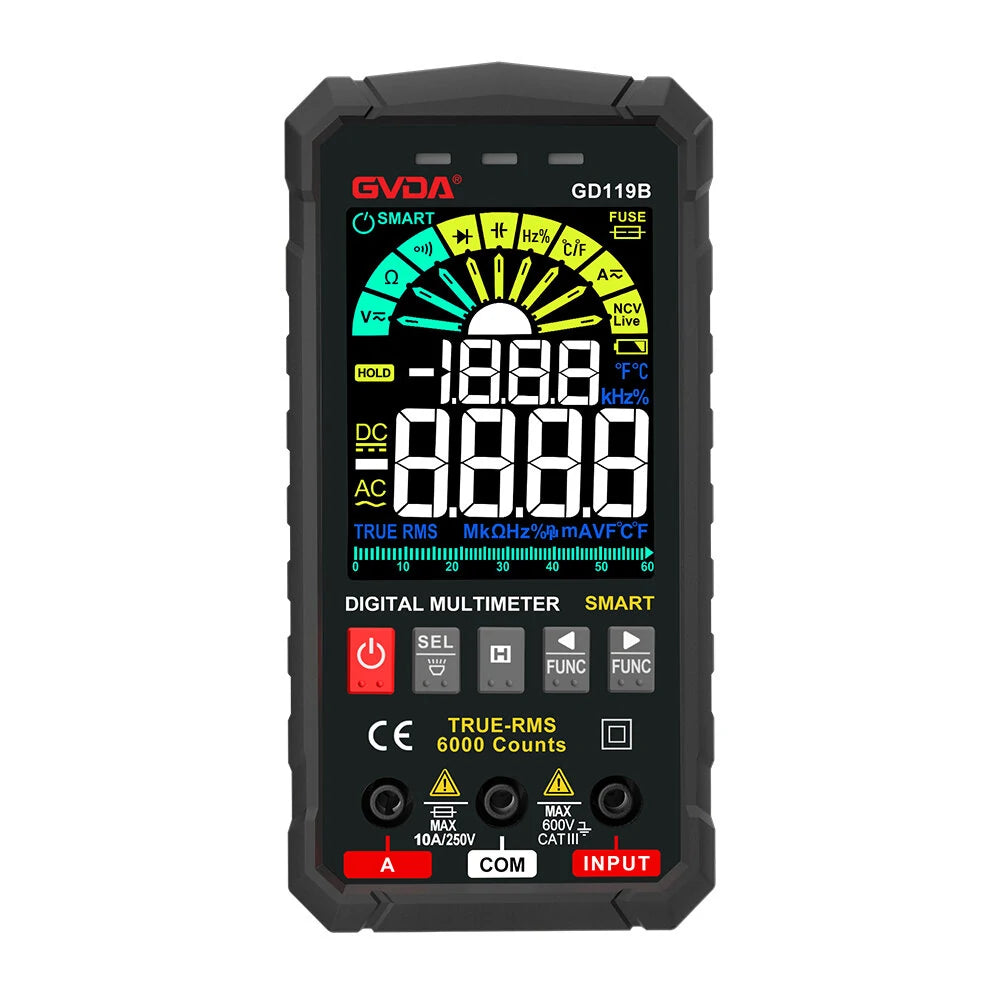

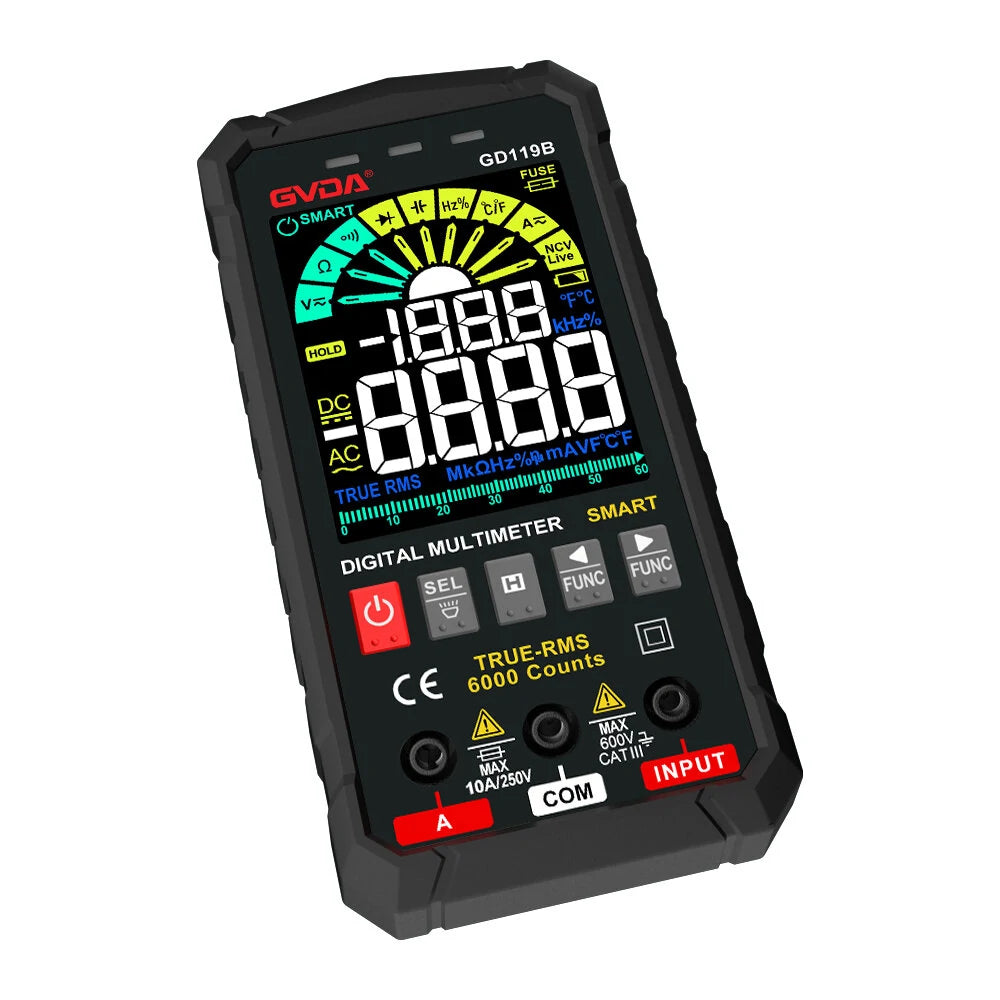

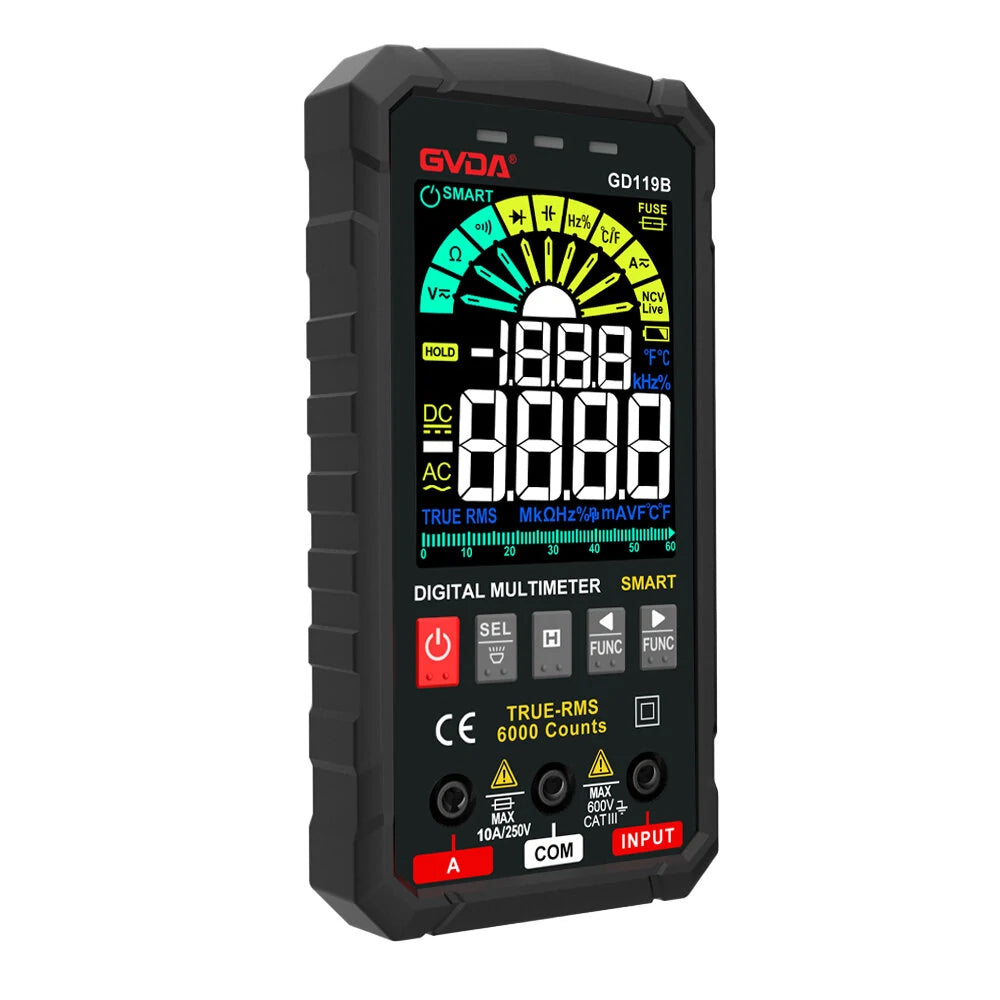

GVDA Digital Multimeter 600V True RMS AC/DC NCV Smart Tester Ohm Capacitance Hz Voltage Meter

Product Features

• High-Precision Measurement: The GVDA digital multimeter offers reliable and accurate readings with DC Voltage measurement up to ±(0.5%+3). Ideal for professionals seeking precision and efficiency.
• User-friendly LCD Display: Features a large VA color HD LCD display for clear reading even in low light conditions. Maximum display count of up to 6000 enhances reading precision.
• Comprehensive Functionality: Includes auto-range, manual range, low voltage display, and input jack LED indication, setting it apart in the market.
• Enhanced Safety Measures: Equipped with overload protection, a fuse burning prompt, and a low battery indication for maximum safety during use.
• Multi-purpose Device: Measures AC/DC voltage, resistance, continuity, and frequency. Smart functions and auto identification of current input add practicality.

Specifications

• Brand: GVDA
• Model name: GD119B
• DC Voltage: 600mV/6V/60V/600V ±(0.5%+3)
• AC Voltage: 6V/60V/600V ±(0.8%+3)
• DC Current: 600mA/6A/10A ±(1.2%+3)
• AC Current: 600mA/6A/10A ±(1.2%+3)
• Resistance: 600/6k/60k/600k OHM ±(1.0%+5); 6m/60m OHM ±(1.5%+10)
• Capacitance: 6nF/60nF/600nF/6uF/60uF/600uF ±(4.0%+5); 6mF/60mF ±(5.0%+5)
• Frequency: 6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1.0%+3)
• Duty: 1.0%-99.0% ±(1.0%+3)
• Temperature: -40~1000°C; -40-1832°F ±2°C
• Counts: 6000 counts
• Display: HD Colour Display with Analog Bar/Gear Display
• Smart Function: AC/DC Voltage, resistance, and continuity with auto identification of current input
• NCV/Live/Continuity Test: Yes (sound and light alarm)
• Continuity: Yes
• Diode Test: Yes (sound alarm) (0-3V)
• Bargraph/Data Hold/True RMS: Yes
• Fuse Burning Prompt: Yes
• Input Jack LED Indication: Yes
• Low Battery Indication: Yes
• Auto Power Off: Yes
• Flashlights: Yes
• Power Supply: 4pcs AAA Batteries (not included)
• Product Size: 113x68x19mm
• Package Size: 170x95x50mm
• Package Weight: about 400g

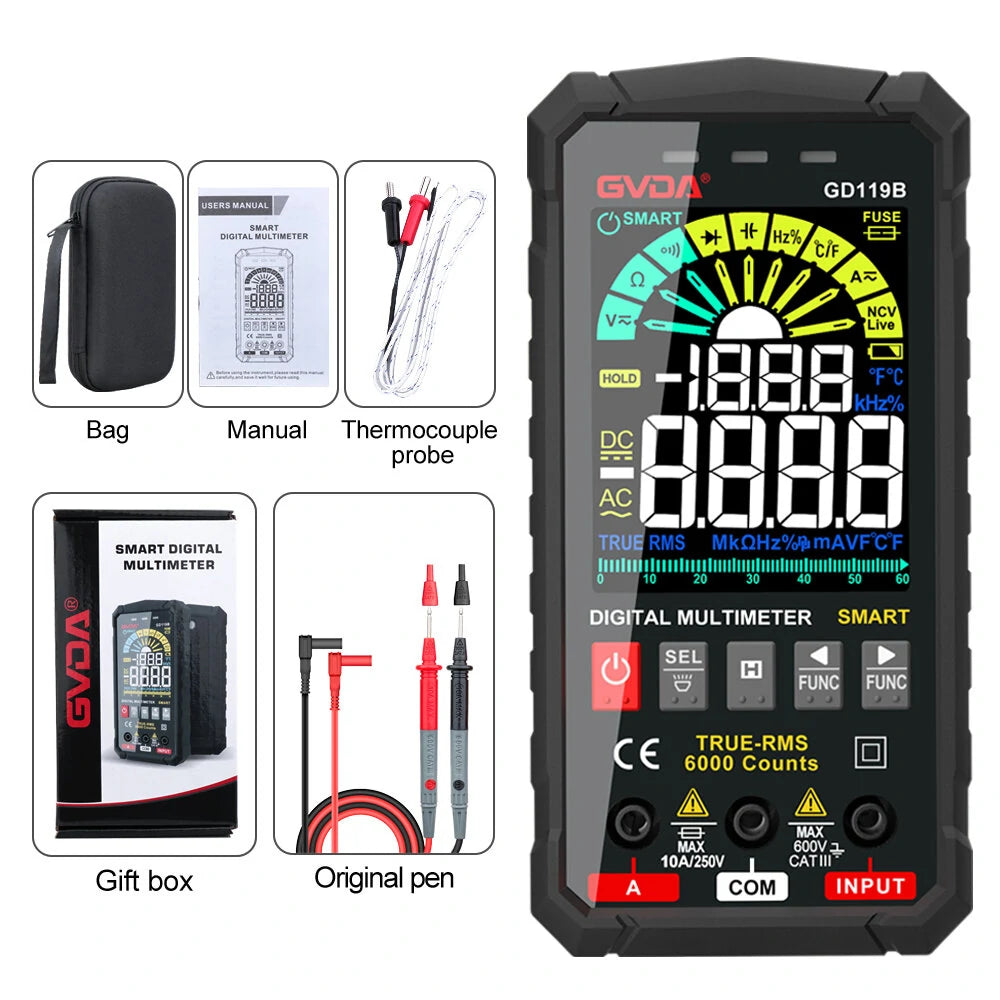

Package Included

• 1 x Multimeter

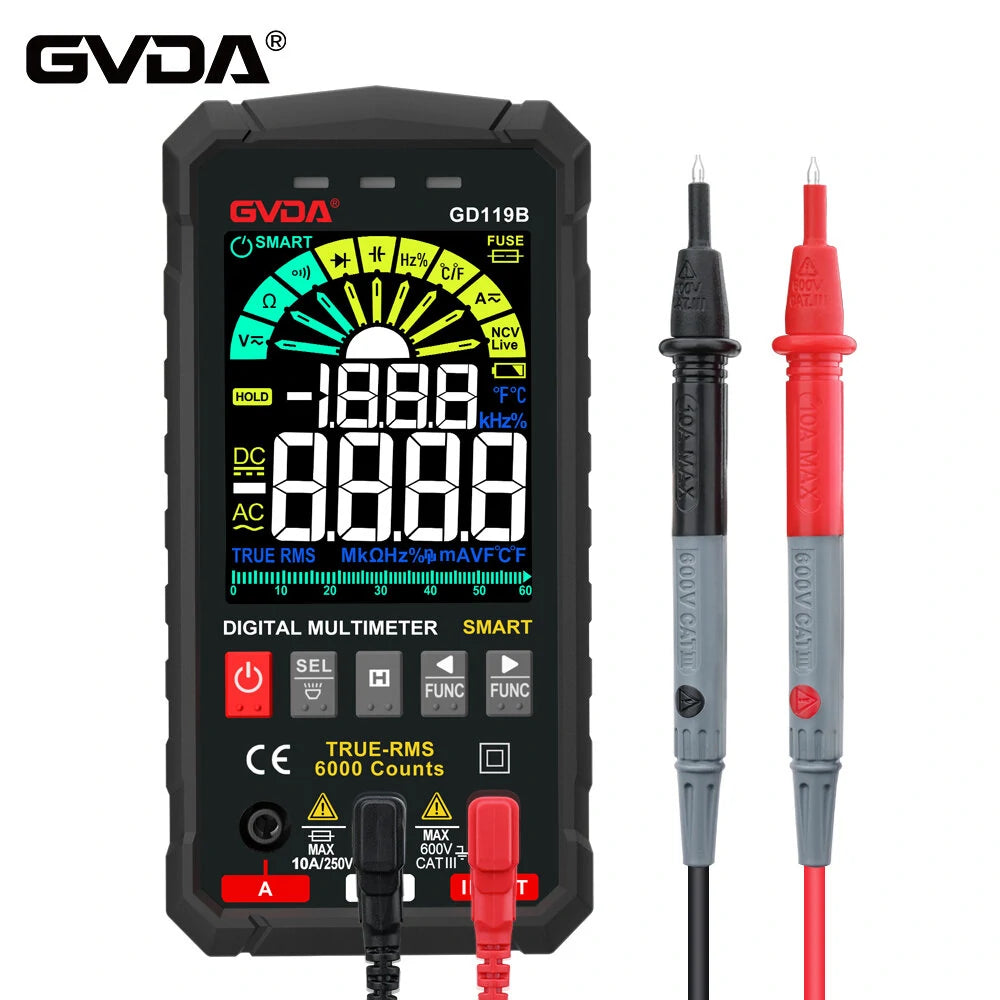

• 1 x Pen Cable

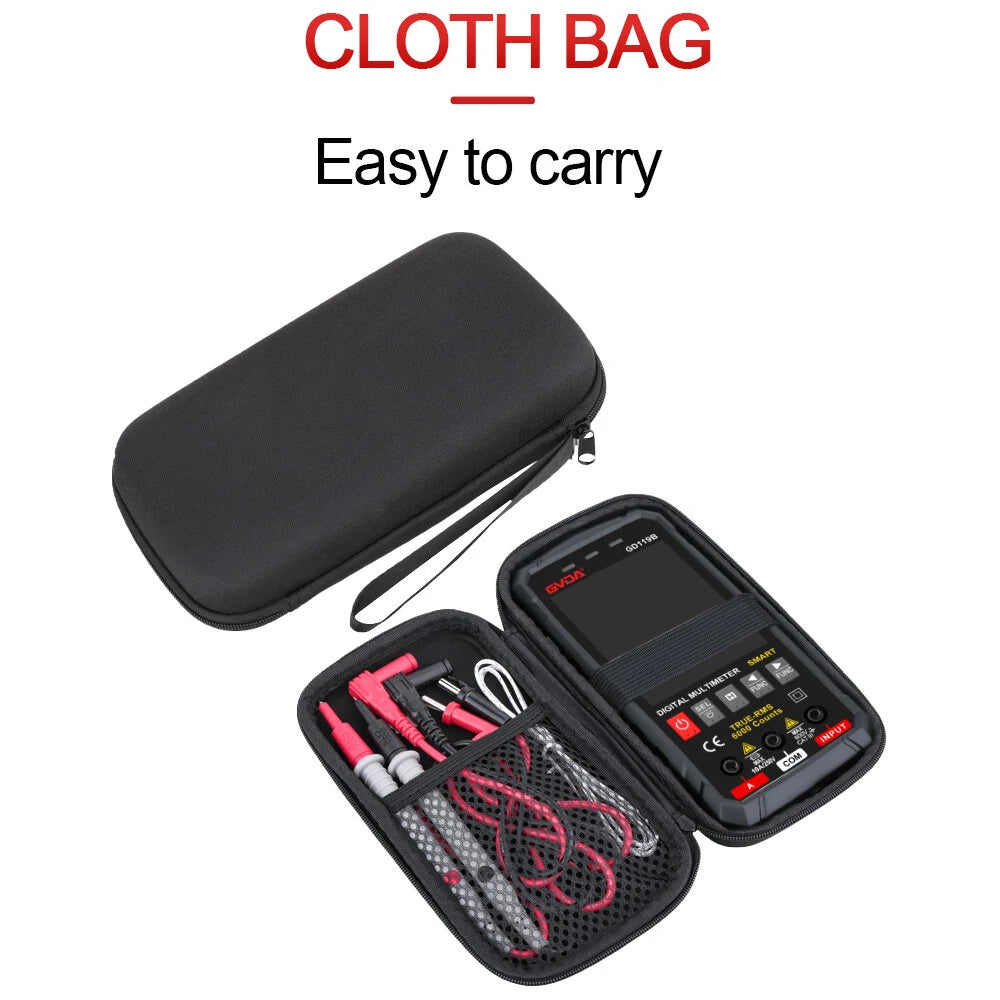

• 1 x Cloth Bag
• 1 x Thermocouple Probe
