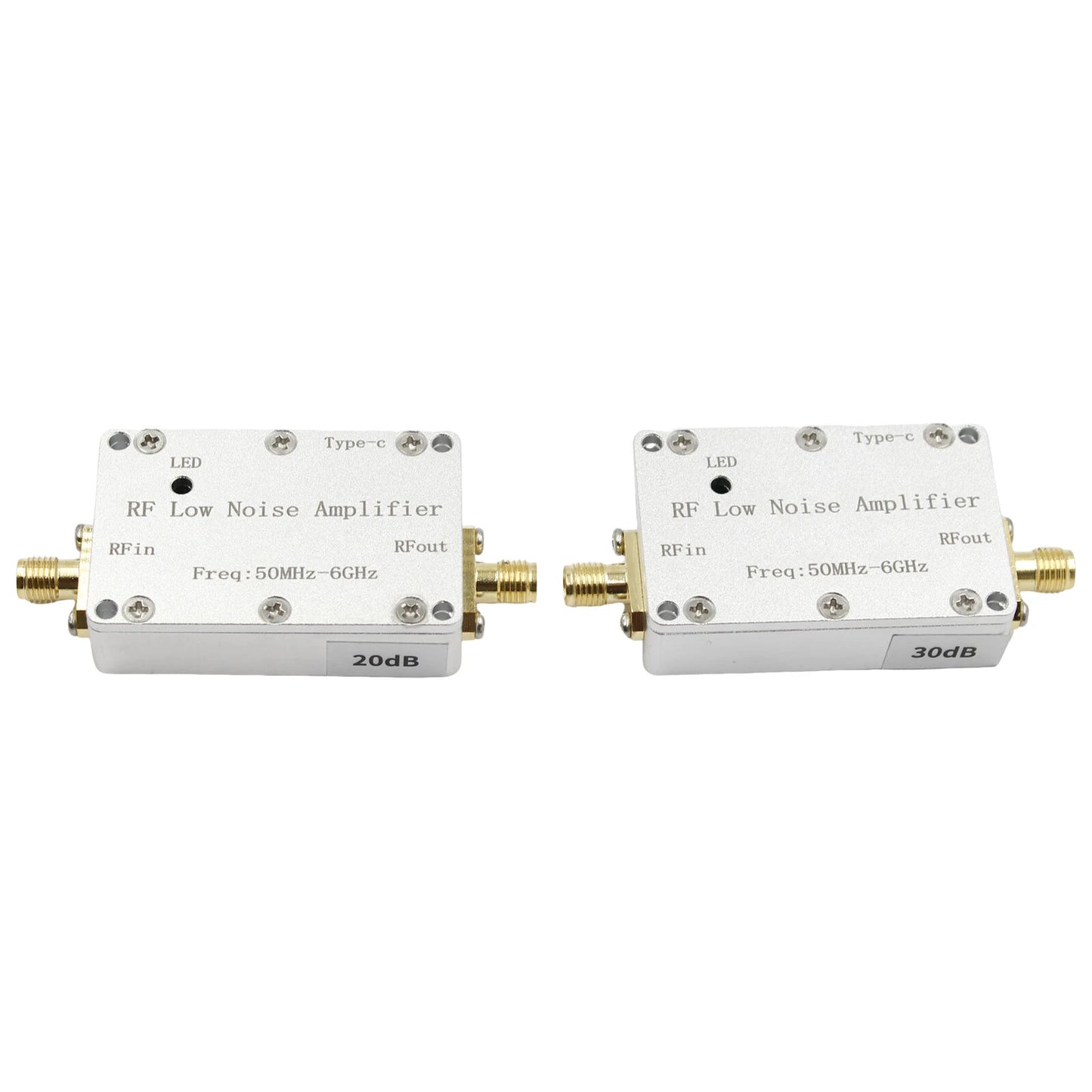

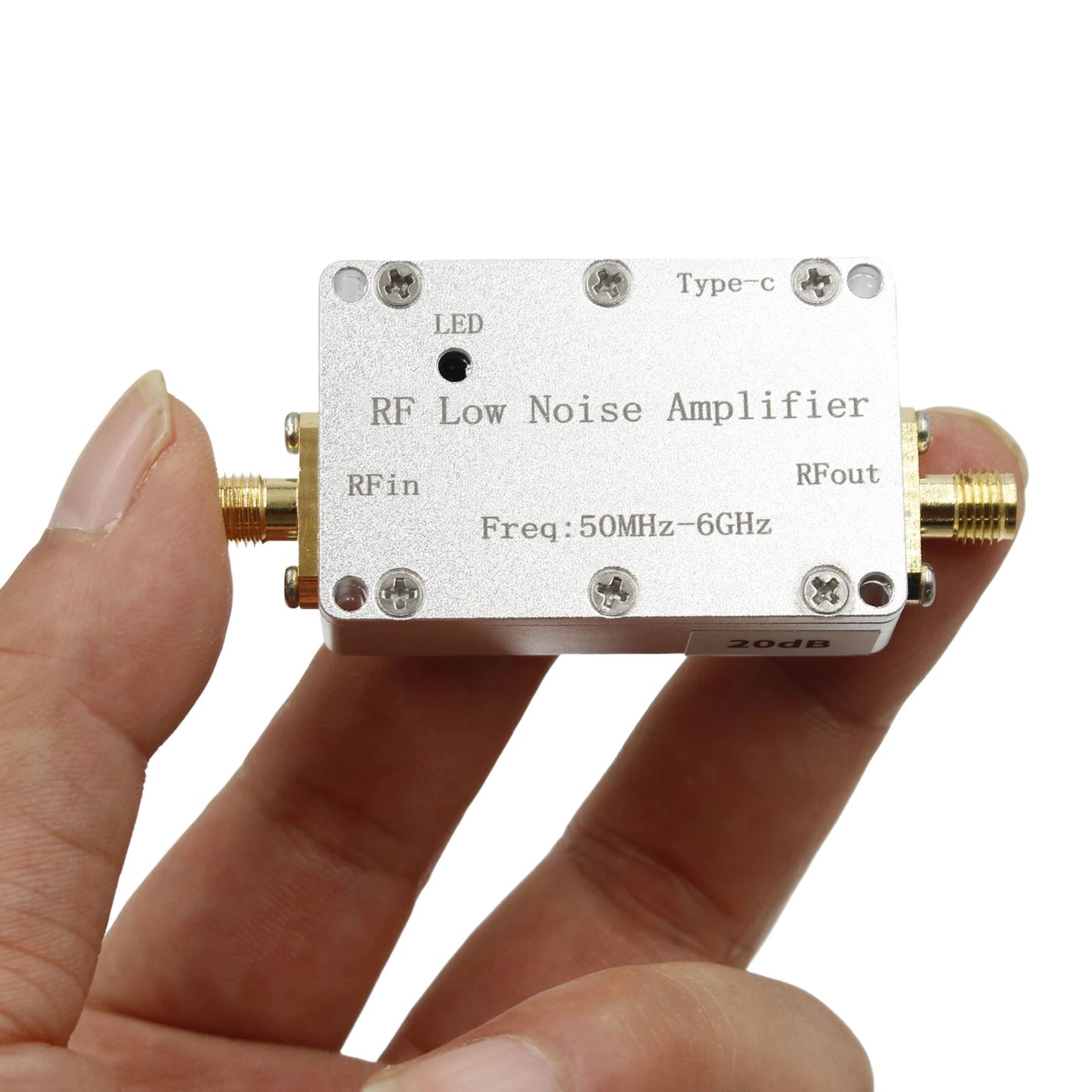

Wideband LNA Receiver Amplifier 20-30dB Gain, 50MHz-6GHz, Low Noise, SMA Interface for GPS/FM Radio

Specifications:

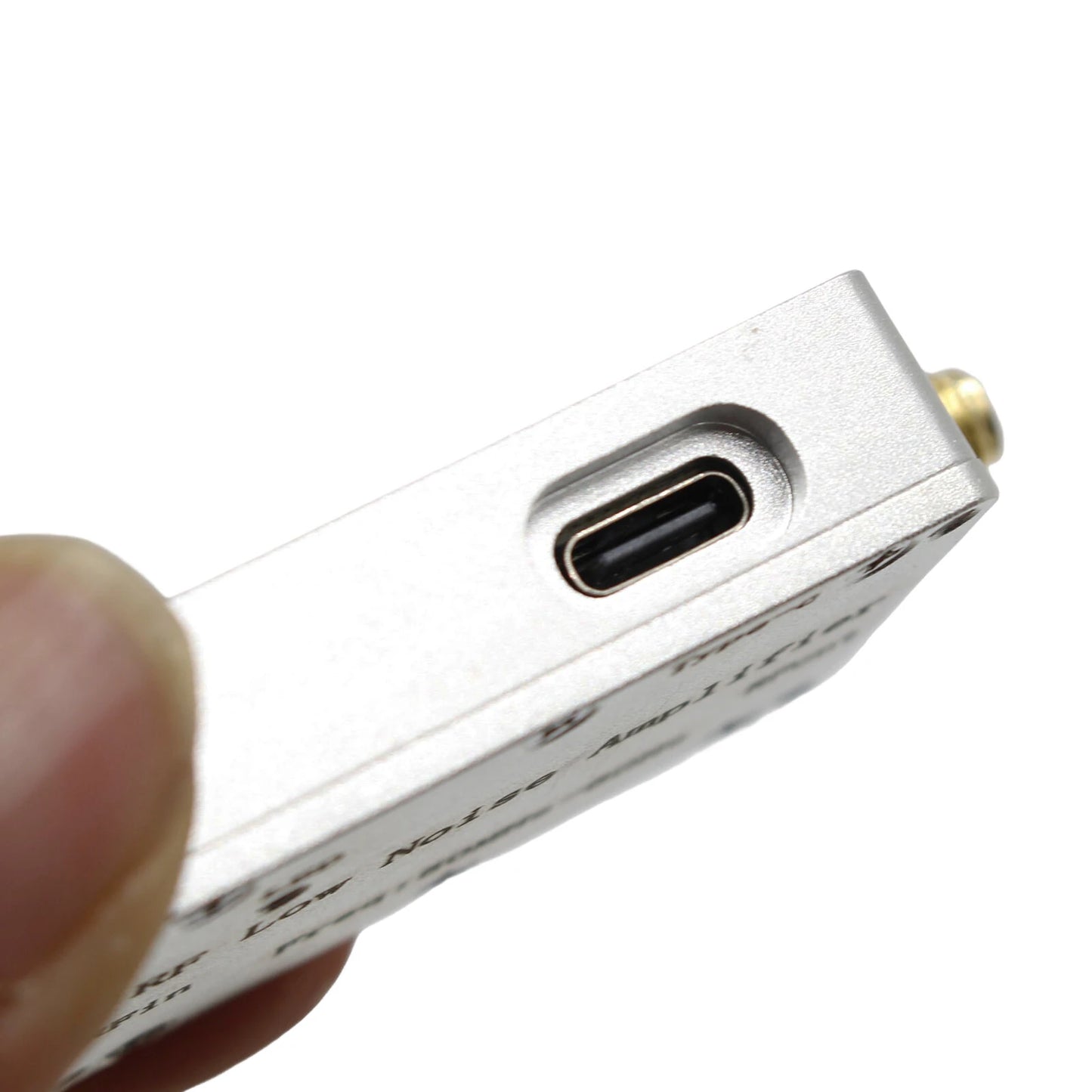

• Power Supply: TYPE-C line
• Noise Figure: 4-5dB (varies by frequency)
• Gain: 20dB, 30dB (varies by frequency)
• Frequency Range: 50MHz - 6GHz
• Dimensions: 4.5 x 3 x 1.4cm (excluding protruding SMA)
• Weight: 66g (including host and TYPE-C cable)
• Current:
• P1dB: 18dBm @ 2GHz

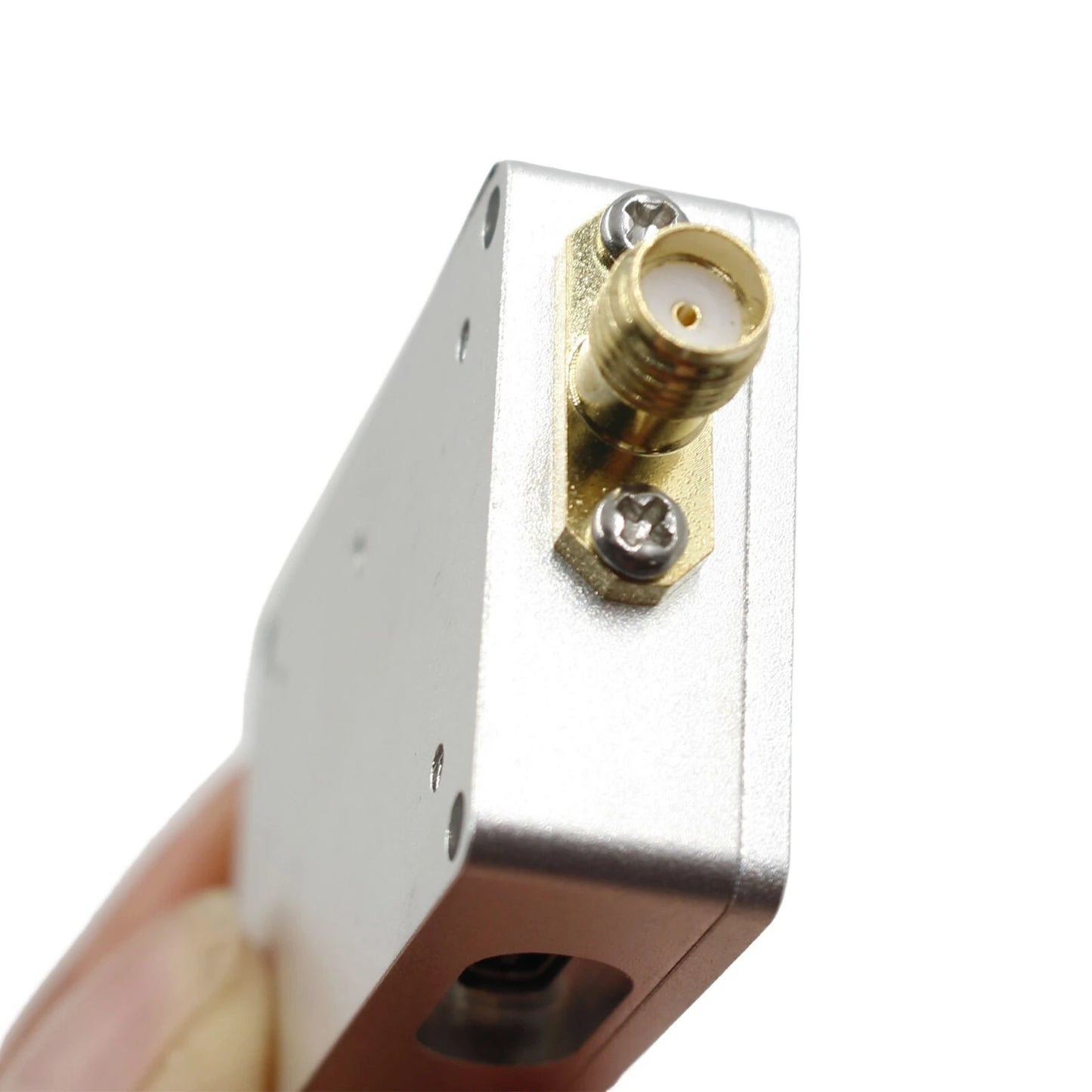

• Output Interface: SMA female, input-output impedance 50 ohms

Features:

• Wide Frequency Range: Covers an extensive frequency range from 10MHz to 6GHz, making it versatile for various applications including GPS, FM radio, and radar reception.
• High Gain Performance: Offers multiple gain options (20dB, 30dB) to suit different amplification needs, ensuring optimal signal strength.
• Low Noise Figure: Features a competitive noise figure of 4-5dB, enhancing signal clarity and quality across different frequencies.
• Compact and Lightweight: With dimensions of 4.5 x 3 x 1.4cm and weighing just 66g (including TYPE-C cable), it is easy to integrate into various systems without adding bulk.
• Robust Output Interface: Equipped with an SMA female output interface and 50-ohm impedance, ensuring stable connectivity and performance.

Package Included:

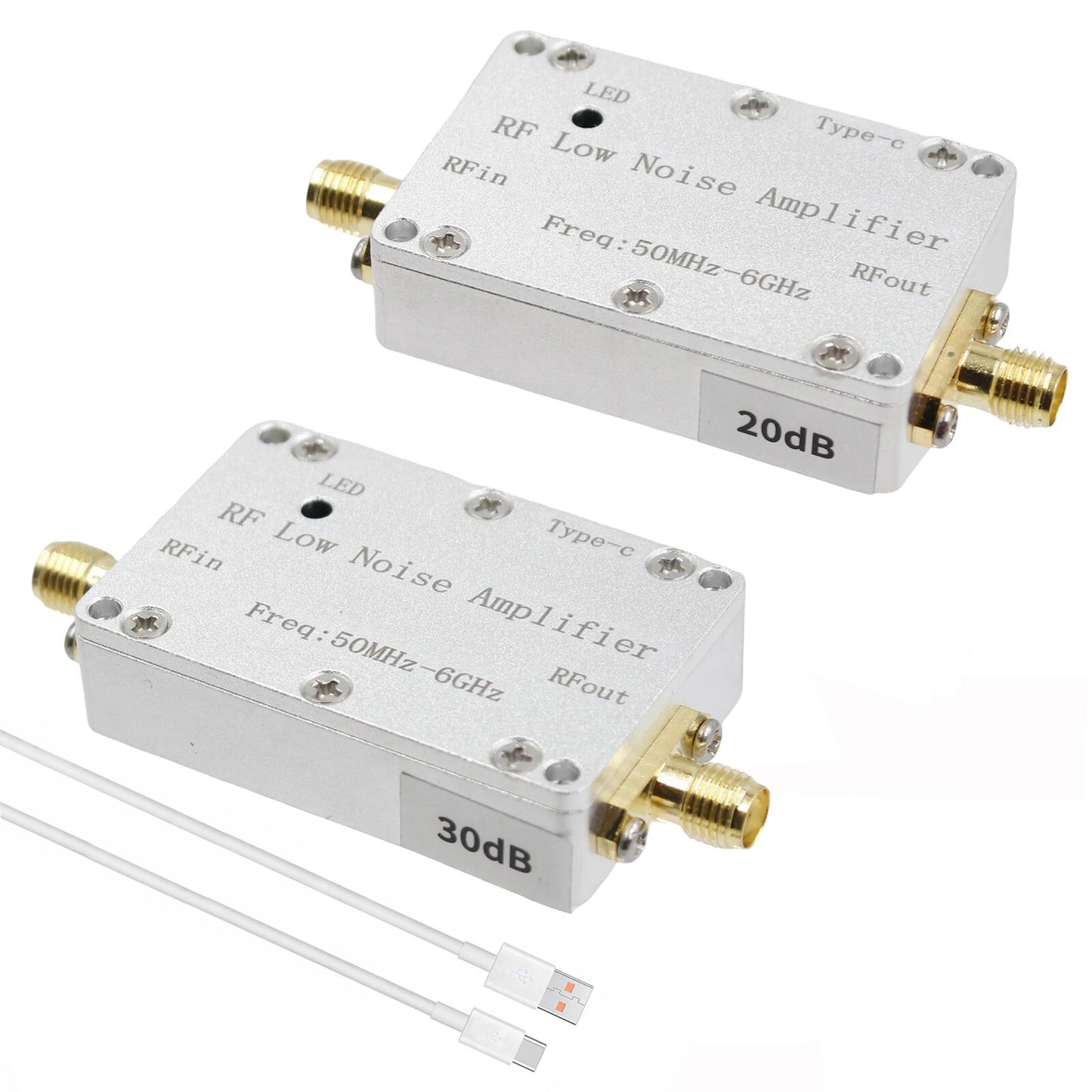

• Type A:
• 1 x Host with Aluminum Alloy Shell (20db)
• 1 x TYPE-C Cable
• Type B:
• 1 x Host with Aluminum Alloy Shell (30db)
• 1 x TYPE-C Cable
